Prepare Construction Equipment For Winter Storage

Whether getting equipment ready for storage or a hard-working winter, here are a few steps you will want to follow.
Prepare Construction Equipment For Winter Storage
When working in cold weather, give your equipment time to warm up before putting it to work.

Interested in Excavating?

Get Excavating articles, news and videos right in your inbox! Sign up now.

Excavating + Get Alerts

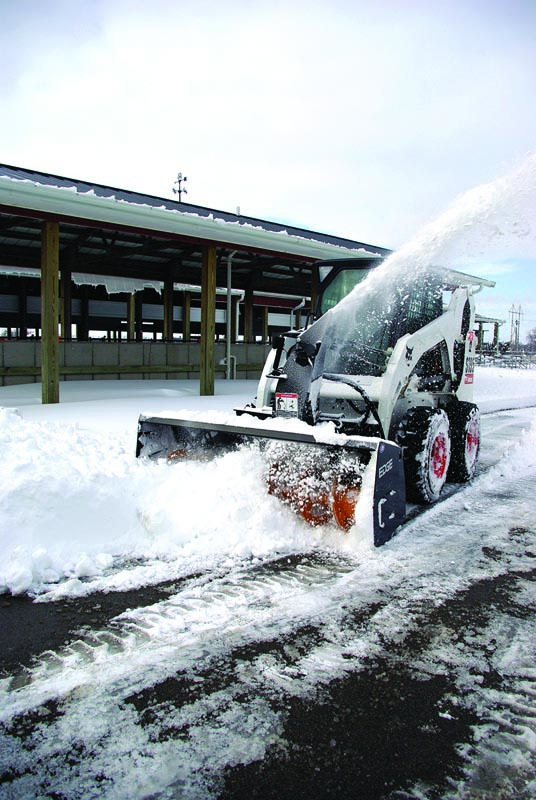

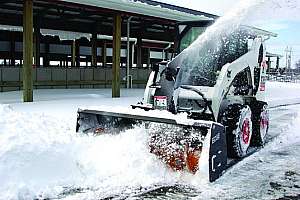

Depending on where you live, the winter chill may already be in the air. Hopefully, you’ve taken the time to properly store your equipment for spring. Or maybe you plan on using it year-round. A skid-steer loader, after all, makes a handy snow removal tool.

In either case, your operator’s manual is a good place to start. Each piece of equipment is unique and requires its own shutdown procedures.

Shutting down until spring?

Typically, winterization includes a multipoint inspection of your equipment: lubricate and/or replace parts; drain and/or change fluids, oil and filters; check tires; and inspect the brakes, steering and gearboxes. This is also a good time to check the hours on your machine to see if it’s due for required maintenance.

Lars Arnold, product manager for compact equipment at Volvo Construction Equipment, says after referring to the operator’s manual, it’s a good idea to clean the machine, removing all dirt and corrosive materials.

“Grease the machine’s moving parts; don’t miss any grease points,” he says. “Check the machine for oil leaks and damage.”

That includes engine oil as well as hydraulic fluids and lines, topping off as needed. And don’t forget the windshield fluid. Arnold prefers using soap and water for summer, but switching out to an approved winter washer formula when temperatures dip to prevent damaging fluid reservoirs. He also recommends filling the fuel tank to prevent condensation and be sure the coolant is suited to your environment. It’s also a good idea to use a fuel stabilizer.

Keep the tracks clean

If possible, store the machine inside, but if left outdoors, don’t park it in the mud, especially tracked vehicles. It’s also a good idea to jack your skid-steer wheels at least an inch off the ground to prevent flat spots.

“This will cause unnecessary wear and tear on the tracks if it becomes frozen to the ground,” Arnold says. “Get some 2-by-8s or 2-by-12s and park the machine on the wood.”

Arnold also recommends retracting all hydraulic cylinders, lowering the attachments to the ground and releasing the hydraulic pressure.

“If needed, apply a thin layer of grease or petroleum jelly to all exposed cylinder piston rods so you don’t get rust.”

He also suggests removing the battery and keeping it in a warm, dry place. “Put the battery on trickle charge or charge the battery periodically,” he says. “Cover the machine with a tarp so you don’t get moisture and snow buildup.”

Warm it up

Arnold recommends periodically (monthly) starting the machine and running it until the engine reaches working temperature. Remove the grease from the cylinder pistons, check all fluid levels and carefully operate the hydraulic controls, making sure they function properly.

“Get the machine nice and warm and then put it back in storage,” he says. “If the temperature is extremely low, like in the northern states or Canada, we recommend changing the hydraulic oil to an arctic oil. But again, this is different from machine to machine.”

Working in winter?

Of course, not everyone shuts down until spring. If you plan on working your equipment this winter, be sure the diesel fuel is winter blend. Arnold says there’s no need for additives unless you still have a summer blend in the tank.

“The other thing I would strongly recommend, besides checking the fluids for winter operation, is installing a block heater to ease engine starting and for comfort,” he says. “And maybe a programmable diesel auxiliary heater; set it for an hour before you start working, that way the engine coolant and oil are already heated. When you start the engine it gets warm right away inside the cab.”

Take time to stretch

Winter or summer it’s always a good idea to idle down your equipment before shutting it off, especially a turbocharged engine, and give it time to warm up before you begin working.

“It’s like an athlete, an athlete never comes out the locker room and starts playing; he always stretches and does warm-up exercises,” Arnold says. “You need to do the same with your equipment. Before you start operating the machine hard, you need to make sure the engine is warmed up and the hydraulic oil is warmed up.’’ He says an excavator started at -20 degrees F needs time to get the oil warmed and moving in the cylinders and through the control valves.
