Product Focus - August 2021

Product Focus - August 2021

Delta Treatment Systems ECOPOD

Interested in Systems/ATUs?

Get Systems/ATUs articles, news and videos right in your inbox! Sign up now.

Systems/ATUs + Get Alerts

Advanced Treatment Units

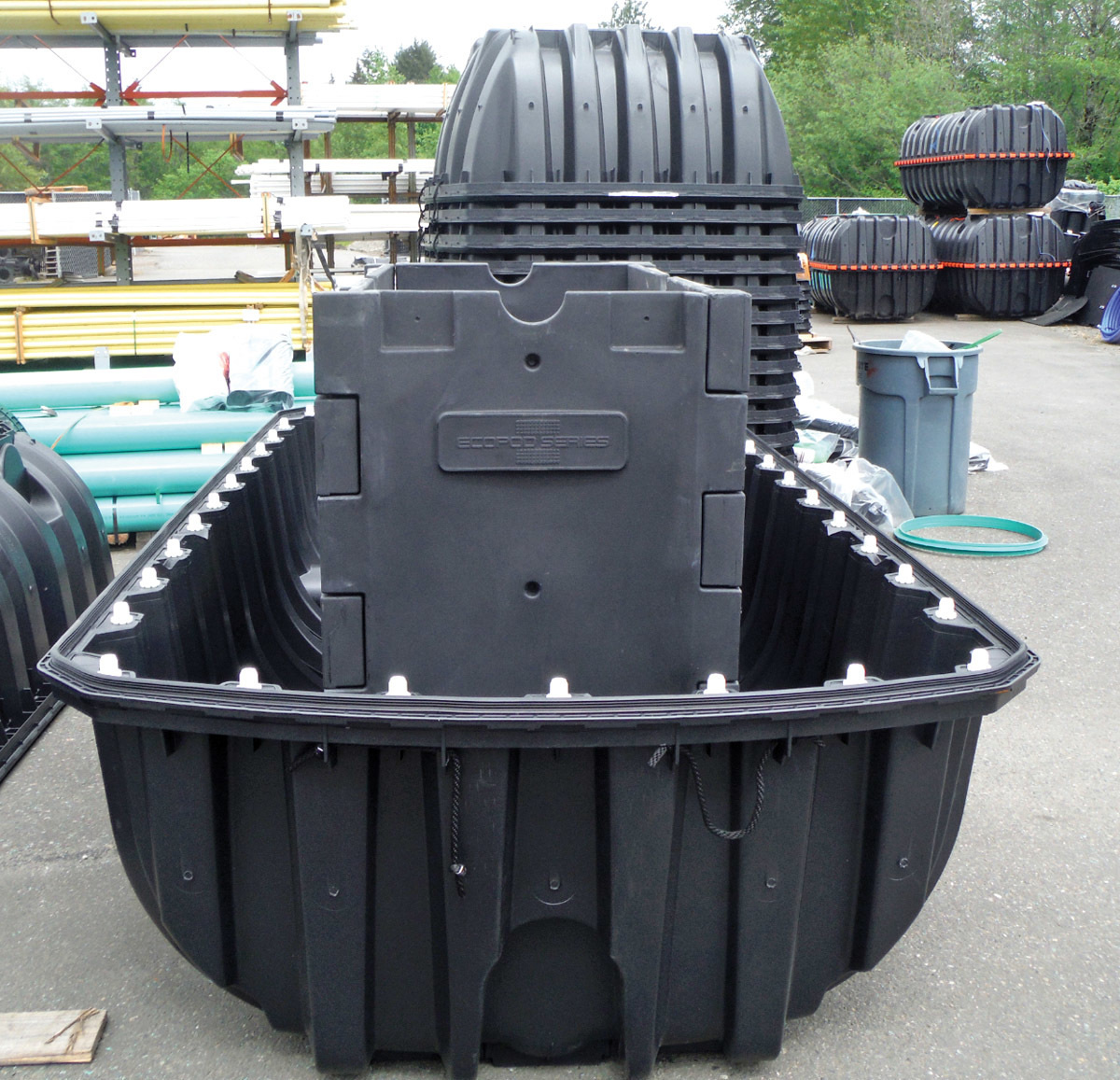

Delta Treatment Systems ECOPOD
The ECOPOD for advanced wastewater treatment from Delta Treatment Systems is a series of products that are easy to install, low maintenance and effective in reducing levels of nitrogen, BOD and TSS. The design is simple, can treat 500 to 1,500 gpd for residential systems and up to 250,000 gpd for commercial systems, and is NSF/ANSI 40 and 245 certified. The intra-tank bioreactor can be inserted into an average sized round or rectangular concrete, fiberglass or plastic onsite wastewater treatment tank or vault. It uses a fixed-film process that is stable, reliable and robust, according to the maker. It is customizable for individual residential installations, cluster designs and small- to medium-size commercial applications. The ECOPOD system is FHA- and VA-acceptable and is suitable for intermittent usage. Minimum sludge production reduces pumpout frequency, and a remote monitoring system is available.  800-219-9183; www.deltatreatment.com

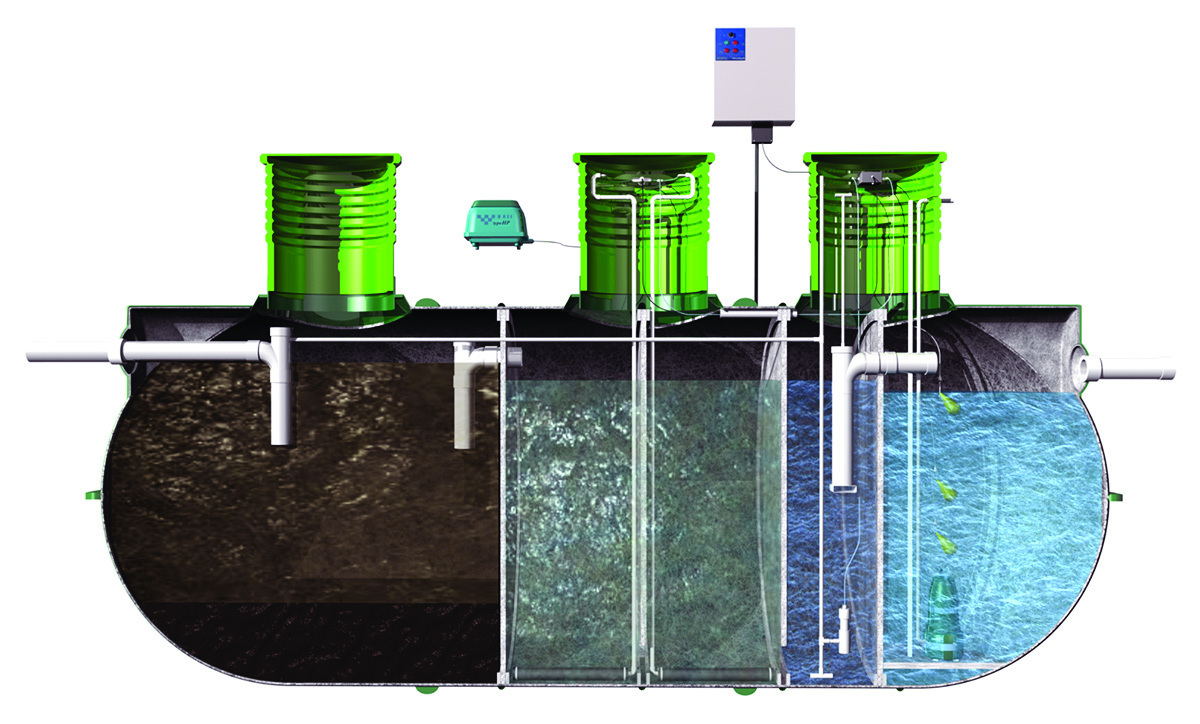

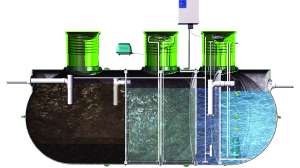

MicroSepTec EnviroServer ES
The MicroSepTec EnviroServer ES series utilizes five chambers to achieve primary settling, treatment and clarification in one tank. The units use a moving-bed biological reactor made specifically for the residential market. The first compartment of the system is the primary clarifier for settling sludge and solids. The second section houses the first of two aeration chambers and contains biomedia providing surface area to promote a healthy population of microorganisms. The third compartment is used for further aeration to amplify the growth of nitrifying bacteria and the process of nitrification. The fourth chamber is the final clarifier where suspended solids settle out. Wastewater is then recirculated back to the primary clarifier in the first compartment, which contains enough carbon to promote denitrification removing high levels of nitrate. Clarified water then moves through an effluent filter before entering the fifth compartment, an effluent chamber for storage. 877-473-7842; www.microseptec.com

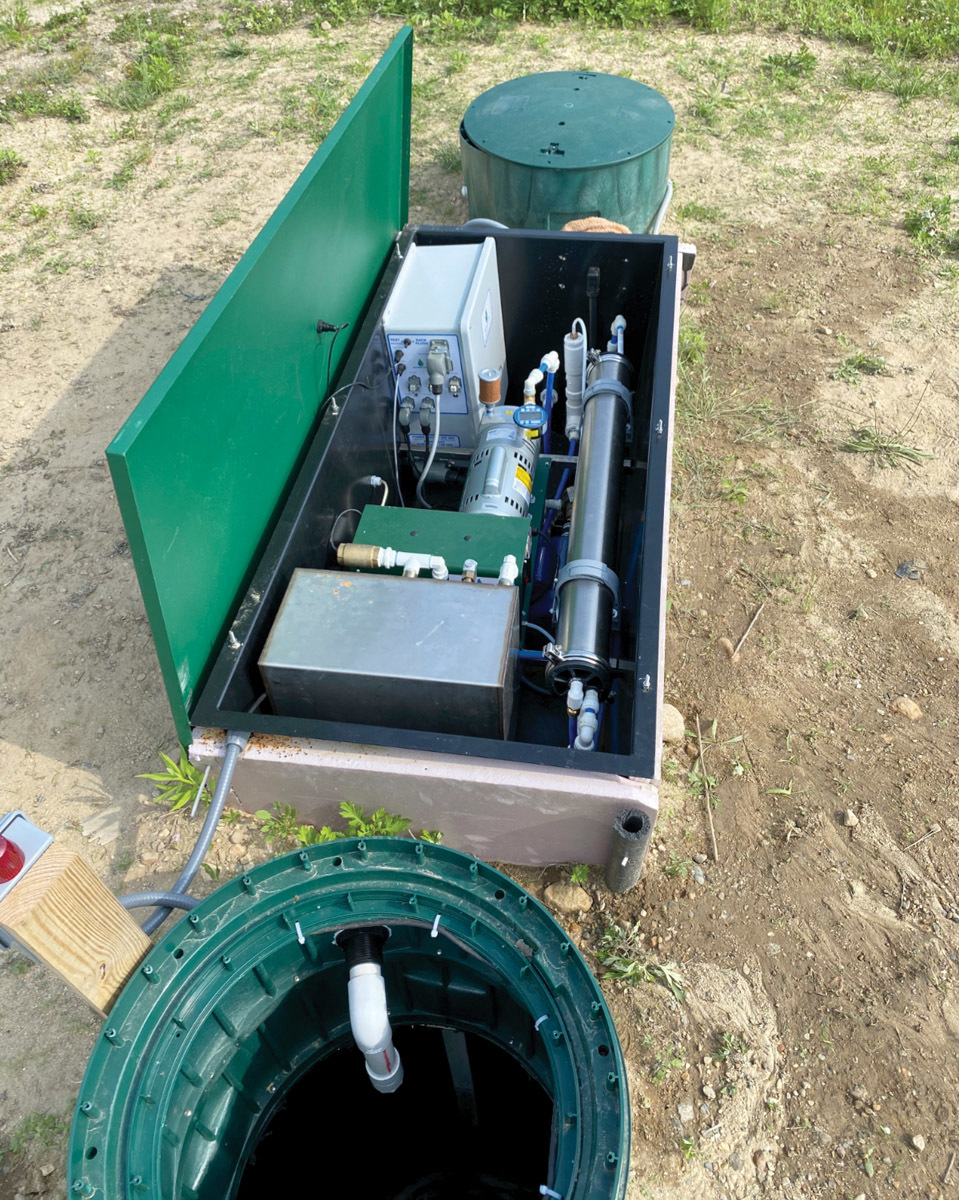

NextGen Septic technology
Treated water exiting NextGen Septic technology meets higher water-quality standards than treated water leaving a typical centralized wastewater treatment plant. The system is suitable for sites traditionally requiring costly drainfield construction due to size restrictions and/or hilly, rocky, clay or sandy soil conditions. It is approved for surface discharge in Kentucky, and it uses a combination of anoxic treatment of the raw wastewater followed by aerobic degradation of the contaminants. An ultra-filtration membrane further treats the water before being disinfected using ozone. Treated water has less than 15 mg/L of BOD5, less than 2 mg/L ammonia, less than 1 mg/L phosphorus and no TSS. Ozone decomposes to oxygen, which increases the dissolved oxygen level in the discharged water. This treated water can be used for irrigation or to resurrect a clogged leachfield. 513-673-3583; www.nextgenseptic.com

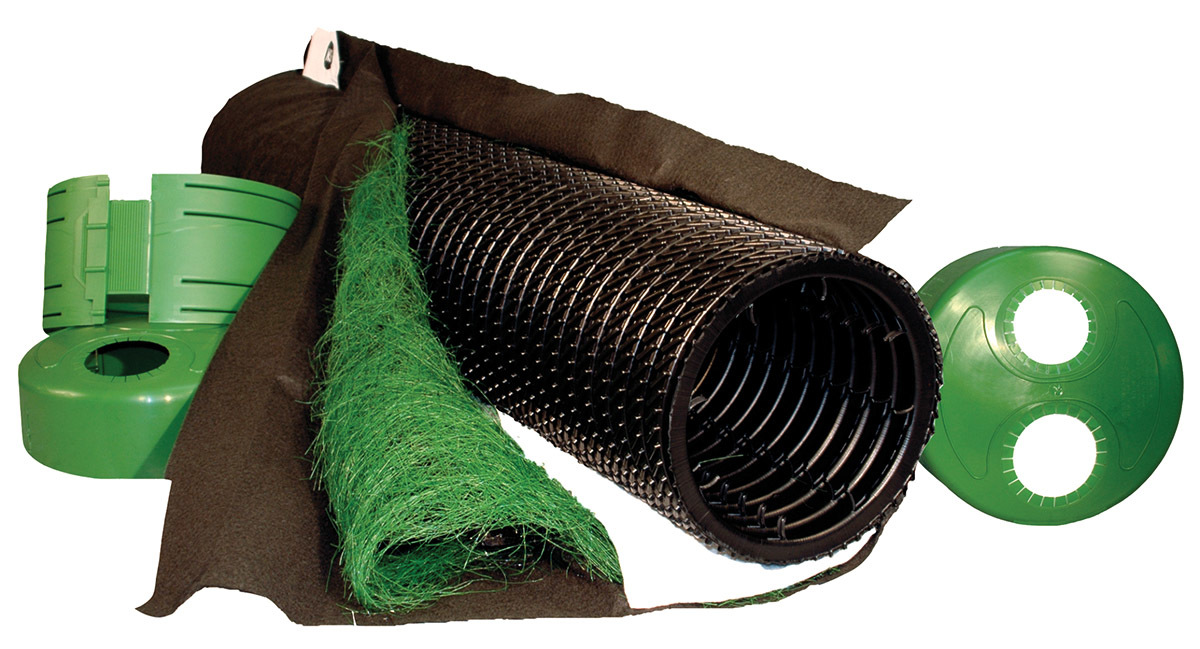

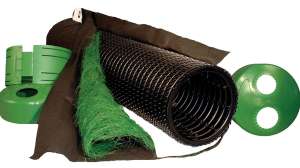

Presby Environmental Advanced Enviro-Septic
Advanced Enviro-Septic (AES) from Presby Environmental is a combined treatment and dispersal system for residential, commercial and community use designed to remove 99% of wastewater contaminants. It requires no replacement media or additives and no electricity or mechanical devices. The NSF 40 Class 1 certified system treats effluent efficiently, providing long system life and protecting the environment, according to the maker. It quickly and naturally establishes multiple bacterial treatment environments throughout the system that break down and digest wastewater contaminants that leave the septic tank. Following the filtering of suspended solids, it releases highly purified wastewater to the soil, recharging the groundwater and preventing soil and groundwater contamination. It is BNQ certified for secondary and advanced secondary treatment. 800-473-5298; www.presbyeco.com


Disinfection

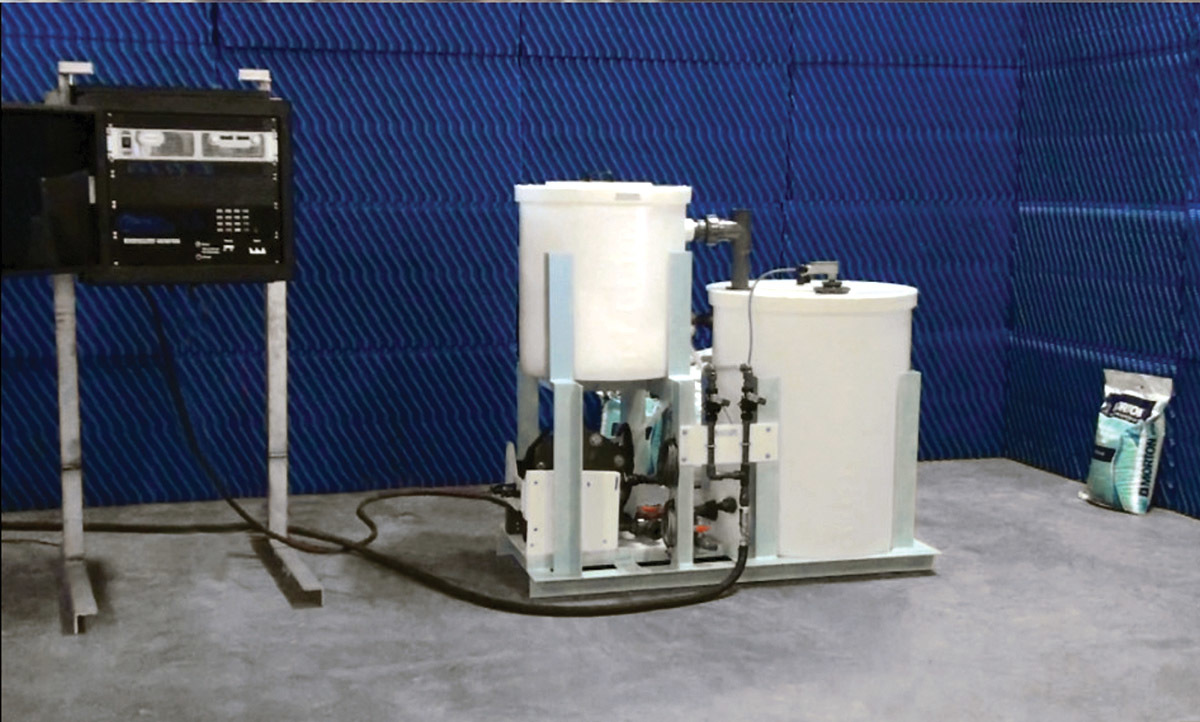

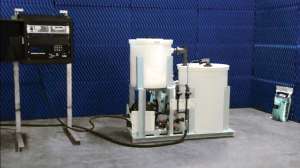

Scienco/FAST - a division of BioMicrobics SciCHLOR
SciCHLOR from Scienco/FAST - a division of BioMicrobics is a sodium hypochlorite generator designed to give a large span of markets a safe and effective way to disinfect. With salt, water and electricity, the system with multipass SciCELL electro-chemical activation technology will produce an available supply of 10 to 60 pounds chlorine-equivalent/day sizes. Connected to an incoming water source and with multiple operating modes, the brine solution makes multiple passes through the low-voltage DC electrolytic cell to provide a reliable method for the needs of medium to large onsite disinfection applications. Its recirculation method keeps control of desired chlorine concentration while the assembly minimizes maintenance downtime. 866-652-4539; www.sciencofast.com


Nitrogen Reduction Systems

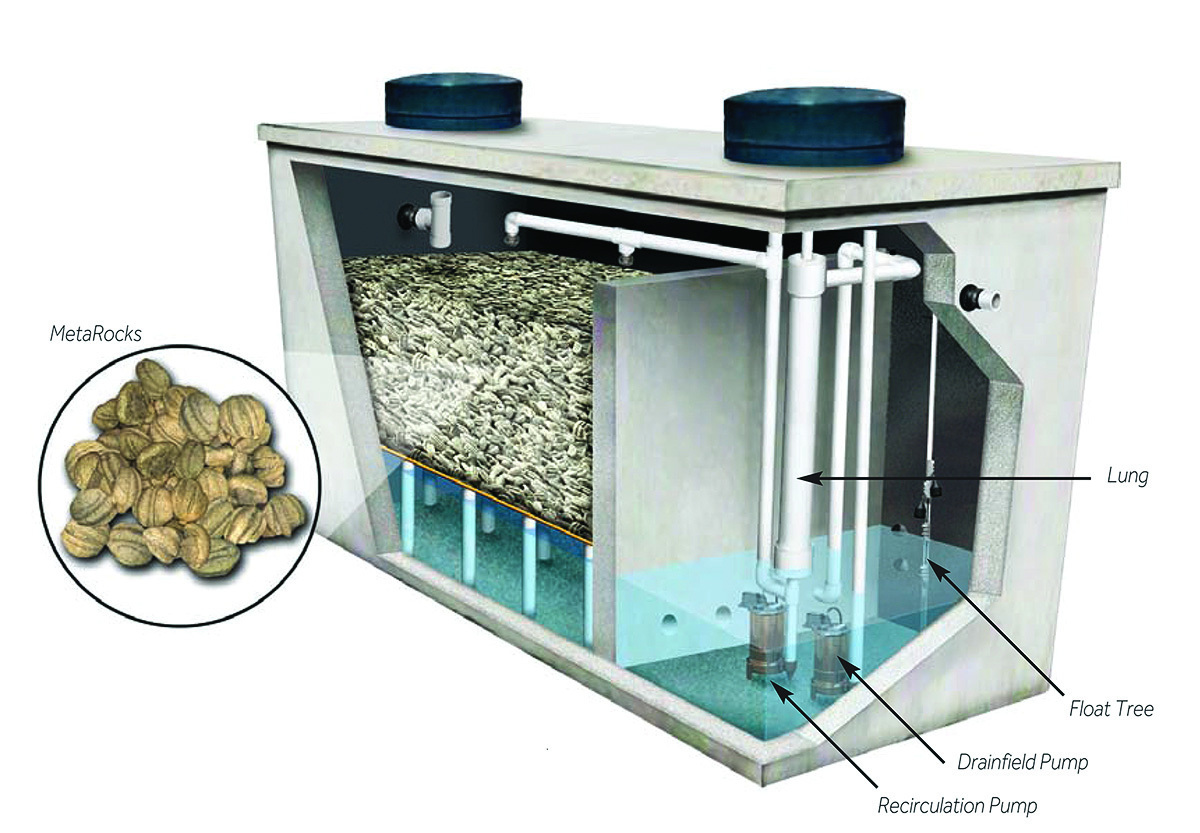

Eliminite Commercial C-Series
The Commercial C-Series system from Eliminite is designed to provide reliable treatment with emphasis on total nitrogen reduction for high-strength waste applications such as work camps, RV parks, restaurants, ski and golf resorts, breweries, mines and agricultural operations. It is designed to work with locally sourced tanks and components when possible. MetaRocks treatment media is designed to withstand a variety of high-strength waste-loading scenarios, particularly where clogging and odor control are major considerations. The system is scalable and may be adapted to suit specific phasing requirements, site constraints and unique demands. 888-406-2289; www.eliminite.com

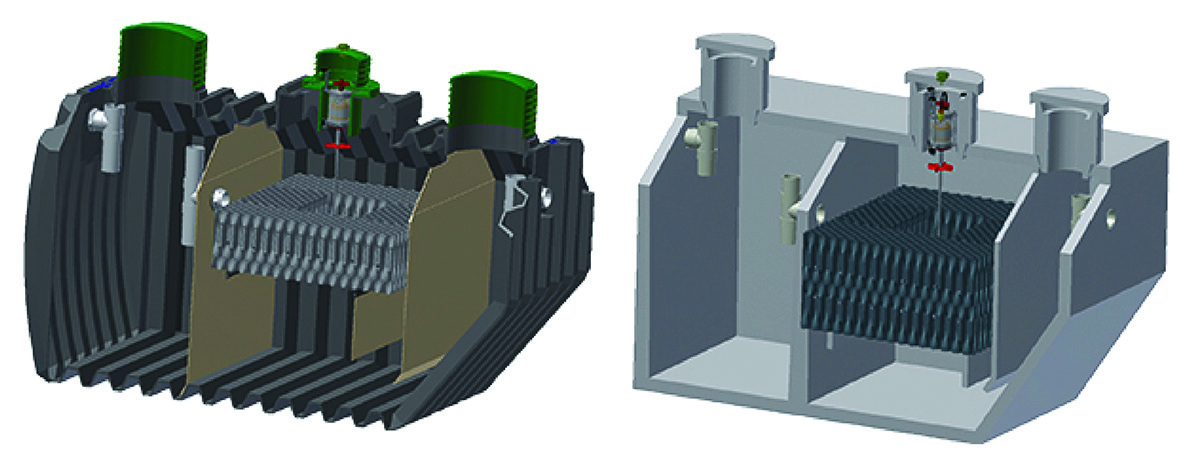

Jet Inc. J-1500CF Series
The J-1500CF Series nutrient-reducing BAT media plant from Jet Inc. offers variable capacity in an NSF-245-tested treatment system. It provides complete effluent treatment from 500 to 1,500 gpd. The 500- and 800-gpd PLT Series tanks are the lightweight, rotational molded alternative to the concrete J-1500CF Series. The seamless polyethylene tanks are easy to transport and install in difficult site conditions. The system uses a 700++ aerator, effluent filter and the Jet 197 control panel, which cycles the aerator to reduce nitrogen by over 60%. 800-321-6960; www.jetincorp.com

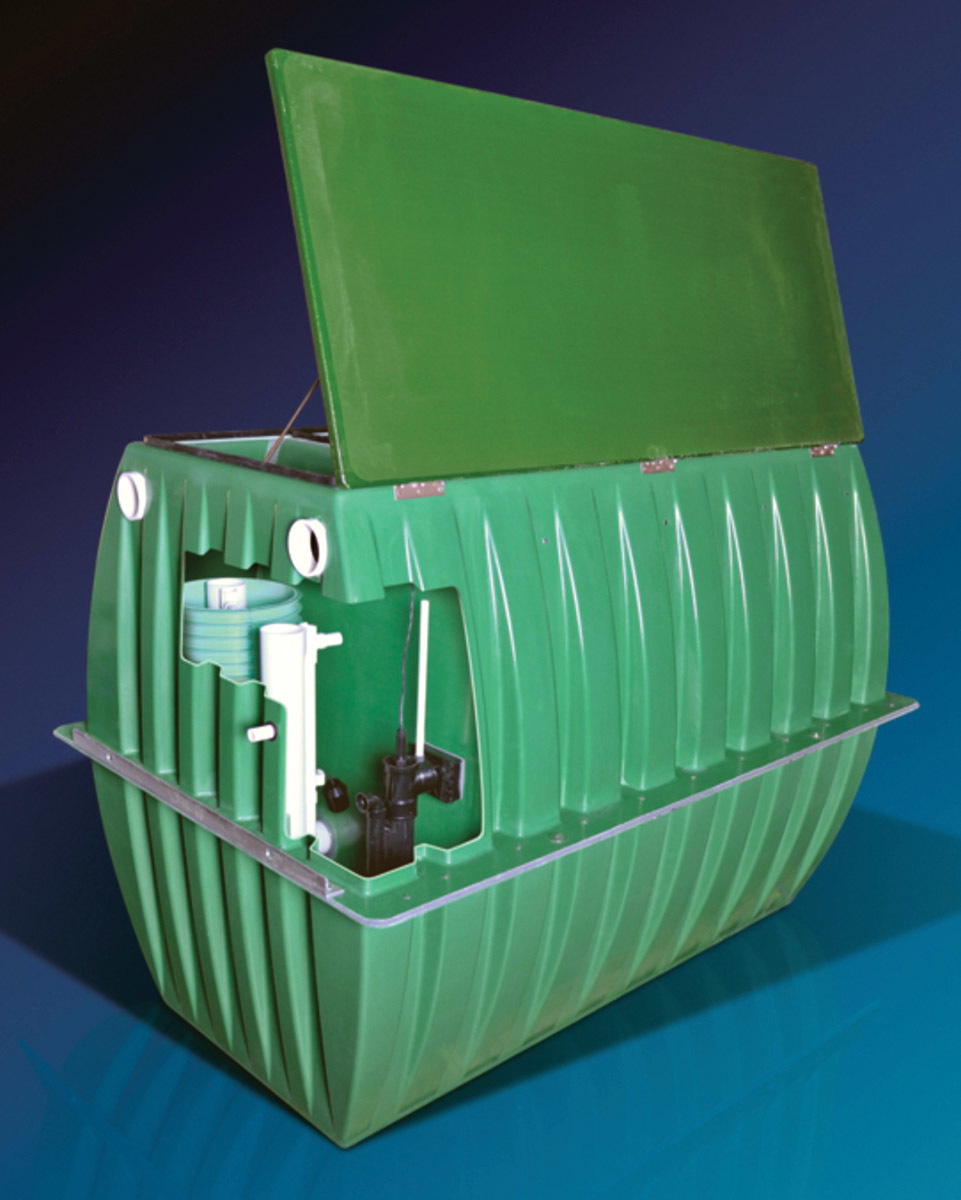

Orenco Systems AdvanTex AX20-RTUV
The AdvanTex AX20-RTUV treatment system from Orenco Systems is a self-contained module designed to treat typical septic tank effluent to better than secondary standards, with nitrogen reduction and UV disinfection. It is designed for homes with up to four bedrooms and suited for small sites with poor soils or sites requiring shallow burial. It helps protect surface waters and aquifers and can be an effective solution for areas that have strict discharge limits, according to the maker. It is installed following a septic tank equipped with Biotube effluent filters. The unit eliminates the need for separate recirculation, treatment, discharge and disinfection tanks and basins; and it reduces the number of risers and lids needed in the treatment train. 800-348-9843; www.orenco.com


Recirculating Filters

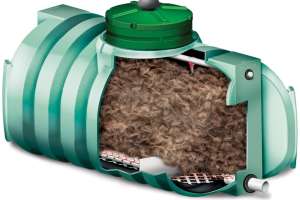

Anua BioCoir
The BioCoir recirculating media biofilter from Anua is designed to be simple to install and easy to operate. It provides stable treatment across a broad range of applications with no constantly running noisy blowers or motors, according to the maker. It uses coconut coir media housed in a preassembled pod. Coir refers to the fibers that make up the thick husk of a coconut. The coconut fiber is low cost, an upcycled resource and high in lignin content, which results in a durable material. Pre-treated effluent is time-dosed over the media using helical spray nozzles to provide uniform distribution. Treatment is optimized by recirculating effluent through the media multiple times. It is certified to NSF/ANSI Standard 40, Class I and third-party tested to reduce nitrogen by more than 50%. Residential and commercial configurations are available. 336-547-9338; www.anuainternational.com

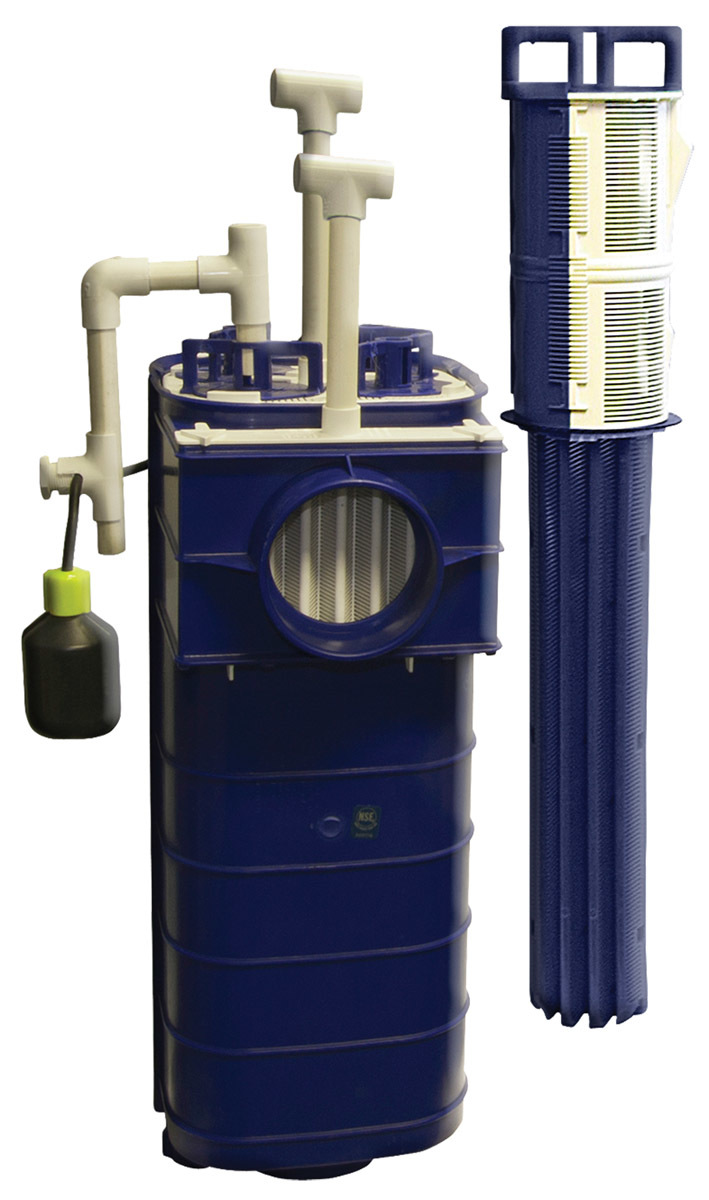

Clarus Environmental WW4
The WW4 effluent filter from Clarus Environmental is mounted in the septic tank outflow to provide protection from solids moving out of the tank and into the dispersal area. A secondary screen provides continued protection during servicing. When the primary cartridge is removed to be cleaned, the secondary screen blocks solids from sloughing off and traveling to the dispersal area. After the primary cartridge is cleaned, the secondary screen can be removed and cleaned. It can handle up to 4,000 gpd and can be assembled on site in a multifilter configuration for larger flows. 800-928-7867; www.clarusenvironmental.com

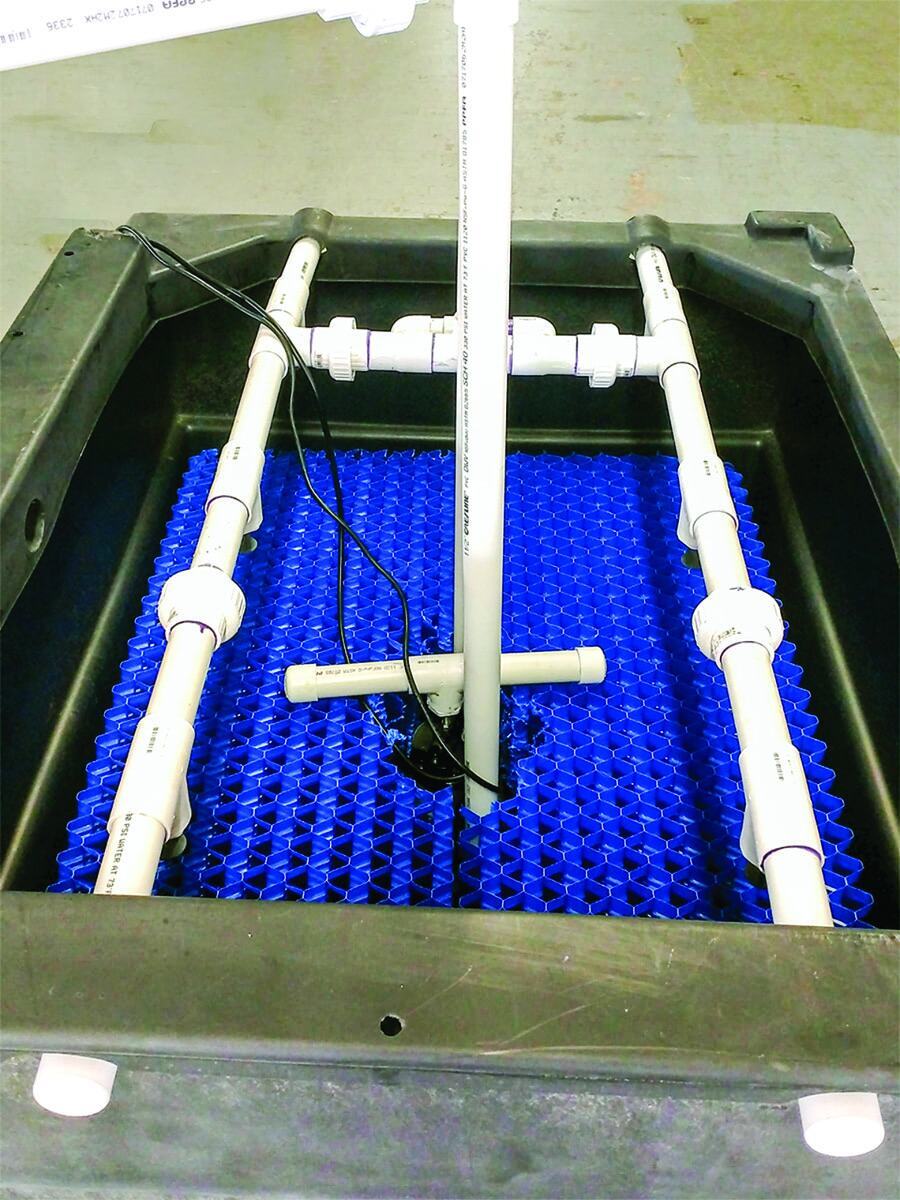

SeptiTech STAAR
Designed for both multifamily domestic and high-strength commercial wastewater, SeptiTech STAAR (Smart Trickling Anaerobic/Aerobic Recirculation) filter systems range from 100 to more than 150,000 gpd treatment applications. The technology allows for simple, automatic and reliable equalization and clarification processes. The biological trickling filter technology also maintains low levels of Nitrate-N and achieves lower operating costs and power requirements with all below-grade components that fit readily in available concrete, plastic or fiberglass tanks. It is suitable in areas where large tracts of land are not available for land intensive wastewater treatment systems, and it may qualify for equivalent secondary discharge standards. Systems are appropriate for small-to-medium-sized communities to rapidly reduce soluble BOD5 with efficient nitrification and denitrification for environmentally sensitive areas. They utilize partially submerged media to treat high organic loads with durable process elements and low power requirements. 207-333-6940; www.septitech.com


UV Disinfection

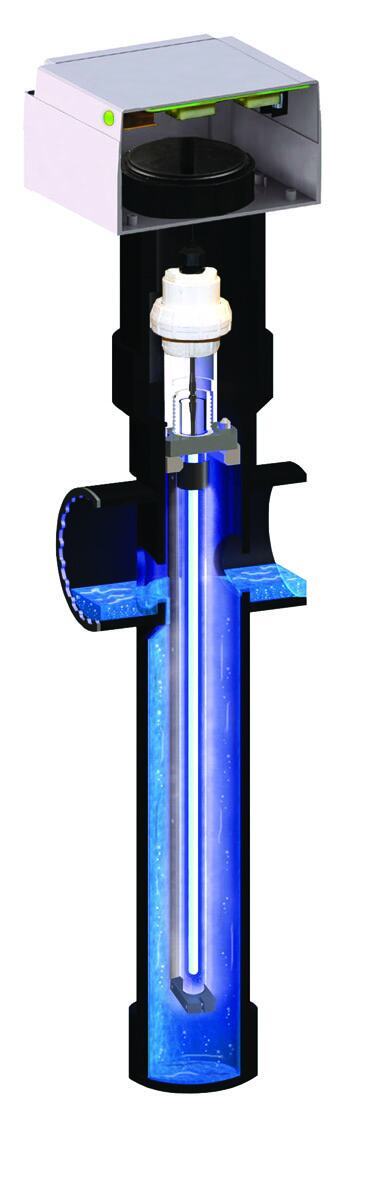

Polylok PL-UV1 UV Disinfection Unit
The PL-UV1 UV Disinfection Unit from Polylok reduces bacteria levels from secondary effluent to achieve strict water quality standards. Every component of the compact unit is engineered and constructed to provide reliable disinfection and long operational life, according to the manufacturer. It has a dual-pass design, a long-life UV bulb, weatherproof electrical components and no chemical residual or harmful byproducts. It is easy and inexpensive to install and operate, and it has low electrical usage. Rates for gravity flow only are 100 through 8,640 gpd, with 100 through 4,320 gpd with 30 mg/L BOD and 30 mg/L SS, and 4,321 to 8,640 gpd with 10 mg/L BOD and 10 mg/L SS. It offers a UV dose greater than 40,000 microwatt-seconds per square cm at 254 nanometers, with transmissivity of 65%. 888-765-9565; www.polylok.com

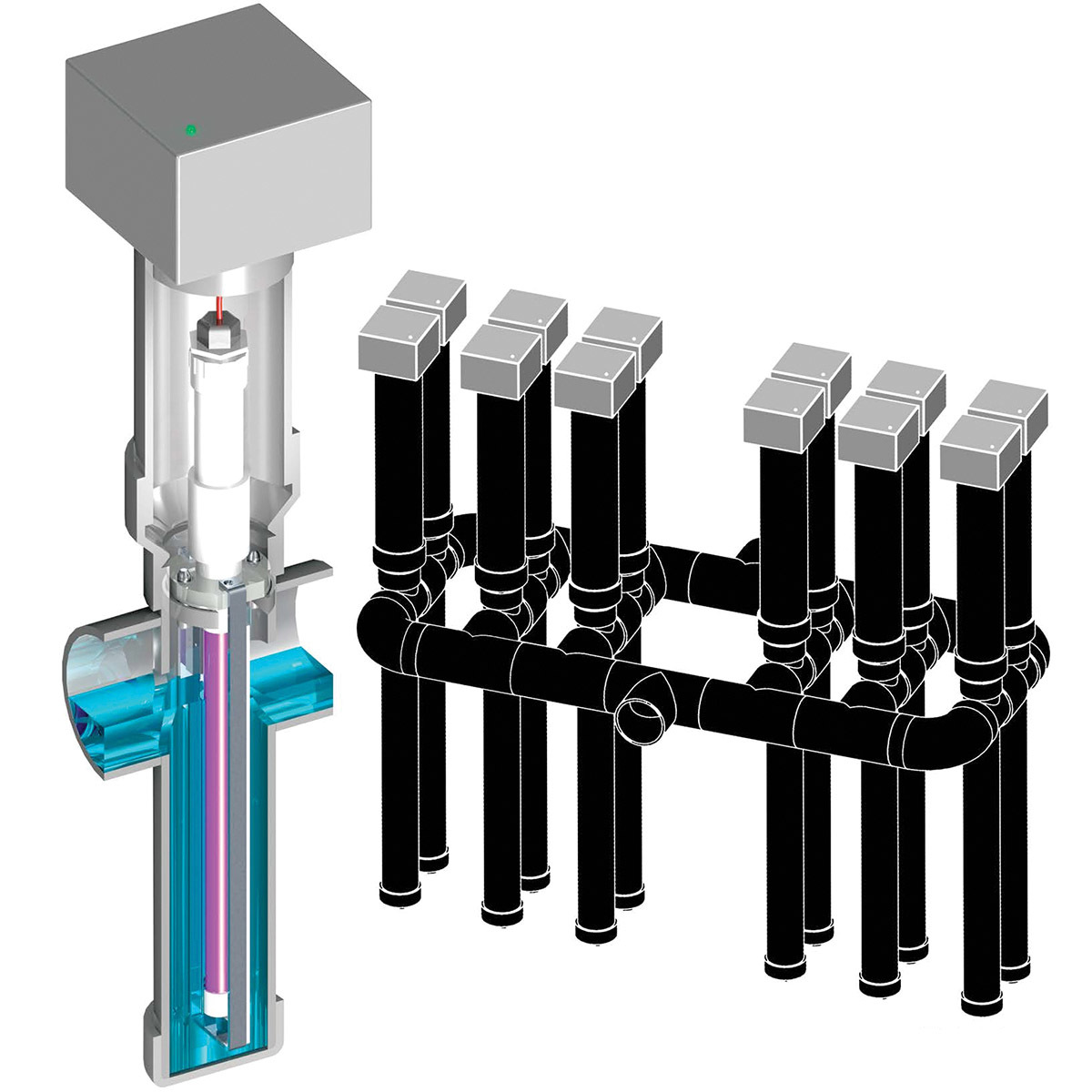

SALCOR 3G UV Wastewater Disinfection Unit
The 3G UV Wastewater Disinfection Unit from SALCOR is used for residential, commercial and municipal applications, and it is UL-certified NEMA 6P flood-proof and NSF/Washington State Protocol six-month tested (with 21 upstream treatment systems). It inactivates bacteria/virus pathogens, including superbugs. Rated at 9,000 gpd gravity flow, it is meant as a reliable building block for large water recovery/reuse systems. When installed in 12-unit parallel/series arrays with ABS pipe fittings, systems can disinfect more than 100,000 gpd. Gravity flow equalizes without distribution boxes. Each unit has a foul-resistant Teflon lamp covering, two-year long-life lamp with efficient installation, minimal annual maintenance and energy use of less than 40 watts. 760-731-0745; www.salcor.world


Water/Wastewater Reuse System

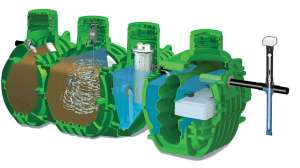

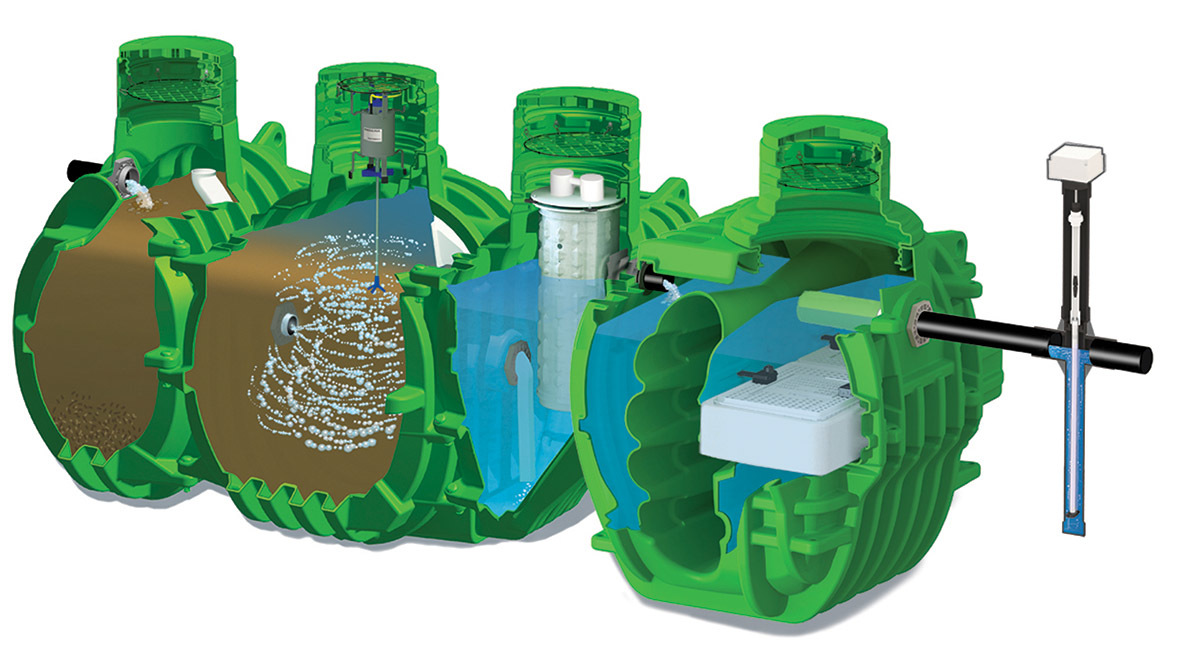

Norweco Singulair R3 Green
The Singulair R3 Green reduces water consumption, reuses treated effluent and recycles water to conserve and recharge water resources. It provides a solution to chronic water shortages and reduces energy costs associated with water and wastewater treatment. The system quietly, efficiently and automatically treats all incoming wastewater to the highest level for restricted indoor and unrestricted outdoor use. The system exceeds the effluent requirements of NSF/ANSI Standards 40, 245 and 350. It qualifies for green building credits under both the LEED rating system and the National Association of Home Builders ICC 700 National Green Building Standard. By using the system and following local building code, a homeowner can expect to dramatically reduce water usage, according to the maker. 800-667-9326; www.norweco.com
