Distribution Equipment and Systems

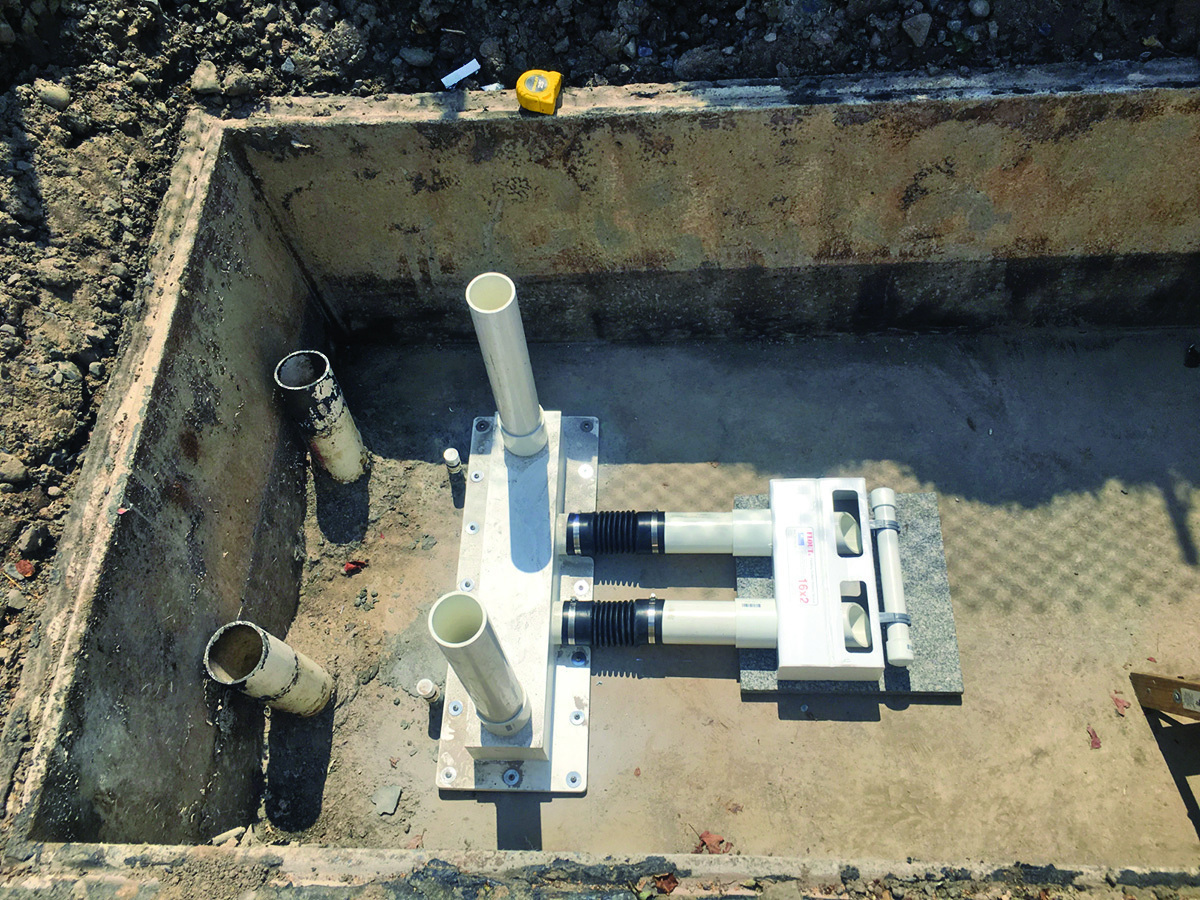

Rissy Plastics Flout

The flout dosing device from Rissy Plastics is a weighted floating vessel, hinged on a flexible pipe connector, that floats on the surface, storing a desired dose of effluent in a chamber. When the vessel sinks, it releases the chamber contents, then re-floats to store another dose. The cycle is completed without electricity or issues with dosing siphons. With sufficient elevation, the unit may be used for pressure dosing, eliminating the waste of pumping downhill. Other uses include stormwater, and freeze prevention. The pictured unit will dose with 8 inches of drawdown through a 3-inch pipe. This arrangement is readily available in drawdowns from 6 to 36 inches and may be ganged for greater flows. The flexible connector is designed to hold up to long-term wear. 860-482-1645;

Dosing Tanks

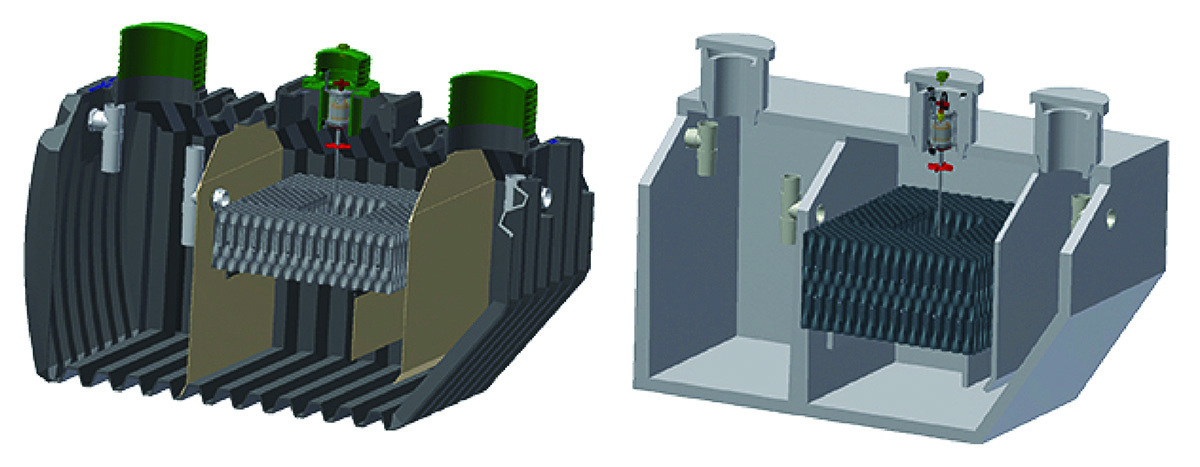

Jet Inc. J-1500CF Series

The J-1500CF Series nitrogen-reducing BAT media plant from Jet Inc. offers variable capacity in a NSF 245-tested treatment system. It provides complete effluent treatment from 500 to 1,500 gpd. The 500 and 800 gpd PLT Series tanks are the lightweight, rotational molded alternative to the concrete J-1500CF Series. The seamless polyethylene tanks are easy to transport and install in difficult site conditions. The system uses a 700++ aerator, effluent filter and the Jet 197 control panel, which cycles the aerator to reduce the nitrogen by more than 60%. 800-321-6960;

Drip Systems

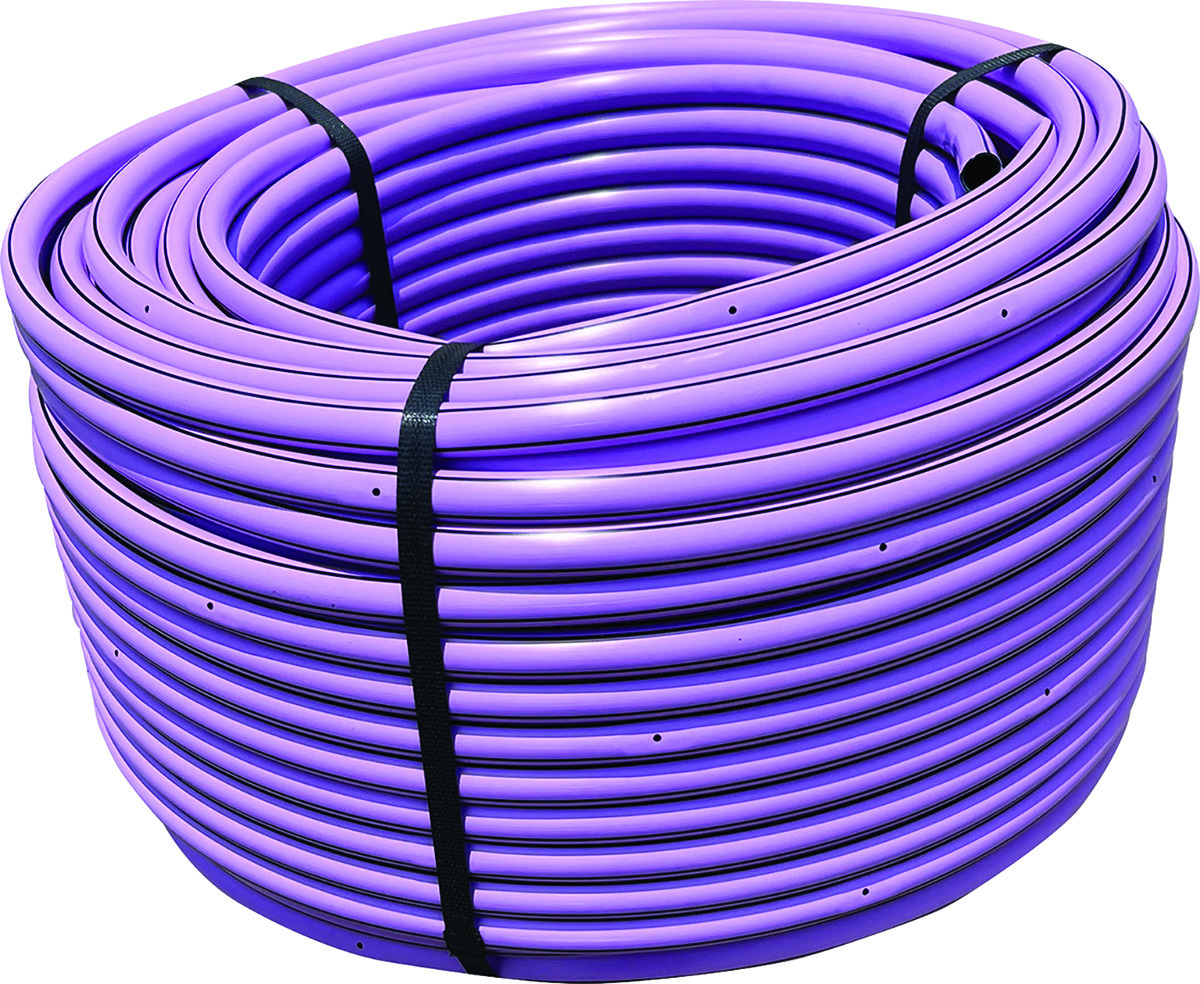

Geoflow WaterflowECO

Geoflow’s WaterflowECO subsurface drip irrigation tubing for wastewater and nonpotable water applications was developed to provide a more complete line of products for the wastewater market. It has 17 mm tubing which incorporates Geoshield, an antimicrobial lining that stops bio slime buildup. It is purple tubing with flat emitters, which are available in flow rates of 0.4, 0.6, and 1.0 gph. 800-828-3388;

Effluent Pumps

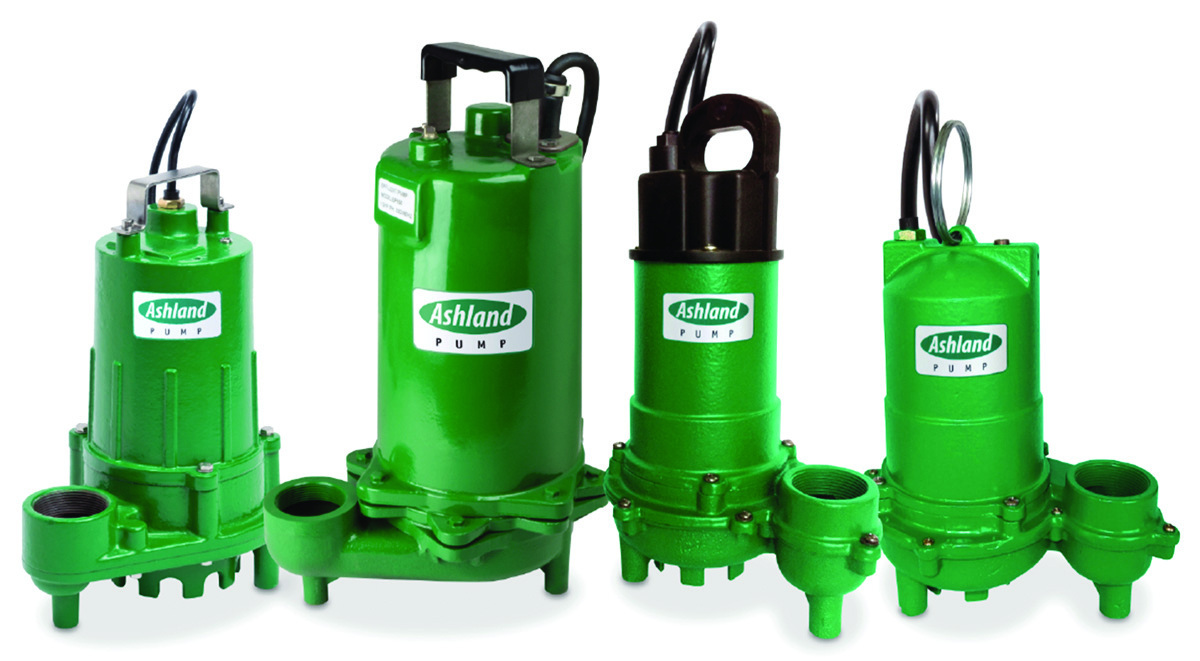

Ashland Pump Effluent Pumps

Heavy-duty effluent pumps from Ashland Pump are available in multiple horsepower sizes for various performance requirements, and feature efficient permanent split capacitor motors. The oil-filled pumps have an upper and lower ball bearing design and handle solids up to ¾ inch. They are heavy-duty cast iron, with cast iron impellers and equipped with a piggyback switch (20-foot standard cord) or in manual configurations. They are offered in 3/10, 4/10, 1/2, 3/4, 1 and 1 1/2 hp models. 855-281-6830;

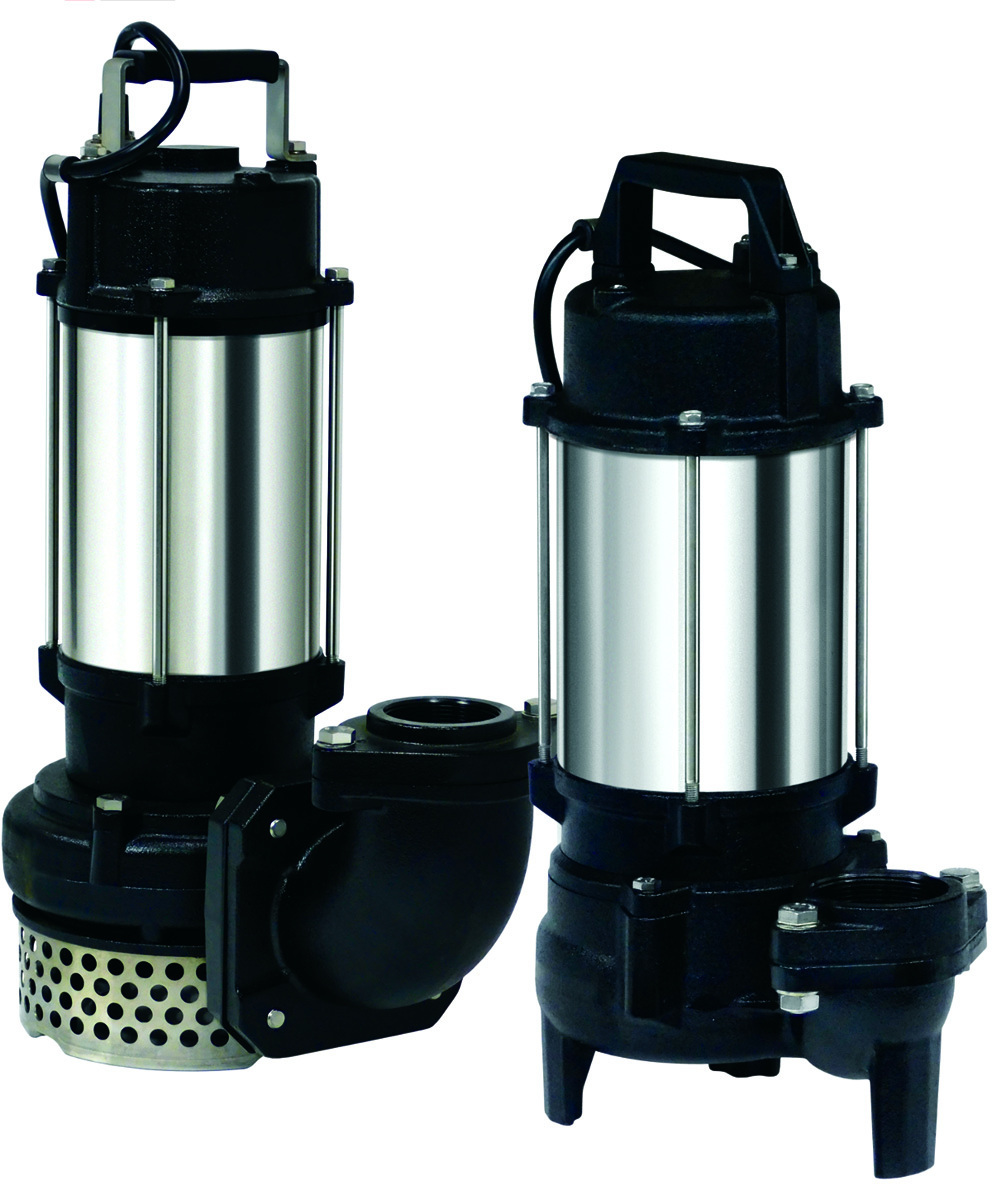

Webtrol VE and VS pumps

Webtrol VE and VS pumps are equipped with a continuous-duty motor that offers advantages such as reliable and uninterrupted operation. The energy-efficient motor is designed to run continuously without overheating or experiencing fatigue. It ensures durability and longevity, handling heavy-duty applications and demanding environments, according to the maker. Minimum maintenance is required. The pumps are versatile and suitable for various applications including dosing, lift stations and dewatering. 800-769-7867;

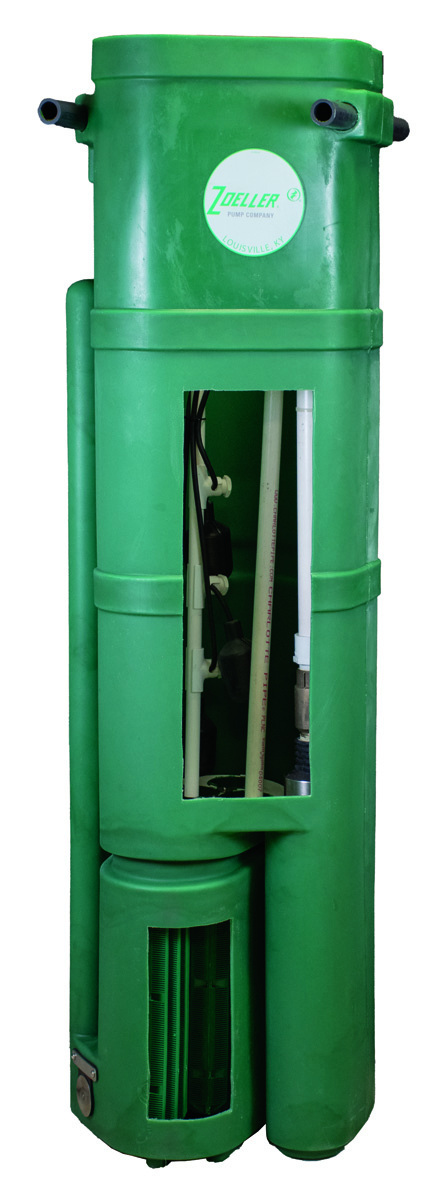

Zoeller Pump Turbine STEP Systems

Turbine STEP (Septic Tank Effluent Pump) Systems from Zoeller Pump are designed for use in a septic tank or pump tank. With a turbine effluent pump, float system and effluent filter set packaged in a polyethylene vault, it is suitable for use on new construction or repair sites when gravity flow is not an option and higher total dynamic head is required. The system is also useful in cluster systems, low-pressure pipe applications, gravel/sand filters, drip irrigation systems and other high head applications. Each system can be equipped with a control panel for use in either demand dose or timed dose applications. They are available in 1/2 through 3 hp sizes, in 1 1/4- or 2-inch discharges and flows up to 85 gpm. Alarm box or control panel packages are available. 800-928-7867;

Gravity Dosing Systems

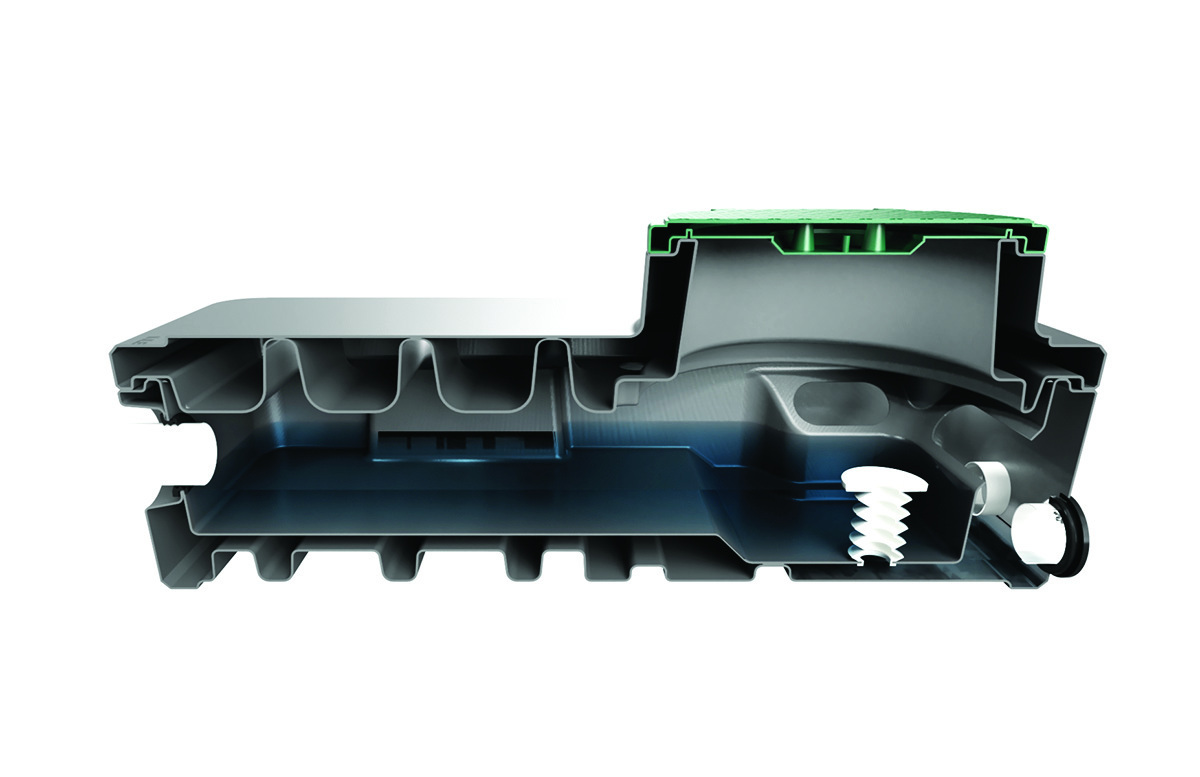

Rewatec dosing distribution box

The Rewatec dosing distribution box is made of lightweight plastic and is easy to install. It uses no electromechanical parts and is 100% energy-free. The dosing device is separated into an 18-gallon reservoir and a distribution chamber, with the dosing device acting as a conduit between the two. When the reservoir is full, the dosing device lowers before stopping at a preset level. The dosing device’s preset level is adjustable, and effluent doses can be adjusted from 12 to 18 gallons. Effluent leaves the distribution chamber through one to five 4-inch outlets and is evenly distributed across the length of the soil absorption system. Each outlet can be equipped with flow levelers to optimize distribution and promote the healthy life span of the soil absorption system. 800-632-6356;

Pump Control Panels

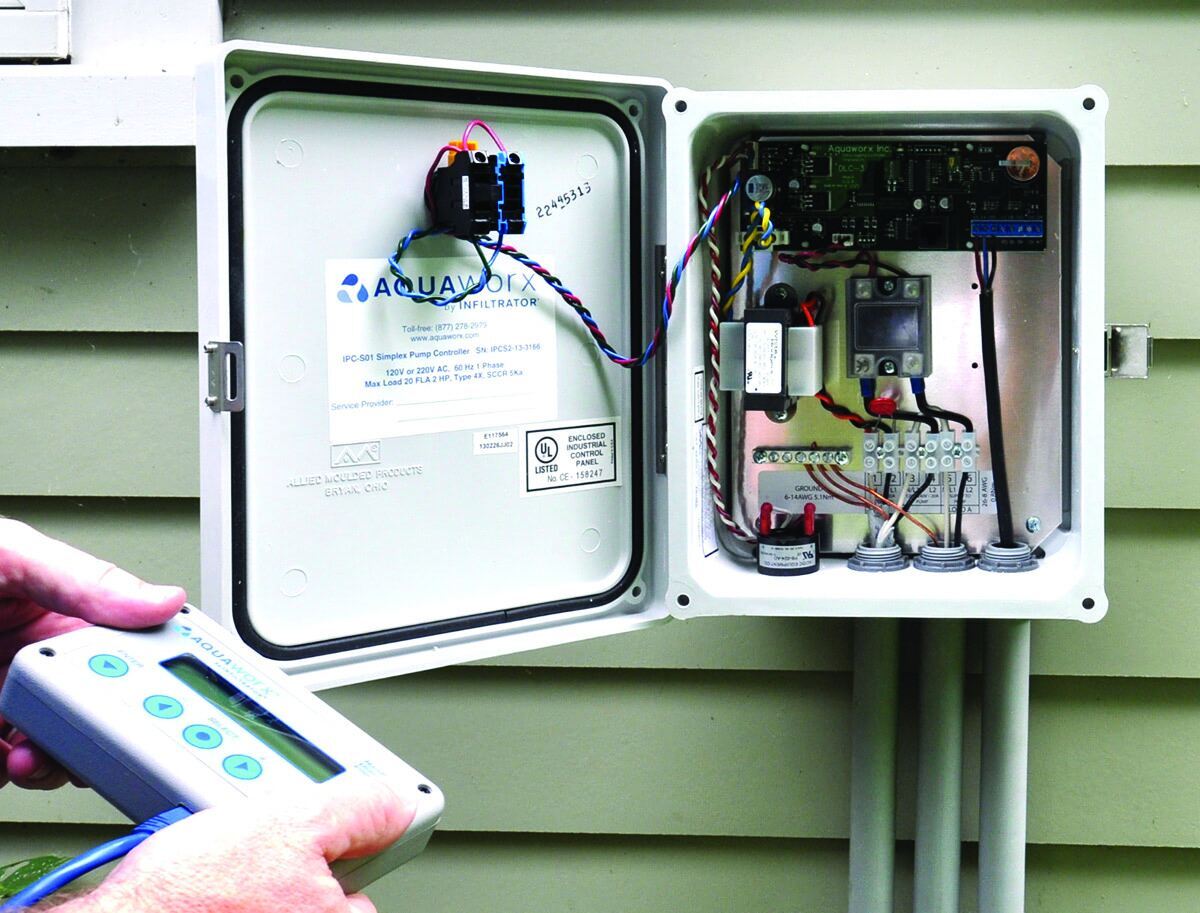

Aquaworx by Infiltrator Intelligent Pump Control Panel

The Aquaworx by Infiltrator Intelligent Pump Control Panel enhances pump system performance by monitoring liquid levels, controlling pumping time intervals, and logging events in real time. The easy-to-install panel calculates daily system flow utilizing a pressure transducer in the pump chamber and an embedded microprocessor in the pump controller. The hand-held Aquaworx Tapper programmer broadcasts a wireless signal, allowing the user to program the panel from any Wi-Fi enabled device. The Aquaworx Tapper connects to the IPC panel using a standard RJ45 cable. Once connected, the user navigates to a website that provides all control settings for the panel, including a history of system function critical to troubleshooting and maintaining a pump-driven system. With the Tapper, the user can program and manage multiple panels and capture and download system events and settings onto a removable USB memory device. 800-221-4436;

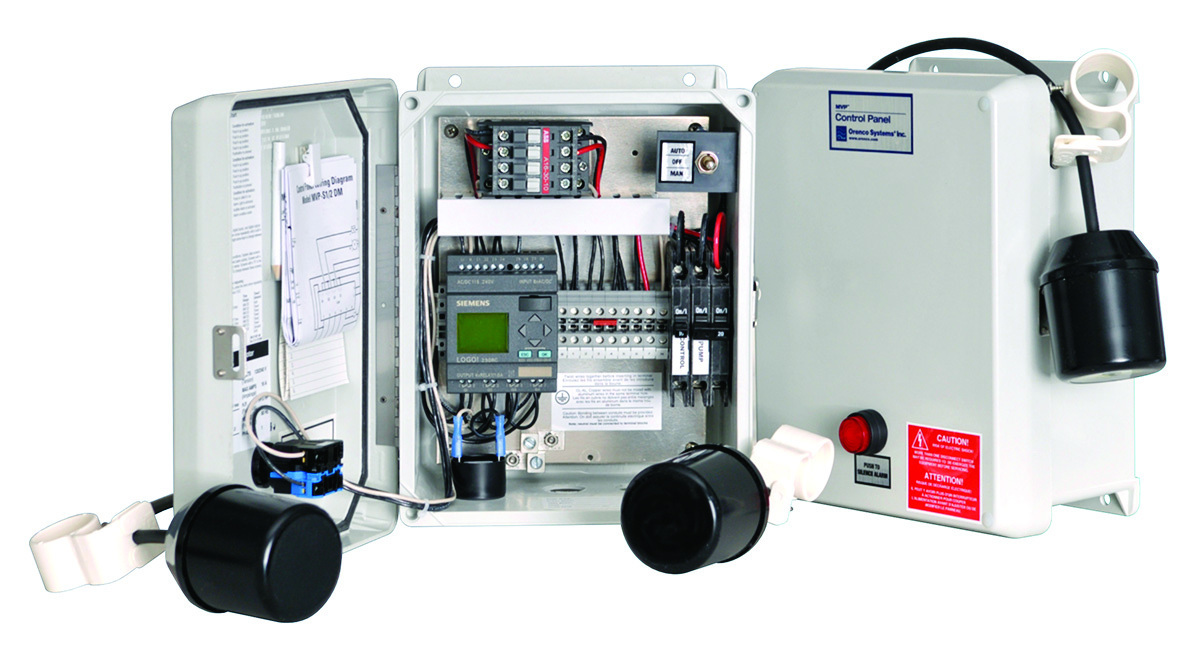

Orenco Systems 4-in-1 Controller

The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules in a single panel. Both simplex and duplex models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for 120- or 240-volt power. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and an elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing as well as wiring diagrams. It is touch-safe. 877-257-8712;

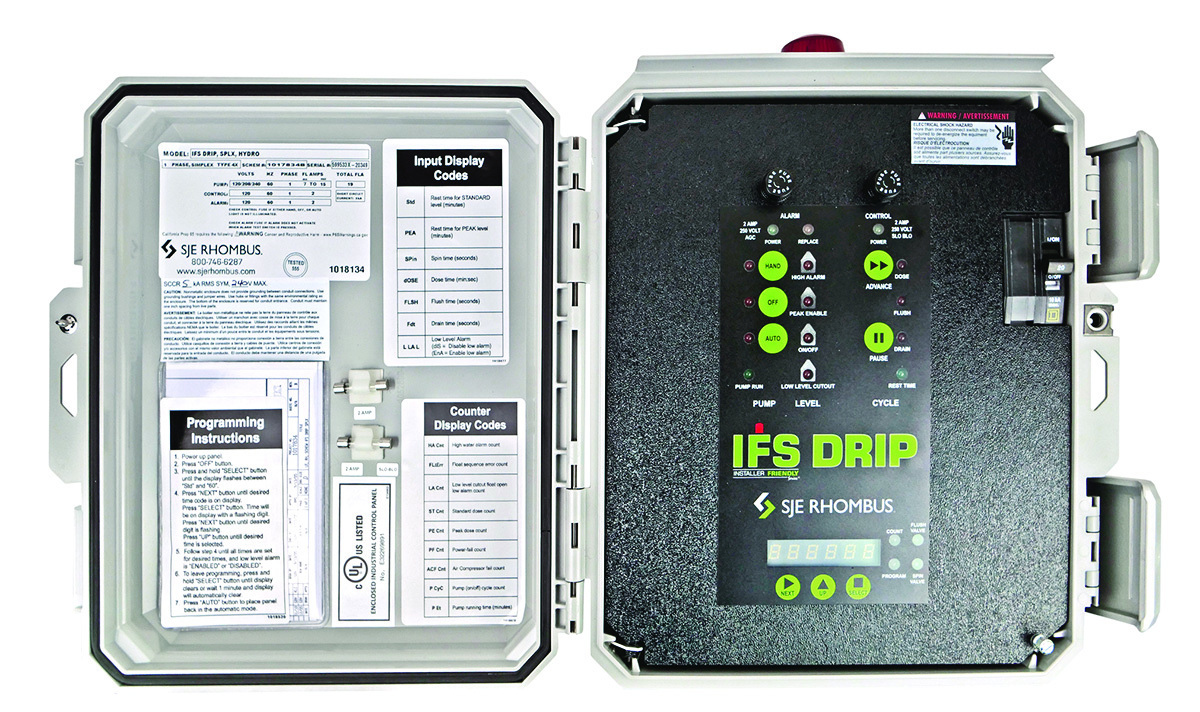

SJE Rhombus’ Installer Friendly Series Drip

SJE Rhombus’ Installer Friendly Series Drip control panel is designed to control one 120- or 230-volt single-phase pump for subsurface irrigation systems. It features a simple touch pad on the inner door for programming and monitoring system operation. Programmable options include rest for standard time, rest for peak enable time, spin filter flush time, dose time, field flush time, field drain time and low alarm activation. The touch pad features indicator lights to monitor the panel at a glance, including alarm and control power, hand/off/auto, float status, cycle status and rest time. The LED display offers more detailed information, including high water alarm count, float status sequence error count, low level cutout float open low alarm count, and standard dose count. The enclosure is rated NEMA 4X for indoor/outdoor use. This panel is also UL/cUL Listed. 888-342-5753;

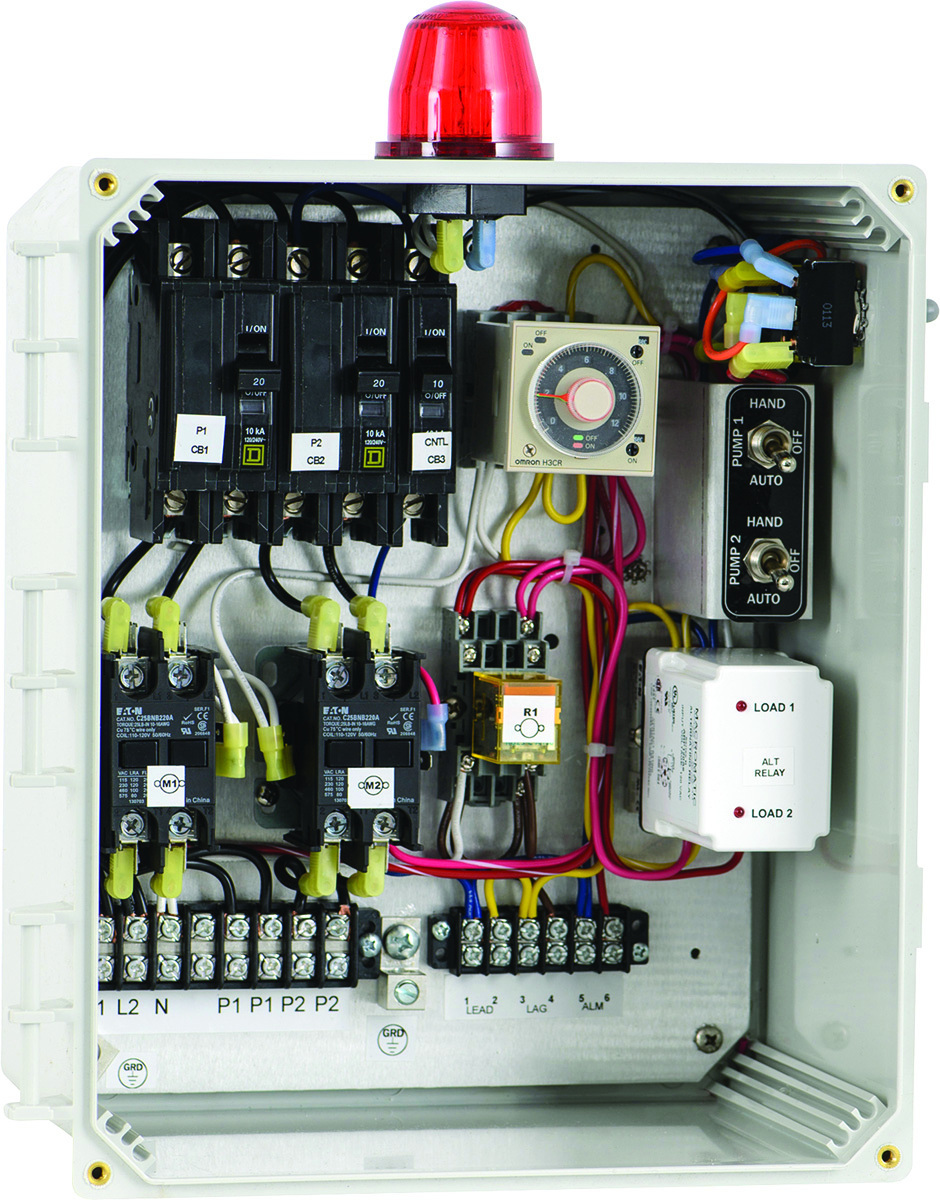

SPI 50B019-120-240 DD

The 50B019-120-240 DD control panel from SPI is a duplex timed-dosing panel for residential or commercial applications. It can be used with 120- or 240-volt power, and accommodates two dosing pumps controlled by a repeat-cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL-listed. 419-282-5933;

Spray Irrigation Equipment

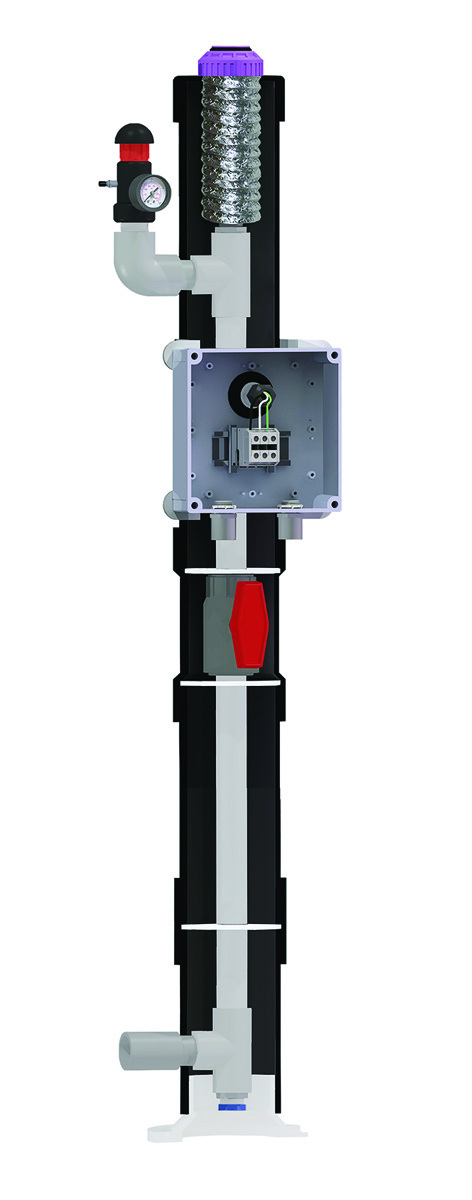

Norweco All-Season

Norweco’s All-Season spray irrigation system was developed to provide homeowners with a safe and convenient method of effluent disposal. Designed to maximize water reuse, spray irrigation is a simple and low-cost method of effluent disposal for properties with marginal soils and challenging topography. The system was engineered to operate in the harshest weather conditions, distributing disinfected effluent directly onto the homeowner’s lot, according to the maker. The effluent is sprayed in a discreet location, where it is safely returned to the environment through gradual soil absorption and moisture uptake by grass, trees and other vegetation. Units comes with an adjustable spray head, vacuum relief valve, pressure gauge, Schrader valve, electrical enclosure, zone shutoff valve, heat tape with factory preset thermostat and anti-freeze drain valve. 800-667-9326;

Submersible Pumps

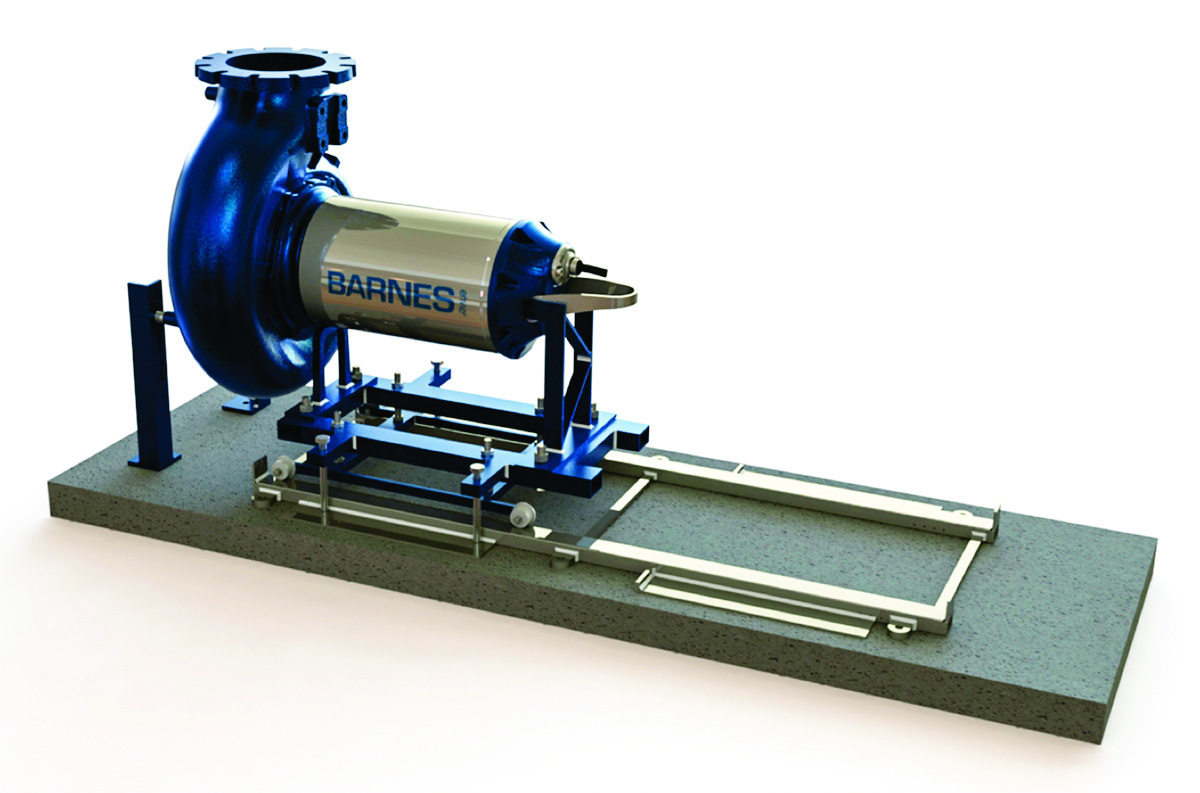

Crane Pumps & Systems envie3

The envie3 air-filled motor series dry pit submersible pump from Crane Pumps & Systems can run in wet applications and in dry pits. These pumps took Barnes’ and Deming’s proven nonclog and chopper wet ends and outfitted it with a premium efficient/IE3 motor that can run in both vertical and horizontal configurations. The closed-loop glycol cooling system allows for easy maintenance and installation in demanding applications. For easy serviceability, the horizontal installation options include a cart system, which creates a back pullout option as well as a fixed bracket configuration. Install horizontally for a smaller footprint. Vertical installation configurations include a metal and concrete stand that allow for 360-degree rotation for conveniently adapting to existing piping, including tangential discharge pumps. 937-214-9008;

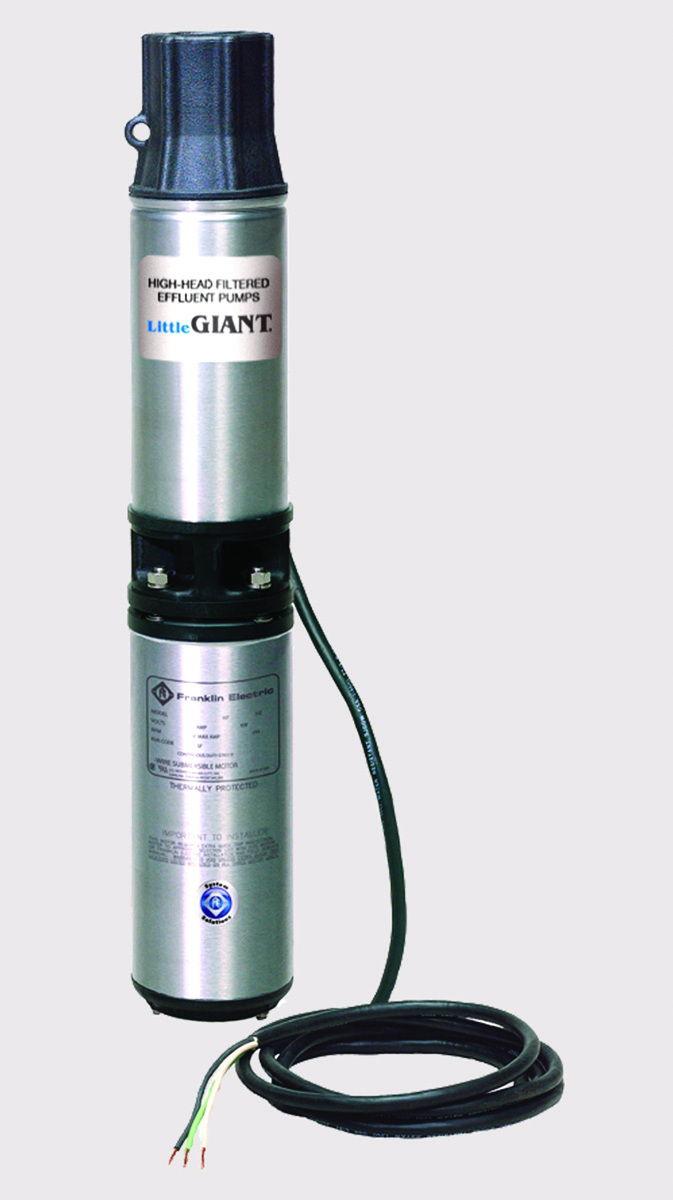

Franklin Electric Little Giant WE Series

The Little Giant WE Series is built with a Franklin Electric submersible motor, designed to provide maximum durability and years of reliable service. It consists of a high-head filtered effluent pump powered by a 1/2 hp submersible motor and includes a removable built-in check valve. The quality top bearing and stainless steel upthrust washer add resilience and reliability, according to the maker. 800-437-6897;

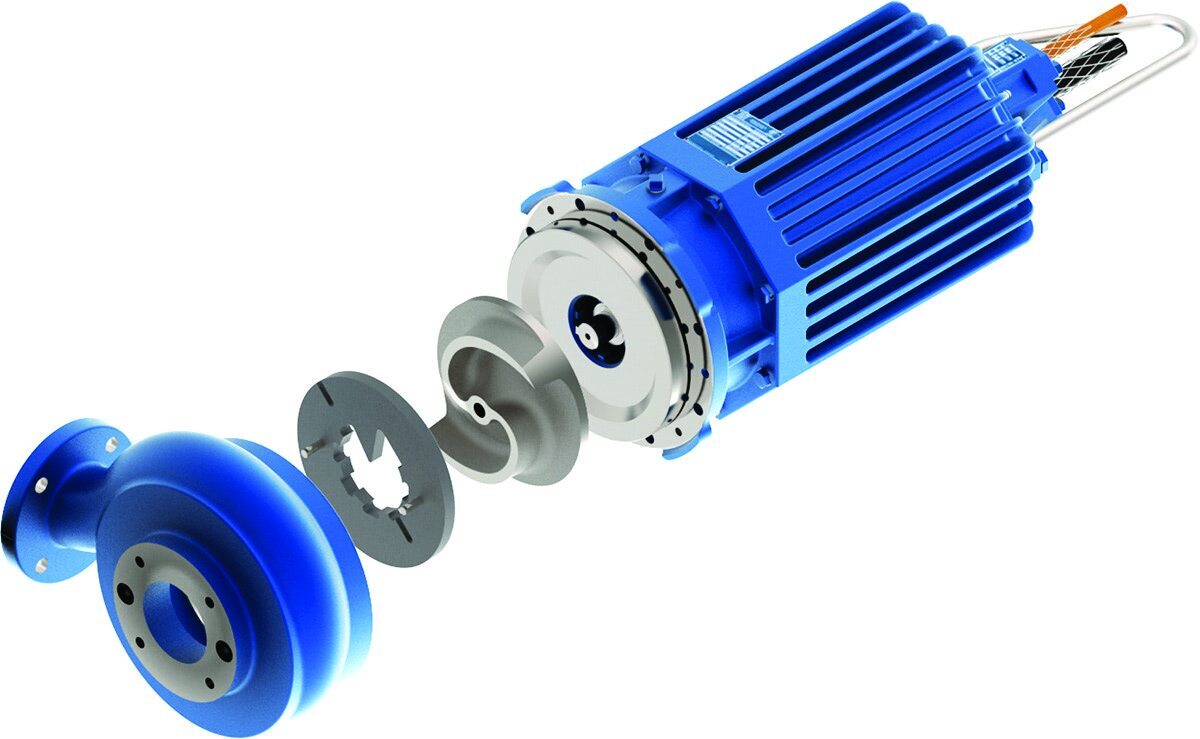

Gorman-Rupp SFSC Pump

The SFSC Pump from Gorman-Rupp is an SF Series product equipped with Eradicator Plus solids reduction technology. These are the most aggressive in the SF Series product lineup and are designed for applications where nonwoven flushable wipes, trash bags, hair, industrial byproducts and agricultural wastes are present. All pumps are equipped with a heavy-duty continuous vane impeller. The pumpout vanes incorporated into the thick back shroud are designed to help prevent buildup of debris behind the impeller. The wear plate utilizes notches and grooves with an oversized lacerating tooth designed to cut and shred organic solids before they enter the pump. Pumps are available in 3-, 4- and 6-inch discharge sizes. 419-755-1011;

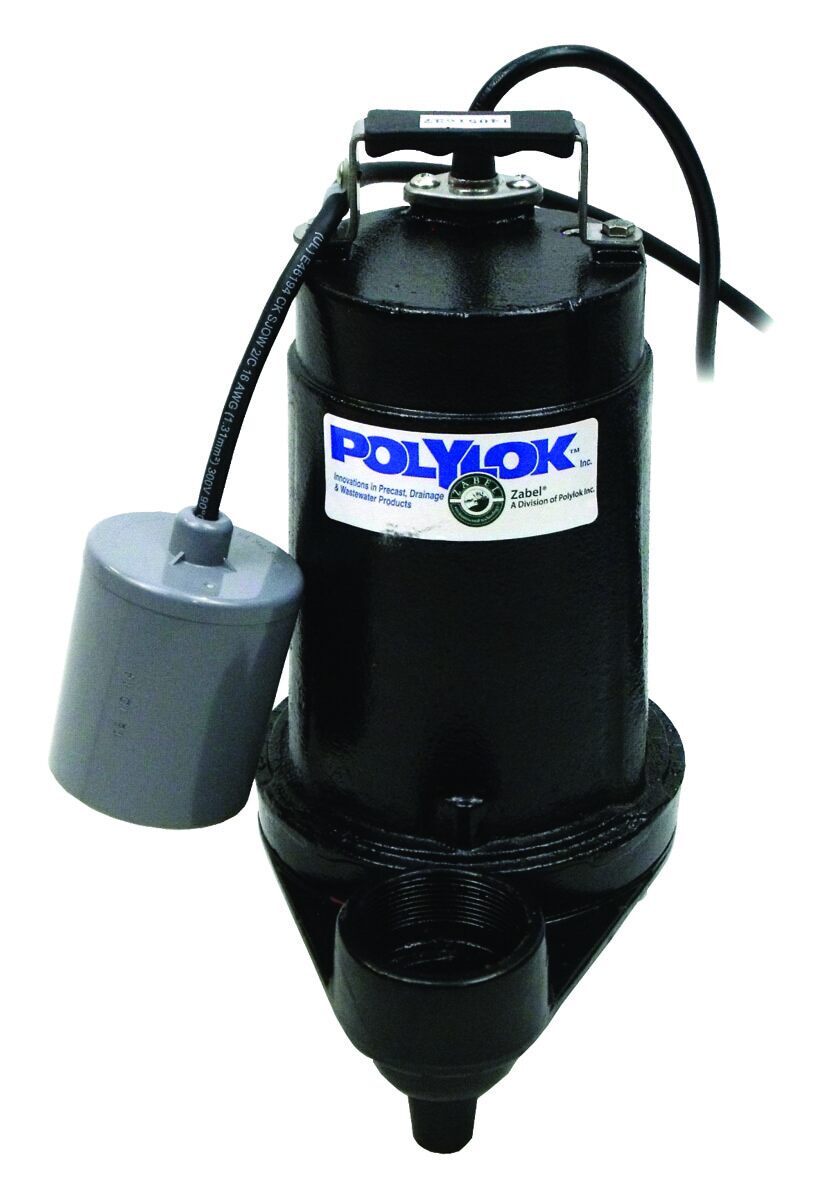

Polylok PL-CPE4A

The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a rugged cast iron housing and volute equipped with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565;
