Controls

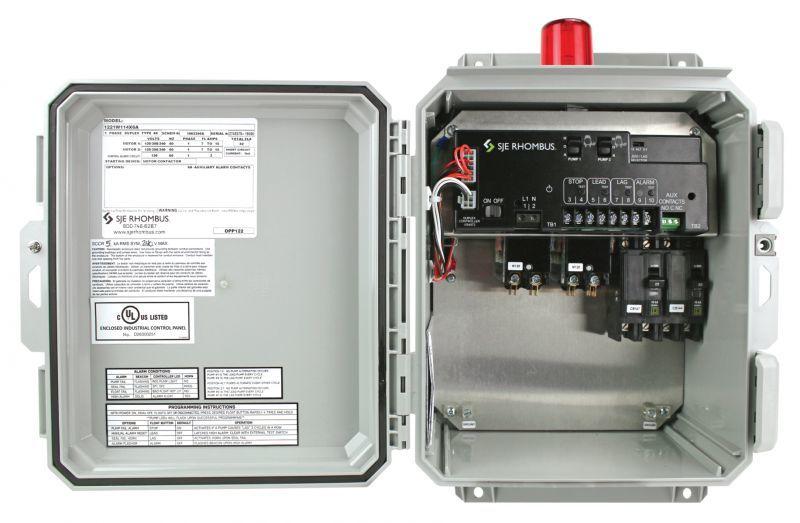

SJE Rhombus Model 122
The Model 122 control panel from SJE Rhombus controls two 120/208/240-volt, single-phase pumps in water and sewage installations. This panel includes a duplex controller for pump control, alternation and alarm. It includes float status LEDs, a control/alarm power on/off switch with LED indicator, pump run LEDs, HOA switches, a pump lead lag selector switch and auxiliary contacts. It includes built-in lag pump delay time, pump failure detection and float out of sequence. In addition, there are four user-selectable field-programmable operations: alarm steady state or flashing; alarm auto reset or manual reset; pump failure notification; and optional seal failure alarm beacon notification or beacon plus horn activation. It is available in the new NEMA 4X enclosure, which is designed for easy installation and additional protection from the elements. It is UL/cUL listed. 888-342-5753; www.sjerhombus.com.

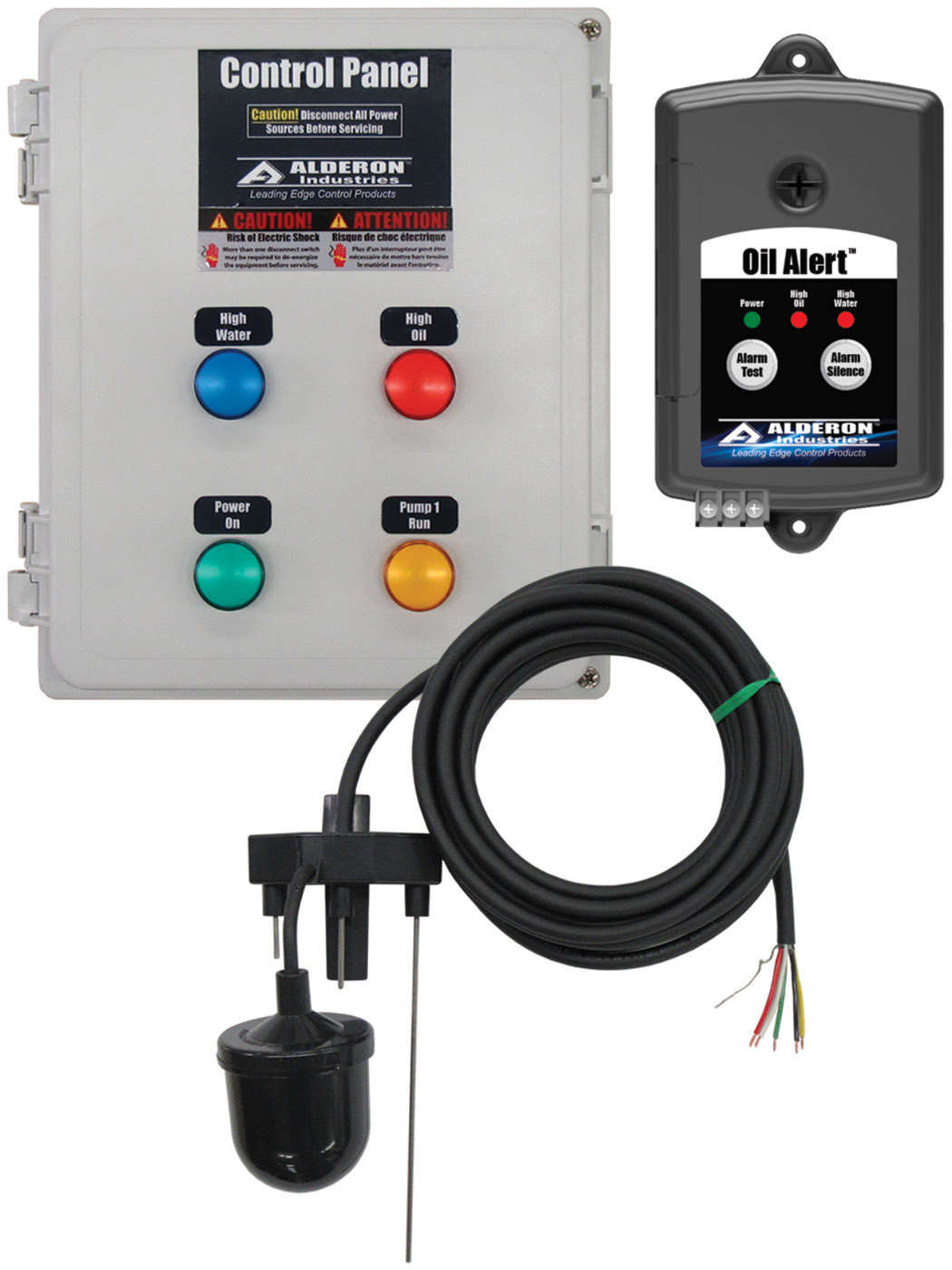

Alderon Industries Oil Alert 7410-4X
The Oil Alert 7410-4X from Alderon Industries is a single-phase simplex panel that controls a single pump to remove water from an elevator sump pit while monitoring oil level. The sensor module is designed to only pump down the water level and alarm in the event of excess oil or water. The sensor module probes are preset for off, start and high level. A 2-Zone Oil Alert alarm panel equipped with audible and visual indication is included for remote monitoring in addition to the local indicators on the main control panel. There are LED indicators for power on, pump run, high water and high oil on the control panel, while the remote alarm panel includes LED indicators for power, high water and high oil. Auxiliary contacts are included to connect to a building automation system or SCADA. 218-483-3034; www.alderonind.com.

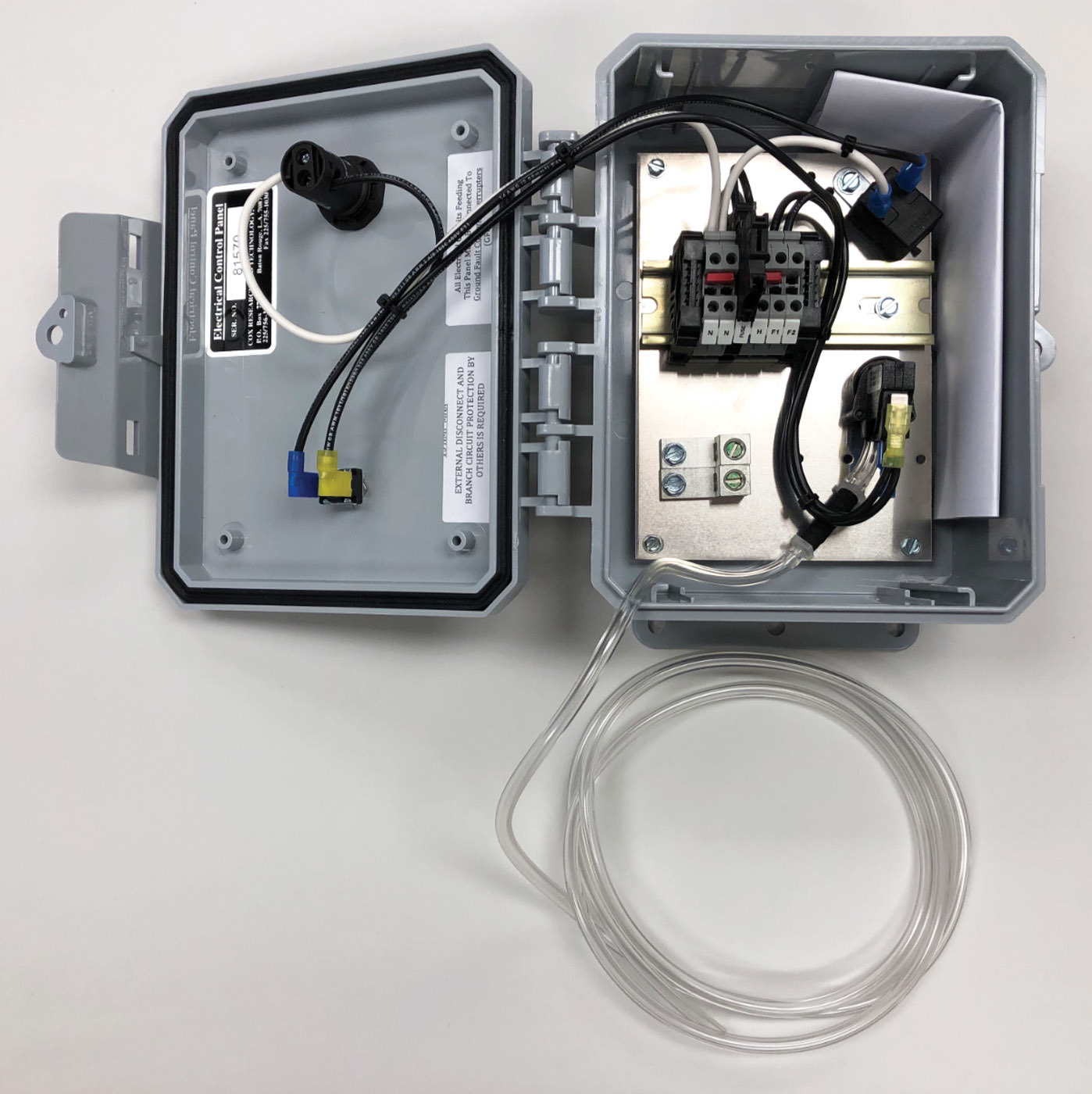

Delta Treatment Systems CP20/40/50 Series
CP20/40/50 Series control panels from Delta Treatment Systems provide intelligent monitoring and alarm functions for residential, commercial and industrial wastewater treatment systems. They are easy to install and operate and are available in several models engineered for use with advanced wastewater treatment systems and custom packaged plants. Customized control panels are also available, and all panels can be supplied with UL and/or Canadian UL 508A listings upon request. They monitor air pumps and effluent pumps on the Delta Whitewater treatment system. Additional options include the Series CP22, which monitors the air blower on Delta ECOPOD systems with options for controlling and monitoring UV lights for disinfection after treatment. Series CP8000/9000 control the Delta ECODRIP Pre-Engineered Disposal Systems’ headworks filter system and effluent dosing pump using a PLC for time-dosing drip disposal fields. 800-219-9183; www.deltatreatment.com.

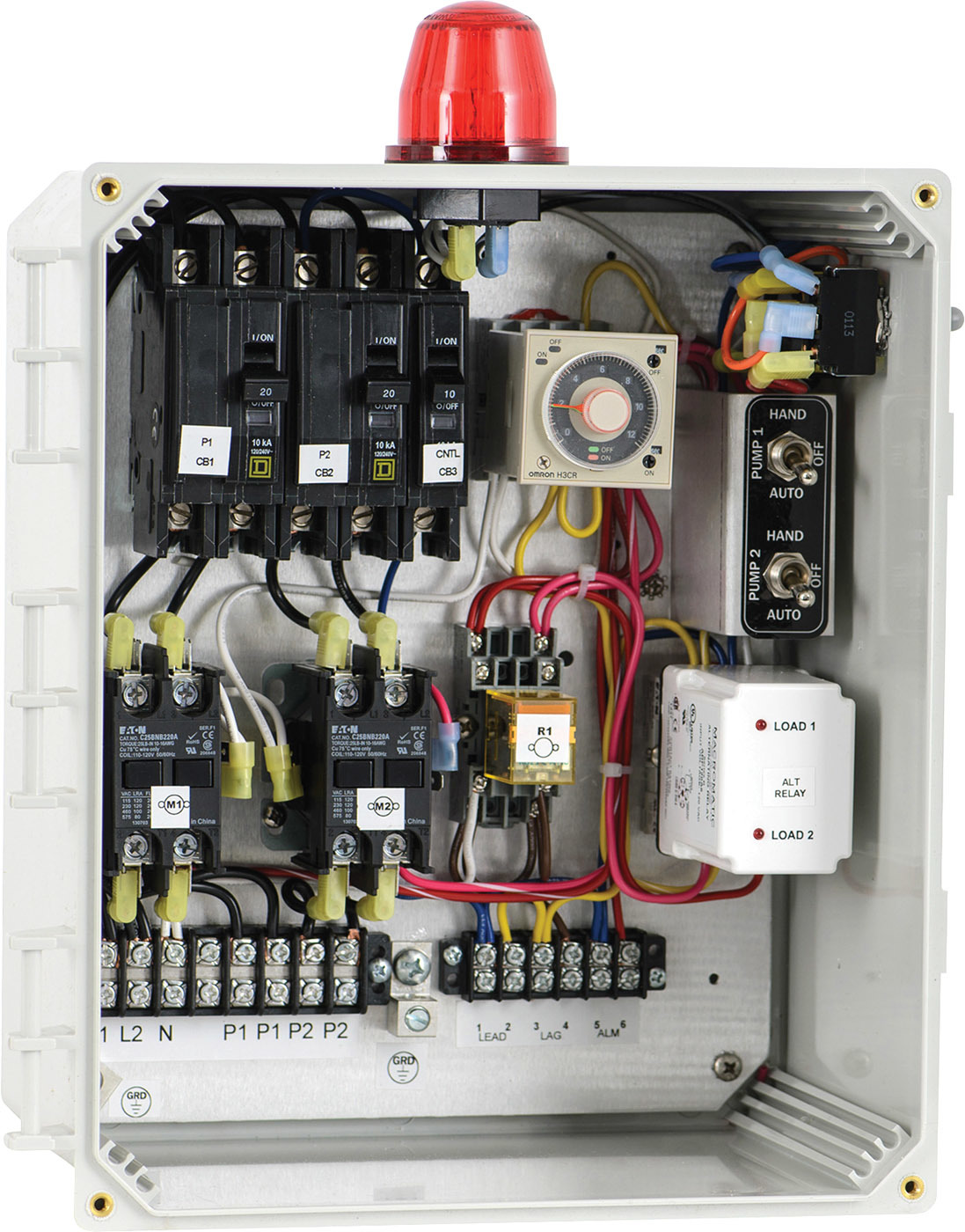

Septic Products 50B019-120-240DD
The 50B019-120-240DD control panel from Septic Products is a duplex time-dosing panel for use in residential or commercial applications. It can be used with 120- or 240-volt power, and it accommodates two dosing pumps controlled by a repeat cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com.


Distribution Box

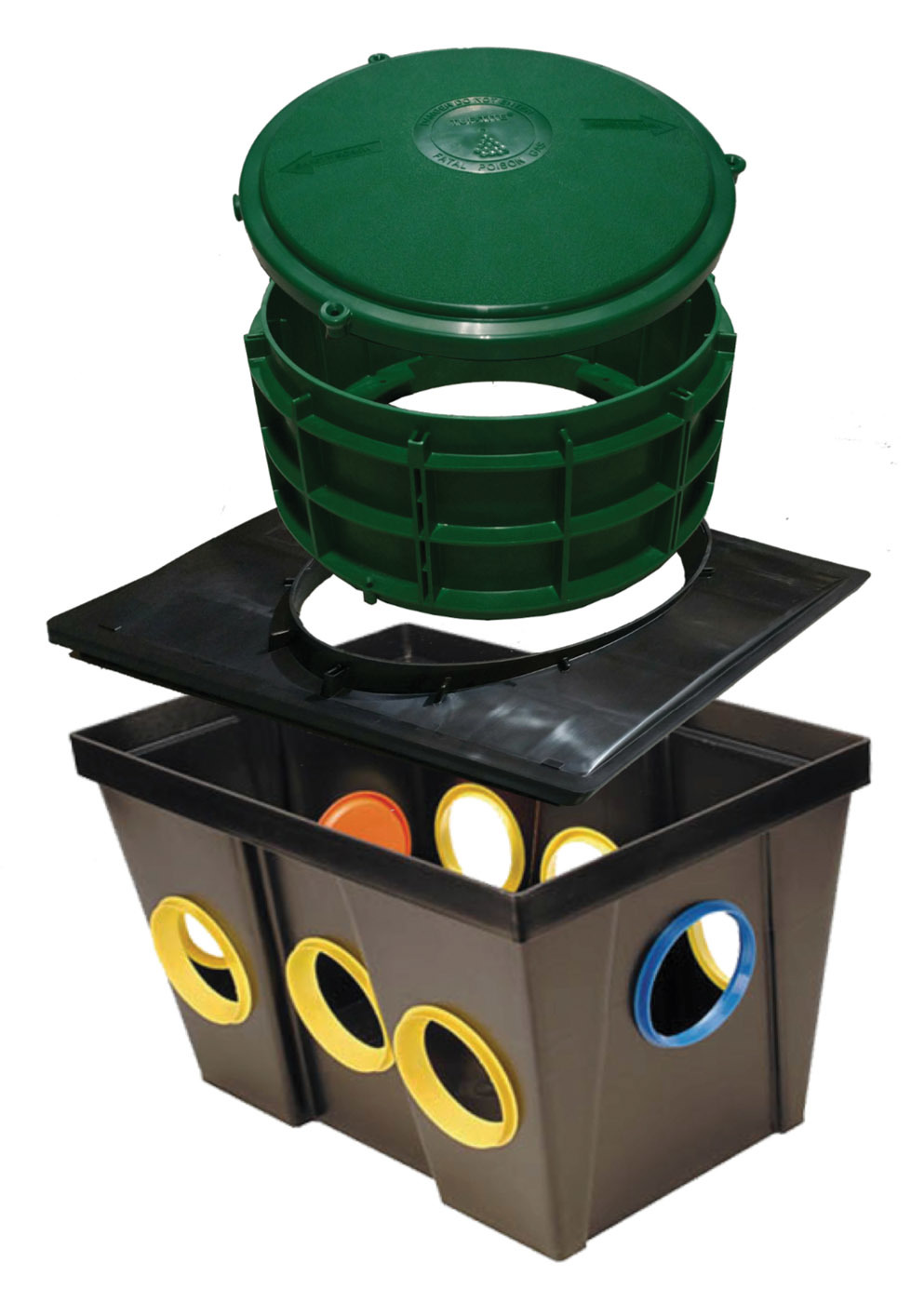

TUF-TITE Distribution Box with Speed Leveler
The noncorrosive TUF-TITE Distribution Box with Speed Leveler in each outlet provides a simple, stable, reliable and permanent means for dividing septic tank effluent flow, according to the maker. Distribution boxes come in four sizes: four-, six-, seven- and nine-hole. Risers are available on the four-, seven- and nine-hole boxes. All boxes come with a one-piece watertight seal that accepts 1.5-, 2-, 3- and 4-inch SDR 35 or Schedule 40 pipe, including corrugated, for easy installation. 800-382-7009; www.tuf-tite.com.


Drainfield Components

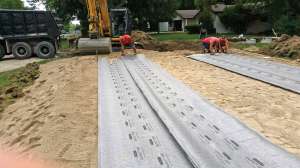

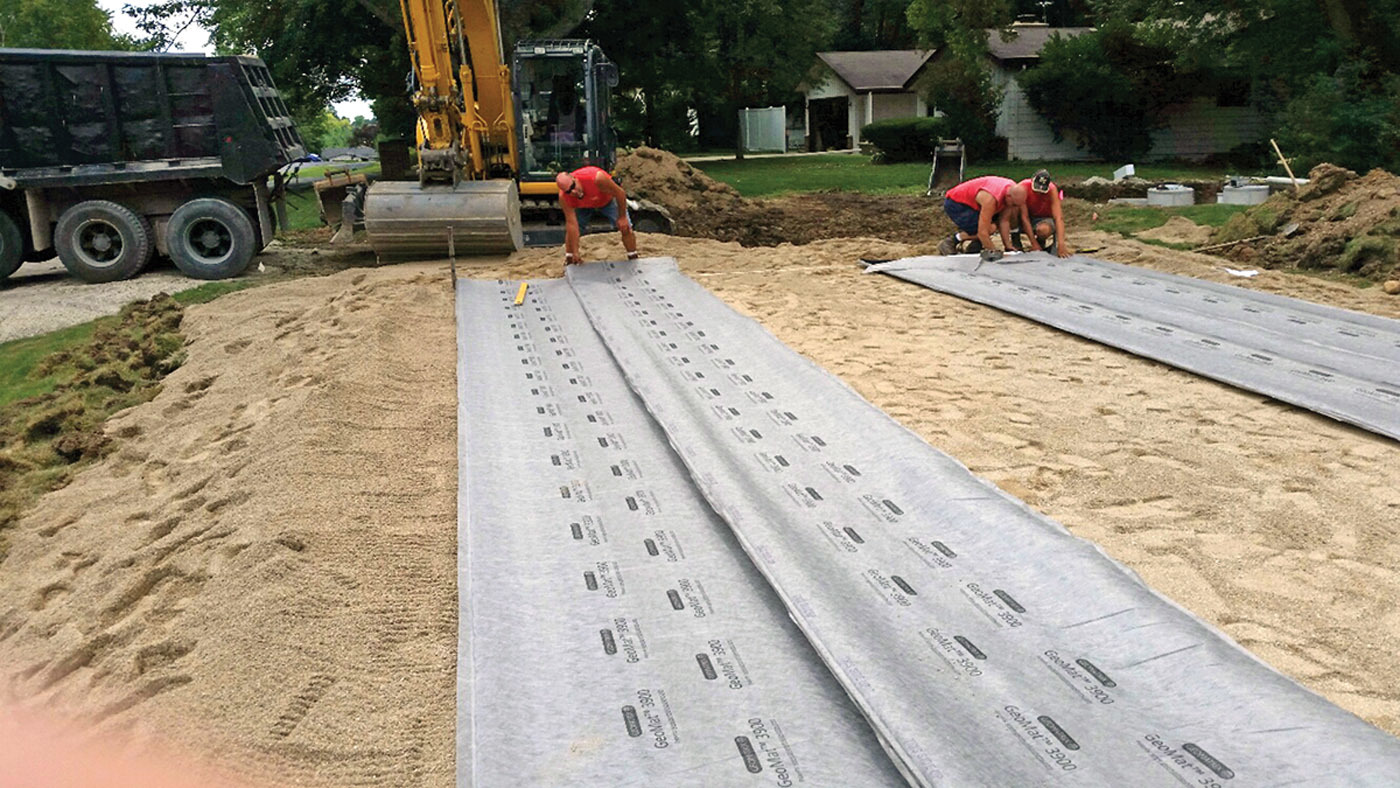

Geomatrix Systems GeoMat
The GeoMat leaching system from Geomatrix Systems consists of a core of fused, entangled plastic filaments surrounded by a high-capillary geotextile fabric. When sized accordingly, it is compatible with pretreated wastewater or septic tank effluent. Uses also include subsurface irrigation and evapotranspiration systems. It is 1 inch high and available in 6-, 12- and 39-inch widths. A pressurized distribution pipe typically runs the length of the lateral for uniform application of wastewater. Additionally, it can be configured with a time-dose pump station for flow equalization. The combination of pressure dosing and flow equalization reduces peak hydraulic loading. The thin, narrow profile, shallow burial depth and uniform hydraulic loading maximize efficiency of oxygen transfer. It has complete surface contact with the soil and is not reliant on complex valving and filtration systems. Distal head pressure is fully adjustable through manual zone valves. 888-764-5247; www.geomatrixsystems.com.

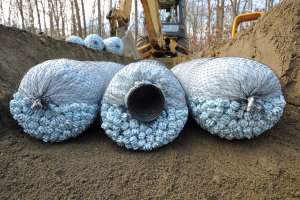

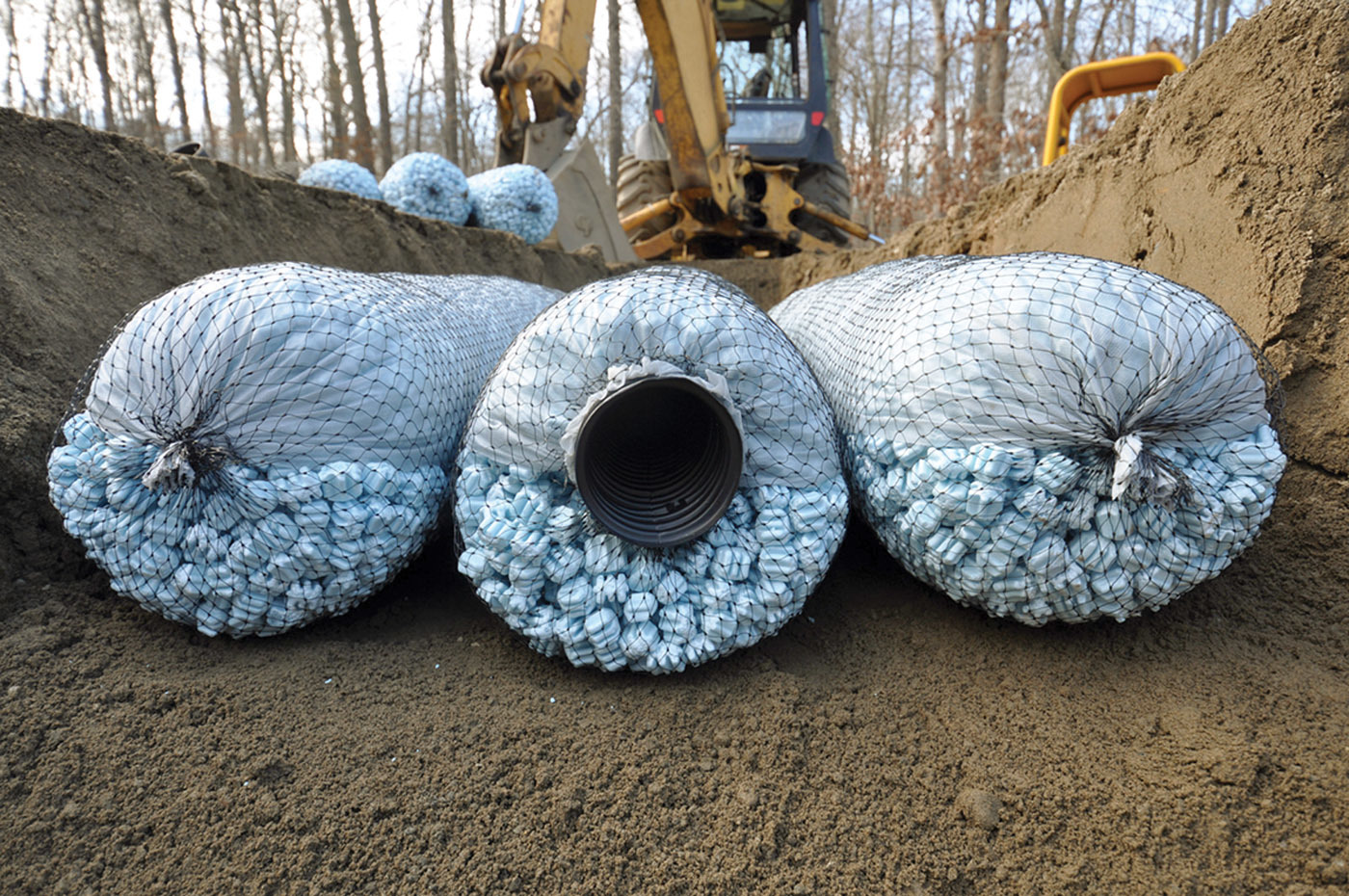

Infiltrator Water Technologies EZflow
The Infiltrator Water Technologies EZflow septic system replaces stone-and-pipe drainfields using geosynthetic aggregate in a modular, lightweight and easy-to-install design. It eliminates fines and reduces compaction and embedment associated with stone. The engineered system provides optimal storage and absorption efficiencies. The modular construction allows configurations to match most system trench dimensions and enables contouring along sloped sites and around trees or landscaping. Preassembled units include a 3- or 4-inch perforated pipe surrounded by aggregate and held in place with durable, high-strength netting. Manufactured from recycled materials, the system is available in 5- or 10-foot lengths with simple snap internal couplers and a variety of bundle system configurations. The system is suitable for repairs and tight job sites and is easily hand-carried into position, reducing time, labor and machine expense. It is approved in many areas with an increased efficiency rating that reduces drainfield size requirements. 800-221-4436; www.infiltratorwater.com.


Drip Systems

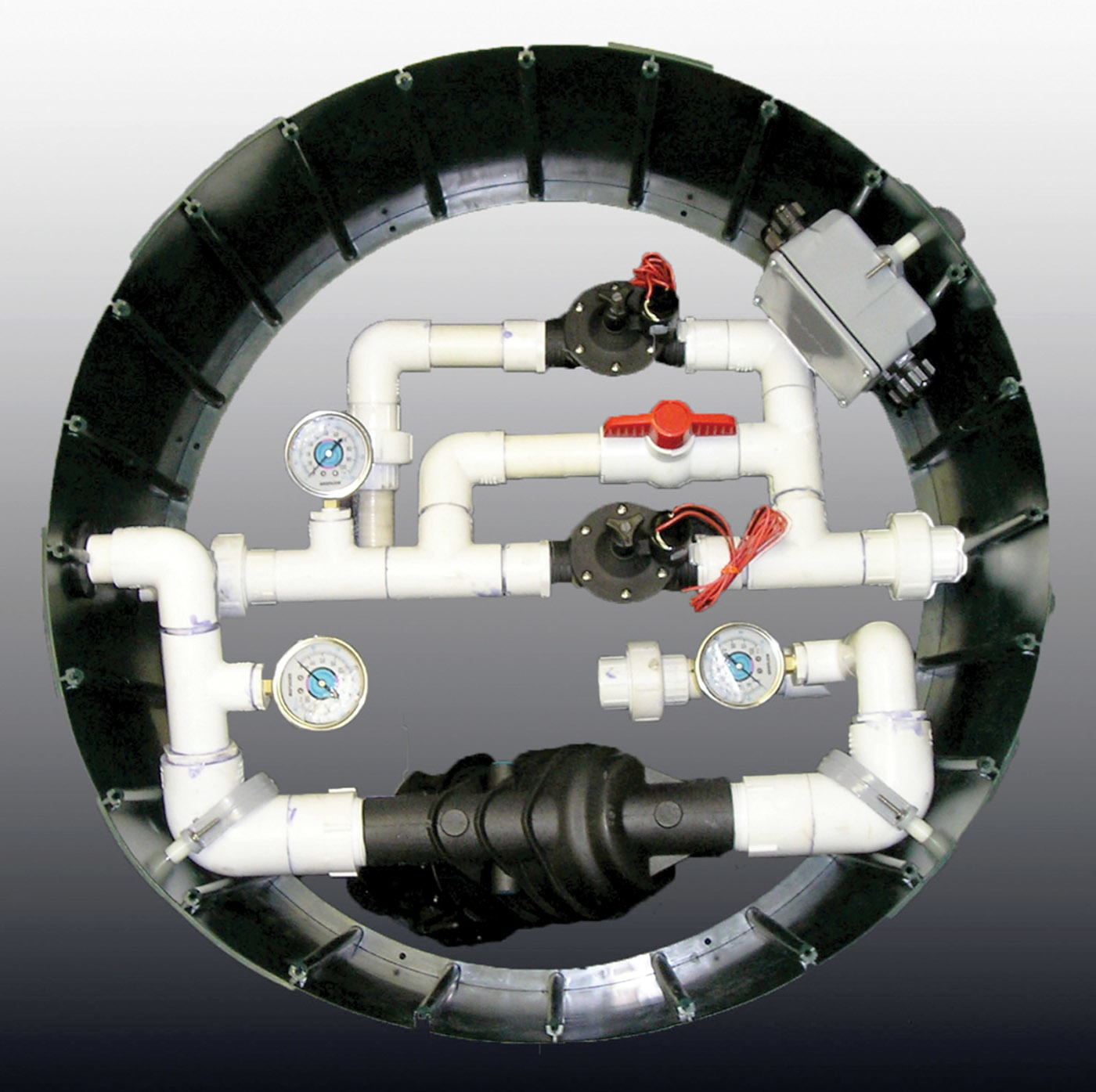

Jet Inc. Drip Irrigation Headworks
The Drip Irrigation Headworks package from Jet Inc. is designed as a direct-mount device on an effluent pump tank to filter effluent while controlling pressure to the dripfield. It is available for auto or manual flush. The package contains a 1.5-inch vortex screen filter and pre-installed pressure gauges to monitor pressure drop across the filter component and regulate pressure to the dripfield. It mounts onto an existing 24-inch riser for easy access to the pump, float tree, integrated vortex filter and controls. The package is available as part of the Drip Disposal Field Package that complements the J-1500 Series BAT Media treatment system. An optional flowmeter package and pressure relief valve is available to meet site-specific and regulatory criteria. 800-321-6960; www.jetincorp.com.

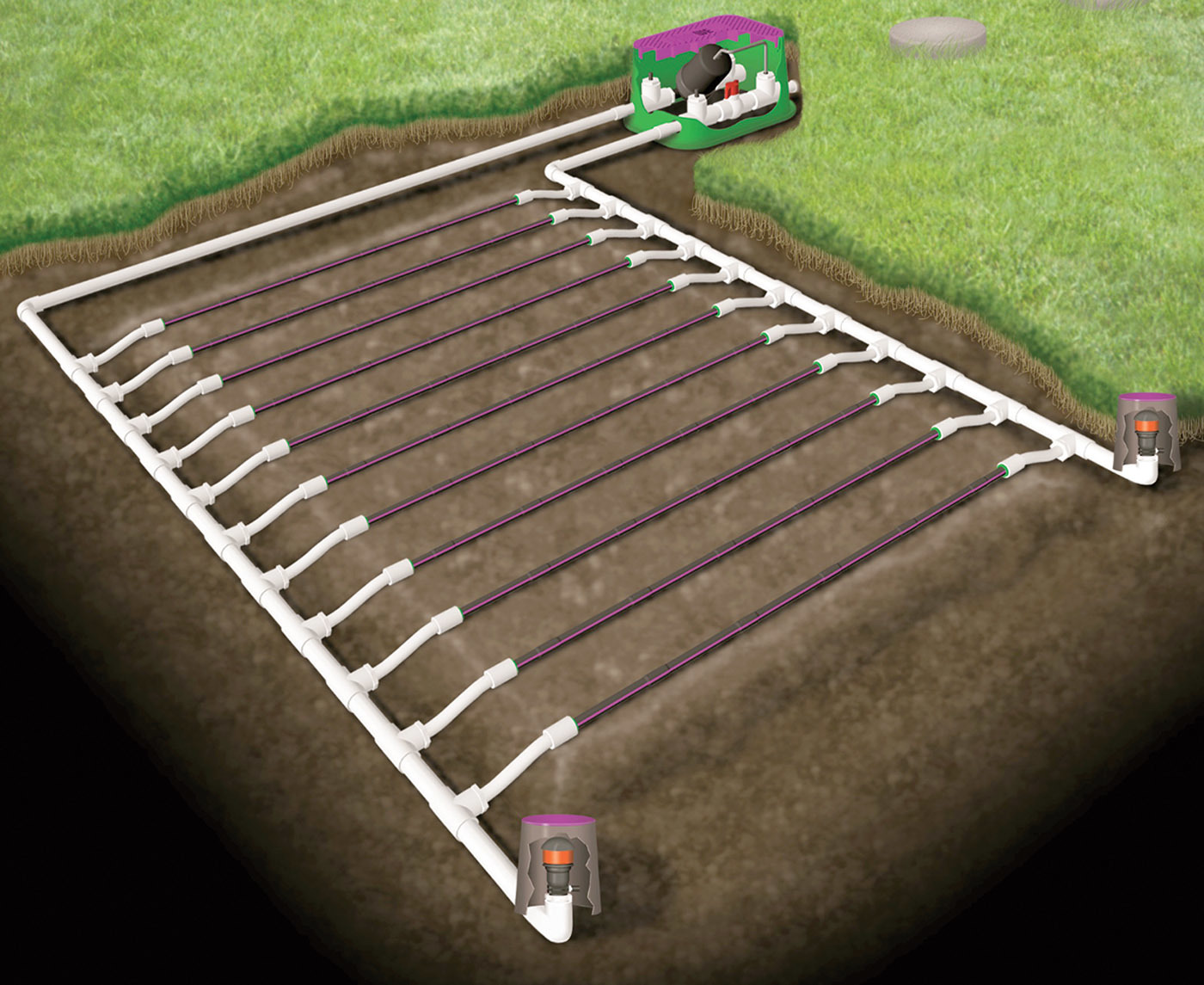

Norweco subsurface drip disposal system
The subsurface drip disposal system from Norweco is engineered to uniformly apply treated effluent below the ground’s surface. This method of pressure distribution is suited for all conditions, as effluent is delivered directly to the infiltrative surface of the soil using specially manufactured polyethylene tubing with built-in turbulent flow emitters. Properties with marginal soils can be economically developed using wastewater treatment systems and drip disposal technology. The system can increase the options available for onsite treatment system design. U.S. Environmental Protection Agency and environmental protection agencies worldwide have determined subsurface drip disposal is a reliable and efficient method of effluent distribution. Even the most difficult sites can be utilized through gradual soil absorption, nutrient uptake by vegetation and evapotranspiration. 800-667-9326; www.norweco.com.


Filters/Filter Media

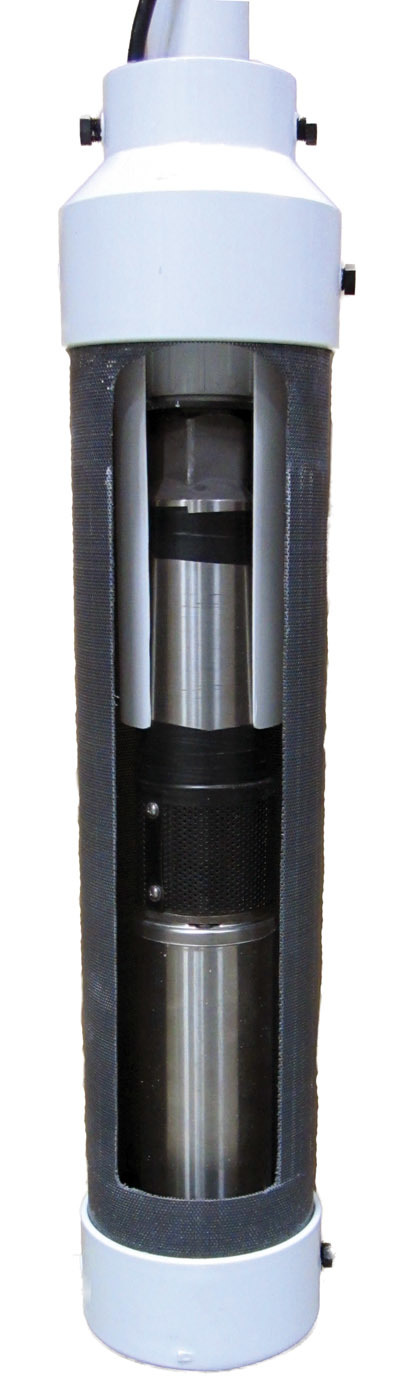

Sim/Tech Filter No-Vault
The No-Vault pump filter from Sim/Tech Filter is designed to help protect turbine pump intake screens. Filtration is achieved through a choice of a 6-inch diameter PVC or 316L stainless steel screen with 1/16-inch diameter perforations. The shorter model has 139 square inches of open area, while the tallest model has 325 square inches of open area. With 35 to 80 times the open area of the intake screen, it helps reduce the frequency of screen and pump cleaning. The interior sealing sleeve allows it to adjust to different pipe heights. The smallest unit handles pumps up to 26 inches tall, while the largest unit handles pumps up to 50 inches tall. The simple unit is easily installed in new systems or retrofitted onto existing systems. 888-999-3290; www.simtechfilter.com.


Pumps

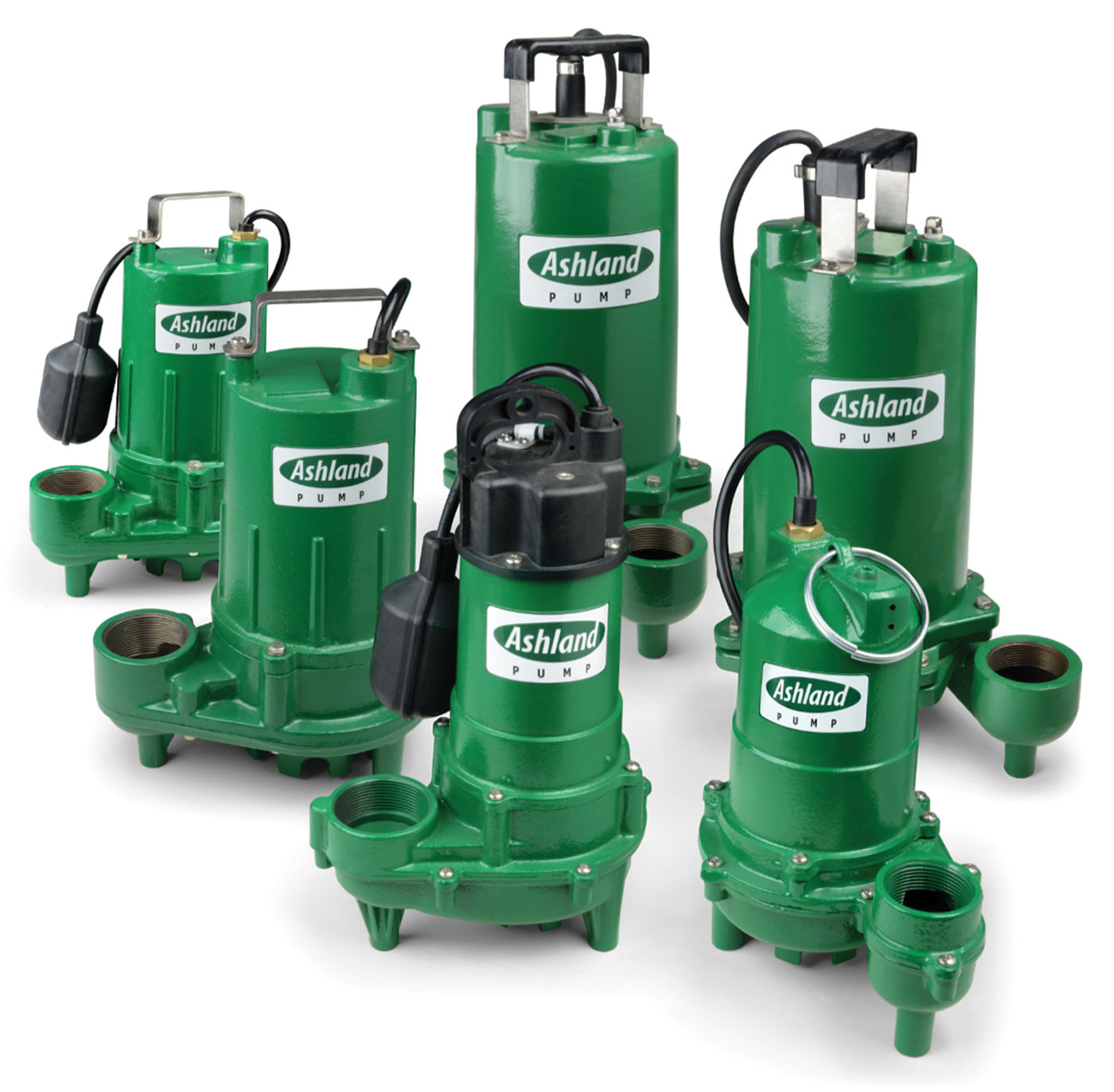

Ashland Pump effluent pumps
Heavy-duty effluent pumps from Ashland Pump are available in multiple horsepower sizes for various performance requirements, with efficient permanent split-capacitor motors. The oil-filled pumps have an upper and lower ball bearing design and handle up to 3/4-inch solids. They are made of cast iron, with cast iron impellers and equipped with a piggyback switch (20-foot standard cord) or in manual configurations. They are offered in 3/10, 2/5, 1/2, 3/4, 1 and 1 1/2 hp models. 855-281-6830; www.ashlandpump.com.

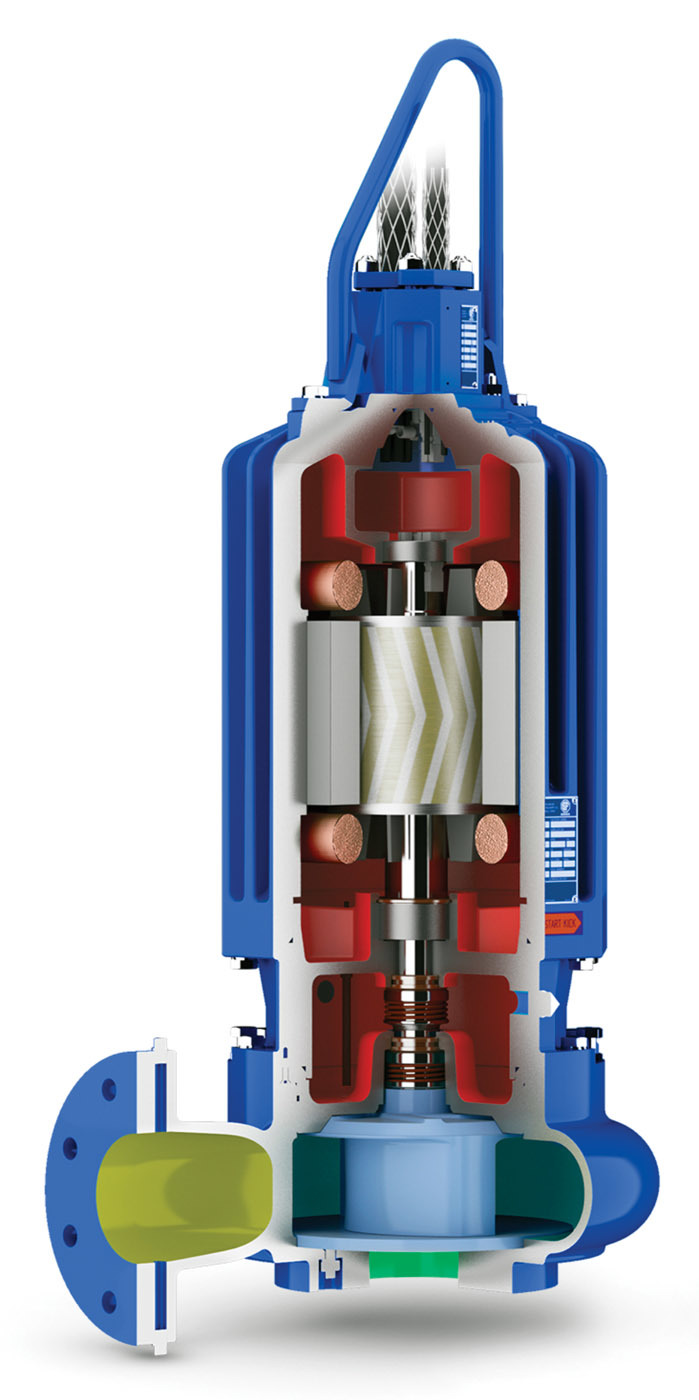

Gorman-Rupp SF Series
SF Series submersible solids-handling pumps from Gorman-Rupp use single-vane impeller designs requiring lower horsepower with increased flow and head. The line of pumps is available on more than 24 models in 3-, 4-, 6- and 8-inch flanged discharge sizes and power ranging from 3 to 75 hp. These combinations will provide flows up to 3,400 gpm and heads to 170 feet. 419-755-1011; www.grpumps.com.

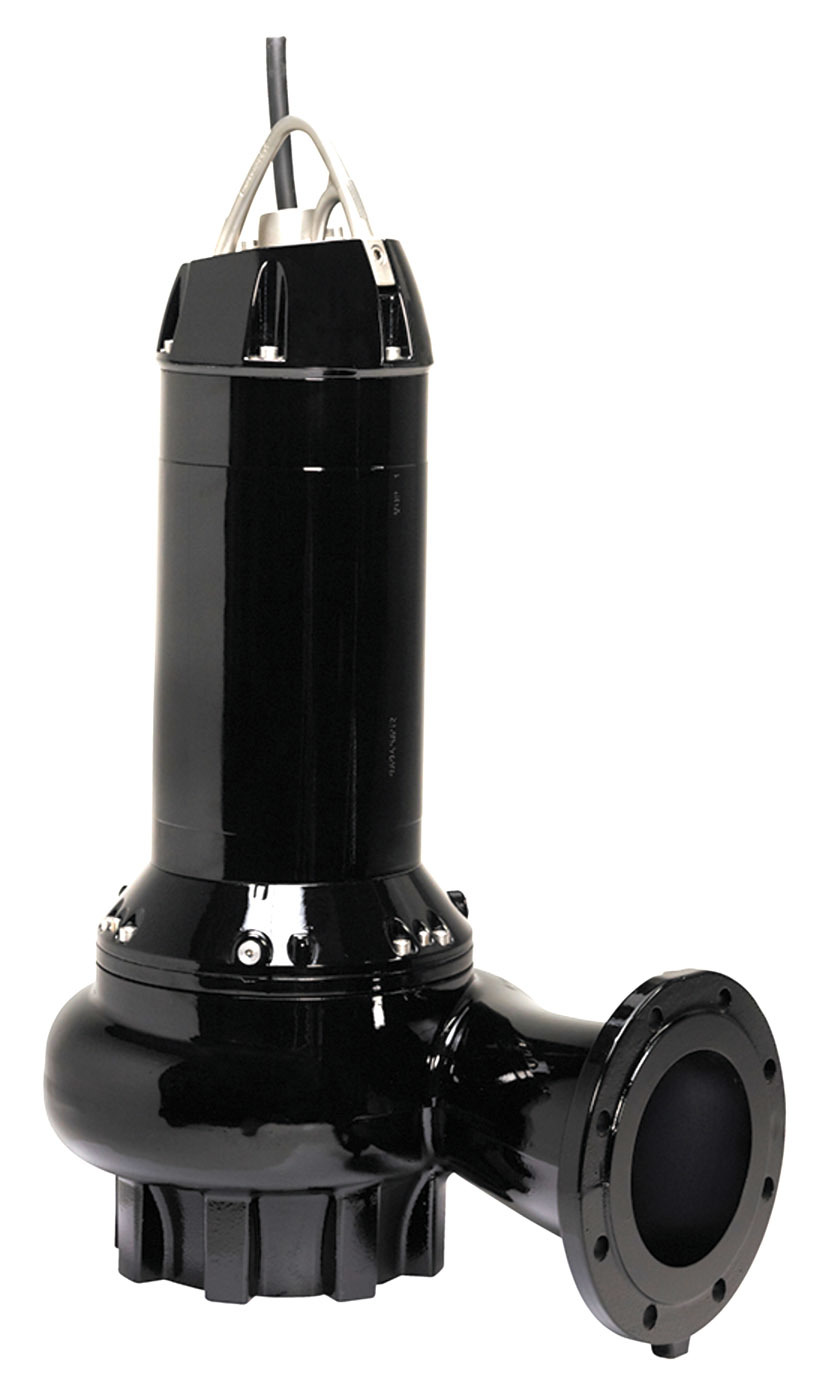

Grundfos Pumps SL
SL wastewater pumps from Grundfos Pumps are designed for raw water intake, commercial wastewater, municipal wastewater, industrial wastewater, process water and stormwater runoff applications. The solids-handling pump series ranges from 1.5 to 15 hp and is available with two types of impellers: either an SLV/SuperVortex impeller that provides the free passage of solids up to 4 inches in diameter with a 6-inch discharge for liquids with a higher content of solids, fibers or gassy sludge; or the SL1/S-tube impeller that accommodates solids up to 4 inches in diameter with a 6-inch discharge and is designed for large flows of raw sewage and reduced horsepower usage. 630-236-5500; us.grundfos.com.

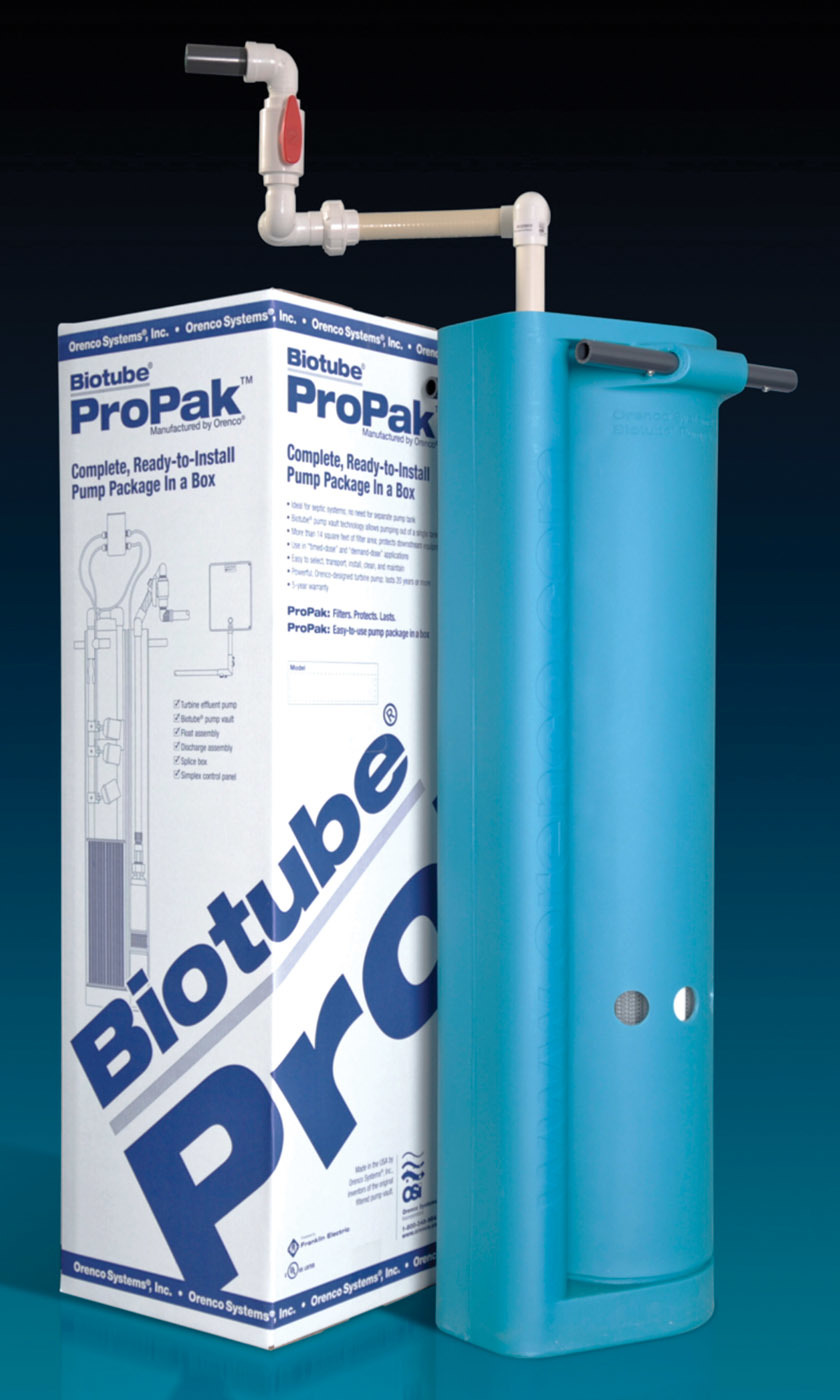

Orenco Systems Biotube ProPak
Biotube ProPak pump packages from Orenco Systems are complete, ready-to-install pump packages. They are used for filtering and pumping effluent from single- or dual-compartment septic tanks to gravity or pressurized discharge points. Pump vault technology eliminates the need for a separate dosing tank. Packages include a Biotube filter cartridge, which filters up to two-thirds of solids, so only liquid from the tank’s clear zone is pumped. Filters are easy to remove and clean without pulling the pump vault. All components are designed to be quickly installed and easily maintained. The PF Series high-head effluent pump is field serviceable and field repairable, and pump controls are designed for specific packages. Multiple models are available. ProPak Select software is designed to provide fast, error-free hydraulic calculations and generate system curves, according to the maker. 800-348-9843; www.orenco.com.

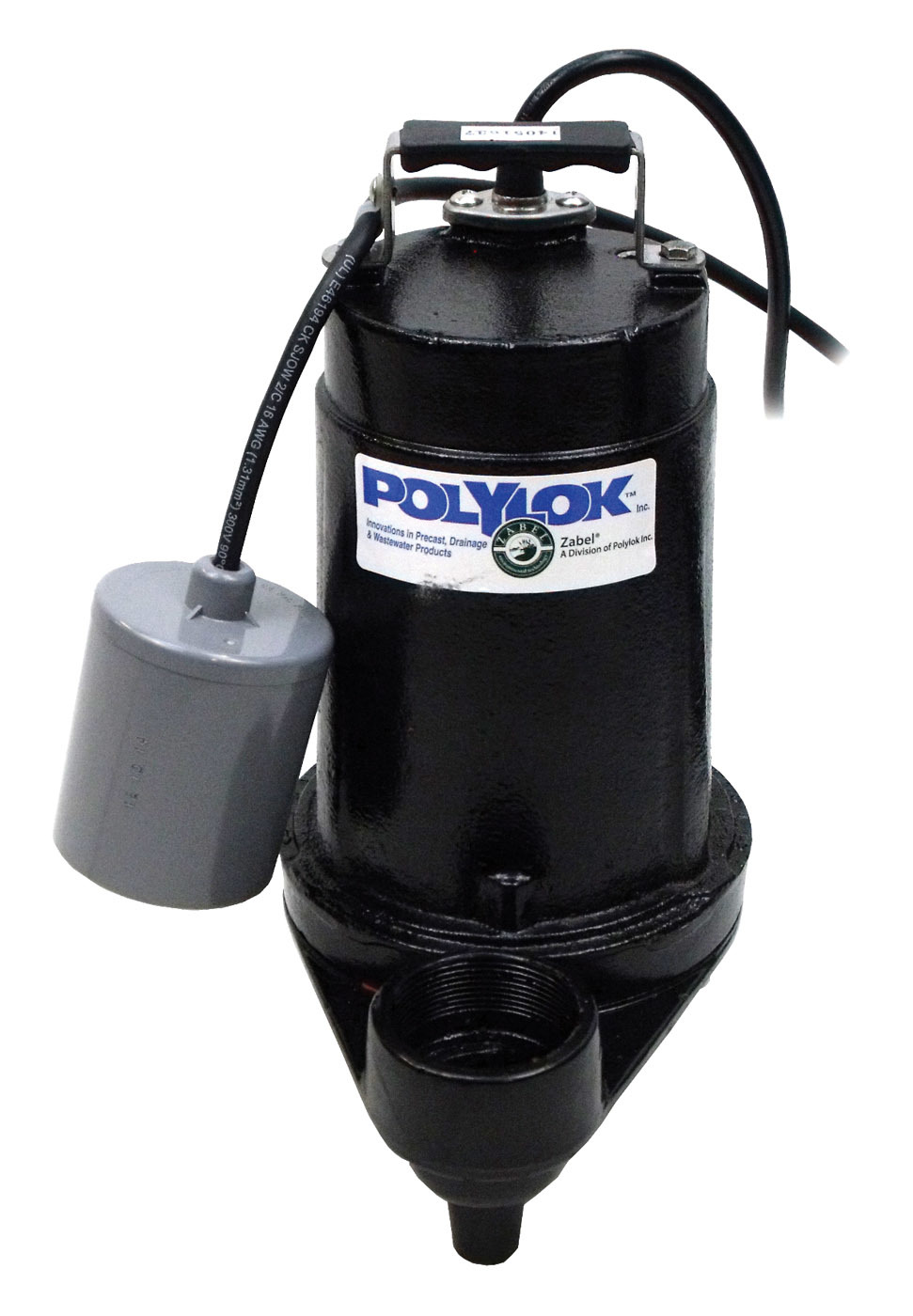

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a rugged cast iron housing and volute equipped with a cast iron vortex impeller capable of passing a 3/4-inch-diameter solid. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com.
