EFFLUENT PUMPS

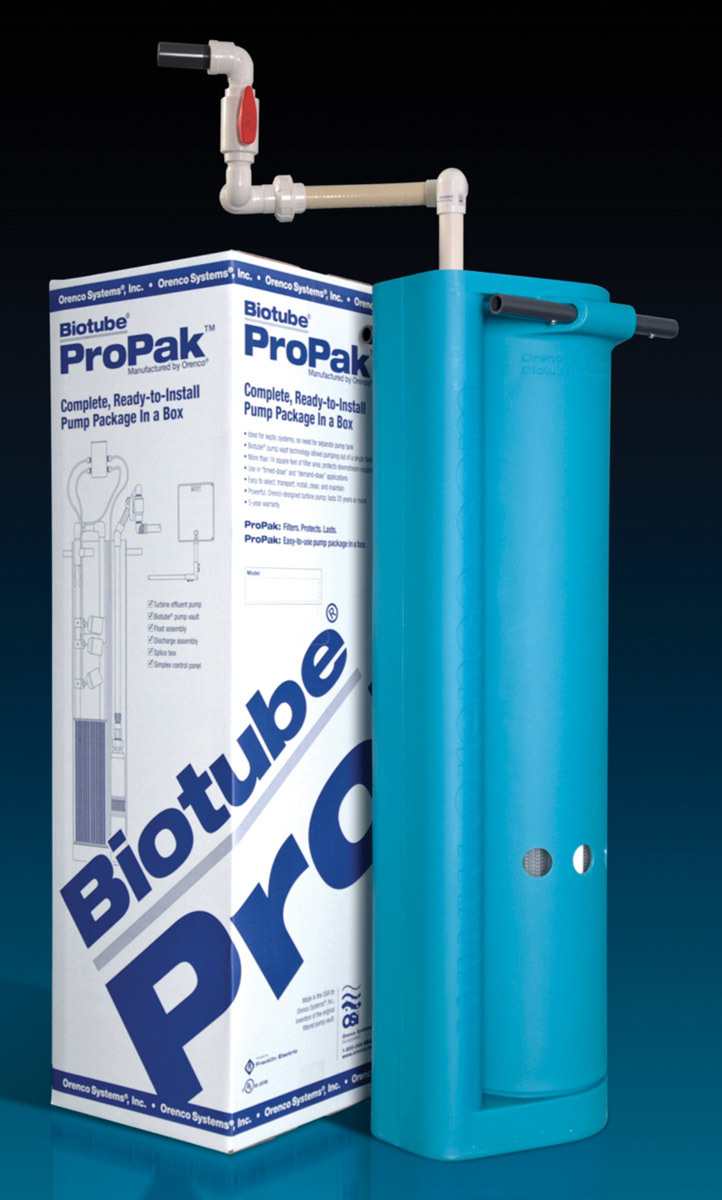

Orenco Systems Biotube ProPak
Biotube ProPak pump packages from Orenco Systems are complete and ready to install. They are used for filtering and pumping effluent from single- or dual-compartment septic tanks to gravity or pressurized discharge points. Pump vault technology eliminates the need for a separate dosing tank. Packages include a Biotube filter cartridge, which filters up to two-thirds of solids, so only liquid from the tank’s clear zone is pumped. Filters are easy to remove and clean without pulling the pump vault. All components are designed to be quickly installed and easily maintained. The PF Series high-head effluent pump is field serviceable and field repairable, and pump controls are designed for specific packages. Multiple models are available. ProPak Select software is designed to provide fast, error-free hydraulic calculations and generate system curves. 800-348-9843; www.orenco.com.

---

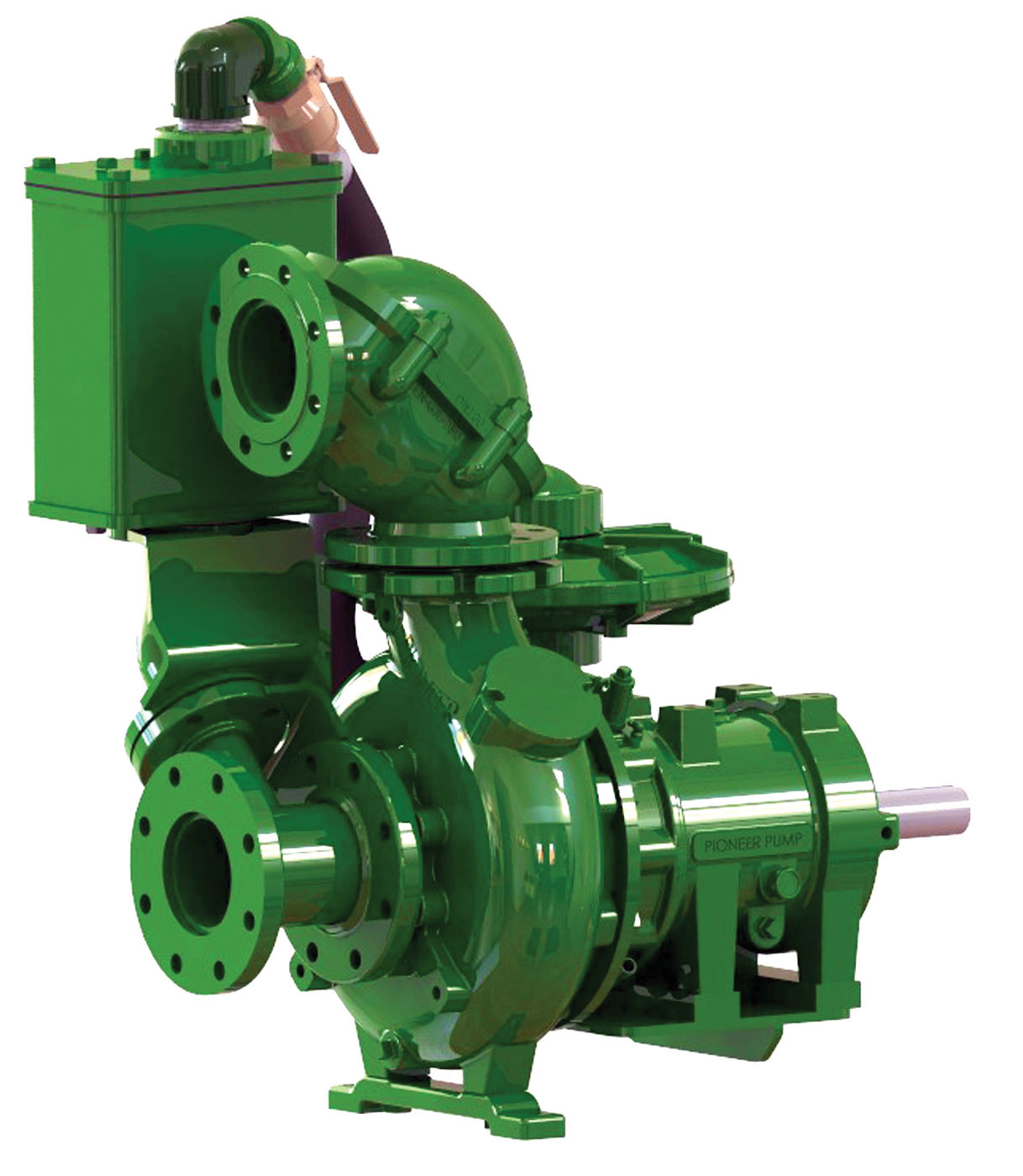

Pioneer Pump Vortex Series
Pioneer Pump Vortex Series pumps eliminate downtime by passing through the most challenging solids using a recessed impeller. The pumps are suited for waste handling, sludges, industrial effluent, chemical processing and other applications where fluid conditioning, macerating or mix-prevention are unnecessary. This is accomplished using vortex technology, which eliminates internal wetted parts, like wear plates and chopper blades, that would otherwise have to be monitored, adjusted and replaced. Heavy-duty cast iron casing construction, an oversized stainless steel shaft and a leakproof run-dry mechanical seal ensure reliability. A comprehensive range of electric and diesel packaging options are offered for fixed and portable installations and can be fitted with the Pioneer Prime vac-assist system for suction lift applications. They are available in 4-by-4, 6-by-6 and 8-by-8 sizes and cover flow rates up to 3,600 gpm and heads up to 150 feet. 503-266-4115; www.pioneerpump.com.

---

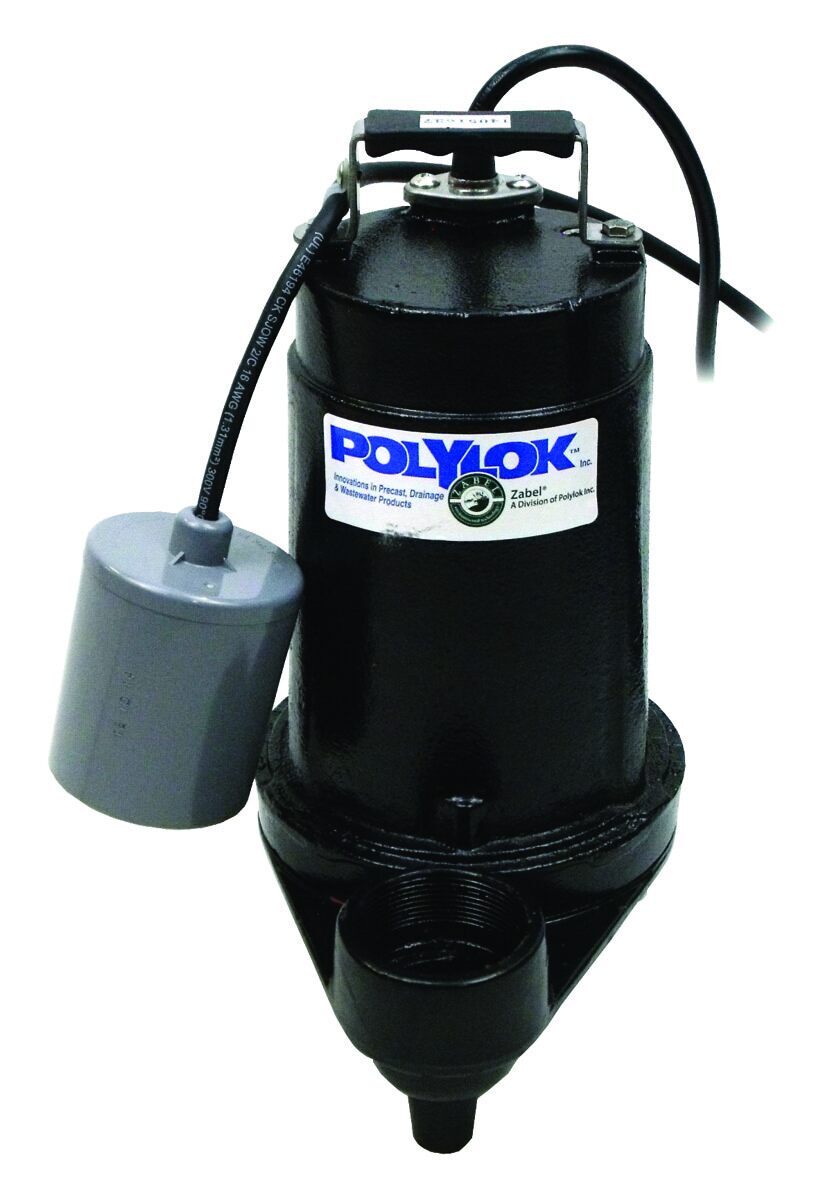

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a rugged cast iron housing and volute equipped with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-959-7751; www.polylok.com.

---

GRINDER PUMPS

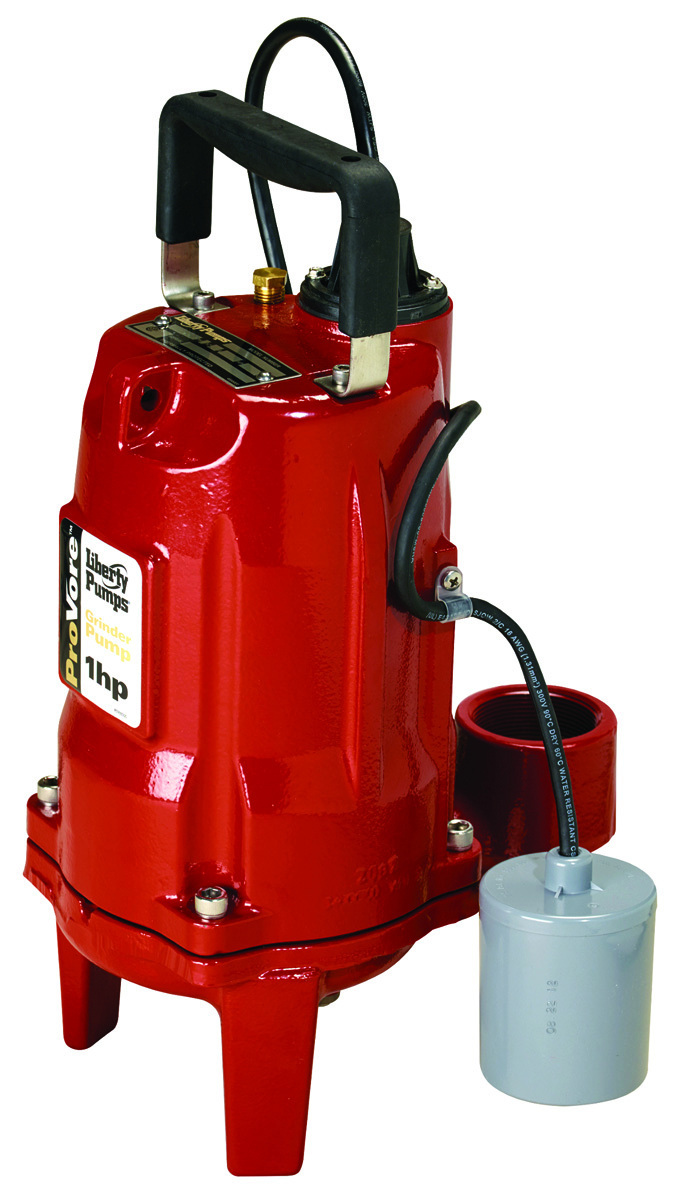

Liberty Pumps ProVore
The ProVore grinder from Liberty Pumps is designed for use in applications where the addition of a bathroom or other fixtures below sewer lines requires pumping. It has the same V-Slice cutter technology used in the Omnivore series, brought down to a more cost-effective level. Powered by a 1 hp motor, this smaller grinder is designed to operate on a standard 115- or 230-volt circuit, requiring only a 20-amp breaker. No special wiring is needed. The pump comes with a 2-inch vertical-style discharge and a standard leg pattern matching the LE-Series. This allows for an easy retrofit into existing systems. Compact factory-assembled systems are available in both simplex and duplex versions: the ProVore 380 and ProVore 680. 800-543-2550; www.libertypumps.com.

---

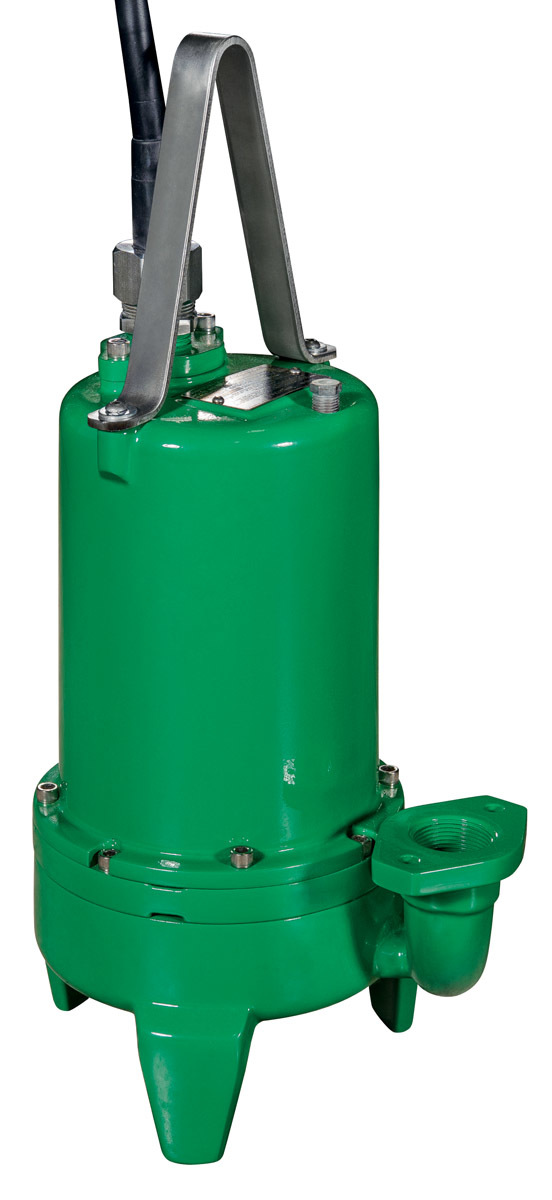

Pentair V2 Series
The V2 Series grinder from Pentair is designed with computational fluid dynamics software and has a volute and impeller design that allows shut-off heads up to 185 feet with a single-stage centrifugal pump. This design gives operators the flexibility to change between the standard, high-head and high-flow design by swapping the impeller and cutter plate, simplifying maintenance and reducing service parts inventory for low-pressure sewage system projects. It is available with an optional quick-disconnect cord for easier servicing in the field, double row bearings to absorb axial and radial loads, and an oil-filled motor for cooler operating temperatures and longer life. 855-274-8948; www.pentair.com.

---

SUMP PUMPS

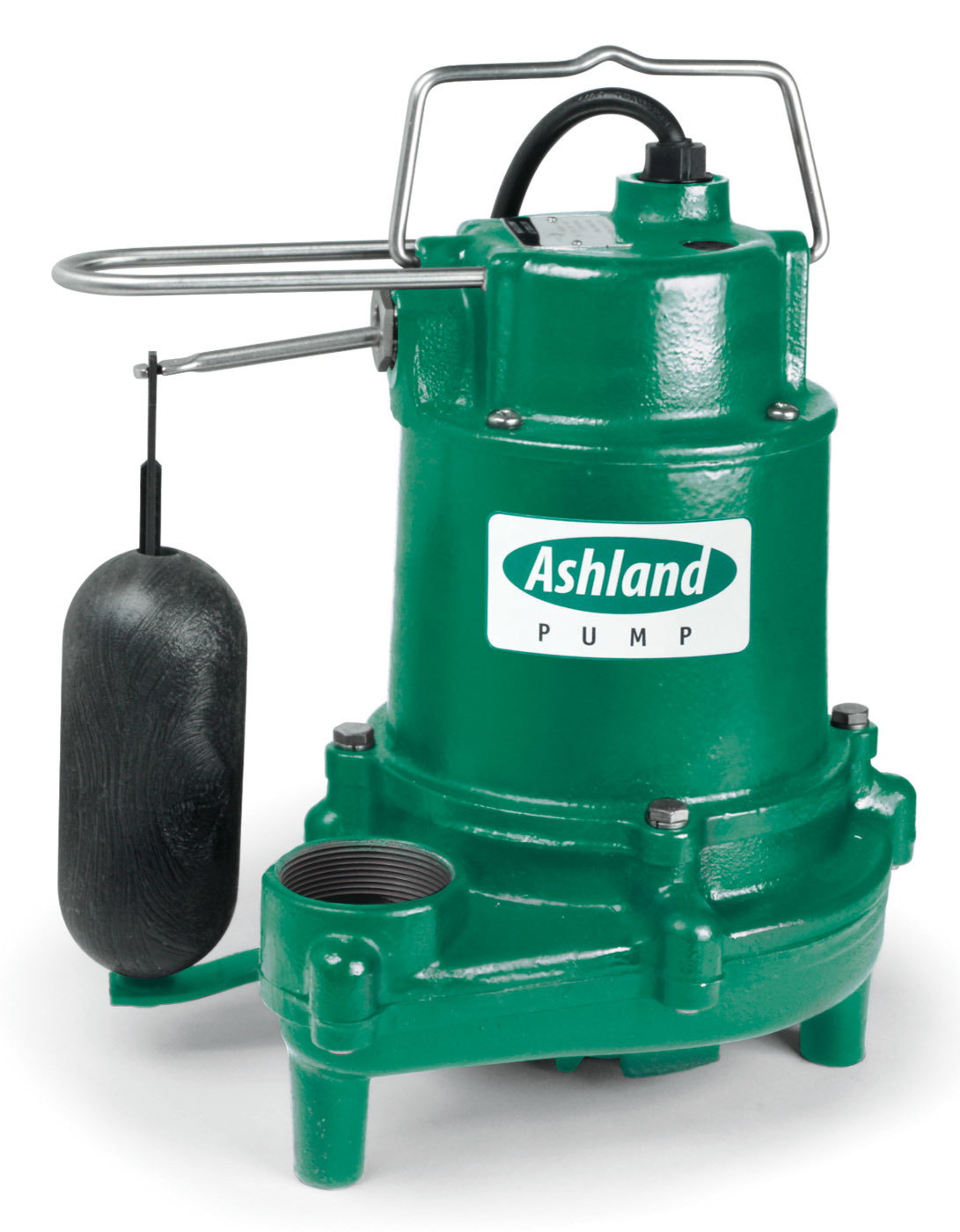

Ashland Pump SVP
SVP sump pumps from Ashland Pump have rugged cast iron construction for the professional. The pumps come equipped with continuous duty rated motors and an upper and lower ball bearing design. The vortex impeller is made of thermoplastic with the 1/3 hp option or cast iron with the 1/2 hp option. These sump pumps have a contractor-grade vertical switch with switch guard and a 10-foot power cord. 855-281-6830; www.ashlandpump.com.

---

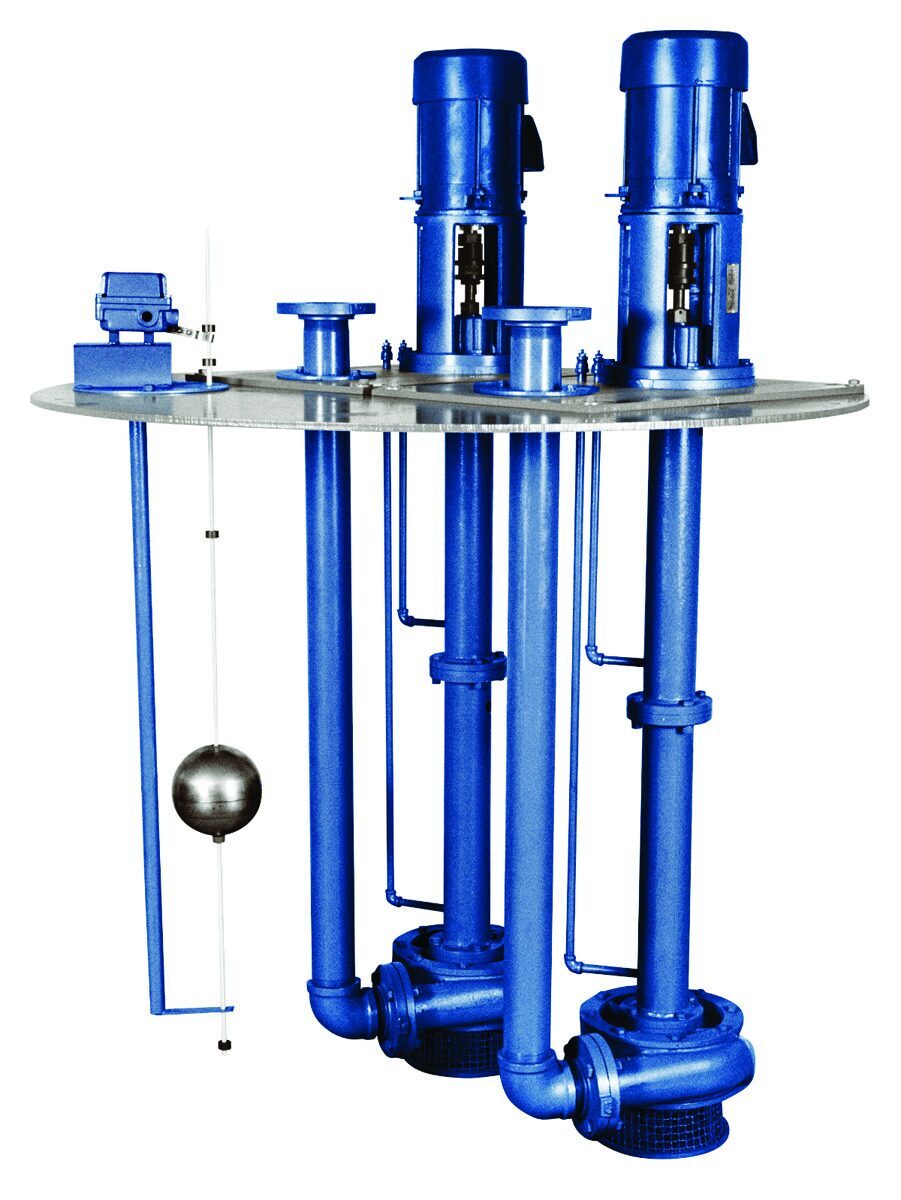

Vertiflo Pump Series 800
The Series 800 immersion sump pump from Vertiflo Pump can be used for sump drainage, flood control and process drainage to meet U.S. Environmental Protection Agency and Occupational Safety and Health Administration requirements. It is designed for severe service at heads to 230 feet and temperatures to 350 degrees F, and it operates in pit depths to 26 feet and up to 3,000 gpm. It includes carbon line shaft bearings, semiopen impeller with external adjustment, high-thrust angular contact ball bearing, 416 stainless steel shafts to 1 15/16 inches and a standard NEMA C face motor. Construction materials available are cast iron, 316 stainless steel or alloy 20. 513-530-0888; www.vertiflopump.com.

---

SUBMERSIBLE PUMPS

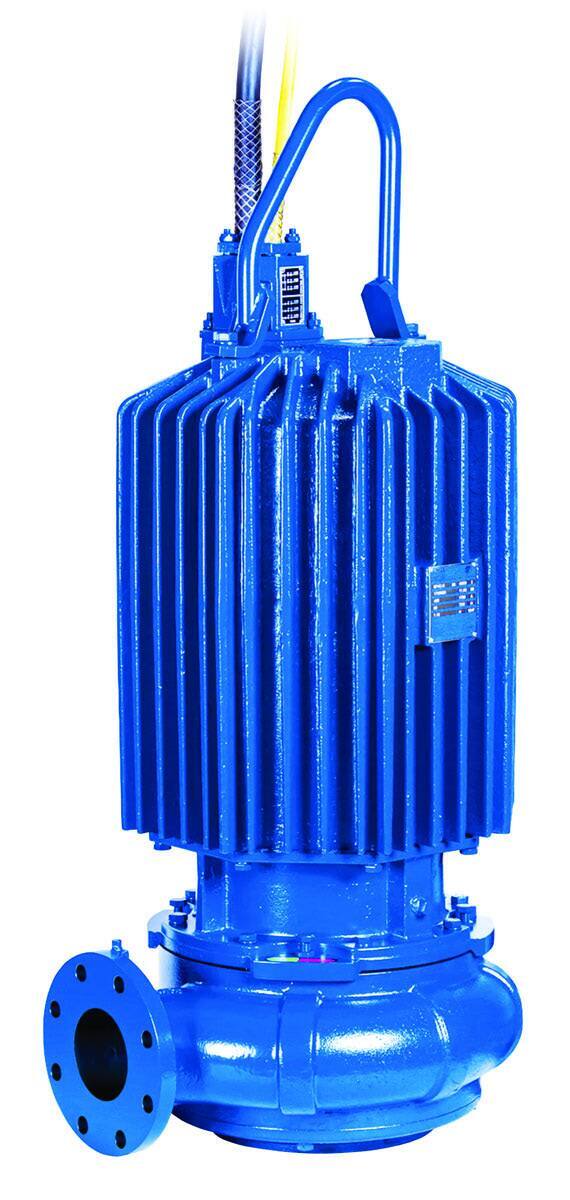

Gorman-Rupp SF Series
Gorman-Rupp’s line of SF Series submersible solids-handling pumps have extreme-duty vortex and semiopen, two-vane impeller designs to combat stringy and solids-laden pumping media. The line has 37 models in 3-, 4-, 6- and 8-inch flanged discharge sizes and power ranging from 3 to 75 hp. These combinations with multiple impeller trims will provide flows up to 3,400 gpm and heads up to 170 feet. They are available in multiple configurations. Nearly all models are available with CSA C-US approval for standard locations and FM and CSA C-US approval for hazardous locations. 419-755-1011; www.grpumps.com.

---

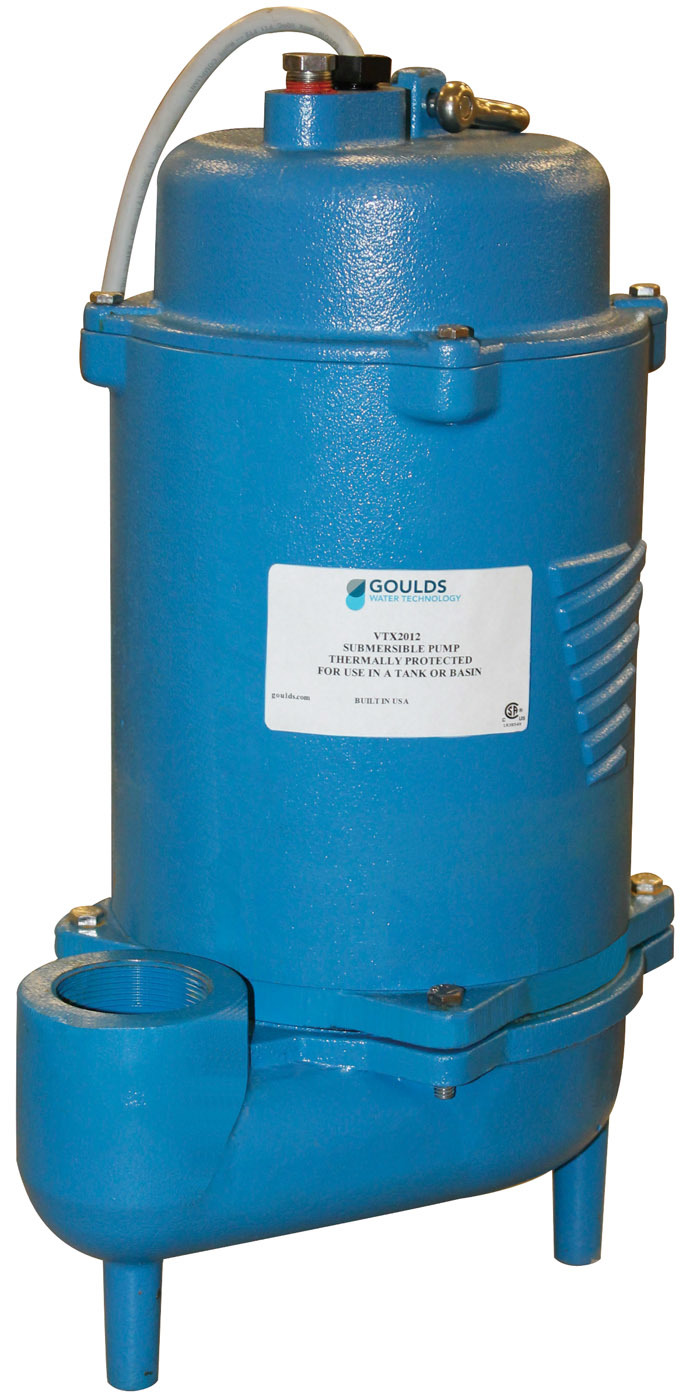

Goulds Water Technology, a Xylem brand, VTX Series
VTX Series submersible pumps from Goulds Water Technology, a Xylem brand, are a durable line of vortex sewage pumps with a clog-resistant impeller designed to handle the stringy material often found in today’s residential wastewater stream. More effective than a traditional two-vane impeller, the recessed vortex impeller creates a whirlpool of pressure, pulling solids through the system without touching the vanes of the impeller, minimizing clogging and allowing fibrous materials to pass through the system while handling solids up to 2 inches in diameter. The pumps are built with a cast iron casing and a corrosion-resistant, stainless steel shaft and fasteners. They are field serviceable with an easily accessible dry cap compartment to save time and costs on service calls. The series is available in 0.5, 0.75, 1, 1.5 and 2 hp, with pumping capabilities up to 208 gpm. 866-325-4210; www.goulds.com.

---

PUMP CONTROLS

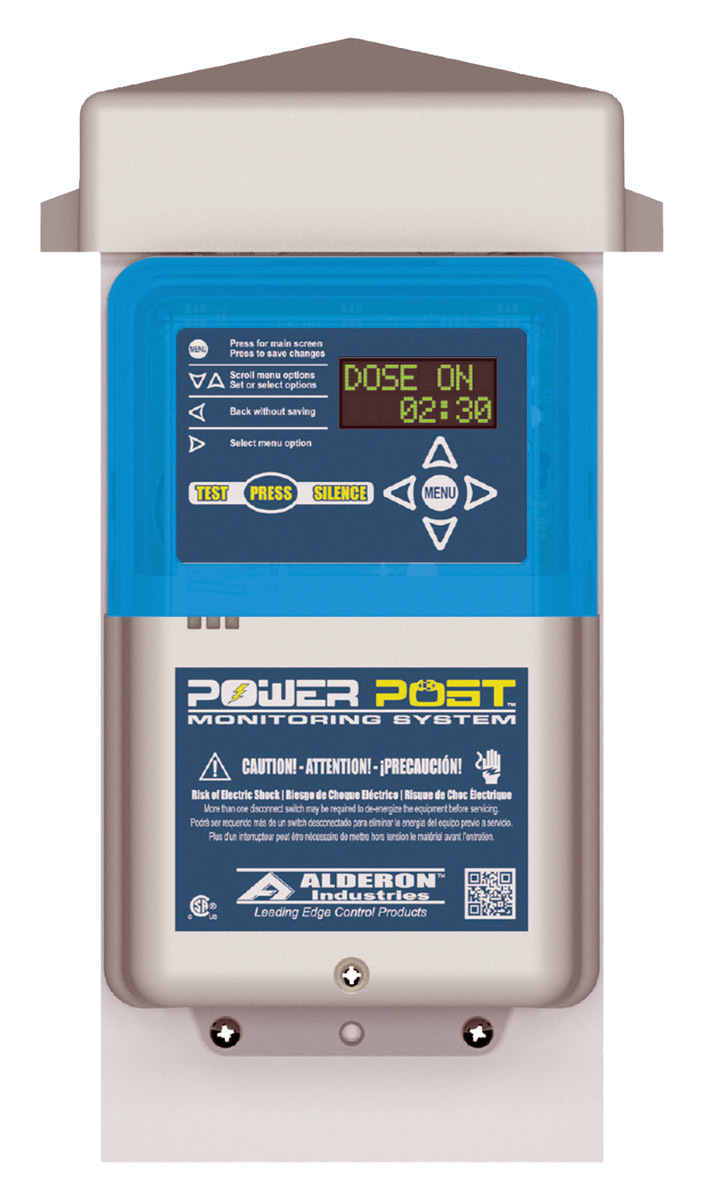

Alderon Industries Power Post control panel
The Power Post control panel pump connection and monitoring system from Alderon Industries can be used for a variety of applications, including mound systems, pressurized drainfields or any system requiring timed- or demand-dose pumping and monitoring. They allow the installer to make a professional and safe connection for power and float switch wiring connections, with available models that include a 120- or 240-volt AC pump power receptacle. Systems include an integrated outdoor alarm with LED indicators (various colors), buzzer and test/silence push button. The top of the enclosure changes color along with system function displayed text on the OLED screen. Menu keys are provided to program settings and view data such as pump run, pump cycle counts, pump amps, elapsed time, peak/extended pump run, total gallons pumped, pump dosing events, pump fail and alarm conditions. 218-483-3034; www.alderonind.com.

---

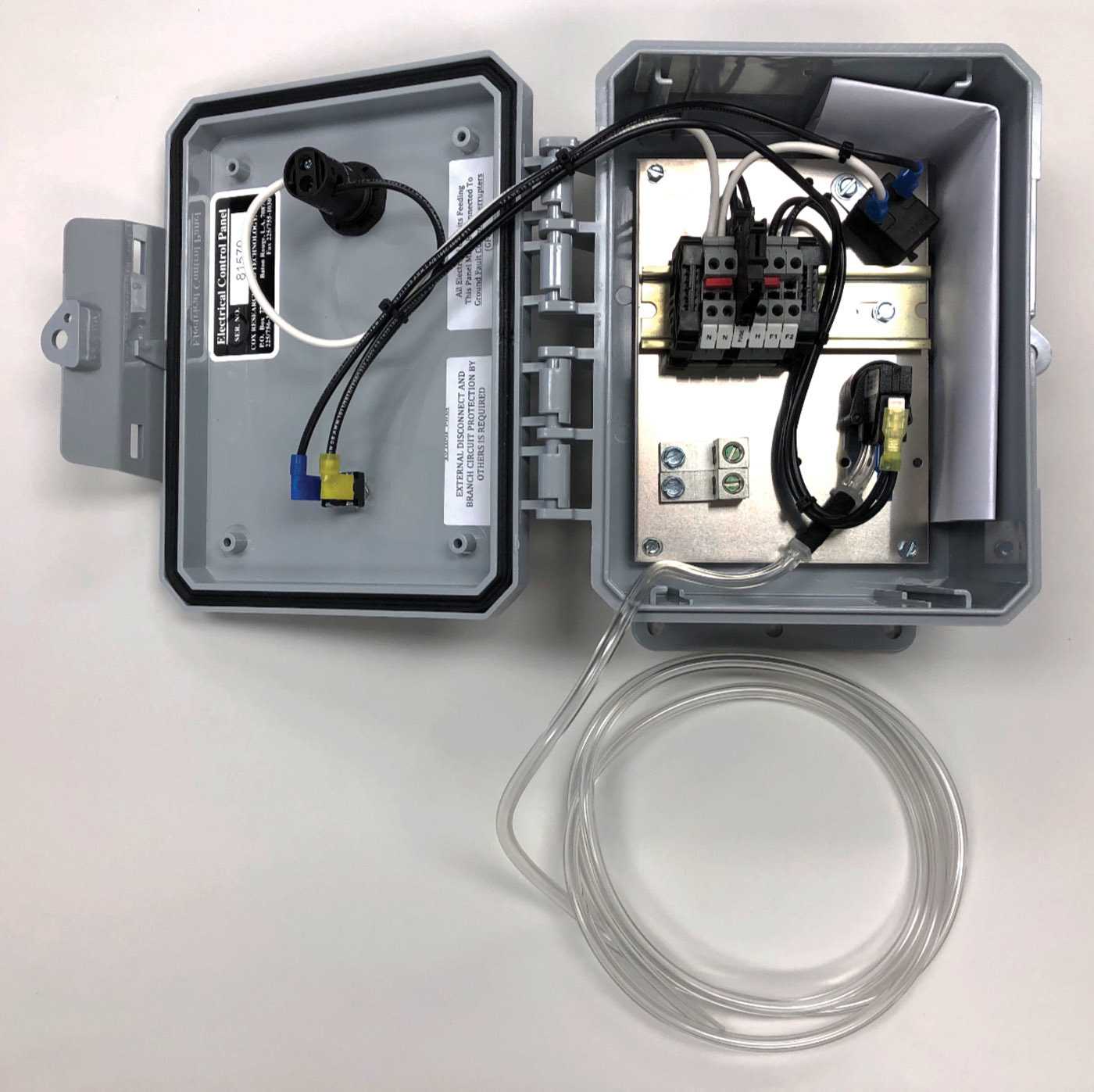

Delta Treatment Systems CP20/40/50 Series
CP20/40/50 Series control panels from Delta Treatment Systems provide intelligent monitoring and alarm functions for residential, commercial and industrial wastewater treatment systems. They are easy to install and operate and are available in several models engineered for use with advanced wastewater treatment systems and custom packaged plants. Customized control panels are also available, and all panels can be supplied with UL and/or Canadian UL 508A listings upon request. They monitor air pumps and effluent pumps on the Delta Whitewater treatment system. Additional options include the Series CP22, which monitors the air blower on Delta ECOPOD systems with options for controlling and monitoring UV lights for disinfection after treatment. Series CP8000/9000 control the Delta ECODRIP Pre-Engineered Disposal Systems’ headworks filter system and effluent dosing pump using a PLC for time-dosing drip disposal fields. 800-219-9183; www.deltatreatment.com.

---

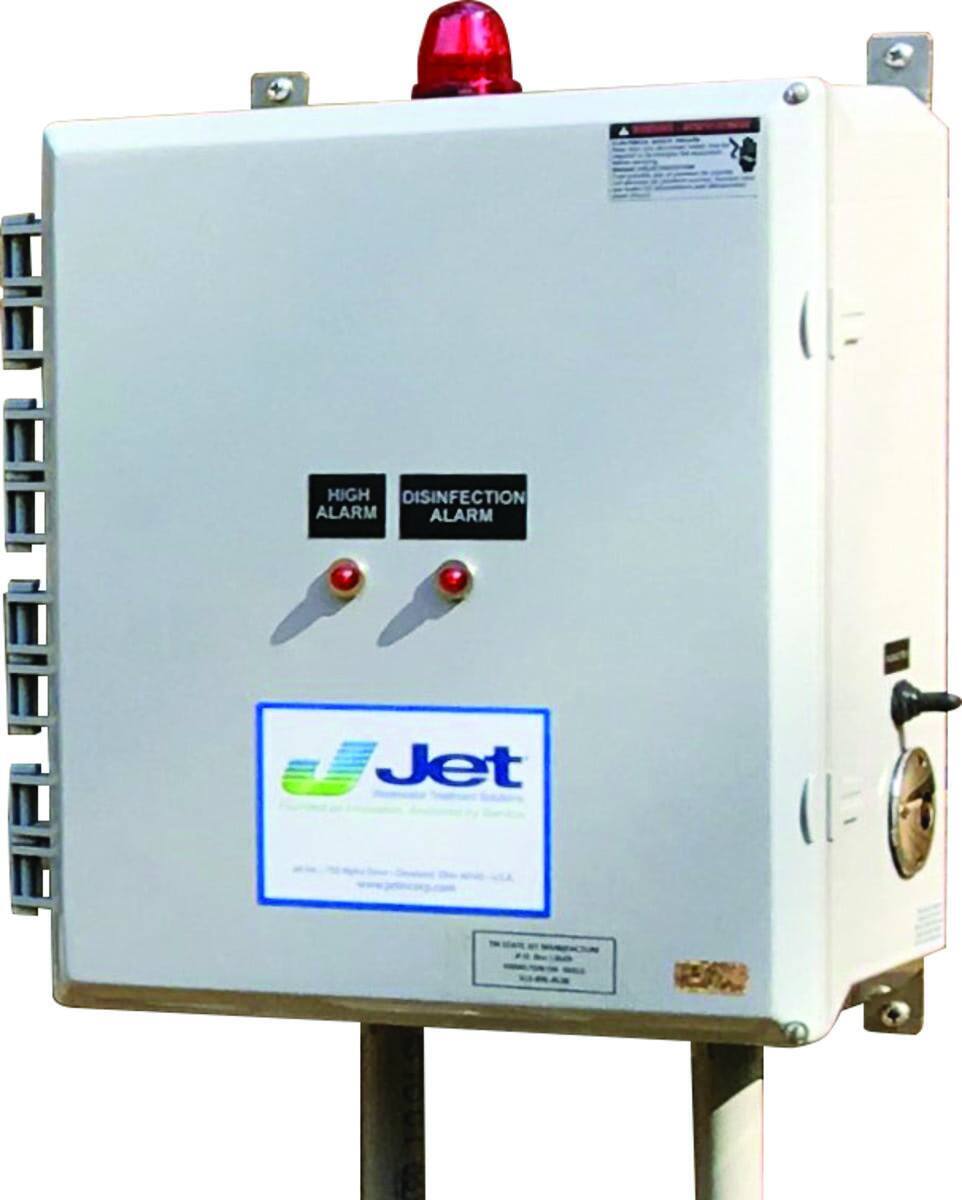

Jet Inc. Model 196 control panel
Model 196 control panels from Jet Inc. are prewired electrical control panels designed to control and monitor operation of the Jet system aerator or aerators, as well as the function of one or two 120/1/60 or 240/1/60 pumps for flow equalization and various pressured distribution system applications such as time dose, demand dose and night spray. The series of control panels allow for optional cycle timer, cycle counter, remote telemetry and auxiliary alarms. All controls and audible and visual alarms are housed in a NEMA 4 control enclosure. 800-321-6960; www.jetincorp.com.

---

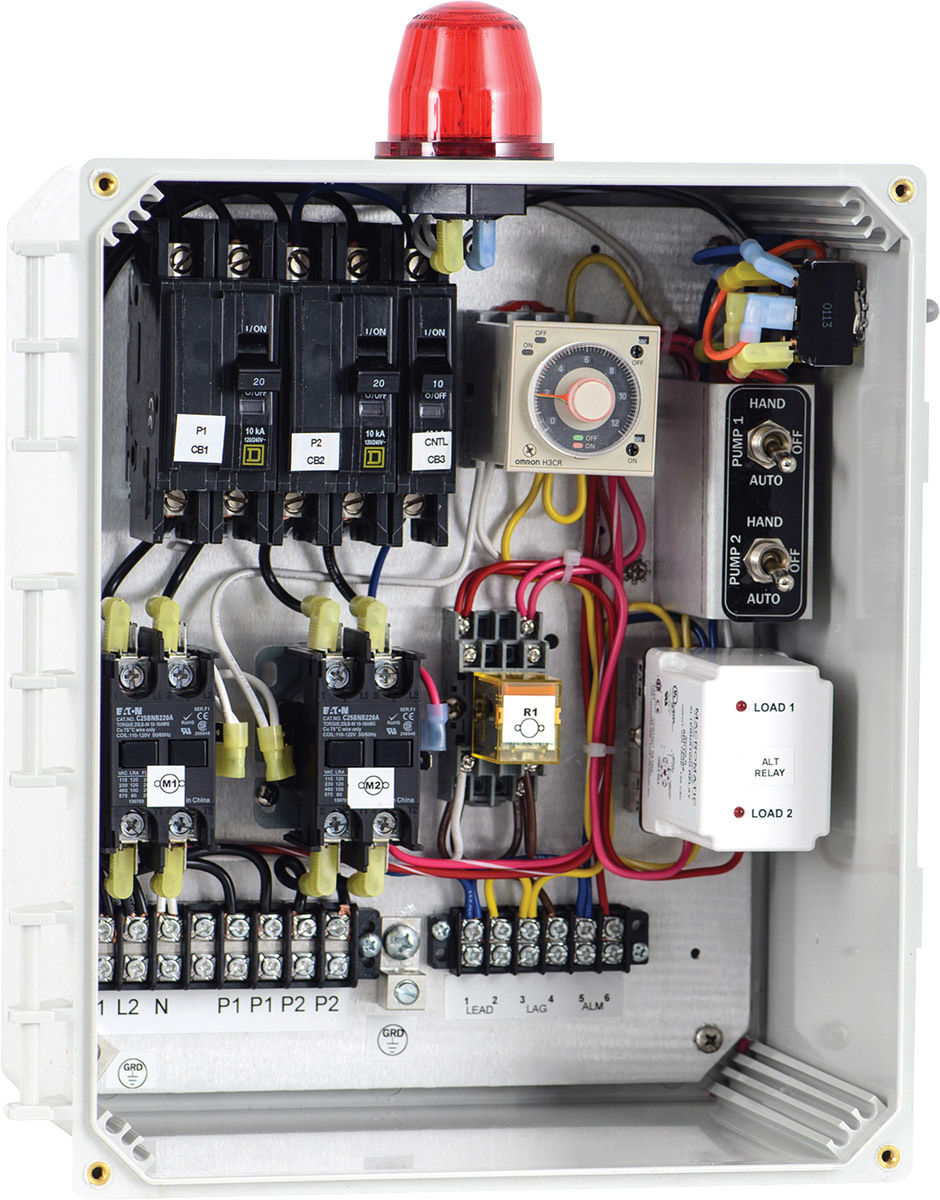

Septic Products 50B019-120-240DD
The 50B019-120-240DD control panel from Septic Products is a duplex time-dosing panel for use in residential or commercial applications. It can be used with 120- or 240-volt power, and it accommodates two dosing pumps controlled by a repeat cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com.

---

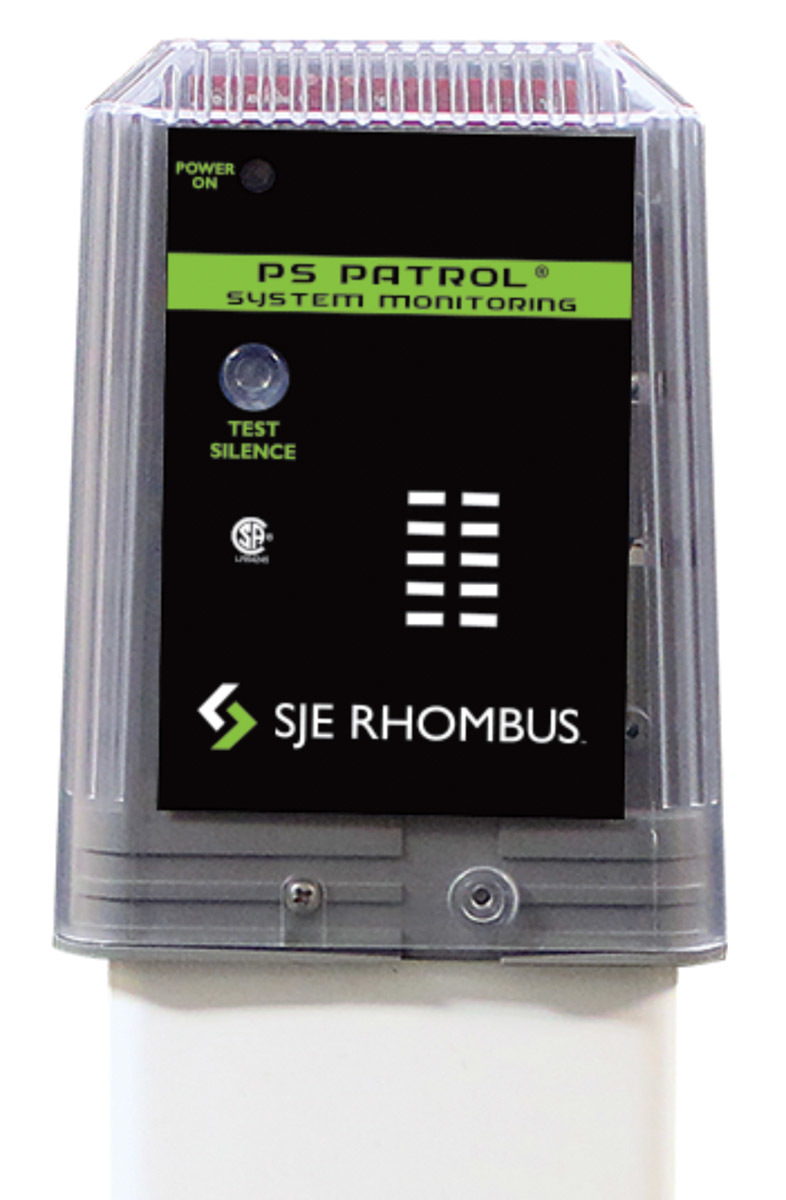

SJE Rhombus PS Patrol
The PS Patrol from SJE Rhombus is an outdoor pedestal high water alarm system that provides a convenient location to connect all wiring required for a pumping station application. It employs a receptacle for easy connection of a 120-volt pump and piggyback pump switch. The sleek, angled design of the clear enclosure includes a removable cover for easy access for field wiring and viewing components. The enclosure meets Type 3R watertight standards for outdoor use. The design allows the controller to accept a 5-inch square plastic post or 4-inch pipe/conduit for mounting. All internal components are sealed within the cover for protection from the elements. The red LEDs illuminate the top of the cover in an alarm condition for easy 360-degree visual identification. It is available with or without a 32-inch mounting post. It is CSA certified. 888-342-5753; www.sjerhombus.com.
