Control panels come in many sizes and configurations. From the most basic to more complex, they enable comprehensive management of any system.
Check out these options for your next installation and review our article: Installation of Wiring for Septic Pumps
and Controls.

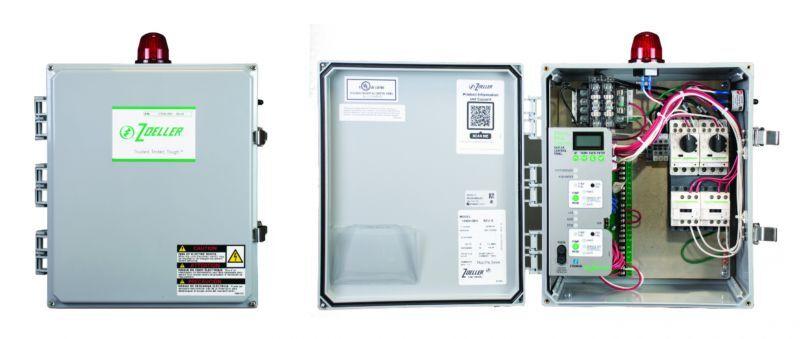

Zoeller Pump Pivot
Pivot control panels from Zoeller Pump employ microchip technology and logic to allow for a long list of standard features. The panel is capable of detecting, reacting and notifying of problems with float switches. It can also detect bad components like contactors, overloads and seal fail circuits. This means a warning is provided before the failure results in property damage. It has a simple interface and can be modified for most applications. 800-928-7867; www.zoellerpumps.com

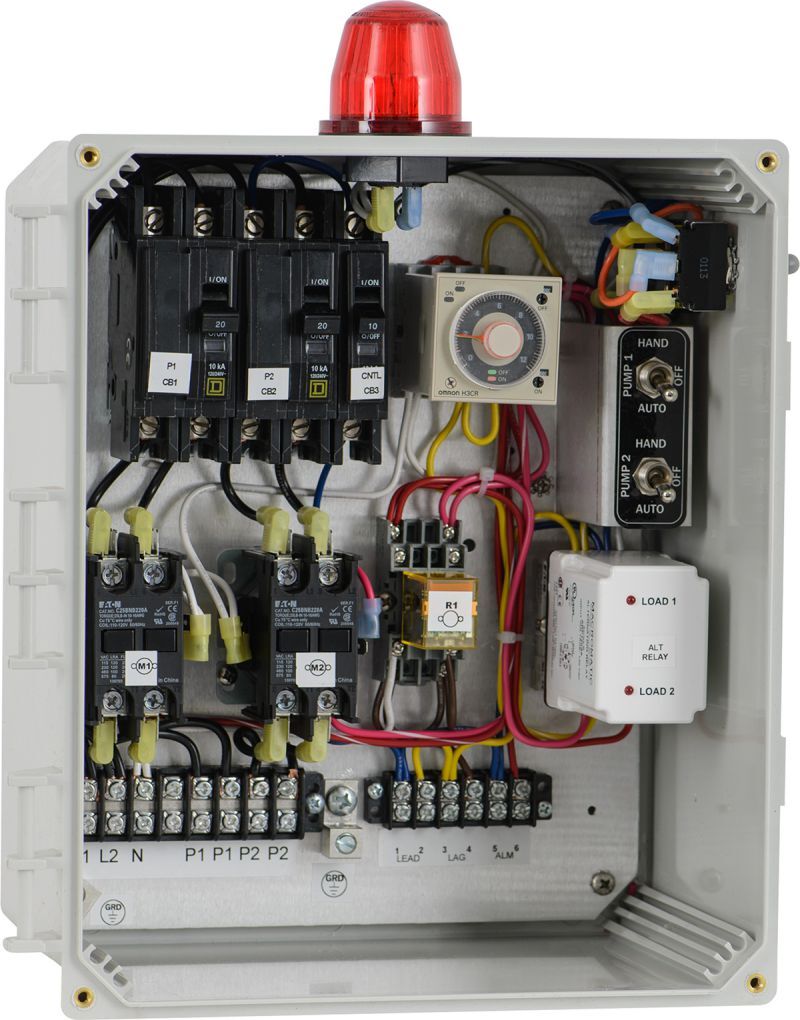

SPI 50B019-120-240 DD
The 50B019-120-240 DD control panel from SPI is a duplex timed-dosing panel for residential or commercial applications. It can be used with 120- or 240-volt power and can accommodate two dosing pumps controlled by a repeat-cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL-listed. 419-282-5933; www.septicproducts.com

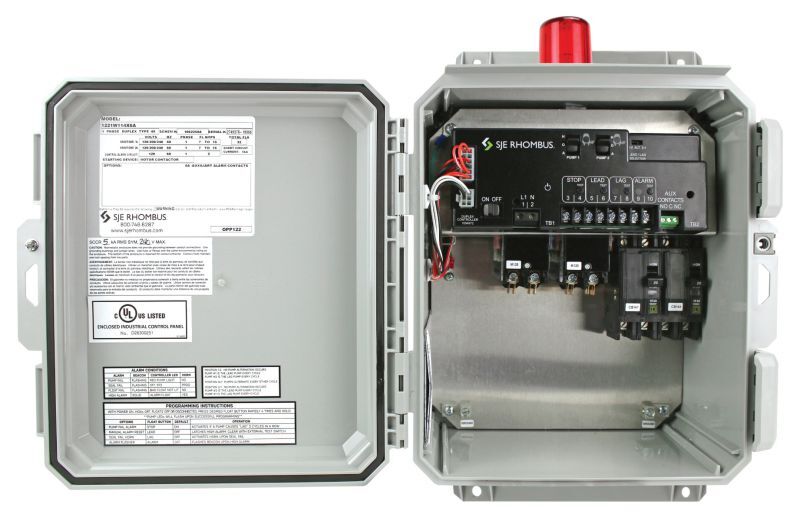

SJE Rhombus Model 122
The Model 122 control panel from SJE Rhombus controls two 120/208/240-volt, single-phase pumps in water and sewage installations. This panel includes a duplex controller for pump control, alternation and alarm. It includes float status LEDs, a control/alarm power on/off switch with LED indicator, pump run LEDs, HOA switches, a pump lead lag selector switch and auxiliary contacts. It includes built-in lag pump delay time, pump failure detection and float out of sequence. In addition, there are four user-selectable field-programmable operations: alarm steady state or flashing; alarm auto reset or manual reset; pump failure notification; and optional seal failure alarm beacon notification or beacon plus horn activation. It is available in the new NEMA 4X enclosure, which is designed for easy installation and additional protection from the elements. It is UL/cUL listed. 888-342-5753; www.sjerhombus.com

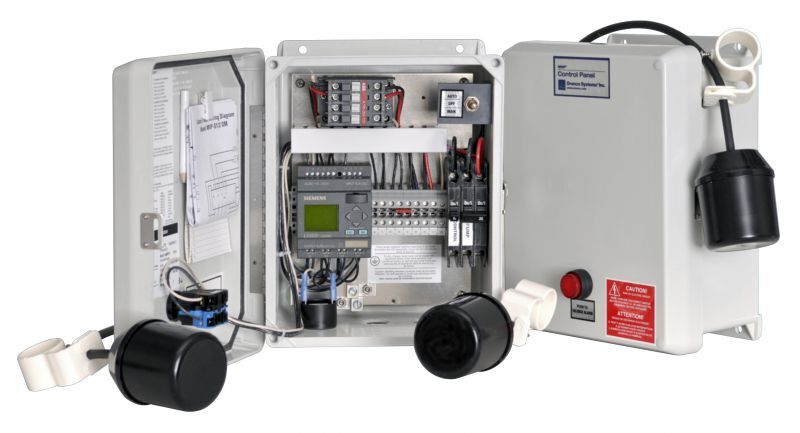

Orenco Systems 4-in-1 Controller
The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules in a single panel. Both simplex and duplex models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for 120- or 240-volt power. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and an elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing as well as wiring diagrams. It is touch-safe. 877-257-8712; www.orenco.com

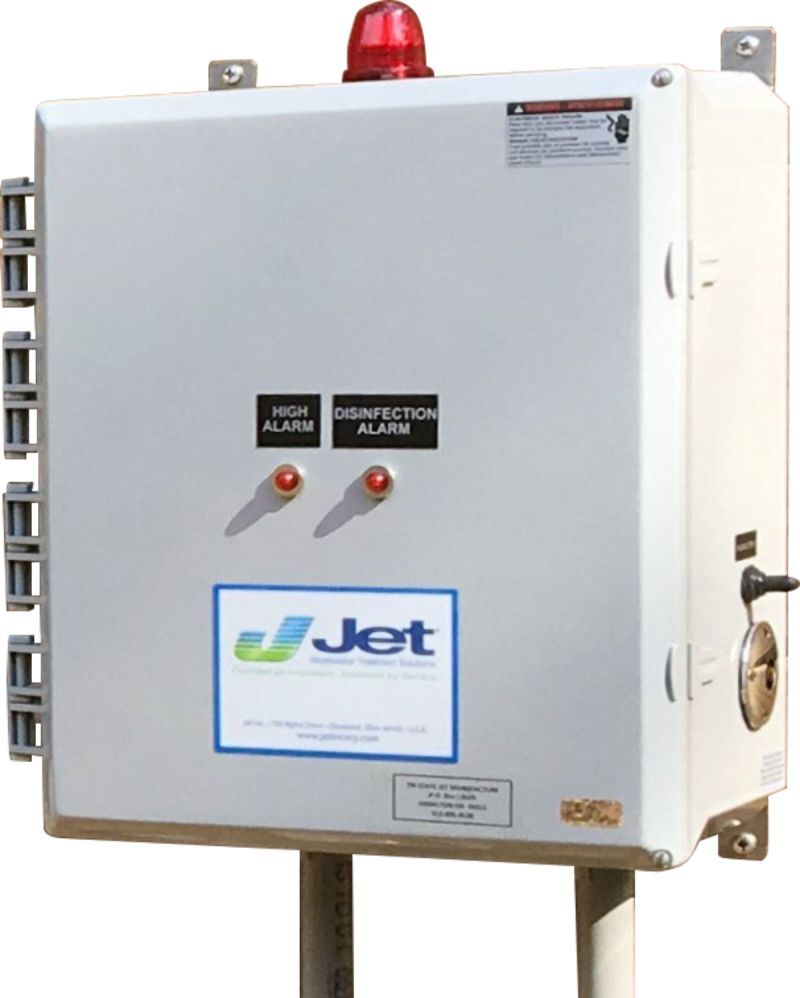

Jet Inc. Model 196 Control Panel
The Model 196 Control Panel from Jet Inc. is prewired and designed to control and monitor operation of Jet system aerators, as well as the function of one or two 120/1/60 or 240/1/60 pumps for flow equalization and various pressured distribution system applications such as time-dose, demand-dose and night-spray. The panel allows for optional cycle timer, cycle counter, remote telemetry and auxiliary alarms. All controls, audible and visual alarms are housed in a NEMA 4 control enclosure. 800-321-6960; www.jetincorp.com

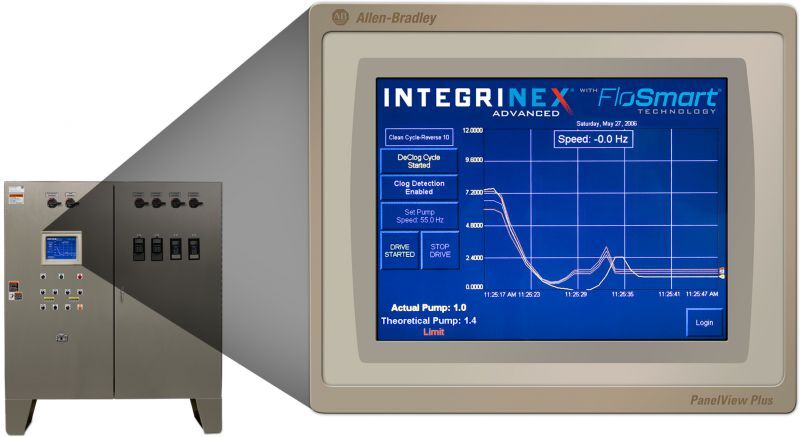

Gorman-Rupp Integrinex
Gorman-Rupp’s Integrinex advanced lift station controls are custom engineered to meet unique system requirements. Now, when equipped with FloSmart technology, the control system can detect a pump obstruction and run a cleaning cycle until the debris is removed. The system includes integrated architecture that recognizes when a pump is clogging. Upon detection, the device initiates a cleaning operation without interfering with the operation of the pump station. When the cycle is complete, the pump is ready to return to normal operation. If the clog remains, the cleaning sequence repeats until the blockage is cleared. FloSmart helps maximize uptime while reducing maintenance costs. 419-755-1011; www.grpumps.com

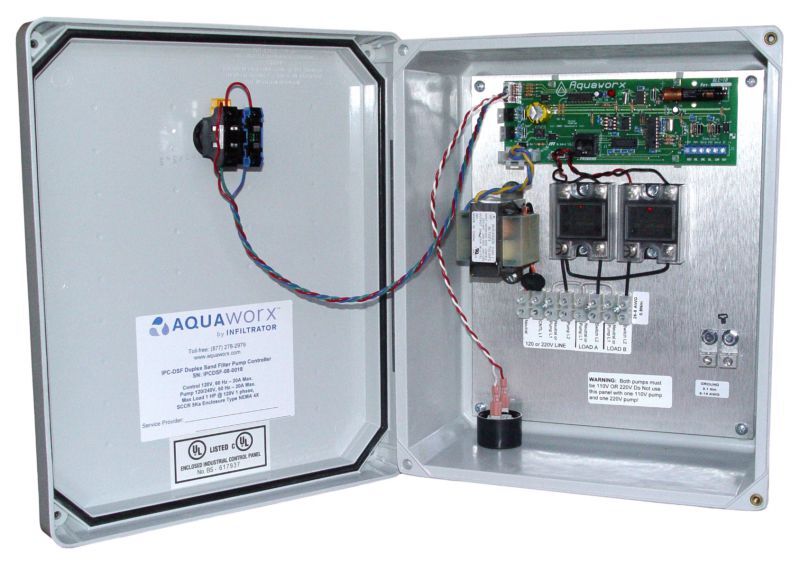

Aquaworx by Infiltrator Intelligent Pump Control Panel
The Aquaworx by Infiltrator Intelligent Pump Control Panel enhances pump system performance by monitoring liquid levels, controlling pumping time intervals, and logging events in real time. The easy-to-install panel calculates daily system flow utilizing a pressure transducer in the pump chamber and an embedded microprocessor in the pump controller. The handheld Aquaworx Tapper programmer broadcasts a wireless signal, allowing the user to program the panel from any Wi-Fi enabled device. The Aquaworx Tapper connects to the IPC panel using a standard RJ45 cable. Once connected, the user navigates to a website that provides all control settings for the panel, including a history of system function critical to troubleshooting and maintaining a pump-driven system. With the Tapper, the user can program and manage multiple panels and capture and download system events and settings onto a removable USB memory device. 800-221-4436; www.infiltratorwater.com
