Aerobic Systems
BioMicrobics RetroFAST
When a homeowner is building a new house, or has a septic system that is underperforming, they typically are looking for something simple and cost effective without the need for heavy machinery for installation. The BioMicrobics RetroFAST septic system is small enough to be inserted directly into a new or existing septic tank through a minimum 18-inch manhole. It is made up of a white liner, several blue media blocks, an airlift device and a remote blower. The oxygenated water supports the growth of useful microorganisms on the surface of the media. These attached-growth microorganisms break down the organic material in the wastewater. The microbial growth on the media surface is sloughed off by aeration. Oxygenated water with low organic content will be delivered to a drainfield, promoting a breakdown of the existing biomat layer and thereby improving soil and drainage. 800-753-3278; www.biomicrobics.com
Jet Inc. J-1500CF Series
Jet Inc. J-1500CF Series integrated fixed-film activated sludge technology, nutrient reducing BAT Media Plants offer variable capacity in a NSF-245/40 tested aerobic treatment system. The series provides complete effluent treatment with sizes of 500, 750, 1,000, 1,250 and 1,500 gpd in a Jet concrete tank and 500 and 800 gpd in the rotational-molded Jet polyethylene tank. The seamless polyethylene tanks are easy to transport and install in the most difficult site conditions. Treatment utilizes the 700++ aerator, effluent filter and the Jet 197 control panel. Utilizing submerged BAT Media, the 197 control panel cycles the aerator to reduce the nitrogen by over 65%. 800-321-6960; www.jetincorp.com

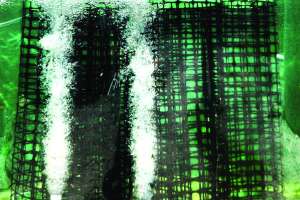

RioVation BioMaze
The RioVation BioMaze is an attached-growth biological treatment technology that is installed in existing or new septic tanks to create a suspended biofilm generator. On existing systems, it installs without excavation or replacement of the septic tank or drainfield. The residential BM2624 system is designed for flows up to 500 gpd and is commonly used to improve effluent quality and support drainfield rejuvenation. Contractors frequently report improved drainage, reduced surfacing effluent and noticeable system recovery within days of installation. The same biological treatment platform scales to larger residential, commercial and institutional applications. The BMT63HS, powered by a single 1 hp regenerative blower, treats up to 2,250 gpd of domestic-strength wastewater or lower hydraulic flows with higher organic loading. It is also being applied to larger drainfield rejuvenation projects, including a 48-unit apartment complex where two BMT63HS systems were selected to improve wastewater treatment and help restore drainfield performance. Multiple treatment units can be installed in a treatment train to accommodate increasing hydraulic capacity or higher-strength wastewater while using the same modular biological treatment technology. 352-228-4488; www.riovation.com
ATUs
Eljen B43 GSF
The B43 GSF (Geotextile Sand Filter) unit from Eljen, named from its modular dimensions of 4 feet by 3 feet by 7 inches, is an alternative onsite septic leachfield system. It uses a two-stage treatment process to improve effluent quality before dispersal. The primary treatment is where the open-air channels within the module support aerobic bacterial growth on the geotextile fabric interface and promote oxygen in the system. The secondary treatment zone is where effluent drips into the specified sand layer and supports unsaturated flow into the native soil. The specified sand layer protects the soil from compaction, which helps maintain cracks and crevices in the soil. It has the versatility of being used in trenches, beds or mounds with an enhanced nitrogen reduction. Biomat management is provided, which takes the burden of treatment and biomat development off the native soil. 800-444-1359; www.eljen.com
FujiClean USA CE Series
The FujiClean USA CEN Series delivers advanced wastewater treatment in a compact, efficient design. With a footprint as small as 7 by 4 feet, this one-tank system requires no preceding septic tank and installs with plug-and-play simplicity — keeping installation simple, while minimizing space requirements. An external FujiMAC RII air blower powers two internal air lift pumps, with no moving parts inside the tank for straightforward operation and minimal maintenance. Designed for enhanced nitrogen reduction, the CEN Series incorporates denitrification into the standard treatment process and is NSF 40/245 certified. It achieves effluent quality of 5 mg/L BOD, 6 mg/L TSS and 10 mg/L TN from straight septic wastewater. The result is proven treatment performance in a simple, reliable system built for demanding sites and clean-water goals. An optional wireless telecommunication package keeps monitoring effortless. 207-406-2927; www.fujicleanusa.com

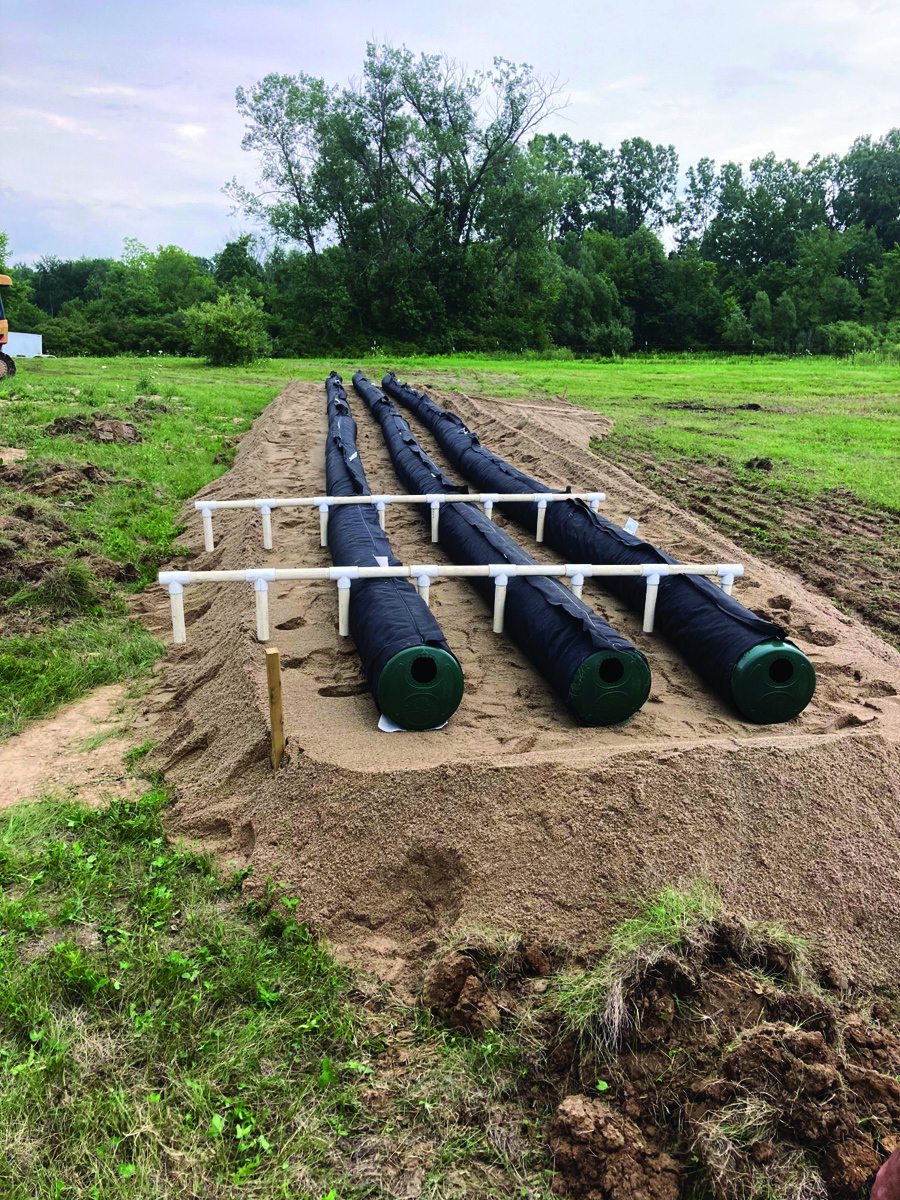

Infiltrator Water Technologies Advanced Enviro-Septic
The Advanced Enviro-Septic Treatment System from Infiltrator Water Technologies provides effective, combined treatment and dispersal in the same small footprint and is proven to remove up to 99% of wastewater contaminants without using any electricity or replacement media. The system offers adaptable design, ease of installation and maintenance, and low long-term life cycle costs for residential, commercial and community onsite wastewater treatment systems. Testing in accordance with NSF/ANSI 40 has determined that the system is capable of treating domestic strength wastewater to Class 1 levels. Its BioAccelerator fabric speeds biomat development and allows wastewater distribution the entire length of the pipes. Snap-lock couplings, offset adapters and PVC piping are used for system assembly, and specified sand completes the system. The system now features a redesigned coupling to improve installation efficiency, eliminate pipe fabric adjustments and better protect against sand intrusion. 800-221-4436; www.infiltratorwater.com
Norweco Singulair Green
Norweco’s Singulair Green with integrated pump chamber offers a single-tank solution for small lots and restrictive soil conditions. The system with a 520-gallon integrated pump chamber arrives at the site ready to install. This lightweight, easy-to-install tank provides superior structural integrity. Systems and packages are always in stock and ready to ship. Nitrogen treatment packages are available on all Singulair treatment systems. Its 12- and 6-inch threaded riser extensions allow for at-grade installation. 800-667-9326; www.norweco.com
Drainfield Components
BAM! Ground Protection Mats
BAM! Ground Protection Mats are made from four-season durable high-vis green HMWPE material with a built-in UV protector to guard against fading and cracking They are 3/8-inch thick and rated at 160,000 pounds, with pressure ratings of 373 psi and 53,700 pounds per square foot, with a temperature rating at negative 103 to 258 degrees F. A 4-by-8-foot sheet weighs only 56 pounds and comes with eight large handholes for easy handling even with gloves. A dual side tread pattern provides safe equipment and pedestrian traction. Mats will not absorb moisture and chemicals, and can simply be hosed off. Mats will not splinter, crack or delaminate. 888-870-8158; www.bamgroundpro.com
Polylok Distribution Boxes
Polylok Distribution Boxes are designed for maximum versatility in managing wastewater and stormwater systems. Available in multiple sizes, including 12-, 20- and 24-inch models, these boxes allow users to select inlet and outlet heights to suit site-specific requirements, providing flexibility for residential, commercial or municipal applications. They include seals that accommodate 2-, 3- and 4-inch corrugated pipe and some models also allow 6-inch connections, making them compatible with virtually any piping setup. The Rhino Box design offers up to 10 openings, allowing use as a distribution box, catch basin, pump chamber or meter pit. Boxes can be brought to grade using Polylok risers installed on top of the box. The durable polyethylene construction resists cracking and corrosion, ensuring long-lasting performance. 800-548-3424; www.polylok.com

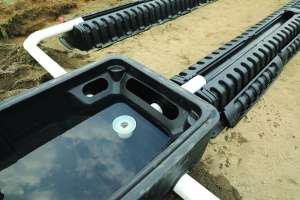

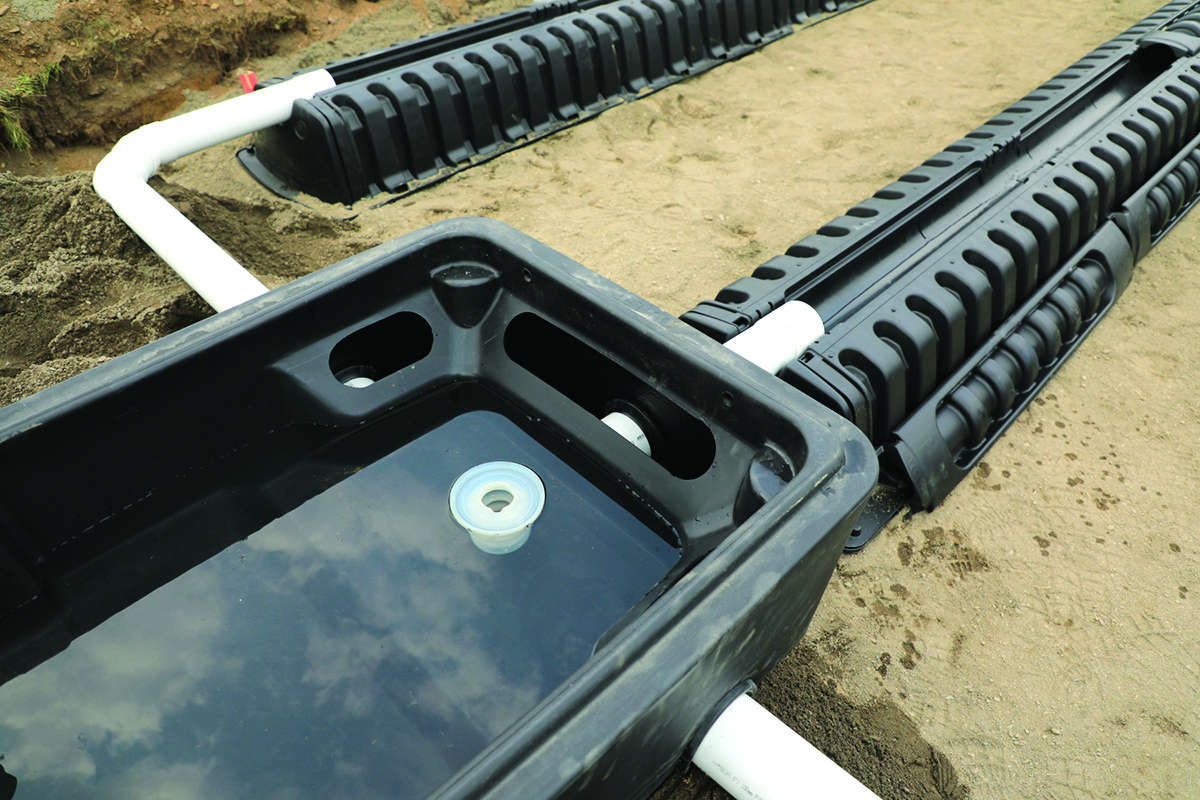

Premier Tech Water and Environment Rewatec
The Rewatec dosing distribution box from Premier Tech Water and Environment combines dosing and distribution in a single, energy-free unit with no mechanical parts. It features seven distribution outlets, an 18-gallon reservoir and a dosing device that can adjust doses between 12 and 18 gallons. Its lightweight plastic design also makes it easy to handle and install. It is ideal for traditional drainfields as well as combined treatment-and-dispersal configurations, delivering larger, more consistent doses with enough velocity to reach the full length of the field. This helps maintain even loading across the entire absorption area and reduces the risk of early system failure. 570-220-7937; www.premiertechaqua.com
Prinsco Pro4
Pro4 onsite septic chambers from Prinsco deliver maximum drainfield infiltration area, cost efficiency, delivery convenience, ease of installation and application flexibility. They have an asymmetrical arch design for maximum structural performance, a nonslip textured surface for added safety, high-performance polymers, an interlocking coupler with 10-degree joint articulation in either direction, and an interlocking endcap to chamber connection. They meet IAPMO standards and H10 loading requirements for wheel loads of 16,000 pounds per axle with 12 inches of cover. 800-992-1725; www.prinsco.com
SeptiSurge Model 3A
The Septisurge Model 3A distribution box employs a float valve system in the tub liner that deploys a high volume dose of effluent, creating a surge or purging action that helps to clear biomat from the box outlets and distribute effluent more evenly to the field lines. It is designed for easy installation, with quick-attach leakproof bushings accommodating up to six 4-inch effluent lines. Constructed from resin-based materials, it offers durability, longevity and economy. With ground surface access and easy removal, the inner tub liner serves as a grease trap, preventing field line ditches from contamination. 269-471-2664; www.septisurge.com
TUF-TITE Distribution Box with Speed Leveler
The noncorrosive TUF-TITE Distribution Box with Speed Leveler in each outlet provides a simple, stable, reliable and permanent means for dividing septic tank effluent flow, according to the maker. Distribution boxes come in four sizes: four-, six-, seven- and nine-hole. Risers are available on the four-, seven- and nine-hole boxes. All boxes come with a one-piece watertight seal that accepts 1.5-, 2-, 3- and 4-inch SDR 35 or Schedule 40 pipe, including corrugated, for easy installation. 800-382-7009; www.tuf-tite.com
Septic System Bacteria
Oatey Hercules Septic-Flow
Oatey’s Hercules Septic-Flow is a concentrated liquid designed to improve the overall efficiency of all types of septic and wastewater systems. Containing billions of superactive organisms in each ounce, it can rapidly complete waste degradation. With the ability to perform under various conditions, the product performance will not be affected by temperature, pH variations or the presence of household cleaners or disinfectants. It is designed to be used regularly to eliminate backups, odors and corrosion. It is available in 2 quarts and can be used in septic tanks, cesspools, dry wells, leach tanks and drainfields. Ultimately, it is meant to extend the life of the entire septic system due to its unique growth characteristics. These increase the respiration rate of existing septic system bacteria, resulting in a faster reduction of organics in the septic tank, allowing for less frequent cleanings, and carry-through of specialized bacteria to better maintain a clean and proper flow in the drainage beds. Regular use inhibits the growth of sulphide-producing bacteria, which slows the bacterial digestive process. Excess sulfide can be a source of odors, corrosive acids, toxins and can cause drainfield failure. 800-321-9532; www.oatey.com
Septic Drainfield Restoration
Anua PuraSys SBR
The Anua PuraSys SBR is an effective solution for repairing failed systems and rejuvenating tired drainfields. It ships as a complete boxed kit that installs in hours inside any standard septic tank, with no extra space needed. Each kit includes everything you need — control panel, floats, siphon/sludge pump, aerator and drainfield pump — making it ideal for new construction or easy retrofits. It helps bring overloaded or clogged systems back to life by delivering highly treated, oxygen-rich wastewater that restores healthy soil conditions. Moderate daily dosing keeps the drainfield working like new with a natural wetting and drying cycle that helps it “breathe” and stay aerobic. The process is low maintenance and very energy efficient, giving homeowners a reliable, long-lasting fix without costly replacements. Certified to NSF/ANSI 40 Class I and 245 for nitrogen reduction, and approved in many states, it offers flexible residential and commercial options. 336-547-9338; www.anua-us.com
EarthBusterPLUS
The EarthBusterPLUS injects liquid additives into the compressed air stream, delivering them directly into the soil during the pneumatic fracturing process. This combines soil decompaction and additive placement in a single operation. For septic system rehabilitation, it restores drain/leachfield performance by fracturing compacted absorption soils surrounding leach lines to improve porosity and infiltration. It enhances this process by distributing additives directly throughout the treatment zone. Unlike conventional septic additives introduced through the plumbing system, direct injection places the treatment where it is needed most, providing more uniform distribution within the drainfield. It also enables deep-soil application of microbial stimulants, wetting agents, pH amendments, nutrients and root-development products. Placing these materials directly within the root zone improves soil conditioning below the surface with minimal disturbance. 406-670-8318; www.earthbuster.com
Orenco Systems AdvanTex AX20
AdvanTex AX20 treatment systems from Orenco Systems are ideal for extending the life of drainfields while treating residential wastewater flows. Units treat residential wastewater to better-than-secondary standards including nitrogen reduction. Treatment pods are sturdy, watertight basins filled with lightweight, highly absorbent, engineered textile media that treat a tremendous amount of wastewater in a small space. They are primarily intended for residential applications that require an advanced secondary treatment system, including new installations, retrofits or repairs. They’re also used in small commercial applications. Units are ideal for sites with poor soils and small sites, especially those that require a compact “filter on top of tank” configuration. A single pod treats wastewater flows of up to 600 gpd. To handle higher flows, the modular system can be installed in multipod arrays. 800-348-9843; www.orenco.com
Vent Pipe Filters
Industrial Odor Control HD Heavy-Duty Activated Carbon Septic Vent Odor Filter
The HD Heavy-Duty Activated Carbon Septic Vent Odor Filter from Industrial Odor Control is a passive vent filter designed for residential and light commercial septic applications where hydrogen sulfide and other sewer gas odors are a concern. It holds 2 pounds of Norton Darco’s H2S LP catalytic activated carbon — the same media used in commercial filters — housed in a Schedule 40 PVC body that offers mechanical durability while allowing unrestricted vent airflow. The crossflow design of the carbon bed helps wick away moisture and improve contact between rising gases and the adsorption media. The unit includes a built-in end-of-service-life indicator and a screw-in fill port to facilitate carbon changes without specialized tools. When used on a single-family home under typical conditions, the activated carbon media commonly delivers three to five years of service life before replacement is recommended, though actual life depends on hydrogen sulfide concentration and airflow. 973-846-7817; www.industrialodorcontrol.com
Pagoda Vents
Pagoda Vents are simple to install. They are premade units that are lightweight and durable. They contribute to a healthy subsurface environment, reducing microbial degradation of concrete tanks. Modern and attractive, they are designed to blend into the landscape. 207-439-1152; www.pagodavent.com
PLP Composites BellaVent
The BellaVent from PLP Composites replaces standard septic vents with elegant, property-enhancing alternatives homeowners are proud to display. The product line includes vented flagpoles in 20- to 30-foot residential and commercial sizes, and solar-ready light poles that require no wiring. Vented garden fixtures — birdbaths, sundials and more — are in the works. All products are handcrafted from fiberglass composite that is lightweight, UV and salt-corrosion resistant, nonconductive, easy to install and maintenance-free. Flagpoles meet AASHTO and NAAMM standards and are available in multiple colors and finishes. 800-262-6075; bellaventseptic.com
The Dirty Bird
The Dirty Bird septic vent was designed, engineered and produced as a fully functioning decorative septic vent with odor control. It meets all EPA septic venting regulations as well as Audubon Society specifications as a birdbath. Featuring all stainless hardware, it uses 100% recyclable materials (low density polyethylene), which means it is safe for the environment. It can be installed in five minutes with no gluing necessary, and it comes in three colors: granite, terra-cotta and sandstone. It can be used as a pedestal (to place a potted plant, sundial or garden globe) or use the included birdbath on top. 866-968-9668; www.thedirtybird.com
