Product Focus - September 2019

Interested in Pumps?

Get Pumps articles, news and videos right in your inbox! Sign up now.

Pumps + Get Alerts

Aeration Pump

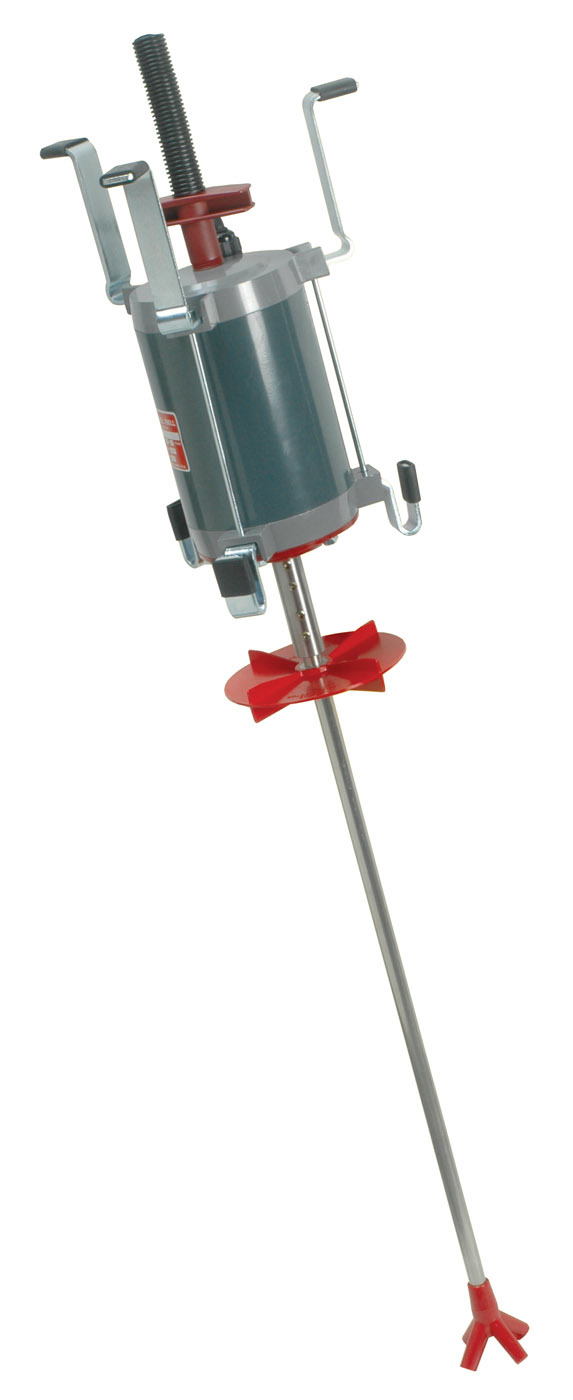

Jet Inc. 700++ Aerator

The flood-resistant Jet Inc. 700++ Aerator is the only mechanical component in the 1500 Series BAT Media Plant and works in tandem with the BAT Media to provide complete biological processing. The aerator shaft spins and combines outside air with wastewater in the treatment compartment, flowing into the tank to provide oxygen for the treatment process. The dual-purpose foam restrictor protects the aerator by controlling foam created in the treatment chamber and also serves as a high-water alarm trigger. 800-321-6960; www.jetincorp.com.


Effluent Pumps

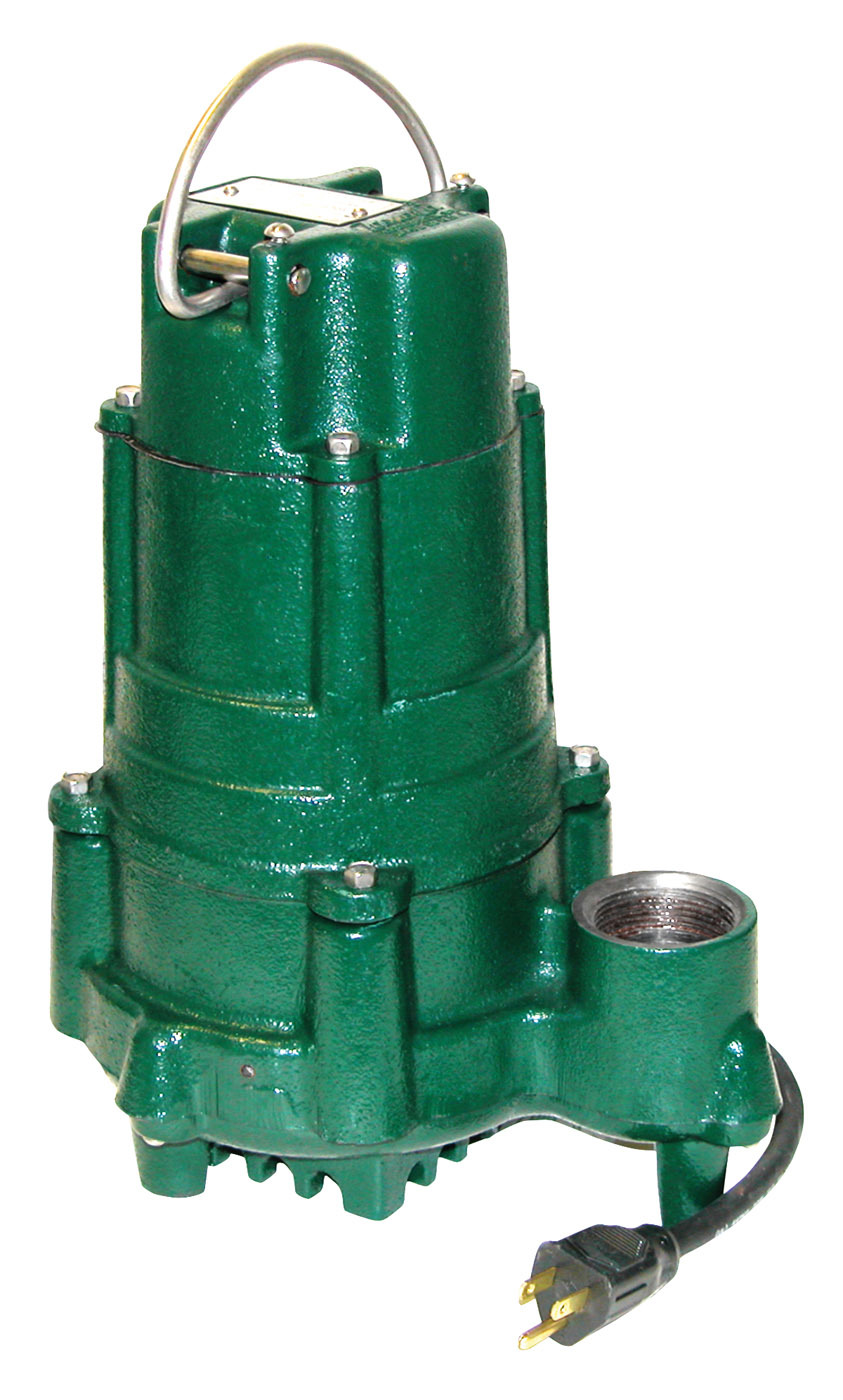

Clarus Environmental Model 142

The Clarus Environmental Model 142 effluent pump has a low-flow design originally engineered for septic tank effluent pump applications in which the pump, protected from septic solids by a filtered vault, moves effluent directly out of the septic tank without the need for an additional pump tank. Higher-flow pumps in that environment cause agitation within the septic tank and disrupt the sludge and scum formations. It produces a maximum flow of 18 gpm at 5 feet of TDH and can reach 62 feet at shut-off. It is available in 115 volts, has a powder-coated, cast iron housing and is capable of passing 1/2-inch spherical solids. 800-928-7867; www.clarusenvironmental.com.

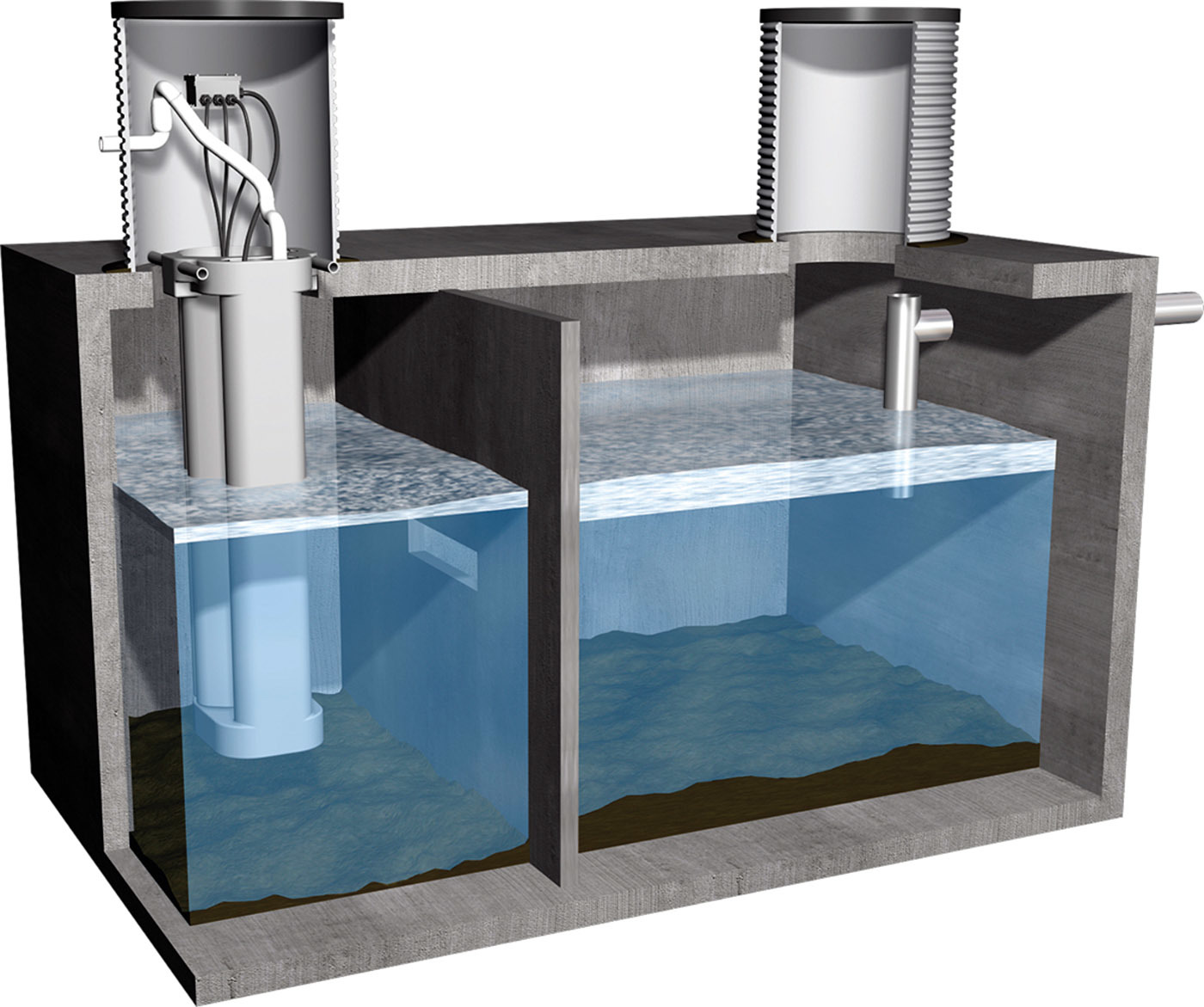

Delta Treatment Systems ECOFILTER Pump Vault

The ECOFILTER Pump Vault tank filtration system from Delta Treatment Systems reduces biological loading and clogging and extends the life of downstream drainfields and STEP collection systems. Quick to install in new or existing tanks, the completely integrated and customizable unit is suitable for pumping effluent from single- or double-compartment tanks. Featuring a dual-compartment housing for simplex or duplex applications, it draws effluent from the clarified zone of the tank to minimize suspended solids passing through the pump system. It is constructed of high-density polyethylene with UV inhibitors for longevity, and the float stem bracket allows easy removal and adjustment of the float assembly. The easy-access design maximizes the filter surface area and simplifies filter inspection and maintenance by enabling filter cartridge removal without pulling the pump or vault. 800-219-9183; www.deltatreatment.com.

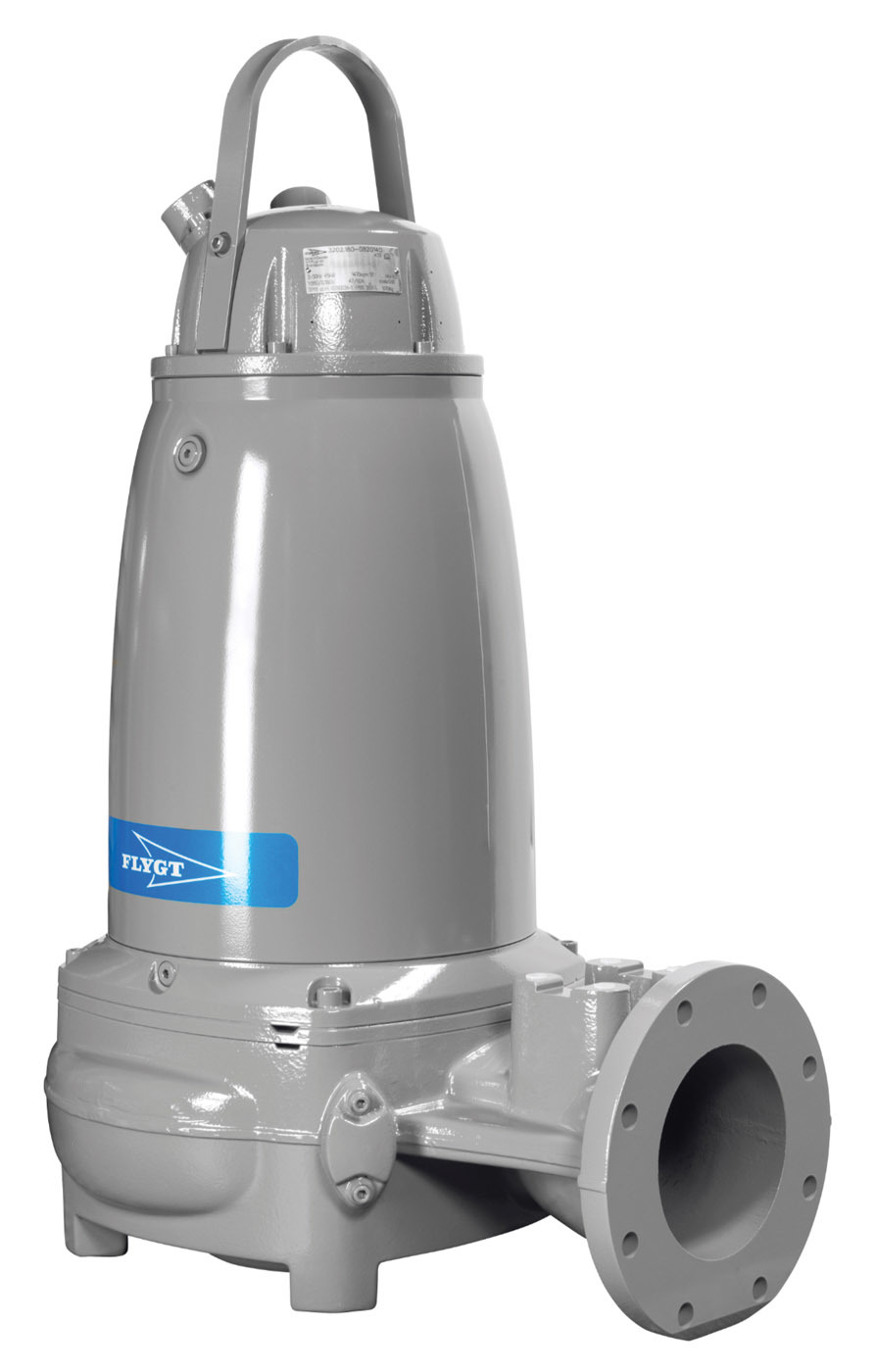

Flygt - a Xylem Brand Concertor

The Concertor smart, interconnected wastewater-pumping system from Flygt - a Xylem Brand senses the operating conditions of its environment, adapts its performance in real time and provides feedback to pumping station operators. It offers energy savings of up to 70% compared to a conventional pumping system; it also reduces inventory by up to 80% due to flexible performance. Clog-free pumping operation and clean wet wells can save up to 80% in vacuum cleaning costs, according to the maker. Its compact design reduces cabinet size by up to 50%. It offers a wide performance field to choose the right operating point, simplifying fine-tuning. 855-995-4261; www.xylem.com.

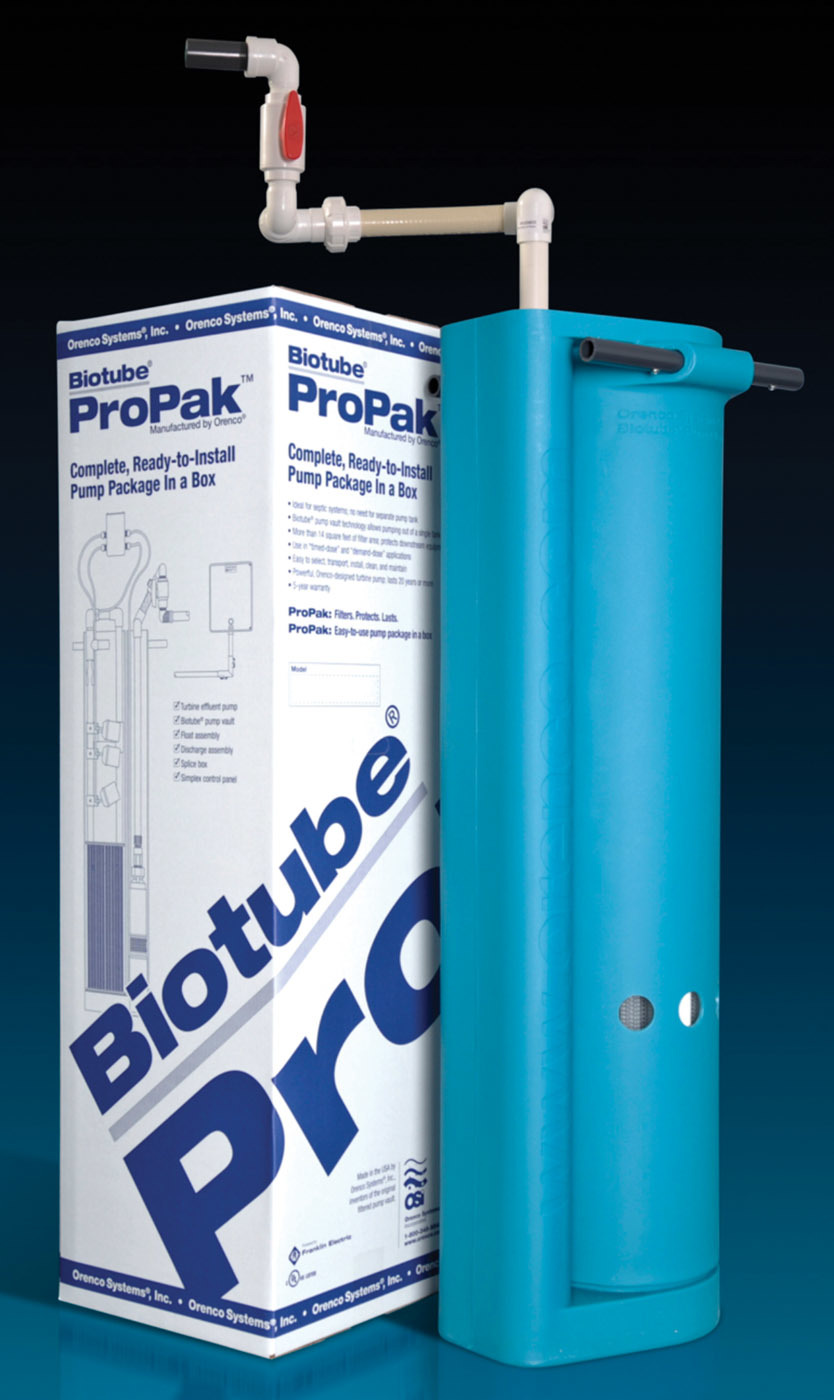

Orenco Systems Biotube ProPak pump package

Biotube ProPak pump packages from Orenco Systems are complete, ready-to-install pump packages. They are used for filtering and pumping effluent from single- or dual-compartment septic tanks to gravity or pressurized discharge points. Pump vault technology eliminates the need for a separate dosing tank. Packages include a Biotube filter cartridge, which filters up to two-thirds of solids, so only liquid from the tank’s clear zone is pumped. Filters are easy to remove and clean without pulling the pump vault. All components are designed to be quickly installed and easily maintained. The PF Series high-head effluent pump is field serviceable and field repairable, and pump controls are designed for specific packages. Multiple models are available. ProPak Select software is designed to provide fast, error-free hydraulic calculations and generate system curves, according to the maker. 800-348-9843; www.orenco.com.


Grinder Pumps

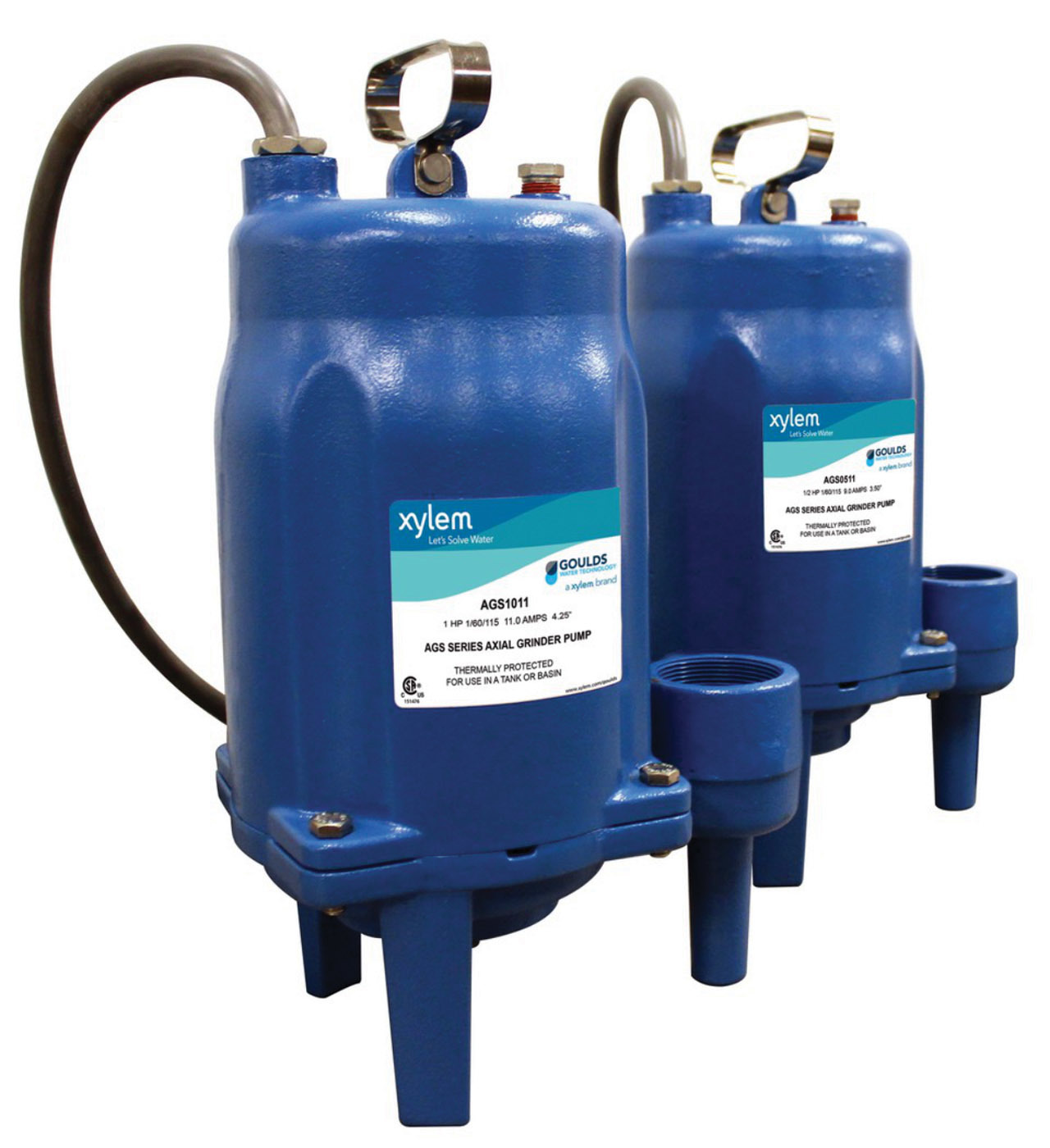

Goulds Water Technology, a Xylem brand, AGS Series

The Goulds Water Technology, a Xylem brand, AGS Series submersible axial grinder provides suitable performance against the challenging solids, flushables and trash present in modern residential wastewater applications. With a semiopen impeller design, including an eight-hole cutter plate and three-blade axial cutter, the grinder reduces waste to a fine slurry. The lobe-lifting technology lifts material away from the low-pressure center and redirects it for cutting. Built with a stainless steel volute, cast iron impeller and hard-faced silicon carbide on silicon carbide mechanical seal, it is versatile for residential and tough wastewater environments. Heavy-duty, balanced handles simplify installation, and the 2-inch discharge allows for easy sewage pump replacement, minimizing downtime and service issues. The series is available in single-phase 1/2 hp (115- or 230-volt) and 1 hp (115- or 230-volt) options to fit a variety of residential sewage applications. 866-325-4210; www.goulds.com.

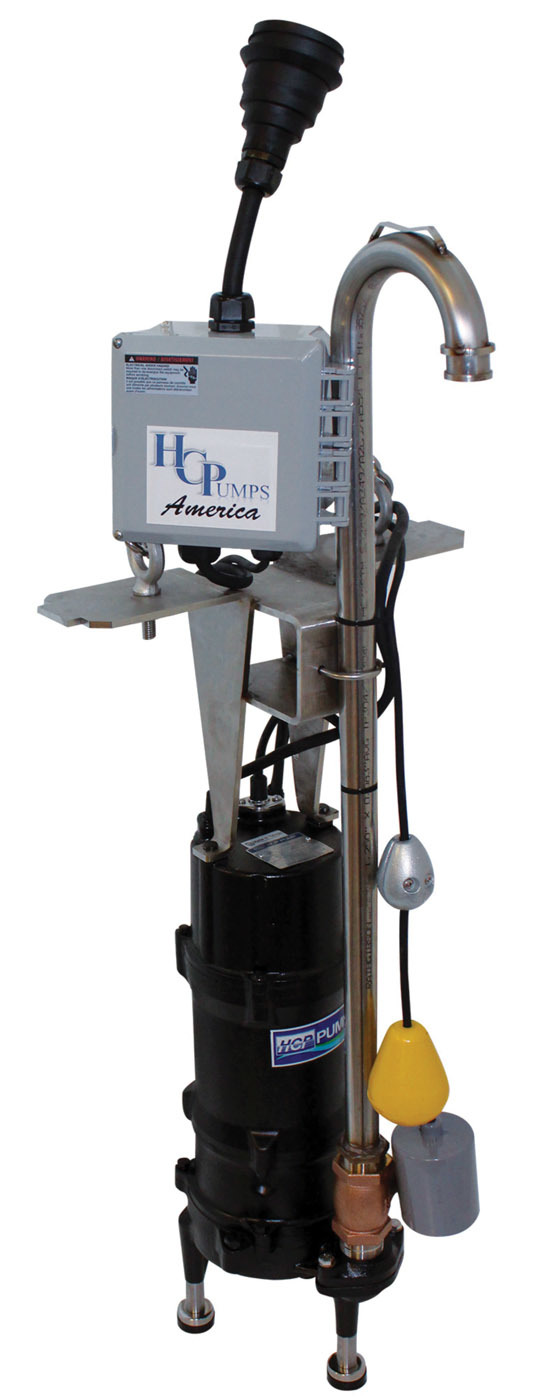

HCP Pumps of America GF Series

GF Series grinder pumps from HCP Pumps of America come in a 1.25- and 2-inch discharge and ranges from 1 to 10 hp. Their radial cutters have four blades instead of two. The internal capacitor motor design provides higher torque, and all single-phase grinder models are equipped with centrifugal switches. Standard accessories include an epoxy resin-sealed and water-resistant cable base, auto-cut thermal motor protector and triple-seal design. 251-943-8080; www.hcppumpsamerica.com.


Sewage Pump

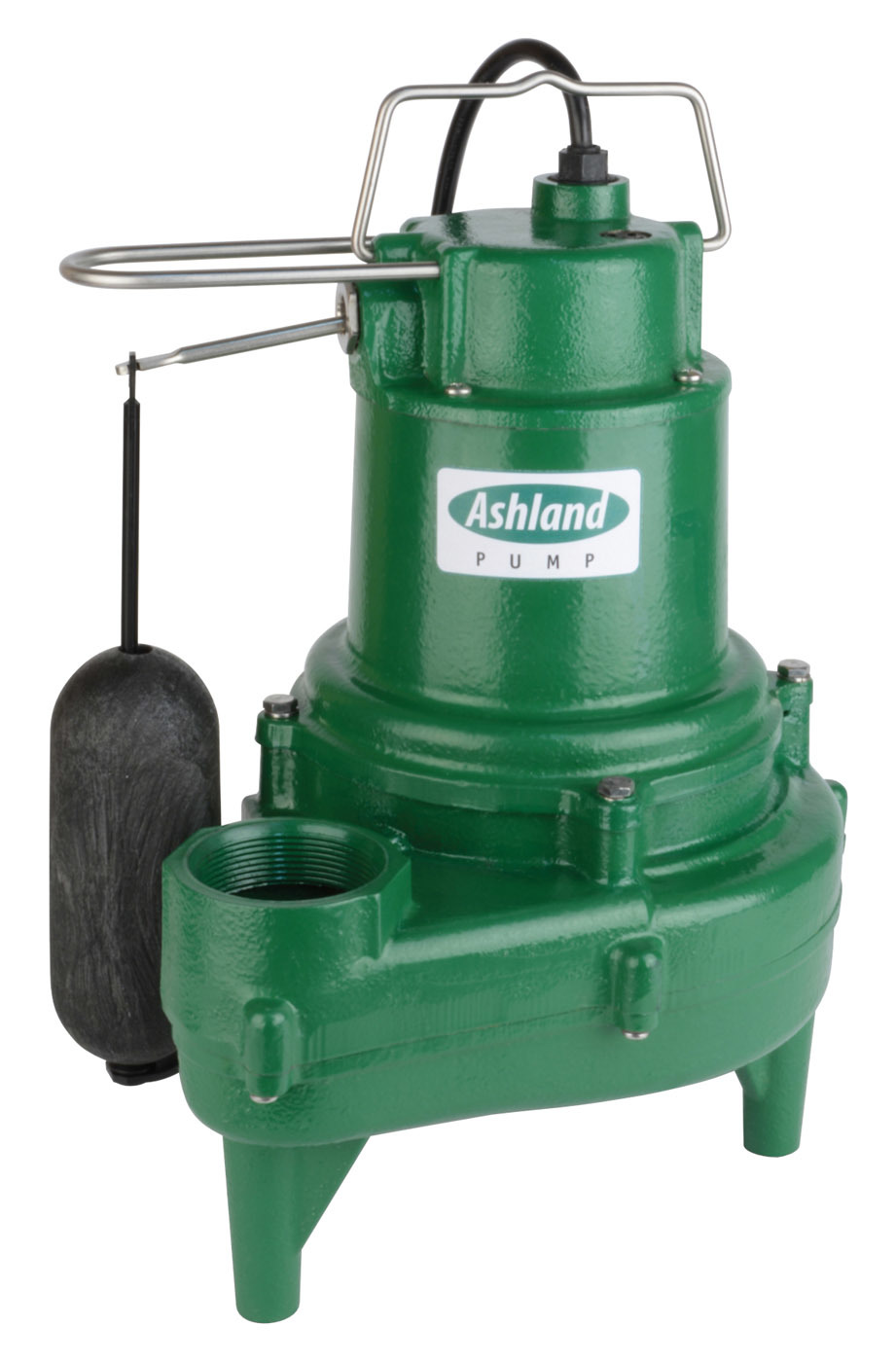

Ashland Pump SWS50V1-10

The SWS50V1-10 sewage pump from Ashland Pump is constructed of heavy-duty cast iron and is designed with a vortex thermoplastic impeller. The impeller is built to pass 2-inch spherical solids. The pump is equipped with a vertical integrated float switch. The oil-filled, continuous-duty PSC motor is thermally protected, and the cast iron has suitable heat dissipation. The pump can reach 136 gpm and has a maximum lift of 22 feet. 855-281-6830; www.ashlandpump.com.


Sump Pump

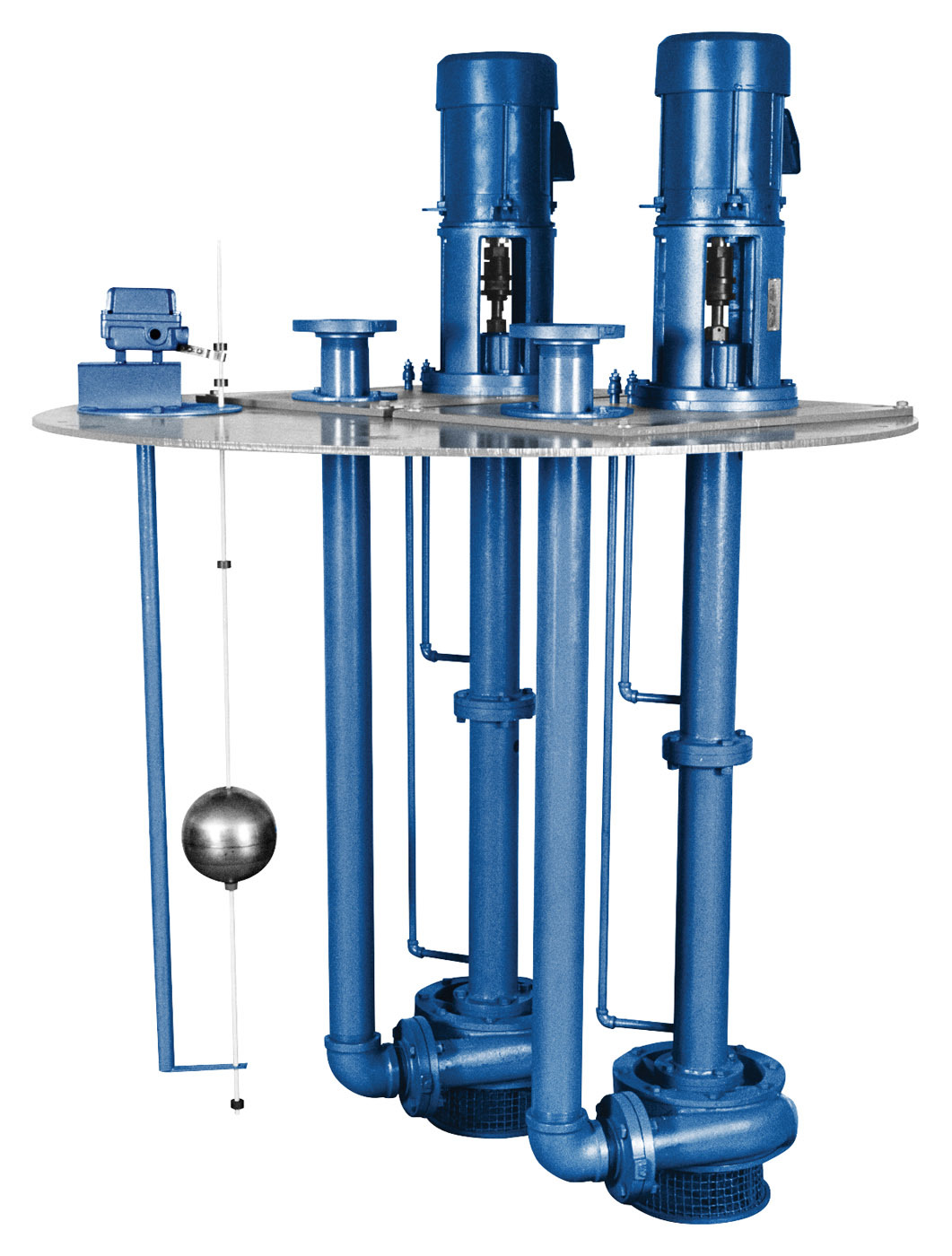

Vertiflo Pump Series 800

The Series 800 immersion sump pump from Vertiflo Pump can be used for sump drainage, flood control and process drainage to meet U.S. Environmental Protection and Occupational Safety and Health Administration requirements. It offers heads to 230 feet, temperatures to 350 degrees F, pit depths to 26 feet and up to 3,000 gpm. It has a semiopen impeller, external adjustment and a standard NEMA C face motor. It is available in cast iron, 316 stainless steel fitted, all 316 stainless steel, alloy 20, Hastelloy or CD4MCu construction. 513-530-0888; www.vertiflopump.com.


Submersible Pumps

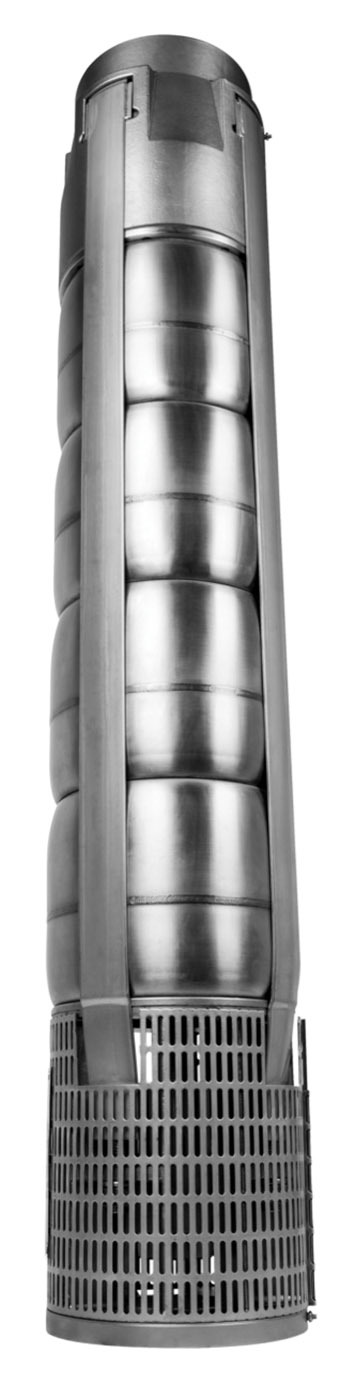

Franklin Electric SSI Series

SSI Series submersible pumps from Franklin Electric are designed to be a cost-effective, high-flow option available in 6-, 8- and 10-inch models with flows from 85 to 1,300 gpm at a maximum 1,250 feet of head. The stamped, stainless steel pumps are fully serviceable and corrosion-resistant. I-Blade technology is designed to improve the structural integrity of the pump’s internal components, pumping more water per horsepower and improving efficiency. Utilizing TIG progressive welding, the metal materials are mixed during the process, creating a stronger bond for durability in harsh environments. 260-824-2900; www.franklinwater.com.

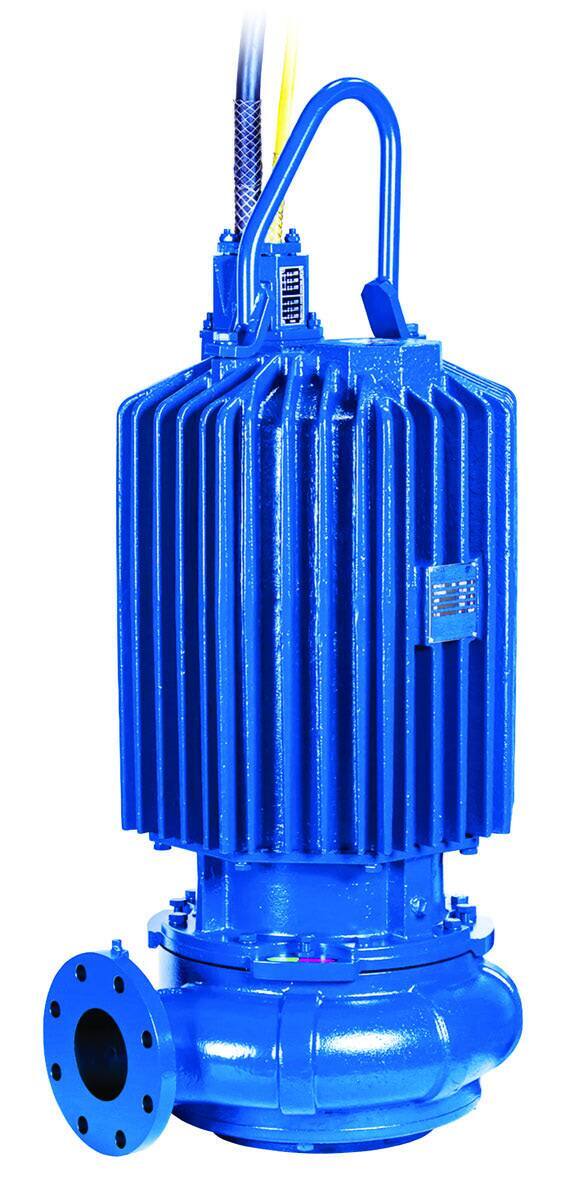

Gorman-Rupp SF Series

SF Series submersible solids-handling pumps from Gorman-Rupp use single-vane impeller designs requiring lower horsepower with increased flow and head. The line of pumps is available on more than 24 models in 3-, 4-, 6- and 8-inch flanged discharge sizes and power ranging from 3 to 75 hp. These combinations will provide flows up to 3,400 gpm and heads to 170 feet. 419-755-1011; www.grpumps.com.

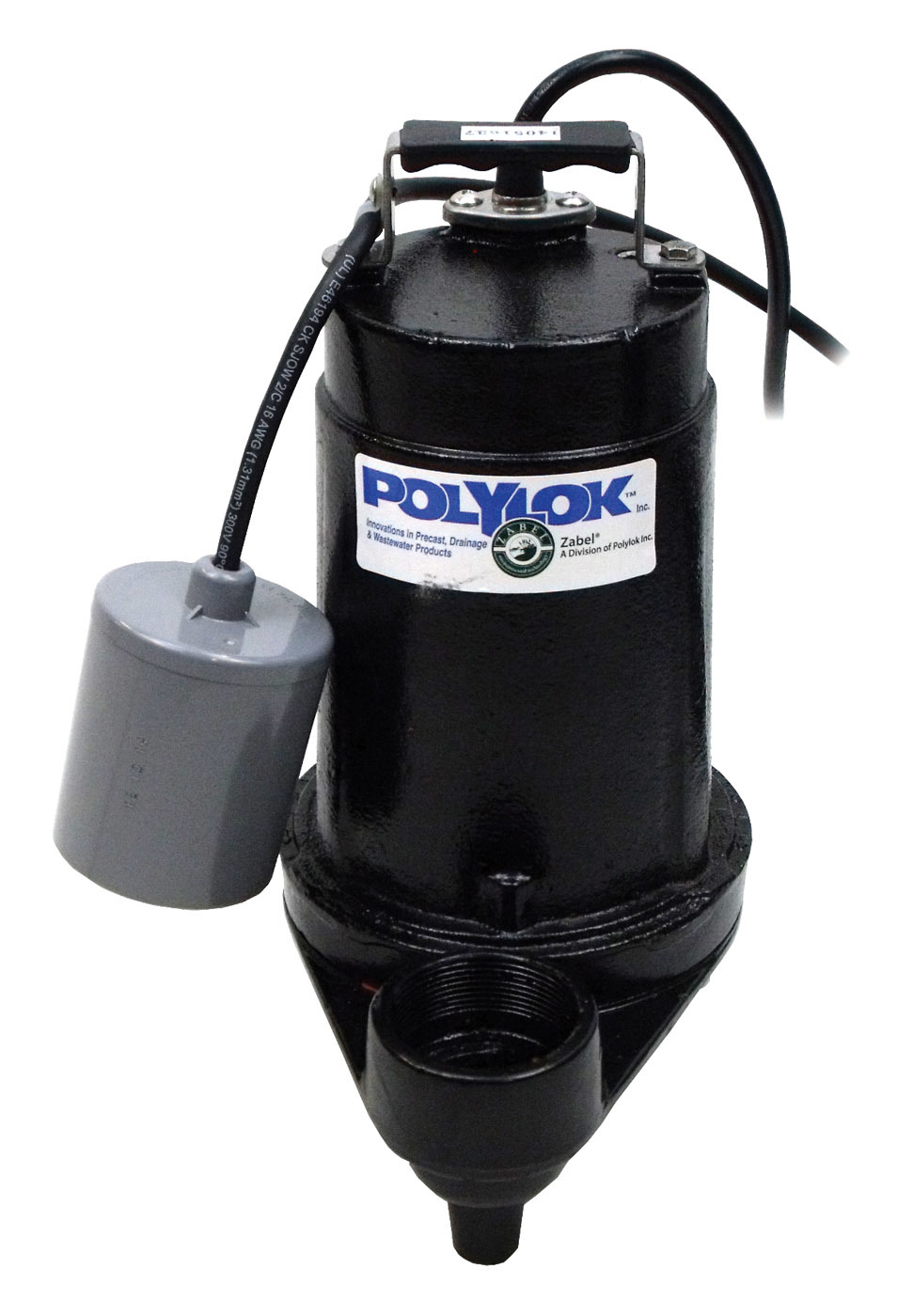

Polylok PL-CPE5A

The PL-CPE5A from Polylok is a submersible 1/2 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 48 feet and a maximum flow of 64 gpm. It is designed with a 3,450 rpm, oil-filled, permanent split-capacitor motor and has an amp rating of 8.5 for 115 volts, cast iron housing and volute with a cast iron vortex impeller that passes 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary exclusion V seal. Construction materials are carbon for the rotating face and ceramic for the stationary face. All elastomers are Buna-N, and the hardware is 300 Series stainless steel. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. It is supplied with an integrated clip on its piggyback mechanical float switch for automatic operation. 888-765-9565; www.polylok.com.


Pump Controls

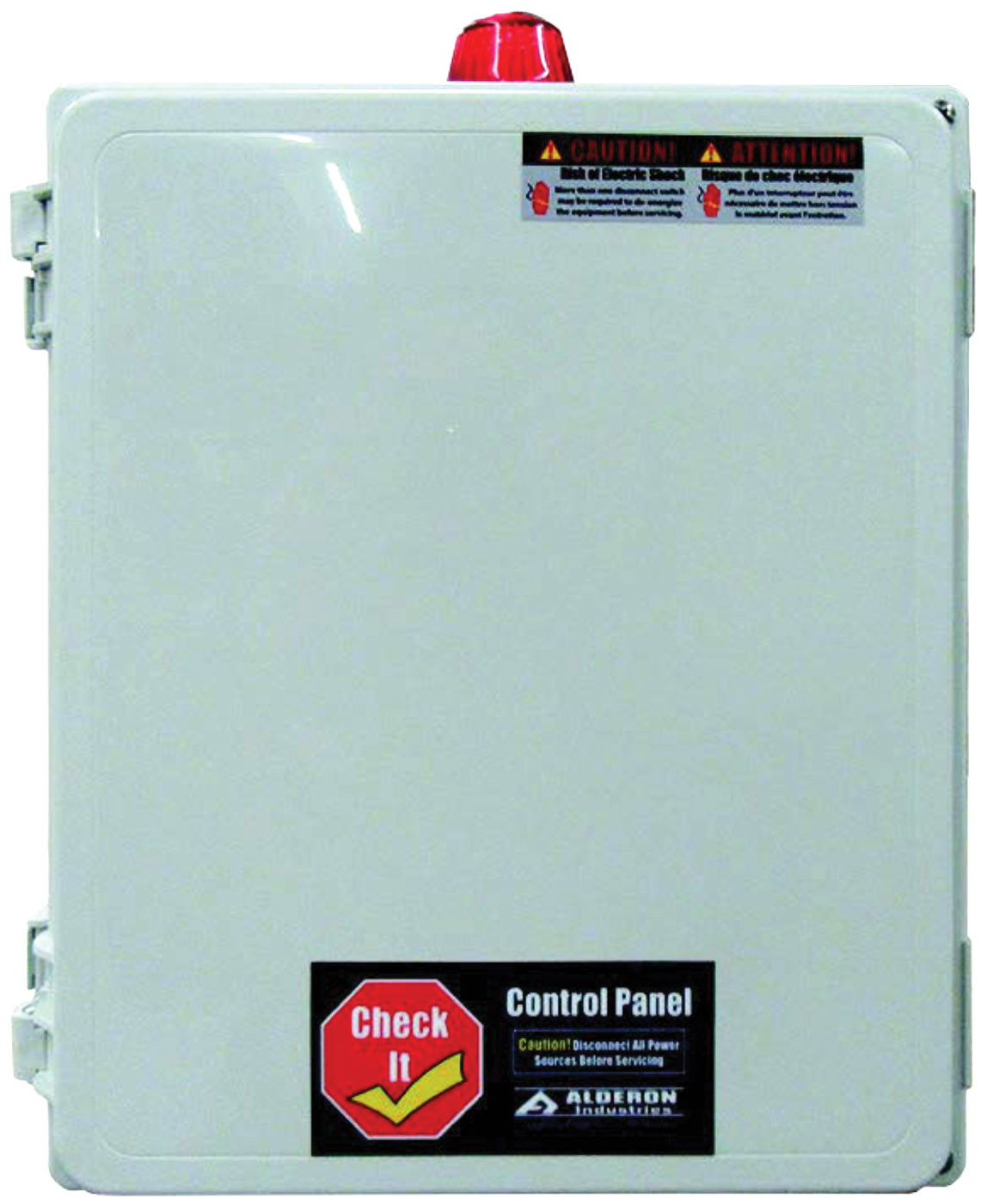

Alderon Industries 2012G Check It Single Phase Duplex

The 2012G Check It Single Phase Duplex control panel from Alderon Industries operates two alternating lead pumps. It is suitable for 120/208/230-volt AC single phase, 60 Hz, up to 15-amp pump load applications, and it includes test/silence switches and a buzzer with a red-colored beacon to signal alarm conditions. The Check It board allows the user to select Alternate Lead, Pump 1 Lead or Pump 2 Lead settings. A switch lets the user check pump operation while in Auto to see the float status with red LED indicators. There is separate pump and control feed power to allow the alarm board to stay powered in the event of pump failures, causing the main pump feed circuit breaker to trip. Auxiliary contacts are available for remote alarm hookup. It has field-adaptable automatic/manual alarm reset options and labeled terminal blocks and float cables for easy wiring installation. 218-483-3034; www.alderonind.com.

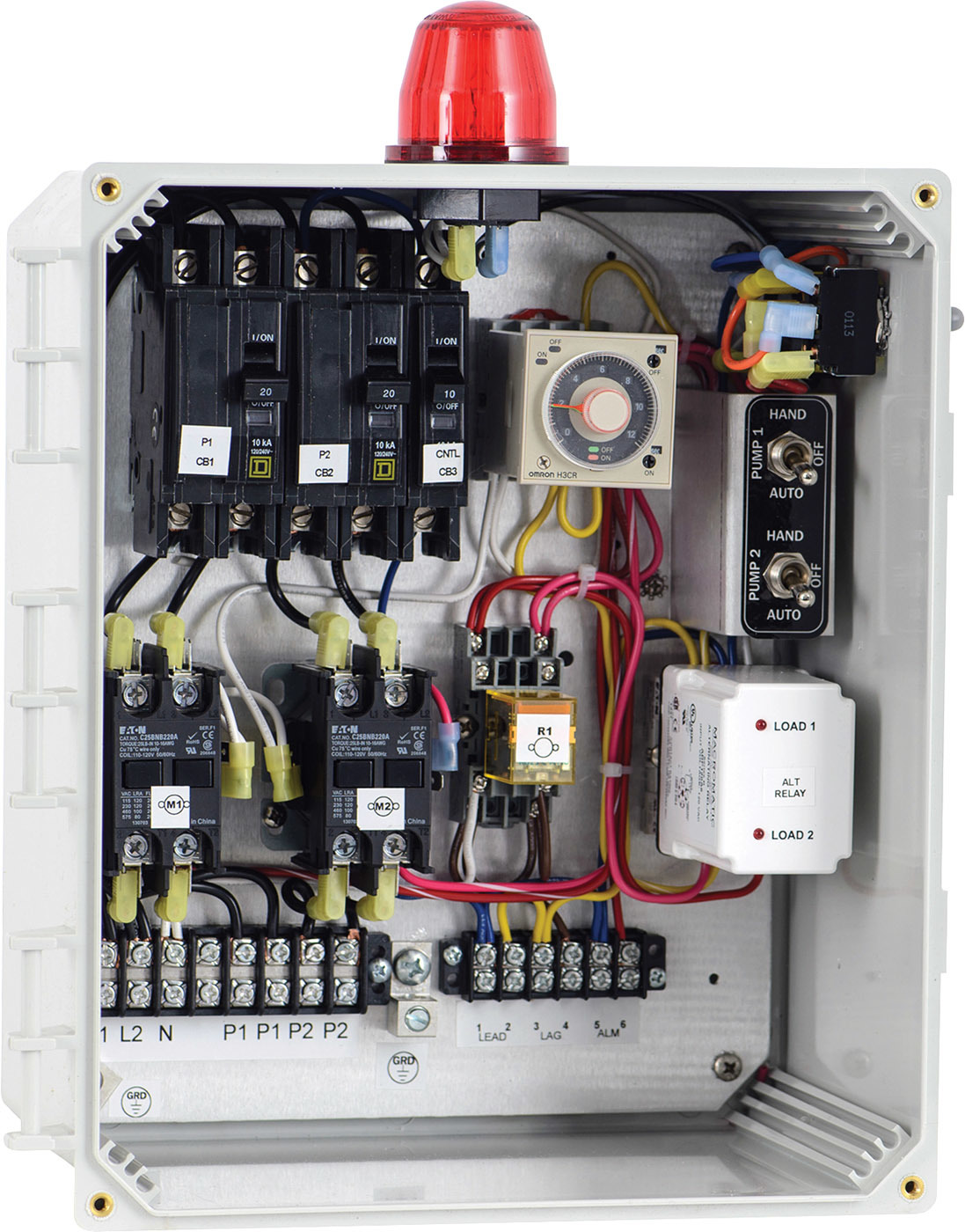

Septic Products 50B019-120-240DD

The 50B019-120-240DD control panel from Septic Products is a duplex time-dosing panel for use in residential or commercial applications. It can be used with 120- or 240-volt incoming power, and it accommodates two dosing pumps controlled by a repeat cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com.

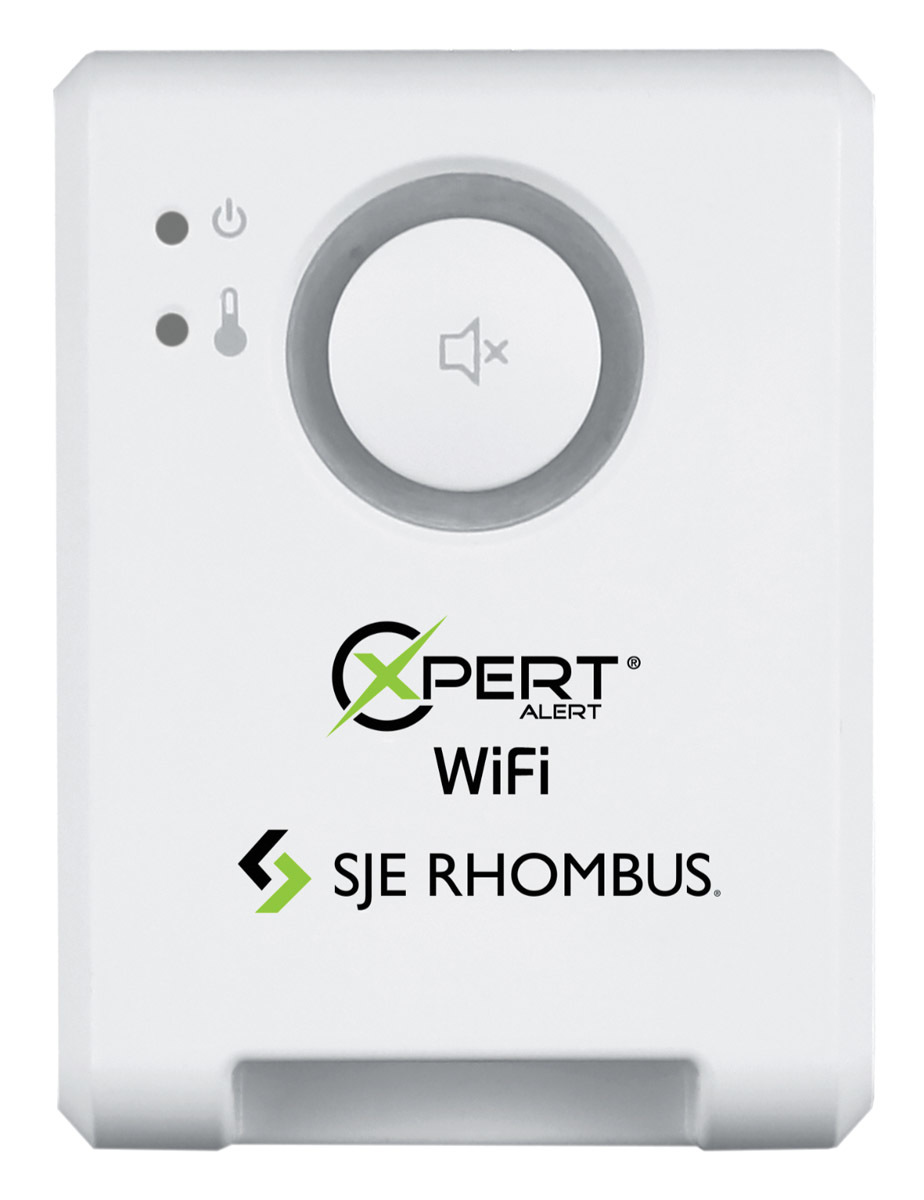

SJE-Rhombus Xpert Alert Wi-Fi

The Xpert Alert Wi-Fi indoor alarm system from SJE-Rhombus helps protect a home from costly damage due to flooding, pump failure or freezing pipes. The system monitors and reports residential alarm condition by notifying locally (audible and visual alarms) and remotely via SMS text messages and/or emails. It uses an existing Wi-Fi or Ethernet network to send messages, meaning there are no monthly fees or contracts. The sleek design incorporates an LED alarm light ring that illuminates red for alarm 1 and amber for alarm 2. The red low-temperature indicator activates at 40 degrees F to alert about potential freezing conditions, but it can be deactivated for cold climates. It is CSA certified. 888-342-5753; www.sjerhombus.com.
