Distribution + Get AlertsDrip Systems

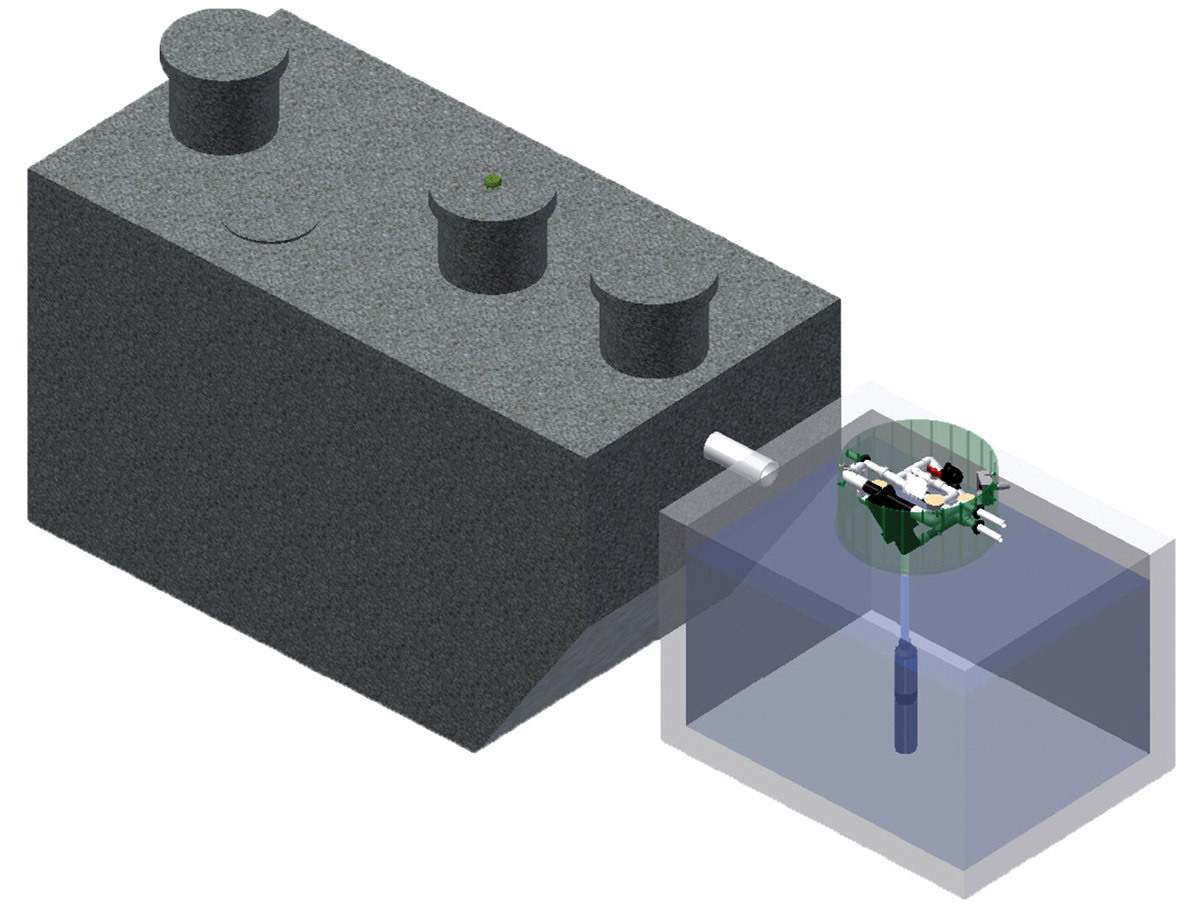

Jet Inc. Drip Irrigation Headworks
The Drip Irrigation Headworks package from Jet Inc. is designed as a direct-mount device for an effluent pump tank to filter effluent, while controlling pressure to the dripfield. It is available for automatic or manual/continuous flush. These packages contain a 1/2 hp high-head effluent pump, float tree, 1.5-inch vortex screen filter and pre-installed pressure gauges to monitor pressure drop across the filter component and regulate pressure to the dripfield. The package mounts onto an existing 24-inch riser or is pre-installed in a 24-inch riser for easy access to the pump, float tree, integrated vortex filter and controls. The package is available as part of the complete Drip Disposal Field Package that includes integrated controls for the Jet J-1500 or J-1500CF Series Bat Media treatment system. An optional flowmeter package, disc filter and pressure relief valve are also available to meet site-specific and regulatory criteria. 800-321-6960; www.jetincorp.com

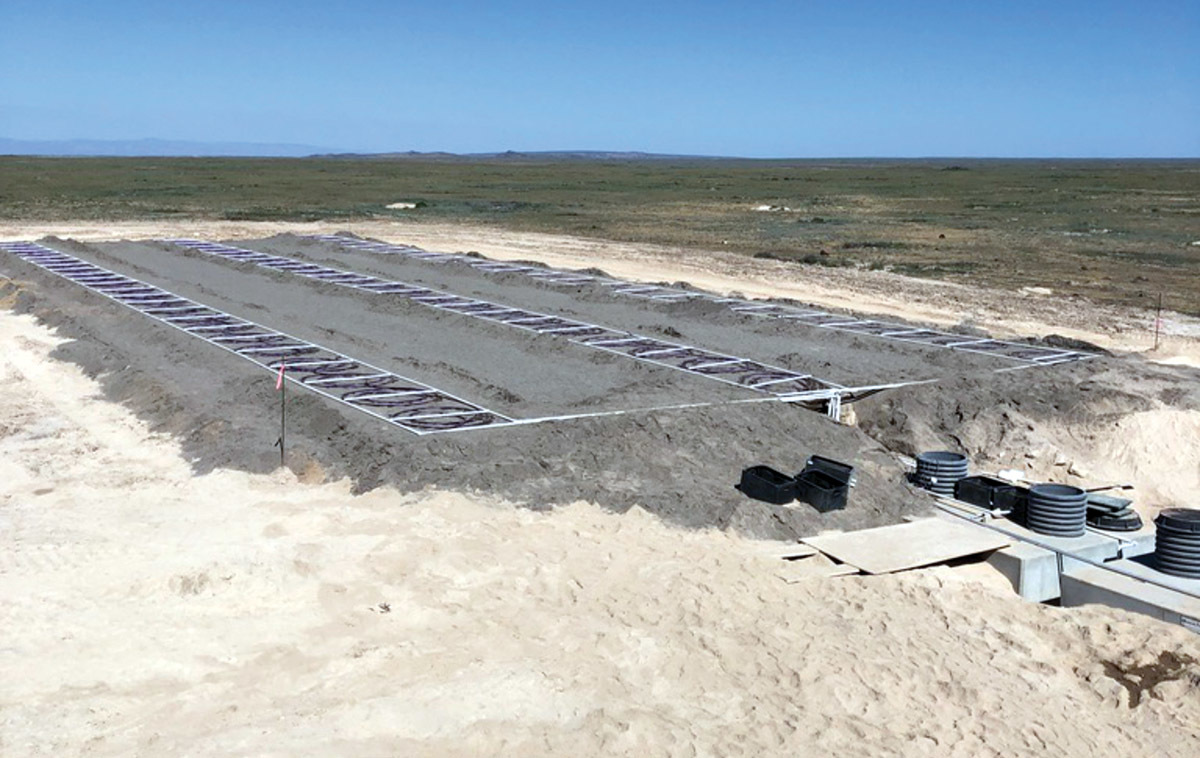

Lowridge Onsite Technologies OSCAR-II
The OSCAR-II from Lowridge Onsite Technologies is a system combining a traditional mound and subsurface drip dispersal. The ground surface is prepared with a 6-inch layer of C-33 sand. Coils are placed on the sand and covered with another 6-inch layer of sand. Effluent (STE, secondary or tertiary) is micro dosed every 4 minutes. STE will be reduced to 2/2 CBOD5/TSS and 700 fecal coliform/100 ml, MPN. The system has a small footprint and shallow soil depth requirements. Other treatment technologies can be used in conjunction to meet additional treatment requirements. 877-476-8823; www.oscaronsite.com
Effluent/Sewage/Sump Pumps

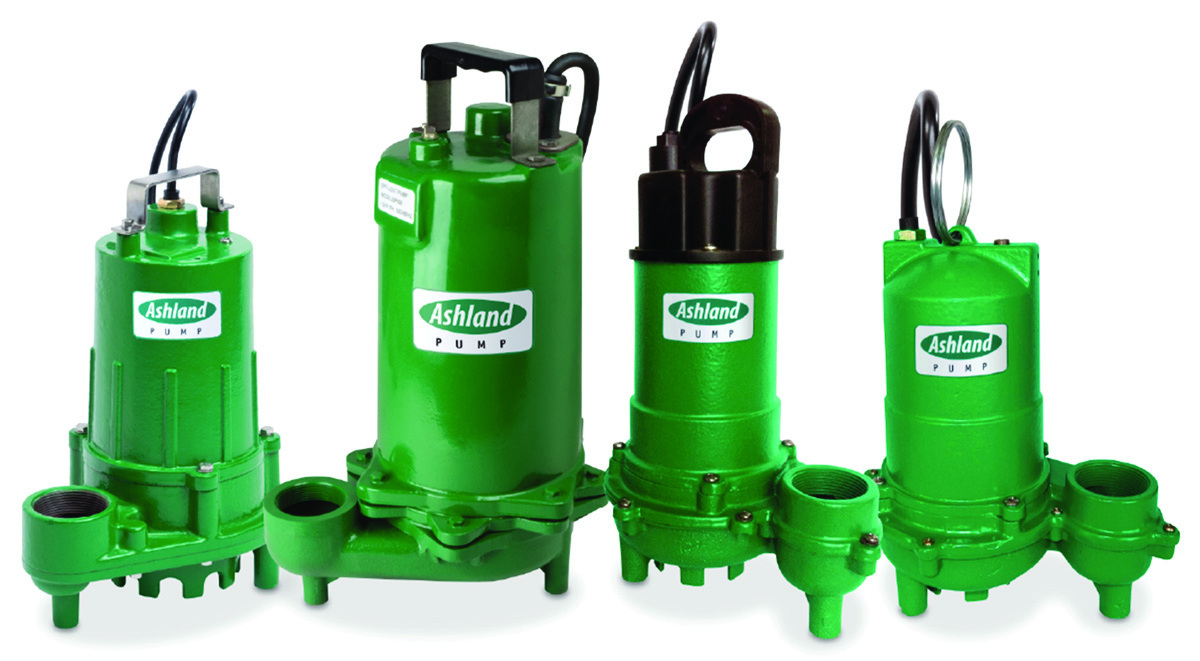

Ashland Pump effluent pumps
Heavy-duty effluent pumps from Ashland Pump are available in multiple horsepower sizes for various performance requirements, with efficient permanent split-capacitor motors. The oil-filled pumps have an upper and lower ball bearing design and handle up to 3/4-inch solids. They are made of cast iron, with cast iron impellers and equipped with a piggyback switch (20-foot standard cord) or in manual configurations. They are offered in 3/10, 2/5, 1/2, 3/4, 1 and 1 1/2 hp models. 855-281-6830; www.ashlandpump.com

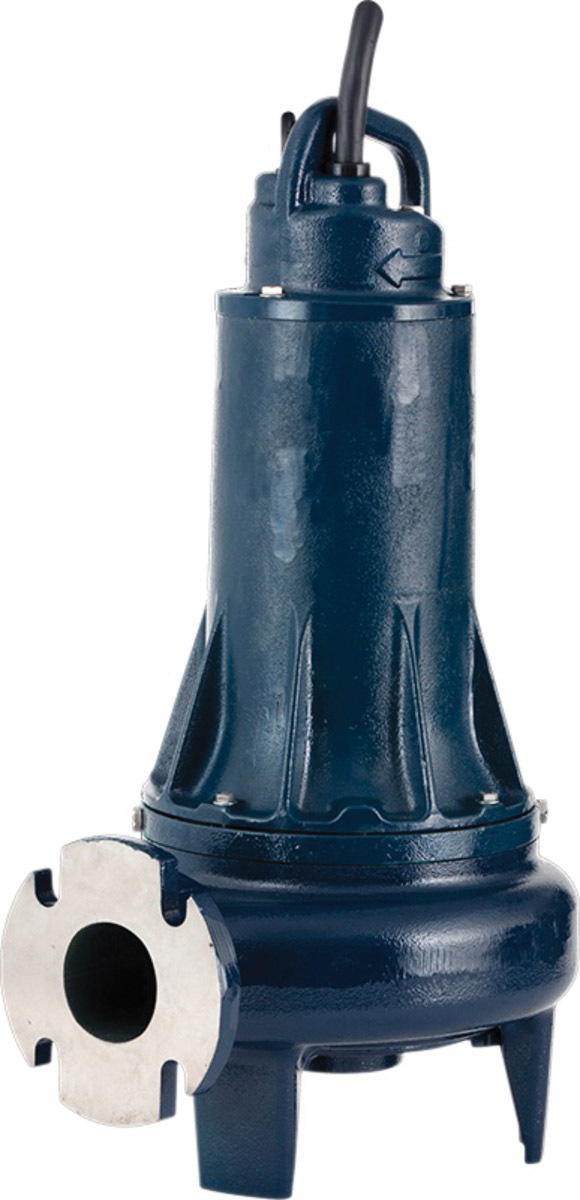

Franklin Electric NC Series
NC Series nonclog pumps from Franklin Electric are available in single- and three-phase power options to provide a rugged, maintenance-friendly wastewater transfer solution with flows up to 610 gpm. A field-adjustable wear plate minimizes downtime while maximizing profit without the need and additional cost of a replaceable wear ring. Factory standard dual silicon carbide mechanical seals have low thermal expansion and higher abrasion resistance, providing up to six times greater wear life than commonly used carbon versus ceramic seals. 800-348-2420; www.franklinengineered.com

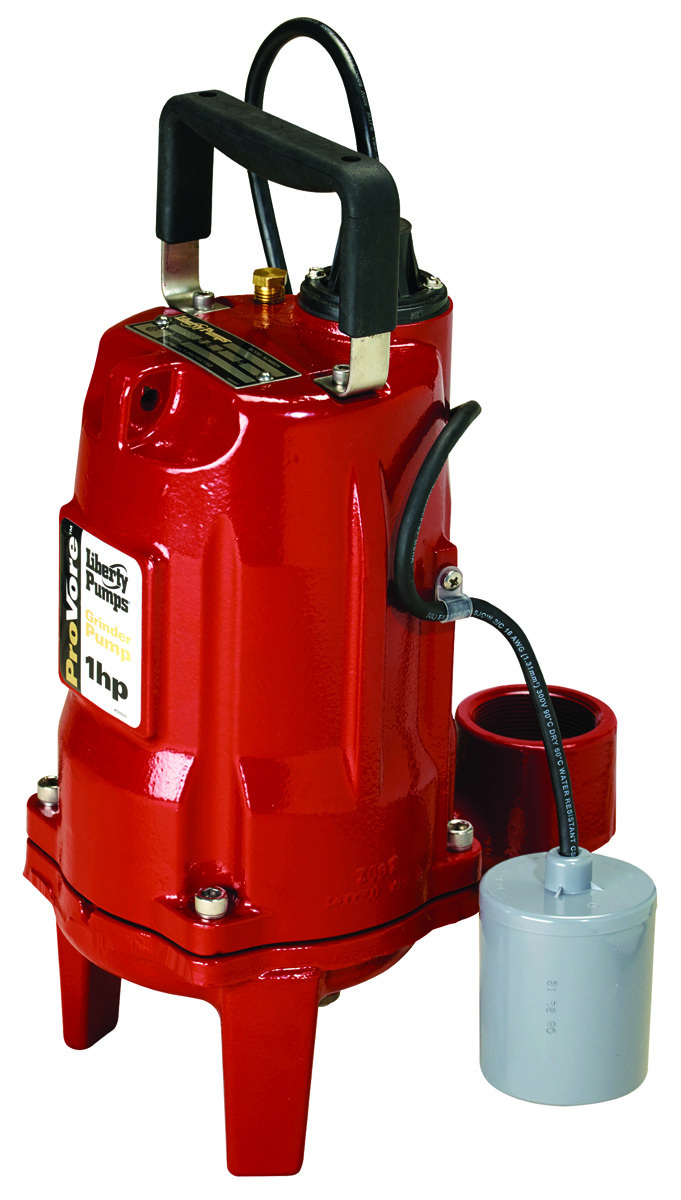

Liberty Pumps ProVore
The ProVore grinder from Liberty Pumps is designed for use in applications where the addition of a bathroom or other fixtures below sewer lines requires pumping. It has the same V-Slice cutter technology used in the Omnivore series, brought down to a more cost-effective level. Powered by a 1 hp motor, this smaller grinder is designed to operate on a standard 115- or 230-volt circuit, requiring only a 20-amp breaker. No special wiring is needed. The pump comes with a 2-inch vertical-style discharge and a standard leg pattern matching the LE Series. This allows for an easy retrofit into existing systems. Compact factory-assembled systems are available in both simplex and duplex versions: the ProVore 380 and ProVore 680. 800-543-2550; www.libertypumps.com

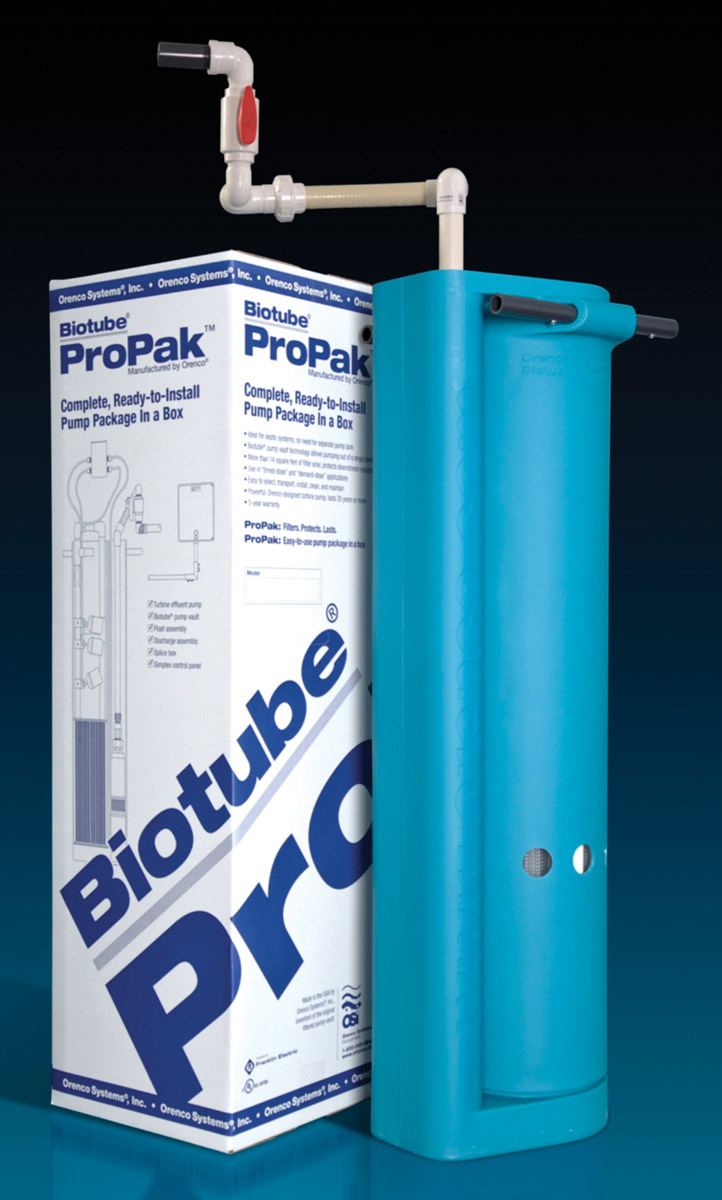

Orenco Systems Biotube ProPak
Biotube ProPak pump packages from Orenco Systems are complete and ready to install. They are used for filtering and pumping effluent from single- or dual-compartment septic tanks to gravity or pressurized discharge points. Pump vault technology eliminates the need for a separate dosing tank. Packages include a Biotube filter cartridge, which filters up to two-thirds of solids, so only liquid from the tank’s clear zone is pumped. Filters are easy to remove and clean without pulling the pump vault. All components are designed to be quickly installed and easily maintained. The PF Series high-head effluent pump is field serviceable and field repairable, and pump controls are designed for specific packages. Multiple models are available. ProPak Select software is designed to provide fast, error-free hydraulic calculations and generate system curves. 800-348-9843; www.orenco.com

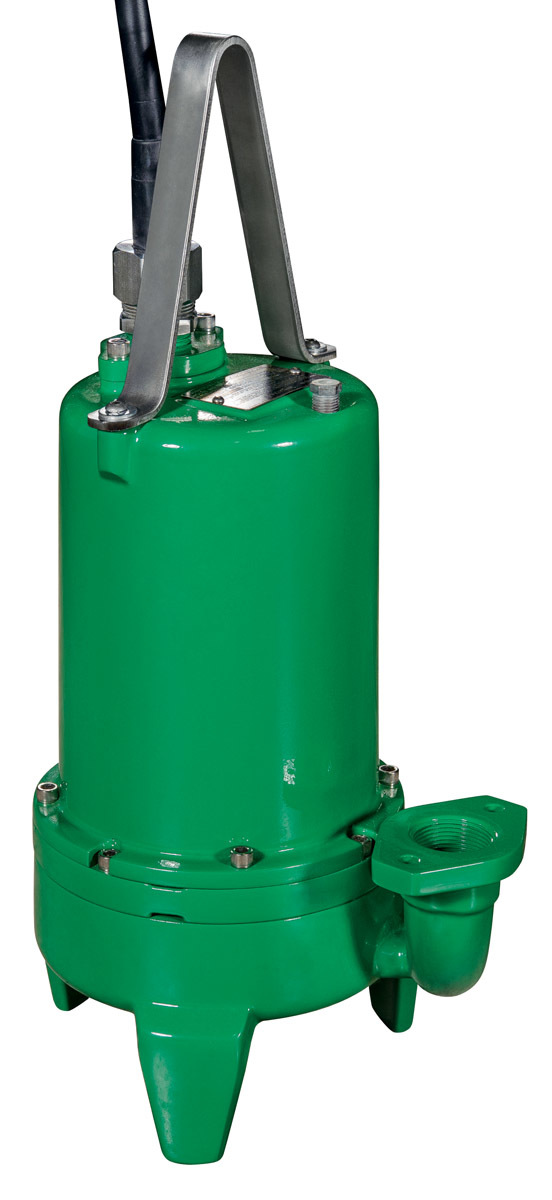

Pentair V2 Series
The V2 Series grinder from Pentair is designed with computational fluid dynamics software and has a volute and impeller design allowing shut-off heads up to 185 feet with a single-stage centrifugal pump. This design gives operators flexibility to change between the standard, high-head and high-flow design by swapping the impeller and cutter plate, simplifying maintenance and reducing service parts inventory for low-pressure sewage system projects. It is available with an optional quick-disconnect cord for easier servicing in the field, double-row bearings to absorb axial and radial loads, and an oil-filled motor for cooler operating temperatures and longer life. 855-274-8948; www.pentair.com

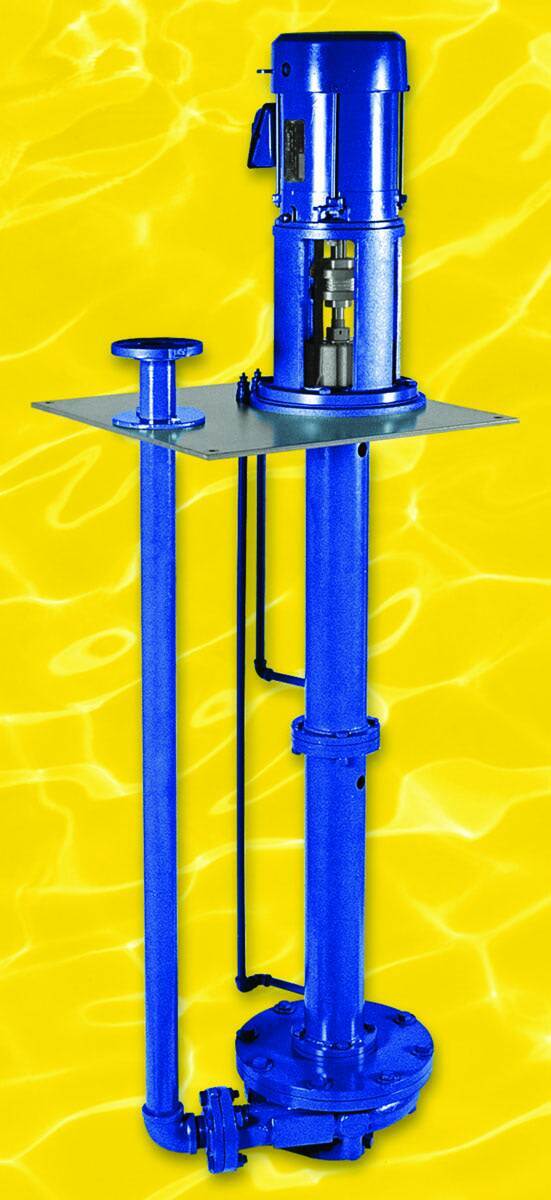

Vertiflo Pump Series 900
The Series 900 industrial vertical immersion vortex sump pump from Vertiflo Pump provides an unrestricted flow, since the impeller is not normally in contact with the solids being pumped. Applications include chemical slurries, fragile food-processing solids, paper and pulpy solids, petroleum and oils, sewage, wastewater treatment and textiles. It handles solids up to 4 inches in diameter. It is designed for long life in severe services with heads to 170 feet, temperatures to 350 degrees F, and pit depths up to 26 feet with flows to 1,600 gpm. Construction options include cast iron, 316 stainless steel fitted, all 316 stainless steel, Alloy 20 and CD4MC. 513-530-0888; www.vertiflopump.com

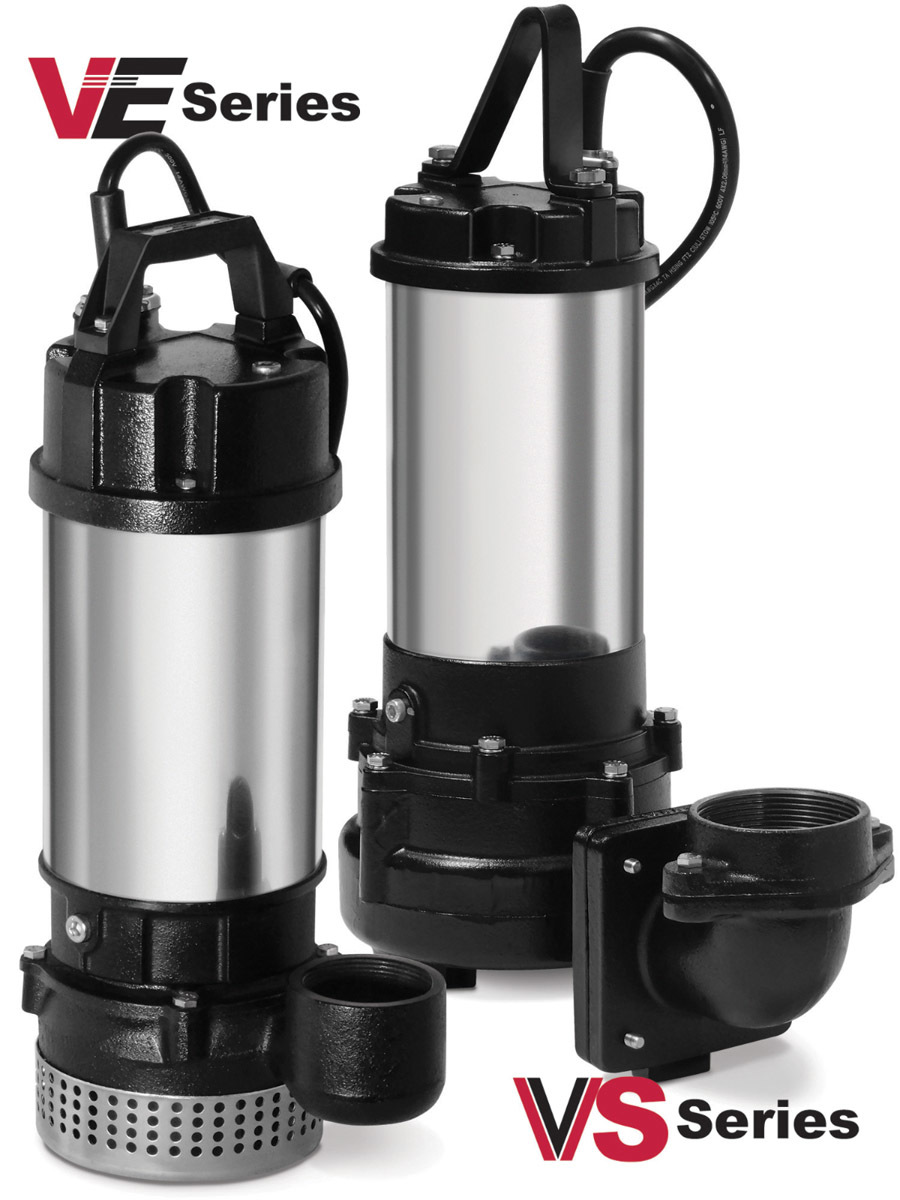

Webtrol Pumps V Series
The V Series from Webtrol Pumps is comprised of VS sewage pumps and VE effluent pumps with cast iron impellers and volutes and a stainless steel motor housing. The VS5A24 pump is a sewage ejector, 1/2 hp, 2-inch discharge and passes 2-inch solids. This pump shut-off head is 24 feet. The larger sewage ejectors feature a 2- or 3-inch discharge. Three-phase models are available. Motors are continuous duty. A double mechanical seal is standard. The VE effluent series has the VS features as well. The VE5A46 is 1/2 hp with shut-off heads to 49 feet with a 2-inch discharge and a removable screen that limits solids to 1/4 inch, or 5/8-inch solids without the screen. Models are available in single or three phases. The pumps can be guardrail mounted. 314-631-9200; www.webtrol.com
Pump Control Panels

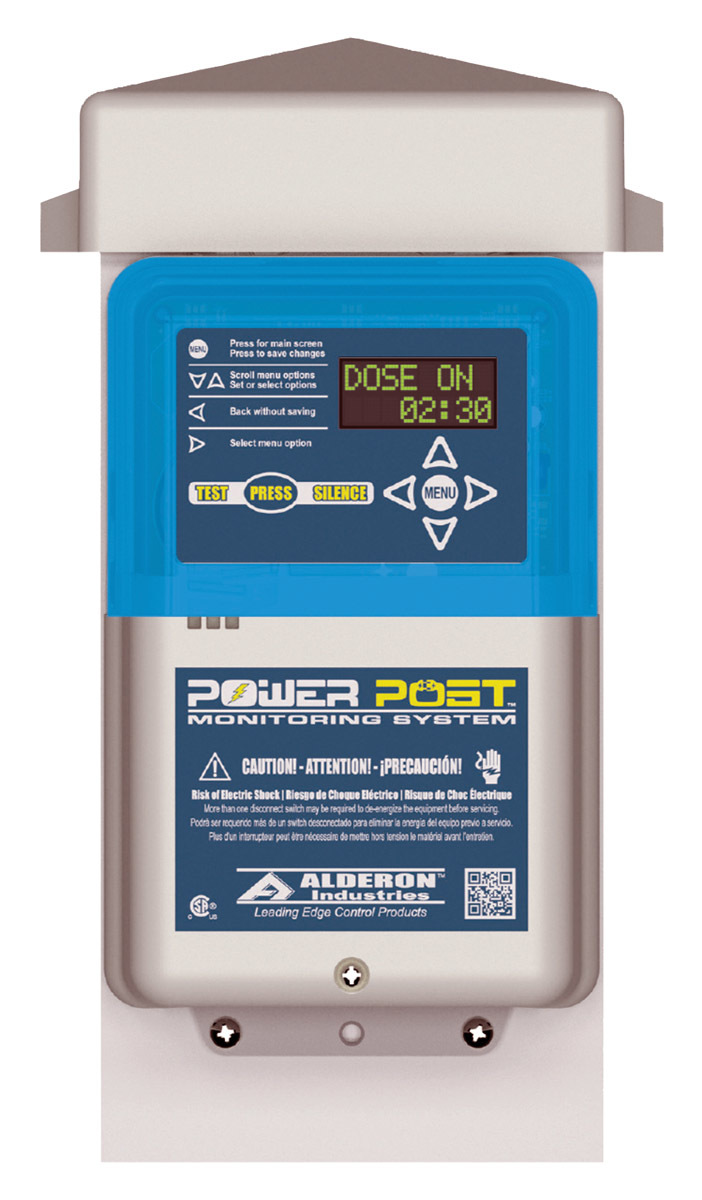

Alderon Industries Power Post control panel
The Power Post control panel pump connection and monitoring system from Alderon Industries can be used for a variety of applications, including mound systems, pressurized drainfields or any system requiring timed- or demand-dose pumping and monitoring. They allow the installer to make a professional and safe connection for power and float switch wiring connections, with available models that include a 120- or 240-volt AC pump power receptacle. Systems include an integrated outdoor alarm with LED indicators (various colors), buzzer and test/silence push button. The top of the enclosure changes color along with system function displayed text on the OLED screen. Menu keys are provided to program settings and view data such as pump run, pump cycle counts, pump amps, elapsed time, peak/extended pump run, total gallons pumped, pump dosing events, pump fail and alarm conditions. 218-483-3034; www.alderonind.com

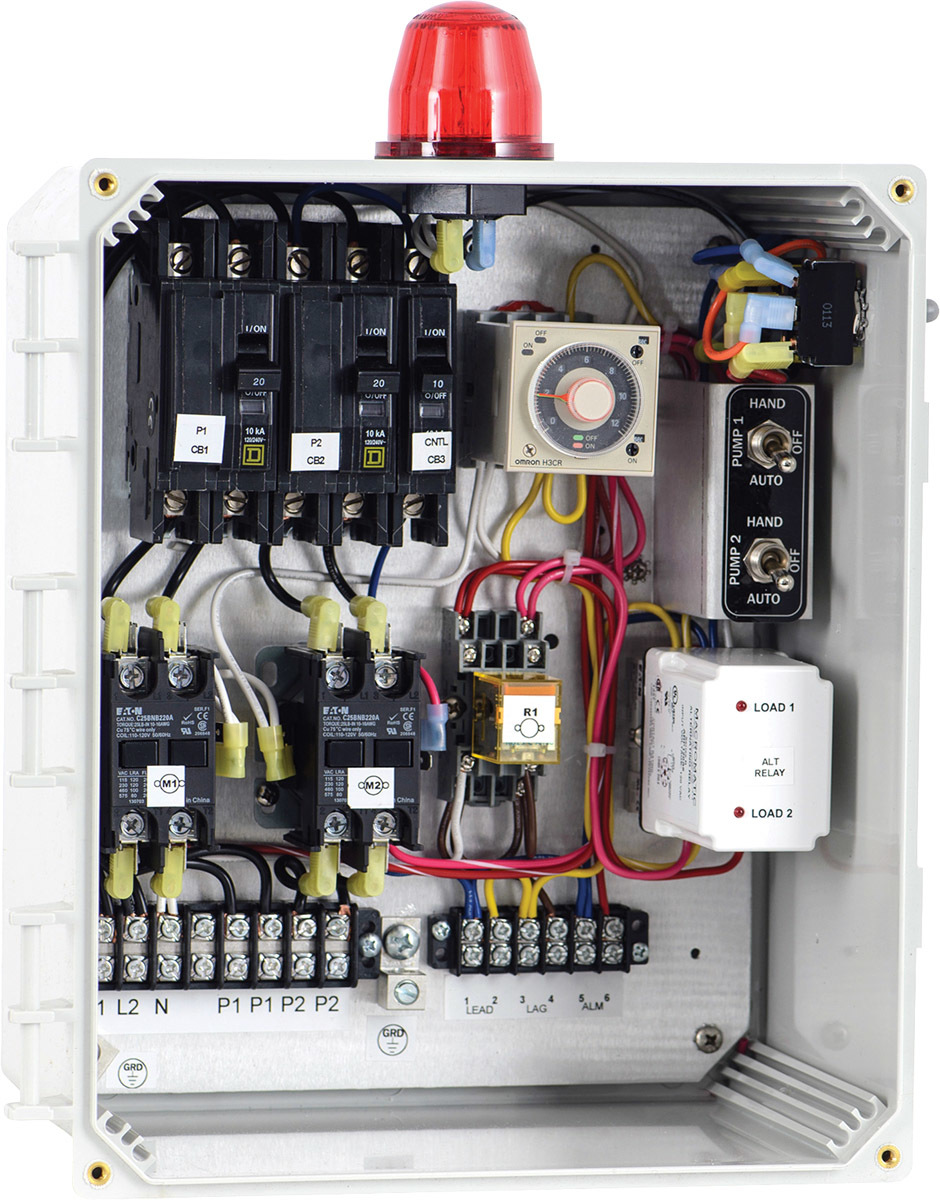

Septic Products 50B019-120-240DD
The 50B019-120-240DD control panel from Septic Products is a duplex time-dosing panel for use in residential or commercial applications. It can be used with 120- or 240-volt power, and it accommodates two dosing pumps controlled by a repeat cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com

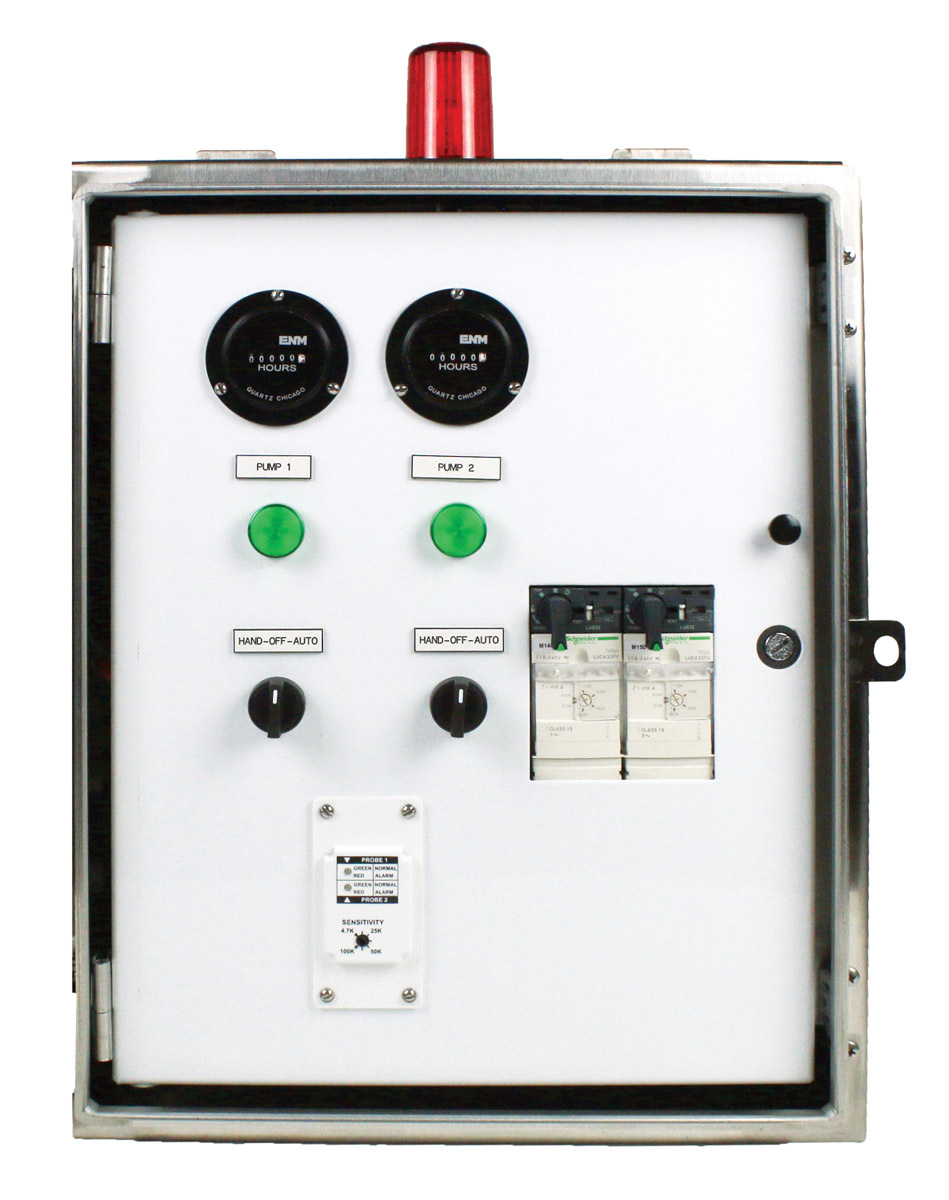

SJE Rhombus Model 32S
The Model 32S control panel from SJE Rhombus is designed to alternately control two three-phase pumps in industrial and commercial water and sewage systems using the DPC-4F Pump Control Four Float Controller for pump sequence, alternation, selection, lag pump delay time and alarm. If a high-water alarm condition occurs, the high-water alarm float activates the audible/visual alarm system along with auxiliary contacts for remote alarm. Common applications include lift stations and pump chambers. Models are available with an intrinsically safe relay for circuit extension into hazardous locations. It is UL/cUL listed. 888-342-5753; www.sjerhombus.com
Submersible Pumps

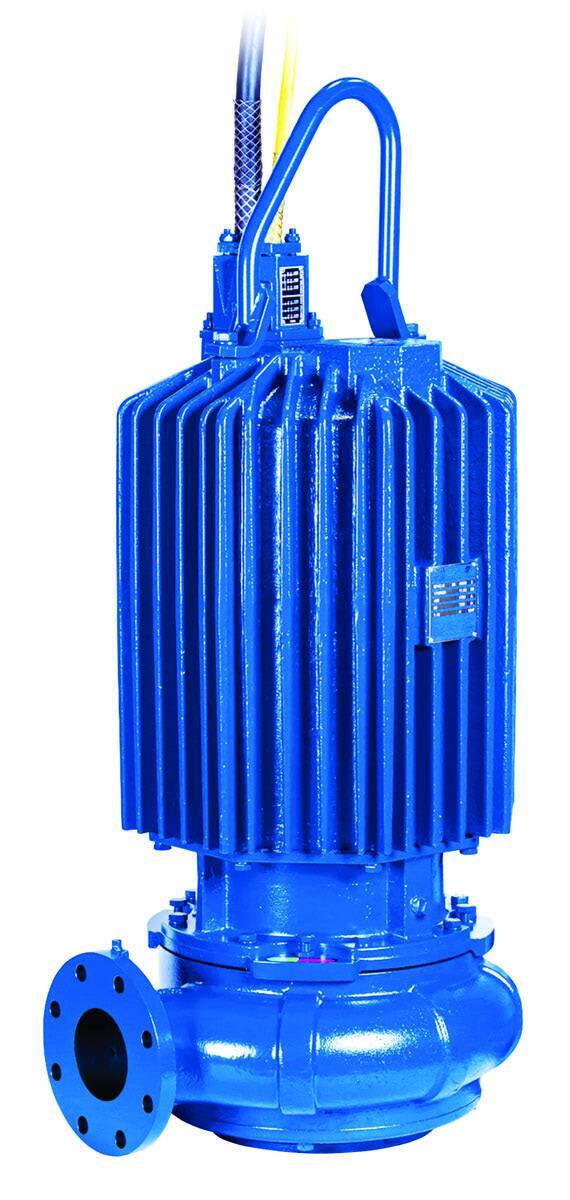

Gorman-Rupp SF Series
SF Series submersible solids-handling pumps from Gorman-Rupp are now available in five new models: SFEV4C, SFEV4D, SFDEV4D, SFEV4E and SFS4C with flows to 940 gpm and heads to 108 feet with horsepower ranges from 15 to 30 hp. They utilize extreme-duty vortex and semi-open, two vane impeller designs to combat stringy and solids-laden pumping media. The line now has 37 models in 3-, 4-, 6- and 8-inch flanged discharge sizes and horsepowers ranging from 3 to 75 hp. These combinations with multiple impeller trims will provide flows up to 3,400 gpm and heads to 170 feet. They are available in multiple configurations, and nearly all are available with CSA C-US approval for standard locations and FM and CSA C-US approval for hazardous locations. 419-755-1011; www.grpumps.com

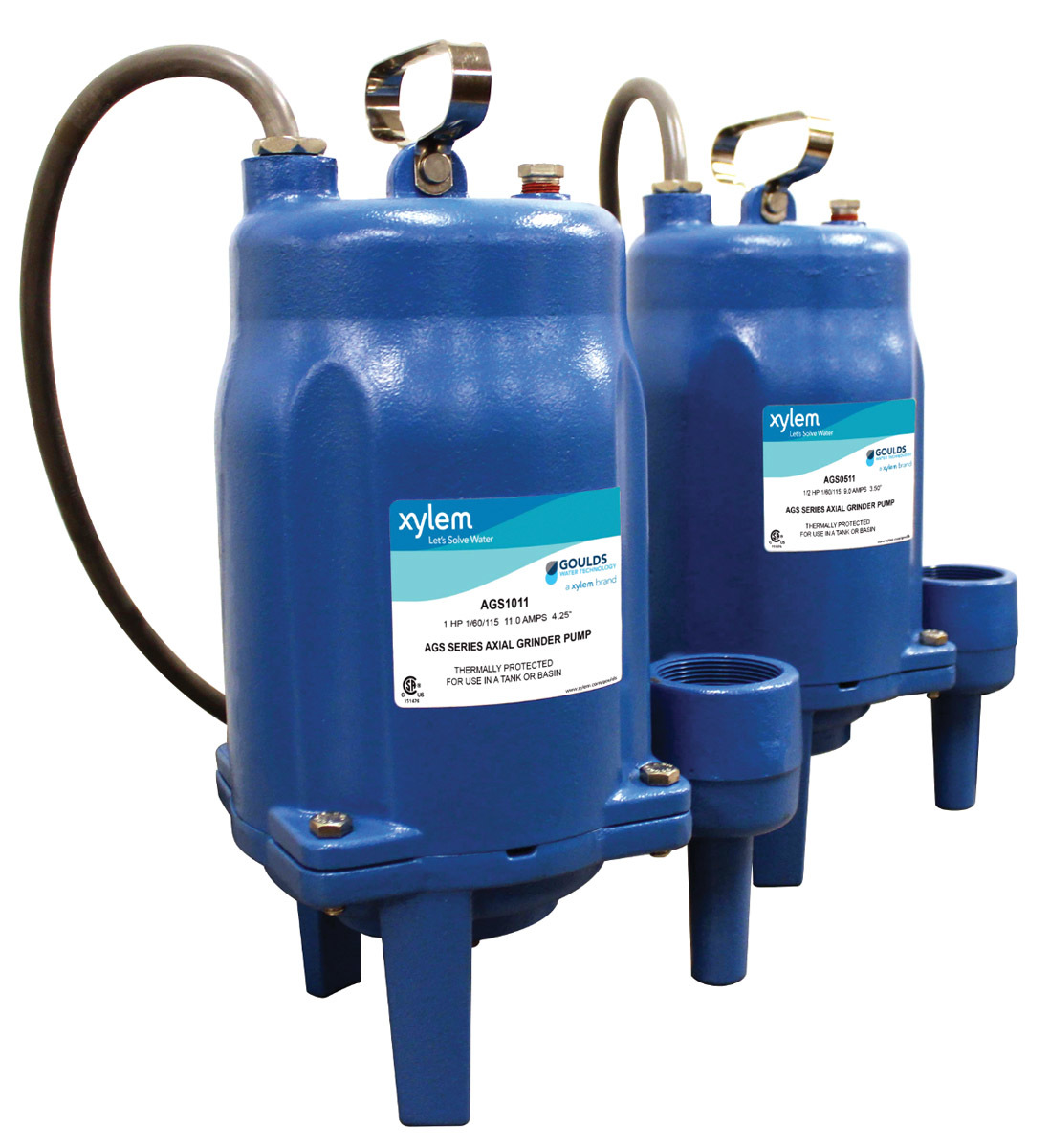

Goulds Water Technology, a Xylem brand, AGS Series
The Goulds Water Technology, a Xylem brand, AGS Series submersible axial grinder provides suitable performance against the challenging solids, flushables and trash present in modern residential wastewater applications. With a semiopen impeller design, including an eight-hole cutter plate and three-blade axial cutter, the grinder reduces waste to a fine slurry. The lobe-lifting technology lifts material away from the low-pressure center and redirects it for cutting. Built with a stainless steel volute, cast iron impeller and hard-faced silicon carbide on silicon carbide mechanical seal, it is versatile for residential and tough wastewater environments. Heavy-duty, balanced handles simplify installation, and the 2-inch discharge allows for easy sewage pump replacement, minimizing downtime and service issues. The series is available in single-phase 1/2 hp (115- or 230-volt) and 1 hp (115- or 230-volt) options to fit a variety of residential sewage applications. 866-325-4210; www.goulds.com

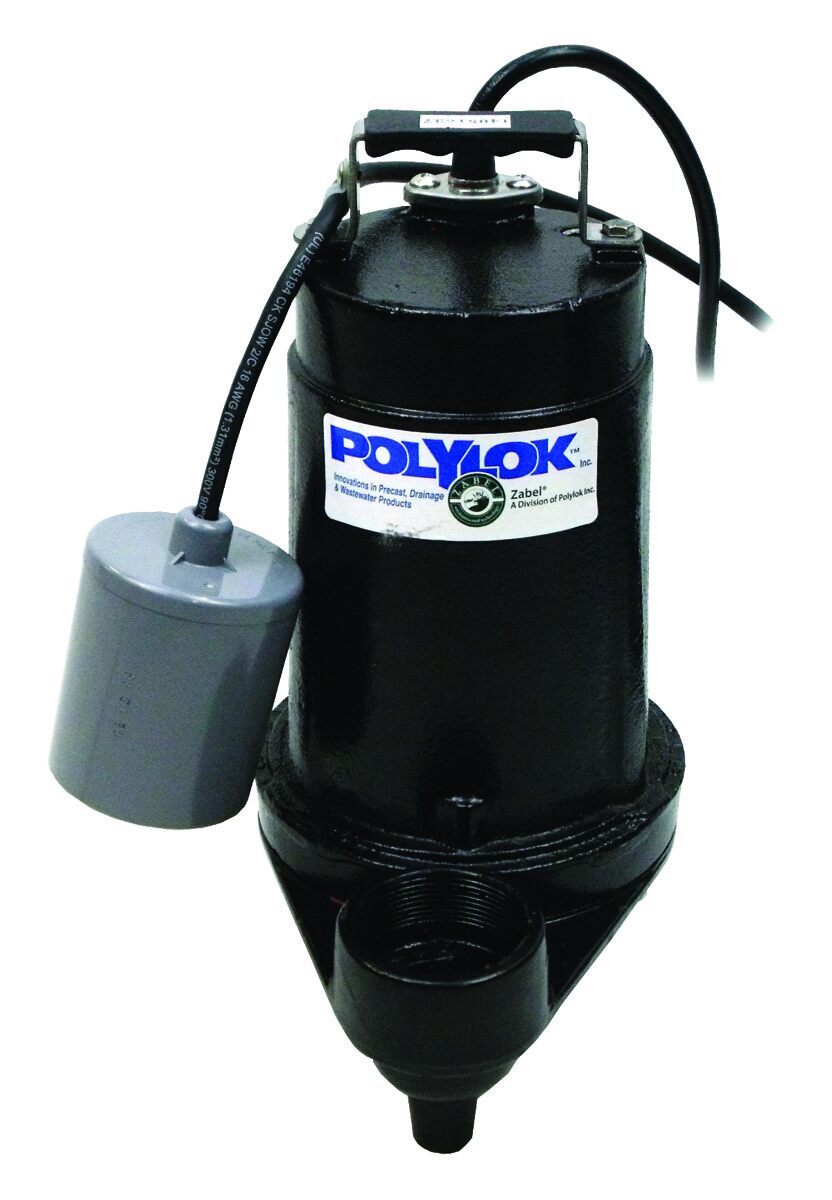

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450-rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a rugged cast iron housing and volute equipped with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com
Septic Tanks/Grease Interceptors

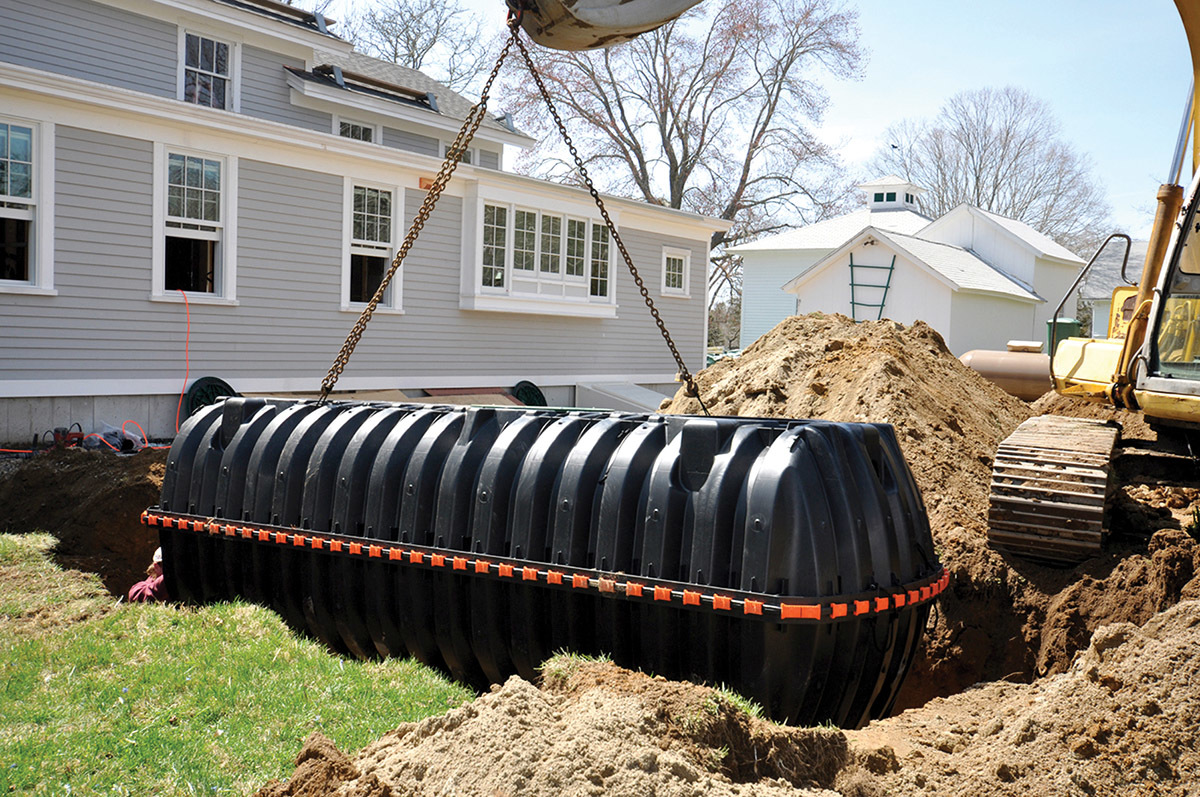

Infiltrator Water Technologies IM-Series Tanks
Injection-molded IM-Series Tanks from Infiltrator Water Technologies are available in multiple sizes including the IM-540 pump tank, IM-1060 and large-capacity IM-1530 septic tank. Lightweight, strong and watertight, the tanks enable shallow, multiple and serial tank installation options in septic and pump applications. All have integral heavy-duty lids that interconnect with the watertight click-and-lock EZsnap riser. The tanks also have structurally reinforced access ports, reinforced structural ribbing and fiberglass support posts to provide additional strength. The two-piece tank design nests for efficient shipping, and inboard lifting lugs make delivery and handling easier. The tanks frequently house advanced wastewater treatment systems such as the ECOPOD fixed-film bioreactor system or the ECOFILTER pump vault tank filtration system. 800-221-4436; www.infiltratorwater.com

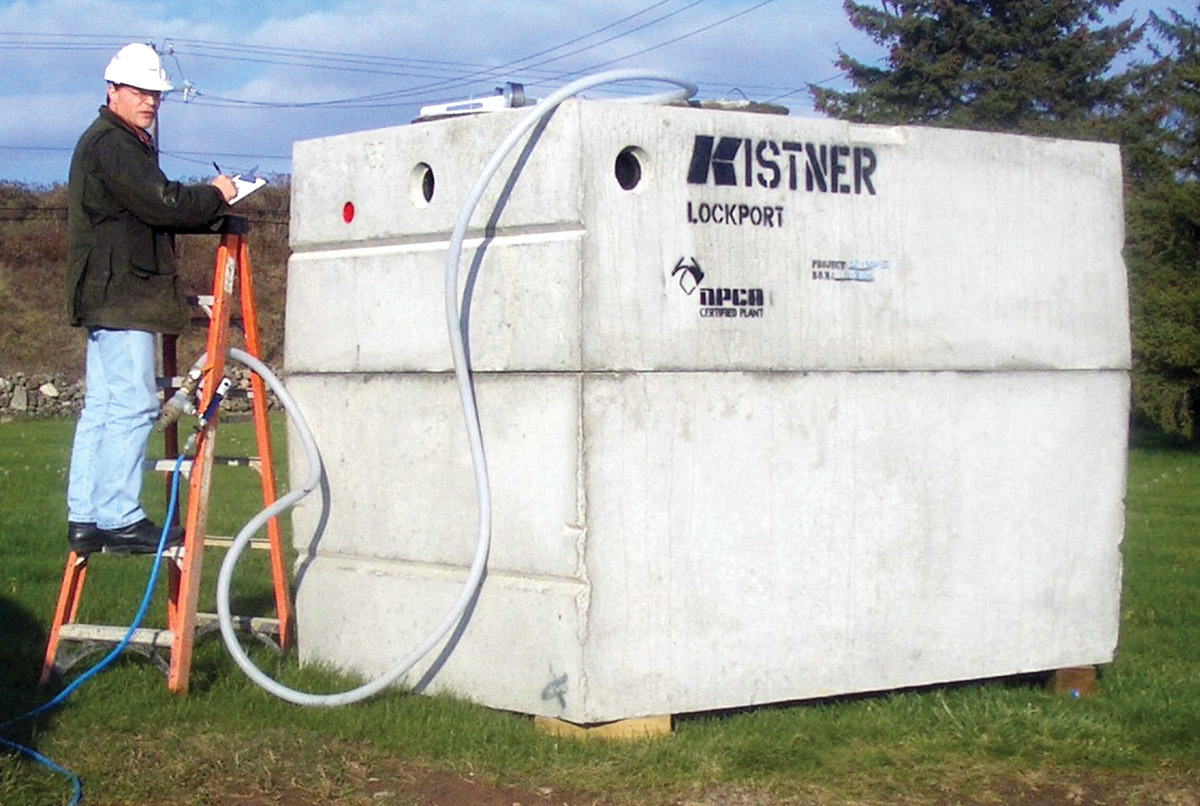

Kistner Concrete Products Gravity Grease Interceptors
Precast concrete Gravity Grease Interceptors from Kistner Concrete Products are a steel-reinforced concrete product formed and cast within a climate-controlled manufacturing plant and delivered to a project site ready to be installed and put into service immediately. They meet AASHTO HS-20 traffic loading standards. They are durable, non-buoyant, fully customizable, fit in a small footprint, and meet all state and federal requirements for ASTM- C1227 and C1613. 877-687-9255; www.kistner.com

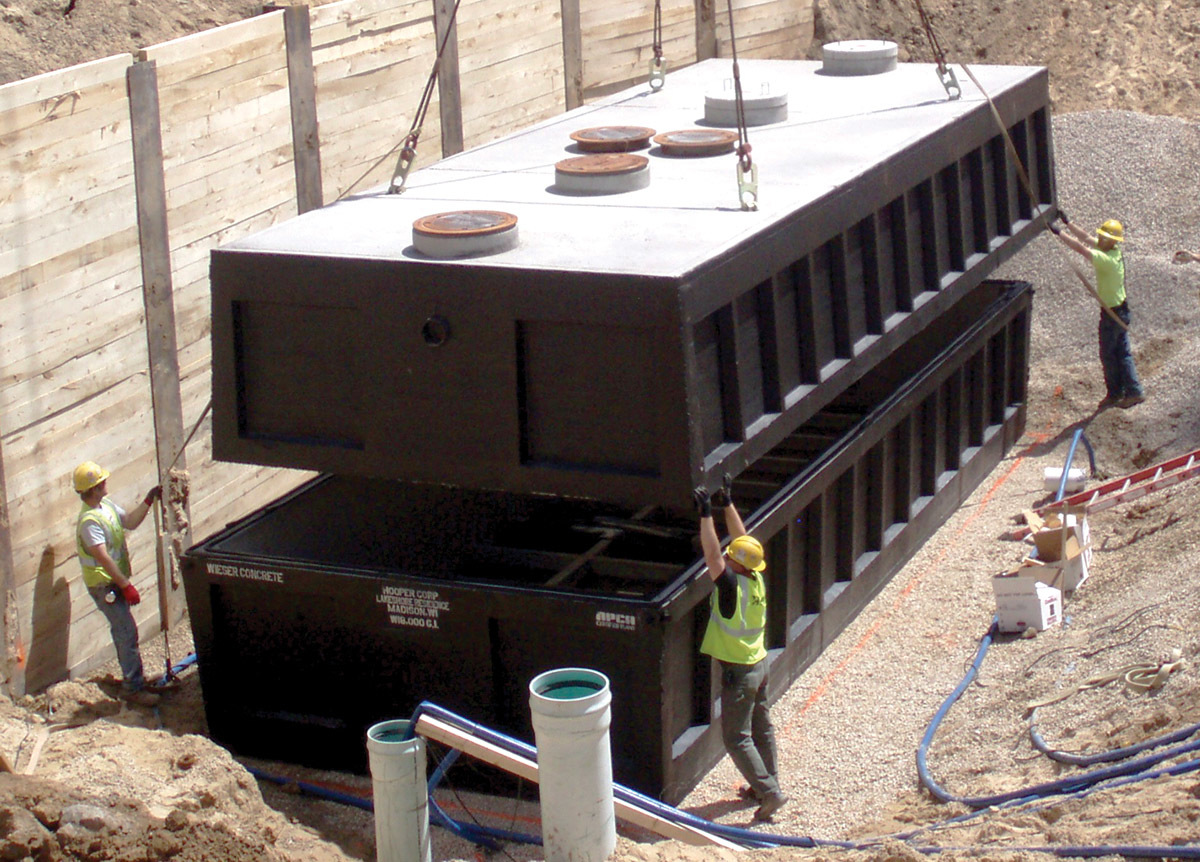

Wieser Concrete precast concrete grease interceptors
Precast concrete grease interceptors from Wieser Concrete remove grease from the waste stream to bring the water to acceptable standards before discharge to a sanitary sewer system. The grease interceptors are easy to maintain and large enough to hold considerable amounts of grease to allow for sufficient retention time. The outdoor-type grease interceptors provide acceptable effluent quality. They are produced to provide a healthy restaurant environment and to be watertight, durable during storage and transportation, and easy to install. 800-325-8456; www.wieserconcrete.com
