Alarms/Controls + Get AlertsAlarm Systems/Components

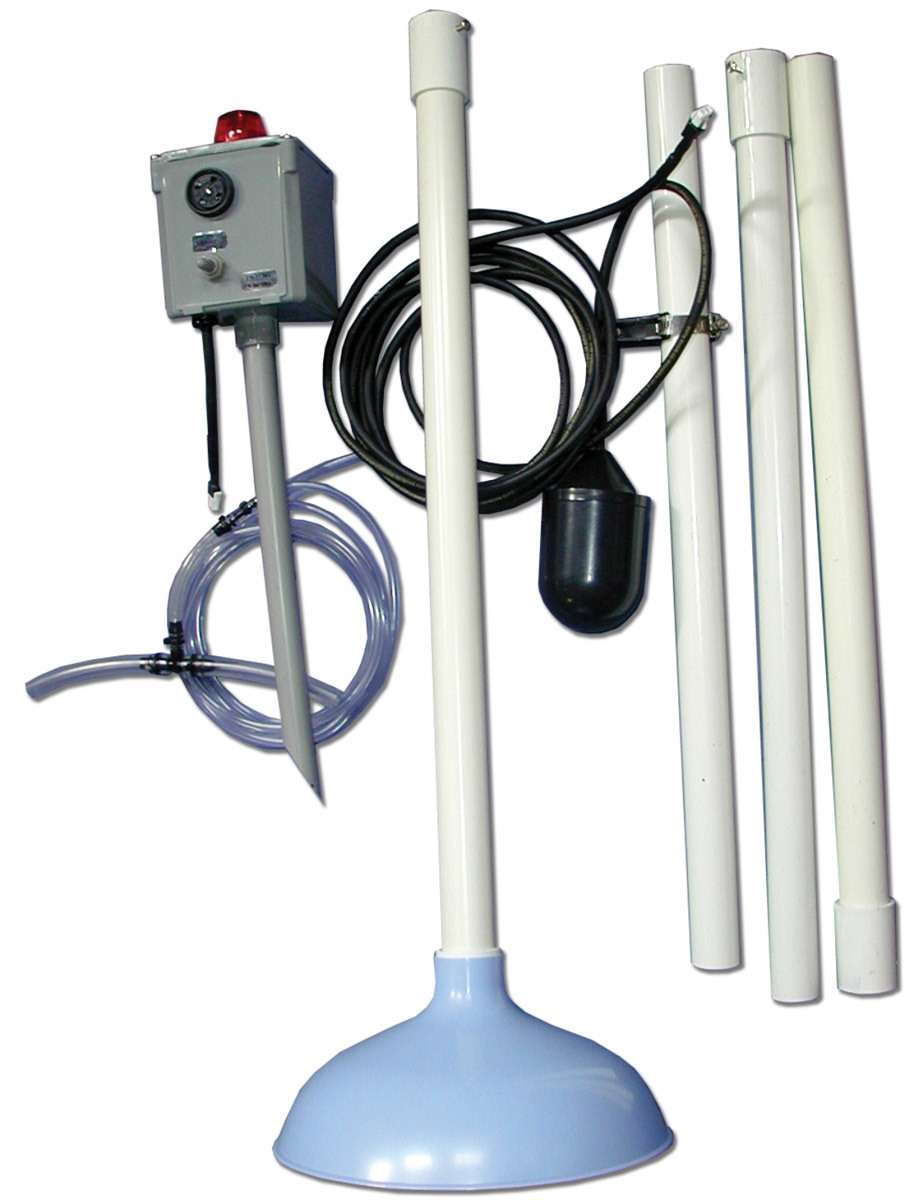

Aero-Stream Aero-ALERT
The multi-function Aero-ALERT alarm from Aero-Stream is designed for easy installation and to fit any residential or commercial septic system or holding tank. Employing a self-contained power cell, installation is simplified and mitigates the need to hire an electrician or pull an electrical permit. This reduces installation costs and eliminates the liability of performing the wiring yourself. The alarm can be used in systems requiring an alarm event such as ATU air flow, or utilizing a free-standing float switch system, effluent filter maintenance, holding tank or pump chamber alarm. Incorporating high efficiency electronics including a 95dB audible and a 360-degree flashing light allows the unit to emit a continuous alarm signal for more than 2,000 hours (90+ days) without depleting the battery, as well as be located up to 100 feet from the tank. 877-254-7093; www.aero-stream.com

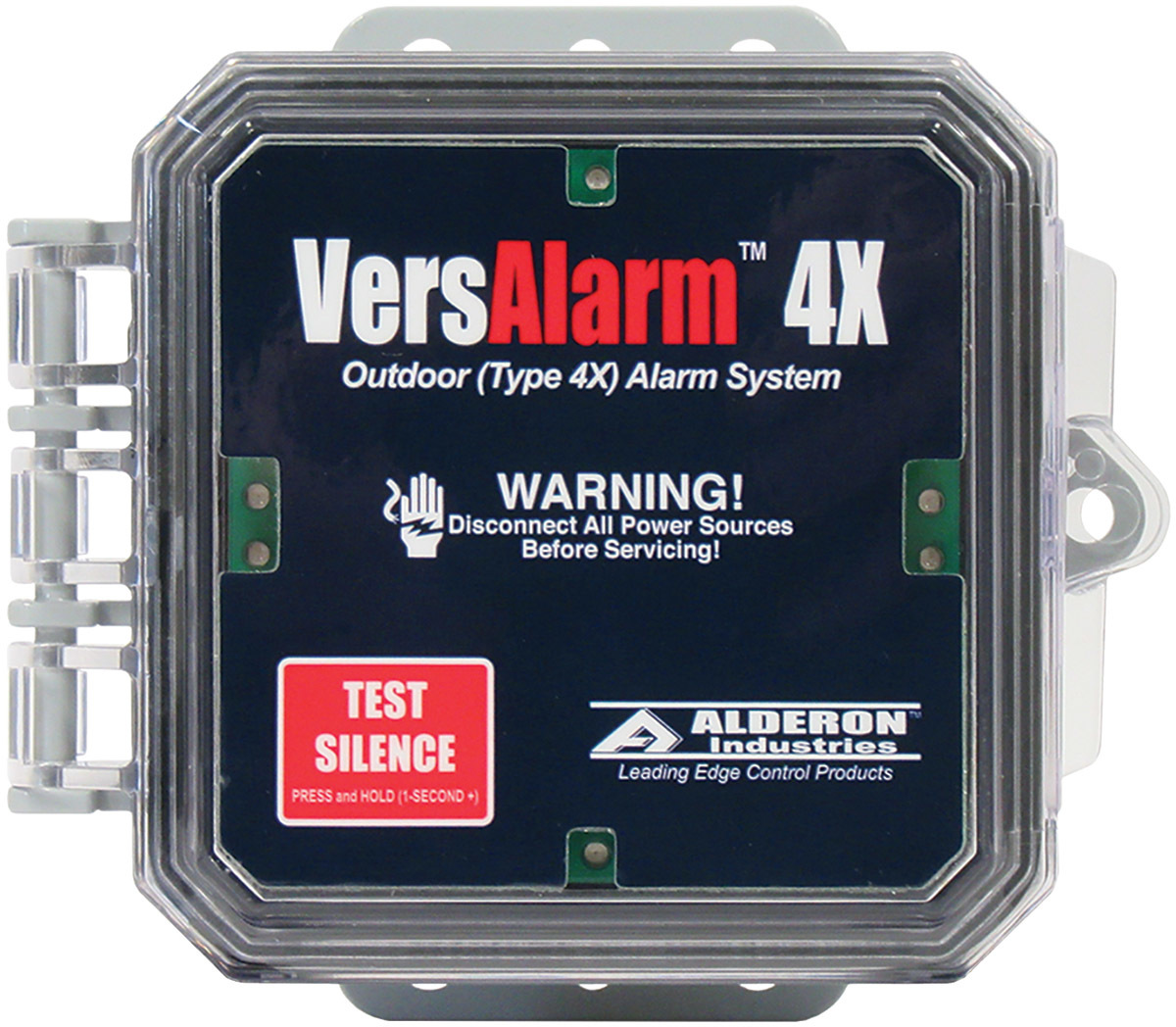

Alderon Industries VersAlarm 4X
The VersAlarm 4X from Alderon Industries is an outdoor rated alarm panel with included auxiliary contacts, battery backup and capacitive touch test/silence button. When powered, green LEDs will illuminate. This alarm can be used for a variety of applications including septic tanks, sump pits, holding tanks, pump chambers and water tanks. Connect various sensors for liquid level monitoring. During an alarm condition, the red alarm LEDs illuminate, flashing, with the left/right green LEDs illuminating solid for zone indication, buzzer annunciates with a pulse tone and auxiliary contacts activate. Press and hold (1 second or longer) the test/silence button to silence the buzzer during an alarm condition. After the sensor(s) deactivate, the alarm automatically resets itself for the next alarm cycle. Available in 120VAC or 240VAC, 1-zone or 2-zone, and installing a 9VDC lithium battery (not included) provides battery backup during power outages. 218-483-3034; www.alderonind.com

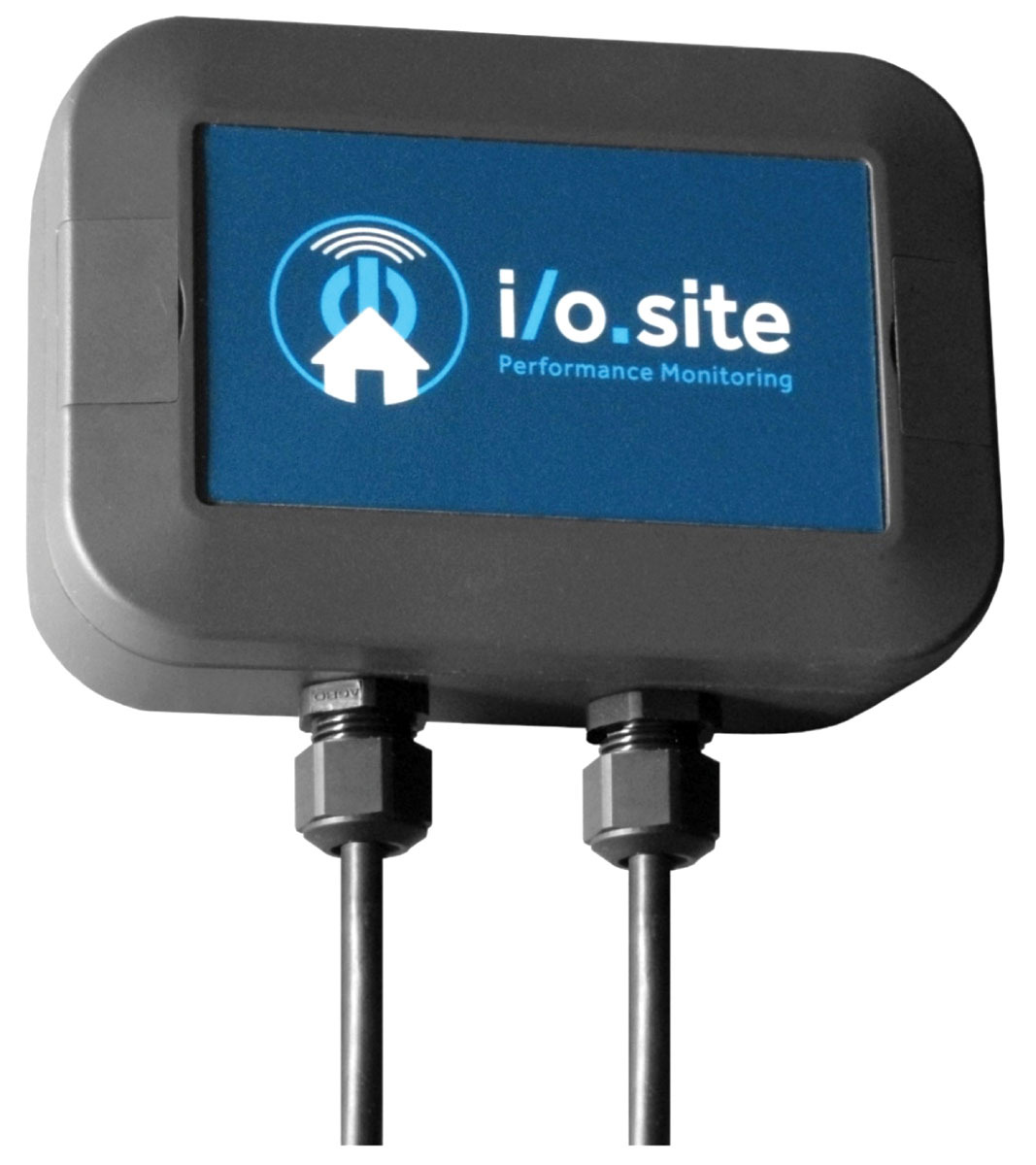

Anua i/o.site
The i/o.site system from Anua provides performance monitoring of electromechanical components while keeping everyone connected to information through a simple web interface. It can remotely monitor any blower, aerator, pump, float switch or motor. It tracks water use, catches motor issues before failure, uses any mobile device or computer, and monitors any powered onsite system. 336-547-9338; www.anuainternational.com

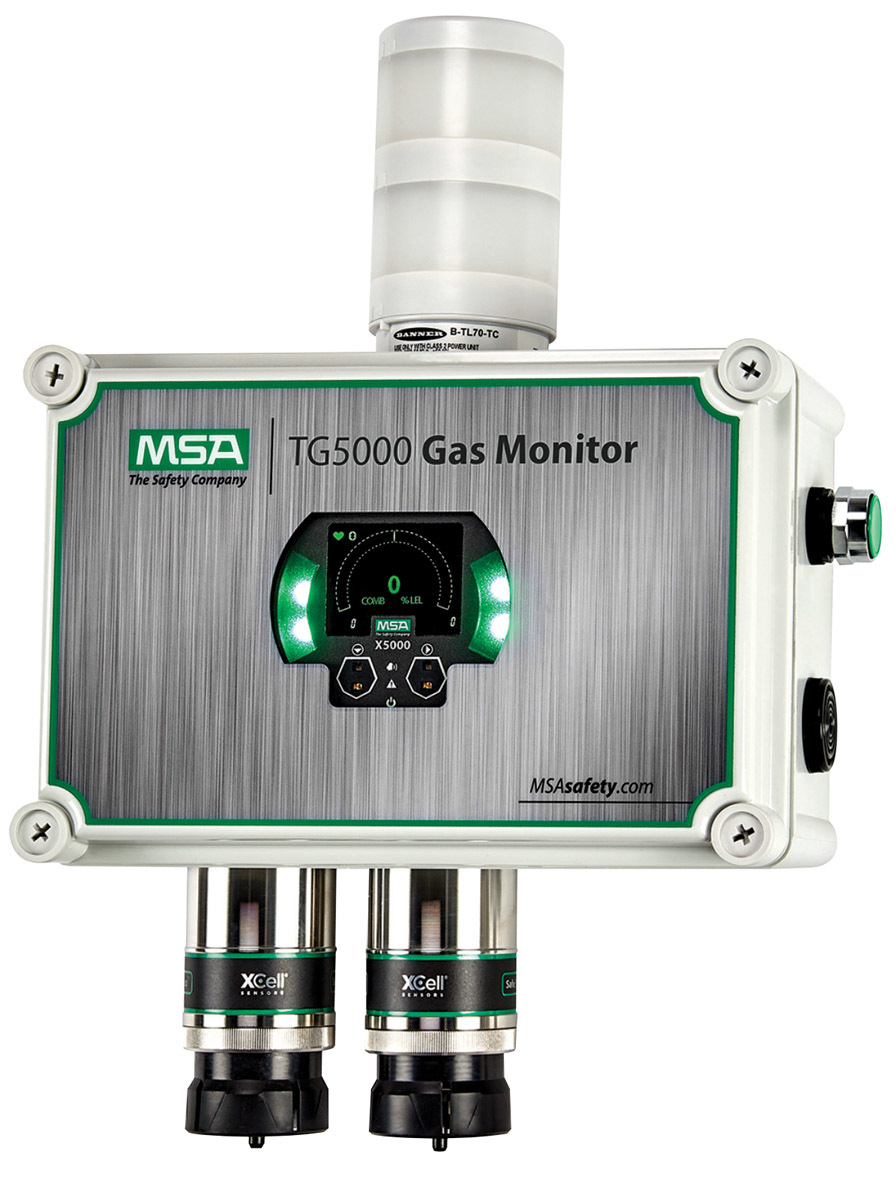

MSA Safety TG5000 Gas Monitor
The TG5000 Gas Monitor from MSA Safety detects oxygen, combustible and toxic gases. It offers multiple sensor and installation options. Its modular single or dual sensor design doubles sensing power and reduces wiring costs. The intuitive design of the local interface makes it simple to install, use and maintain. Its OLED display and LED indicators show power, fault or alarm, gas readings and Bluetooth connection. A touch button accesses all functions. It operates in standalone mode or can be connected with a 4-20 mA output to a PLC or DCS. HART is available, and it supports remote monitoring, where the sensor must be separated from electronics. It has XCell TruCal sensors, which respond rapidly to gases. Self-diagnostics and SafeSwap capability enable sensor replacement without turning off the instrument. It includes a 95 dB audible alarm with horn silence control. 800-672-4678; www.msasafety.com/detection

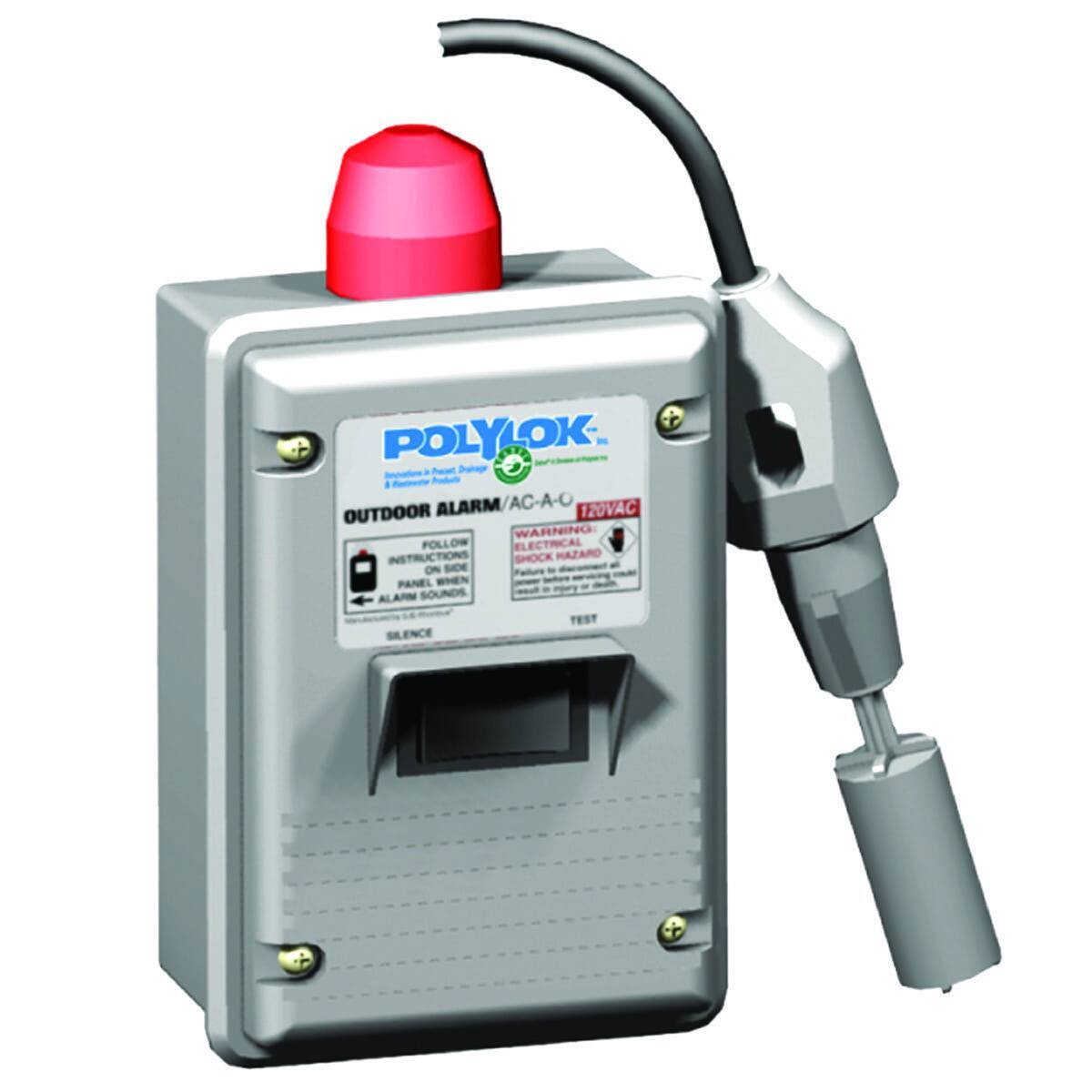

Polylok 3014AB Filter Alarm (smart alarm)
The 3014AB Filter Alarm (smart alarm) from Polylok is a wired indoor/outdoor filter alarm that provides audio/visual warning notifying operators that a tank filter needs cleaning. The Smart Alarm Switch activates when the filter cartridge is near capacity (approximately 90% full) with solids. The Smart Alarm Switch installed in the filter sends a signal to the panel, activating the audible and visual alarm. It offers a manual alarm test switch and horn silence, an alarm horn rated to 82 dB at 10 feet, and 15 feet of cable, with longer lengths available. 888-765-9565; www.polylok.com

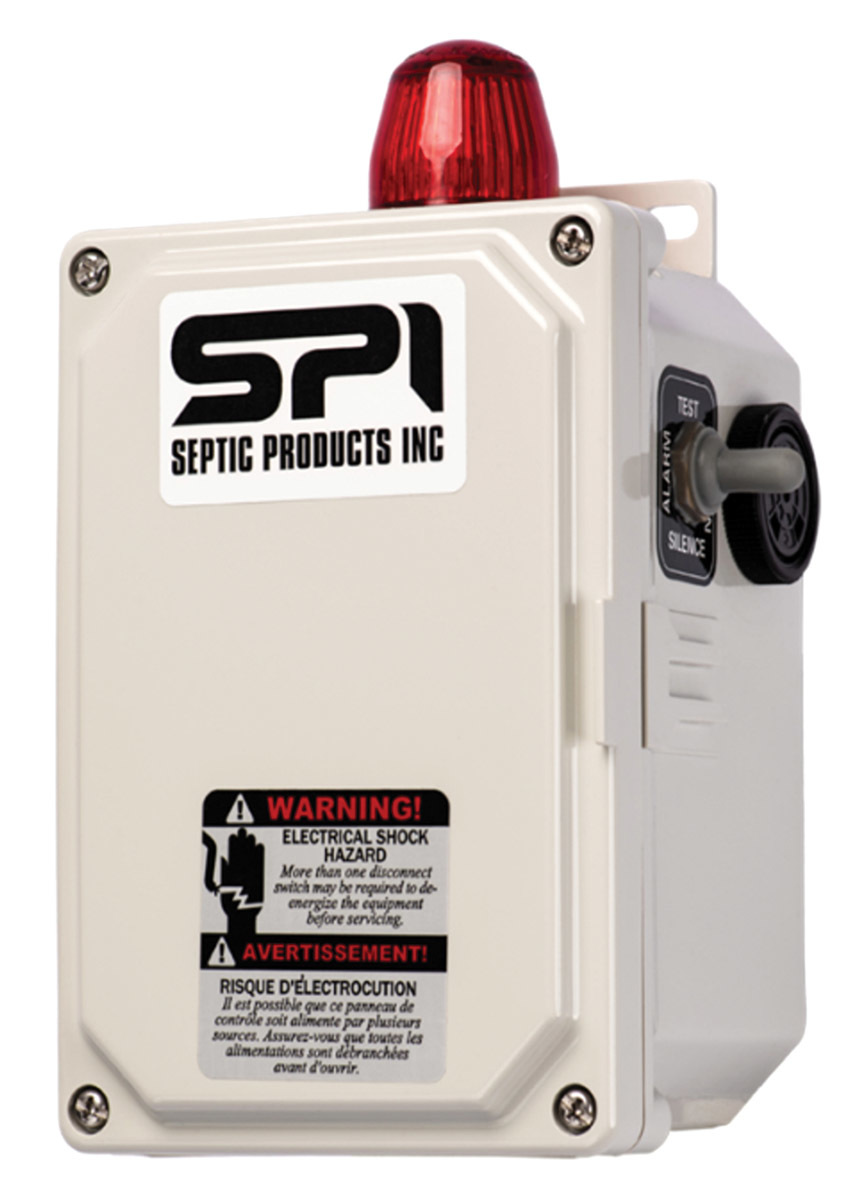

Septic Products Observer 400
The Observer 400 system-monitoring device from Septic Products is a 120-volt indoor/outdoor high-water alarm that includes a 15-foot alarm float for high levels. It includes a large 360-degree indicating light and 85 dB at 10 feet audible alarm. It comes with a test-normal-silence switch, automatic alarm reset, auxiliary contacts and 120-volt circuit power for the pump. It has easy access to the interior components for a repairable design. The alarm can be adapted for use as either a high- or low-level alarm. It is built and labeled to UL 508A. 419-282-5933; www.septicproducts.com

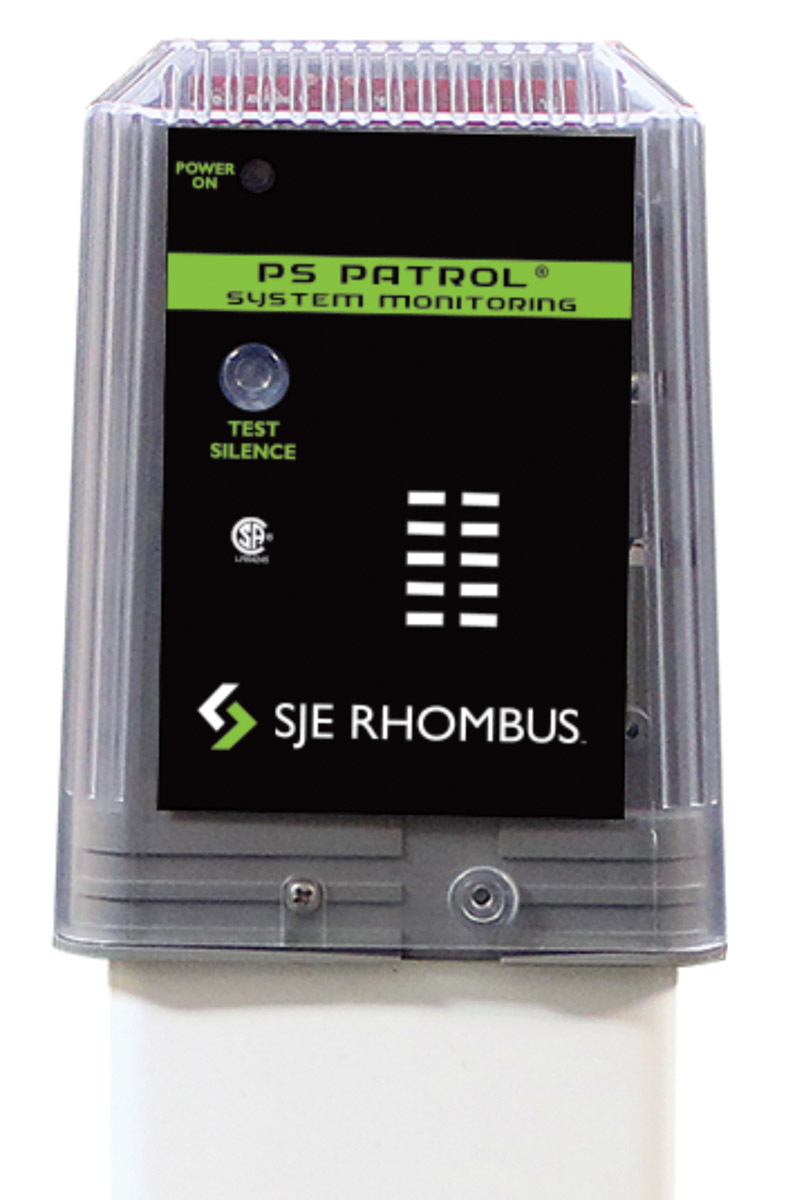

SJE Rhombus PS Patrol
The PS Patrol from SJE Rhombus is an outdoor pedestal high-water alarm system that provides a convenient location to connect all wiring required for a pumping station application. It employs a receptacle for easy connection of a 120-volt pump and piggyback pump switch. The sleek, angled design of the clear enclosure includes a removable cover for easy access for field wiring and viewing components. The enclosure meets Type 3R watertight standards for outdoor use. The design allows the controller to accept a 5-inch square plastic post or 4-inch pipe/conduit for mounting. All internal components are sealed within the cover for protection from the elements. The red LEDs illuminate the top of the cover in an alarm condition for easy 360-degree visual identification. It is available with or without a 32-inch mounting post. It is CSA certified. 888-342-5753; www.sjerhombus.com

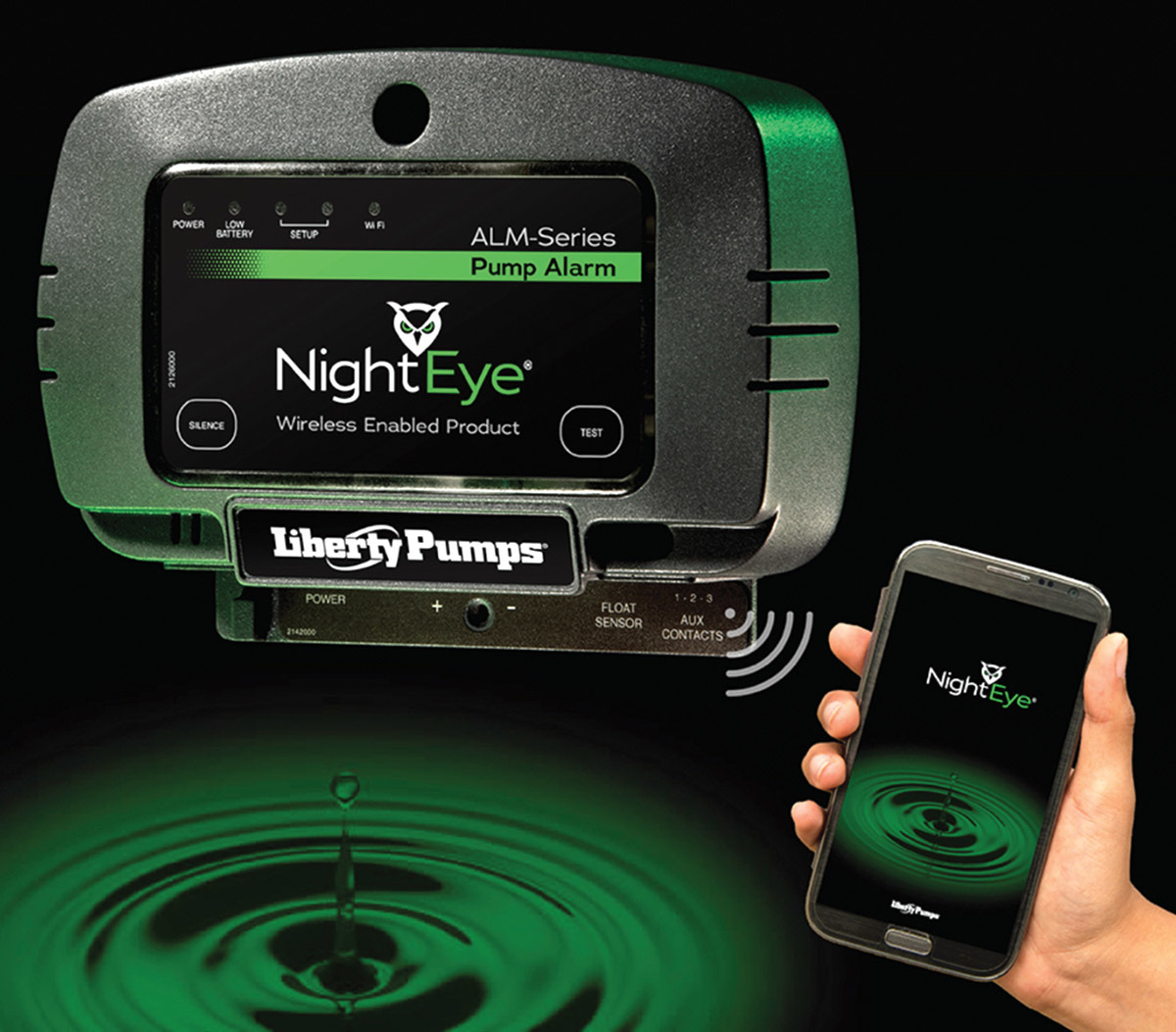

Liberty Pumps NightEye
The NightEye app and cloud-based system from Liberty Pumps allows internet connection of a pump via the home’s wireless router and provides alarm and other performance information to a mobile device. The system sends information via text, email and push notifications, to up to four different address/phone numbers anywhere in the world. Connected products include the ALM-EYE series indoor pump alarm, 442-Series battery backup pump systems and the SumpJet water powered backup pump. The system is easy to use and set up through a portable device. Download the app, register the device and connect to the equipment using BlinkUp technology. The app is a free download and is compatible with iOS and Android devices. There are no subscription or service fees. 800-543-2550; www.libertypumps.com
Pump Control Panels

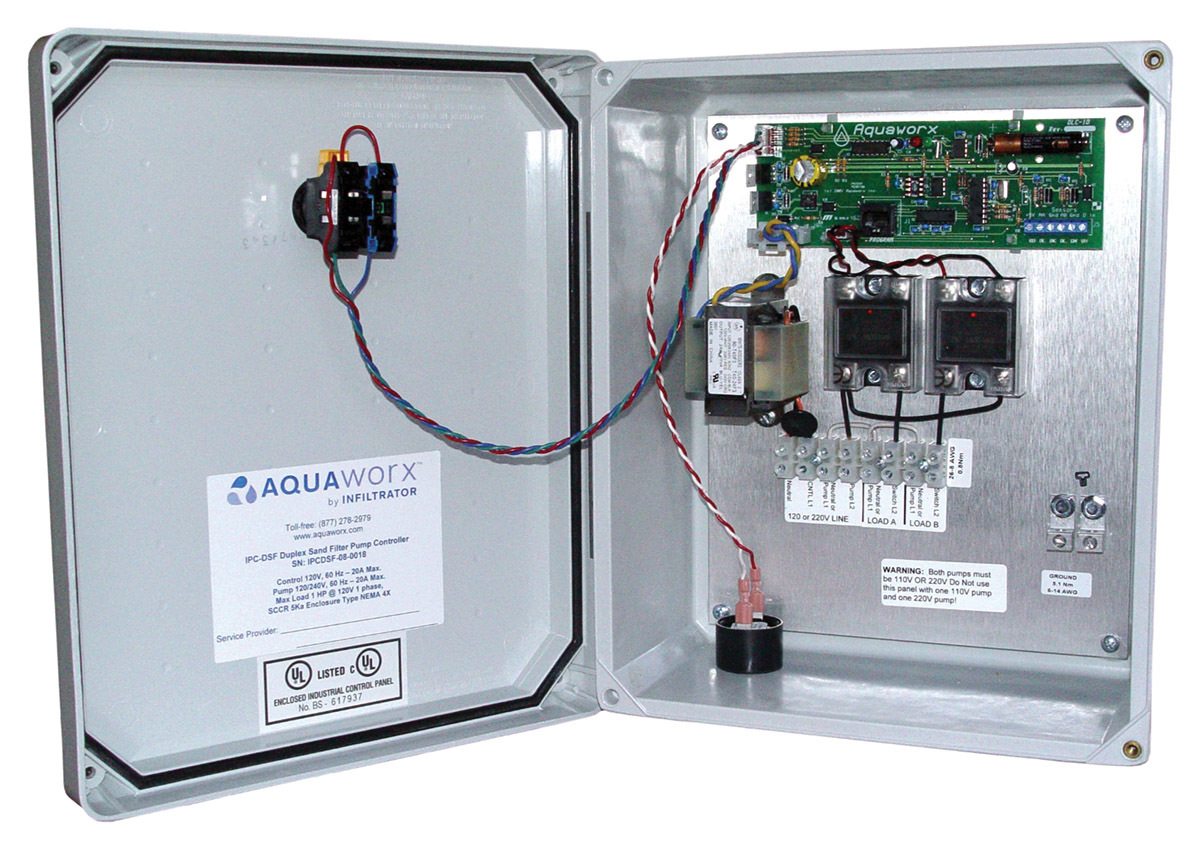

Aquaworx by Infiltrator Intelligent Pump Control
The Intelligent Pump Control panel from Aquaworx by Infiltrator transforms pump system performance. The easy-to-install panel monitors liquid levels, controls pumping time intervals, logs events in real-time and calculates daily system flow utilizing a pressure transducer in the pump chamber and an embedded microprocessor in the pump controller. The Aquaworx Tapper handheld Wi-Fi programmer broadcasts a signal that allows the user to program the panel using any Wi-Fi-enabled device. Once connected, the user navigates to a website that has all control settings for the panel and provides the operator with a history of system function critical to troubleshooting and maintaining a pump-driven system. The Tapper is intended for use with multiple panels and includes a USB slot, allowing the user to capture and download system events and settings onto a removable USB memory device. 800-221-4436; www.infiltratorwater.com

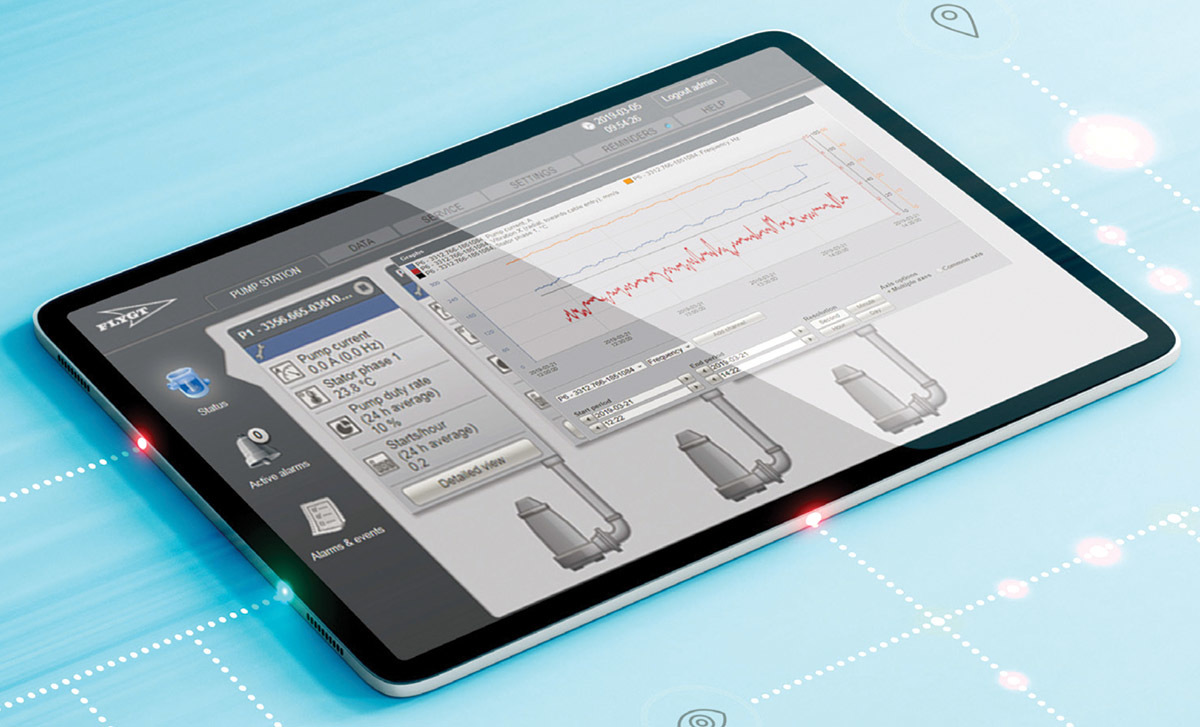

Flygt - a Xylem Brand MAS 801
As part of a complete pumping system, the MAS 801 pump monitoring system from Flygt - a Xylem Brand helps reduce costs over a pump’s lifetime, according to the maker. With 24/7 onsite overview of pump data that simplifies methods for diagnostics, this technology enables continuous station health checks on pump operation. In addition, with three-axis vibration, current measurement and temperature and leakage measurements, the user can take timely, preventive measures for increased lifetime of the pumping equipment. 704-409-9700; xylem.com

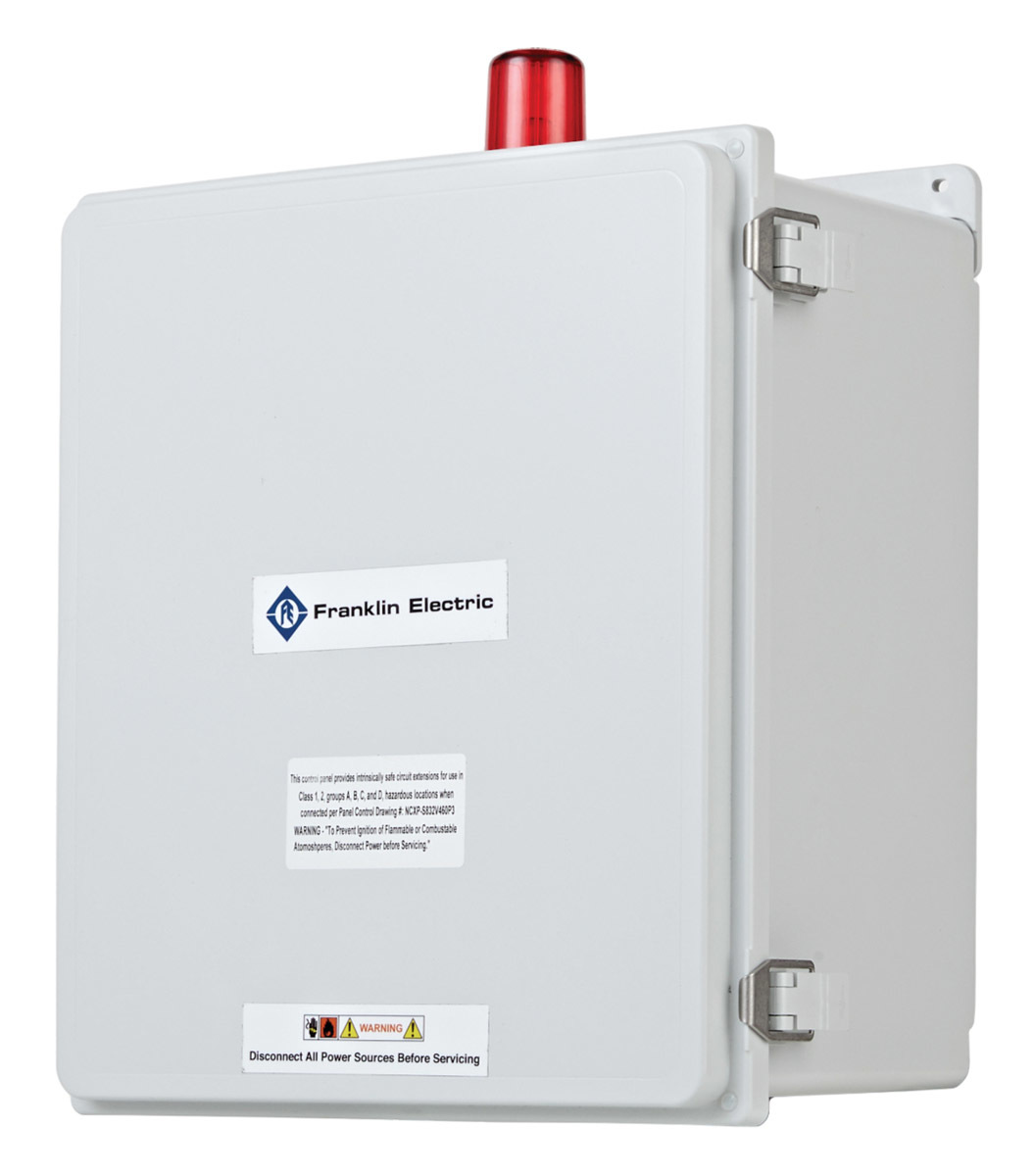

Franklin Electric Simplex and Duplex Non-Clog Control Panels
Available in both single- and three-phase power options, Simplex and Duplex Non-Clog Control Panels from Franklin Electric are designed exclusively for FPS submersible non-clog pumps. These control panels are UL 508A listed, and they feature a waterproof NEMA 4X enclosure, an IEC motor contactor, an adjustable overload and a lockable latch. Single-phase control panels also come standard with starting components for proper operation and simplified field maintenance. Three-phase control panels are designed with a multi-tap transformer that supplies control power directly from the pump power. All non-clog control panels can be designed with additional options, including an event counter, intrinsically safe circuits, elapsed time meter, lightning protection, redundant “off” float, low-level cut-off and anti-condensation heater. 866-271-2859; www.franklinengineered.com

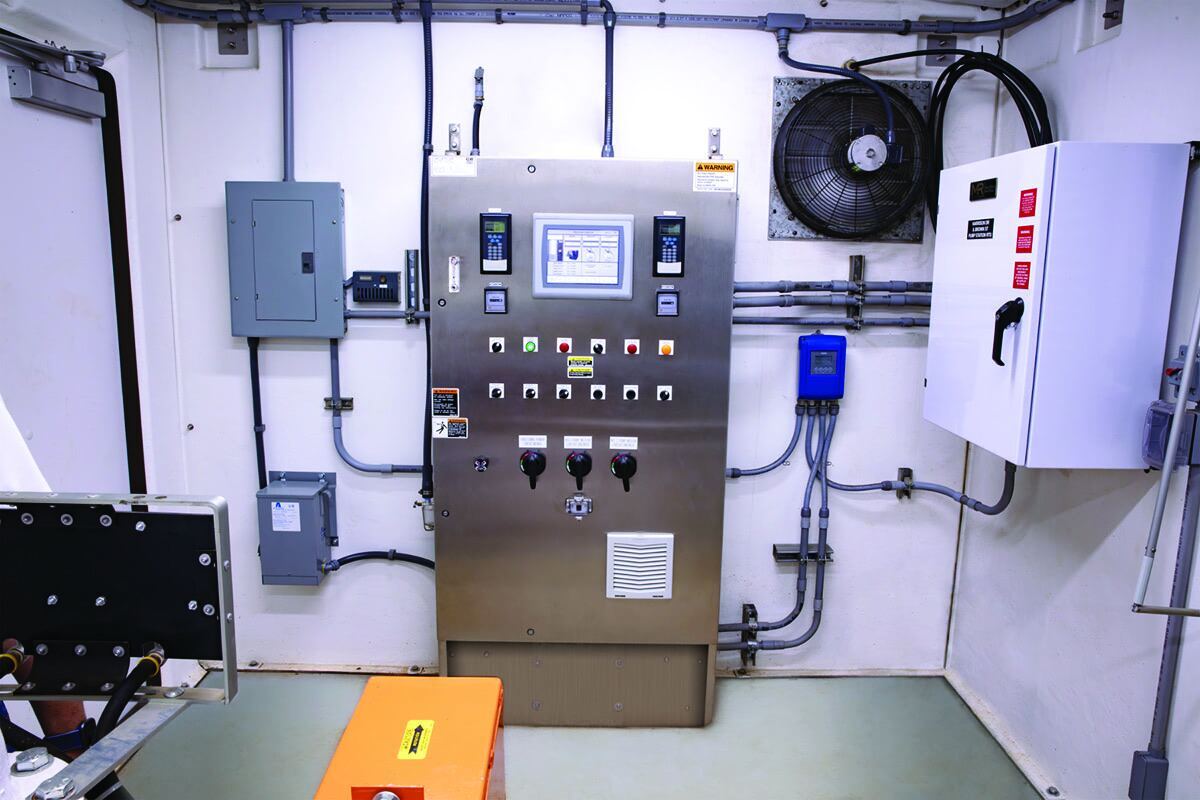

Gorman-Rupp Integrinex Advanced
Integrinex Advanced controls from Gorman-Rupp are custom-engineered to meet unique system requirements. When equipped with FloSmart technology, the control system can detect a pump obstruction and run a cleaning cycle until the debris clears, according to the maker. Upon detection, the device initiates a cleaning operation without interfering with the operation of the pump station. When the cycle is complete, the pump is ready to return to normal operation. If the clog remains, the cleaning sequence repeats until the blockage is cleared. FloSmart is designed to help maximize uptime while reducing maintenance costs. 419-755-1011; www.grpumps.com

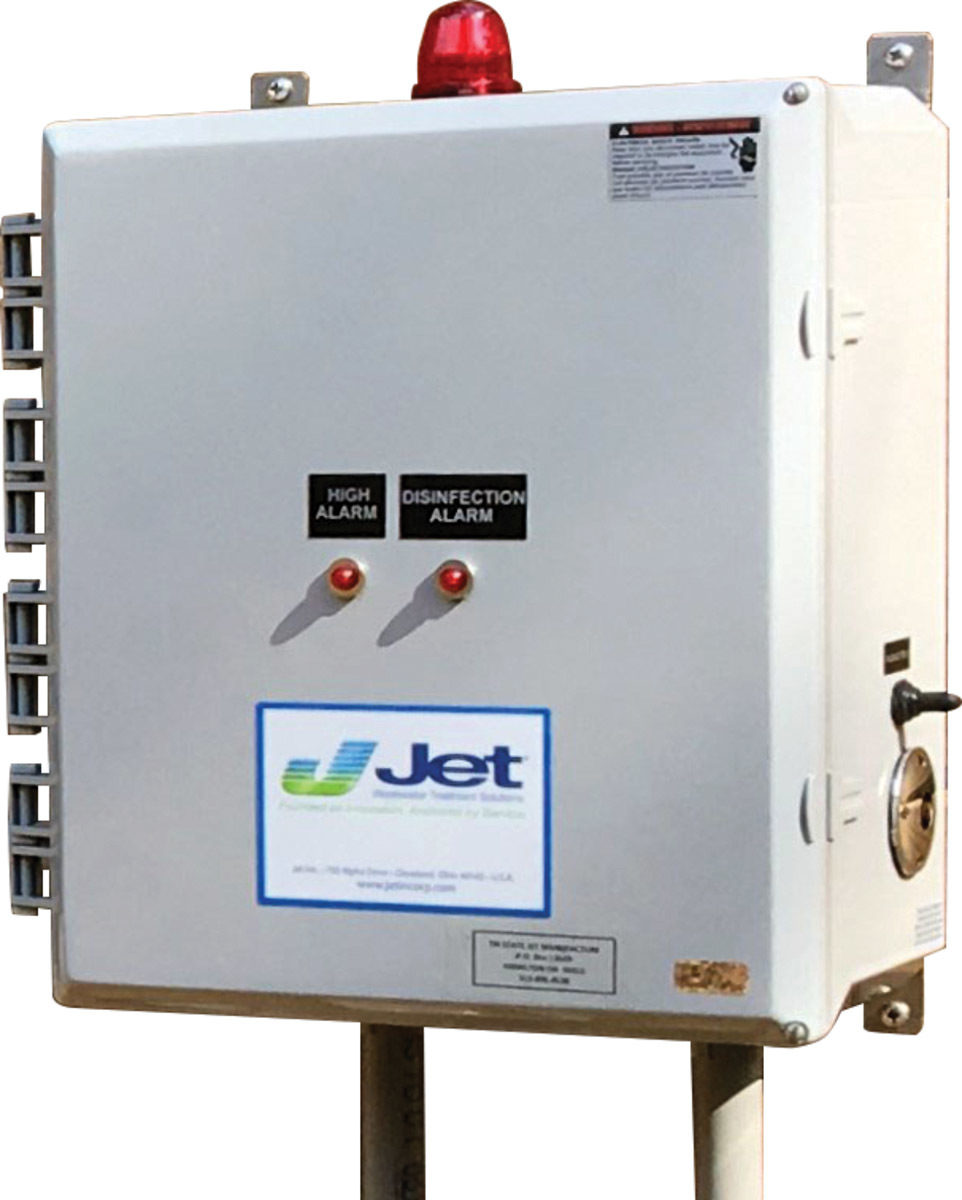

Jet Inc. Model 196
Prewired Model 196 control panels from Jet Inc. are designed to control and monitor operation of the Jet system aerator or aerators, as well as control the function of one or two 120/1/60 or 240/1/60 pumps for flow equalization and various pressured distribution system applications such as time dose, demand dose and night spray. The series of control panels allow for optional cycle timer, cycle counter, remote telemetry and auxiliary alarms. All controls and audible and visual alarms are housed in a NEMA 4 control enclosure. 800-321-6960; www.jetincorp.com

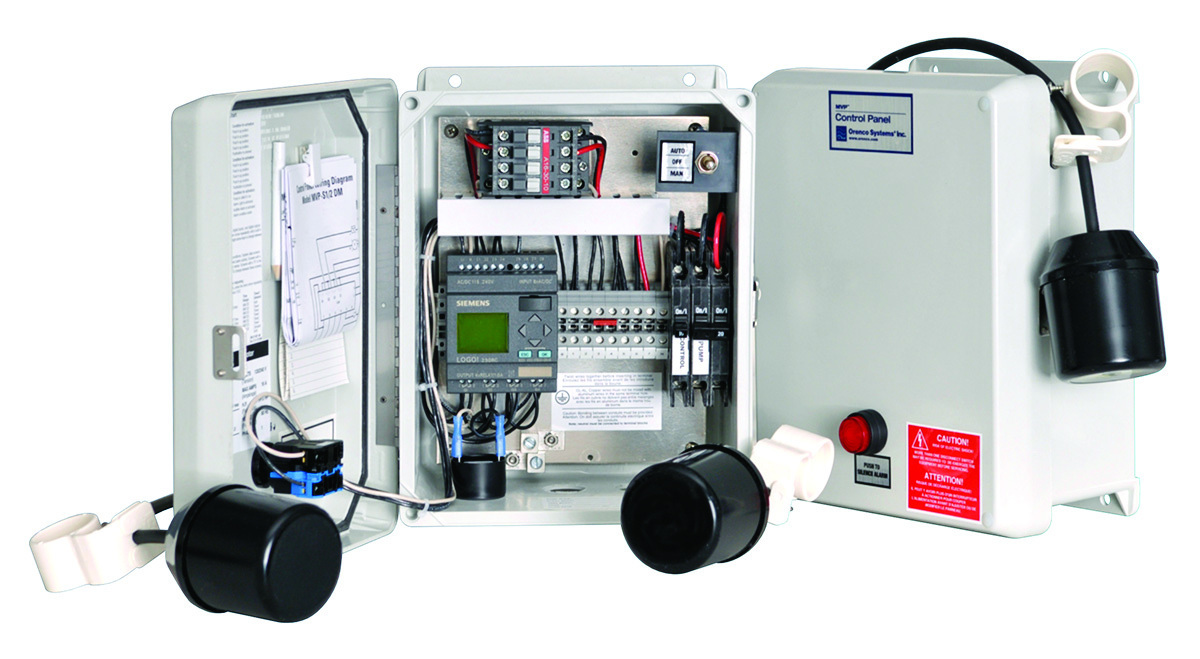

Orenco Systems4-in-1 Controller
The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules within a single panel. Both Simplex (MVP-S2DM) and Duplex (MVP-DAX2DM) models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for both 120- or 240-volt power, meaning installers and service providers can reduce their panel inventories for new installations and repairs. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and has a built-in elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing as well as wiring diagrams. It is completely touch-safe. 877-257-8712; www.orenco.com
