Aeration Systems
AER-USA Stormix PRT
Stormix PRT from AER-USA is a submersible aspirator aerator designed for large-scale and commercial water treatment applications requiring reliable oxygen transfer and consistent mixing. Commonly used in municipal and industrial wastewater facilities, equalization basins and large process tanks, it injects air, pure oxygen or ozone directly into the water column, generating fine microbubbles that improve gas dissolution efficiency and promote uniform oxygen distribution. The system combines aeration and circulation in a single unit, helping reduce dead zones, limit solids settlement and support biological treatment processes in high-volume environments. Available in multiple power configurations, it can be integrated into fixed or floating installations and adapted to varying water depths and operational demands. Its robust construction — including corrosion-resistant materials and fully submersible sealing — supports continuous operation in demanding conditions. 863-659-4611; www.aerusa.com

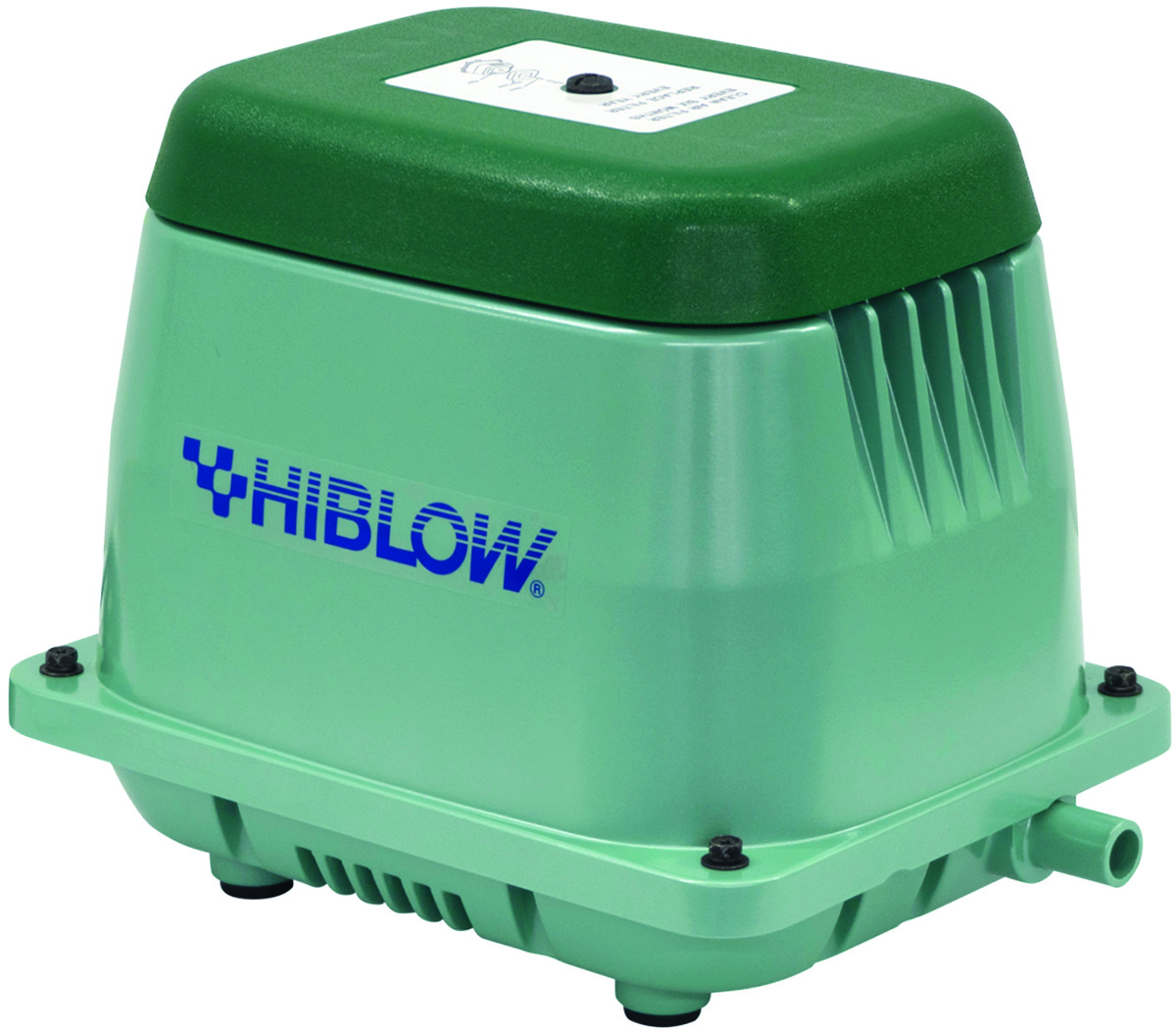

HIBLOW USA HP-200
The HIBLOW USA HP-200 is used in mixing aeration systems for lift station wet wells. Delivering up to 200 liters per minute of airflow, it operates quietly, efficiently and requires minimal maintenance compared to alternative technologies. For larger tanks, multiple units can be manifolded to increase airflow, providing redundancy during maintenance. The aerators generate the circulation needed to prevent FOG from settling at the surface. Continuous mixing keeps FOG suspended in the water, significantly reducing or eliminating the need for manual tank cleaning. This circulation also helps prevent grinder pumps from clogging with materials such as wipes, ensuring reliable system operation. 734-944-5032; www.hiblow.net
Aerobic Treatment

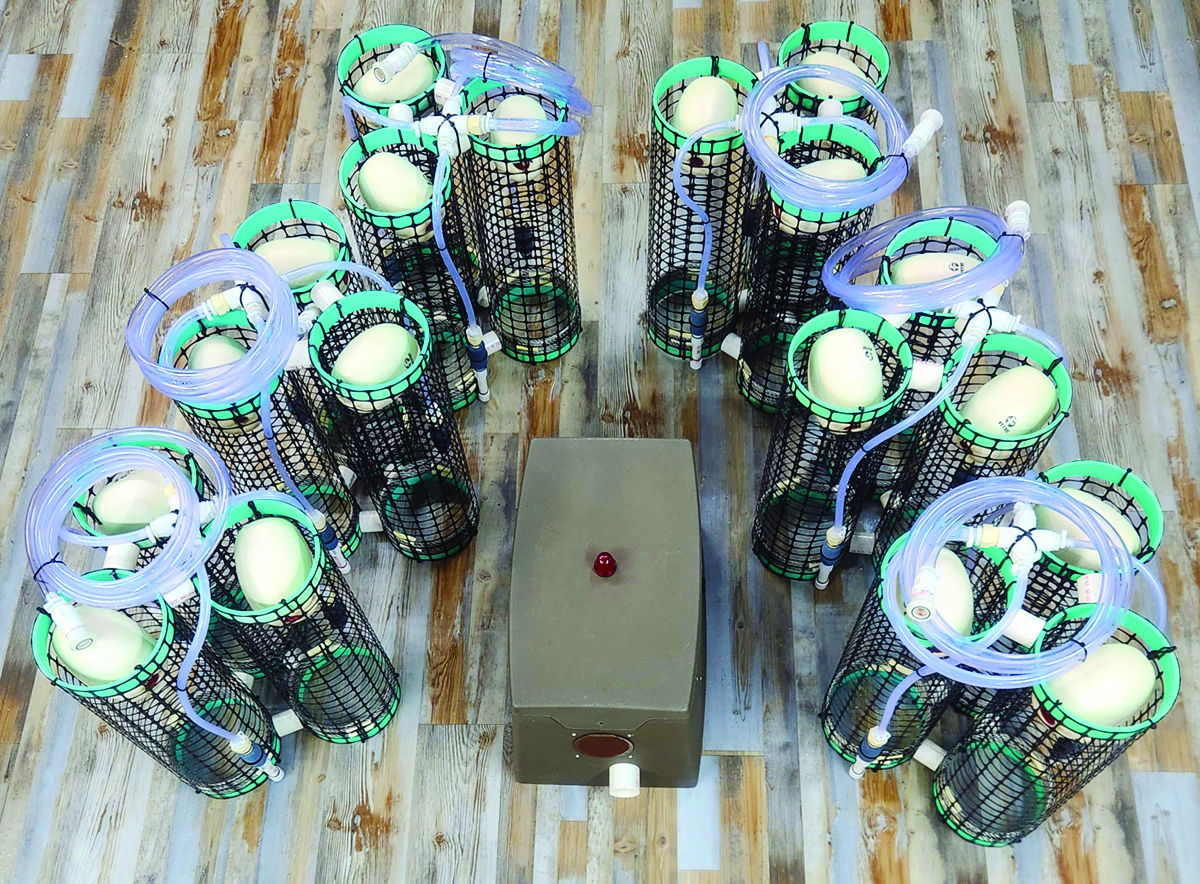

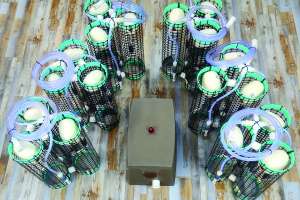

RioVation BioMaze BMT63HS
The RioVation BioMaze BMT63HS suspended biofilm generator is a modular, scalable fixed-film aerobic treatment system designed for wastewater applications ranging from residential to commercial, with configurations adaptable for higher-strength and higher-flow conditions. It installs into suitable, locally available tankage. It is powered by an energy-efficient 1 hp, 120-volt regenerative blower housed in a weather-resistant air pump enclosure with an integrated alarm package. The treatment package consists of six three-pod clusters, each fitted with three fine-air porous ceramic stone diffusers for a total of 18 diffusers that provide uniform aeration and mixing. Pods are constructed of engineered plastic mesh media, float within the treatment zone and self-position to maintain consistent biological contact. When installed in tankage providing 24 hours or greater hydraulic retention time, it can treat up to 2,250 gpd of domestic-strength wastewater. The plug-and-play system includes a riser-mounted air distribution manifold for 24-inch or larger access openings. 352-228-4488; www.riovation.com
Commercial Treatment Systems

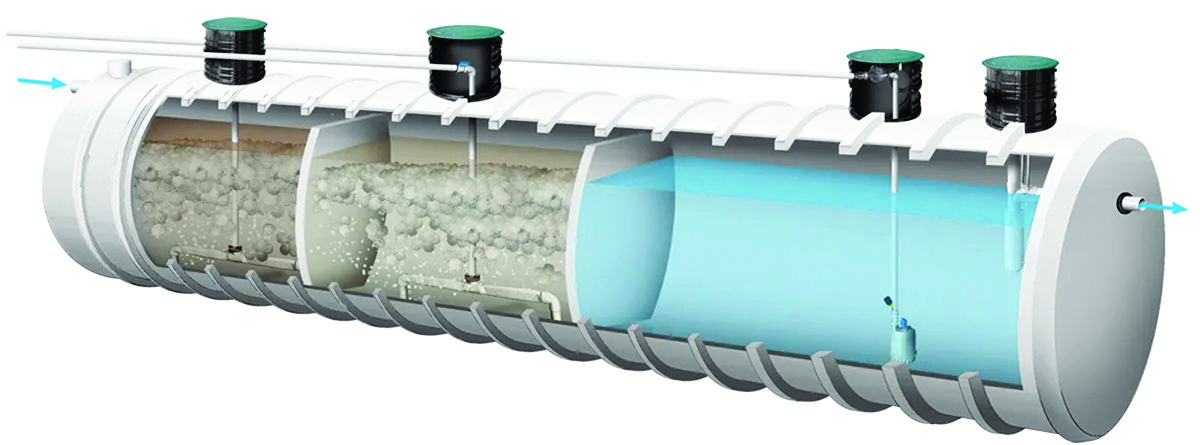

Anua PuraMax
Anua’s PuraMax is a compact, high-performance moving bed biological reactor package plant engineered for commercial, community and high-strength waste applications. Its process combines attached and suspended growth to deliver reliable, stable treatment within a significantly smaller footprint than conventional systems. Prepackaged components simplify installation, and the scalable design supports flows from 5,000 to more than 150,000 gpd. The system’s biocarriers provide extensive surface area to enhance biological treatment, improve nitrifier retention and support consistent nitrogen reduction, making it well suited for nitrogen-sensitive areas. Designed to operate effectively under shock loading, underloading and intermittent flows, it offers robust performance with straightforward operation and maintenance. Available in glass fiber or precast concrete configurations, the system provides a flexible, future-ready solution for municipalities, commercial developments, manufactured and multifamily housing developments, RV parks and other sites requiring dependable wastewater treatment. 336-547-9338; www.anua-us.com

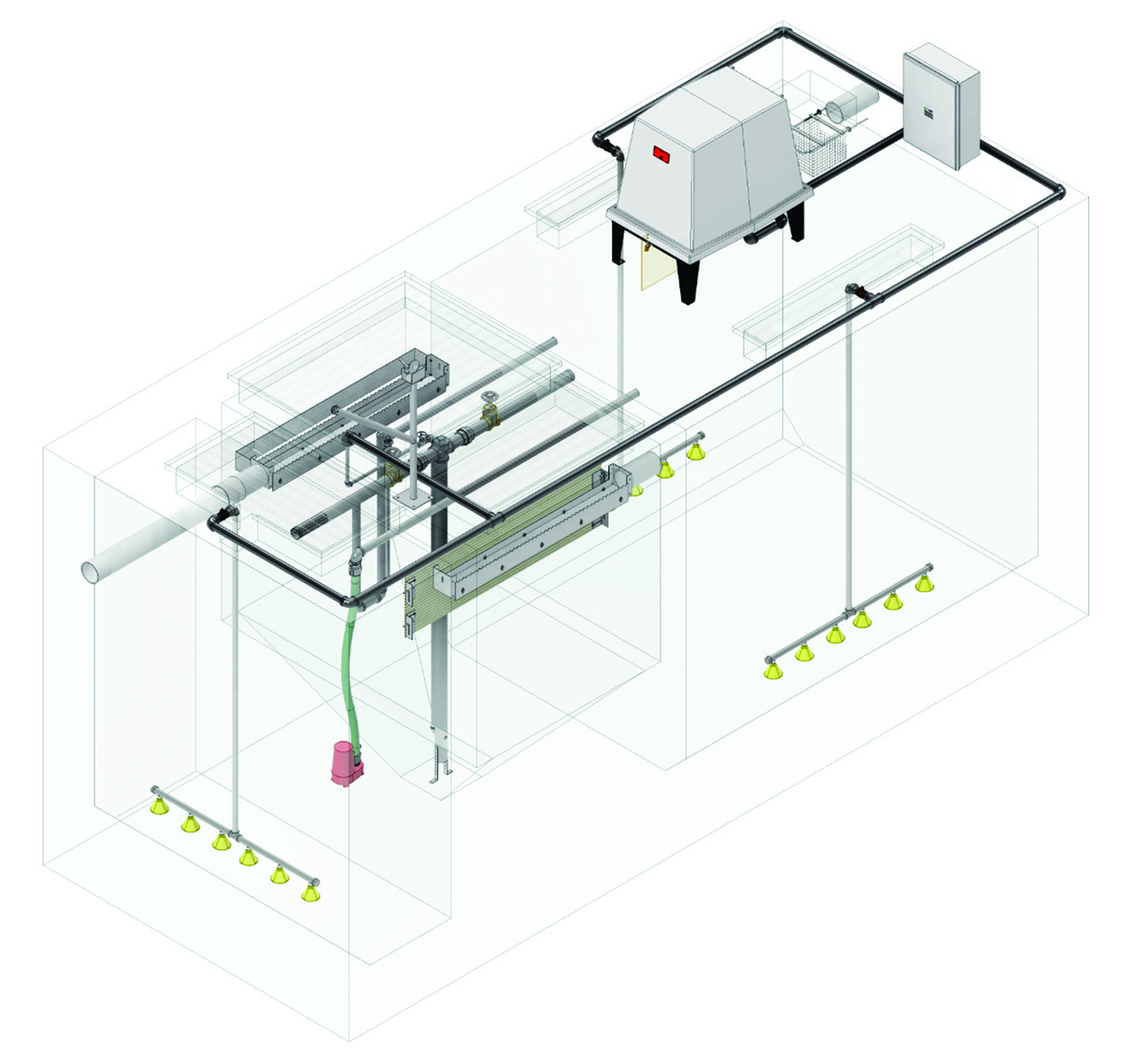

Jet Inc. Commercial Wastewater Treatment Plants
Commercial Wastewater Treatment Plants from Jet Inc. deliver the power, flexibility and reliability today’s developments demand. The modular systems handle a wide range of wastewater strengths with flow rates from 1,500 to 300,000 gpd — scaling effortlessly as the project grows. The systems transform wastewater into a clear, odorless effluent — making decentralized development possible for convenience stores, motels, shopping centers, service stations, subdivisions, factories and more, even miles beyond existing sewer lines. Jet provides complete project support from concept to operation including design, engineering, construction assistance, onsite technical support, startup commissioning and operator training. Every system is custom designed to meet exact requirements. 800-321-6960; www.jetincorp.com

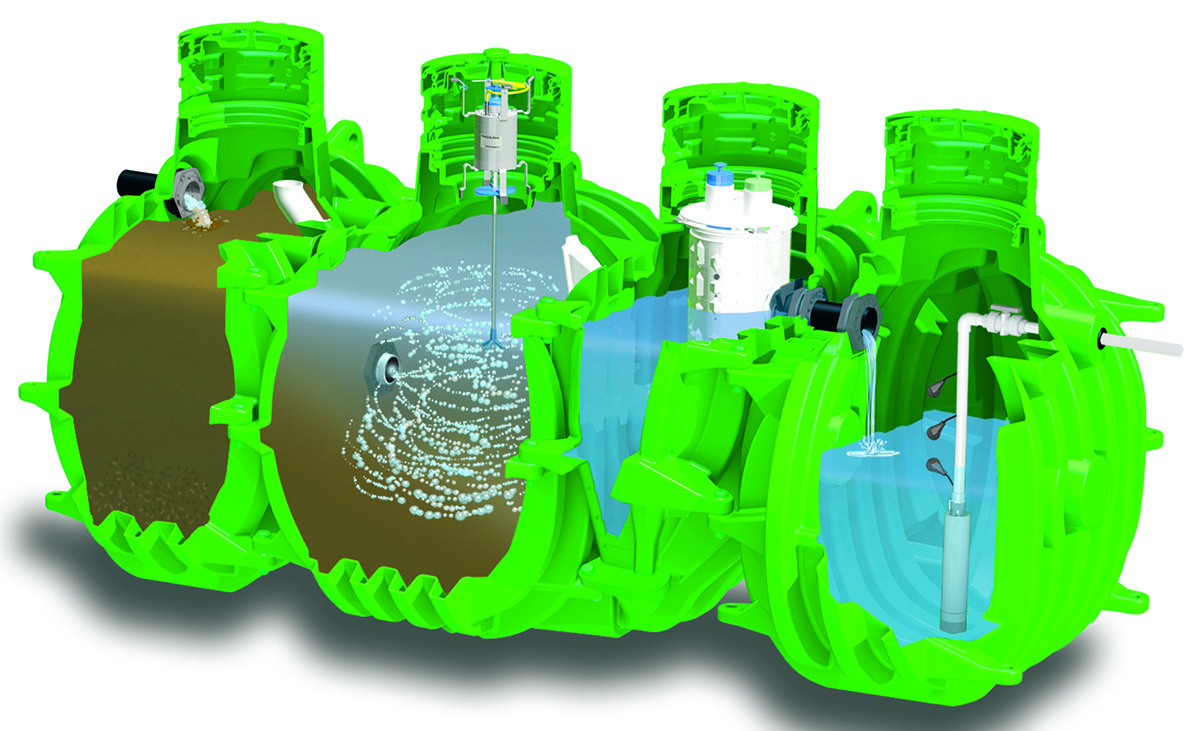

Norweco Singulair Green
Norweco’s Singulair Green with integrated pump chamber offers a single-tank solution for small lots and restrictive soil conditions. The system with a 520-gallon integrated pump chamber arrives at the site ready to install. This lightweight, easy-to-install tank provides superior structural integrity. Systems and packages are always in stock and ready to ship. Nitrogen treatment packages are available on all Singulair treatment systems. Its 12- and 6-inch threaded riser extensions allow for at-grade installation. 800-667-9326; www.norweco.com
Control Panels

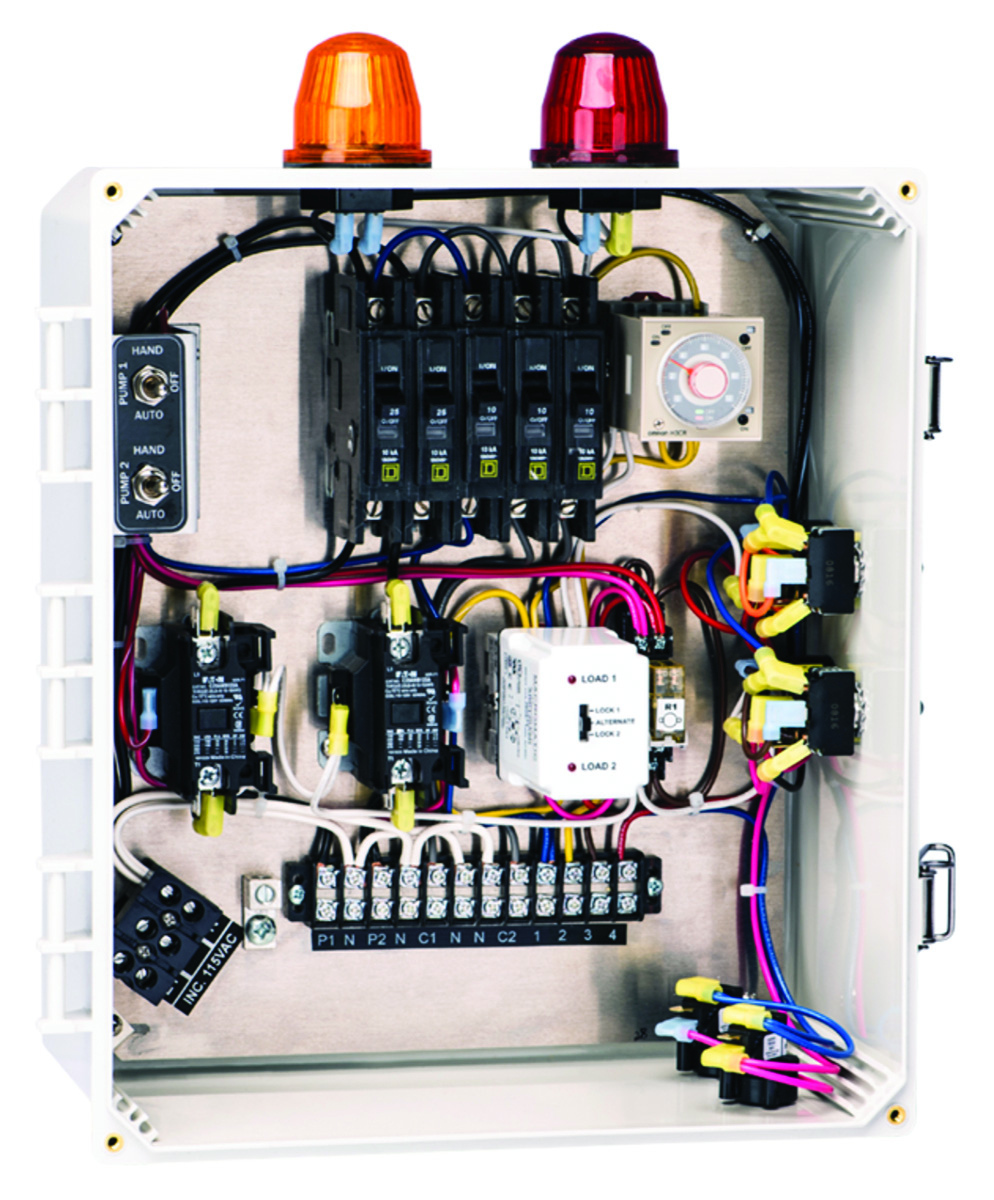

Septic Products 50B019-120DD-2CAL
The 50B019-120DD-2CAL from Septic Products is a duplex alternating bioaerobic, time-dosed control panel that runs two single-phase, 120-volt pumps up to 20 full load amps and also runs two compressors. This panel has two lights. The red light and buzzer notify the end user of a high-water condition. The amber light and buzzer notify the end user of air loss from a compressor. This panel has a repeat cycle timer in it to be set for a time-dose application. The purpose of “time dose” in wastewater treatment typically refers to a method used in systems like septic tanks or other biological treatment systems where wastewater is introduced into the system in controlled doses over time rather than all at once. This creates benefits such as improved treatment efficiency, enhanced biological breakdown and improved system longevity. A duplex alternating control panel that runs two compressors in a wastewater treatment system focuses on the specific needs of wastewater systems, where compressors are crucial for processes like aeration or gas handling. 419-282-5933; www.septicproducts.com

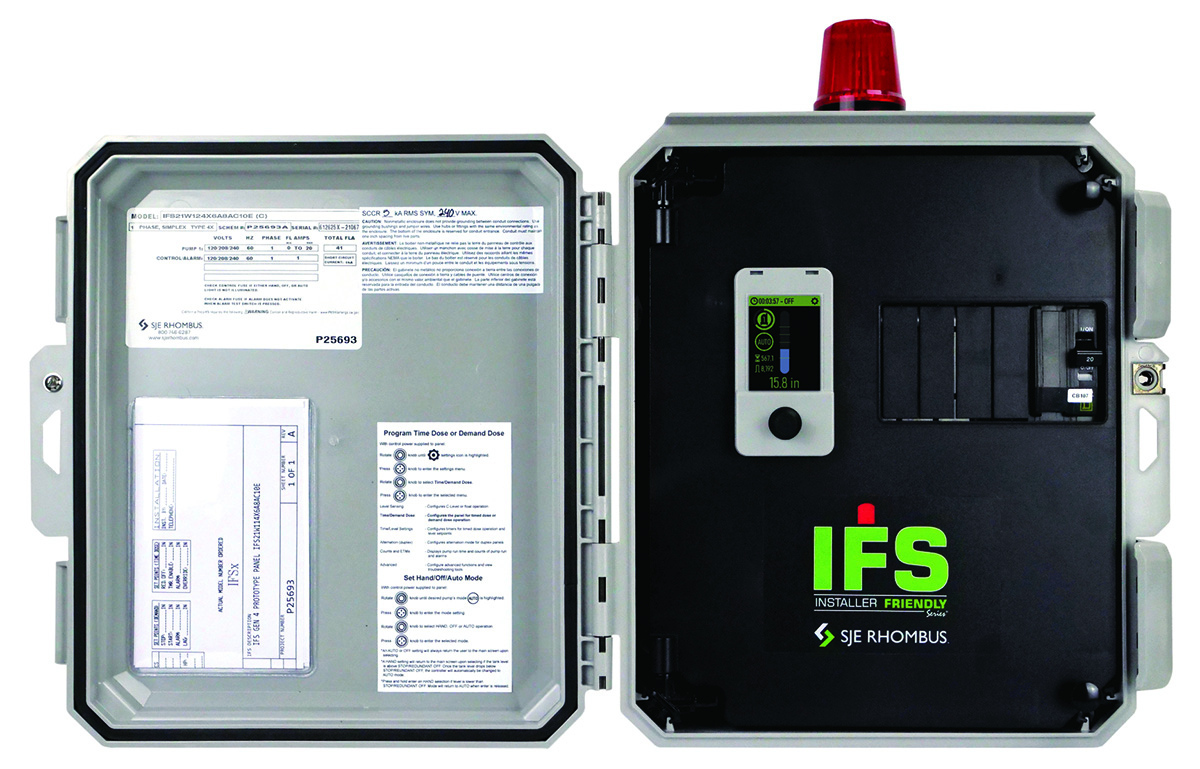

SJE Rhombus IFS Single Phase Simplex
The IFS Single Phase Simplex control panel from SJE Rhombus is built around an innovative circuit board and protected by a touch‑safe housing, operating a single 120/208/240-volt single‑phase pump while streamlining setup, operation and maintenance. A redesigned, easy‑to‑use color LCD mounted on the inner door provides intuitive programming and system monitoring, putting critical information and adjustments at your fingertips. The panel’s configuration can be converted in the field between demand dose and timed dose directly through the LCD interface, eliminating the need for separate models or complex rewiring. Available with the EZconnex float system, it simplifies installation and improves reliability in challenging environments. Whether you’re upgrading legacy controls or standardizing across new installations, this simplex panel delivers safety, usability and adaptability in a compact package. 888-342-5753; www.sjerhombus.com
Membrane Bioreactors

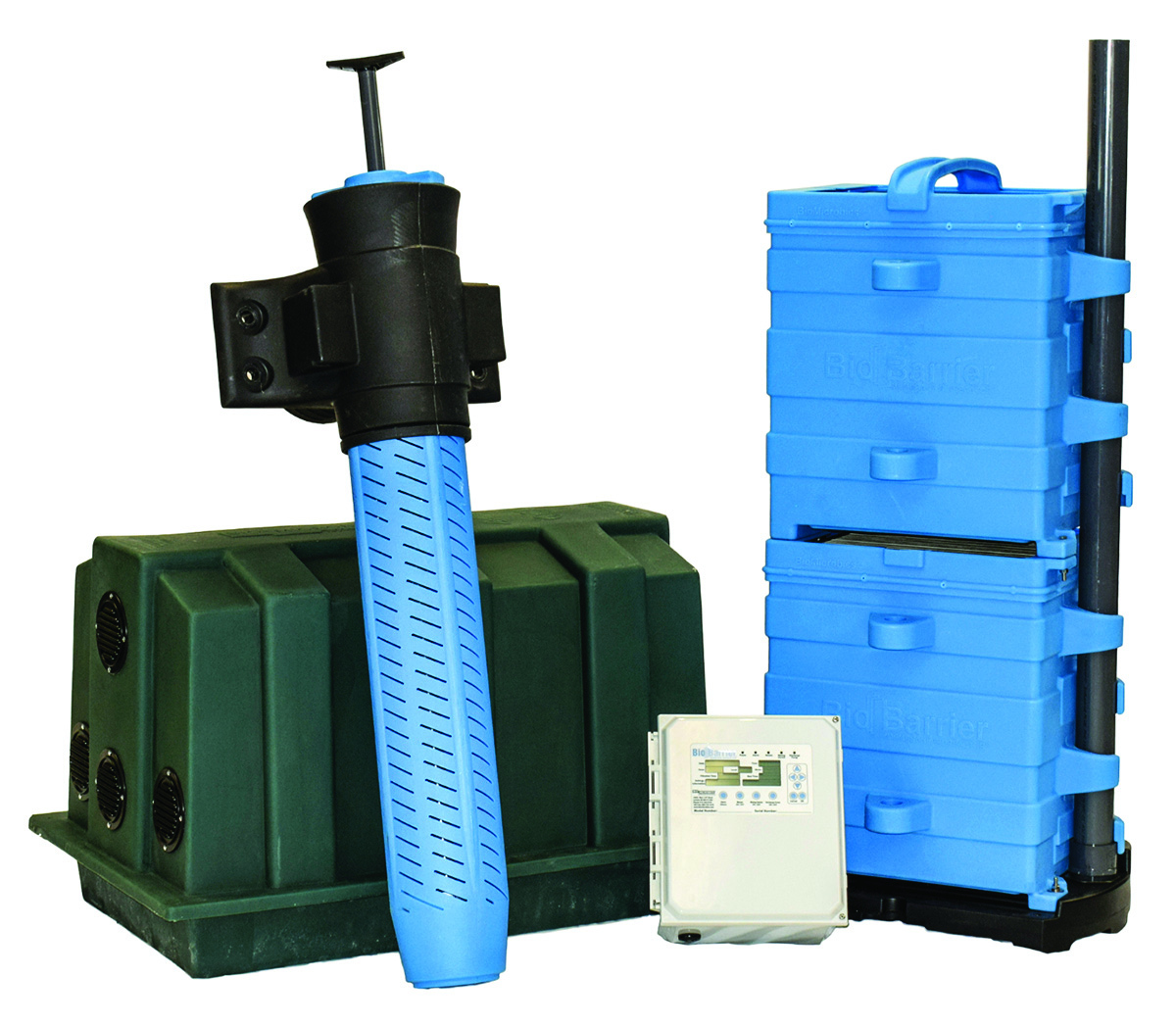

BioMicrobics High Strength BioBarrier HSMBR
The High Strength BioBarrier HSMBR from BioMicrobics is engineered specifically for commercial applications with elevated organic loading. Designed to handle high-strength influent from sources such as restaurants, food processing facilities, hospitality facilities and commercial developments, the system delivers consistent, high-quality effluent even under variable flow and load conditions. Using submerged ultrafiltration membranes within an aerated biological treatment tank, the unit effectively removes organic matter, suspended solids and pathogens. The membrane process physically separates treated water from biomass, eliminating the need for conventional clarifiers, tertiary filtration and separate disinfection systems. This results in a compact footprint, simplified operation and reliable performance. It is ideal for sites with limited space, stringent discharge limits or wastewater reuse goals. 800-753-3278; www.biomicrobics.com
Pumps

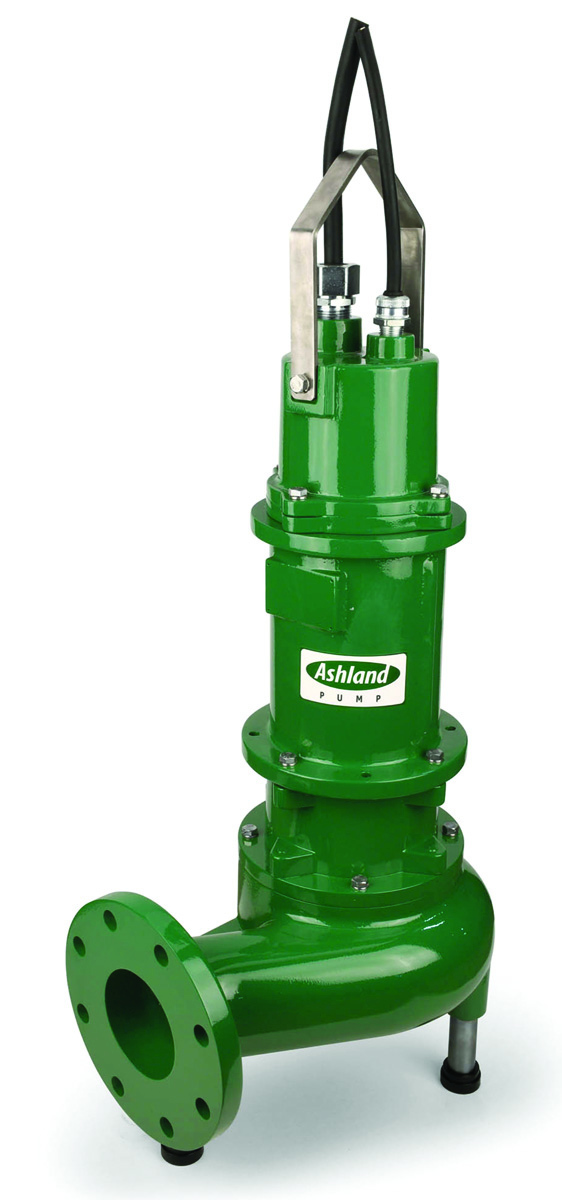

Ashland Pump ANC-300
The ANC-300 3 hp solids handling pump from Ashland Pump is designed to perform in demanding municipal and commercial applications. Its heavy-duty cast iron construction and single-vane enclosed impeller allow it to easily pass 3-inch solids through a 3-inch discharge, reducing downtime and maintenance concerns. Built-in durability features — like dual mechanical seals, Viton O-rings, stainless steel shaft and heavy-duty ball bearings — extend pump life even in harsh environments. For added confidence, it includes seal leak detection to alert users before issues arise. Powered by a NEMA-efficient motor operating at 1,750 rpm, this model is available in 230-volt or 460-volt three-phase options. 855-281-6830; www.ashlandpump.com

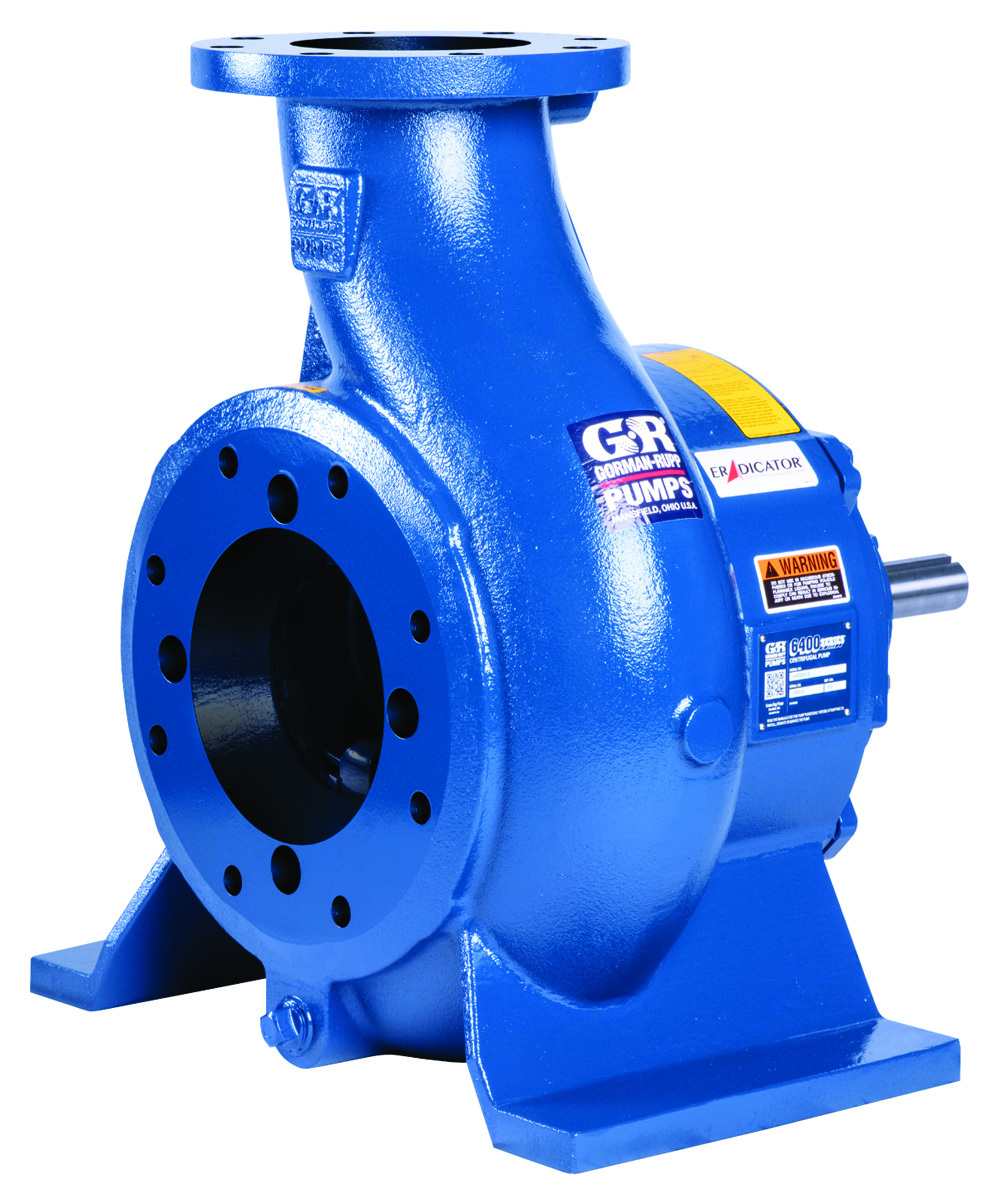

Gorman-Rupp 6400 Series
Gorman-Rupp’s 6400 Series are cost-effective, solids handling end suction centrifugal pumps designed for flooded suction applications in commercial wastewater systems. Built to handle everything from clean liquids to solids-laden wastewater, they deliver dependable performance where suction lift is not required. Constructed of durable ductile iron, these pumps are well suited for wastewater treatment, construction, mining and agricultural applications. Their design matches the footprint and shaft alignment of the popular Super T Series line, allowing for easy interchangeability and simplified upgrades. Maintenance is streamlined through accessible wearplates, seals and standardized components that reduce downtime and service costs. Available in both standard and vortex configurations, models accommodate solids up to 4 inches, offering flexibility for high-solids, abrasive or fibrous wastewater conditions. 419-755-1011; www.grpumps.com

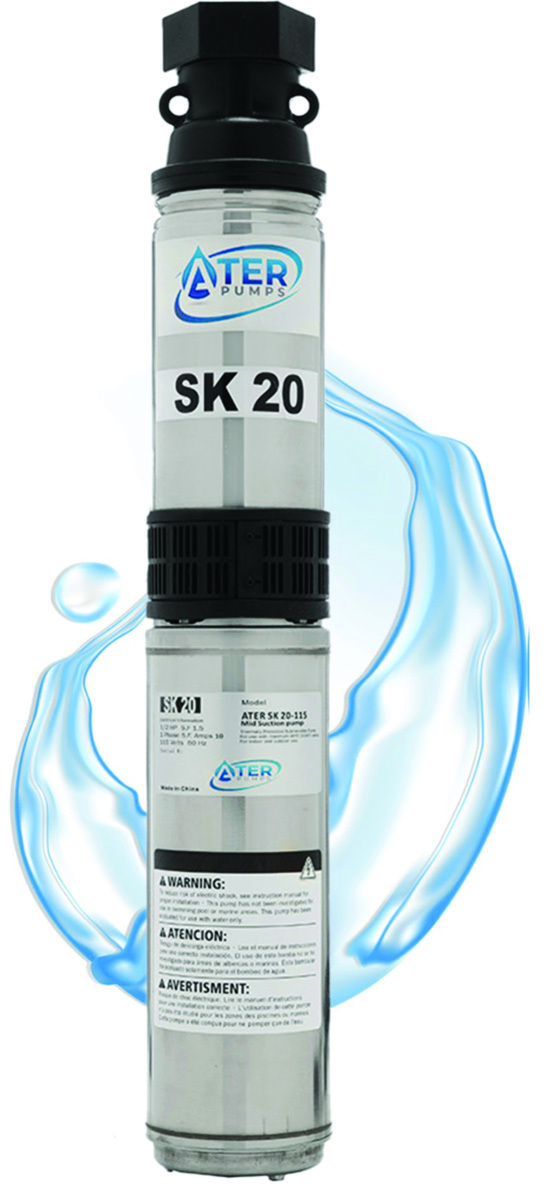

Wholesale Septic Supply ATER SK-20
The ATER SK-20 from Wholesale Septic Supply is a submersible effluent pump designed for septic, graywater or filtered effluent systems — especially where dependable fluid transfer is needed without large solids or heavy sludge. It’s a mid-suction design, meaning the intake is between the motor and pump end, which can help with stable flow and avoid clogging or re-priming problems when pumping filtered effluent or wastewater. It has a 0.5 hp submersible motor, available in either 115 volts AC or 230 volts AC depending on the version. It is rated for approximately 20 gpm under standard conditions, and includes a 1.25-inch female NPT discharge. Its outer shell is made of 304-grade stainless steel for high corrosion resistance, with internal wetted parts (diffusers, etc.) molded from durable, high-wear thermoplastic. A built-in check valve prevents backflow when the pump is off. It is able to pass solids up to about 1/8 inch without damaging the pump, making it suitable for filtered effluent that may contain small particulates. 936-681-8198; www.wholesalesepticsupply.com
UV Disinfection

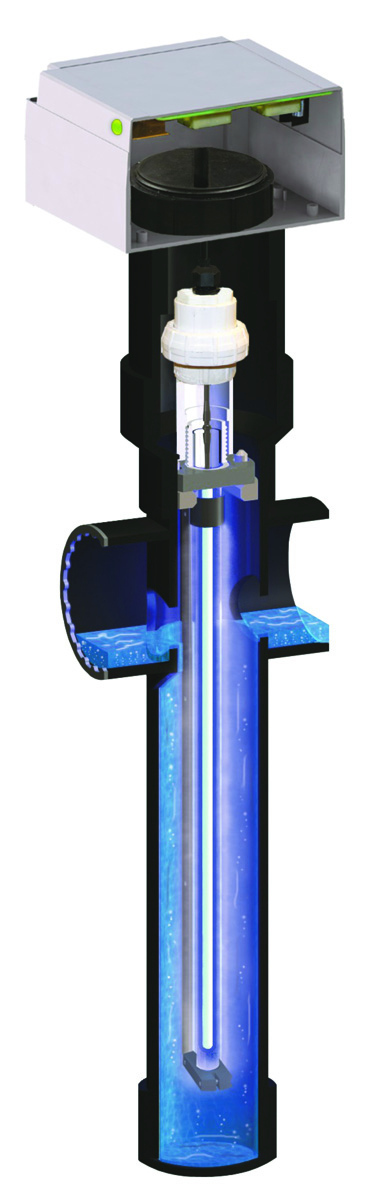

Polylok PL-UV1 UV Disinfection Unit
The PL-UV1 UV Disinfection Unit from Polylok reduces bacteria levels from secondary effluent to achieve strict water quality standards. Every component of the compact unit is highly engineered and constructed to provide reliable disinfection and superior operational life. It features a dual pass design, a long-life UV bulb, weatherproof electrical components and no chemical residual or harmful byproducts. It is easy and inexpensive to install and operate and has low electrical usage. 877-959-7751; www.polylok.com
