Alarm Systems/Components

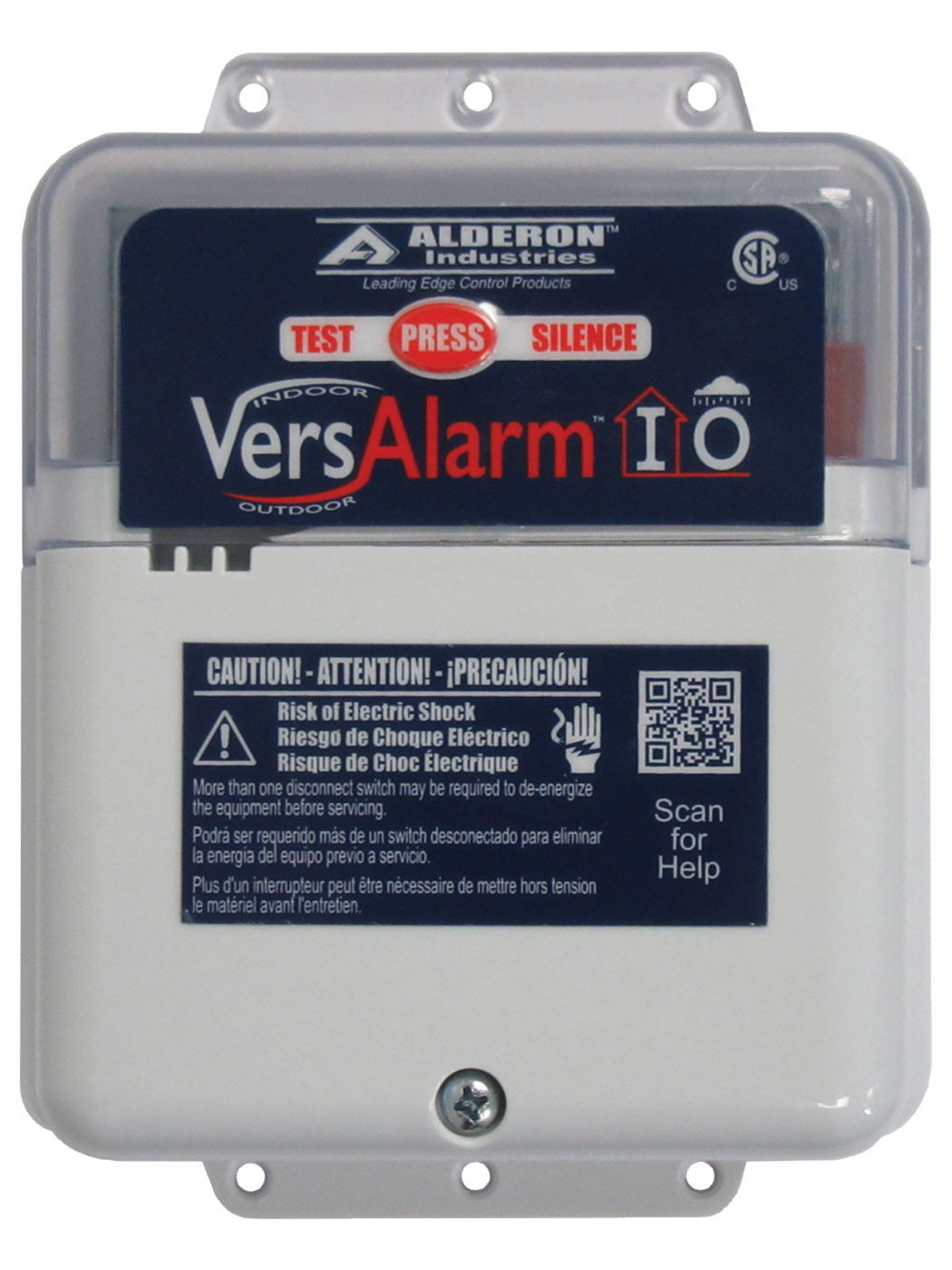

Alderon Industries Versa’larm I/O

The Versa’larm I/O from Alderon Industries is a versatile option for indoor and outdoor utility monitoring. The alarm can be used for a variety of applications, including septic tanks, sump pits, holding tanks, pump chambers and water tanks. Various types of sensors can be connected for liquid level monitoring. The smoked lens on the enclosure has green LEDs to indicate power is applied, and during an alarm, the buzzer and flashing alarm LEDs will activate. Pressing the test/silence push-button will silence the alarm as alarm LEDs turn to a solid state. After the alarm is cleared, the system automatically resets itself. The test/silence push-button can also be used for weekly testing. A set of auxiliary contacts allows the alarm to interface with an external device, available in 120- or 230-volt AC models. 218-483-3034; www.alderonind.com.

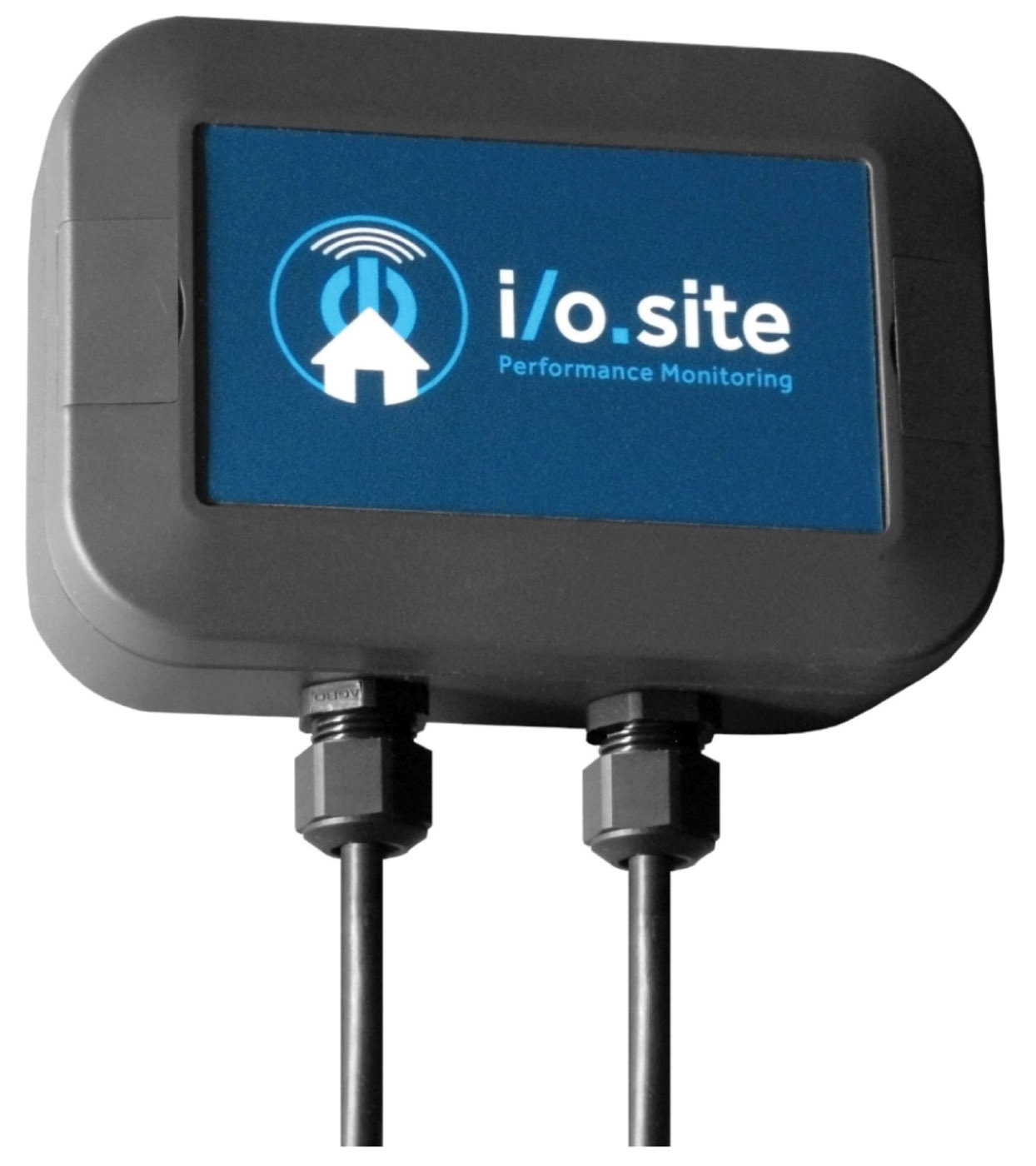

Anua i/o.site

The i/o.site system from Anua provides performance monitoring of electromechanical components while keeping everyone connected to information through a simple web interface. It can remotely monitor any blower, aerator, pump, float switch or motor. It tracks water use, catches motor issues before failure, uses any mobile device or computer, and monitors any powered onsite system. 336-547-9338; www.anuainternational.com.

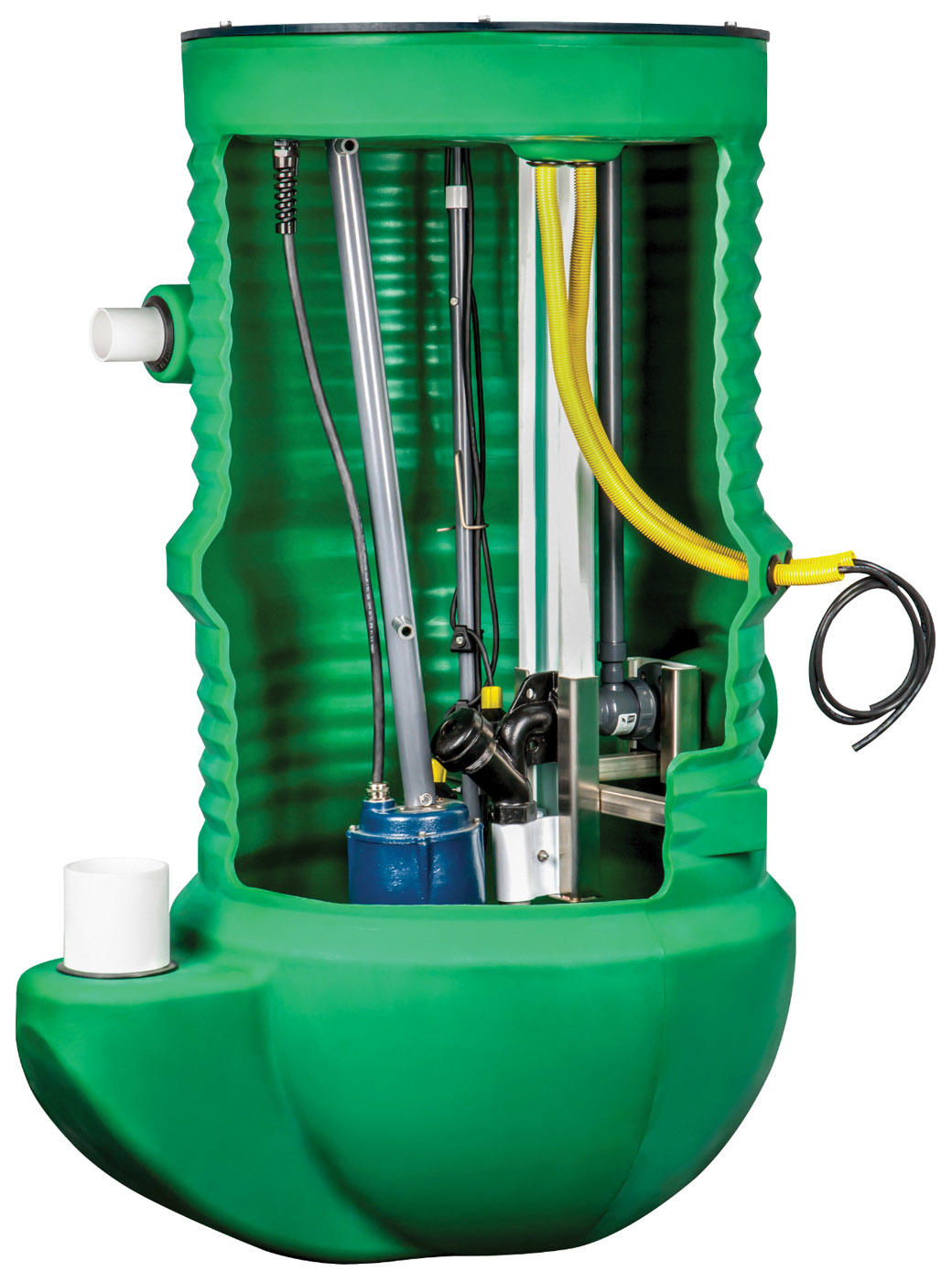

Franklin Electric FPS PowerSewer System

The FPS PowerSewer System from Franklin Electric is a flexible, service-friendly and efficient system for residential and commercial applications. The low-pressure sewer system is available in 60-, 72-, 84- and 96-inch basin sizes, and it pumps wastewater to a collection or treatment area, making it an alternative to gravity sewer systems and septic tanks. The basin’s internal C-channel assembly releases from the top of the unit, simplifying accessibility to and maintenance of its components. The tank design provides for easy access and replacement of internal components. The float tree is spring loaded and easily removable, with a lift handle for pump removal. It has an isolated pump support to accommodate heavier pumps for expanded applications. This provides added installation flexibility through compatibility with the entire line of Franklin Electric FPS 2 hp grinder pumps, providing a maximum shut-off head of up to 200 feet, with a maximum flow of 35 gpm. 260-824-2900; www.franklinengineered.com.

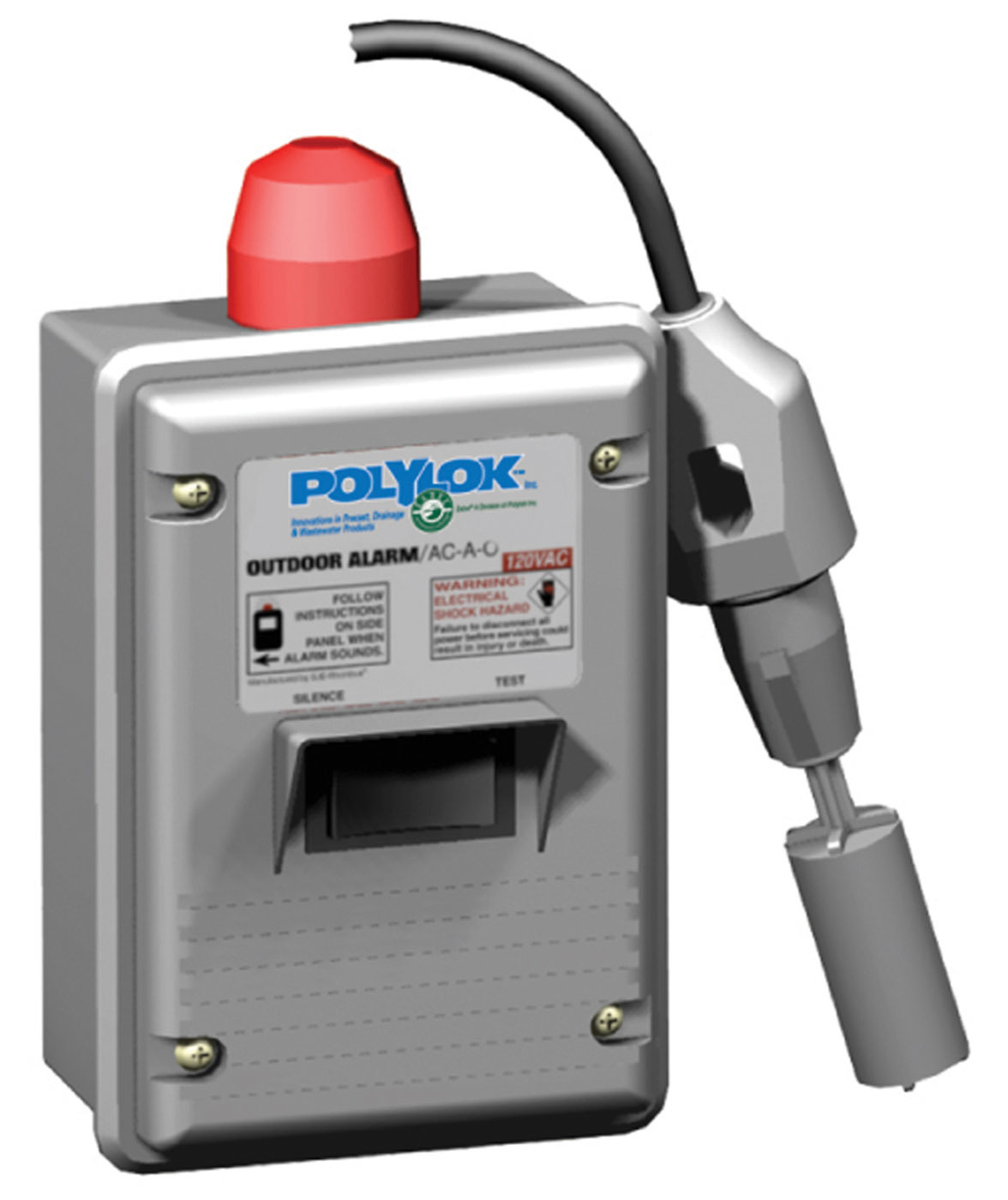

Polylok 3014AB Filter Alarm (Smart Alarm)

The 3014AB Filter Alarm (Smart Alarm) from Polylok is a wired indoor/outdoor filter alarm that provides audio/visual warning notifying home or business owners that a tank filter needs cleaning. The Smart Alarm Switch activates when the filter cartridge is near capacity (approximately 90% full) with solids. The Smart Alarm Switch installed in the filter sends a signal to the panel, activating the audible and visual alarm. It offers a manual alarm test switch and horn silence, an alarm horn rated to 82 dB at 10 feet, and 15 feet of cable, with longer lengths available. 888-765-9565; www.polylok.com.

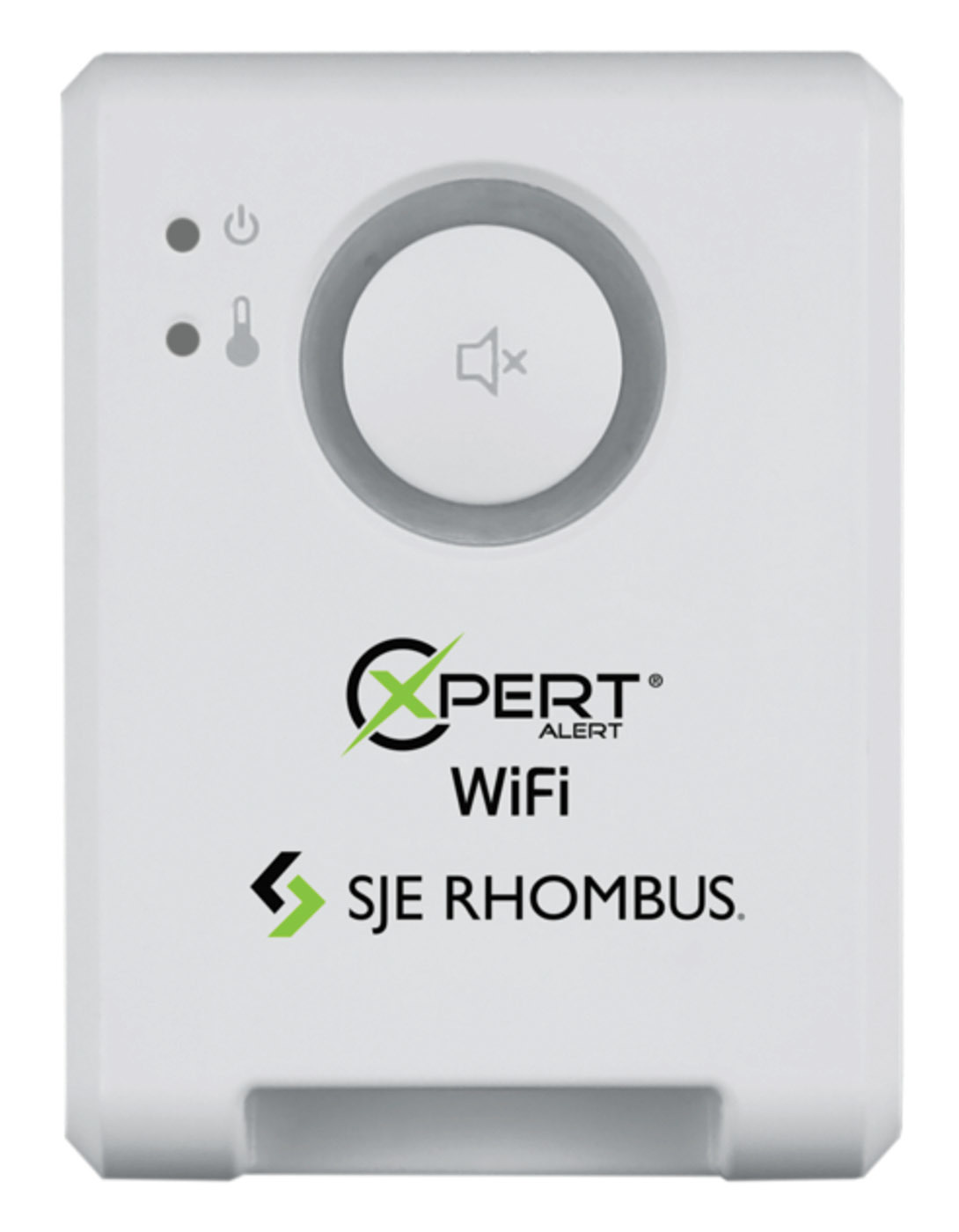

SJE-Rhombus Xpert Alert Wi-Fi

The Xpert Alert Wi-Fi indoor alarm system from SJE-Rhombus helps protect a home from costly damage due to flooding, pump failure or freezing pipes. The system monitors and reports any residential alarm condition by notifying locally (audible and visual alarms) and remotely via SMS text messages and/or emails. It uses an existing Wi-Fi or Ethernet network to send messages, meaning there are no monthly fees or contracts. The sleek design incorporates an LED alarm light ring that illuminates red for alarm 1 and amber for alarm 2. The red low-temperature indicator activates at 40 degrees F to alert of potential freezing conditions, but it can be deactivated for cold climates. It is CSA certified. 888-342-5753; www.sjerhombus.com.

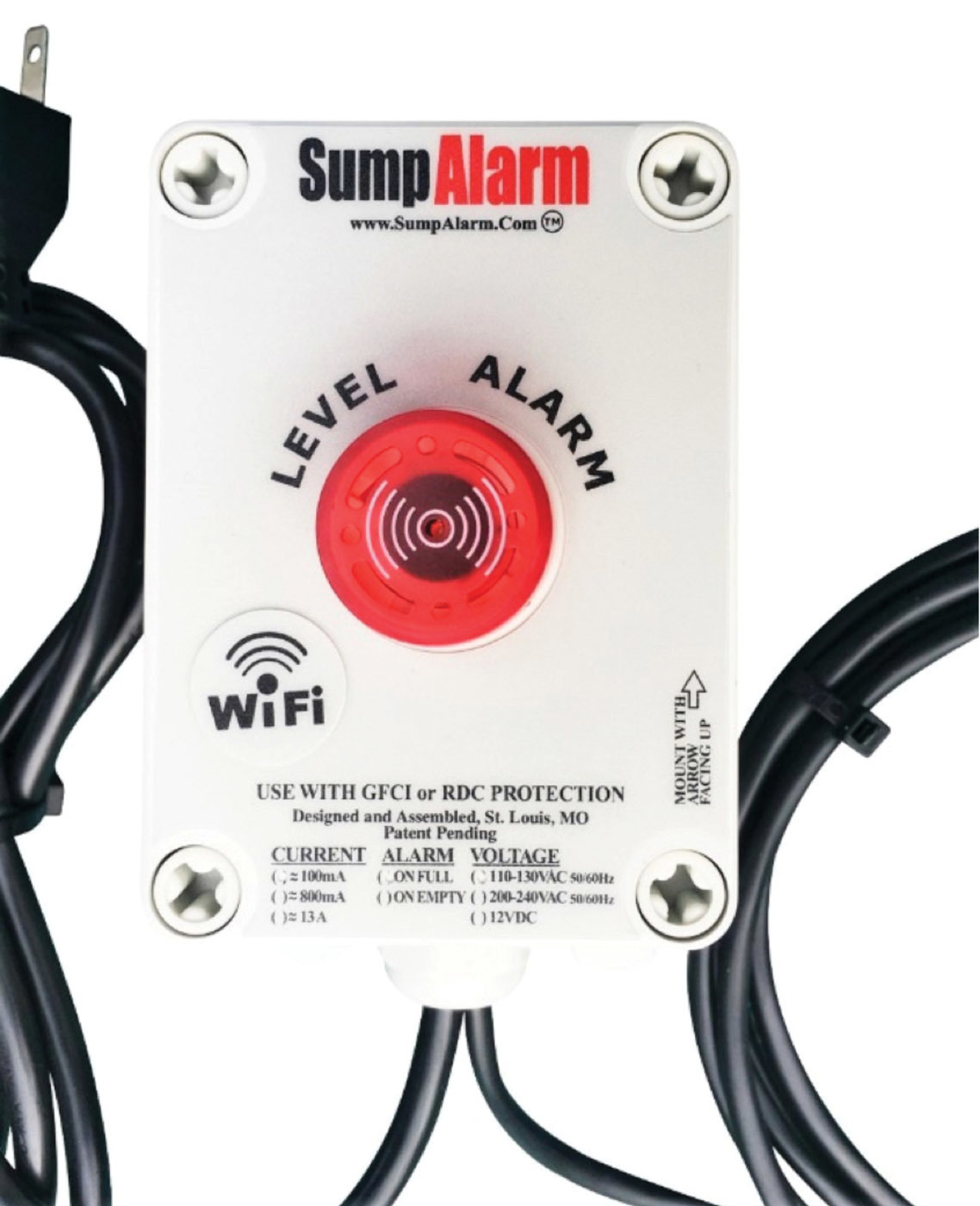

Sump Alarm Wi-Fi version outdoor tank alarm

The Wi-Fi version outdoor tank alarm from Sump Alarm provides email, text and voice notifications for up to five numbers. The unit can call installers when a client’s tank is full. The weatherproof high-tank alarm requires no on-site wiring and includes a 90 dB horn and 1-inch LED indicator. Versions are available for high- and low-level detection and available in 120 or 220 volts. It joins the household’s Wi-Fi network. It is preassembled and suitable for extreme temperatures. 314-787-8059; www.sumpalarm.com.

Pump Control Panels

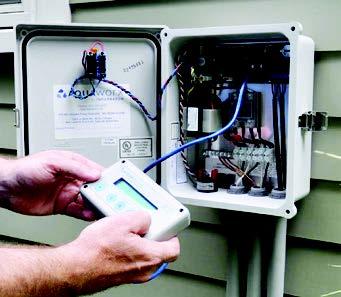

Aquaworx by Infiltrator Intelligent Pump Control Panel

The IPC Panel from Aquaworx by Infiltrator leverages simple pressure transducer technology to provide an innovative approach to enhance pump system performance. Easy to install, it is powered by an embedded microprocessor in the pump controller and a floatless pressure transducer in the pump chamber. It monitors liquid levels, controls pumping time intervals, logs events in real time and calculates daily system flow. It stores up to 4,000 events in a date/time-stamped event log. The Mountable and Removable Controller hand-held user interface is designed to program the unit. The MARC unit can be removed for use on multiple panels, offering a cost-effective solution with expanded capability. 800-221-4436; www.infiltratorwater.com.

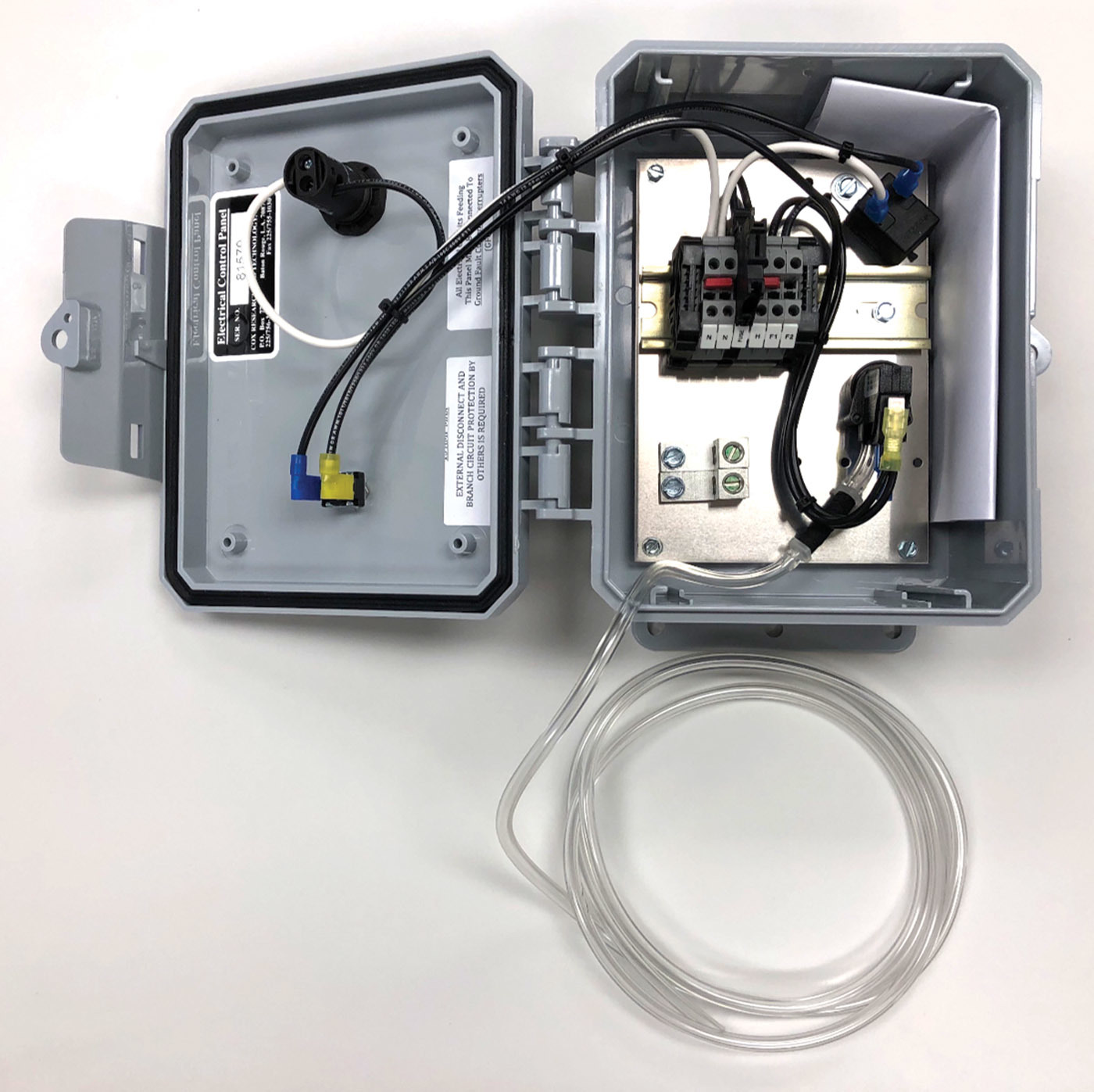

Delta Treatment Systems CP20/40/50 Series

CP20/40/50 Series control panels from Delta Treatment Systems provide intelligent monitoring and alarm functions for residential, commercial and industrial wastewater treatment systems. They are easy to install and operate and are available in several models engineered for use with advanced wastewater treatment systems and custom packaged plants. Customized control panels are also available, and all panels can be supplied with UL and/or Canadian UL 508A listings upon request. They monitor air pumps and effluent pumps on the Delta Whitewater treatment system. Additional options include the Series CP22, which monitors the air blower on Delta ECOPOD systems with options for controlling and monitoring UV lights for disinfection after treatment. Series CP8000/9000 control the Delta ECODRIP Pre-Engineered Disposal Systems’ headworks filter system and effluent dosing pump using a programmable logic controller for time-dosing drip disposal fields. 800-219-9183; www.deltatreatment.com.

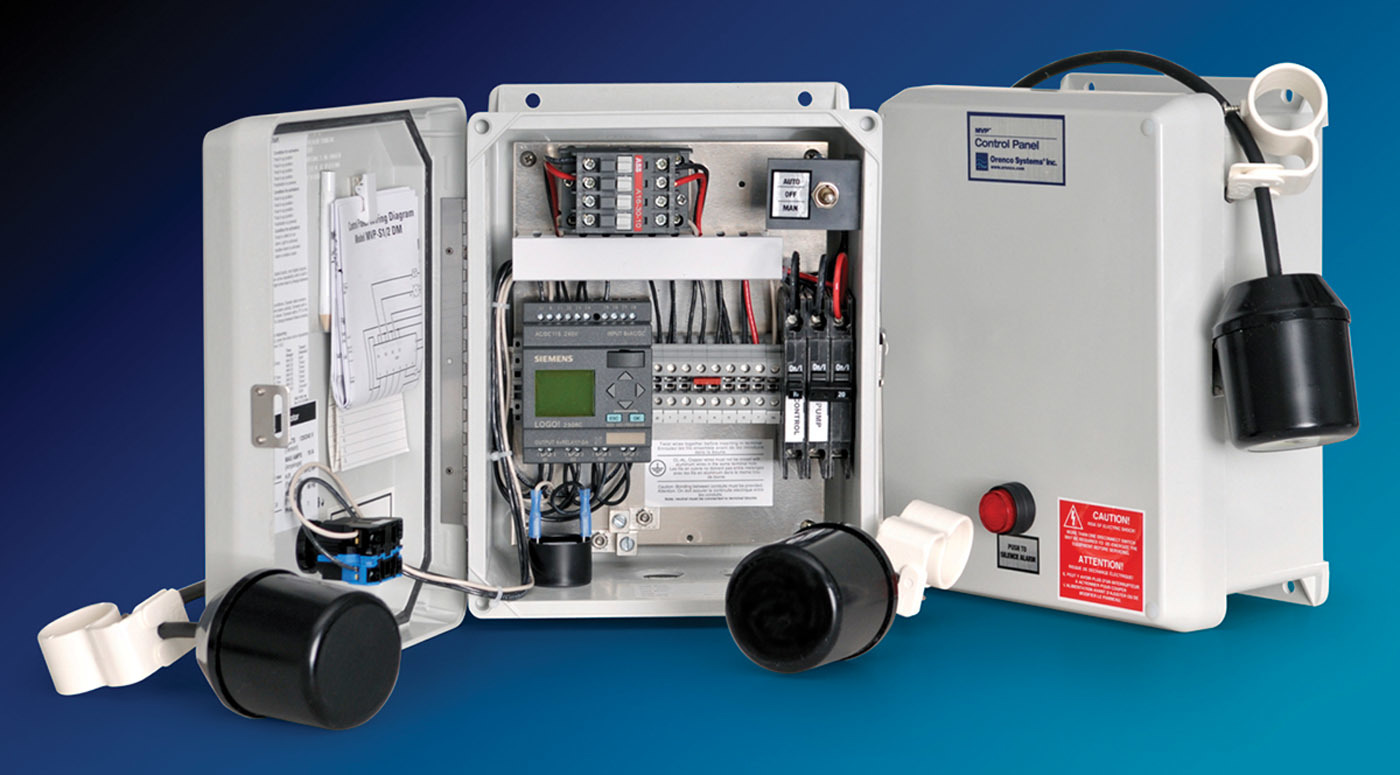

Orenco Systems 4-in-1 Controller

The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules within a single panel. Both Simplex (MVP-S2DM) and Duplex (MVP-DAX2DM) models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for both 120- or 240-volt power, meaning installers and service providers can reduce their panel inventories for new installations and repairs. It includes a programmable logic unit with multiple timing intervals for changing flow conditions, and a built-in elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing, as well as wiring diagrams. It is completely touch-safe. 877-257-8712; www.orenco.com.

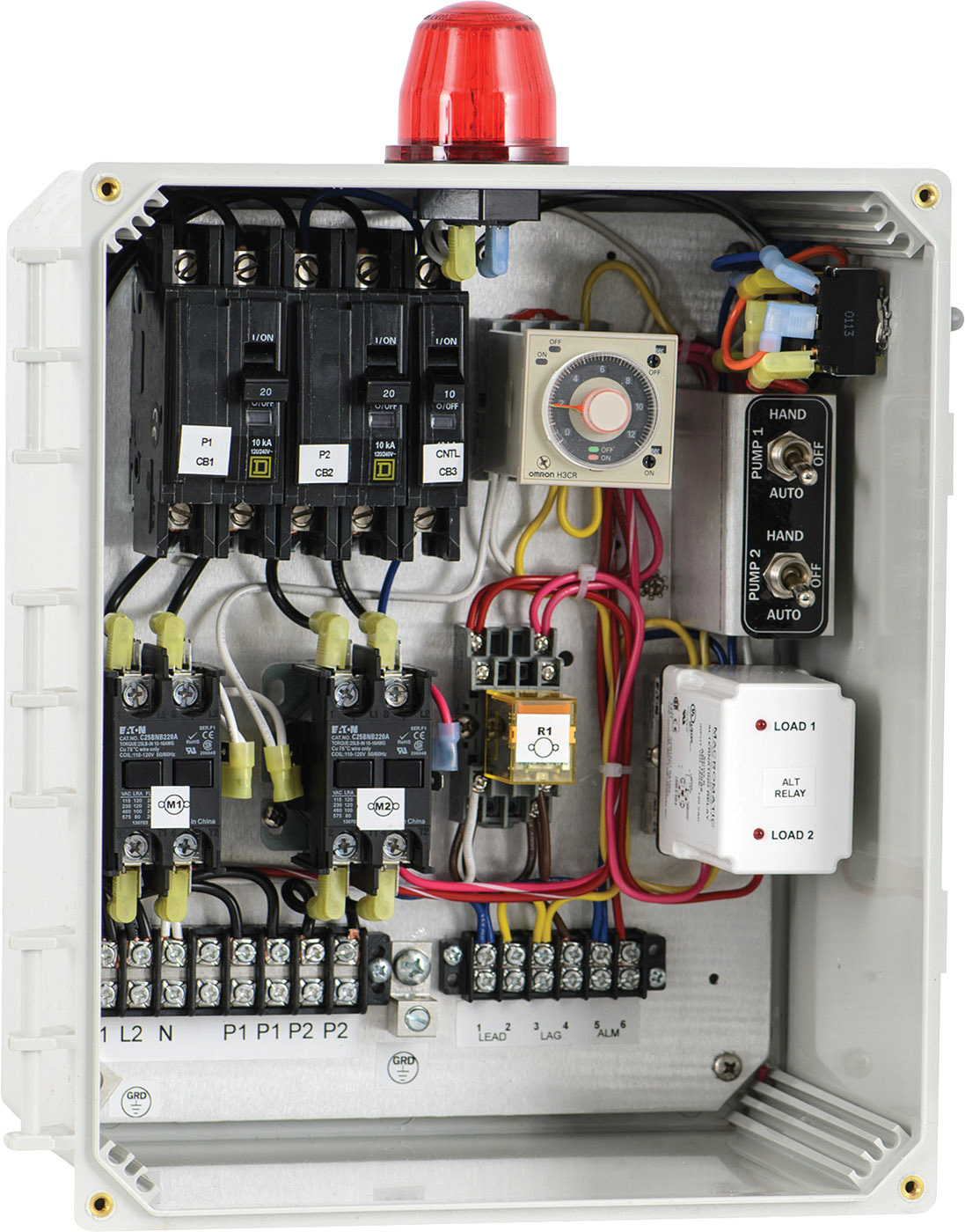

Septic Products 50B019-120-240DD

The 50B019-120-240DD control panel from Septic Products is a duplex time-dosing panel for use in residential or commercial applications. It can be used with 120- or 240-volt incoming power, and it accommodates two dosing pumps controlled by a repeat cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com.
