Alarms/Controls + Get AlertsAlarm Systems/Components

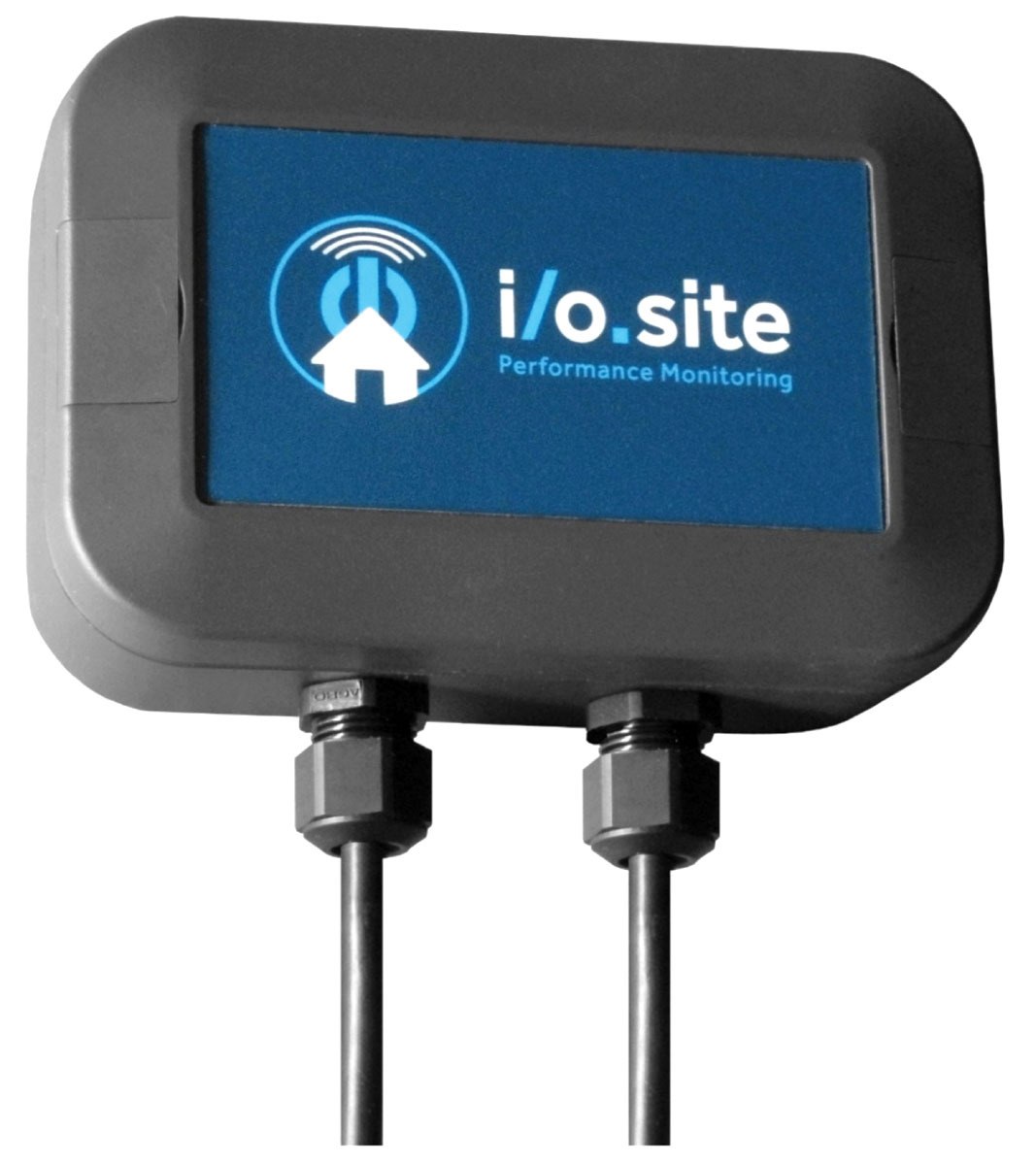

Anua i/o.site
The i/o.site system from Anua provides performance monitoring of electromechanical components while keeping everyone connected to information through a simple web interface. It can remotely monitor any blower, aerator, pump, float switch or motor. It tracks water use, catches motor issues before failure, uses any mobile device or computer and monitors any powered onsite system. 336-547-9338; www.anuainternational.com

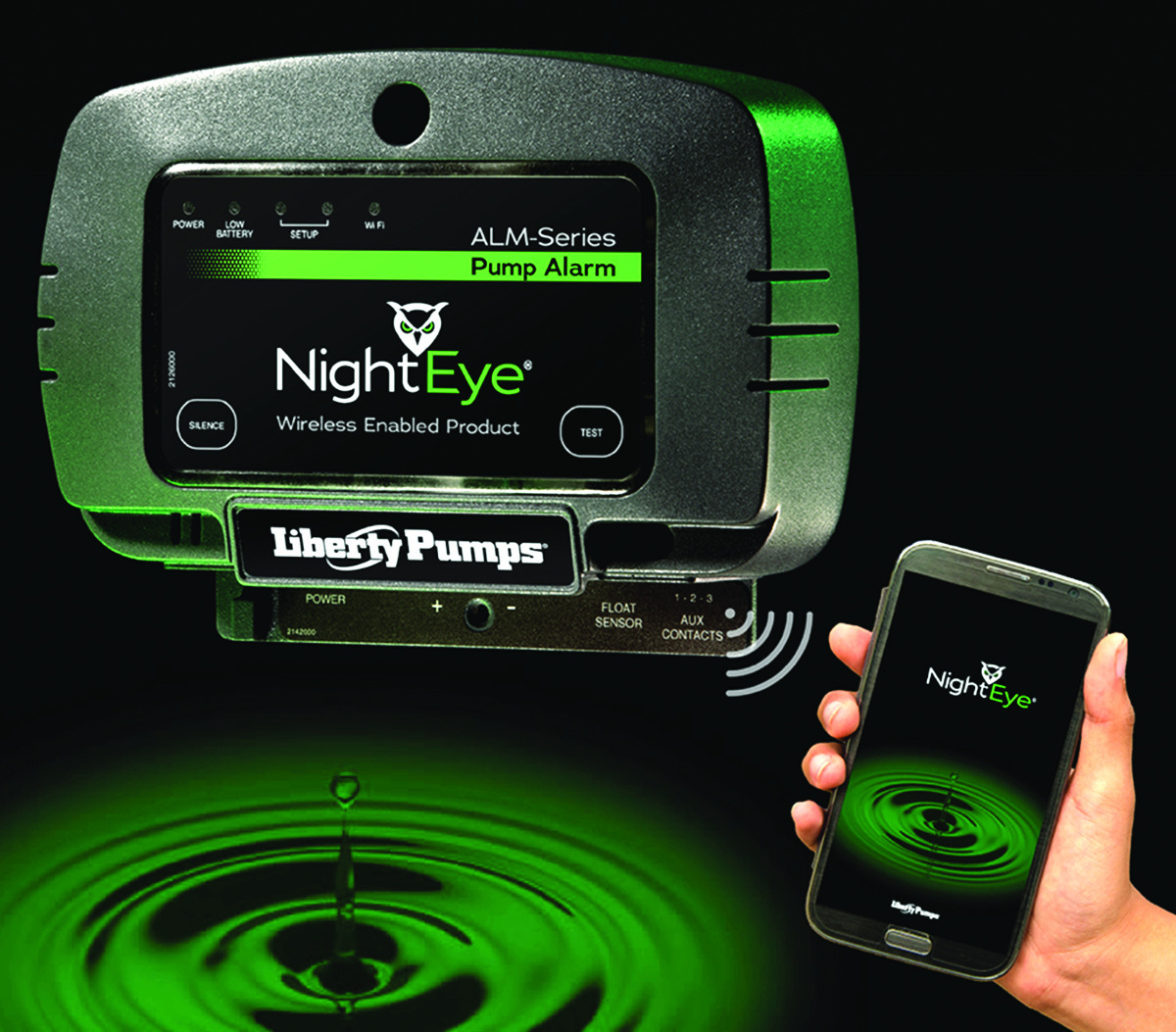

Liberty Pumps NightEye
The NightEye app and cloud-based system from Liberty Pumps allows internet connection of a pump via the home’s wireless router and provides alarm and other performance information to a mobile device. The system sends information via text, email and push notifications, to up to four different address/phone numbers. Connected products include the ALM-EYE series indoor pump alarm, 442 battery backup pump systems and the SumpJet water powered backup pump. The system is easy to use and set up through a portable device, according to the maker. Download the free app, register the device and connect to the equipment using BlinkUp technology. The app is compatible with iOS and Android devices. There are no subscription or service fees. 800-543-2550; www.libertypumps.com

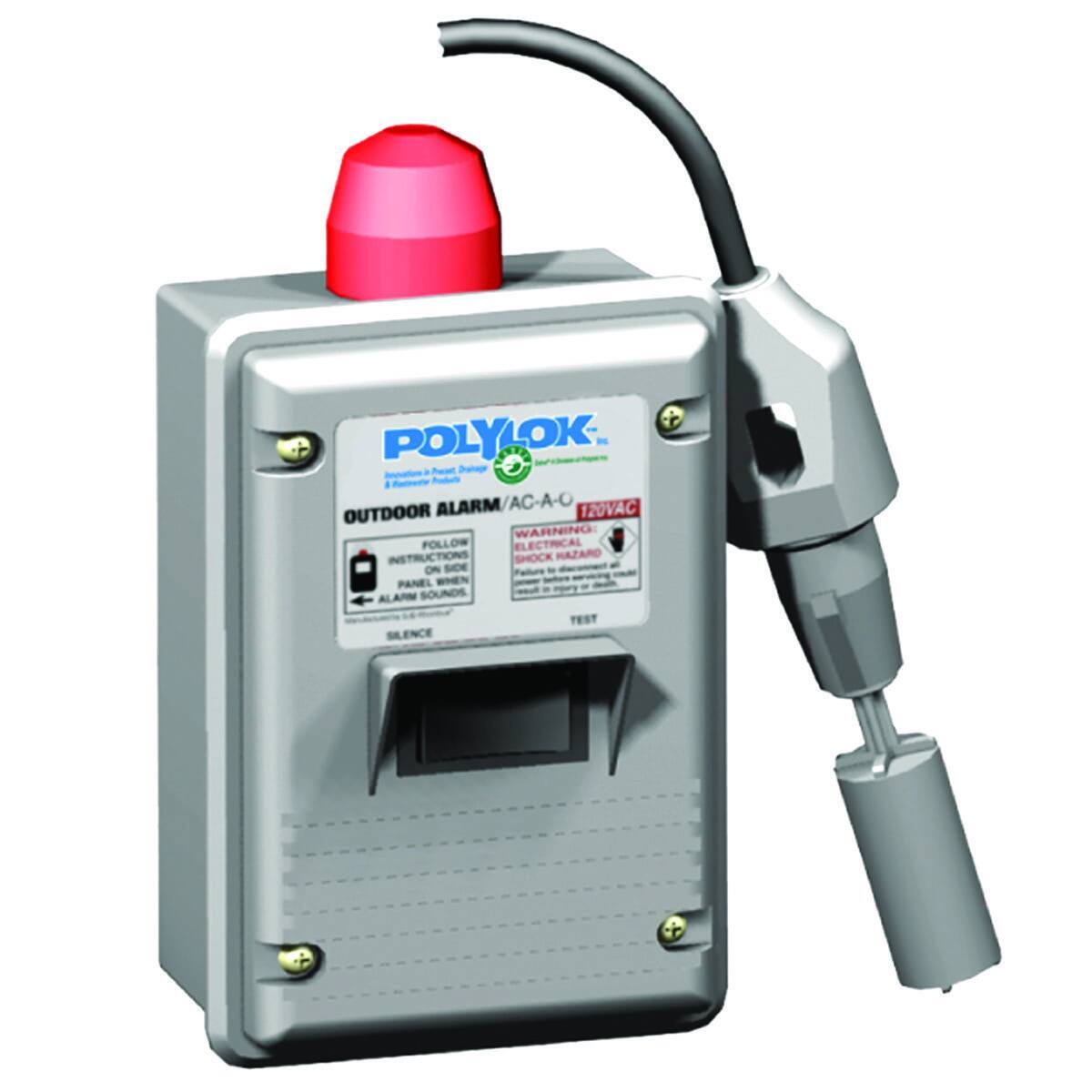

Polylok 3014AB filter alarm (Smart Alarm)
The 3014AB filter alarm (Smart Alarm) from Polylok is a wired indoor/outdoor filter alarm providing audiovisual warning notifying operators that a tank filter needs cleaning. The Smart Alarm Switch activates when the filter cartridge is near capacity (approximately 90% full) with solids. The Smart Alarm Switch installed in the filter sends a signal to the panel. It offers a manual alarm test switch and horn silence, an alarm horn rated to 82 dB at 10 feet, and 15 feet of cable, with longer lengths available. 877-959-7751; www.polylok.com

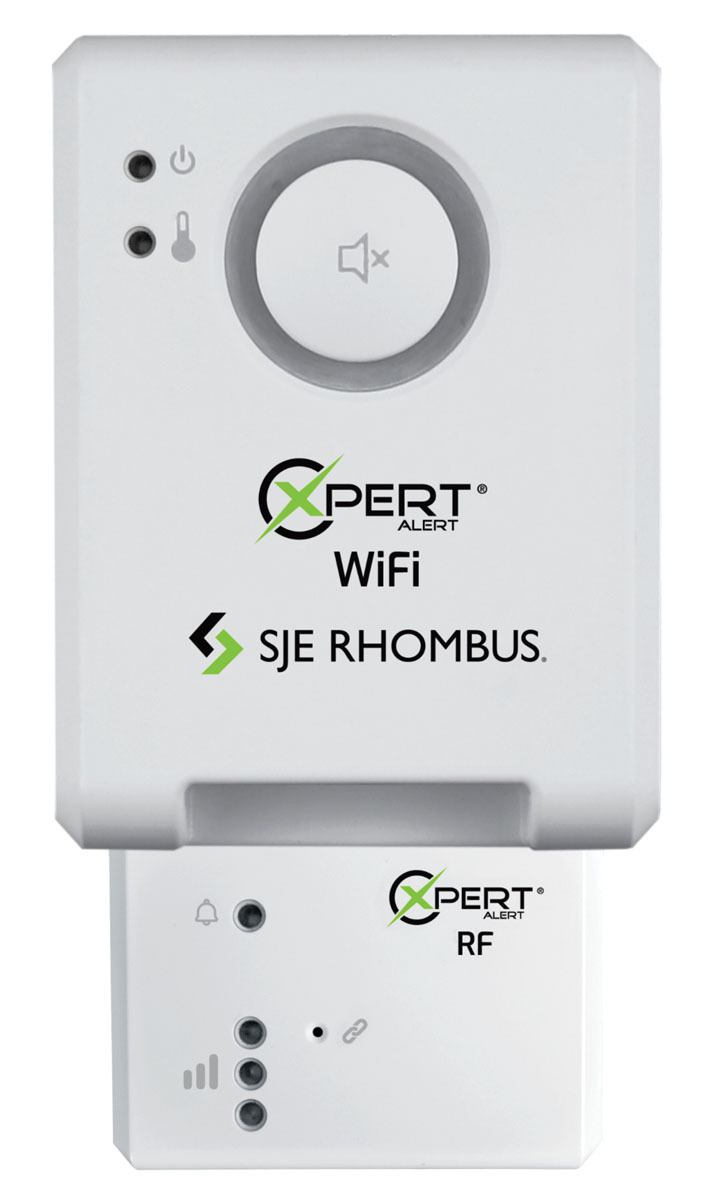

SJE Rhombus Xpert Alert RF
The Xpert Alert RF system from SJE Rhombus uses LoRa radio technology to wirelessly connect the control panel to an indoor alarm system. With a range of up to 200 feet, it provides the convenience of indoor notification without having to tear up the yard to install wires. It may be used for lift pump chambers, holding tanks, sewage, agricultural and other water applications. This system uses the alarm, an RF transceiver module that attaches to the indoor alarm and an RF panel module installed in the outdoor panel. The RF transceiver and RF panel modules wirelessly connect the alarm to the control panel. It is also available with the Xpert Alert WiFi alarm, which provides 24/7 notification via text and/or email. The alarm is CSA certified, and the RF modules are UL/cUL listed. 888-342-5753; www.sjerhombus.com
Electrical Panels

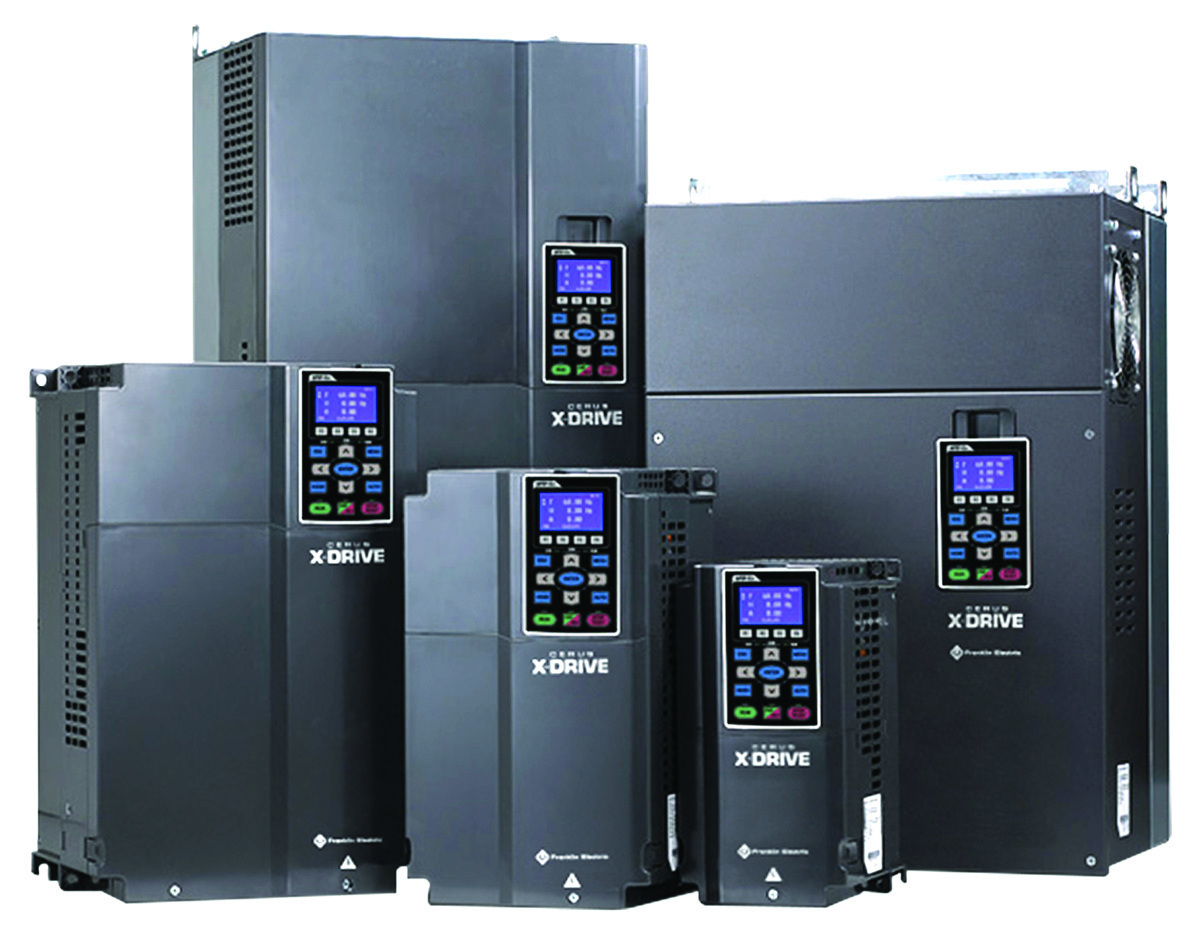

Franklin Electric Cerus X-Drive
Designed for variable torque applications up to 600 hp, the Cerus X-Drive is Franklin Electric’s all-inclusive drive solution for a variety of markets. It is available as a standalone drive and in multiple enclosed configurations, the panels are designed to be durable, with every detail and component centered around the application’s specific requirements. It can be paired with a choice of motors and pumps to maximize performance of the application. 866-271-2859; www.franklinengineered.com
Pump Control Panels

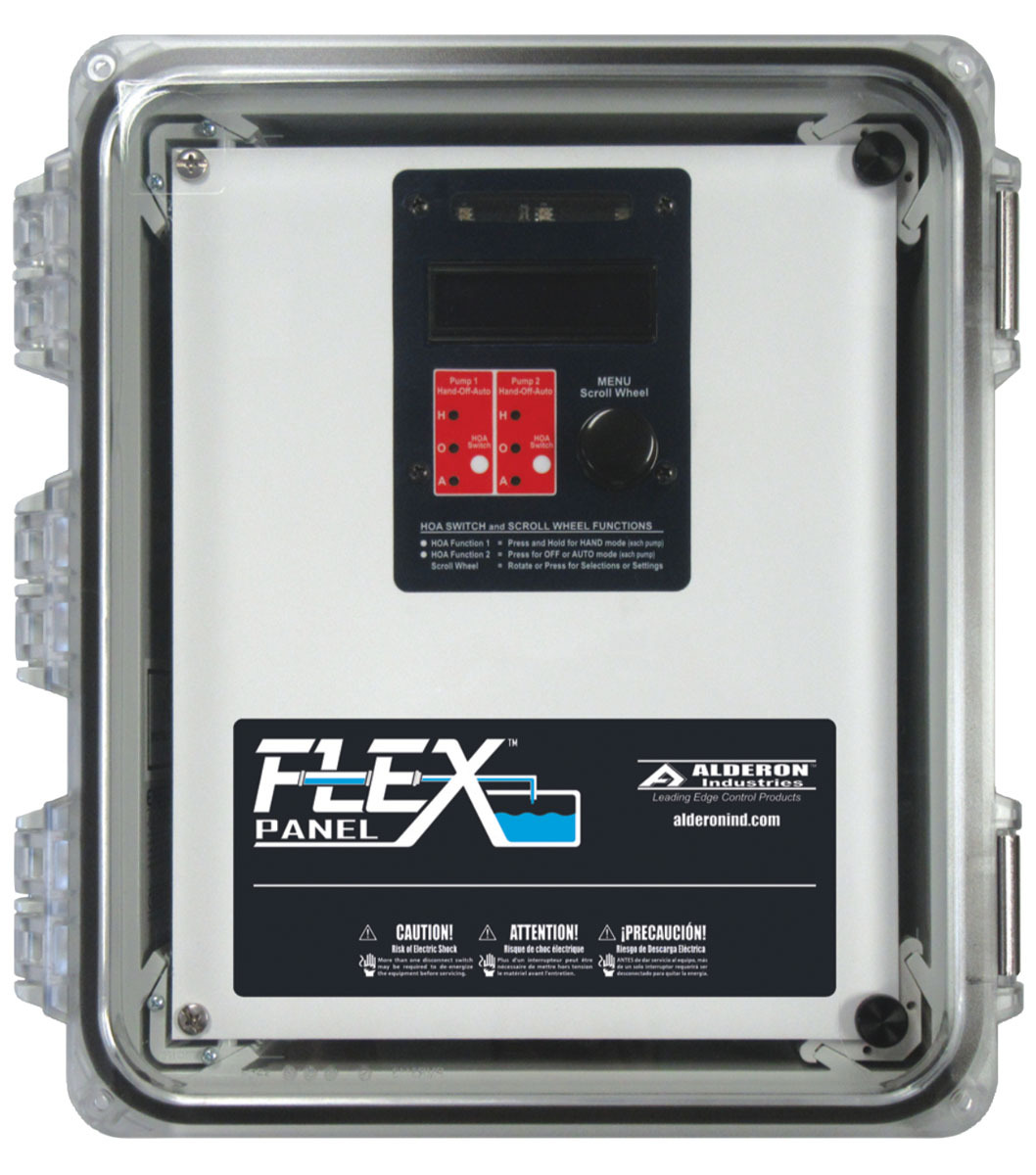

Alderon Industries FLEX
The FLEX control panel from Alderon Industries provides flexibility for onsite conditions, easily converting from timed to demand dosing with a push of a button. It can be operated using float switches or a 4-20 mA submersible pressure transducer. The 16x2 OLED menu system screen provides quick access to pump history, float status, alarm events, system statistics and programmable settings. The following parameters are stored as both non-resettable and resettable (to zero): pump elapsed time, pump counts, high and low/off level counts, and normal/override counts. In timed dosing mode, settings are available in hours, minutes and seconds. It is available in single phase, 120/240VAC, 20 amps, simplex and duplex, with a Type 4X-rated enclosure for indoor and outdoor applications (three phase available). It can be customized with various component options, float switch configurations, and Alderon’s cloud-based remote monitoring. 218-483-3034; www.alderonind.com

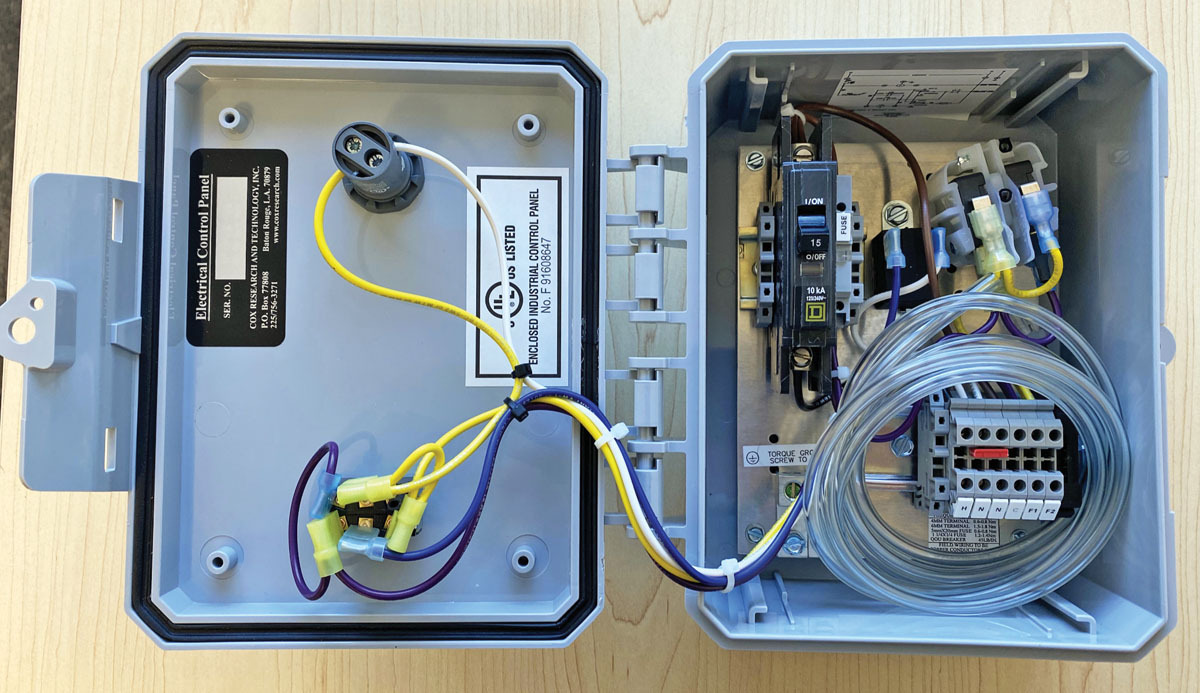

Delta Treatment Systems Alarm and Control Panels
Delta Treatment Systems Alarm and Control Panels are designed for easy installation and operation and provide intelligent monitoring and alarm functions for residential and commercial wastewater treatment systems. Panels are available in several models engineered for use with Delta’s advanced wastewater treatment systems and custom packaged plants. All panels can be supplied with UL and/or Canadian UL 508A listings upon request and customized control panels are available. The CP20/40/50 Series monitors air pumps and effluent pumps on the Whitewater treatment system. The Series CP22 panels monitor the air blower ECOPOD systems with options for controlling and monitoring UV lights for disinfection after treatment. Series CP23 alarm and control panels monitor the air blower on larger ENVIRO-AIRE systems. Series CP8000/9000 control the ECODRIP Engineered Disposal Systems’ headworks filter system and effluent dosing pump using a PLC for time dosing drip disposal fields. 800-221-4436; www.infiltratorwater.com

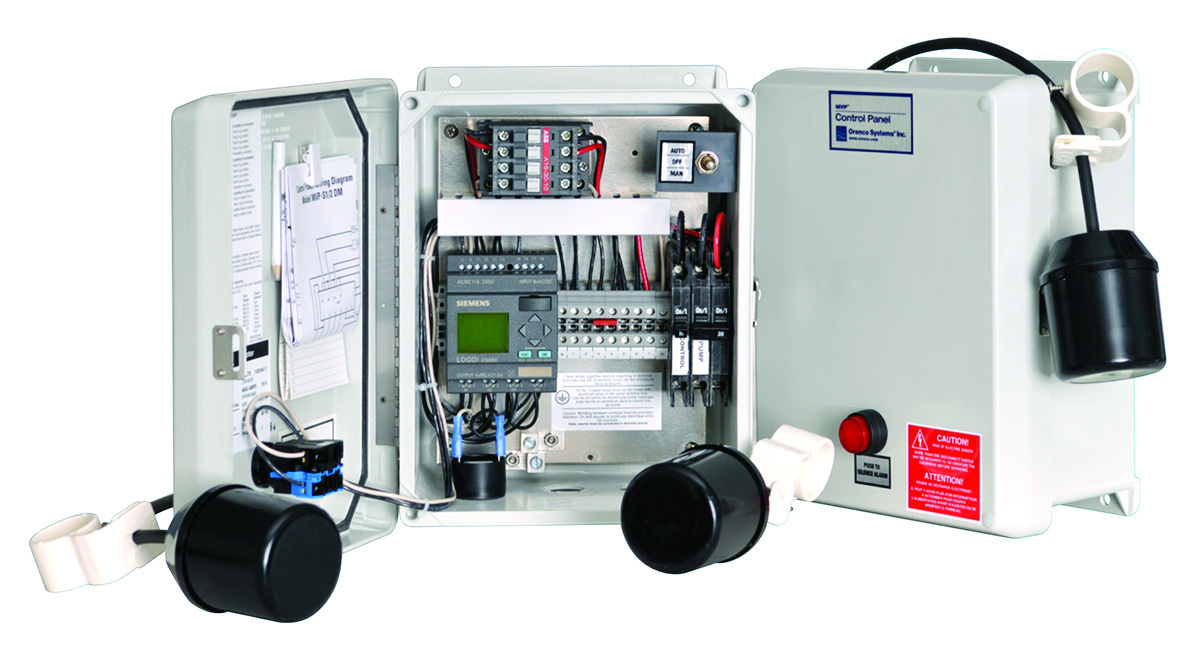

Orenco Systems 4-in-1 Controller
The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules within a single panel. Both simplex and duplex models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for 120- or 240-volt power, meaning installers and service providers can reduce their panel inventories for new installations and repairs. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and has a built-in elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing as well as wiring diagrams. It is completely touch-safe. 877-257-8712; www.orenco.com

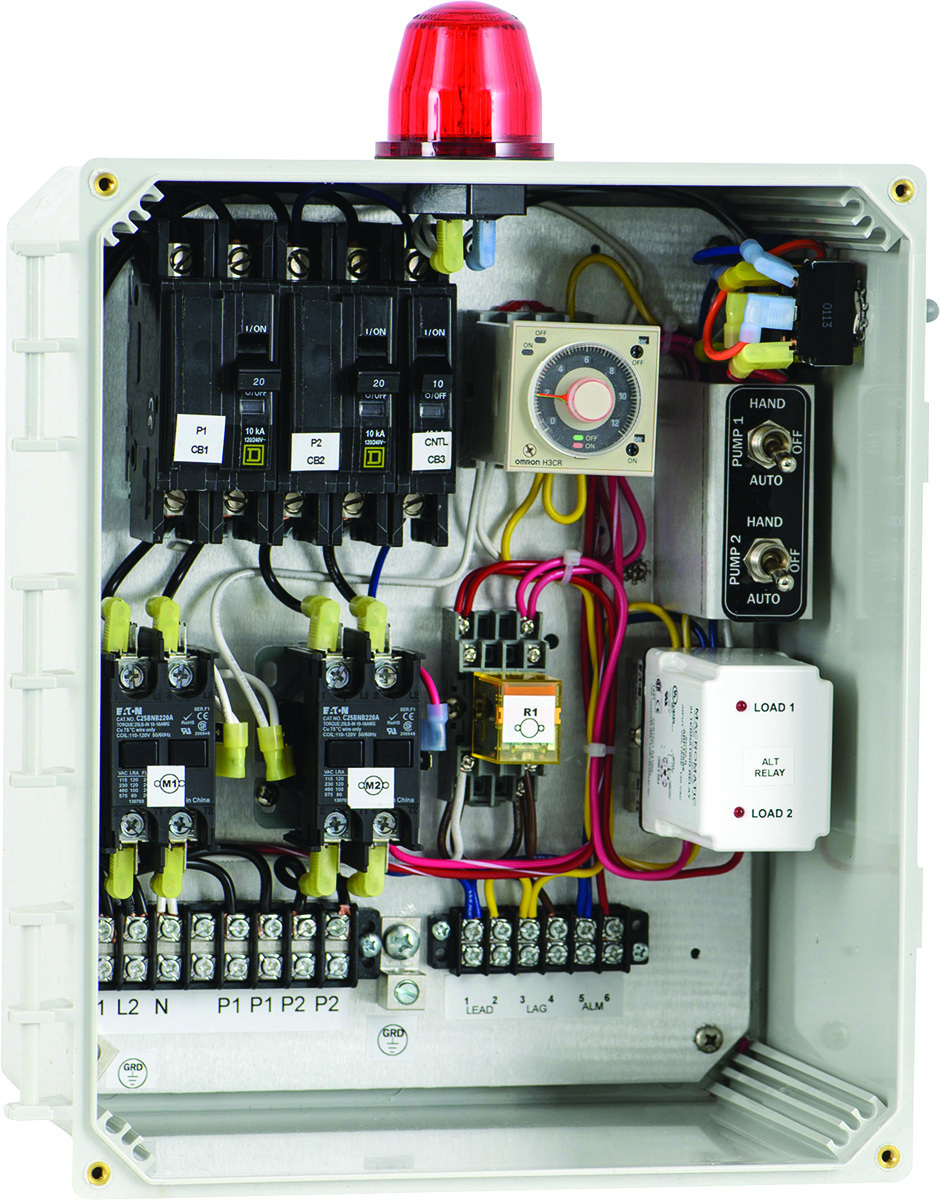

SPI 50B019-120-240 DD
The 50B019-120-240 DD control panel from SPI is a duplex timed-dosing panel for residential or commercial applications. It can be used with 120- or 240-volt power, and accommodates two dosing pumps controlled by a repeat-cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged, externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL-listed. 419-282-5933; www.septicproducts.com
