J-500-800PLT with three inlets and three outlets and the J-500-800PLT-F (installed outlet filter) plastic tanks with three inlets from Jet Inc. offer a lightweight alternative to concrete J-1500 Series BAT Media Plants. The tanks offer variable treatment capacity in a NSF 40- and 245-listed treatment system from 500 to 800 gpd using the time-proven 700++ aerator. The tanks are seamless, lightweight and manufactured of polyethylene material that offers maximum strength and durability in a 1,000-pound package. They are easy to transport and install in the most difficult site conditions and are locally supported by a global network of trained and certified distributors. 800-321-6960; www.jetincorp.com

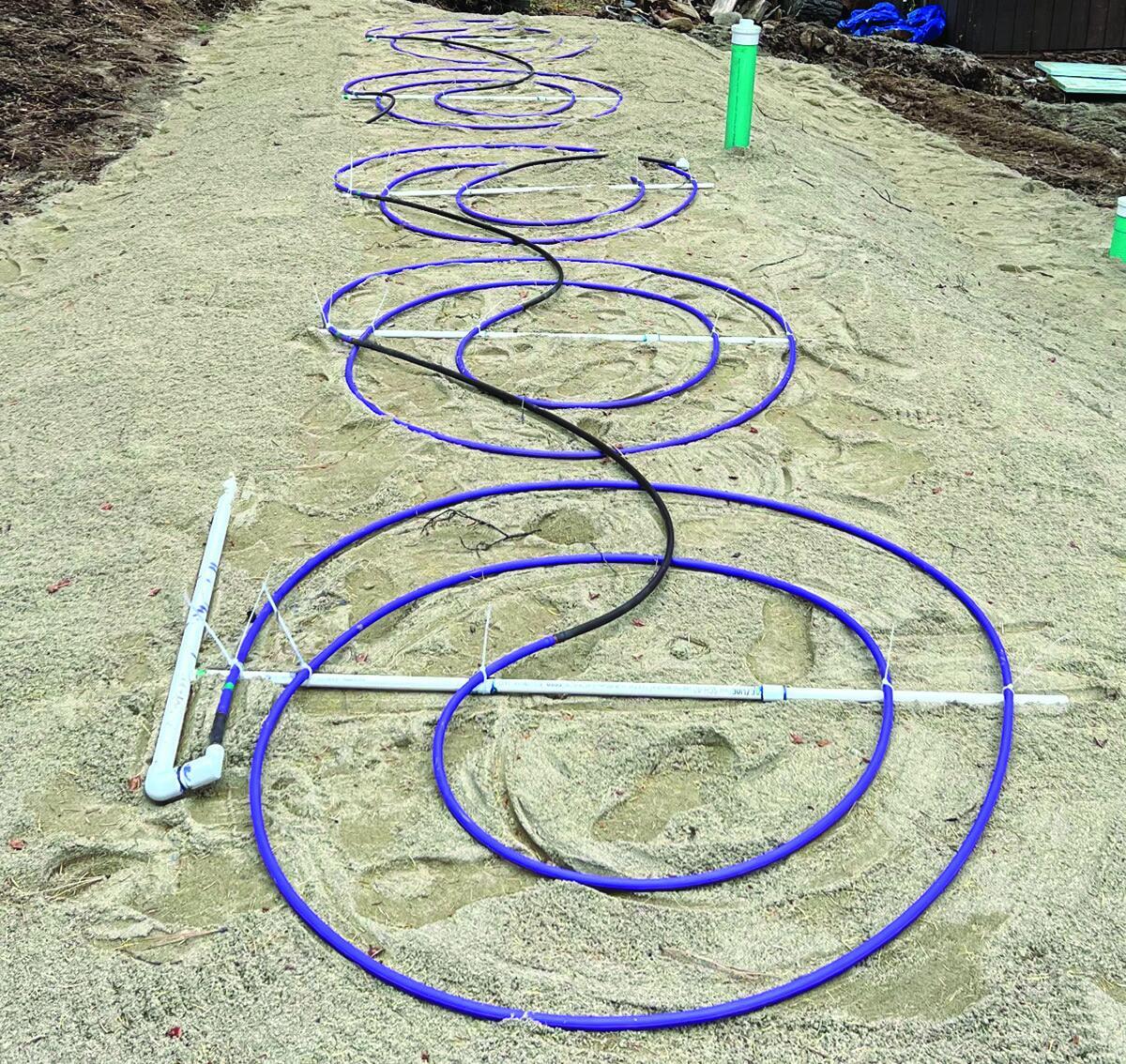

Lowridge OnsiteTechnologies OSCAR XO2
The OSCAR XO2 system from Lowridge Onsite Technologies combines two technologies — the XO2 (a treatment tank comprised of a septic and aeration chamber and a discharge tank with a clarifier and pump chamber) and an OSCAR drip dispersal system (comprised of custom-made Netafim Bioline drip tubing discharged through a shallow bed of ASTM C33 sand). This combination delivers low concentrations of 2 mg/L CBOD5, 2 mg/L TSS and 20 fecal coliform colonies per 100 mL MPN. Microdosing application and up to four self-cleaning cycles daily make it a low-maintenance solution for challenging site conditions. There is no UV or chlorination. It is a plug-and-play system out of the box, making it ideal for designers, installers and maintenance professionals. It is currently approved in several western states. 877-476-8823; www.oscaronsite.com

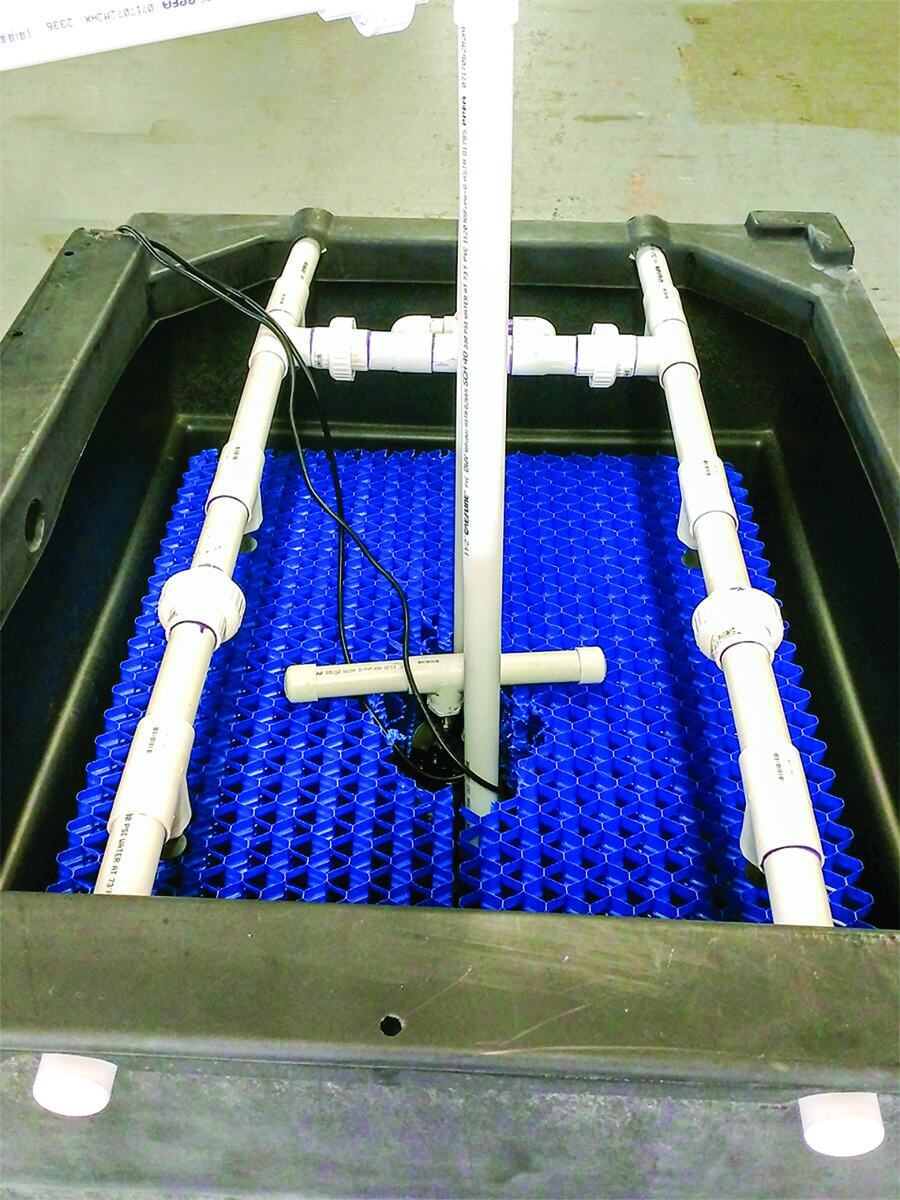

SeptiTech STAAR
Offices, schools, restaurants, residences, subdivisions and any other type of facility that is not connected to a central sewer need their own wastewater treatment systems to handle the highly varied wastewater characteristics generated by the different activities within each. SeptiTech STAAR is a PLC-controlled onsite wastewater treatment system for residential and commercial (500 to 200,000 gpd) applications. All below-grade components can be installed in most plastic, concrete or fiberglass tanks. Customized treatment programming designed to meet individual site needs assures robust, consistent, reliable treatment. Certified to ETV, NSF-40, and NSF-245 standards, conventional treatment achieves 98% BOD5 and TSS removal, and for the nitrogen reduction option, nitrogen can be reduced by 75 to 85%. All systems include internal discharge pumps and a control panel that tracks 90 days of flow. 800-753-3278; www.septitech.com
Aeration Systems

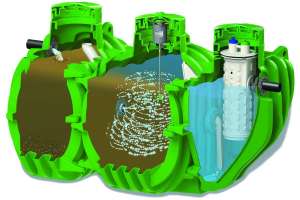

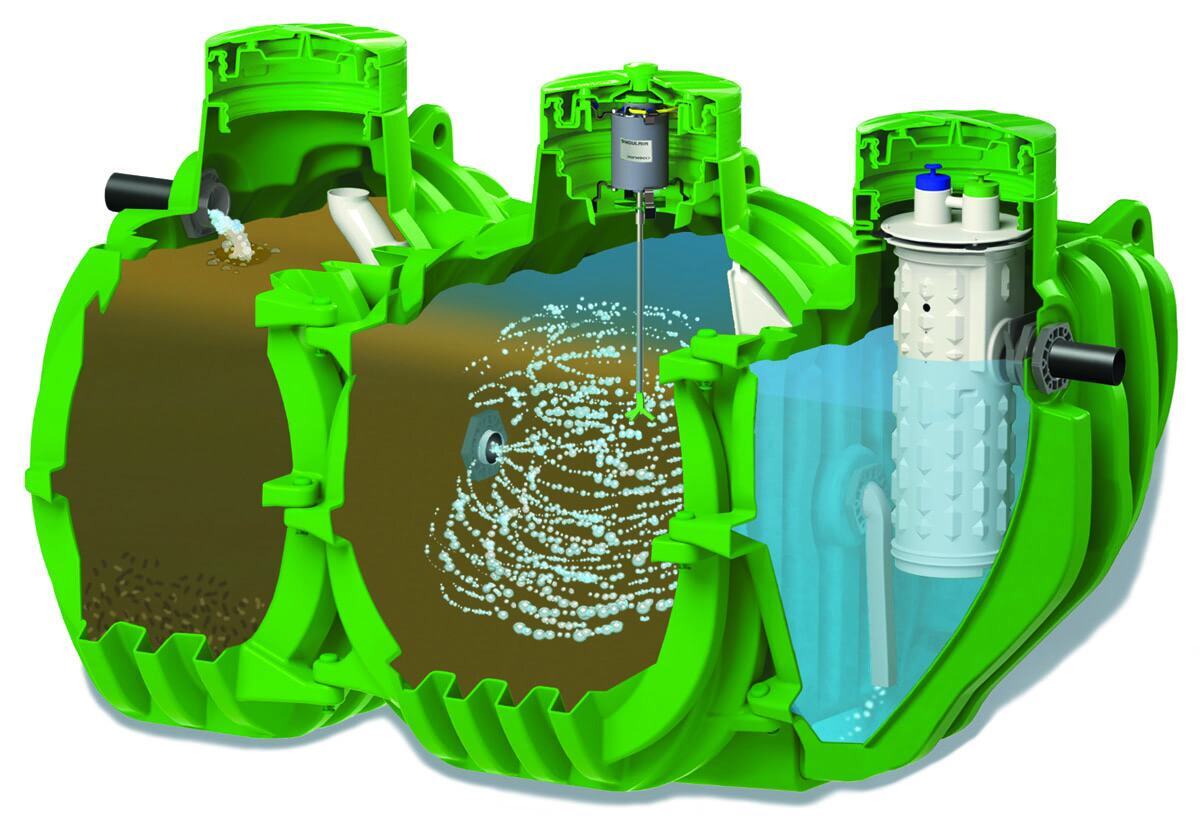

Norweco SingulairModel 225L
Norweco’s Singulair Green HDPE and Singulair concrete advanced treatment units are available with the Model 225L low-profile aerator. Based on Norweco’s 206C aerator, the Model 225L low profile aerator features a modified bracket design, lifting handle and aspirator shaft, allowing for a 6-inch reduction of the height of the risers over the Singulair systems. This makes it an ideal option for projects in areas with high water tables or similar challenges that necessitate a shallow burial depth. The Model 225L low-profile aerator is engineered to be a dependable and energy-efficient air delivery system. Because Singulair’s ANSI/NSF certifications require the low-profile aerator to be in operation only half the time, it has a long operational life. 419-668- 4471; www.norweco.com
Aerobic Treatment

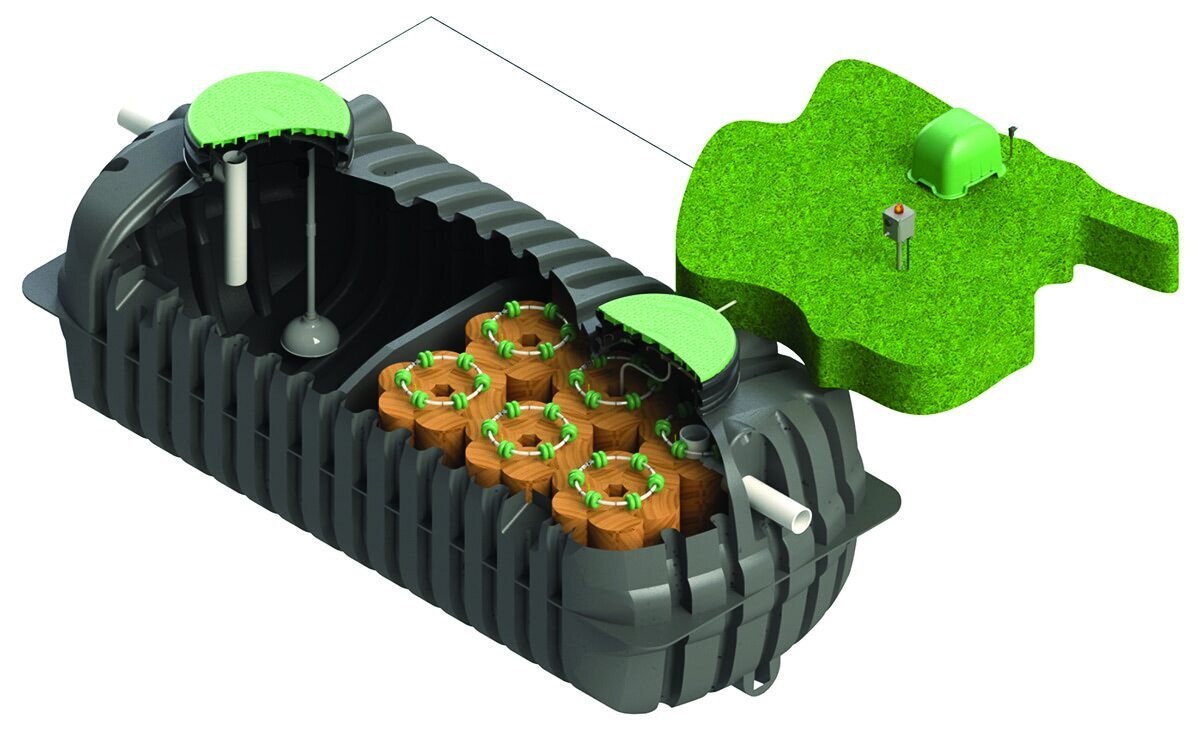

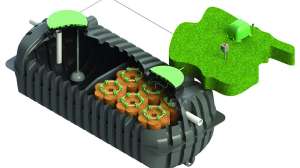

Aero-Stream NSF 40Aerobic Treatment Units
NSF 40 Aerobic Treatment Units from Aero-Stream provide a simple and robust design achieving 26 week average of 11.39 mg/L CBOD5 and average 5.00 mg/L TSS from startup. These systems provide massive surface area on the Bio-Brush for an attached growth extended aeration process. The products are designed to fit in locally available tanks, reducing lead times and transportation costs. The simple-to-install systems require minimal maintenance. The air compressor is a corded UL-listed outdoor appliance that plugs into a standard 115-volt AC power outlet. The Aero-Alert alarm system requires no high-voltage wiring and operates on a self-contained power cell, reducing installation costs. Models are available from 450 to 1,500 gpd treatment capacities in single to multicompartment applications. 877-254-7093; www.aero-stream.com

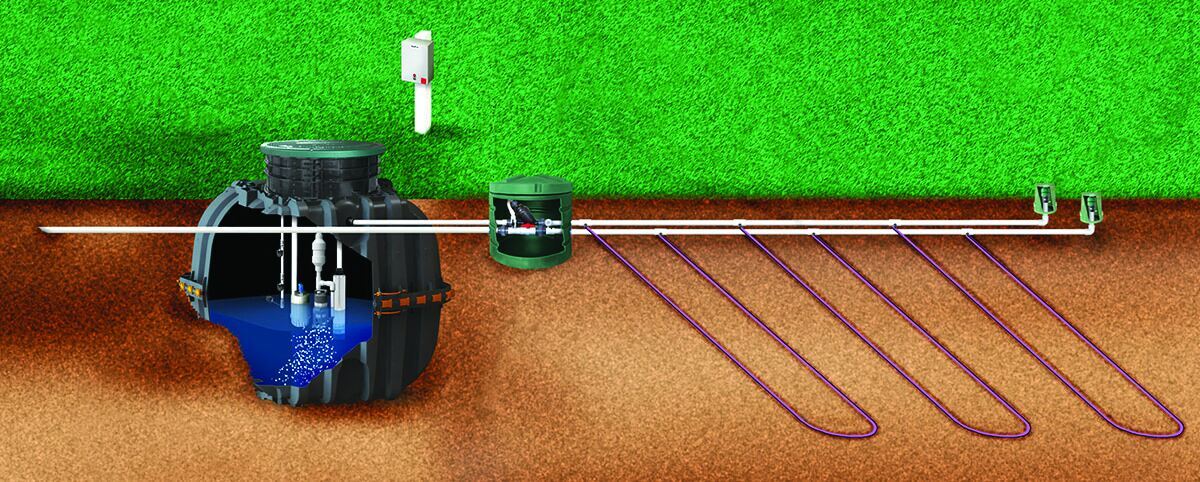

Anua PuraSysSBR to Geoflow
Anua’s PuraSys SBR to Geoflow system seamlessly delivers advanced aerobic treatment and subsurface drip dispersal in an all-in-one treatment reactor and dripfield pump tank. The PuraSys SBR transforms a standard septic tank into a compact nitrogen-reducing treatment unit ideal for small lots and space-constrained sites. The Smart Control Panel batches cycles to adapt aeration to actual flow, reducing energy use while optimizing treatment and dispersal. Treated effluent is dispersed through Geoflow subsurface drip irrigation which provides the lowest profile and the most efficient way to apply effluent to the soil. The smart panel has auto filter and auto field flush modes and up to four manual zones. Real-time alerts for water levels, pump, or aerator issues are standard features. This fully integrated system is perfectly suited and adaptable for residential and commercial properties of all types. 336-547-9338; www.anua-us.com

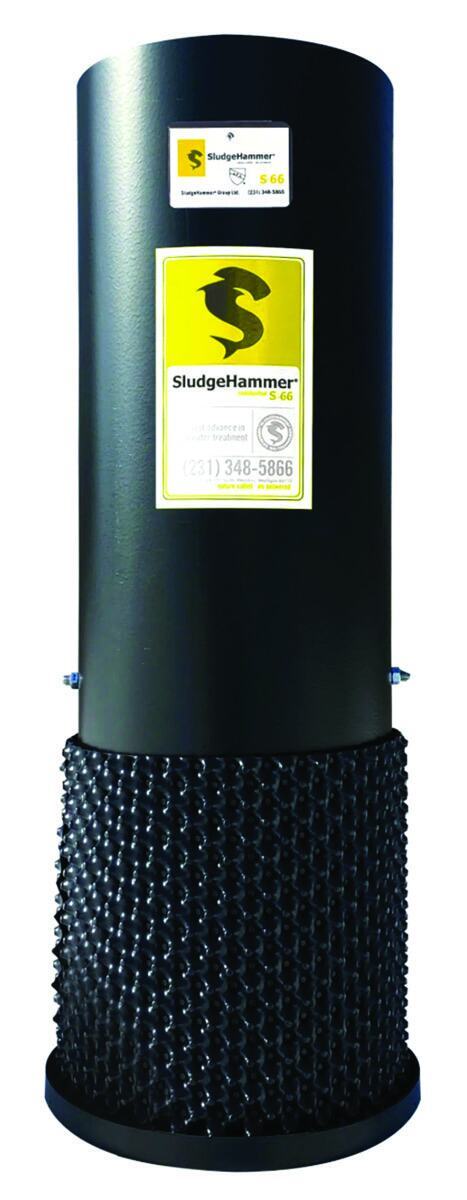

SludgeHammer S-66 SlimAerobic Bacterial Generator
Engineered for homes with up to four bedrooms and narrow septic tank access, the SludgeHammer S-66 Slim Aerobic Bacterial Generator offers an environmentally responsible solution for restoring and preserving septic system health. Designed to retrofit easily into existing infrastructure, it revitalizes failing leachfields, extends the life of new systems, and minimizes environmental disturbance – all without excavation or landscaping reconstruction. At the heart of this system is the SludgeHammer Blend – a scientifically advanced consortium of oxygen-loving bacteria that amplify organic waste digestion and manage clog-forming biomat. By maintaining aerobic conditions in the septic environment, it supports natural soil absorption and long-term groundwater protection. 231-348-5866; www.sludgehammer.net
Nitrogen Reduction Systems

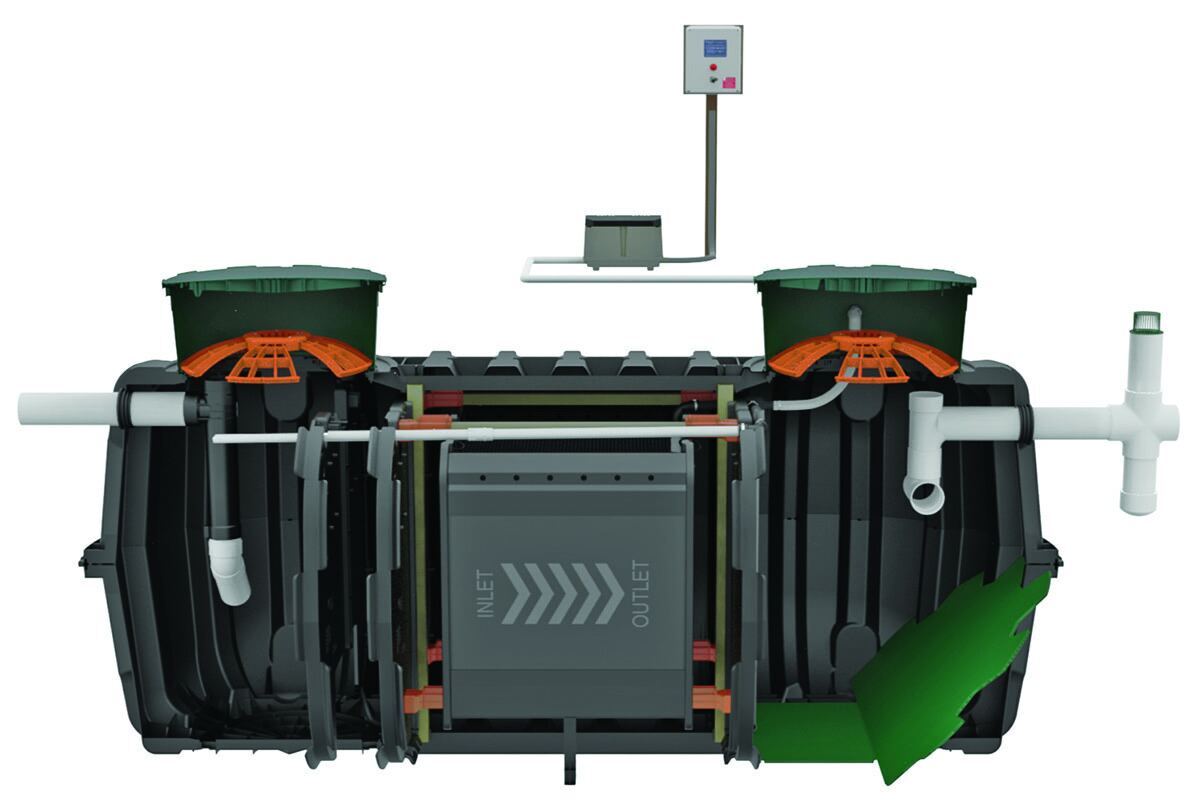

Infiltrator WaterTechnologies ECOPOD-Edge
The ECOPOD-Edge from Infiltrator Water Technologies addresses concerns about nitrogen pollution in groundwater and surface water, particularly in sensitive regions across the U.S. Its advanced fixed film wastewater treatment technology offers efficiency and a space-saving design. The system significantly reduces nitrogen levels ensuring cleaner water resources, promoting environmental sustainability, and improving water quality for communities. It is engineered to deliver exceptional treatment performance with a smaller system footprint and minimal maintenance. It is certified under NSF/ANSI Standard 40 and 245, it produces an average effluent quality of 9 mg/L CBOD, 8 mg/L TSS, and 11 mg/L Total Nitrogen (79% reduction). It is housed within the durable CM-1060 tank, ensuring long-term reliability and structural integrity. The combination of high nitrogen reduction and robust construction makes it an ideal solution for residential applications. 800-221-4436; www.infiltratorwater.com
UV Disinfection
Polylok PL-UV1 UV Disinfection Unit
The PL-UV1 UV Disinfection Unit from Polylok reduces bacteria levels from secondary effluent to meet strict water quality standards. Components of the compact unit are engineered and constructed to provide reliable disinfection and long operational life, according to the manufacturer. It has a dual-pass design, a long-life UV bulb, weatherproof electrical components and no chemical residual or harmful byproducts. It is easy to install and operate and uses little electricity. Rates for gravity flow only are 100 through 8,640 gpd, with 100 through 4,320 gpd with 30 mg/L BOD and 30 mg/L SS, and 4,321 to 8,640 gpd with 10 mg/L BOD and 10 mg/L SS. It offers a UV dose greater than 40,000 microwatt-seconds per square cm at 254 nanometers, with transmissivity of 65%. 888-765-9565; www.polylok.com
