Effluent Pumps

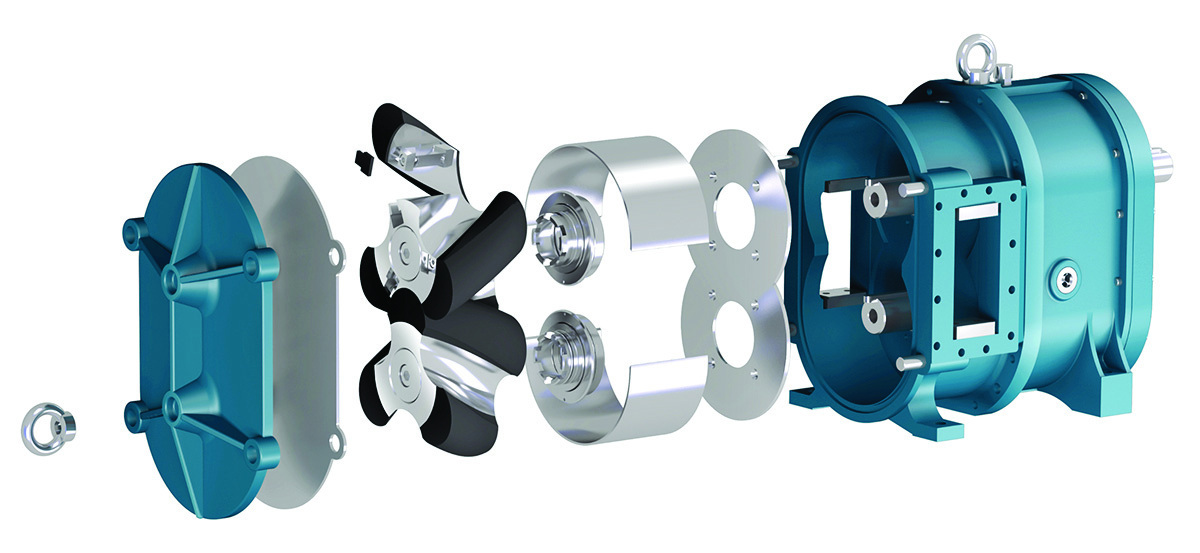

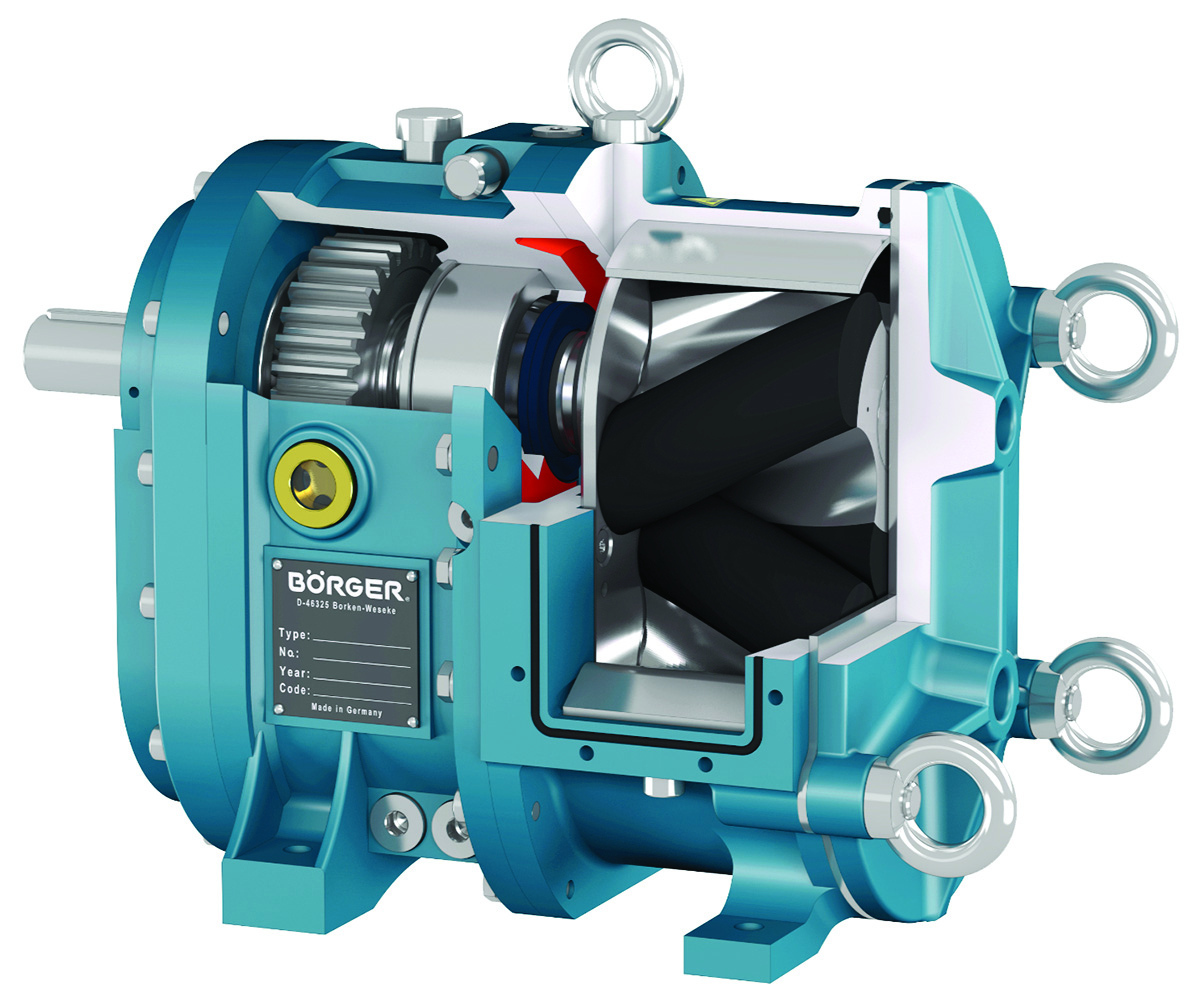

Boerger BLUEline

Boerger BLUEline rotary lobe pumps are self-priming, valveless positive displacement pumps used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com

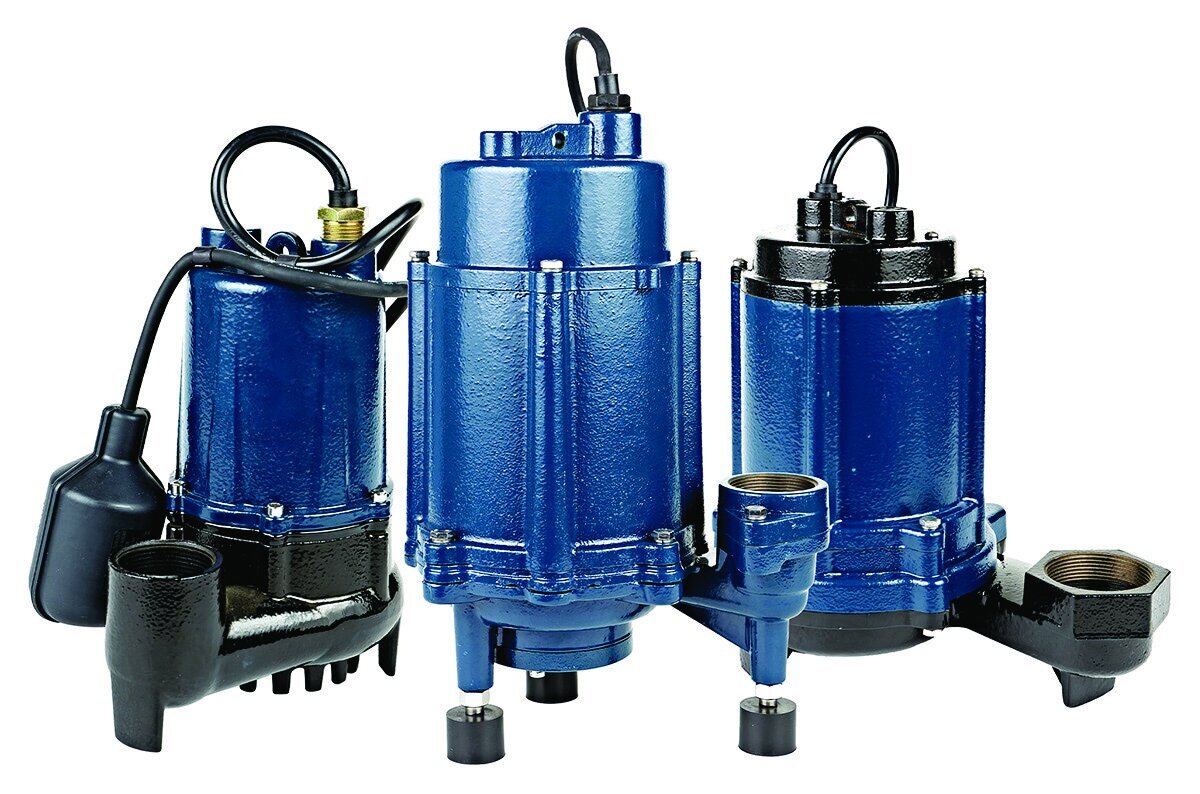

Franklin Electric FPS

Franklin Electric FPS wastewater pumps are designed for transfer or removal in sump, effluent or sewage grinding applications. The offering includes three new models: FBSE33, a sump and light effluent pump that includes a cast iron impeller capable of handling wastewater or solids up to 3/8 of an inch; FE50HH, a 1/2 hp effluent pump with 3/4-inch solids handling capability with 30- and 50-foot cord options available; and FG100, a 1 hp grinder pump designed to perform in applications up to 50 feet of total dynamic head or 50 gpm. Each pump features an epoxy-coated cast iron impeller to move wastewater quickly and efficiently. A durable cast iron motor housing keeps output high while reducing the pump’s running temperature for longer life. 260-824-2900; www.franklinwater.com

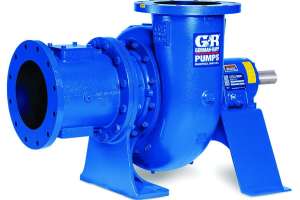

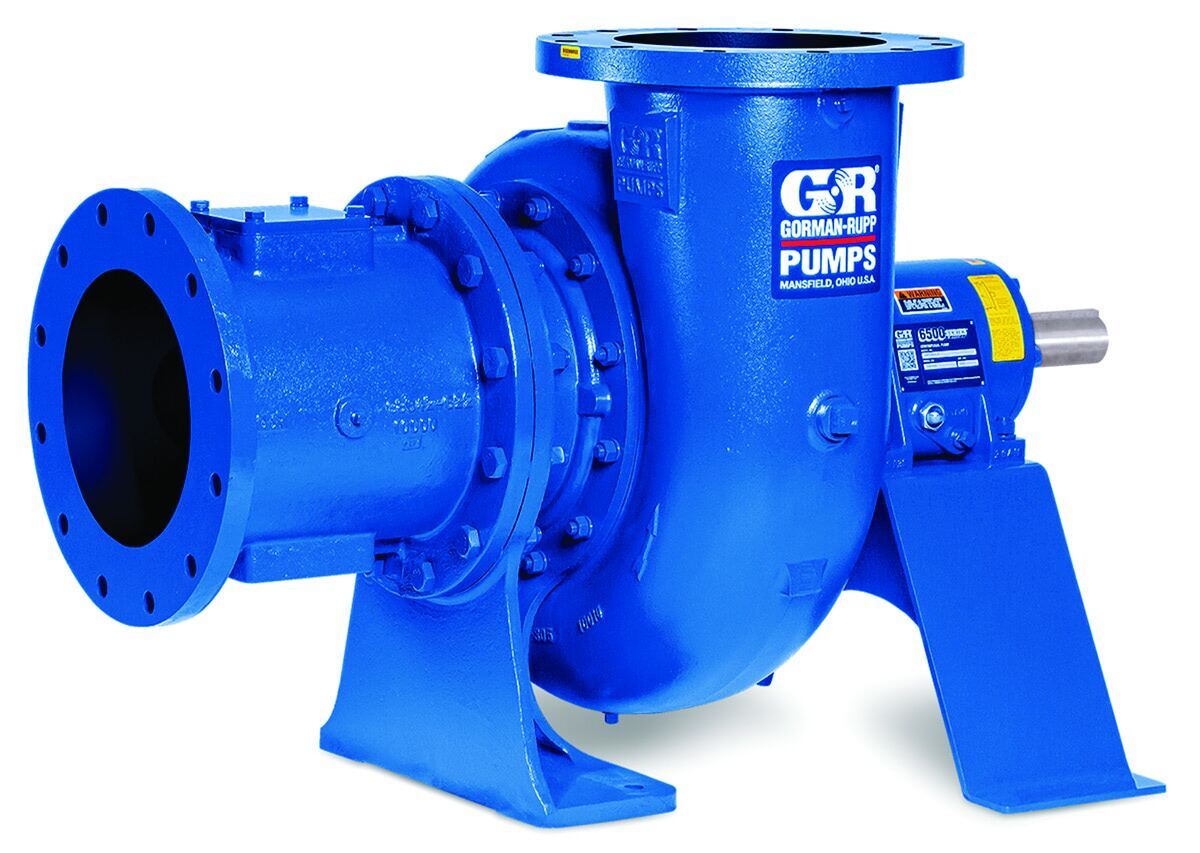

Gorman-Rupp 6500 Series

Gorman-Rupp’s line of 6500 Series end suction centrifugal pumps is based on the Prime Aire and Prime Aire Plus models. Featuring pump sizes from 3 to 16 inches, flows to 15,400 gpm, total dynamic head to 540 feet and solids handling capabilities up to 4 inches, these pumps provide a high level of performance and efficiency for applications in wastewater treatment, industrial, construction, mining and agricultural applications. They are available in solids- and clean liquid-handling models and come with oversized bearings, an atmospheric vent, a side access inspection port (on solids-handling models) and the indexable Smart Scroll discharge locator. 419-755-1011; www.grpumps.com

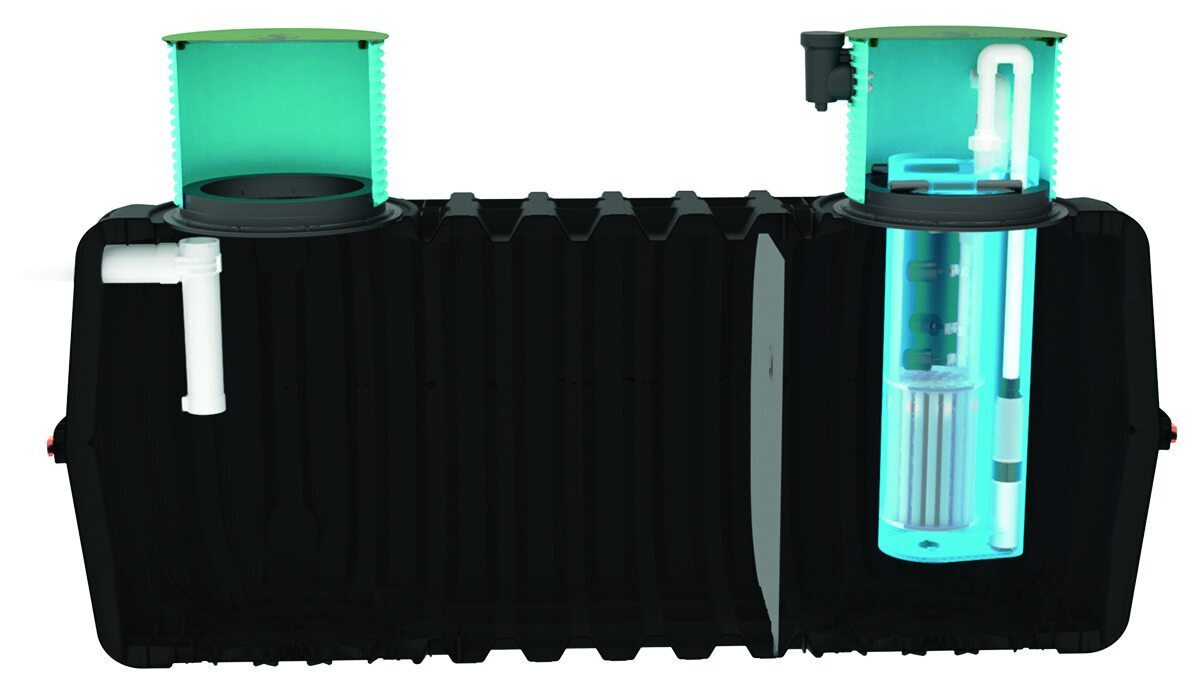

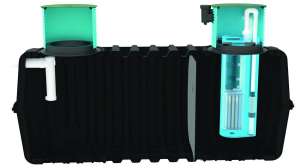

Infiltrator ProSTEP

The integrated Infiltrator ProSTEP package combines the Orenco ProSTEP unit with an Infiltrator tank to deliver an efficient, pressurized, liquid-only sewer system for onsite wastewater collection and treatment. This advanced effluent pumping system offers a range of pump packages fully integrated that install neatly into tanks, saving time and money. The tanks are strong, 100% watertight and available in 540-, 1,000-, 1,250- and 1,530-gallon sizes, making this system adaptable to various site conditions. The Biotube filter provides greater capacity, removing two-thirds of suspended solids thereby safeguarding lines, drainfields and treatment systems to extend the life of downstream components. Pumps offer a 25-plus year life with routine cleaning, minimum 24-hour run-dry capability and low power costs. An easy access design, quick-release float stems and adjustable collars make maintenance simple and efficient and options for 24/7 advanced monitoring are available. 800-221-4436; www.infiltratorwater.com

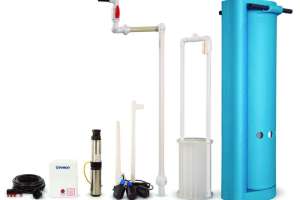

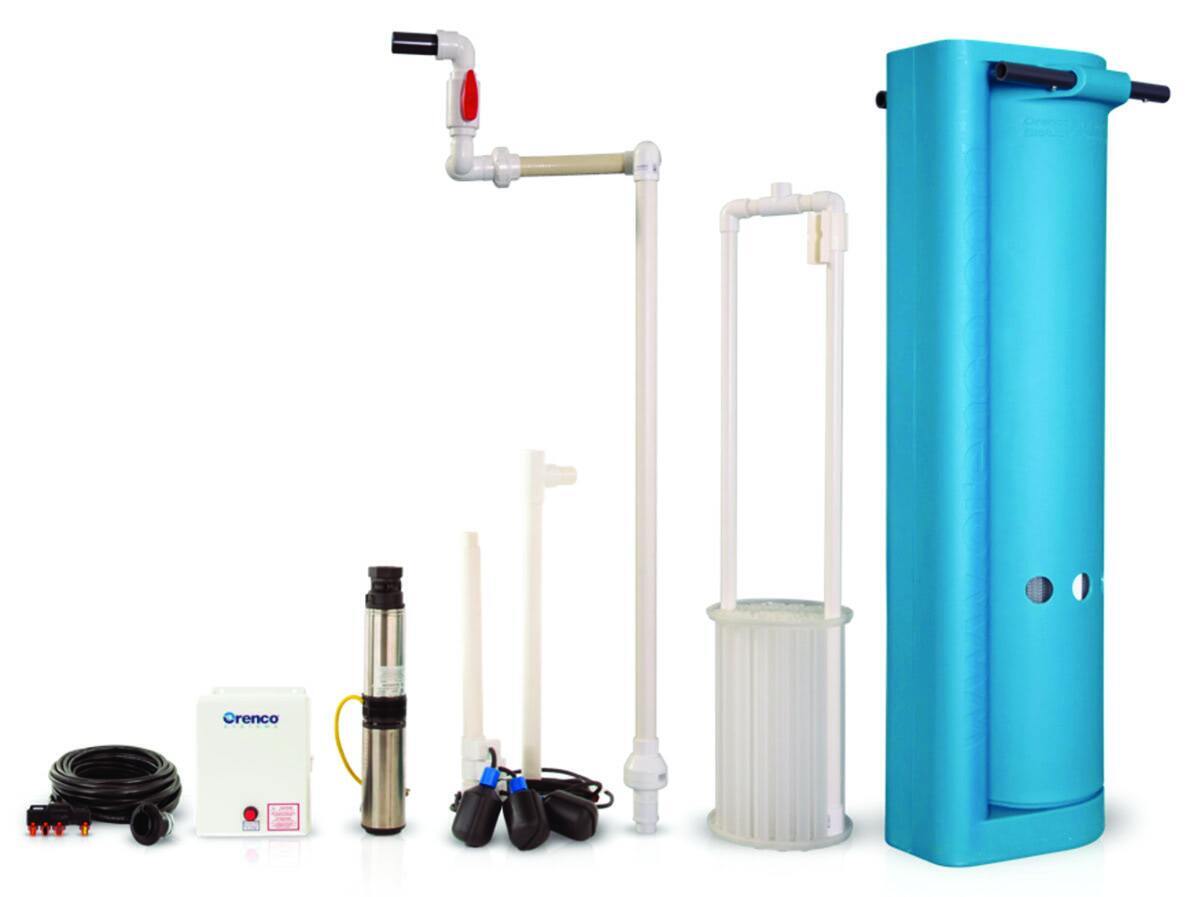

Orenco Biotube ProPak Pump Package

Orenco’s Biotube ProPak Pump Package is a complete, integrated pump package for filtering and pumping effluent from septic tanks or pump tanks. It’s designed to filter and pump effluent to either gravity or pressurized discharge points, and its unique pump vault technology eliminates the need for separate dosing tanks. The package includes a stainless steel 4-inch turbine effluent pump, 60 or 50 Hz operation, with 10, 30 or 50 gpm versions available; pump vault and filter constructed of polyethylene and PVC; and 1/8- or 1/16-inch filter mesh. The package handles 14.5 square feet total filter surface area with a maximum flow rate of 140 gpm. Options include a float switch assembly and float switches, ClickTight connection system and a demand-dose, analog timed-dose or digital timed-dose control panel. 800-348-9843; www.orenco.com

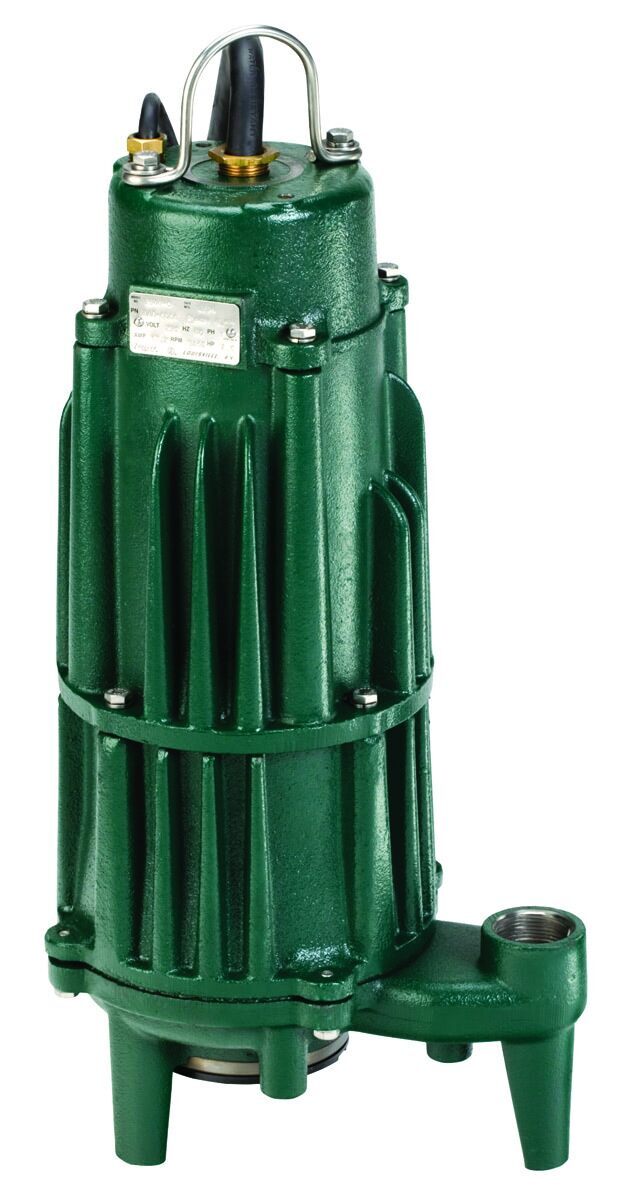

Zoeller Pump 840 Reversing Grinder Pump

The 840 Reversing Grinder Pump from Zoeller Pump changes cutter rotation with every pump cycle, alternating between clockwise and counterclockwise to minimize the risk of stringy materials wrapping around the cutter. This feature extends the life of the cutter assembly and keeps the system running smoothly. Designed for versatility, it features a 1 1/4-inch NPT discharge that allows for both vertical and horizontal installations. Its rugged, finned cast iron construction and corrosion-resistant, powder-coated epoxy finish deliver lasting durability in demanding environments. The oil-filled, hermetically sealed motor is built with Class F insulation, thermal protection, leak detection and dual shaft seals for reliable operation and enhanced motor life. Plus, compatibility with competitor rail systems makes it a smart, adaptable solution for new or retrofit installations. 800-928-7867; www.zoellerpumps.com

Pump Control Panels

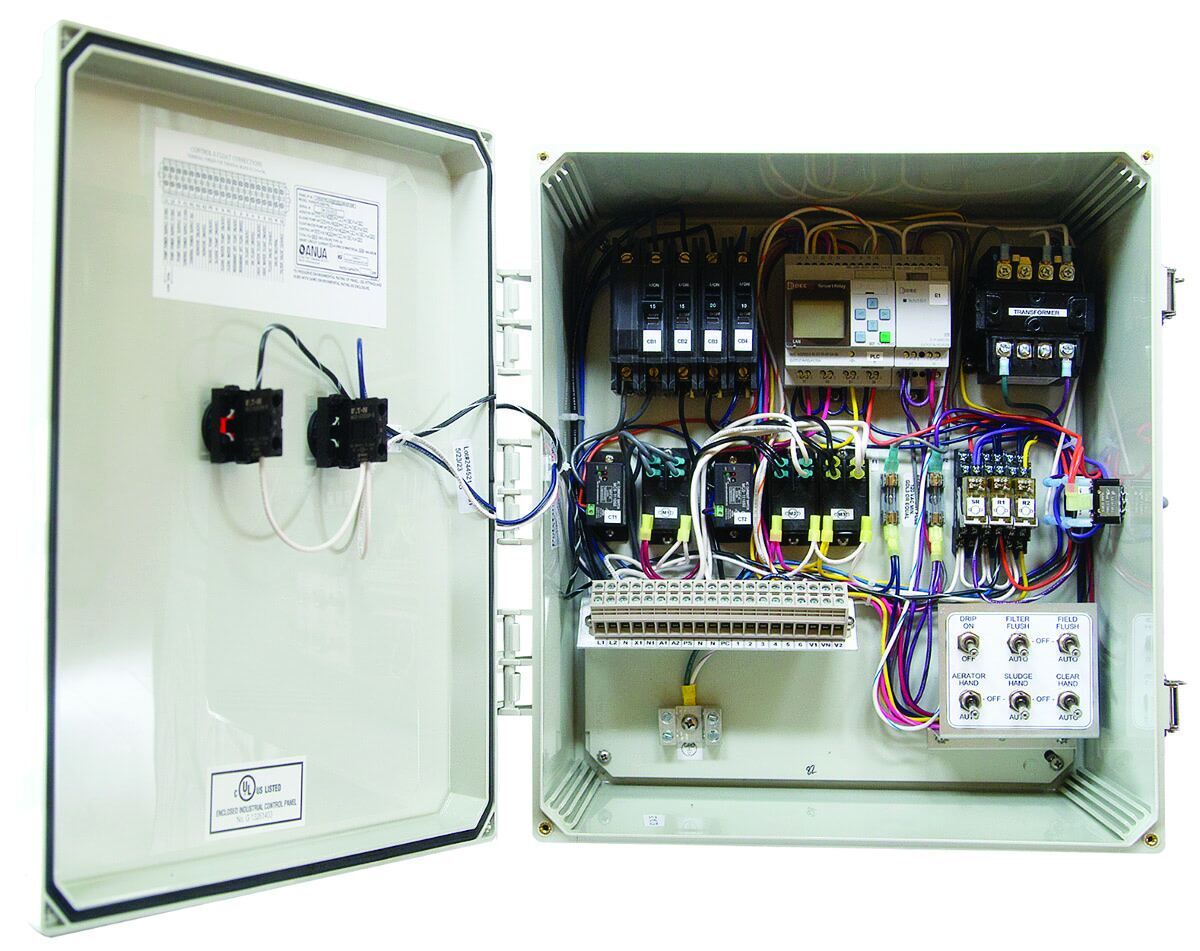

Anua Smart Panel for PuraSys to Geoflow Drip Controller

Anua’s Smart Panel for PuraSys to Geoflow Drip Controller integrates treatment and drip dispersal into one seamless system, reducing complexity and installation time. By managing both functions, it eliminates the need for multiple panels, lowering upfront costs and minimizing maintenance. The panel offers flexible dispersal options, pumping treated effluent to gravity or drip dispersal. It also can dose up to four zones using a hydraulic zone valve and controls automatic filter and field flush for drip dispersal. Additional features include real-time alarms for high and low water levels as well as alerts for pump and aerator failures, ensuring quick issue detection and response. This user-friendly, all-in-one solution streamlines operations, enhances reliability and improves system performance. 336-547-9338; www.anua-us.com

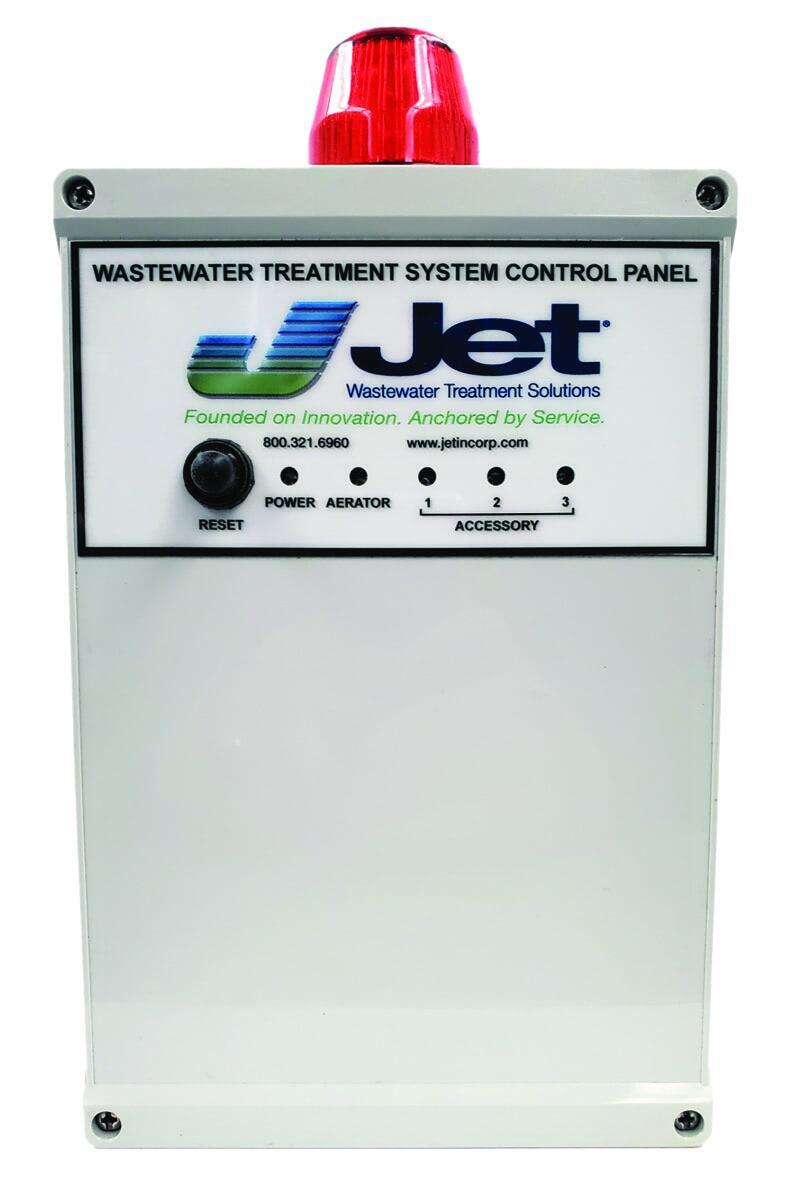

Jet Inc. Model 197

The Model 197 control panel from Jet Inc. monitors the operation of the Jet Inc. treatment system aerator and additional components. It can monitor single- or dual-aeration systems with selectable high- and low-amperage monitor settings. The panels have dedicated alarm and control circuits with separate power circuits for aeration devices. A signal array includes a power indicator LED and four additional equipment alarm indicator LEDs. The integrated alarm buzzer has an output for an optional remote-mounted audible alarm. An external reset switch and internal master reset switch are standard. The panel also has dry contacts for an alarm mode autodialer or Jet Wi-Fi control interface, NEMA 4X enclosure and primary circuit fuse. 800-321-6960; www.jetincorp.com

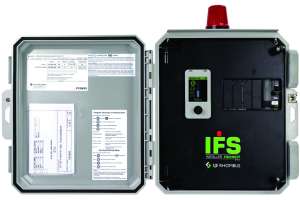

SJE Rhombus IFS Single Phase Simplex

The IFS Single Phase Simplex control panel from SJE Rhombus is built around an innovative circuit board and protected by a touch‑safe housing, operating a single 120/208/240-volt single‑phase pump while streamlining setup, operation and maintenance. A redesigned, easy‑to‑use color LCD mounted on the inner door provides intuitive programming and system monitoring, putting critical information and adjustments at your fingertips. The panel’s configuration can be converted in the field between demand dose and timed dose directly through the LCD interface, eliminating the need for separate models or complex rewiring. Available with the EZconnex float system, it simplifies installation and improves reliability in challenging environments. Whether you’re upgrading legacy controls or standardizing across new installations, this simplex panel delivers safety, usability and adaptability in a compact package. 888-342-5753; www.sjerhombus.com

Spray Irrigation Equipment

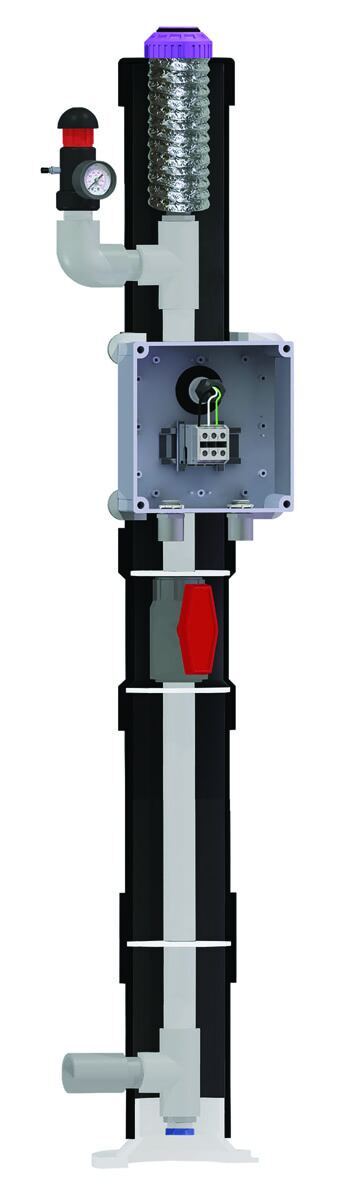

Norweco All-Season

Norweco’s All-Season spray irrigation system has been developed and tested to provide homeowners with a safe and convenient method of effluent disposal. Designed to maximize water reuse, spray irrigation is a simple and low-cost method of effluent disposal for properties with marginal soils and challenging topography. The system is specifically engineered to operate in even the harshest weather conditions, eliminating the need for unsightly sand mounds, direct discharge, drip irrigation or large absorption fields. Local distributors are factory trained and licensed to service every system to ensure it operates at peak efficiency. When properly designed, spray irrigation is cost-effective, dependable and beneficial to the environment. 419-668-4471; www.norweco.com

Submersible Pumps

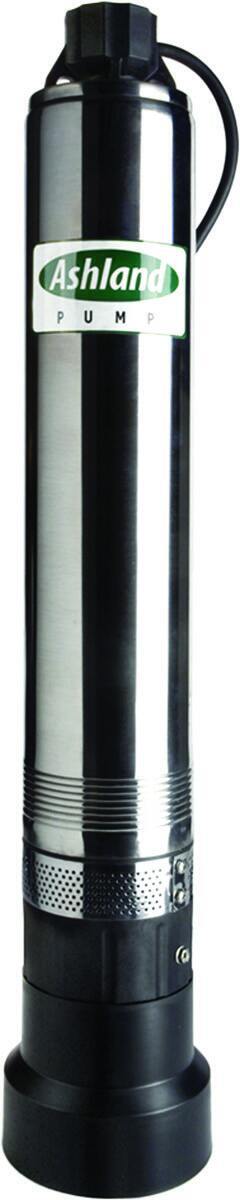

Ashland Pump 20CPM-115

The CPM-115 from Ashland Pump is a 1/2 hp, single-phase cistern pump optimized for filtered effluent, graywater, rainwater basins and water features. It employs a bottom-suction design to maximize drawdown and can handle solids up to 1/8 inch without damage. The pump is available in 10, 20 and 30 gpm flow rates, with both 115- and 230-volt options. Constructed with a heavy-duty discharge featuring stainless steel internal threads, it includes a 300-volt, 10-foot SJOOW-jacketed power lead. It delivers quiet operation, high shut-off pressure and mounts stably on a removable base. 855-281-6830; www.ashlandpump.com

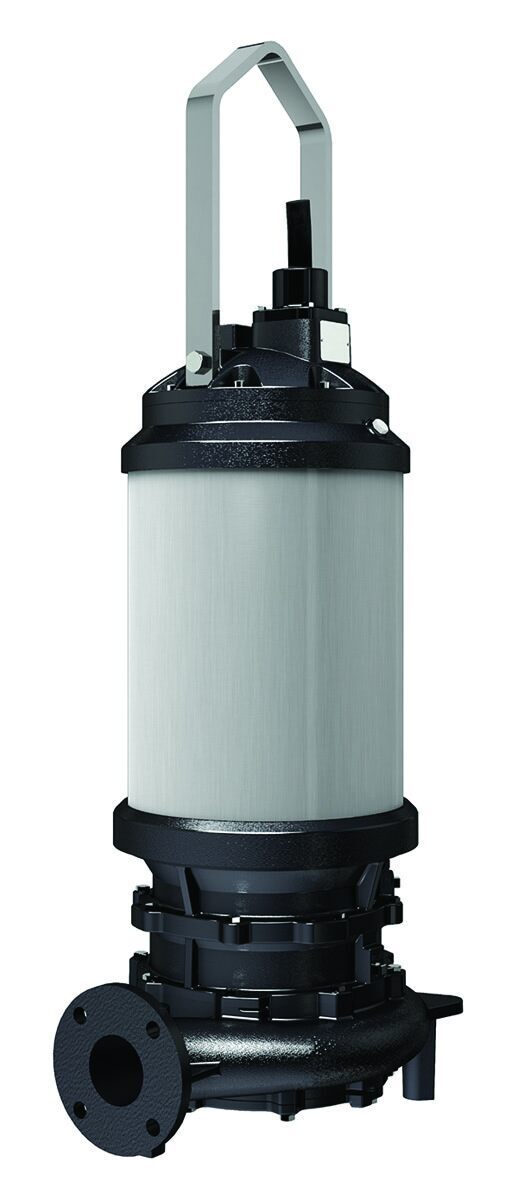

EBARA Pumps Americas DKE(X)U

The DKE(X)U submersible wastewater product line from EBARA Pumps Americas is engineered with improved hydraulics to offer state-of-the-art anti-clog performance and improved efficiency in tough operating conditions. Technical features such as semi-open backswept impellers, grooved suction covers, internal cooling system and IE3 efficiency motors make up a competitive class offering. In addition, these pumps offer discharge sizes or 2 to 10 inches, capacities up to 4,500 gpm and heads to 260 feet. Available in 2 to 60 hp, these units offer FM and FMc-certified explosionproof construction and dry-pit configurations, delivering reliable operation in hazardous and demanding environments. 803-327-5005; www.pumpsebara.com

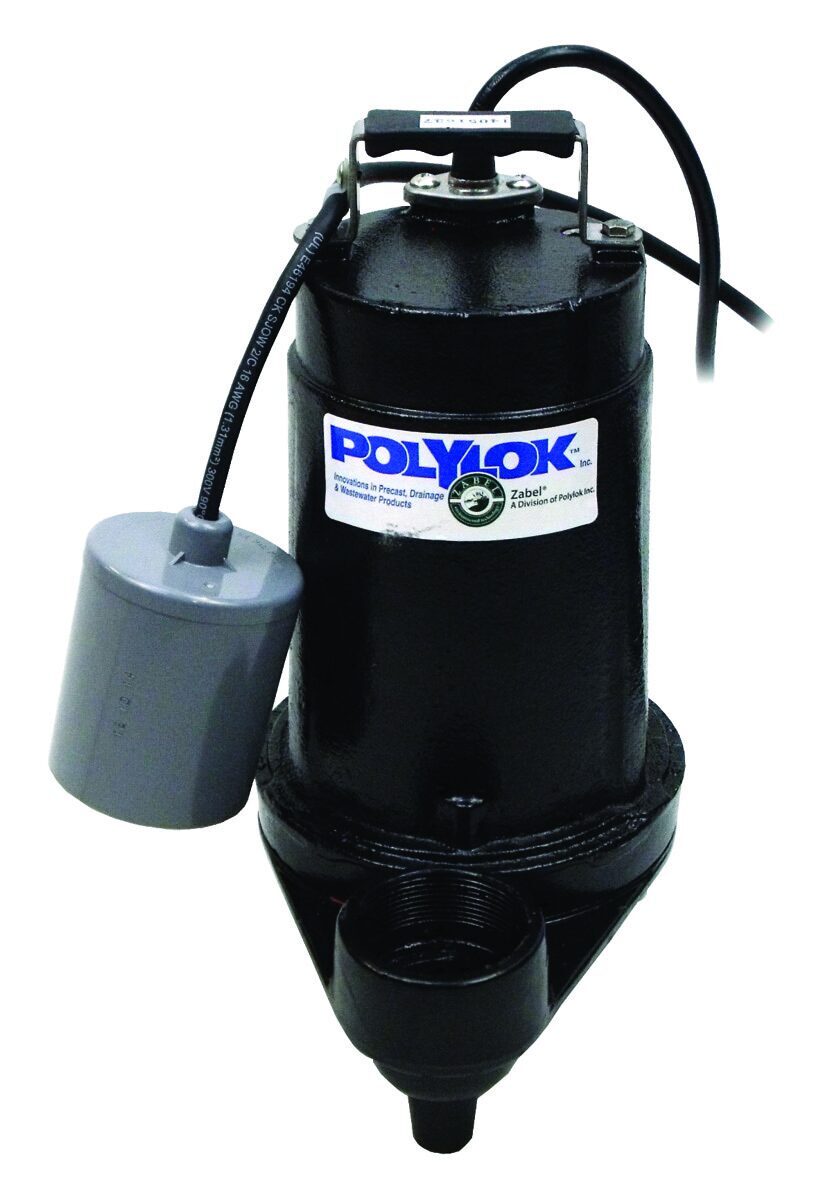

Polylok PL-CPE4A

The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a cast iron housing and volute with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com

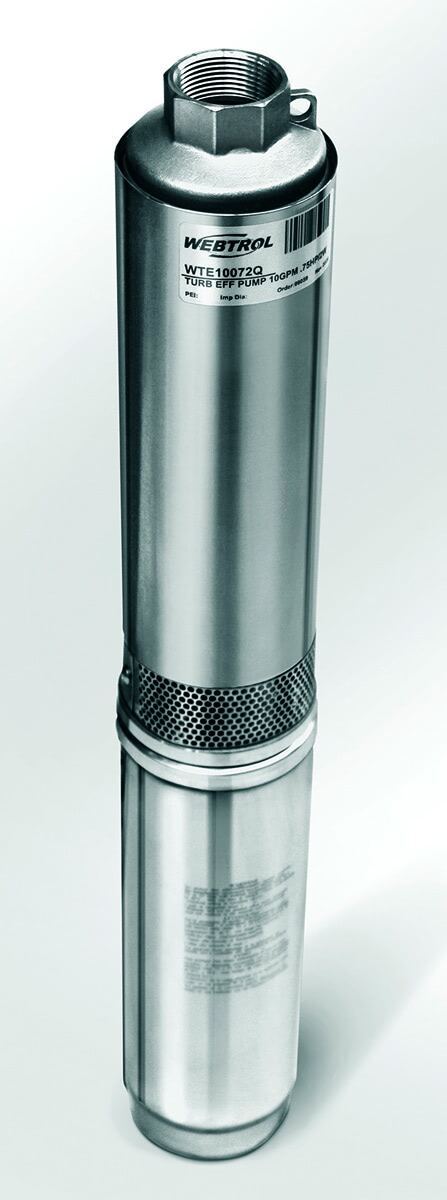

Webtrol WTE Series Submersible Turbine

Webtrol WTE Submersible Turbine pumps are designed to handle the toughest effluent applications. This product series typically services residential, commercial, agricultural and municipal applications. It is ideal for effluent distribution systems requiring higher heads such as drip systems. The pump is constructed from 304 stainless steel and uses glass-reinforced Noryl impellers. Its Floating Stack design helps fend off clogging. The series has capacities to 80 gpm, heads to 840 feet, is powered by 0.5 through 5 hp submersible motors and has discharge connections from 1.25- through 2-inch NPT depending on the model selected. 800-769-7867; www.webtrol.com

Wholesale Septic Supply ATER SK-20

The ATER SK-20 from Wholesale Septic Supply is a submersible effluent pump designed for septic, graywater or filtered effluent systems — especially where dependable fluid transfer is needed without large solids or heavy sludge. It’s a mid-suction design, meaning the intake is between the motor and pump end, which can help with stable flow and avoid clogging or re-priming problems when pumping filtered effluent or wastewater. It has a 0.5 hp submersible motor, available in either 115- or 230-volts AC depending on the version. It is rated for approximately 20 gpm under standard conditions, and includes a 1.25-inch female NPT discharge. Its outer shell is made of 304-grade stainless steel for high corrosion resistance, with internal wetted parts (diffusers, etc.) molded from durable, high-wear thermoplastic. A built-in check valve prevents backflow when the pump is off. It is able to pass solids up to about 1/8 inch without damaging the pump, making it suitable for filtered effluent that may contain small particulates. 936-681-8198; www.wholesalesepticsupply.com
