Alarm Systems/Components
Polylok 3014AB Filter Alarm (Smart Alarm)
The 3014AB Filter Alarm (Smart Alarm) from Polylok is a wired indoor/outdoor filter alarm providing audiovisual warnings notifying operators that a tank filter needs cleaning. The Smart Alarm Switch activates when the filter cartridge is near capacity (approximately 90% full) with solids. The Smart Alarm Switch installed in the filter sends a signal to the panel. It offers a manual alarm test switch and horn silence, an alarm horn rated to 82 dB at 10 feet, and 15 feet of cable with longer lengths available. 877-959-7751; www.polylok.com

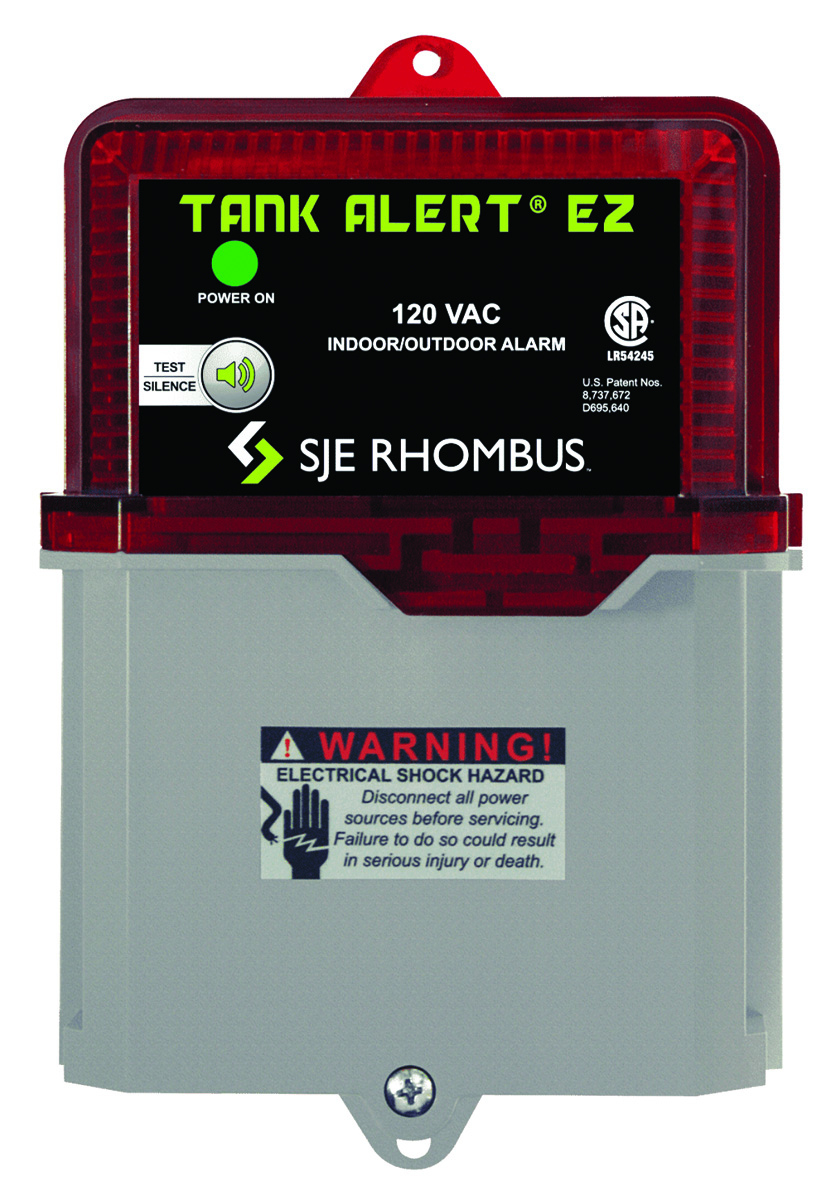

SJE Rhombus Tank Alert EZ
The SJE Rhombus Tank Alert EZ delivers straightforward installation and immediate awareness in a slim, modern package. Its two-color molded enclosure integrates a red translucent LED beacon for crisp visibility without bulky add-ons. When an alarm condition occurs, the upper half of the housing lights up and a horn sounds, providing clear visual and audible alerts. As soon as the issue clears, the alarm resets automatically, restoring normal status without manual intervention. For applications that require two distinct alerts, DUO models provide intuitive, color-coded indication: a red LED identifies Alarm 1 while an amber LED marks Alarm 2. This combination of simple setup, integrated lighting and automatic reset helps users recognize conditions quickly and act confidently. 888-342-5753; www.sjerhombus.com

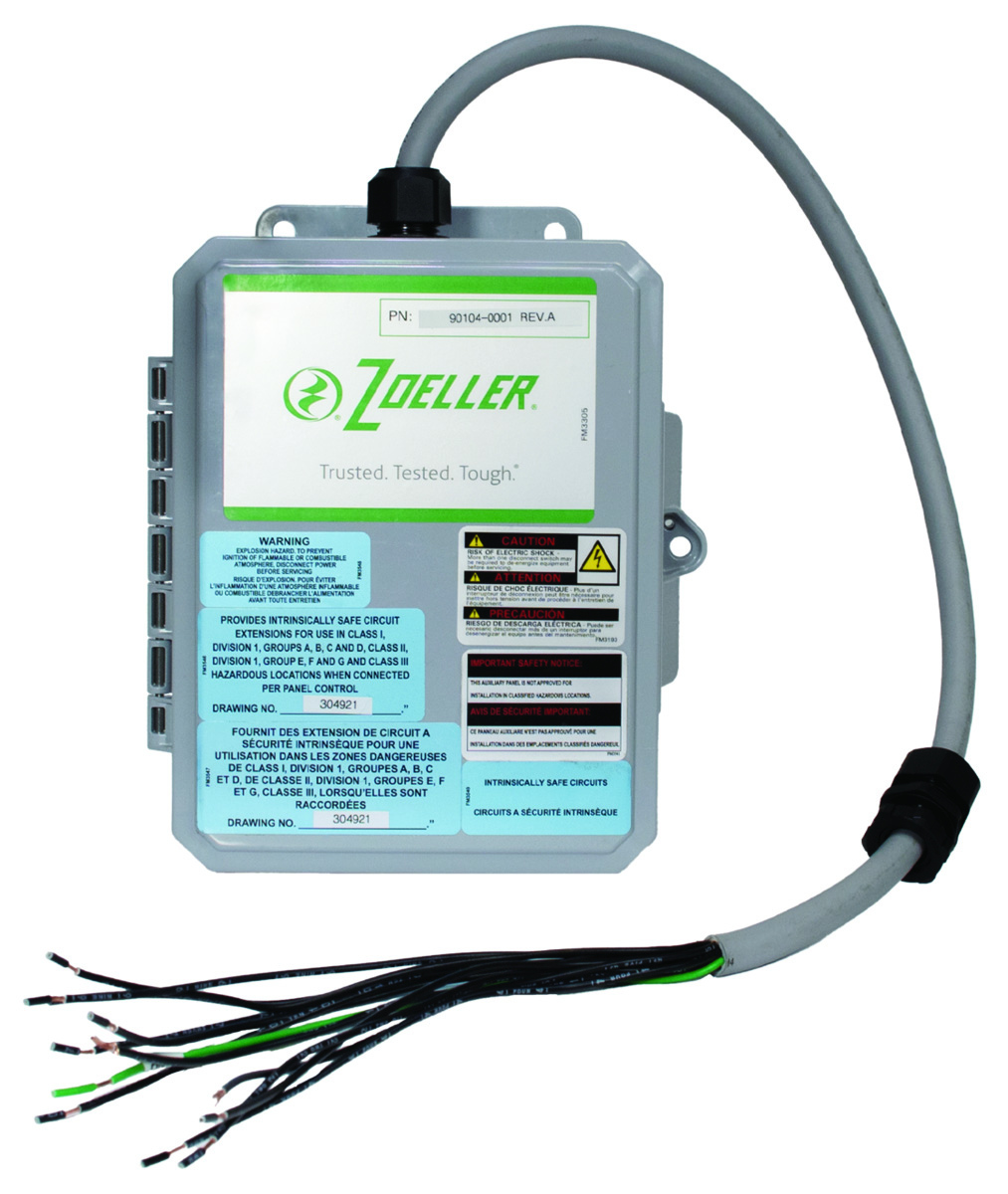

Zoeller Pump Pivot Pak IS
The Pivot Pak IS from Zoeller Pump is an independent accessory designed to reduce the float switch voltage to a level below the threshold for ignition, making any control panel installation intrinsically safe. The Pivot Pak IS not only upgrades Pivot Series control panels but also has the capability to convert other manufacturers’ standard panels into intrinsically safe systems, broadening its applicability. The upgrade can be performed post-installation, allowing existing systems to be enhanced without significant modifications or replacements.
800-928-7867; www.zoellerpumps.com
Pump Control Panels

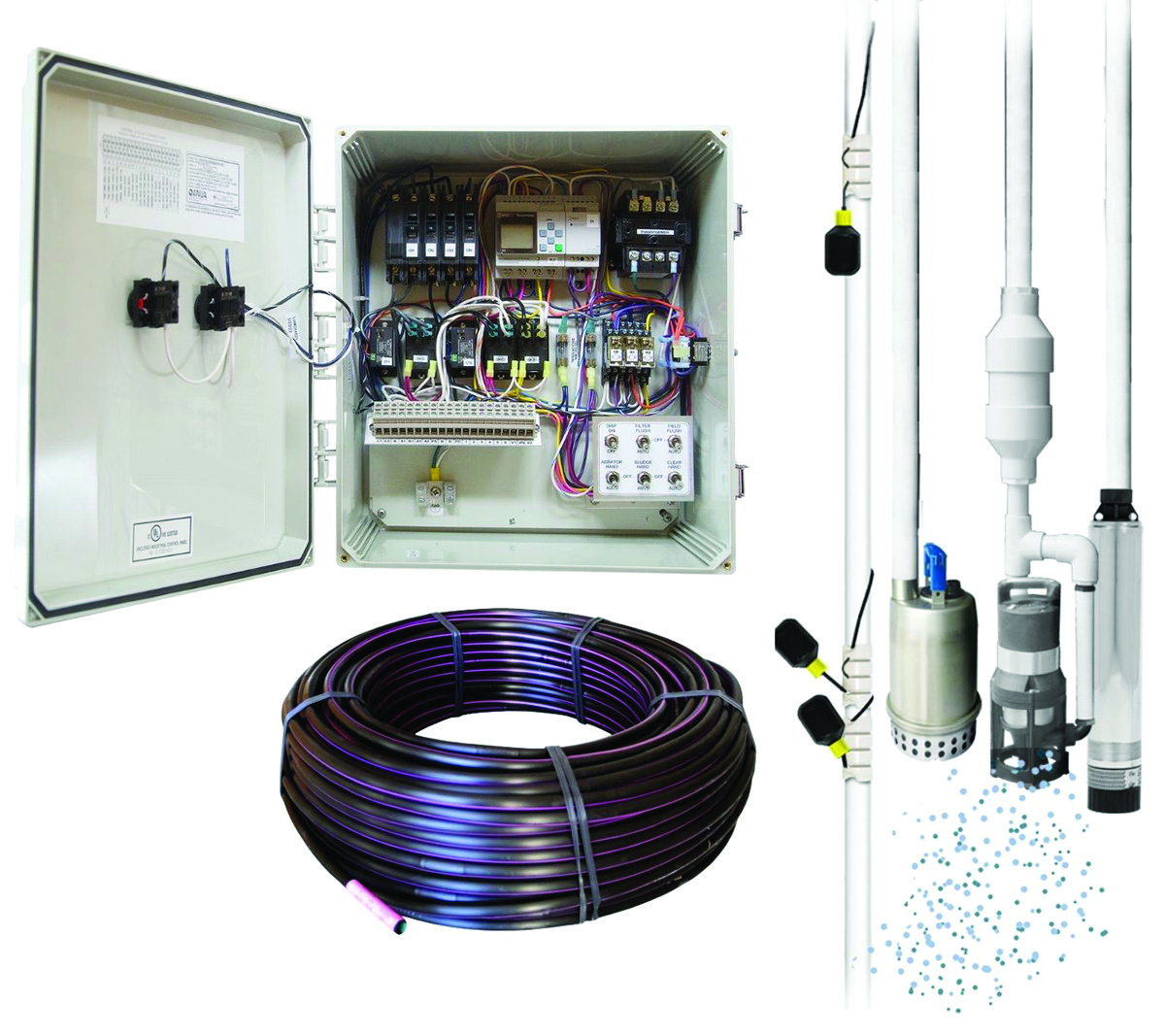

Anua PuraSys SBR to Geoflow
Anua’s PuraSys SBR to Geoflow drip tubing delivers advanced aerobic treatment and subsurface drip dispersal in an all-in-one treatment reactor and dripfield pump tank. The PuraSys SBR transforms a standard septic tank into a compact nitrogen-reducing treatment unit ideal for small lots and space-constrained sites. The Smart Control Panel batches cycles to adapt aeration to actual flow, reducing energy use while optimizing treatment and dispersal. Treated effluent disperses through Geoflow subsurface drip irrigation which provides the lowest profile and the most efficient way to apply effluent to the soil. The Smart Panel has auto filter and auto field flush modes and up to four manual zones. Real-time alerts for water levels, pump or aerator issues are standard features. This fully integrated system is perfectly suited and adaptable for all types of residential and commercial properties. 336-547-9338; www.anua-us.com

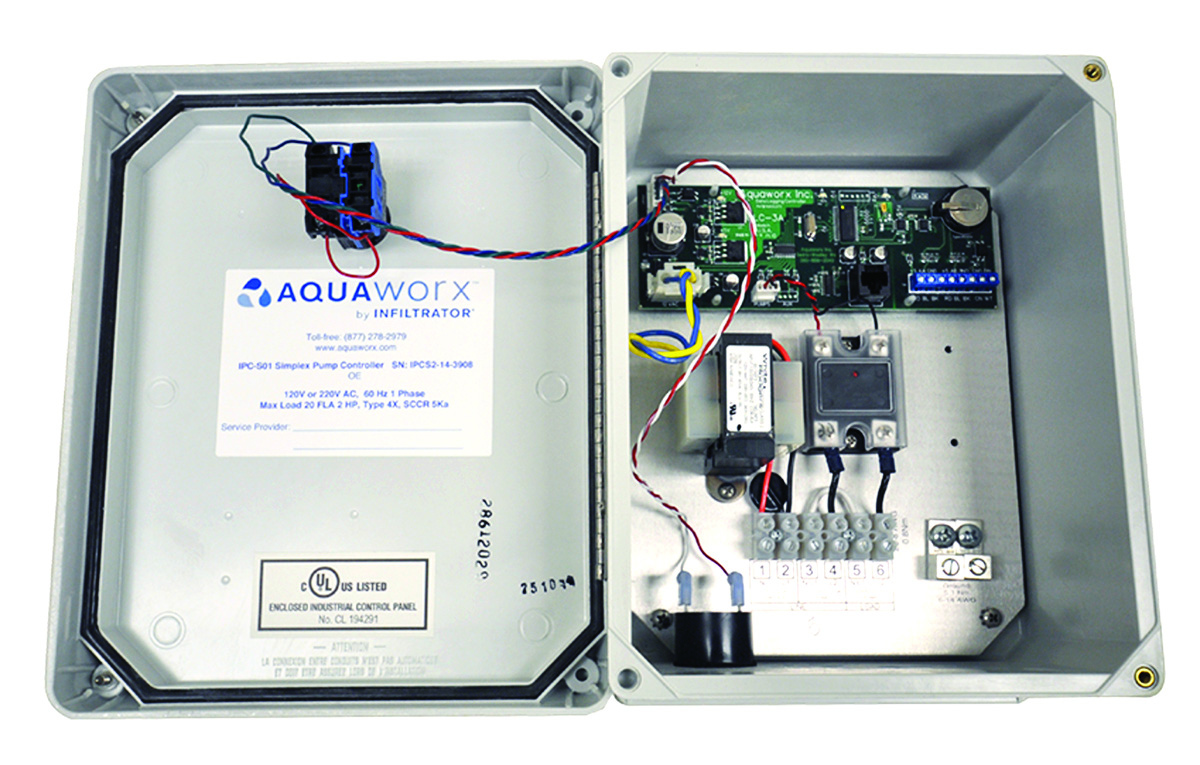

Infiltrator Aquaworx Intelligent Pump Control Panel
The Aquaworx Intelligent Pump Control Panel from Infiltrator offers precise, reliable data monitoring and logging and remote computer access. Easy to install and simple to use, it monitors system performance including tank levels and pump function in real time. It leverages pressure transducer technology and an embedded microcomputer for a clear picture of pump system performance and ease of troubleshooting with a step-by-step report of all events. The MARC controller provides easy access, and the Tapper creates an on-site Wi-Fi network. 800-221-4436; www.infiltratorwater.com

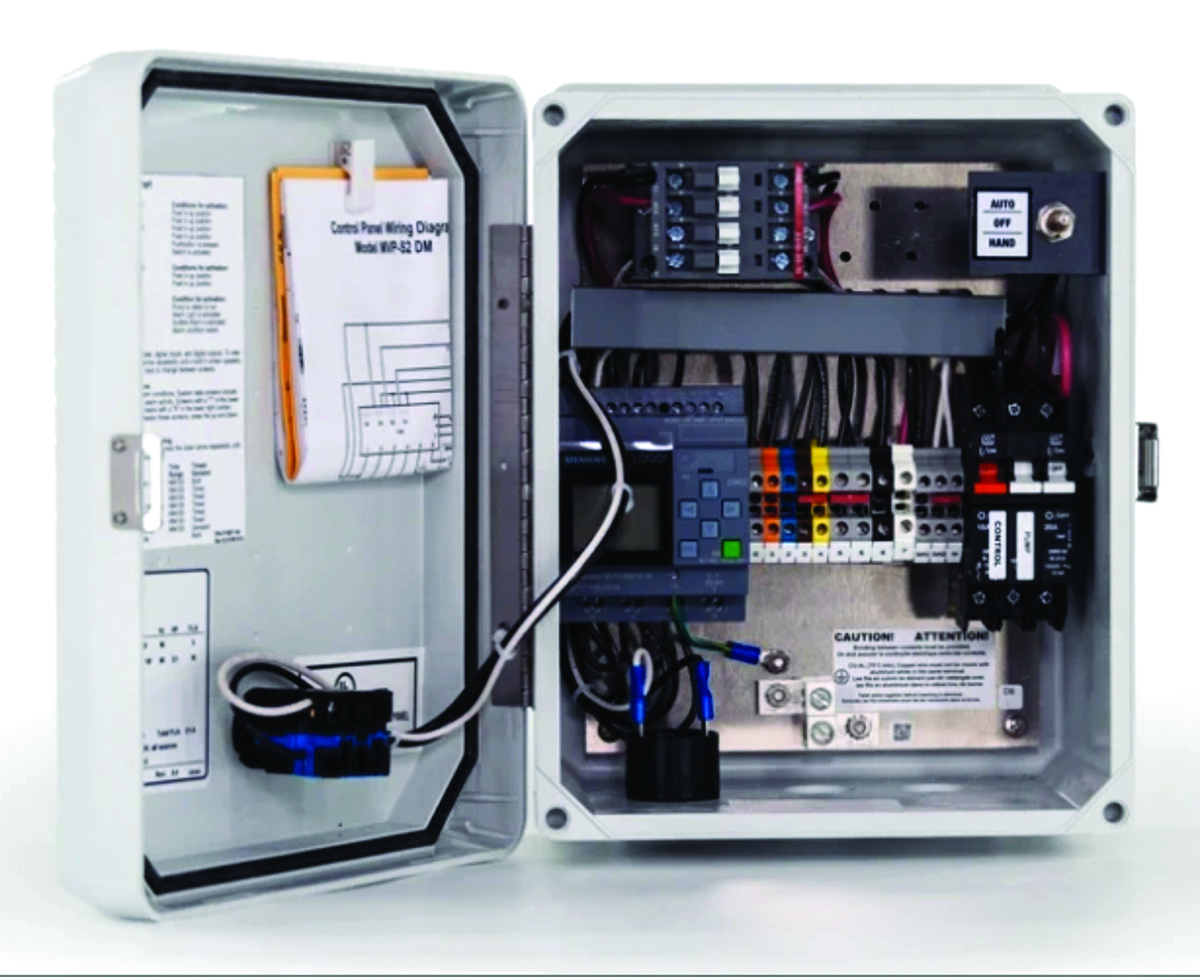

Orenco Controls MVPT-Series
The MVPT-Series control panel from Orenco Controls adds a touchscreen as a simple way to view and adjust a wastewater treatment system’s parameters. Digital and programmable, the easy-to-install panel gives you many functions as standard, including 120-volt AC controls and pump circuit breakers, control of two alternating pumps and alarm systems, dual-mode capability (on-demand or timed-dosed), elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions. Optional functions include intrinsically safe relays, a current sensor, heater, pump run light, power light and surge arrestor. The full-feature, budget-friendly panel is affordable and easy to implement while offering the full complement of options. 800-348-9843; www.orencocontrols.com

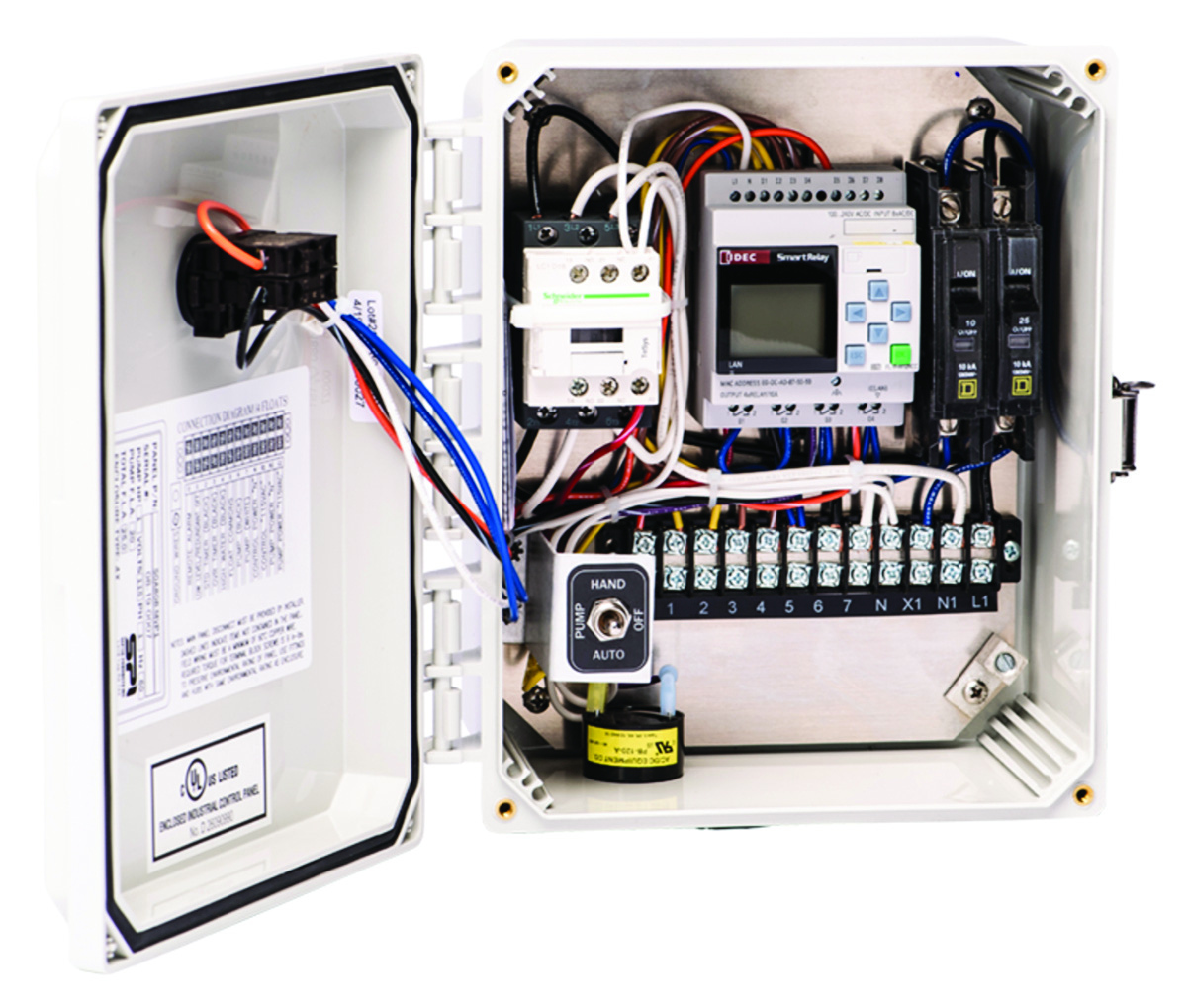

Septic Products 50A807B / Drip1-B
The 50A807B / Drip1-B panel from Septic Products is engineered to be the brain for a drip system. Utilizing a hardwired configuration and a PLC, this panel is very easy to install, maintain and troubleshoot. The PLC activates the pump cycles, flush valve and spin filter when called on. Standard features include elapsed time meters, cycle counters, peak time events, power failures and high level alarms. Other features include a NEMA 4X enclosure, large red alarm light, 90 dB buzzer, circuit breakers, HOA switches for pump and valve, and wiring to UL 508A specifications. 419-282-5933; www.septicproducts.com

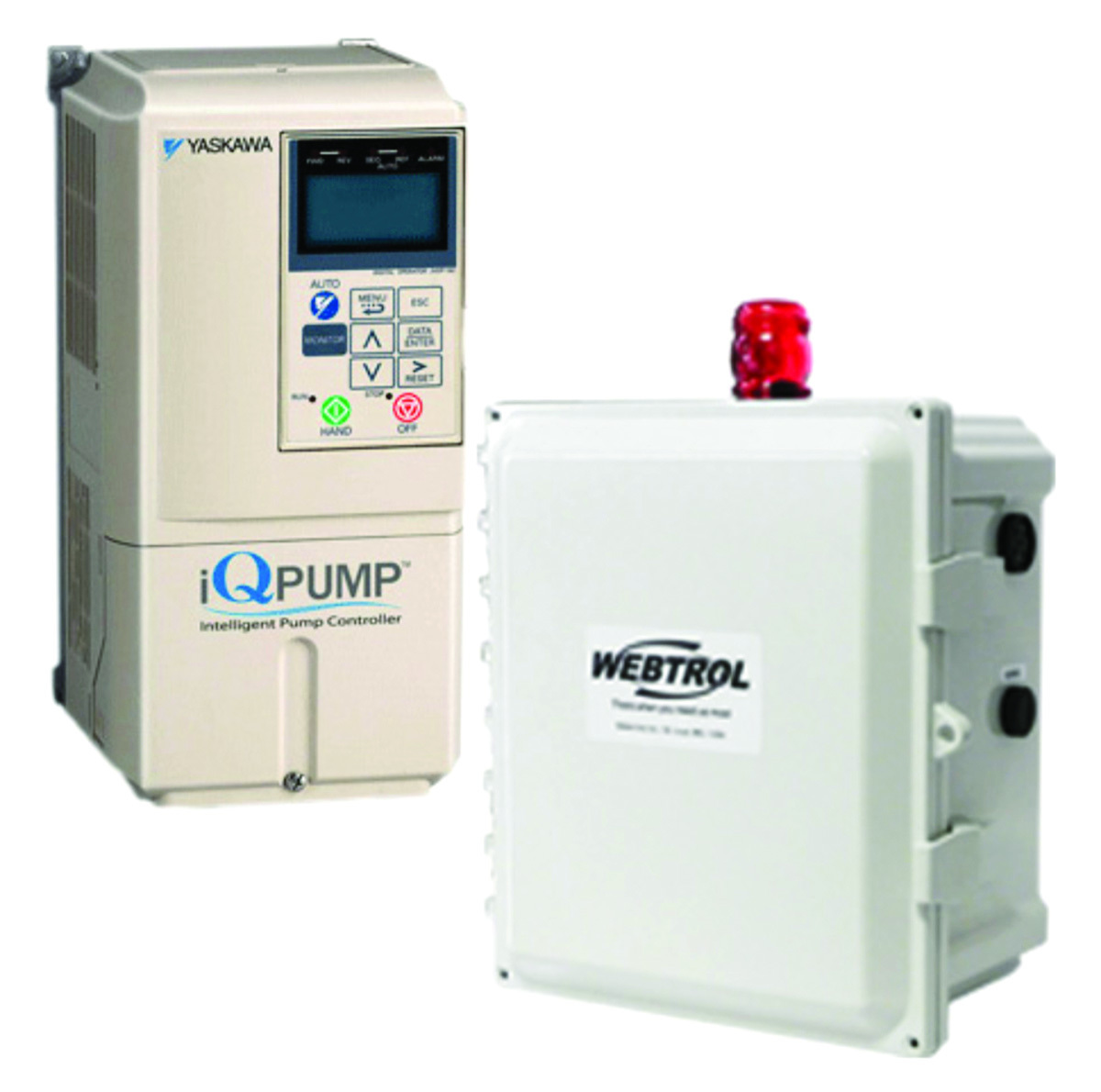

Webtrol Variable Speed Controls
Most subsurface drip systems require two duty points to properly dose and flush the dripfield. Selecting a pump for this application requires balancing two demands: delivering a low-flow dose at a constant pressure to the drip tubing while also being capable of providing high-volume flow at sufficient pressure to flush the system. The flushing volume may cause too much pressure when pinched back for dosing at low flows. Webtrol can provide a VFD in conjunction with panels in stock from major manufacturers that can adjust to both conditions. The VFDs regulate the pump. The pump will then meet multiple conditions for the drip system. This is accomplished by adjusting the speed to constantly meet the design point. 800-769-7867; www.webtrol.com
