Problem: A homebuilder was challenged with providing onsite treatment and disposal for a proposed three-bedroom dwelling on St. George Island in Florida, where a protected wetland takes up much of the lot and requires a 75-foot setback. The 1-acre lot only had a total available tank and drainfield area of 392 square feet, while only 25 feet separated the property from a neighbor’s irrigation well. A tight triangular area at the corner of the lot was deemed the only logical spot for a treatment system.

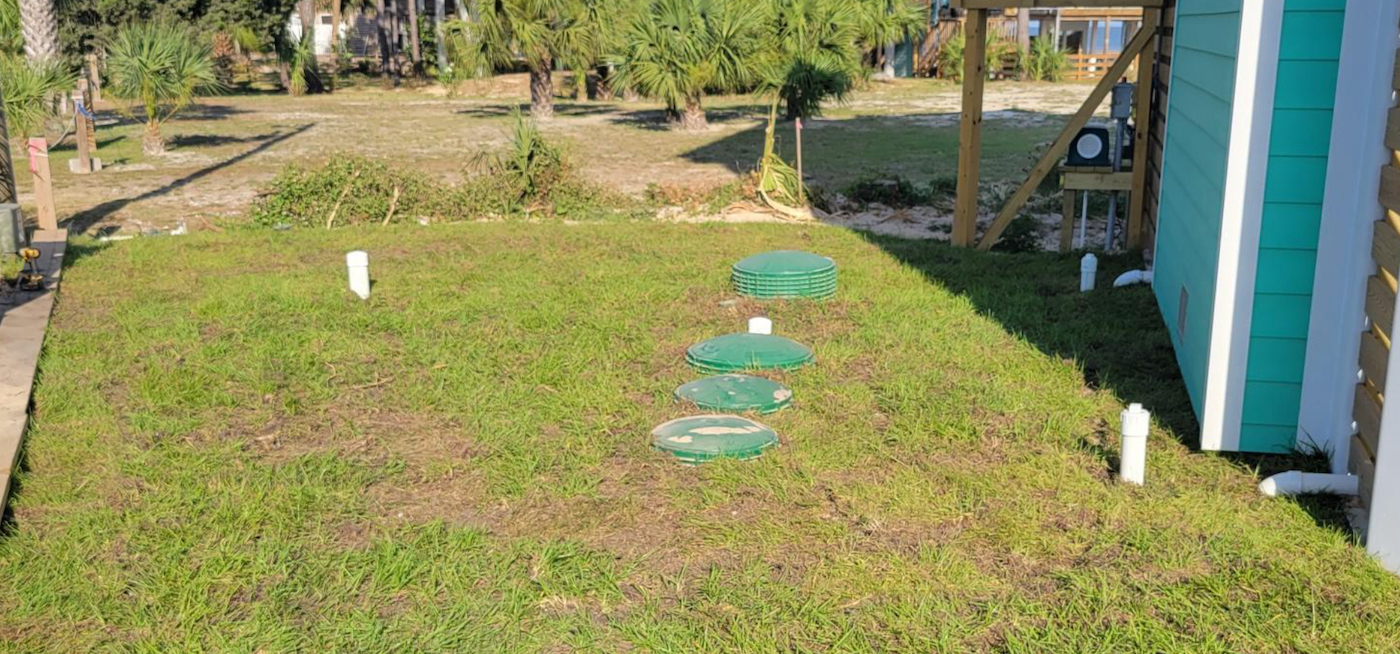

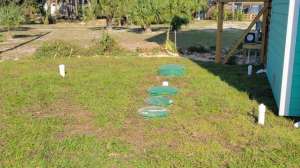

Solution: The onsite installer chose a FujiClean Model CEN5 with a design capacity of 500 gpd. The system is designed to provide high-quality treatment and dripline dispersal for nitrogen removal and drainfield reduction. It offers one-tank treatment, with a 540-gallon pump tank and dripline irrigation field providing 225 square feet minimum dispersal area. At-grade access ports do not detract from the unique dwelling, while a quiet blower (<40 dB) is in sync with the serene surroundings. The lightweight tank (705 pounds) is easy to maneuver into location. One 3/4-inch air line hookup minimizes excavation requirements.
Result: The system fit into the small footprint, allowing construction of the home. 207-406-2927; www.fujicleanusa.com
