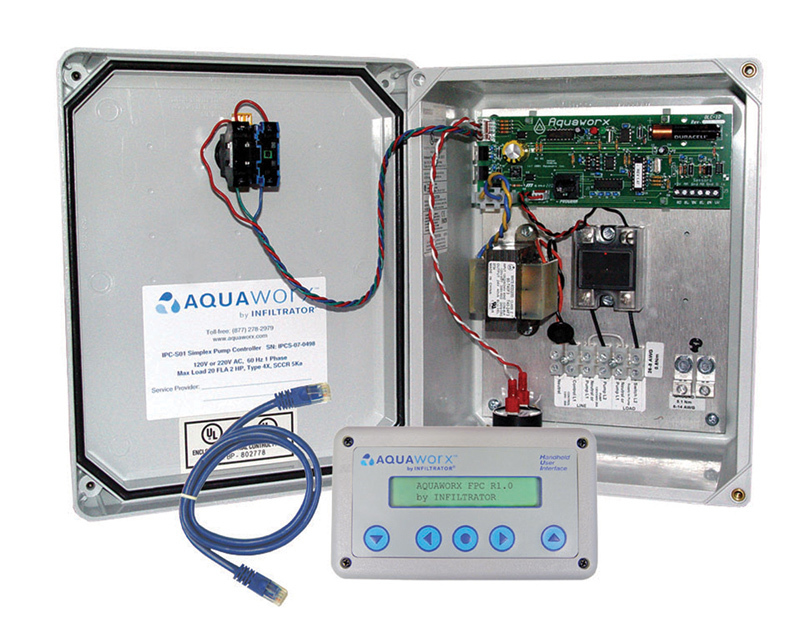

  Intelligent pump control panel

The Intelligent Pump Control (IPC) Panel from Aquaworx by Infiltrator uses pressure transducer technology to monitor multiple types of system events and enhance pump system performance. An embedded microprocessor and floatless pressure transducer in the pump chamber monitor liquid levels, control pumping time intervals, and log events in real time. With the Mountable and Removable Controller (MARC), installers and service providers have the option of removing the unit to use on multiple panels. The panel will store up to 4,000 events and calculate daily system flow. 800/221-4436; www.infiltratorsystems.com.

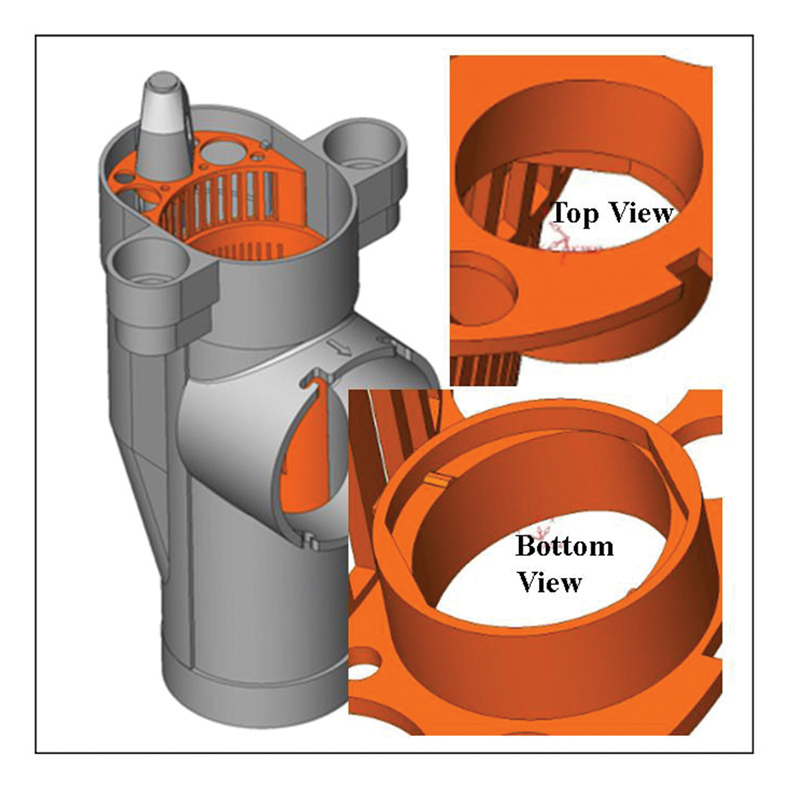

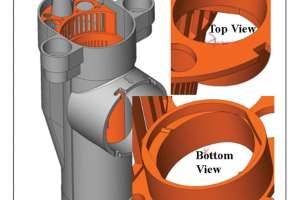

  Switch connection

The Universal Vertical Reed Switch Connection from Bear Onsite allows the SJE Rhombus VRS switch or Alderon Industries new switch to be placed on the unfiltered side of any effluent filter or tee-baffle to signal a high water condition. The elliptical switch connection allows the tabs to pass through the upper side of the connection; the user then rotates the switch 90 degrees so they pass over the “retaining bumps” which hold the switch in place until it is depressed and the direction is reversed to remove it. 877/653-4583; www.bearonsite.com.

  Plugger-style control panel

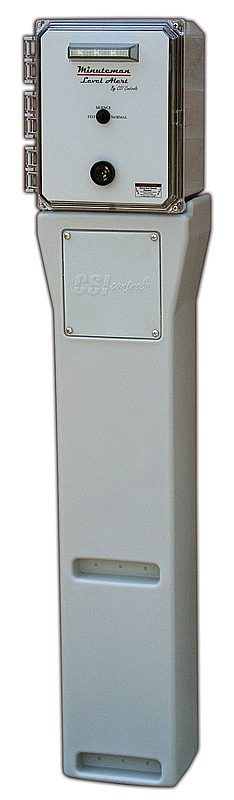

The Minuteman level alert from CSI Controls is a pedestal-mounted, plugger-style control panel featuring a built-in high water alarm with 9-volt battery backup alarm system. It features an internal outlet for piggyback pump operation and an external test/silence/normal operation switch. The flashing red LED alarm light and high-decibel horn activate when a potentially threatening alarm condition occurs. The weatherproof poly enclosure and pedestal protect the components and wiring from the elements. The pedestal features a removable access door for easier wiring. The post can be mounted in the ground, directly over a 4-by-4 inch wooden post or conduit. 800/363-5842; www.csicontrols.com.

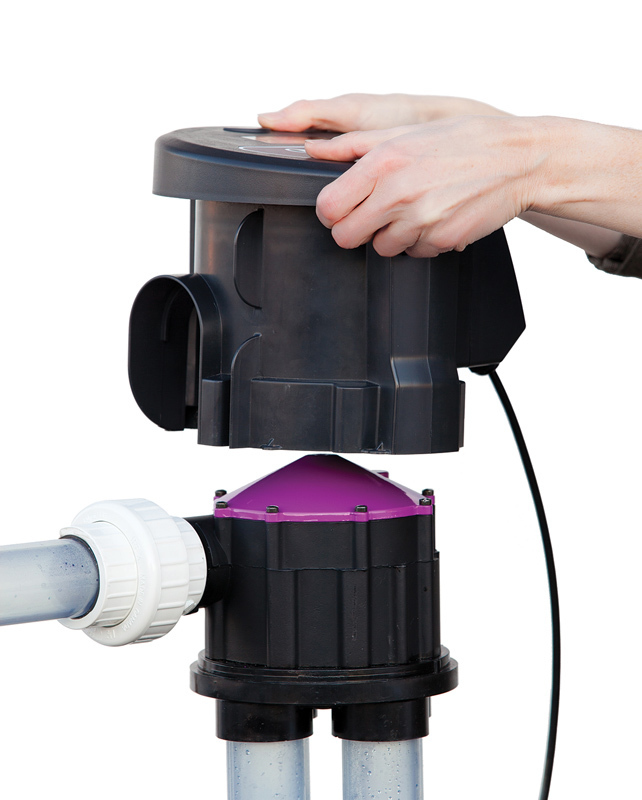

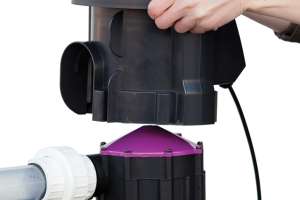

  Intelligent valve monitor

The IVM6000-LP intelligent valve monitor from Dynamic Monitors is an electronic monitor and early-warning alert system for all third-party 6000 series mechanical distributing valves. It confirms even distribution to all zones and early detection and immediate alert of valve malfunctions. Replace the valve’s original rubber disk and stem assembly with the one supplied with the monitor, then slip the monitor over the valve and supply low voltage power. Connect the dry contact alarm output to a standard third party pump control panel and it provides notification of any valve malfunctions. 888/747-7645; www.dynamicmonitors.com.

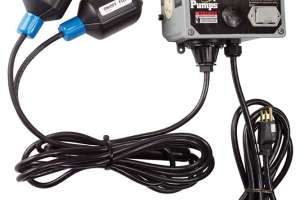

  Duplex control system

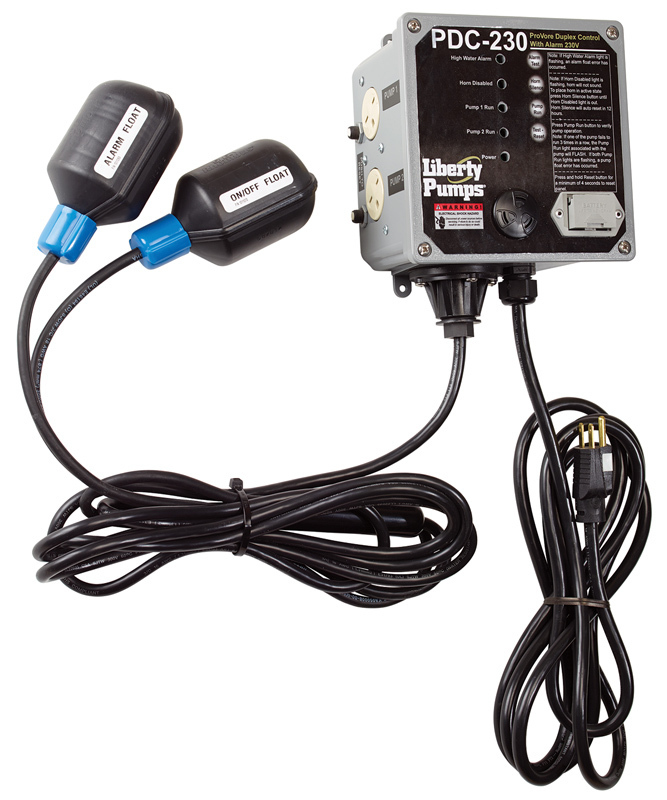

PDC Series panels from Liberty Pumps control the operation of two ProVore residential grinder pumps. The system includes a primary pump control float and an alarm float. LED indicators show power on, pump run status, alarm status, and horn enable/disable status. Pumps are protected with a manual reset fuse to isolate a failed pump. Features include NEMA 1 indoor-rated enclosure, plug-in ready wiring, factory-wired floats with quick-disconnect at the box, audible and visual alarms, and 9-volt alarm backup. Receptacles are angled to accept standard or right-angled plugs and an automatic 6-hour run limiter protects against run-dry or runaway pump conditions. 800/543-2550; www.libertypumps.com.

  Pump system control panel

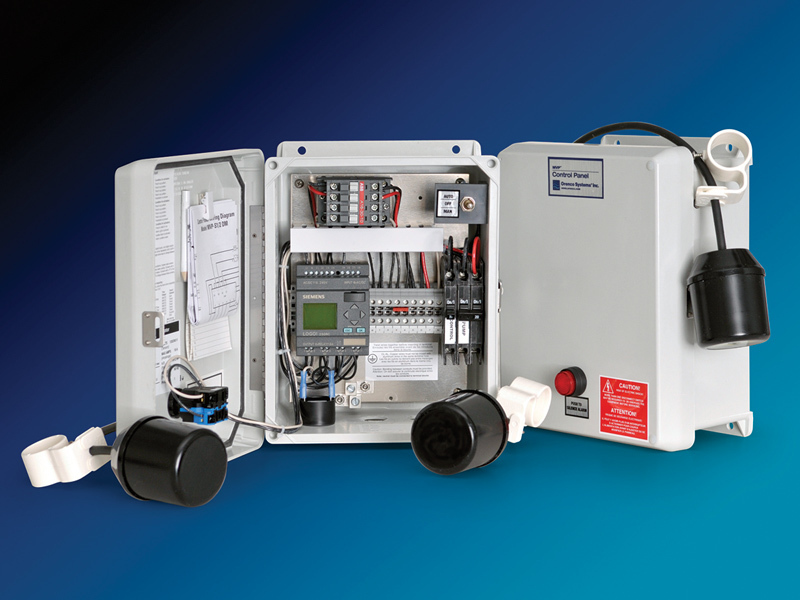

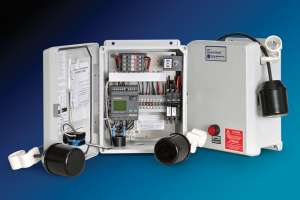

The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules within a single panel. Both simplex and duplex models are available, and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for 120- or 240-volt power, meaning reduced panel inventories for new installations and repairs. They include a programmable logic unit (PLC) with multiple timing intervals for changing flow conditions, as well as a built-in elapsed time meter and counter. The PLC also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing, as well as wiring diagrams. 800/348-9843; www.orenco.com.

  Filter Alarm

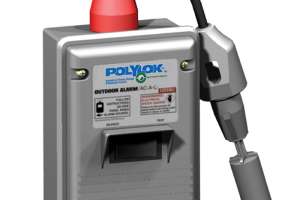

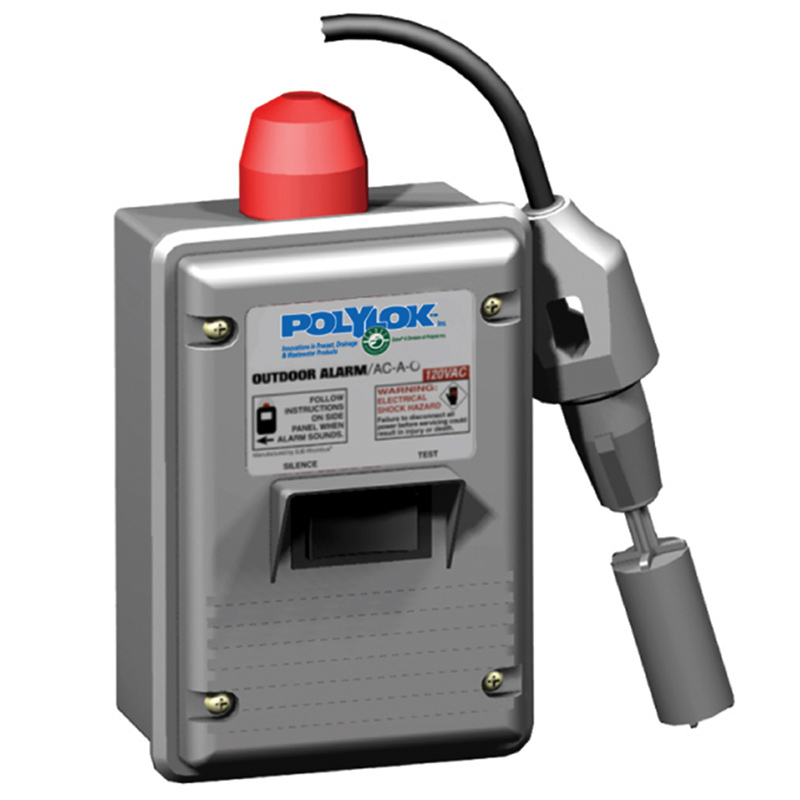

The 3014AB wired indoor/outdoor filter alarm from Polylok provides audio/visual warning for home or business owners that a septic tank filter needs cleaning. It activates when the filter cartridge is at approximately 90 percent capacity of solids build-up. Features include manual alarm test switch and horn silence, an alarm horn rated to 82 decibels at 10 feet, and 15 feet of cable with longer lengths available. 877/765-9565; www.polylok.com.

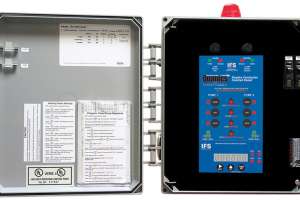

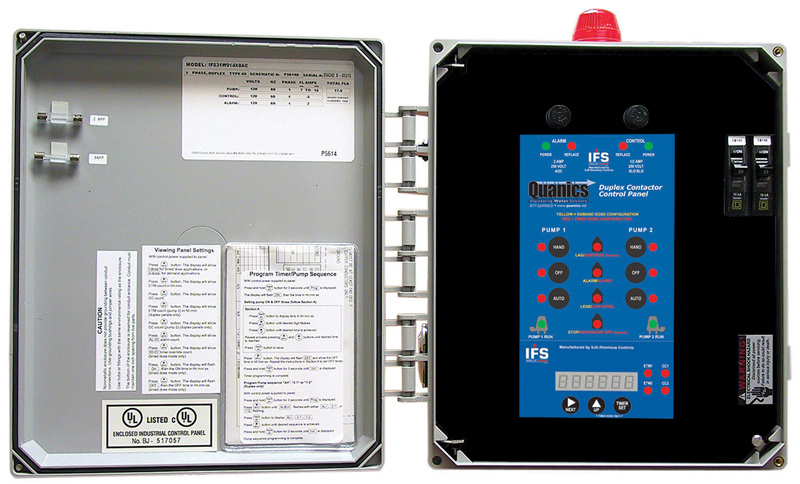

  NEMA-rated control panel

Control panels from Quanics include simplex- and duplex-demand or timed-dose versions. Each standard panel is configured to accept either 115- or 230-volt pumps and are built in NEMA 4X rated enclosures. The standard drip irrigation controller includes connections for external solenoid valves to allow for automation in the drip management system. Custom panels are available for applications including remote telemetry, counters, multi pump alternation, heaters and logic controllers. 877/782-6427; www.quanics.net.

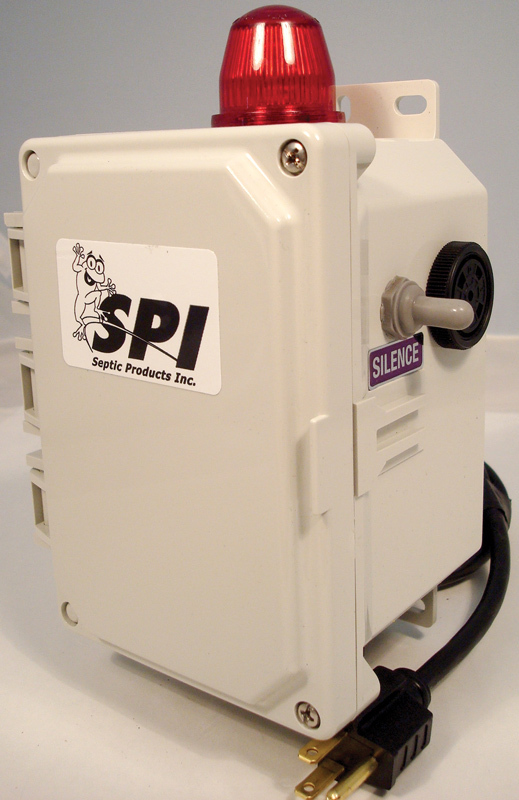

  High water alarm

The Observer 500 from SPI - Septic Products is an indoor/outdoor high water alarm featuring a durable thermoplastic enclosure, 360-degree alarm light, alarm horn, alarm test and horn silence buttons, and a 6-inch 120-volt power cord. External cord grips allow for easy installation, and a mechanical float with a 15-foot cord is included. It is covered by a two-year limited warranty. 419/282-5933; www.septicproducts.com.

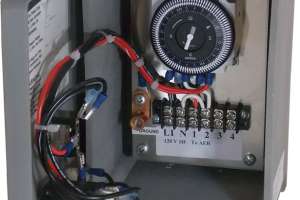

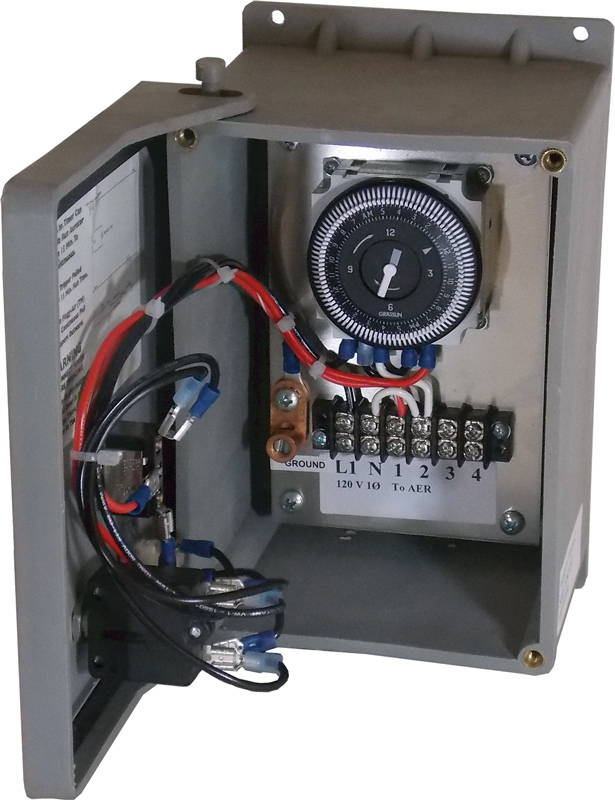

  Aerator Timer

The P101FA-2 Timer from Septic Services is designed for Flagg-Air 340HP Aerators, but can be used for any application that requires 7-amp shut-off capability. It is designed for indoor and outdoor use, and is constructed with weather-resistant high-impact plastic. It prevents debris overload on the aerator motor, and is adjustable in 15-minute increments to meet local codes for aerator operating usage. The 115-volt, 7-amp unit is easy to install and use, with a three-position toggle switch (On/Auto, Off, Continuous), warning light and reset button. 800/536-5564; www.septicserv.com/store.

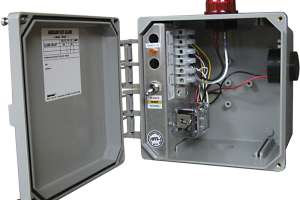

  Exterior Alarm

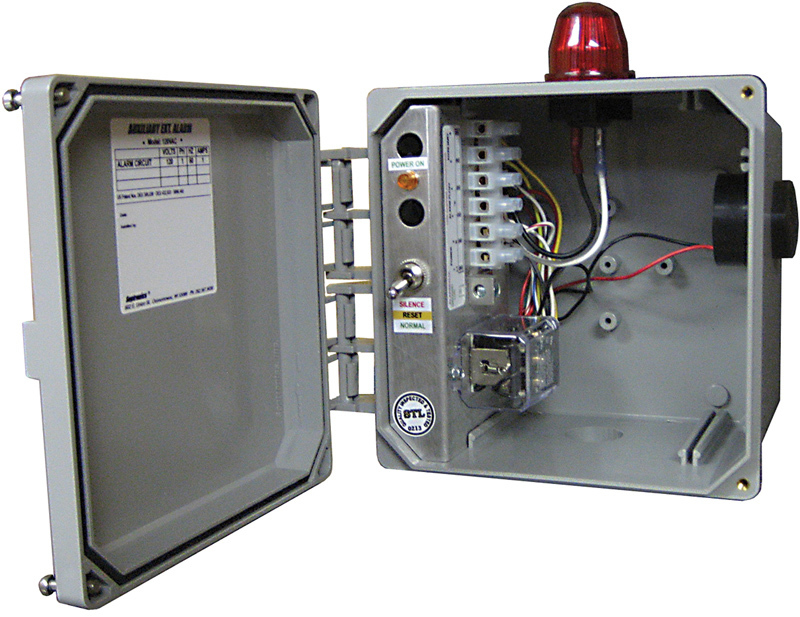

Exterior alarms with auxiliary contacts from Septronics feature removable terminal boards for straightforward wiring. Units feature a power indicator, and manual/reset/horn silence in one toggle switch. The latching relay allows the light to remain on until the reset is activated. Wall mounting brackets are included and pedestal mounts are available. It can be ordered as a high-liquid or low-liquid level indicator. 262/567-9030; www.septronicsinc.com.

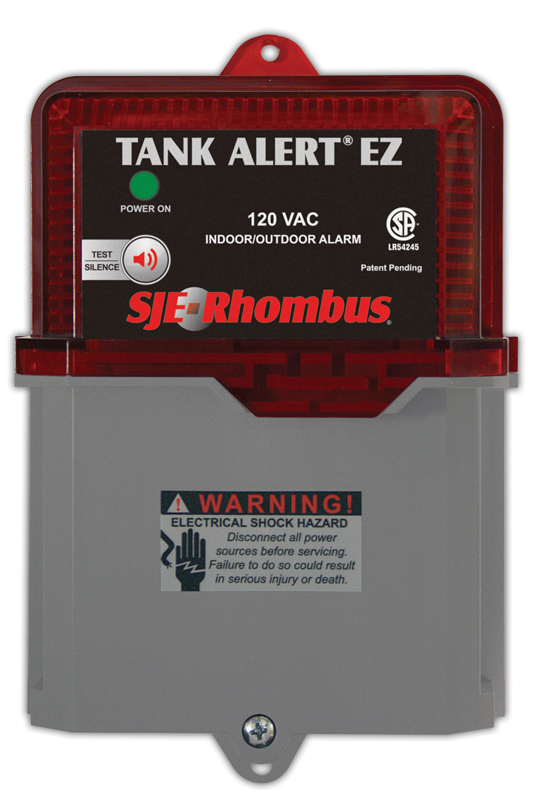

  Tank Alarm

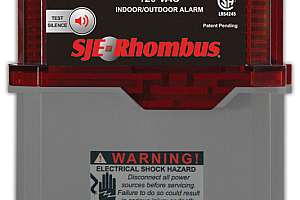

The Tank Alert EZ indoor/outdoor alarm system from SJE-Rhombus is designed for easier installation of lift pump chambers, sump pump basins, holding tanks, sewage and other waste applications. The cover provides greater access for wiring in the field, while internal circuitry remains protected. The two-color molded enclosure integrates the red translucent LED beacon; the upper half illuminates and the horn sounds when an alarm condition occurs. When the condition clears, the alarm automatically resets. The interlocking enclosure features a sound chamber to amplify the horn while helping prevent moisture from entering. 888/342-5753; www.sjerhombus.com.

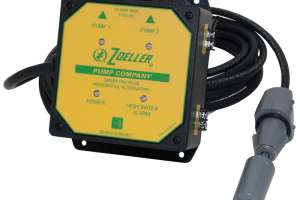

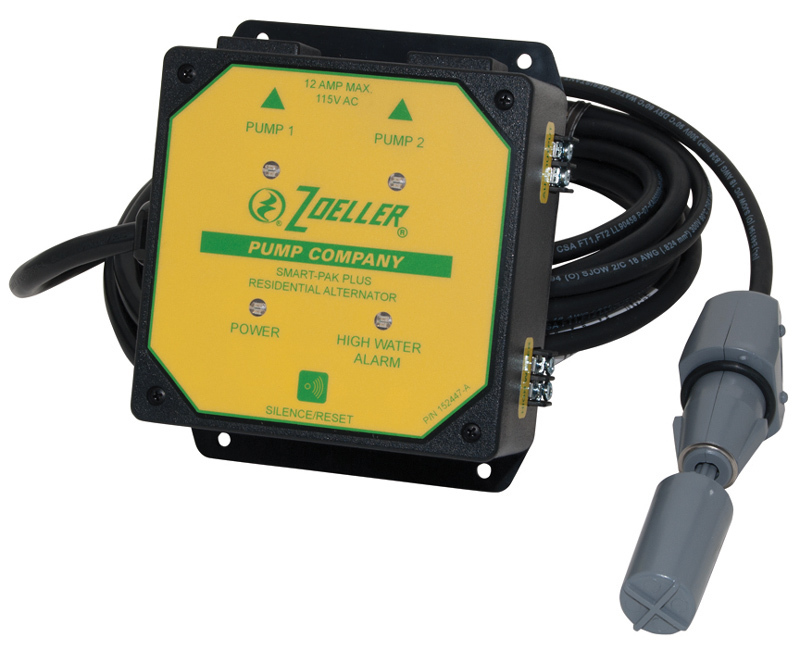

  Residential alternator and alarm

The Smart-Pak Plus residential alternator from Zoeller Pump Company allows a user to automatically switch from a failed to a working pump. It has built-in alarms; a single power cord and built-in rechargeable battery; a universal connection for the alarm switch; contacts for connecting an auxiliary alarm, dialer, or for integrating into a home security system; additional alarms and indicators for potential problems, including continuous running pump, high water, power outage, tripped breaker, and pump failure; a button for silencing the alarm and resetting the unit; and plug-and-play installation. 800/928-7867; www.zoellerpumps.com.
