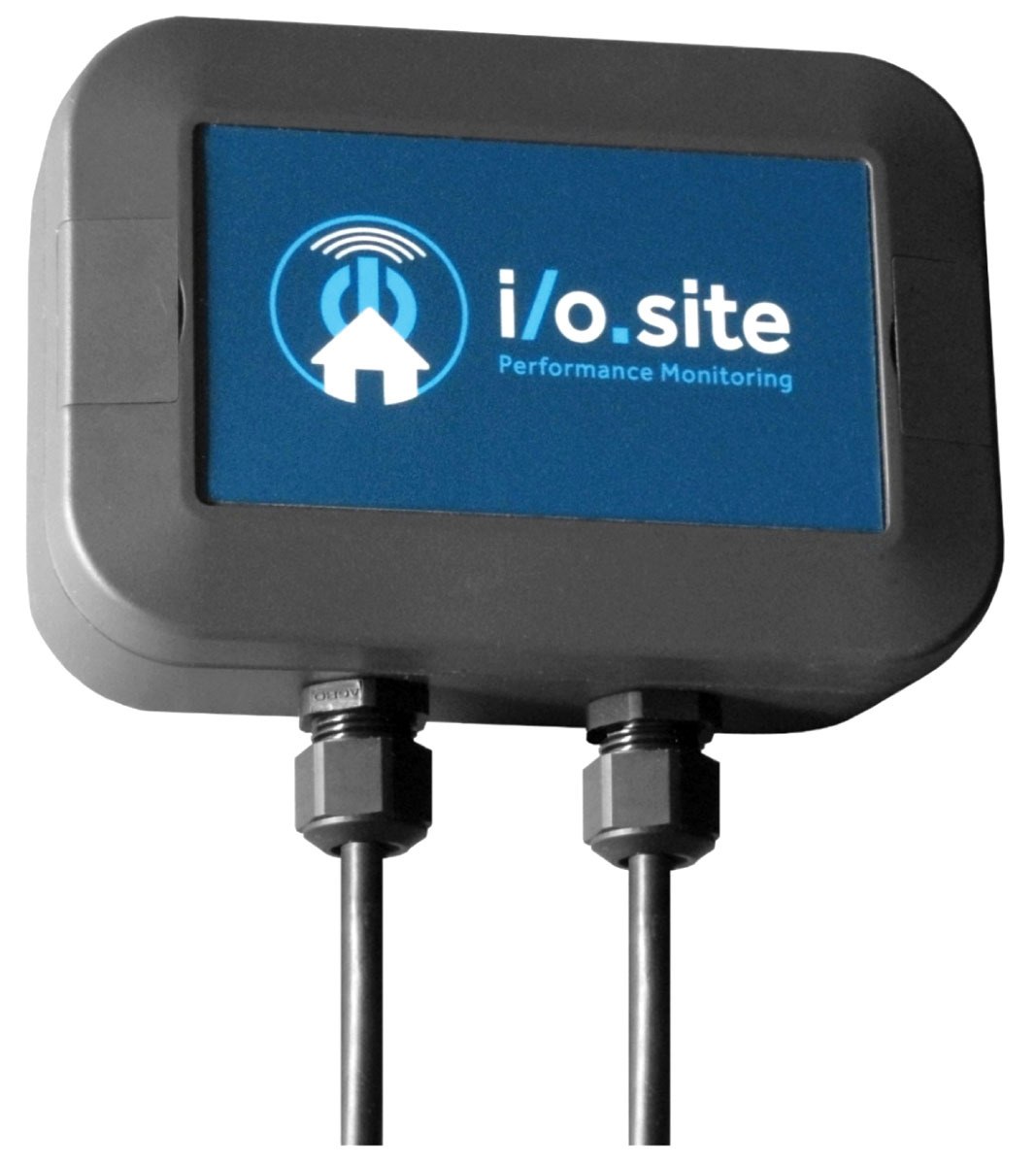

Anua i/
The i/ system from Anua provides performance monitoring of electromechanical components while keeping everyone connected to information through a simple web interface. It can remotely monitor any blower, aerator, pump, float switch or motor. It tracks water use, catches motor issues before failure, uses any mobile device or computer, and monitors any powered onsite system. 336-547-9338;

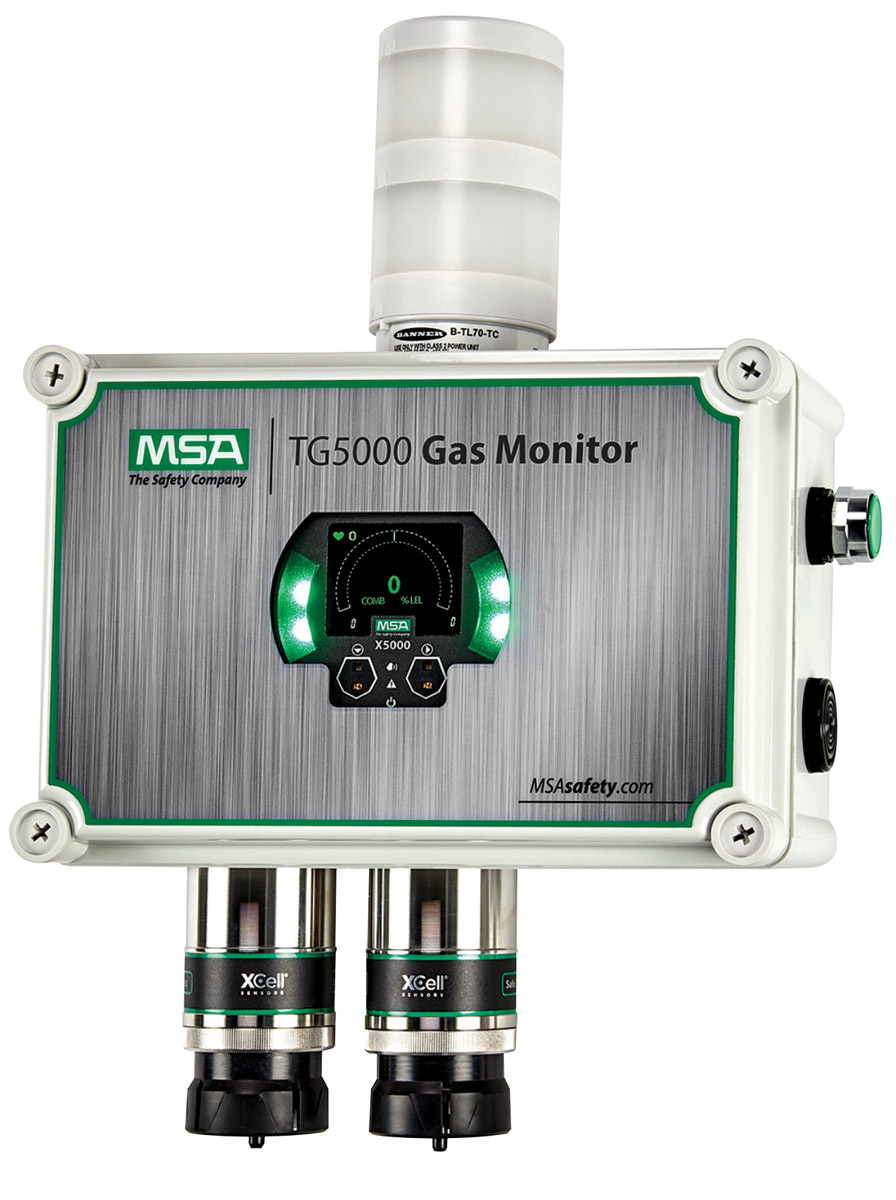

MSA Safety TG5000 Gas Monitor
The TG5000 Gas Monitor from MSA Safety reliably detects oxygen, combustible and toxic gases. It offers multiple sensor and installation options. Its single- or dual-sensor design doubles sensing power and reduces wiring costs. The intuitive design of the local interface makes it simple to install, use, and maintain. Its OLED display and LED indicators show power, fault or alarm; gas readings; and Bluetooth connection. A touch button accesses all functions. It operates in stand-alone mode or can be connected with a 4-20 mA output to a PLC or DCS. HART is available, and it supports remote monitoring, where the sensor must be separated from electronics. It has XCell TruCal sensors, which respond rapidly to gases. Self-diagnostics and SafeSwap capability enables sensor replacement without turning off the instrument. It includes a 95 dB audible alarm with horn silence control. 800-672-4678;

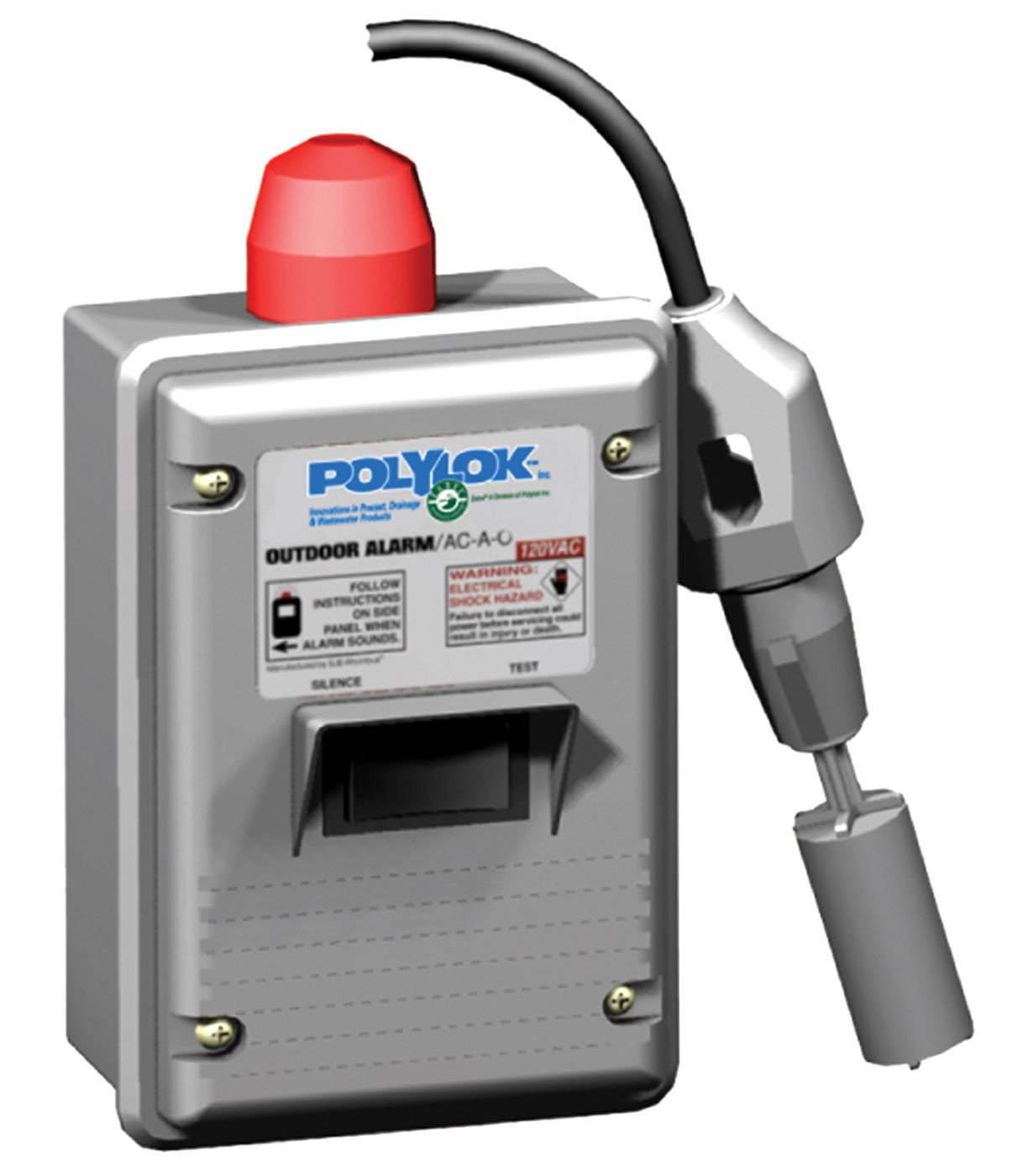

Polylok 3014AB Filter Alarm (Smart Alarm)
The 3014AB Filter Alarm (Smart Alarm) from Polylok is a wired indoor/outdoor filter alarm that provides audio/visual warning notifying operators that a tank filter needs cleaning. The Smart Alarm Switch activates when the filter cartridge is near capacity (approximately 90% full) with solids. The Smart Alarm Switch installed in the filter sends a signal to the panel, activating the audible and visual alarm. It offers a manual alarm test switch and horn silence, an alarm horn rated to 82 dB at 10 feet, and 15 feet of cable, with longer lengths available. 888-765-9565;

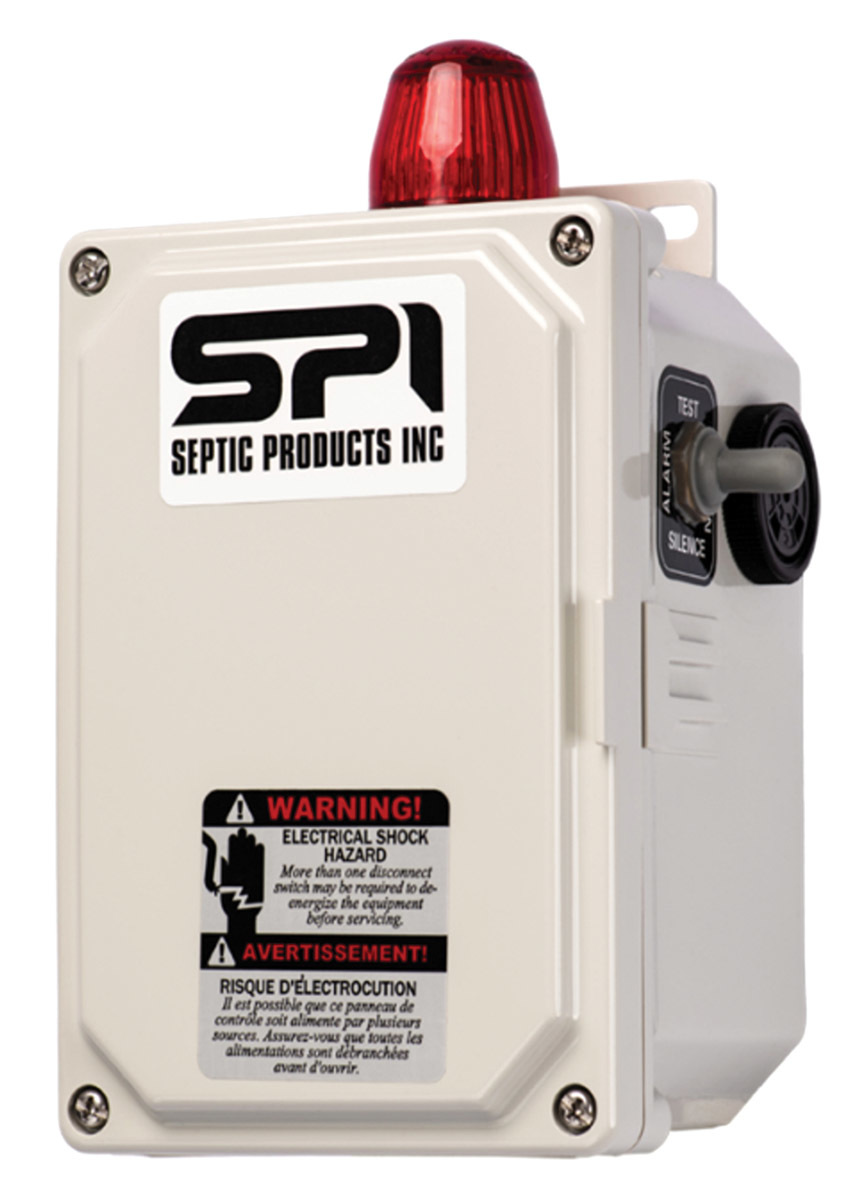

Septic Products Observer 400
The Observer 400 system monitoring device from Septic Products is a 120-volt indoor/outdoor high-water alarm that includes a 15-foot alarm float for high levels. It includes a large 360-degree indicating light and 85 dB at 10 feet audible alarm. It comes with a test-normal-silence switch, automatic alarm reset, auxiliary contacts and 120-volt circuit power for the pump. It has easy access to the interior components for a repairable design. The alarm can be adapted with ease for use as either a high- or low-level alarm. It is built and labeled to UL 508A. 419-282-5933;

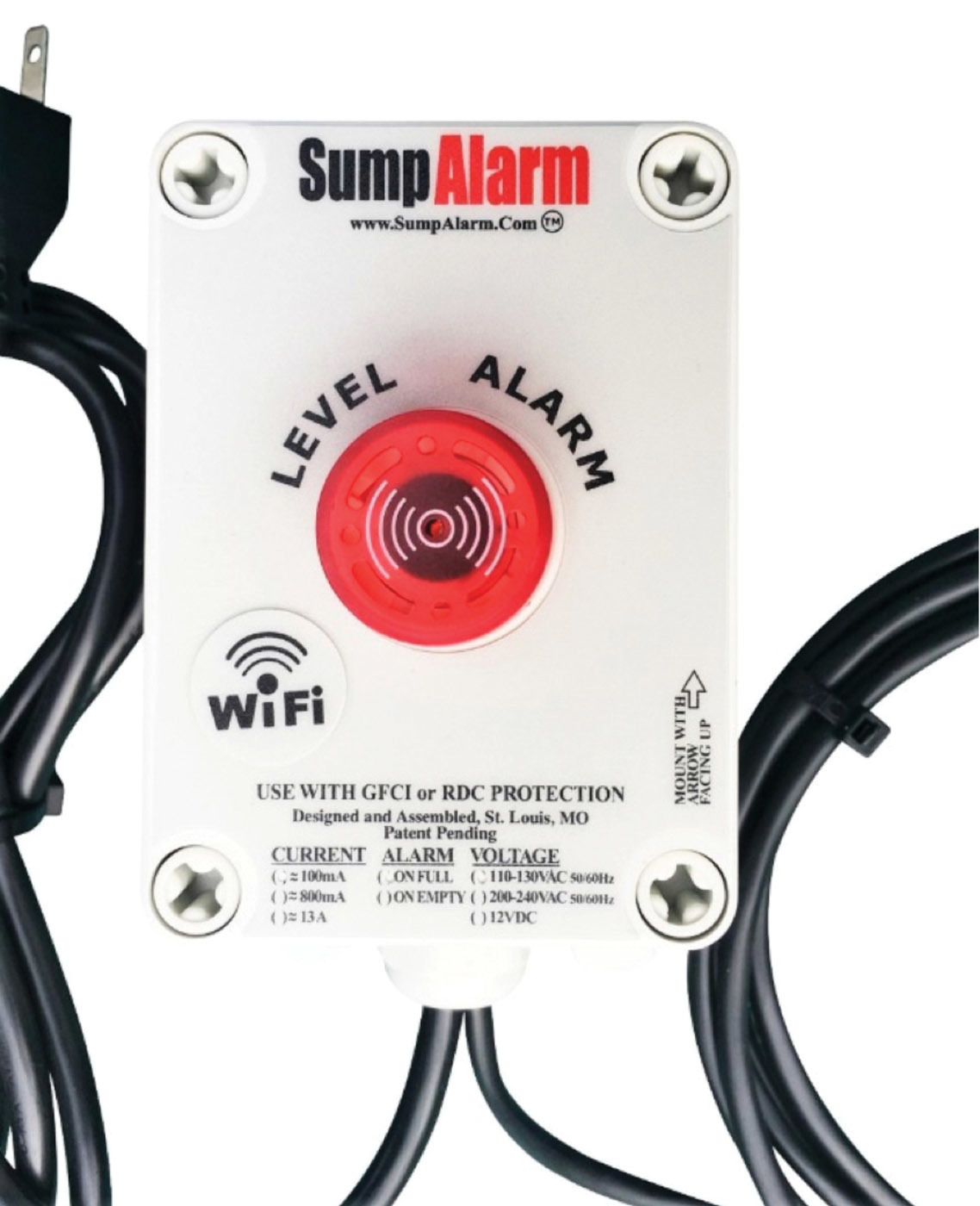

Sump Alarm Wi-Fi version outdoor tank alarm
The Wi-Fi version outdoor tank alarm from Sump Alarm provides email, text and voice notifications for up to five numbers. The unit can call installers when a client’s tank is full. The weatherproof high-tank alarm requires no on-site wiring and includes a 90 dB horn and 1-inch LED indicator. Versions are available in 120 or 220 volts and for high- and low-level detection. It joins the household’s Wi-Fi network. It is preassembled and suitable for extreme temperatures. 314-787-8059;

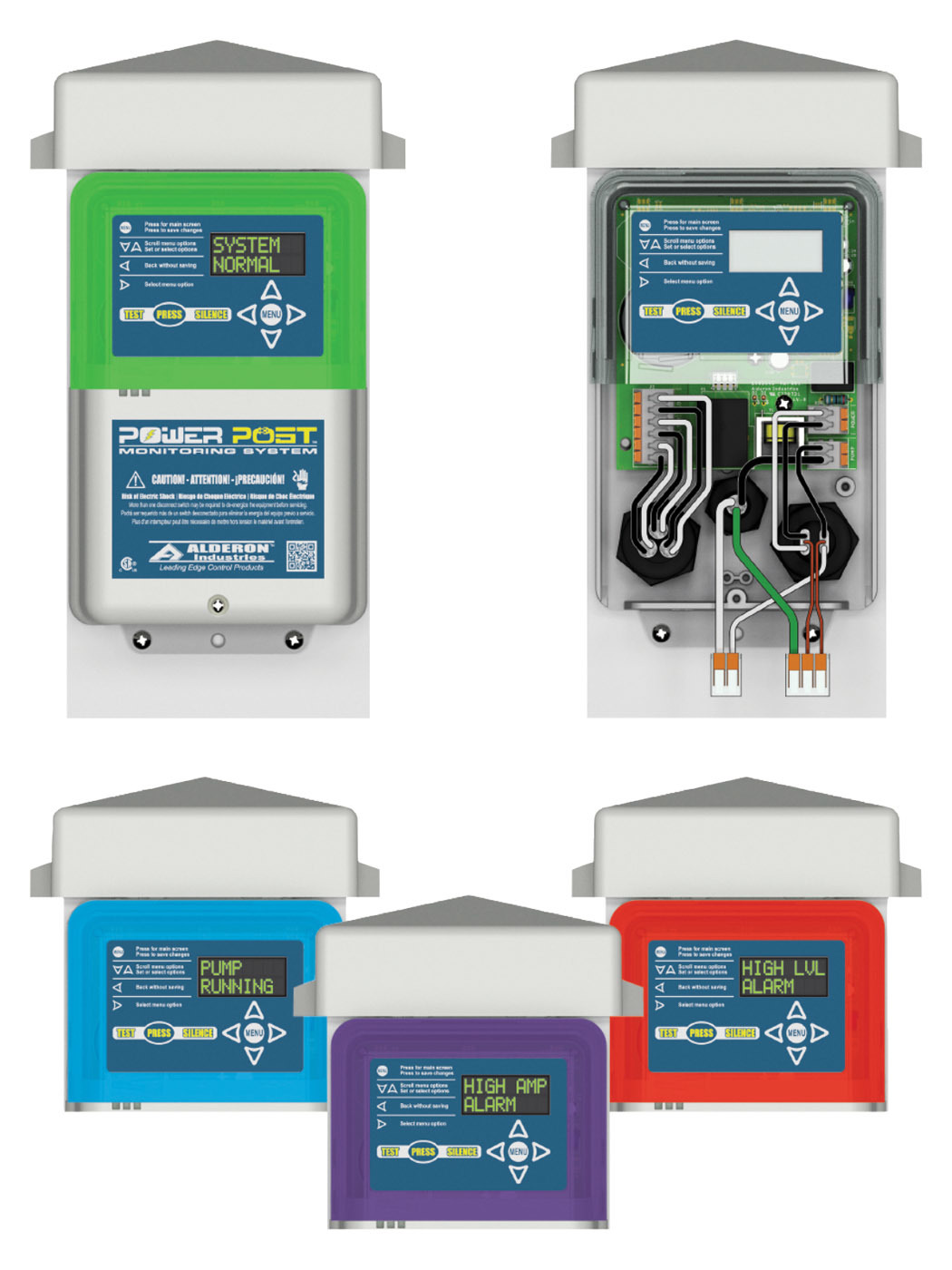

Alderon Industries Power Post
Power Post pump connection centers from Alderon Industries include the Mini Power Post monitoring, Power Post monitoring and Power Post control panel. They enable a professional and safe connection for power and float-switch wiring connections to an onsite septic system. Available models include timed or demand dosing with 120- or 240-volts AC pump power receptacle used for a variety of applications including septic tanks, holding tanks, pump chambers, water tanks, mound systems and pressurized drainfields. Systems include an integrated outdoor alarm with various color LED indicators, a buzzer and test/silence push-button. The top of the enclosure changes color along with system function displayed text on the OLED screen. Menu keys are provided to program settings and view data such as pump cycle counts, pump amps, elapsed time, total gallons pumped, pump dosing events and alarm conditions. 218-483-3034;

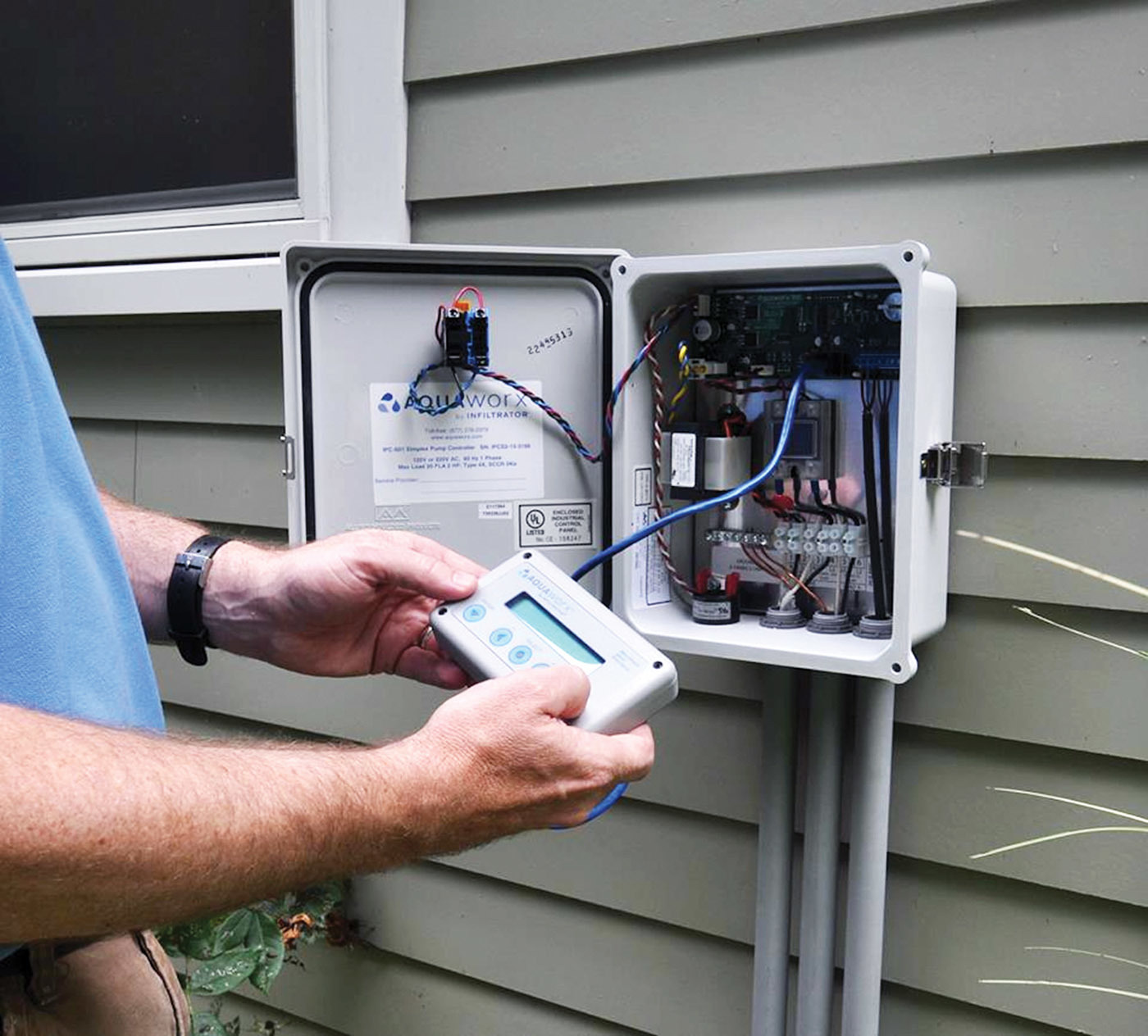

Aquaworx by Infiltrator IPC Panel with Tapper
The Intelligent Pump Control (IPC) Panel from Aquaworx by Infiltrator is available with the Tapper Wi-Fi connection for programming and monitoring. It innovates pump system performance by leveraging simple pressure transducer technology. The Tapper enables the user to program and monitor multiple IPC pump-driven systems remotely via a standard wireless connection to an enabled mobile phone, tablet or computer. The Tapper also includes a USB slot for capturing and downloading system events and settings onto a removable USB memory device. This provides the operator with a history of system function critical to troubleshooting and maintaining a pump-driven system. The easy-to-install panel monitors liquid levels, controls pumping time intervals, logs events in real time and calculates daily system flow via an embedded microprocessor in the pump controller and a floatless pressure transducer in the pump chamber. 800-221-4436;

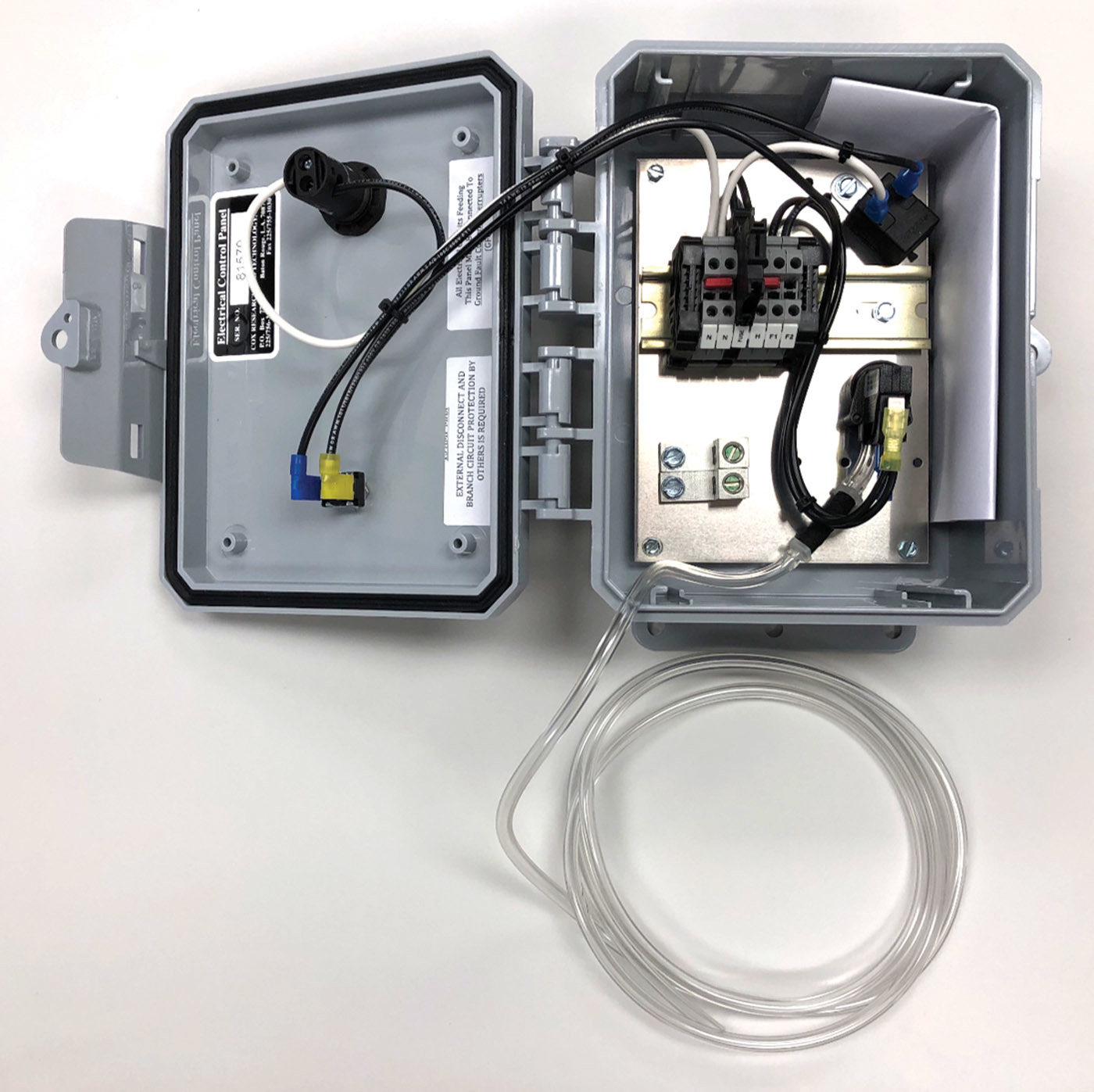

Delta Treatment Systems CP20/40/50 Series
CP20/40/50 Series control panels from Delta Treatment Systems provide intelligent monitoring and alarm functions for residential, commercial and industrial wastewater treatment systems. They are easy to install and operate and are available in several models engineered for use with advanced wastewater treatment systems and custom packaged plants. Customized control panels are also available, and all panels can be supplied with UL and/or Canadian UL 508A listings upon request. They monitor air pumps and effluent pumps on the Delta Whitewater treatment system. Additional options include the Series CP22, which monitors the air blower on Delta ECOPOD systems with options for controlling and monitoring UV lights for disinfection after treatment. Series CP8000/9000 control the Delta ECODRIP Pre-Engineered Disposal Systems’ headworks filter system and effluent dosing pump using a PLC for time-dosing drip disposal fields. 800-219-9183;

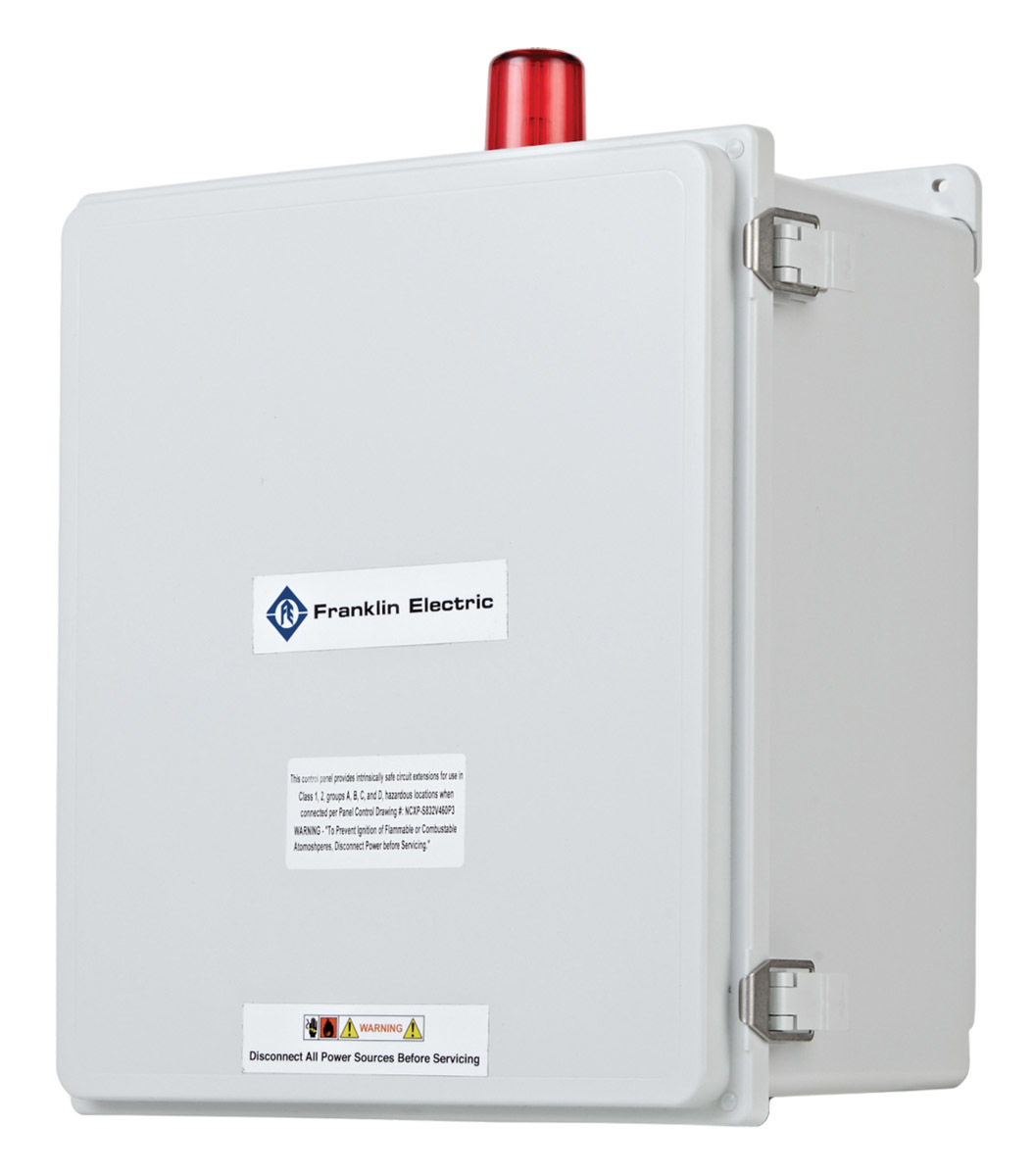

Franklin Electric simplex and duplex nonclog control panels
Available in both single- and three-phase power options, simplex and duplex nonclog control panels from Franklin Electric are designed exclusively for 3NC and 4NC Series nonclog pumps. Typically used for wastewater applications, these control panels are UL 508A listed and have a waterproof NEMA 4X enclosure, IEC motor contactor and lockable latch. The panels include an adjustable motor starter; and for single-phase, nonclog pumps include an adjustable pump overload relay. Single-phase control panels also come standard with starting components for proper operation and simplified field maintenance. All nonclog control panels can be designed with additional options, including an event counter, elapsed time meter, lightning protection, redundant off float, low-level cutoff and anti-condensation heater. 800-348-2420;

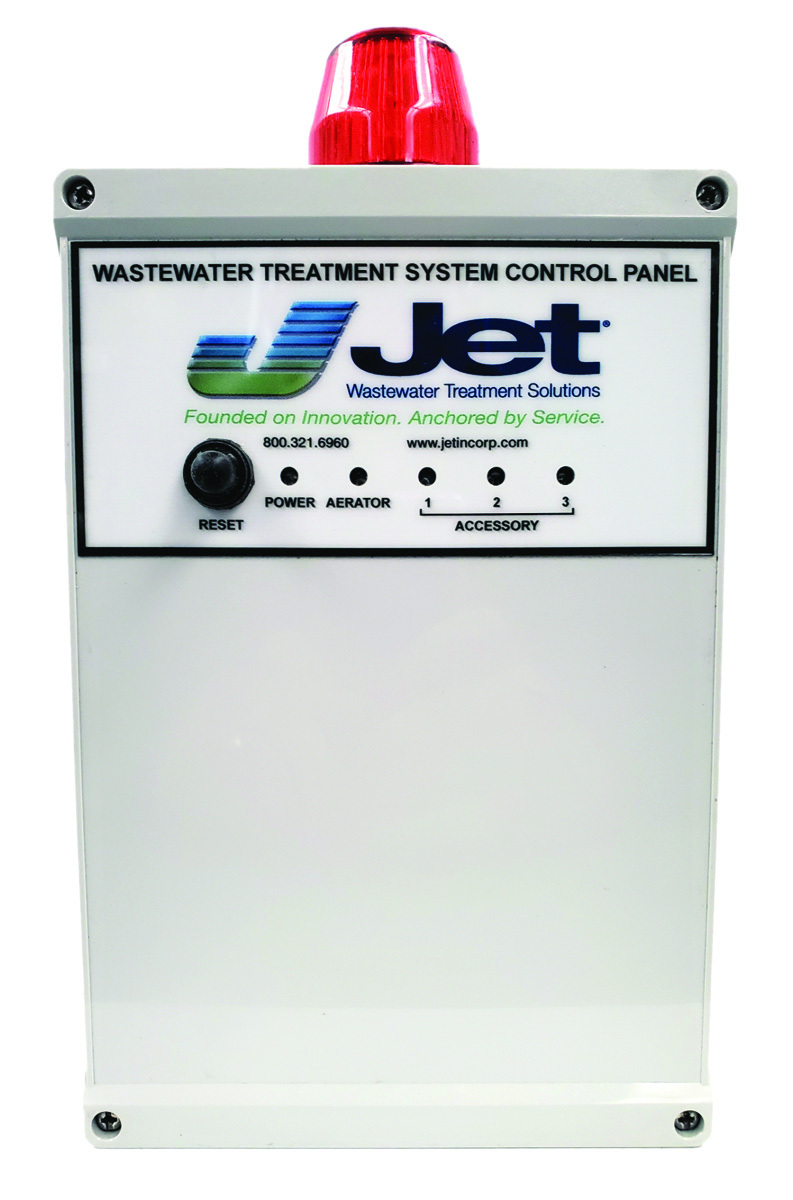

Jet Inc. Model 197
The Model 197 control panel from Jet Inc. monitors the operation of the Jet Inc. treatment system aerator and additional components. It can monitor single- or dual-aeration systems with selectable high- and low-amperage monitor settings. The panels have dedicated alarm and control circuits with separate power circuits for aeration devices. In addition to the aerator control circuits, the panel contains three auxiliary 120-volt output circuits for external device control relays. They include three low-voltage auxiliary input circuits selectable for N/O or N/C alarm inputs. An integrated pump power control relay is automatically disabled in an auxiliary device alarm condition. A signal array includes a power indicator LED and four additional equipment alarm indicator LEDs. 800-321-6960;

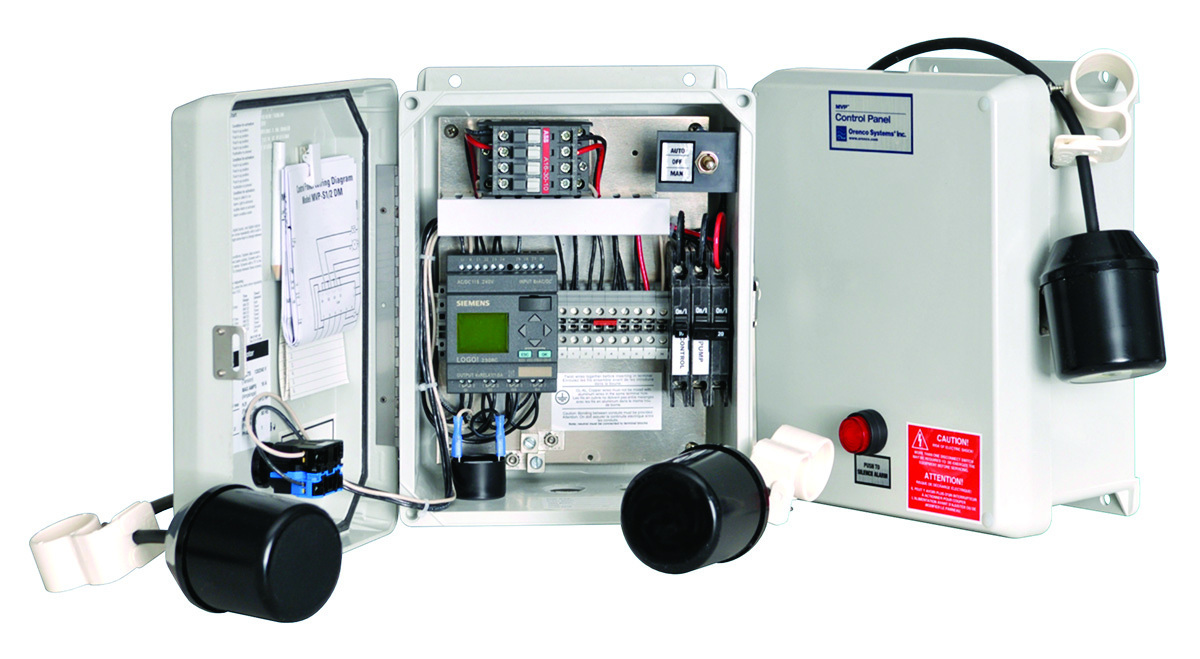

Orenco Systems 4-in-1 Controller
The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules within a single panel. Both Simplex (MVP-S2DM) and Duplex (MVP-DAX2DM) models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for both 120- or 240-volt power, meaning installers and service providers can reduce their panel inventories for new installations and repairs. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and has a built-in elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing, as well as wiring diagrams. It is completely touch-safe. 877-257-8712;

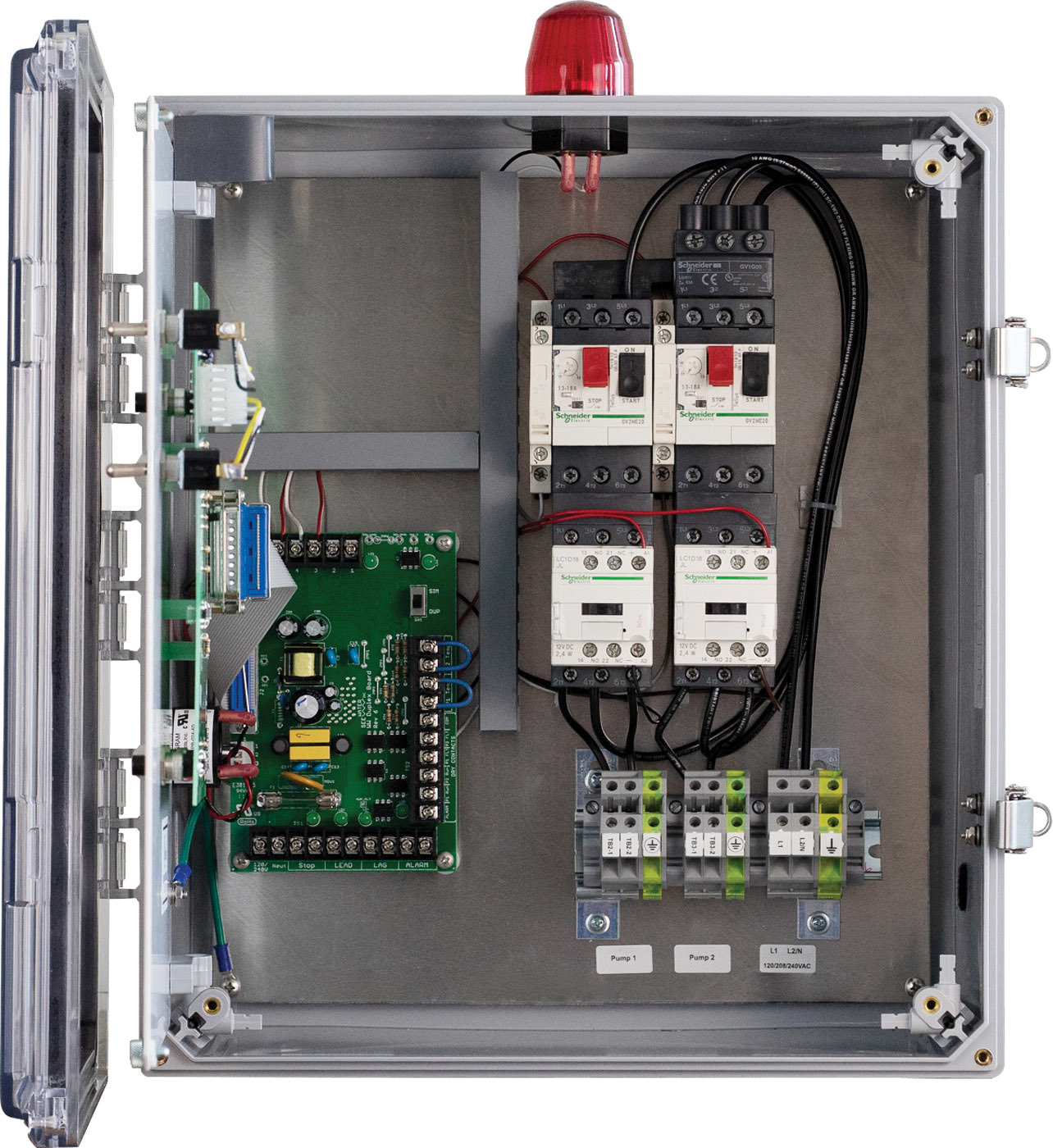

See Water WS Series
The WS Series from See Water is a complete line of preengineered water and wastewater control panels that will operate simplex, duplex or triplex pump configurations up to 115 FLA. The panels come standard with a clear front NEMA 4X-rated polycarbonate enclosure, IEC-rated contactors and motor protective switches. These systems are designed, assembled and tested in the U.S. and are UL 508A- or UL 698A-listed for the U.S. and Canada. 888-733-9283;

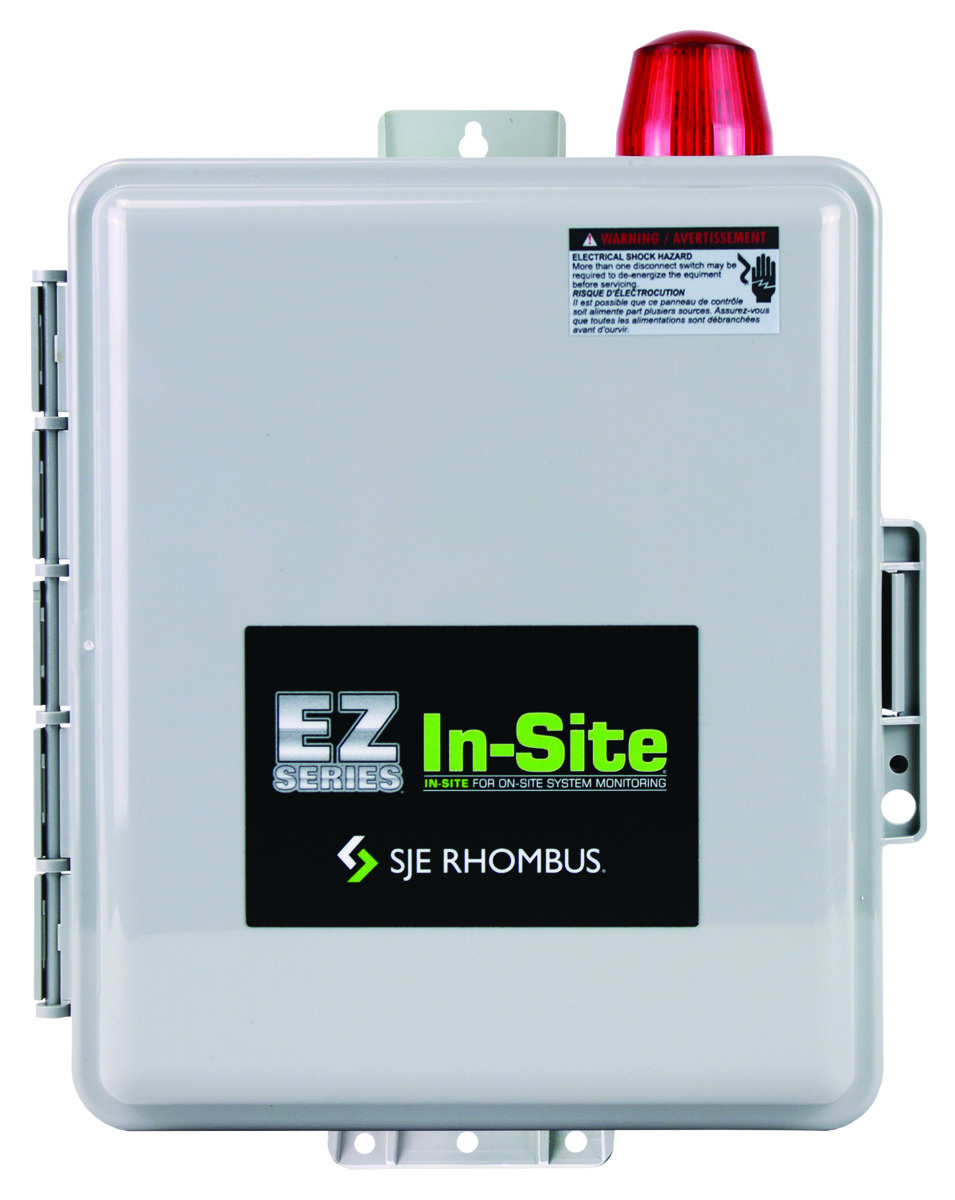

SJE Rhombus EZ Series In-Site CL
The EZ Series In-Site CL data logging control panel from SJE Rhombus offers wireless Bluetooth connection for smart devices. There is no need to open the panel for configuration, viewing status or downloading data using the EZ Connect mobile app. The Bluetooth smart module eliminates the need for a PC to enable safe and secure access in all weather conditions. The panel uses the C-Level sensor for continuous level monitoring and records up to 4,000 system events, including pump runtimes, pump cycles, alarm conditions, hand/off/automatic settings, power outages and service calls. The In-Site software formulates system data, creating reports quickly and easily so system conditions can be identified and corrected. Single-phase simplex or duplex models are available. This panel can be easily converted to demand or timed dose in the field. 888-342-5753;
