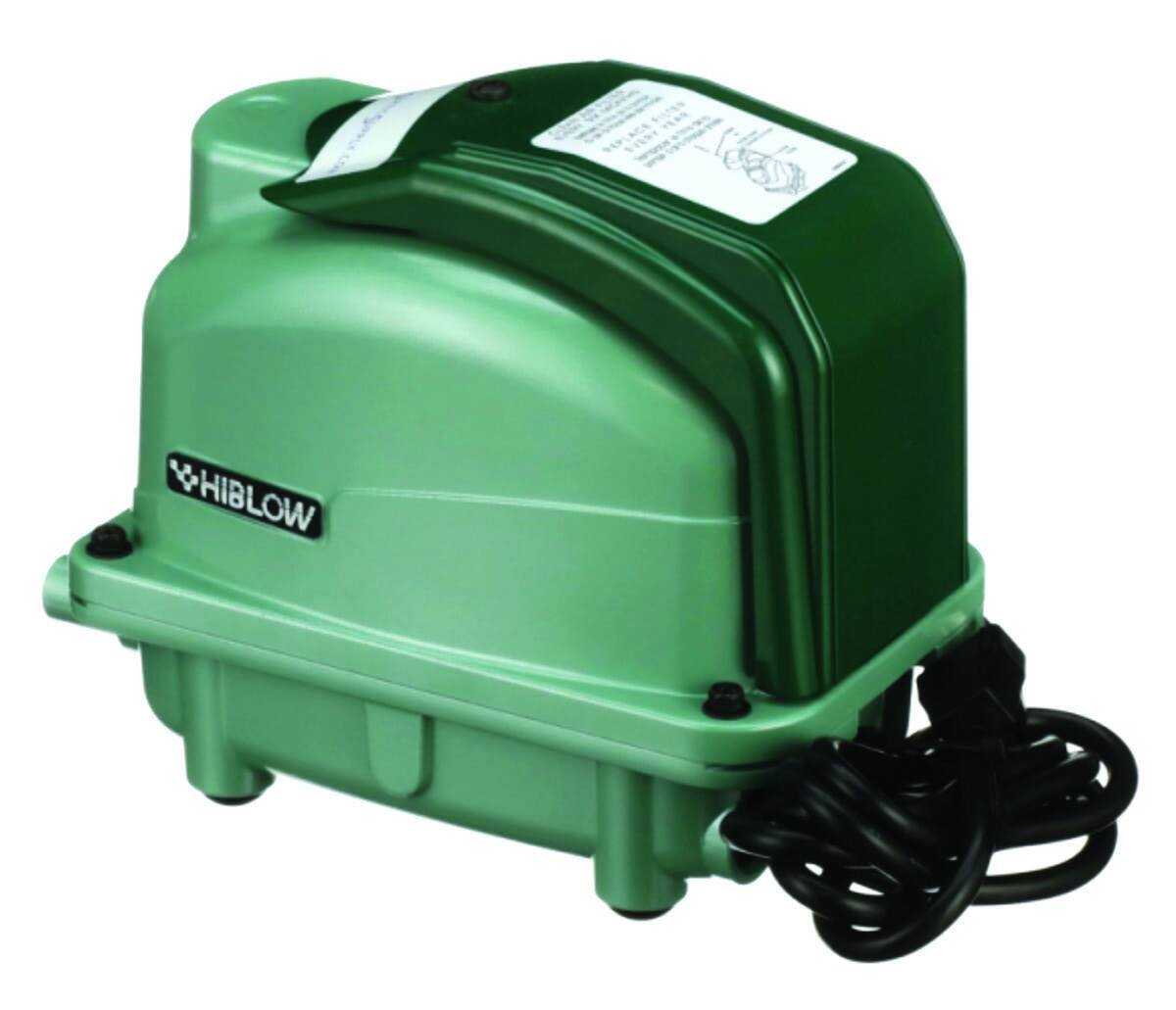

The HIBLOW XP-80 linear diaphragm air pump utilizes a “rare earth” neodymium magnet that allows the unit to run on less than 60 watts of power — comparable to an incandescent light bulb. The aerator has a small footprint and weighs less than 10 pounds, allowing for cost-efficient shipping. It takes up less space in a service truck and in protective enclosures — allowing for more air circulation to cool the pump. The neodymium magnet helps the pump maintain a low operating temperature, assisting with optimizing pump service life. 734-944-5032; www.hiblow-usa.com

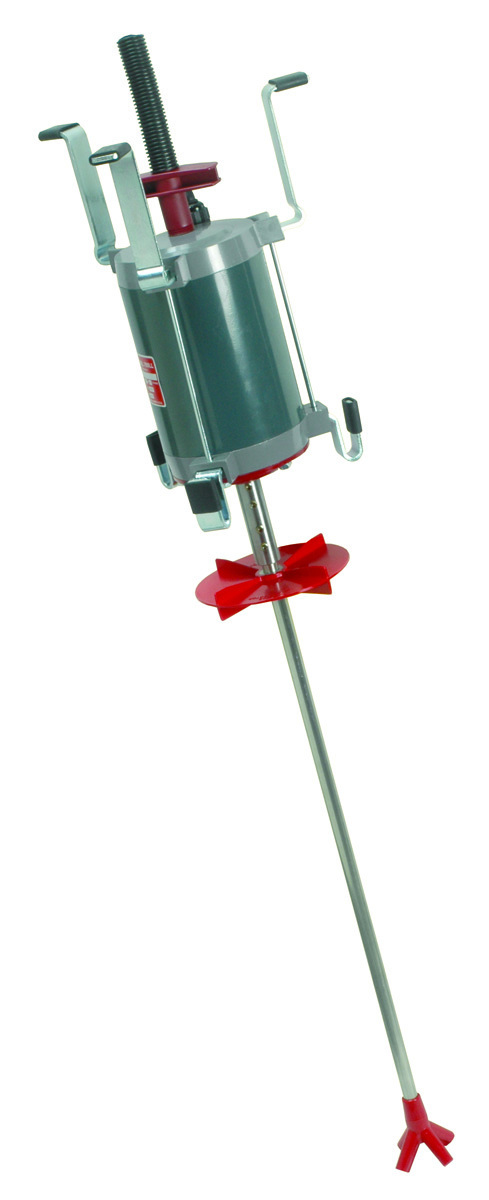

Jet Inc. 700++ aerator
The flood-resistant Jet Inc. 700++ aerator is the only mechanical component in the 1500 Series BAT Media Plant and works in tandem with the BAT Media to provide complete biological processing. The aerator shaft spins and combines outside air with wastewater in the treatment compartment, flowing into the tank to provide oxygen for the treatment process. The dual-purpose foam restrictor protects the aerator by controlling foam created in the treatment chamber and also serves as a high-water alarm trigger. 800-321-6960; www.jetincorp.com
EFFLUENT PUMPS

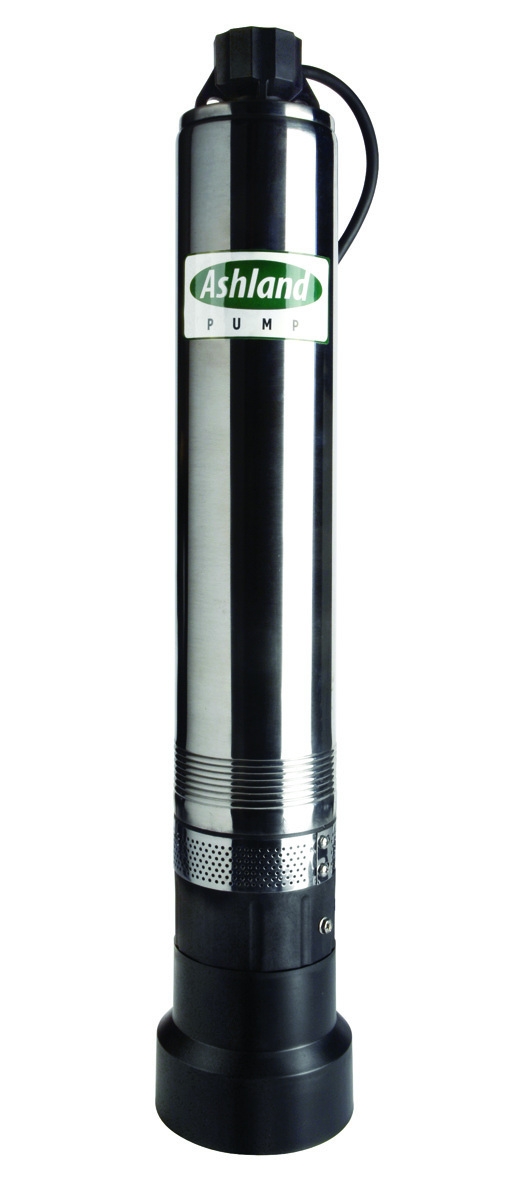

Ashland Pump CPM Series
The Ashland Pump CPM Series is a versatile and efficient solution for managing filtered effluent and gray water. With flow rates of 10, 20 and 30 gpm, this series has a bottom suction design that ensures maximum fluid drawdown, enhancing operational efficiency. Equipped with 1/2 hp, 230-volt and 115-volt single-phase five-stage motors, these pumps operate quietly without compromising performance. They are able to handle up to 1/8-inch solids without any damage, making them a reliable choice for various applications. Stainless steel and thermoplastic materials guarantee durability, while the detachable base allows for secure mounting, ensuring stability during operation. 855-281-6830; www.ashlandpump.com

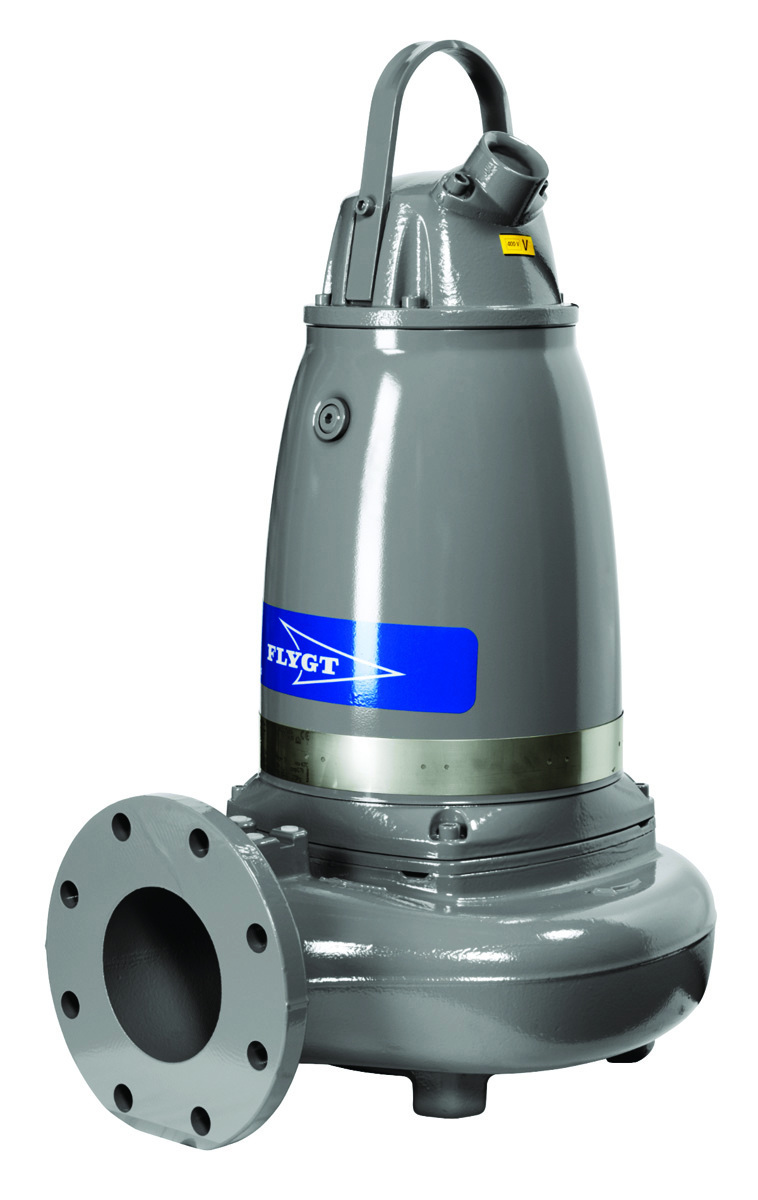

Flygt - a Xylem Brand Concertor
The Concertor smart, interconnected wastewater-pumping system from Flygt - a Xylem Brand senses the operating conditions of its environment, adapts its performance in real time and provides feedback to pumping station operators. It offers energy savings of up to 70% compared to a conventional pumping system; it also reduces inventory by up to 80% due to flexible performance. Clog-free pumping operation and clean wet wells can save up to 80% in vacuum cleaning costs, according to the maker. Its compact design reduces cabinet size by up to 50%. It offers a wide performance field to choose the right operating point, simplifying fine-tuning. 855-995-4261; www.xylem.com

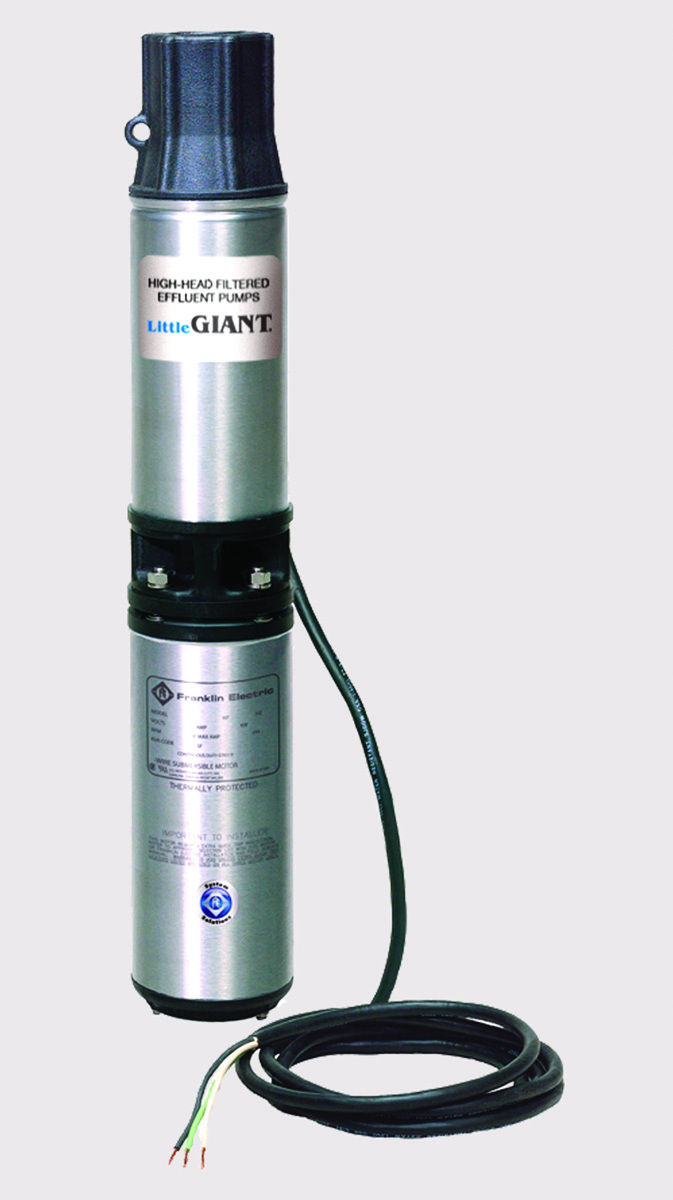

Franklin ElectricLittle Giant WE Series
The Little Giant WE Series is built with a Franklin Electric submersible motor, designed to provide maximum durability and years of reliable service. It consists of a high-head filtered effluent pump powered by a 1/2 hp submersible motor and includes a removable built-in check valve. The quality top bearing and stainless steel upthrust washer provide durability and reliability, according to the maker. 800-437-6897; www.littlegiant.com

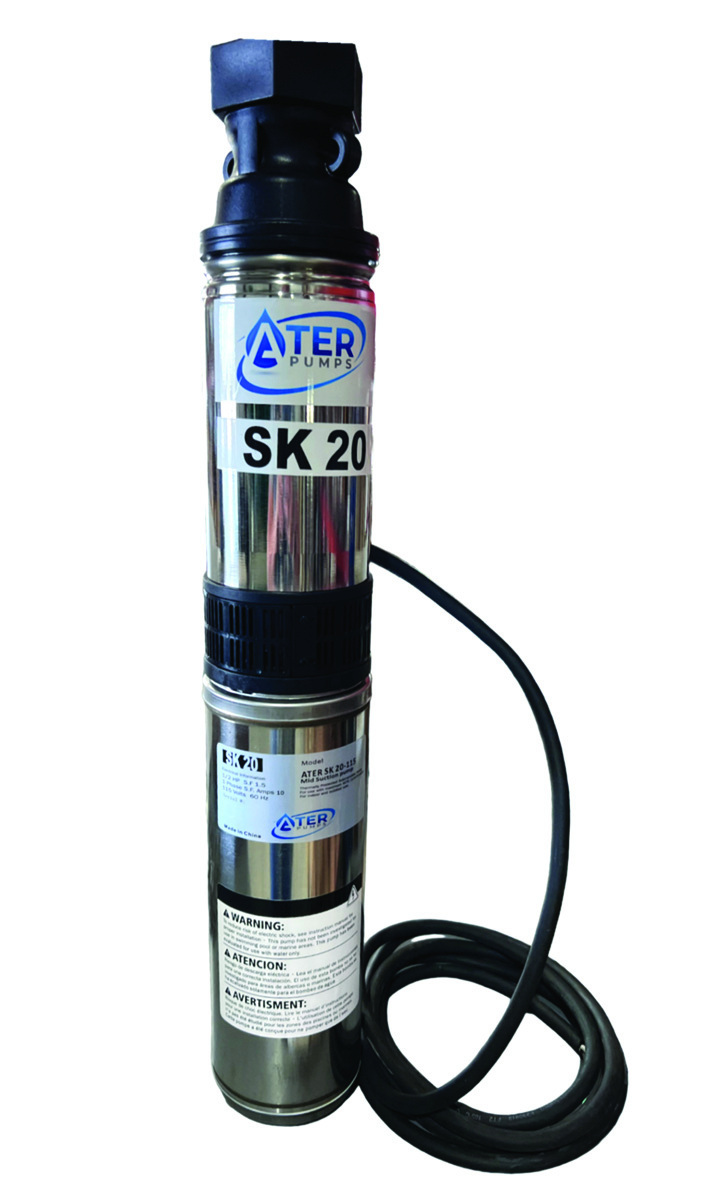

Wholesale Septic SupplyATER SK20 Series
The ATER SK20 Series, distributed by Wholesale Septic Supply, is a versatile pump designed specifically for graywater and aerobic septic systems. It delivers up to 20 gpm, making it suitable for various residential and commercial applications. It is equipped with a 0.5 hp submersible motor that operates on 115 volts AC. This motor is designed to ensure efficient and reliable performance. It features a 1.25-inch NPT outlet for easy connection to standard piping systems. Its mid-suction design allows the pump to operate for extended periods, reduces the risk of clogging and helps maintain its prime, ensuring continuous operation without interruptions. The motor includes built-in thermal overload protection, safeguarding it from overheating and potential damage, thus enhancing the pump’s durability. 936-681-8198; www.wholesalesepticsupply.com

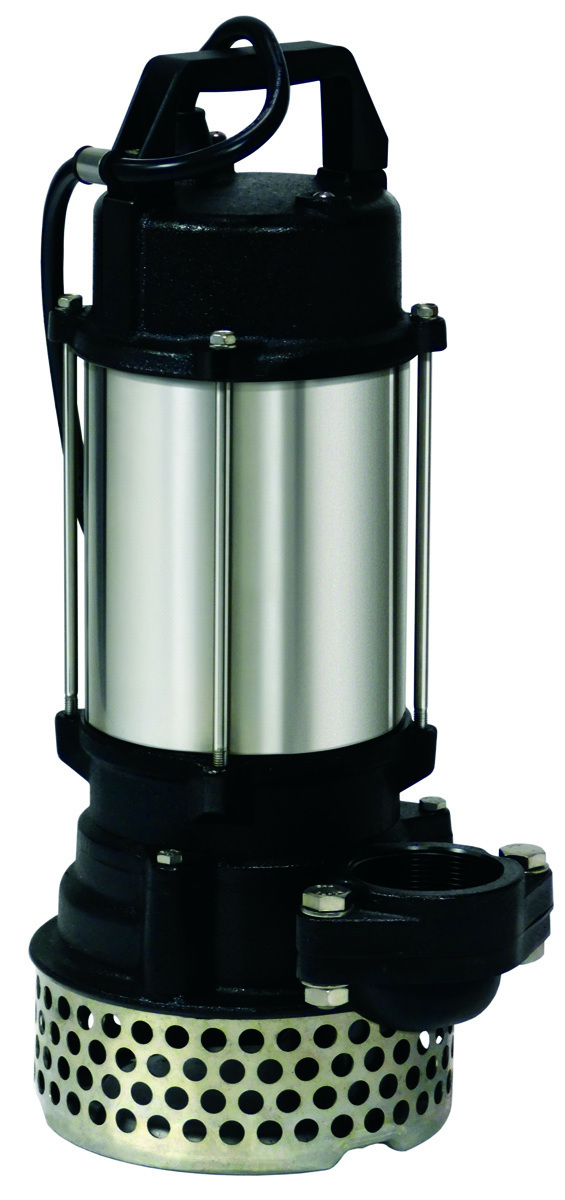

Webtrol VE Series
Webtrol’s VE Series effluent pumps are rugged and can handle the tough jobs, whether pumping from a tank or dosing a septic drainfield. The series features models from 1/2 through 2 hp, heads to 80 feet and flows up to 200 gpm. They feature stainless steel motor housings, cast iron impellers and volutes, a double mechanical seal for motor protection, and a continuous-duty motor. A removable stainless steel strainer is provided on all models to help protect drainfields from solids, or it can be removed for pumping to waste. The versatile 1/2 hp VE5A46 is capable of 48 feet of head and features a 2-inch discharge. Larger models offer optional 2- or 3-inch discharges and are available in 230-volt or 460-volt three-phase. 800-769-7867; www.webtrol.com
GRINDER PUMP

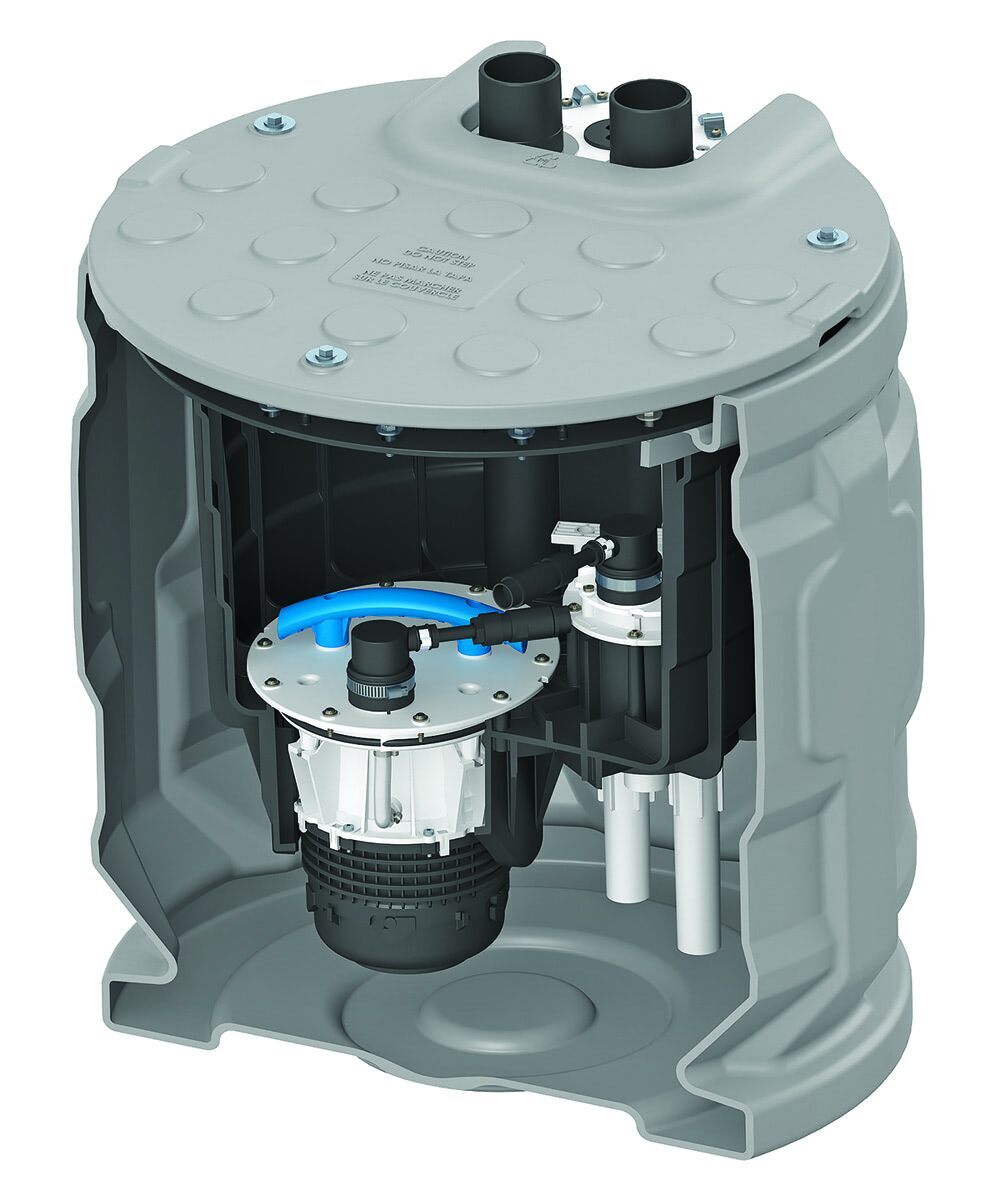

SFA Saniflo Sanipit 24 GR CB
The Sanipit 24 GR CB preassembled, 1 hp grinder pump system from SFA Saniflo is contained within a heavy-duty HDPE basin that measures 24 inches in diameter and 24 inches in depth. It is fully packaged and preassembled with a built-in 1 hp grinder motor, air-pressure mechanism and an external control and alarm system. With easy access to all major internal components, including the motor, grinder blade and pressure switches, it is suitable for sewage ejector installations in new residential and commercial projects. 800-571-8191; www.saniflo.com
SOLIDS/SLUDGE PUMP
Boerger BLUEline
Boerger BLUEline rotary lobe pumps are self-priming, valveless positive displacement pumps used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com
SUMP PUMP

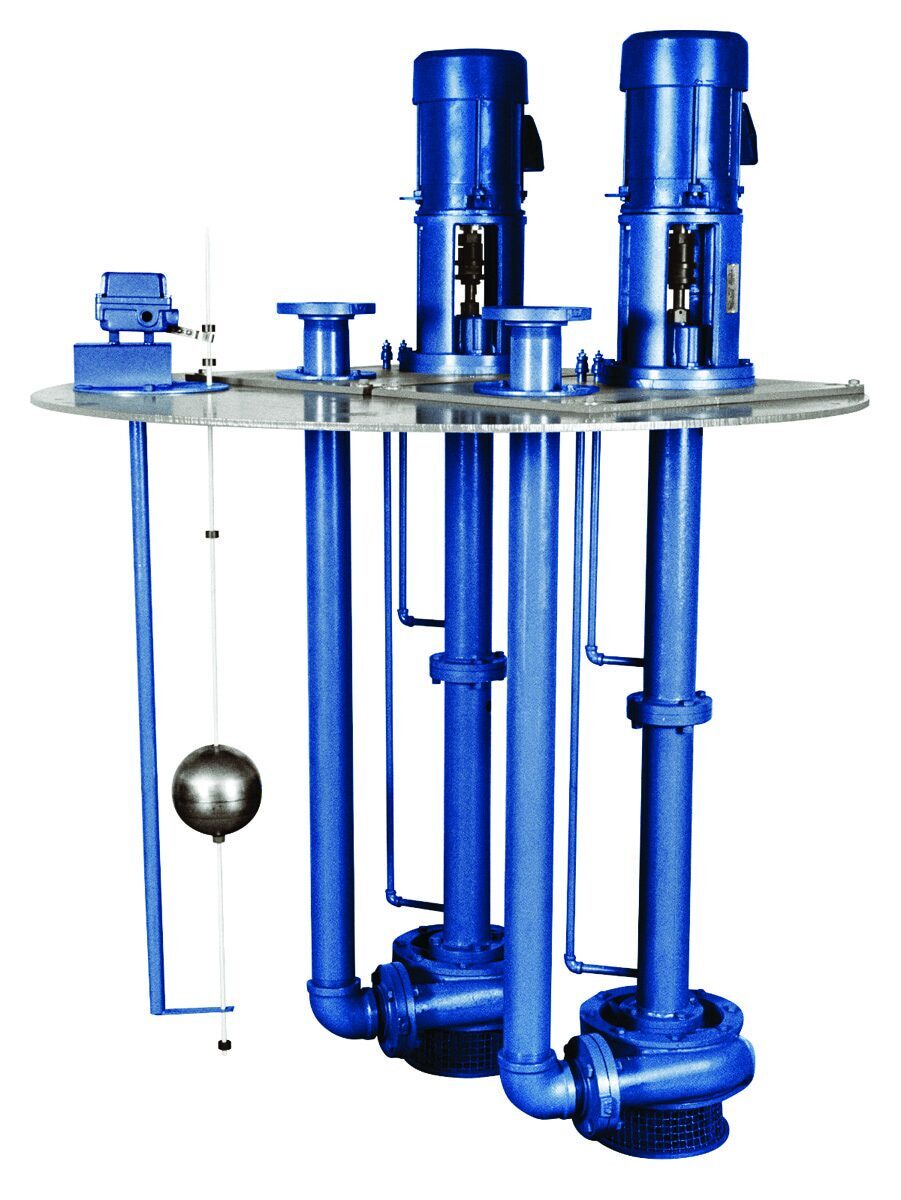

Vertiflo Pump Series 800
Vertiflo Pump Series 800 immersion sump pump is available with variable frequency drive motors. They are built for sump drainage, flood control and process drainage to meet EPA and OSHA requirements. Depending on the rpm selected, the VFDs provide the capability of varying flow and head performance from a vertical pump. These motors offer a cost-effective method of varying the pump performance as desired while conserving energy consumption. It includes heads to 230 feet, temperatures to 350 degrees F, pit depths to 26 feet and up to 3,000 gpm. It has a semi-open impeller, external adjustment, and comes standard with NEMA C face motors (VFD motors are optional). Select from cast iron, 316 SS or Alloy 20 construction. 513-530-0888, www.vertiflopump.com
SUBMERSIBLE PUMPS

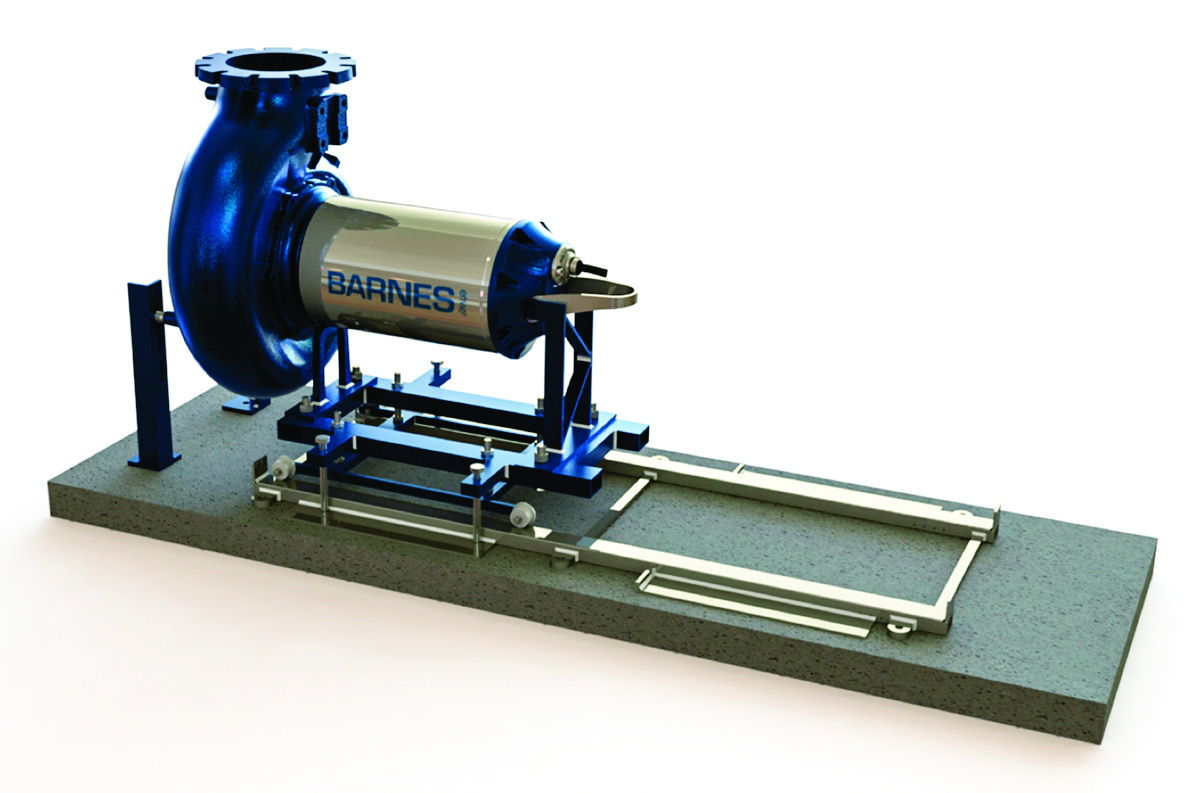

Crane Pumps &Systems envie3
The envie3 air-filled motor series dry pit submersible pump from Crane Pumps & Systems can run in wet applications and in dry pits. These pumps outfit Barnes’ and Deming’s nonclog and chopper wet ends with a premium efficient/IE3 motor that can run in both vertical and horizontal configurations. The closed-loop glycol cooling system allows for easy maintenance and installation in demanding applications. For easy serviceability, the horizontal installation options include a cart system, which creates a back pullout option as well as a fixed bracket configuration. Install horizontally for a smaller footprint. Vertical installation configurations include a metal and concrete stand that allow for 360-degree rotation for adapting to existing piping, including tangential discharge pumps. 937-778-8947; www.cranepumps.com

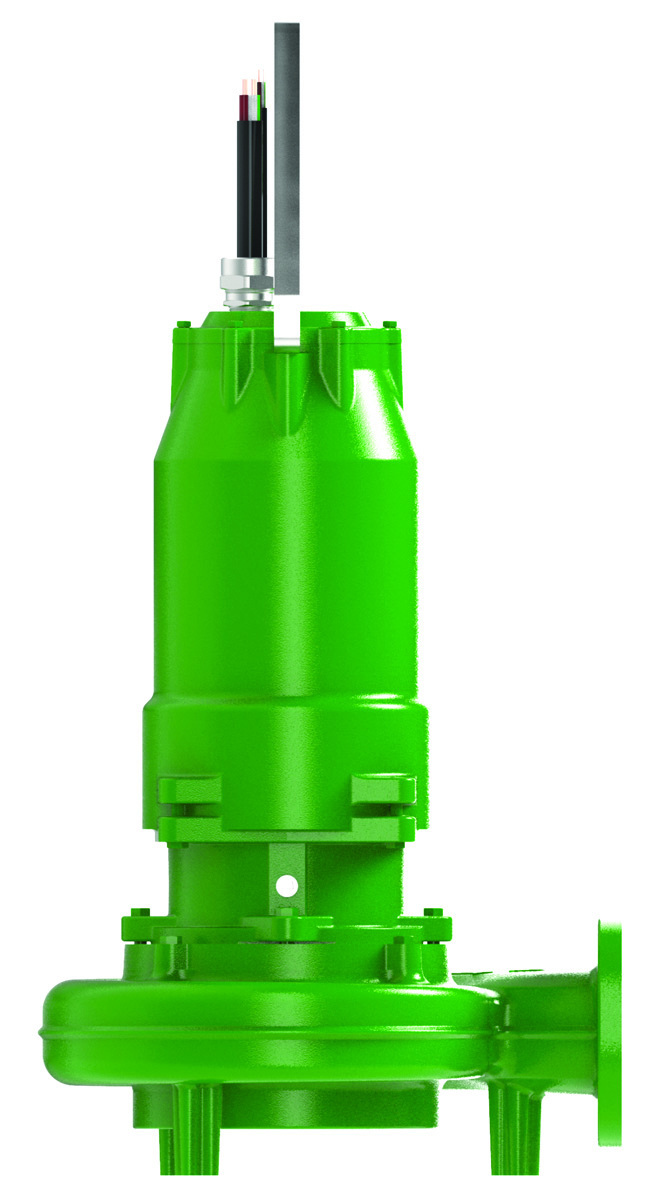

Pentair Next-Gen SubmersibleSolids Handling Pumps
Pentair Next-Gen Submersible Solids Handling Pumps have a semi-open stainless steel impeller and robust cutter plate to help defeat modern flushables. A hydraulic design and premium efficient motor help extend the pump’s life while reducing energy consumption and maintenance needs. They offer super high head curves that require less horsepower, helping lower the total cost of ownership. The permanently lubricated bearings eliminate the need for regular maintenance, while the oil-cooled motor ensures improved heat transfer, resulting in lower running temperatures. The added seal leak feature detects water in the outer chamber before reaching the motor, increasing protection and further reducing potential maintenance costs. They are available for both hazardous and nonhazardous location placement. 855-274-8948; www.pentair.com

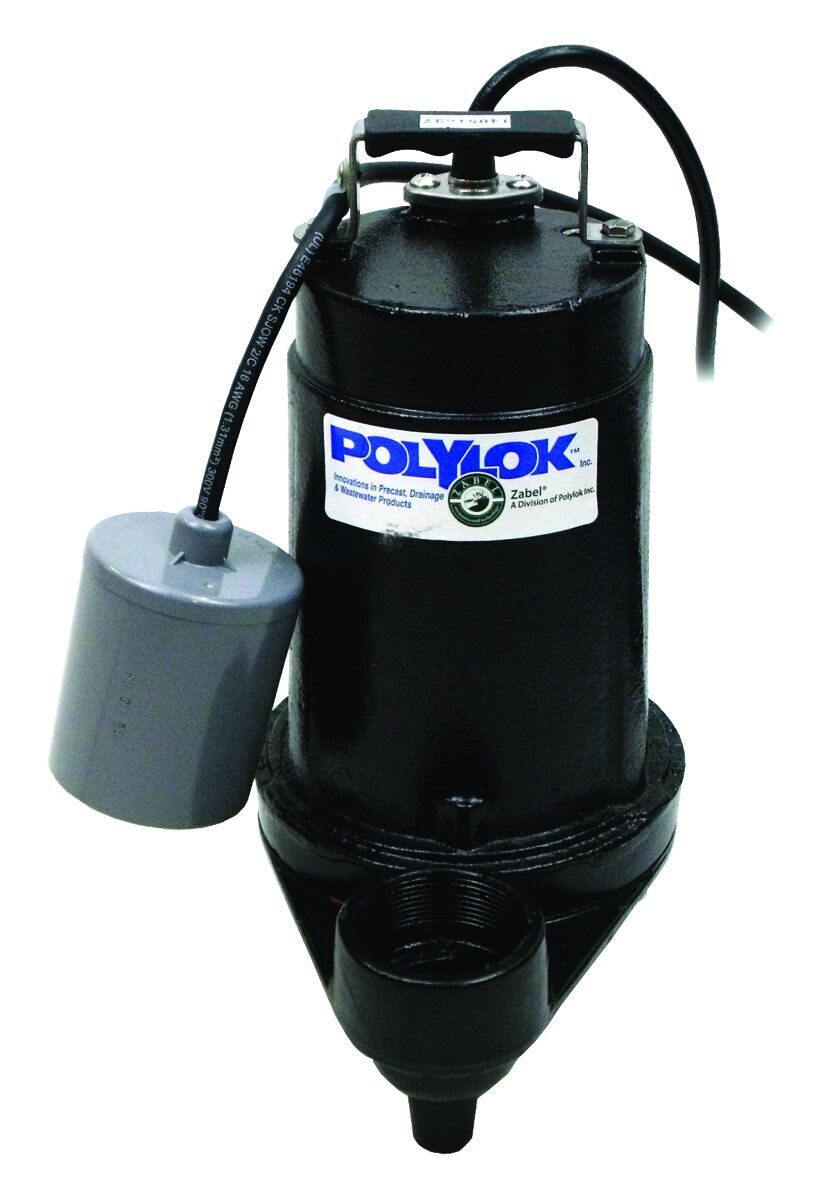

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450-rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a cast iron housing and volute with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com
PUMP CONTROLS

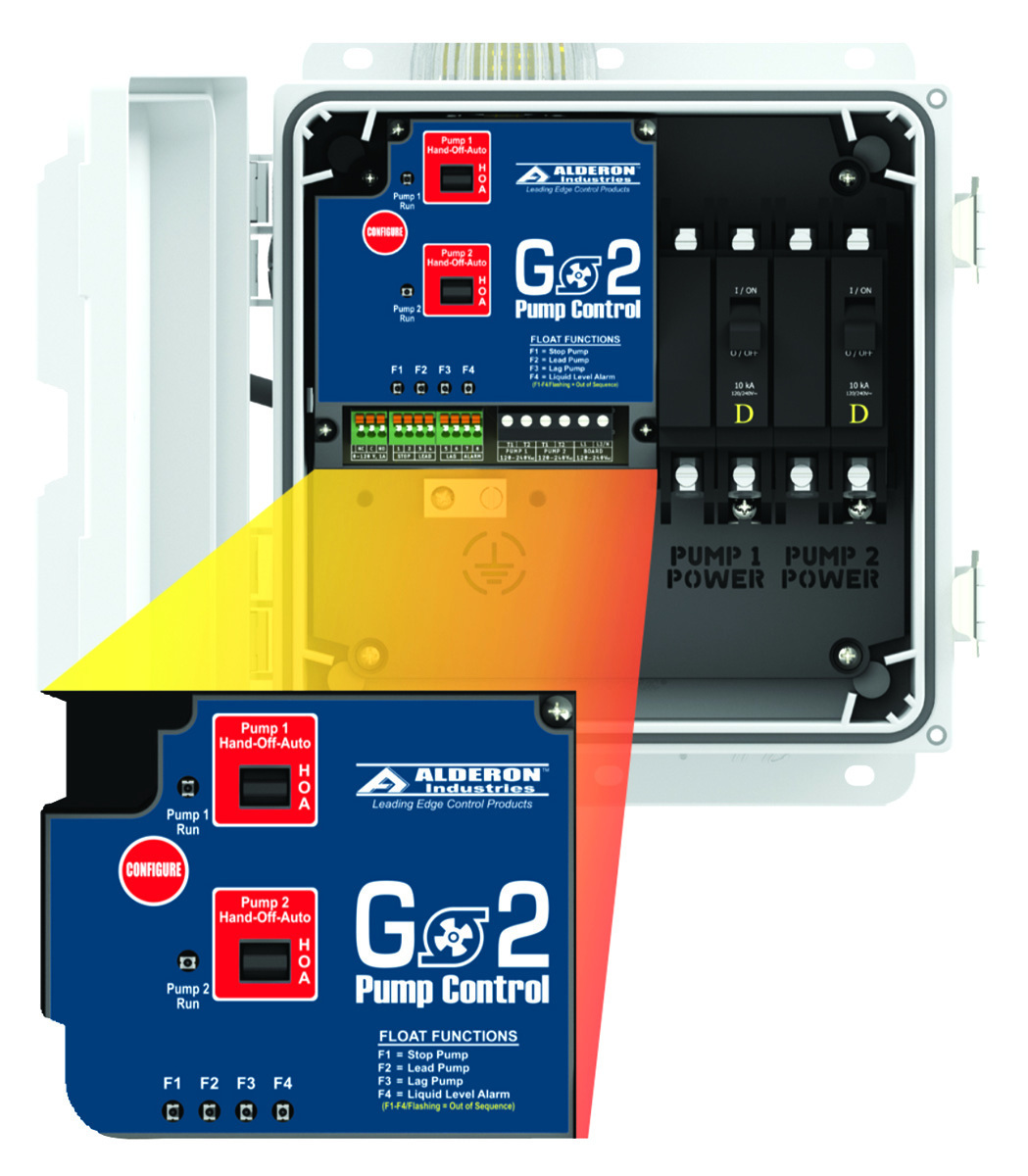

Alderon Industries GO2
The GO2 control panel from Alderon Industries provides pump control with basic system configuration options including sensor error input, auto or manual alarm reset and lag alarm disable. A multicolor LED beacon provides system status indication on the exterior of the panel while the internal circuit board LEDs provide pump run and activated sensor indication. The control panel is operated using three or four float switches for pump off, lead, lag and high level alarm. In three-float applications the lag and alarm functions are activated simultaneously. Included hand-off-auto pump selector switches allow the user to change the desired operation of the pump. It is available in single phase, 120/240 volts AC, 1-7 amps, 7-15 amps or 15-20 amps, simplex and duplex, with a Type 4X rated enclosure for indoor and outdoor applications. It can be customized with optional float switch configurations and cloud based remote monitoring. 218-483-3034; www.alderonind.com

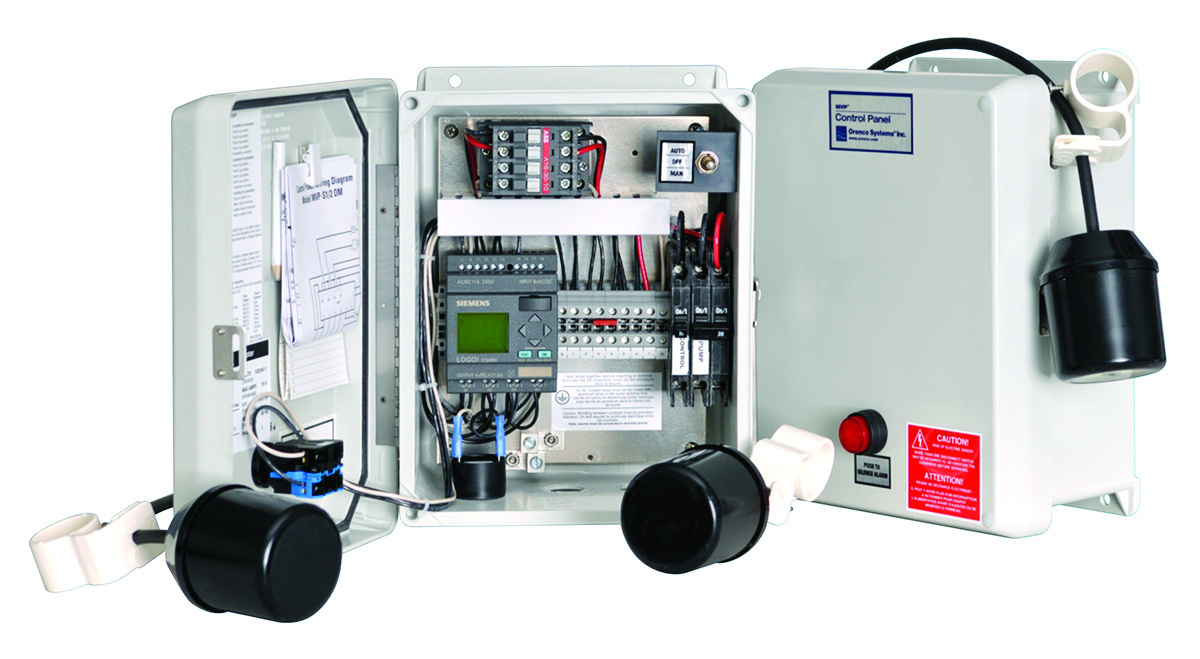

Orenco Systems4-in-1 Controller
The 4-in-1 Controller from Orenco Systems supports numerous electrical configurations and dosing schedules in a single panel. Both simplex and duplex models are available and can be configured in the field for timed or demand dosing. While the control circuit operates on 120-volt power, the pump circuit is dual-rated for 120- or 240-volt power. It includes a programmable logic unit with multiple timing intervals for changing flow conditions and an elapsed-time meter and counter. It also displays float position and has a float error indicator. Each panel includes a reference chart to assist with troubleshooting during installation and testing as well as wiring diagrams. It is touch-safe. 877-257-8712; www.orenco.com

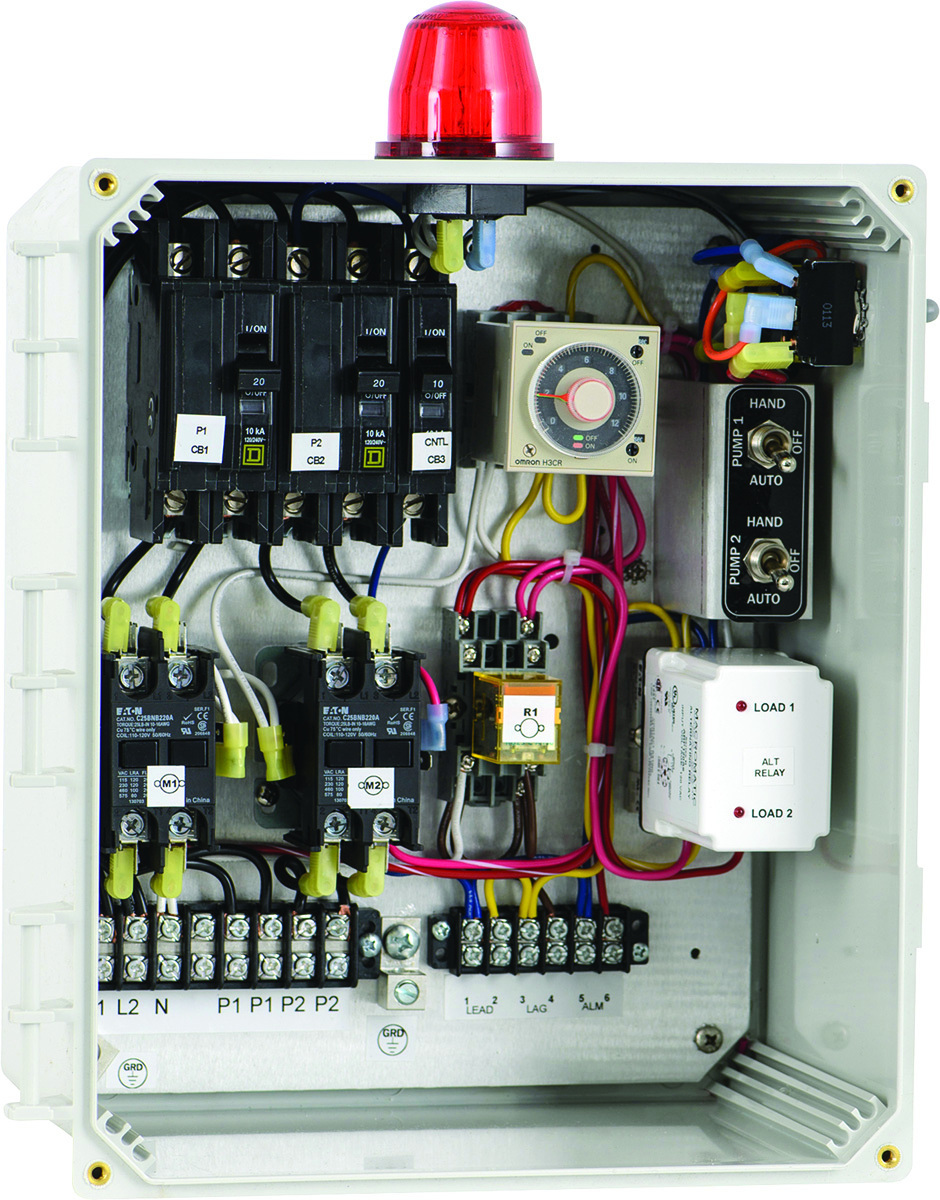

SPI 50B019-120-240 DD
The 50B019-120-240 DD control panel from SPI is a duplex timed-dosing panel for residential or commercial applications. It can be used with 120- or 240-volt power and can accommodate two dosing pumps controlled by a repeat-cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL listed. 419-282-5933; www.septicproducts.com

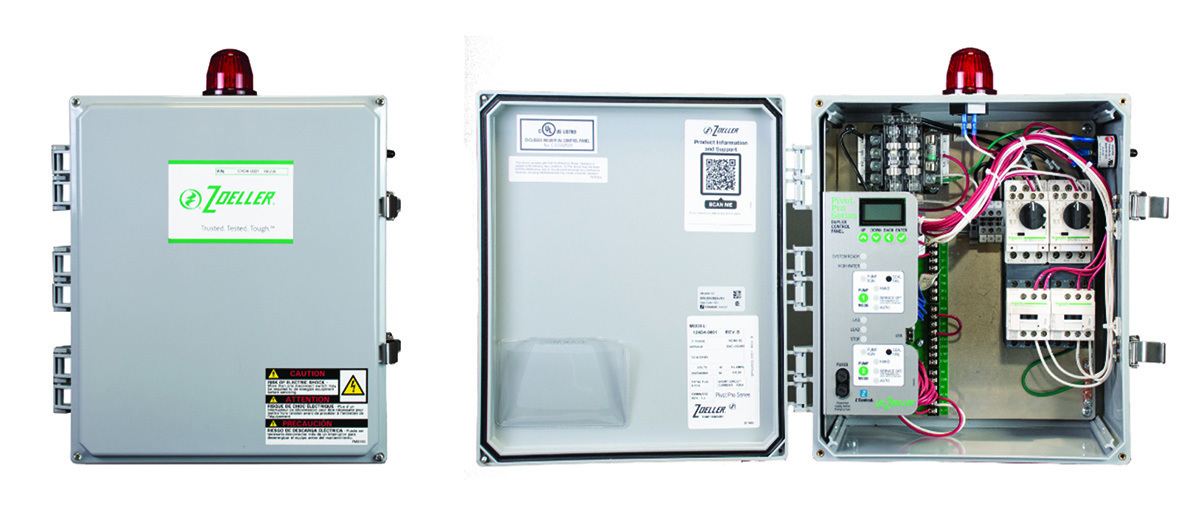

Zoeller Pump Pivot
Pivot control panels from Zoeller Pump employ microchip technology and logic to allow for a long list of standard features. The panel is capable of detecting, reacting and notifying of problems with float switches. It can also detect bad components like contactors, overloads and seal fail circuits. This means a warning is provided before the failure results in property damage. It has a simple interface and can be modified for most applications. 800-928-7867; www.zoellerpumps.com
PUMP PARTS/COMPONENTS

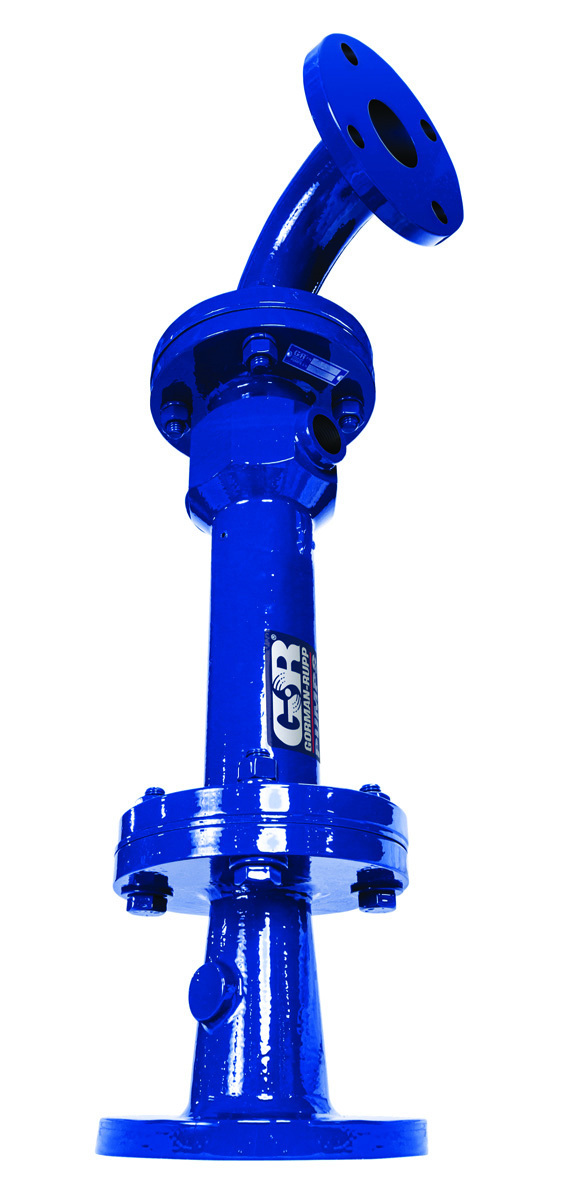

Gorman-Rupp Ech2oStorm
The Ech2oStorm from Gorman-Rupp is a static venturi aeration device designed to add dissolved oxygen into liquids as they are being pumped. It adds oxygen to wastewater, reduces the size of organic solids and degasses organic solids. It is available in 2-, 3-, 4- and 6-inch sizes. Depending on the Gorman-Rupp pump it is paired with, it can provide flows from 50 to 1,300 gpm with up to 857 pounds of dissolved oxygen per day. It is suitable for aeration in a variety of municipal, industrial and agricultural applications including wet well influent, aerobic sludge digestion, lagoons, oxidation ditches, fat, oil and grease digestion, landfill leachate and mine water treatment. 419-755-1011; www.grpumps.com

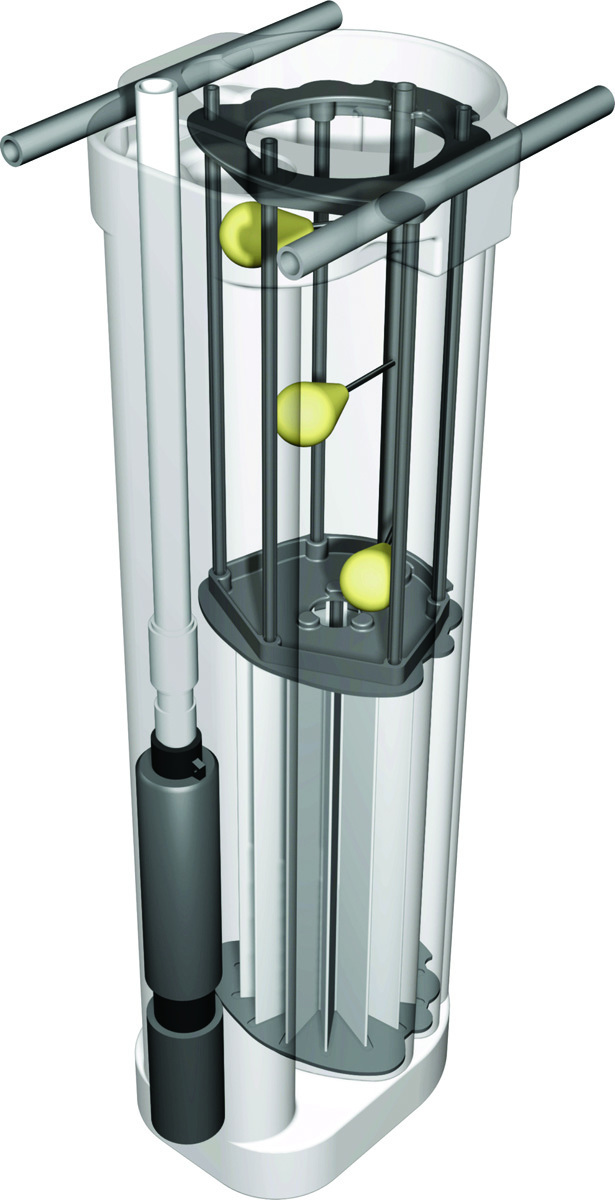

Infiltrator Water TechnologiesECOFILTER Pump Vault
The ECOFILTER Pump Vault tank filtration system from Infiltrator Water Technologies reduces biological loading and clogging, prolonging downstream drainfield and treatment system life. Quick to install in new or existing single or double compartment tanks, the completely integrated system is ideal for STEP collection systems and effluent treatment. It has a dual compartment housing for simplex or duplex applications that draws effluent from the clarified zone of the tank, minimizing suspended solids. The easy-access design maximizes filter surface area and streamlines filter inspection and maintenance by enabling filter cartridge removal without pulling the pump or vault. The system’s float stem bracket makes removal and adjustment of the float assembly simple. It is constructed of high-density polyethylene with UV inhibitors for longevity and is customizable to meet any project need. 800-221-4436; www.infiltratorwater.com

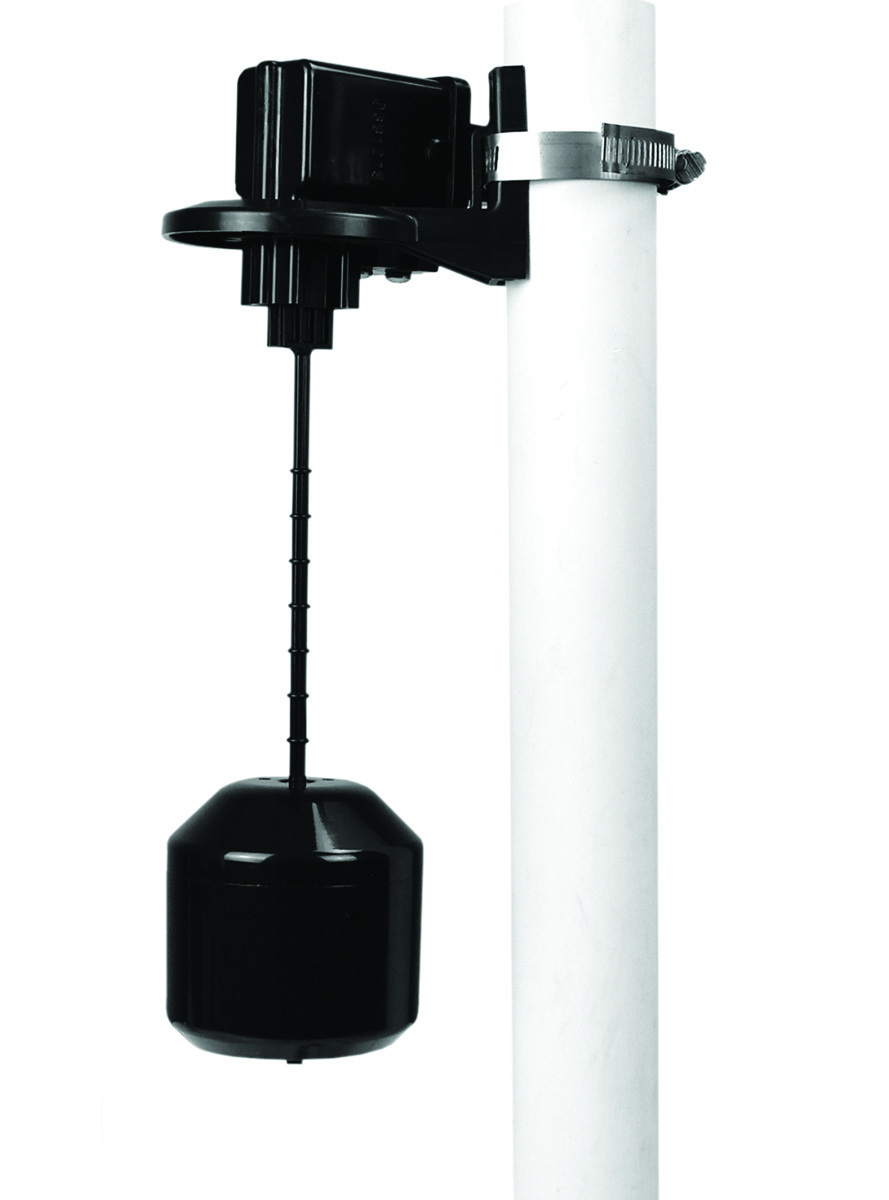

SJE Rhombus VerticalMaster 3 Plus
The SJE Rhombus VerticalMaster 3 Plus pump switch is suitable for limited space applications, including small sump chambers, laundry trays and effluent, as well as in large tanks. It provides direct control of pumps up to 1/2 hp at 120 volts and 1 hp at 230 volts in nonpotable water and sewage applications. The compact float housing provides improved buoyancy; the cable entry design helps prevent moisture ingress; it has increased contact force; and features an easily adjustable plastic clip. It has been life cycle tested to over 1 million cycles and is UL recognized and CSA certified. 888-342-5753; www.sjerhombus.com
