Distribution Equipment and Systems

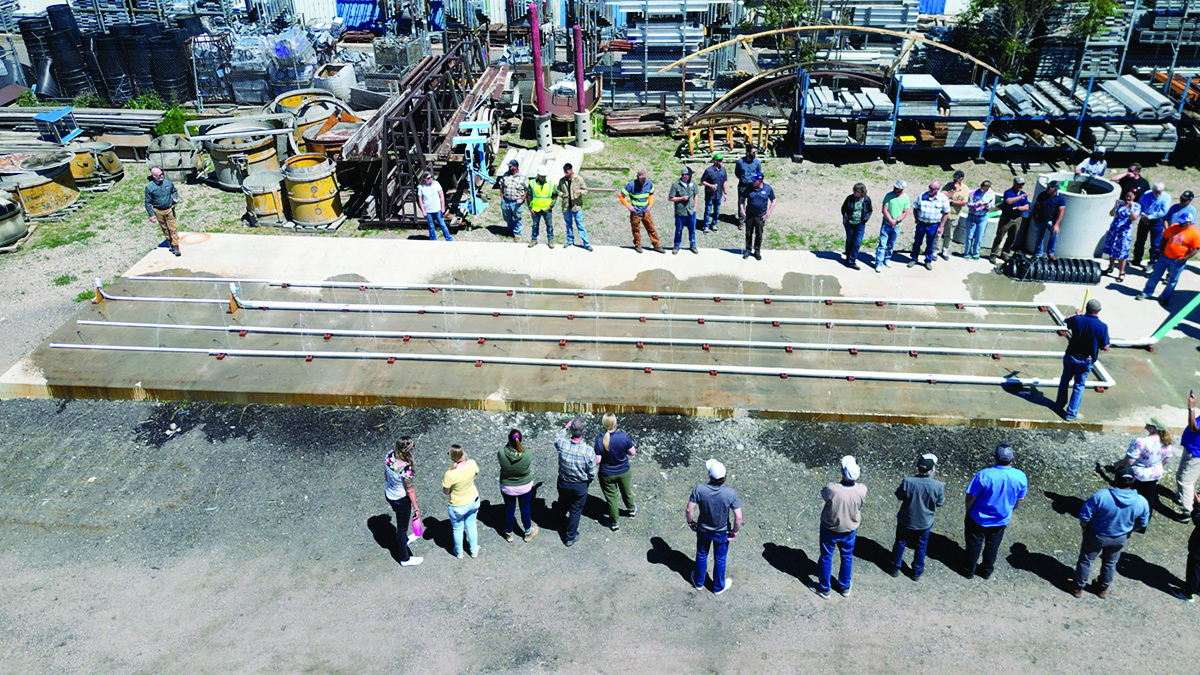

Front Range Precast Concrete Auto-Siphon
In use since some of the first plumbing systems in history, the Auto-Siphon is just as useful and relevant today. A 100% passive and power-free device, the Front Range Precast Concrete version of this technology not only saves power and money compared to electric pumps, but continues to dispose of and replenish water even during power-loss. This makes it a suitable option since the homes that require septic systems are often in remote places, prone to blackouts. A single siphon can provide enough pressure to water an entire soil absorption field. 800-783-3207; www.flxx.com

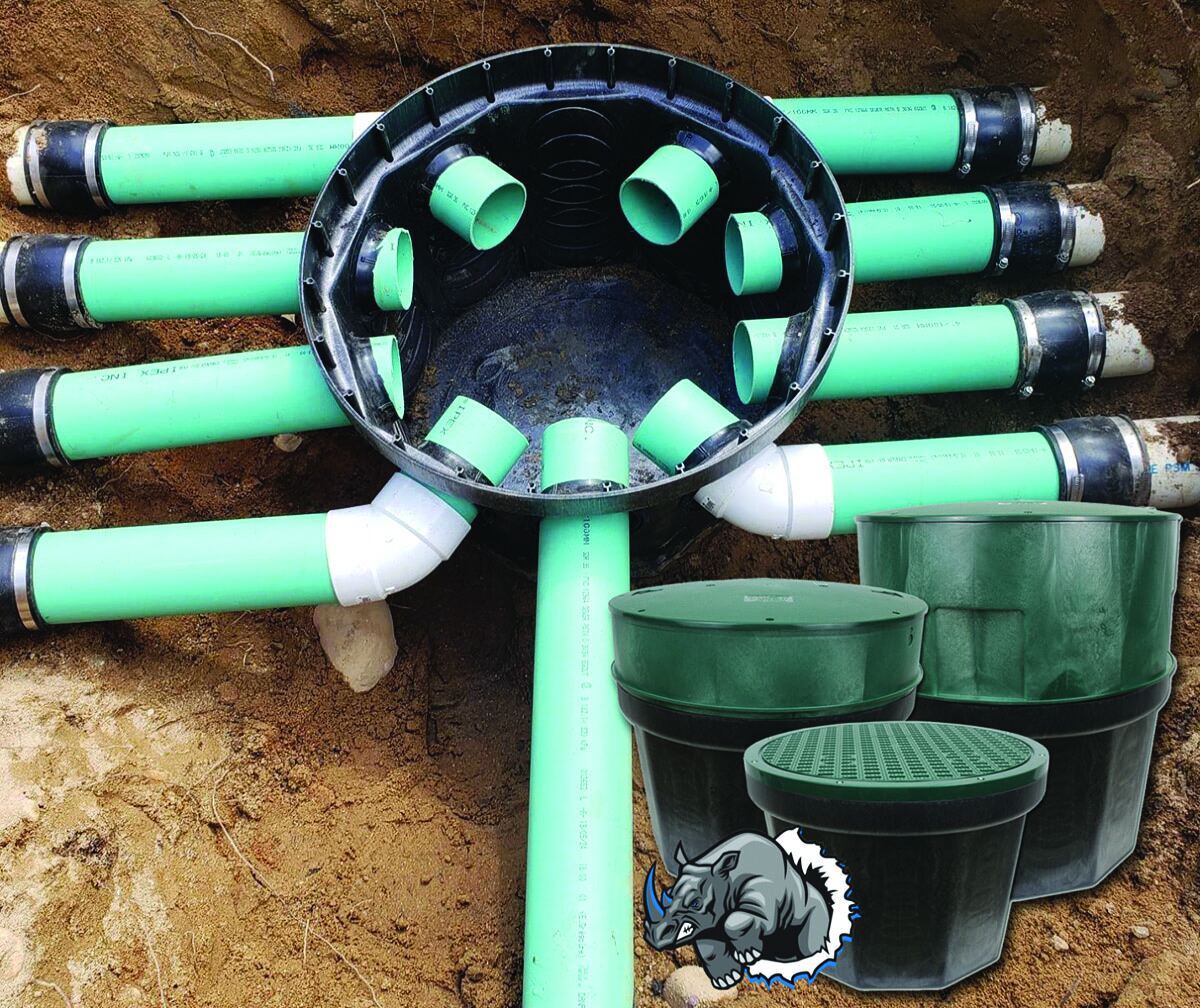

Polylok 24-inch Rhino Distribution Box
The Polylok 24-inch Rhino Distribution Box has 10 potential openings to suit any drainfield application. Polylok’s 24-inch stackable riser system can be used to easily bring the Rhino Box to grade. It will accept 2-, 3- and 4-inch pipes with the use of the Polylok seal-and-nut system. It will also accept 6-inch pipes with the use of a Polylok 6-inch grommet. It is also available as a catch basin with a Polylok heavy-duty grate. 877-765-9565; www.polylok.com

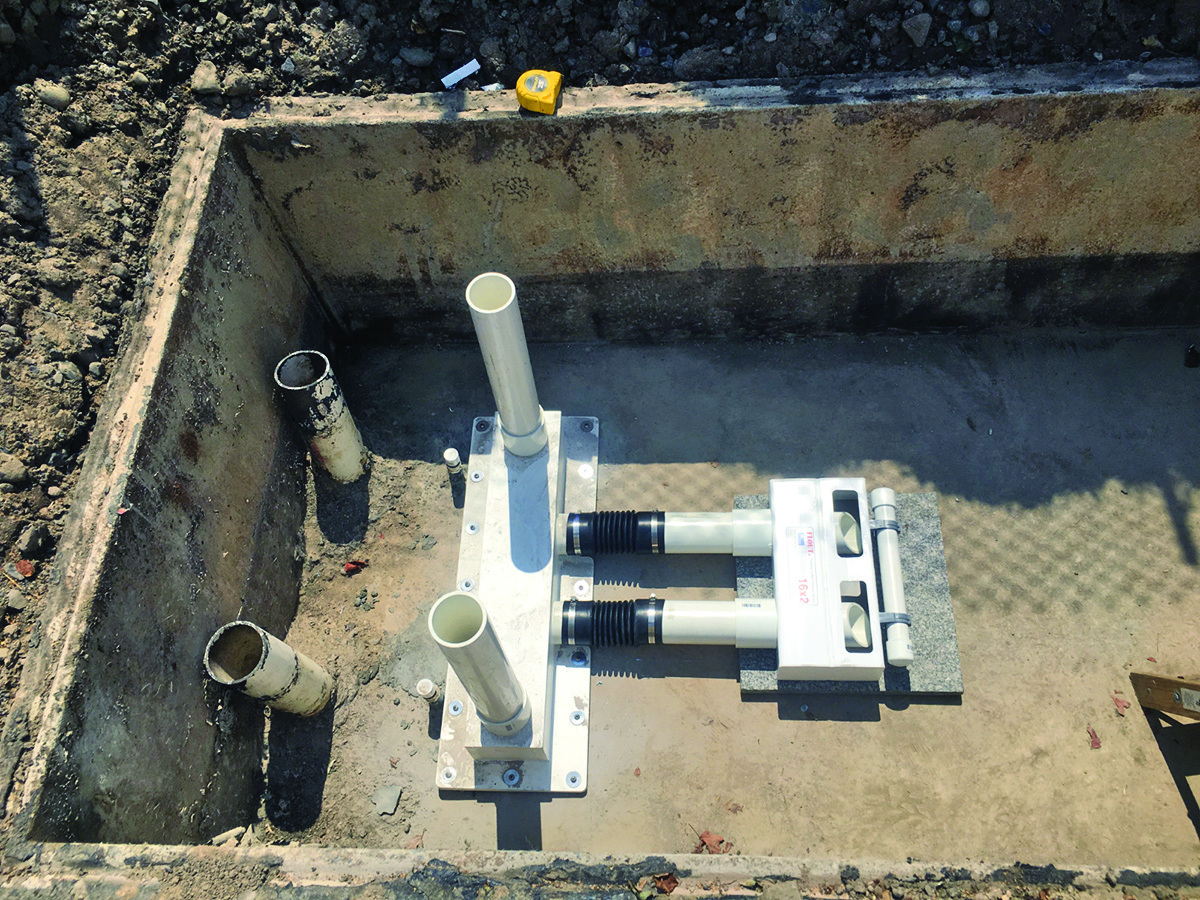

Rissy Plastics Flout
The Flout from Rissy Plastics has become popular as a retrofit for failed bell siphons. The problem with replacement is finding a way to connect to the traps or vents of the old siphons. The many variables of pipe composition, size and position create challenges. Providing a watertight seal without wasting elevation with clamp couplers and saving time not having to wait for sealants and cements to set are achieved with custom manufactured manifolds. As long as the concrete chamber floor is smooth and stable, the old siphon pipes are cut off flush and the manifold is fastened in place with corrosionproof plug anchors, screws and butyl sealant. Once in place, Flout dosing devices are simply clamped to the pipe nipples. Manifolds are custom built for each application and are made from rugged 3/4-inch cellular PVC sheet. Many arrangements for inlets, outlets and venting can be provided. 860-459-9995; www.flout.net
Effluent Pumps

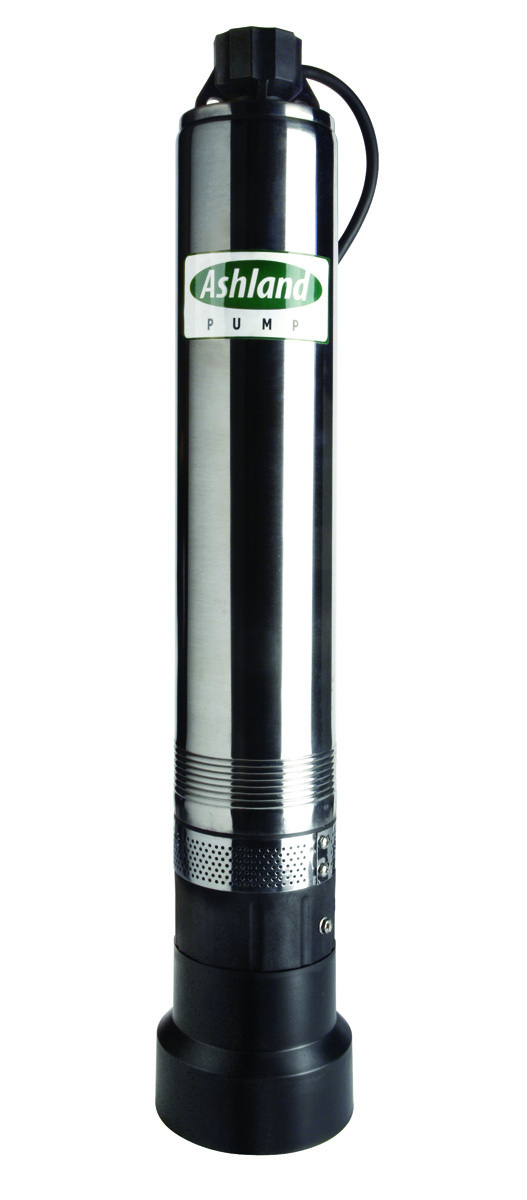

Ashland Pump CPM Series
The Ashland Pump CPM Series is a versatile and efficient solution for managing filtered effluent and gray water. With flow rates of 10, 20 and 30 gpm, this series has a bottom suction design that ensures maximum fluid drawdown, enhancing operational efficiency. Equipped with 1/2 hp, 230-volt and 115-volt single-phase five-stage motors, these pumps operate quietly without compromising performance. They are able to handle up to 1/8-inch solids without any damage, making them a reliable choice for various applications. Stainless steel and thermoplastic materials guarantee durability while the detachable base allows for secure mounting, ensuring stability during operation. 855-281-6830; www.ashlandpump.com

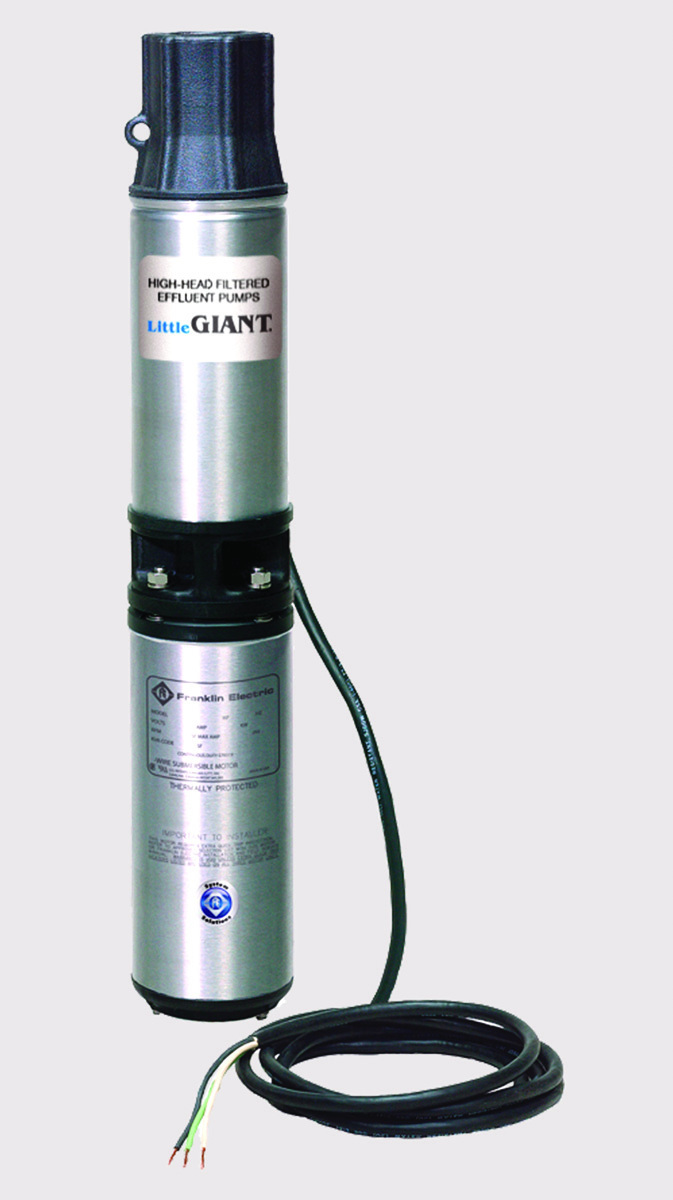

Franklin Electric Little Giant WE Series
The Little Giant WE Series is built with a Franklin Electric submersible motor, designed to provide maximum durability and years of reliable service. It consists of a high-head filtered effluent pump powered by a 1/2 hp submersible motor and includes a removable built-in check valve. The quality top bearing and stainless steel upthrust washer provide durability and reliability, according to the maker. 800-437-6897; www.littlegiant.com

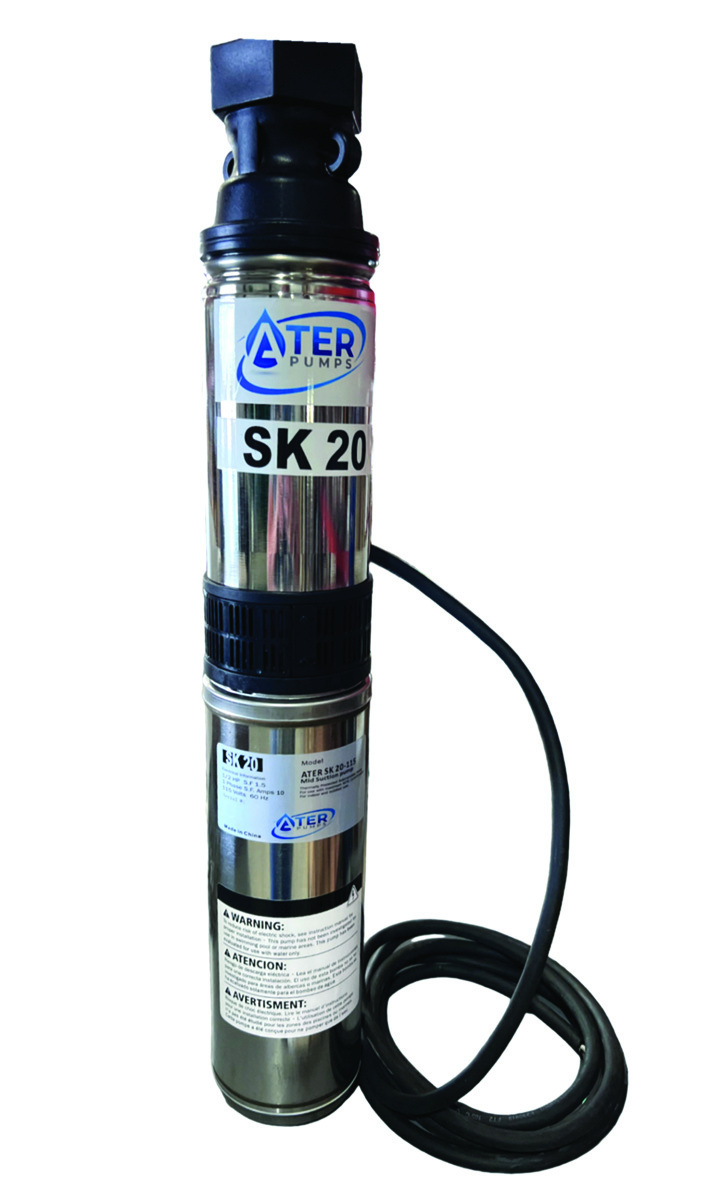

Wholesale Septic Supply ATER SK20 Series
The ATER SK20 Series, distributed by Wholesale Septic Supply, is a versatile pump designed specifically for graywater and aerobic septic systems. It delivers up to 20 gpm, making it suitable for various residential and commercial applications. It is equipped with a 0.5 hp submersible motor that operates on 115 volt AC. This motor is designed to ensure efficient and reliable performance. It features a 1.25-inch NPT outlet for easy connection to standard piping systems. Its mid-suction design allows the pump to operate for extended periods, reduces the risk of clogging and helps maintain its prime, ensuring continuous operation without interruptions. The motor includes built-in thermal overload protection, safeguarding it from overheating and potential damage, thus enhancing the pump’s durability. 936-681-8198; www.wholesalesepticsupply.com

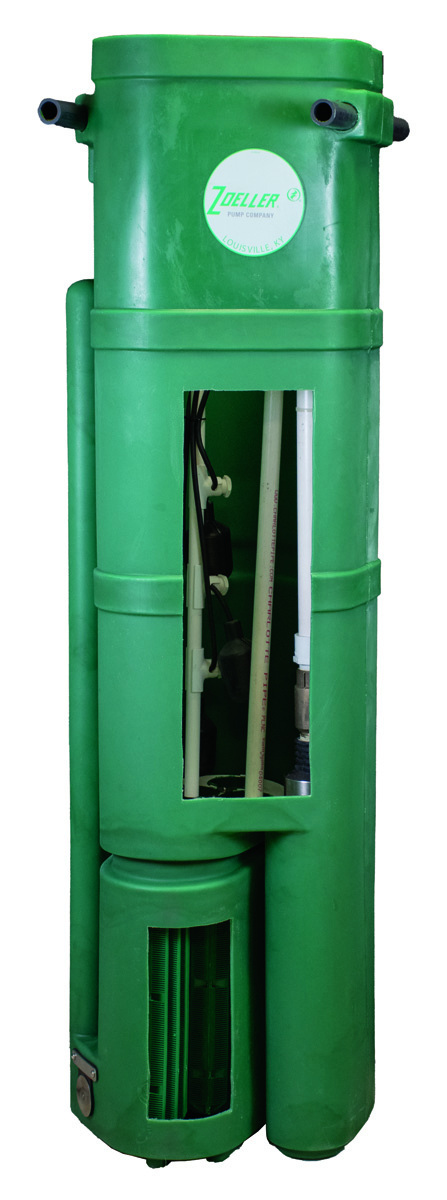

Zoeller Pump Turbine STEP Systems
Turbine STEP (Septic Tank Effluent Pump) Systems from Zoeller Pump are designed for use in a septic tank or pump tank. With a turbine effluent pump, float system and effluent filter set packaged in a polyethylene vault, it is suitable for use on new construction or repair sites when gravity flow is not an option and higher total dynamic head is required. The system is also useful in cluster systems, low-pressure pipe applications, gravel/sand filters, drip irrigation systems and other high head applications. Each system can be equipped with a control panel for use in either demand dose or timed dose applications. They are available in 1/2 through 3 hp sizes, in 1 1/4- or 2-inch discharges and flows up to 85 gpm. Alarm box or control panel packages are available. 800-928-7867; www.zoeller.com
Pump Control Panels

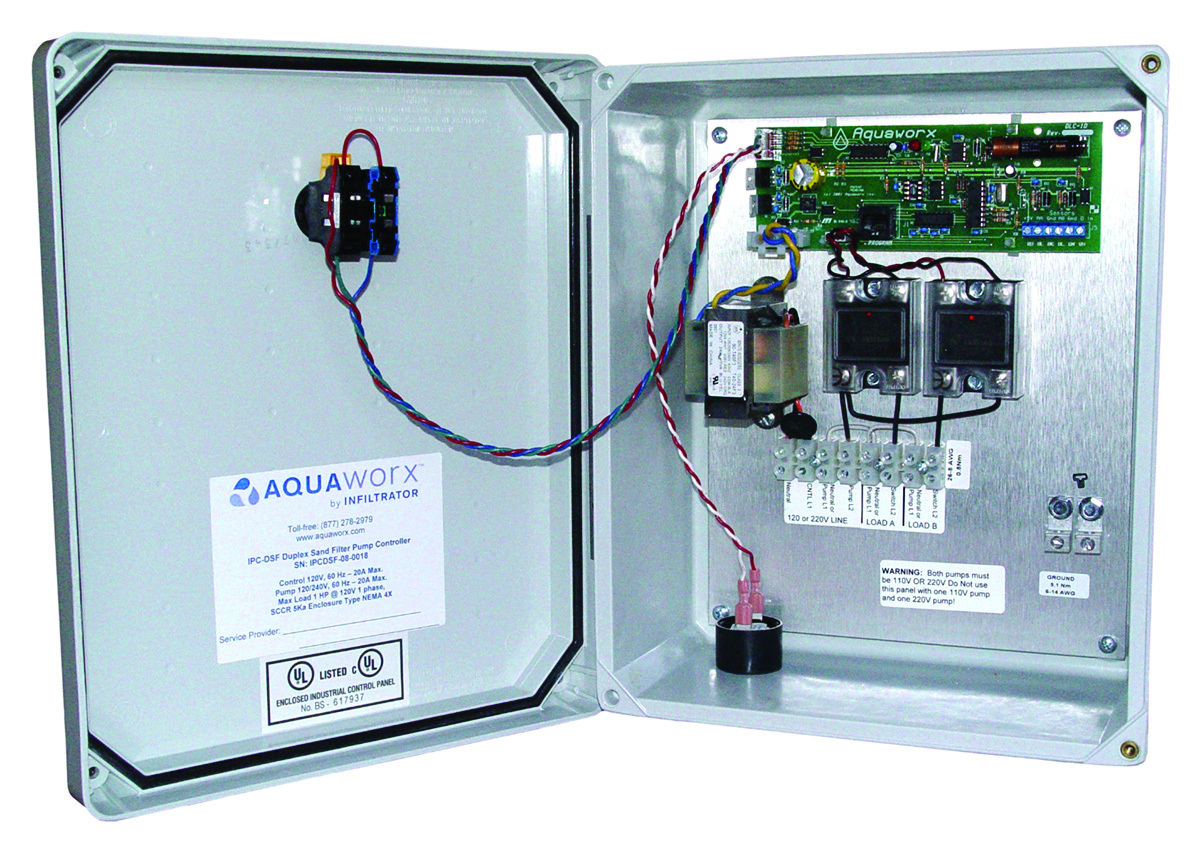

Infiltrator Water Technologies Aquaworx Intelligent Pump Control Panel
The Aquaworx Intelligent Pump Control (IPC) Panel from Infiltrator Water Technologies is an easy-to-install panel that enhances pump system performance by monitoring liquid levels, controlling pumping time intervals and logging events in real-time. It calculates daily system flow utilizing a pressure transducer in the pump chamber and an embedded microprocessor in the pump controller. It broadcasts a wireless signal from the handheld Aquaworx Tapper programmer, allowing the user to program the panel from any Wi-Fi enabled device. The Aquaworx Tapper connects to the panel using a standard RJ45 cable. Once connected, the user navigates to a website that provides all control settings for the panel and a history of system function critical to troubleshooting and maintaining a pump-driven system. The Tapper enables the user to program and manage multiple panels and capture and download system events and settings onto a removable USB memory device. 800-221-4436; www.infiltratorwater.com

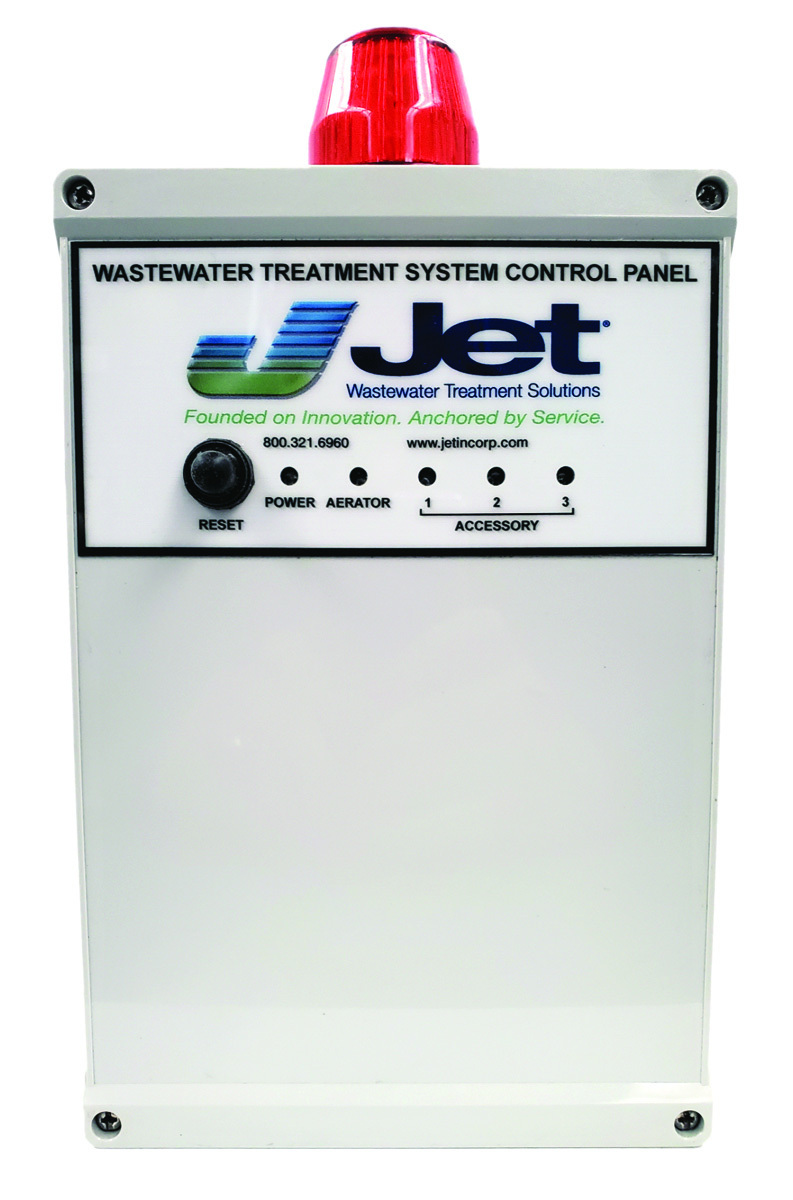

Jet Inc. Model 197
The Model 197 control panel from Jet Inc. monitors the operation of the Jet Inc. treatment system aerator and additional components. It can monitor single- or dual-aeration systems with selectable high- and low-amperage monitor settings. The panels have dedicated alarm and control circuits with separate power circuits for aeration devices. A signal array includes a power indicator LED and four additional equipment alarm indicator LEDs. The integrated alarm buzzer has an output for an optional remote-mounted audible alarm. An external reset switch and internal master reset switch are standard. The panel also has dry contacts for an alarm mode auto dialer or Jet Wi-Fi control interface, NEMA 4X enclosure and primary circuit fuse. 800-321-6960; www.jetincorp.com

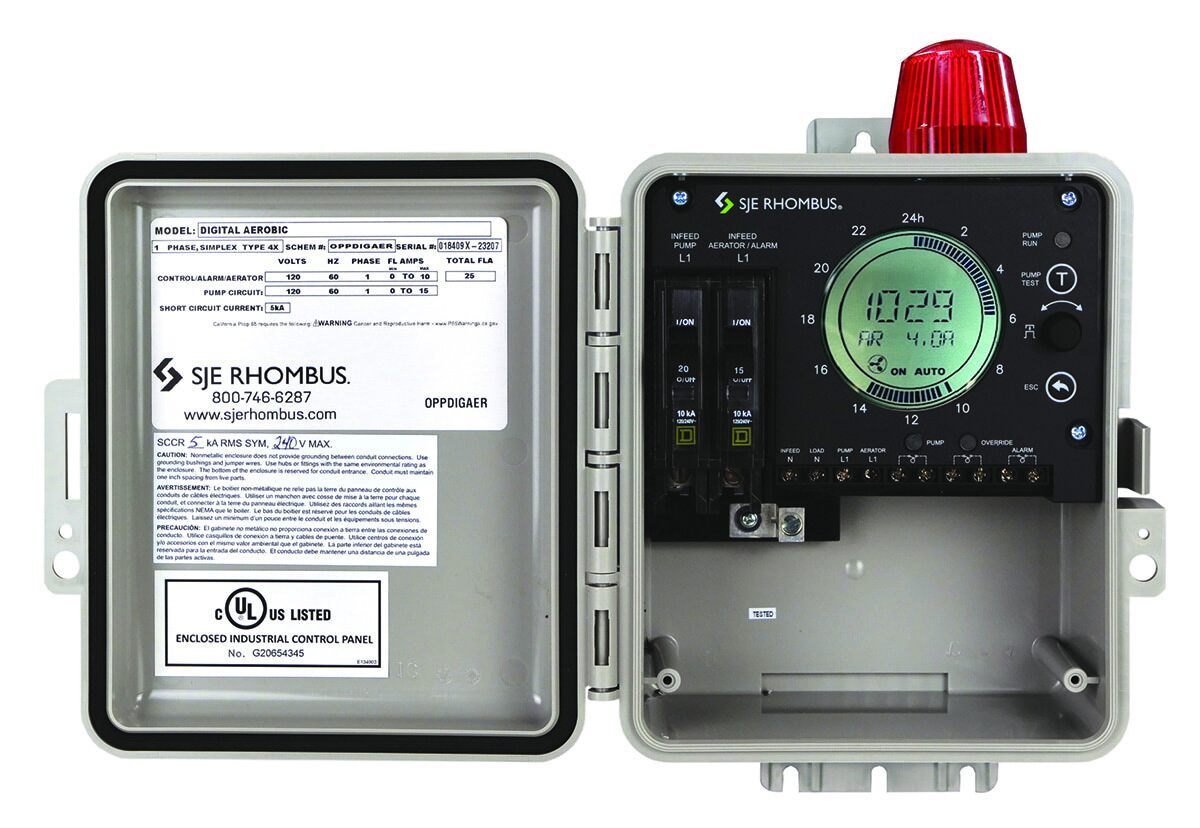

SJE Rhombus Digital Aerobic Panel
The Digital Aerobic Panel from SJE Rhombus is designed for aerobic systems. This simplex control panel controls and monitors an air compressor, effluent pump and high water level conditions in aerobic wastewater treatment applications. A beacon indicates two different alarm conditions. Features include a NEMA 4X weatherproof enclosure, 120-volt AC pump breaker, compressor alarm breaker, alarm/test/silence switch, terminal block for easy installation, compressor low amperage alarm, 24-hour pump timer, and a solid red beacon for high water alarm and flashing red beacon for compressor alarm. 888-342-5753; www.sjerhombus.com

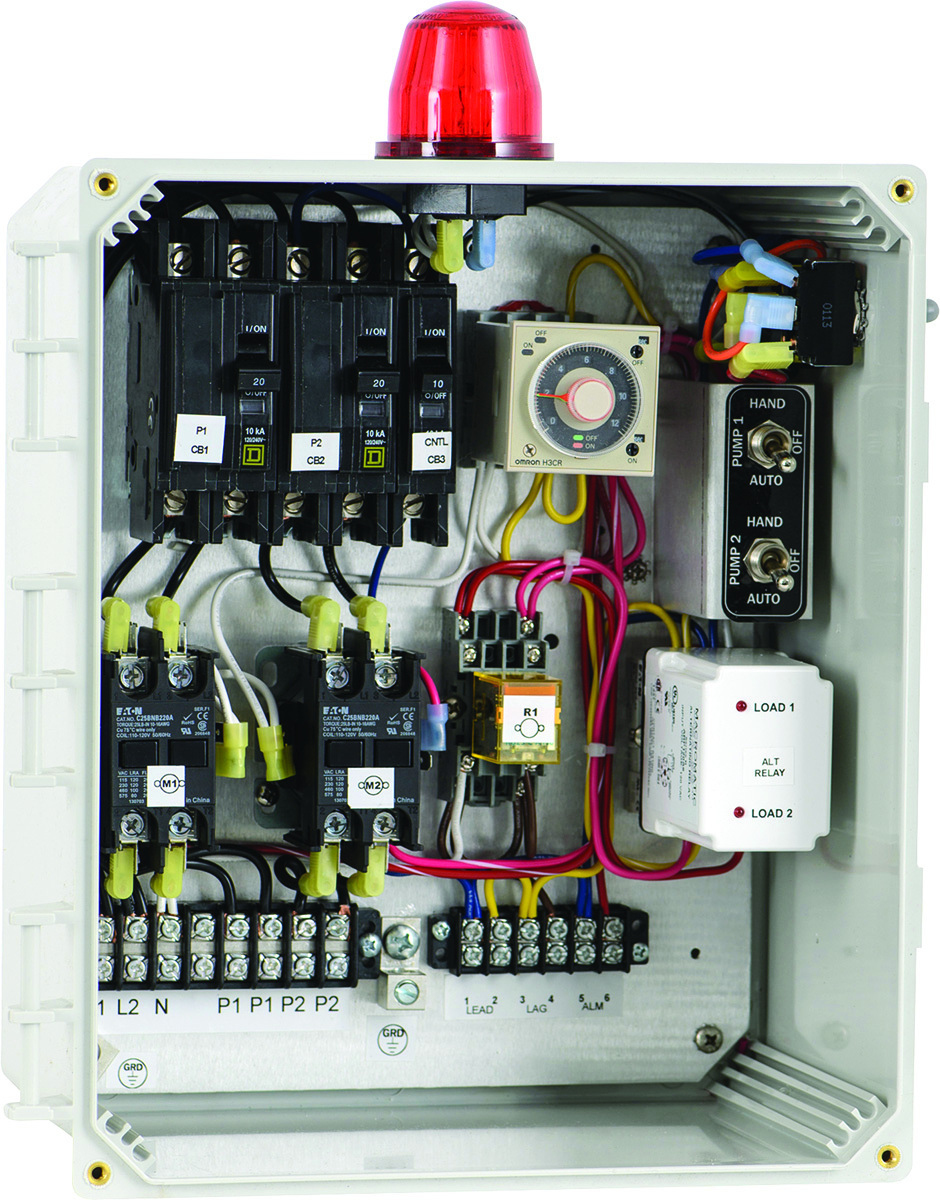

SPI 50B019-120-240 DD
The 50B019-120-240 DD control panel from SPI is a duplex timed-dosing panel for residential or commercial applications. It can be used with 120- or 240-volt power and can accommodate two dosing pumps controlled by a repeat-cycle timer. It has a durable, weather-resistant, NEMA 4X polycarbonate enclosure with SST latches; large, easy-to-access terminal block; circuit breakers for the pumps and control circuits; a rugged externally mounted, UV-resistant alarm light; audible alarm and run-mute-test switch with UV-resistant sealing boot; definite purpose motor contactors; alternating relay; and pump hand-off-auto switches. Compressor hookups are available. Wiring schematic and detailed connection diagrams are provided, as well as mounting feet for the enclosure. It is UL-listed. 419-282-5933; www.septicproducts.com
Spray Irrigation Equipment

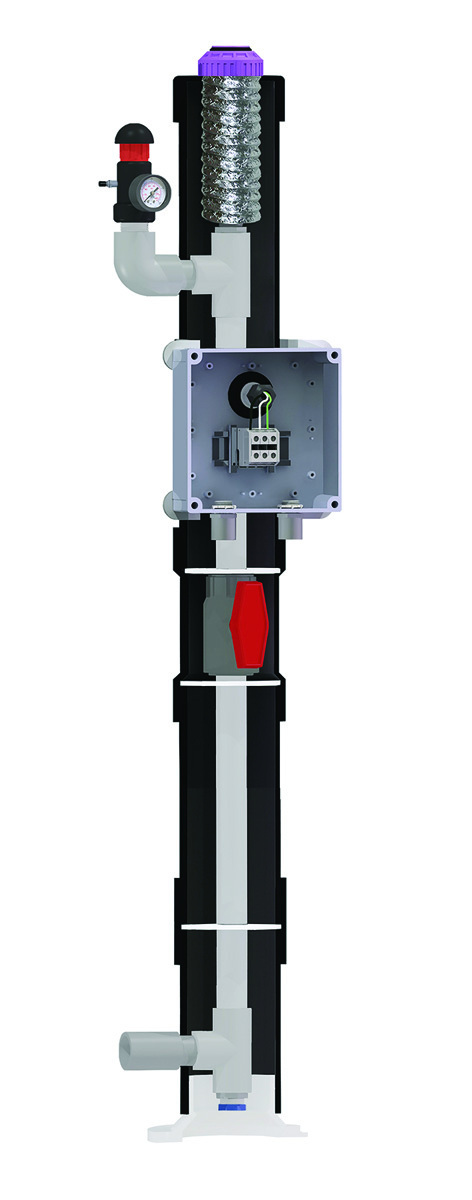

Norweco All-Season
Norweco’s All-Season spray irrigation system was developed to provide homeowners with a safe and convenient method of effluent disposal. Designed to maximize water reuse, spray irrigation is a simple and low-cost method of effluent disposal for properties with marginal soils and challenging topography. The system was engineered to operate in the harshest weather conditions, distributing disinfected effluent directly onto the homeowner’s lot, according to the maker. The effluent is sprayed in a discreet location where it is safely returned to the environment through gradual soil absorption and moisture uptake by grass, trees and other vegetation. Units come with an adjustable spray head, vacuum relief valve, pressure gauge, Schrader valve, electrical enclosure, zone shut-off valve, heat tape with factory preset thermostat and antifreeze drain valve. 800-667-9326; www.norweco.com
Submersible Pumps
Crane Pumps & Systems envie3
The envie3 air-filled motor series dry pit submersible pump from Crane Pumps & Systems can run in wet applications and in dry pits. These pumps outfit Barnes’ and Deming’s nonclog and chopper wet ends with a premium efficient/IE3 motor that can run in both vertical and horizontal configurations. The closed-loop glycol cooling system allows for easy maintenance and installation in demanding applications. For easy serviceability, the horizontal installation options include a cart system, which creates a back pullout option as well as a fixed bracket configuration. Install horizontally for a smaller footprint. Vertical installation configurations include a metal and concrete stand that allow for 360-degree rotation for adapting to existing piping, including tangential discharge pumps. 937-778-8947; www.cranepumps.com

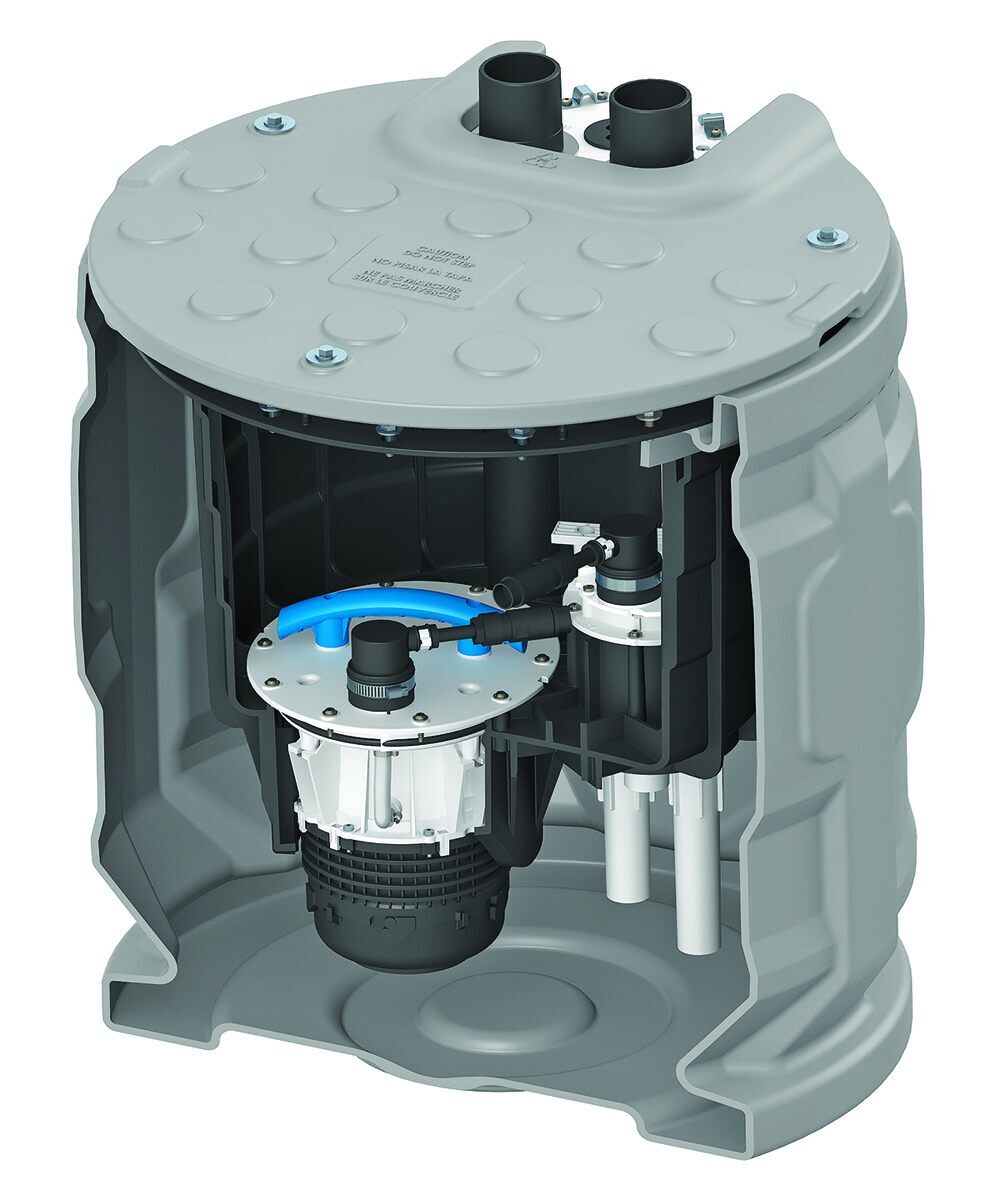

SFA Saniflo Sanipit 24 GR CB
The Sanipit 24 GR CB preassembled, 1 hp grinder pump system from SFA Saniflo is contained within a heavy-duty HDPE basin that measures 24 inches in diameter and 24 inches in depth. It is fully packaged and preassembled with a built-in 1 hp grinder motor, air-pressure mechanism and an external control and alarm system. With easy access to all major internal components, including the motor, grinder blade and pressure switches, it is suitable for sewage ejector installations in new residential and commercial projects. 800-571-8191; www.saniflo.com

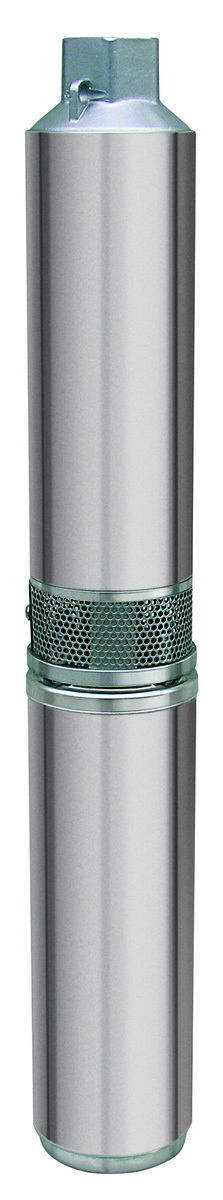

Webtrol WTE Series Submersible Turbine Pumps
Webtrol WTE Series Submersible Turbine Pumps are designed to handle the toughest effluent applications. This product series typically services residential, commercial, agricultural and municipal applications. It is suitable for effluent distribution systems requiring higher heads such as drip systems. The pump is constructed from 304 stainless steel and uses glass-reinforced Noryl impellers. A key feature is the Floating Stack design to help fend off clogging. The series has capacities to 80 gpm, heads to 840 feet, is powered by 0.5 through 5 hp submersible motors and offers discharge connections from 1.25 through 2 inches NPT depending on the model selected. 800-769-7867; www.webtrol.com
