Advanced Treatment Units
Eljen B43 GSF
The B43 GSF (Geotextile Sand Filter) unit from Eljen, named from its modular dimensions of 4 feet by 3 feet by 7 inches, is an alternative onsite septic leachfield system. It uses a two-stage treatment process to improve effluent quality before dispersal. The primary treatment is where the open-air channels within the module support aerobic bacterial growth on the geotextile fabric interface and promote oxygen in the system. The secondary treatment zone is where effluent drips into the specified sand layer and supports unsaturated flow into the native soil. The specified sand layer protects the soil from compaction, which helps maintain cracks and crevices in the soil. It has the versatility of being used in trenches, beds or mounds with an enhanced nitrogen reduction. Biomat management is provided, which takes the burden of treatment and biomat development off the native soil. 800-444-1359; www.eljen.com

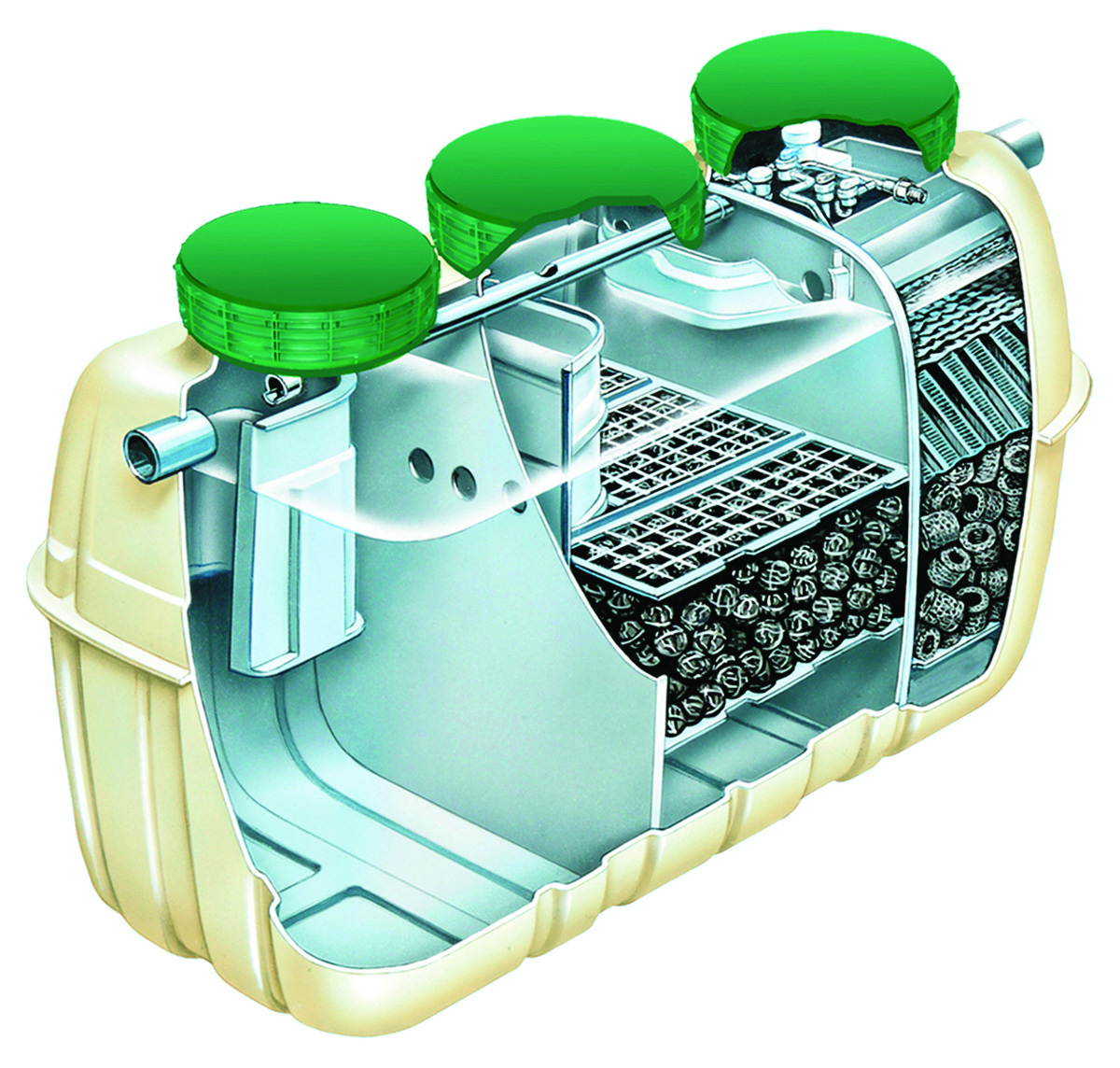

FujiClean USA CE Series
The FujiClean USA CE Series redefines compact, efficient wastewater treatment. With a footprint as small as 7 by 4 feet, this one-tank system requires no preceding septic tank and installs with true plug-and-play simplicity. An external FujiMAC RII air blower powers two internal air lift pumps, delivering consistent 90% to 95% BOD and TSS removal. With no moving in-tank parts, the system is NSF 40 certified and is built for straightforward operation and minimal maintenance. The advanced CEN Series takes performance even further with enhanced denitrification built into the standard treatment process, achieving NSF 40/245 certification with effluent quality of 5 BOD, 6 TSS and 10 TN from straight septic wastewater. An optional wireless telecommunication package keeps monitoring effortless. 207-406-2927; www.fujicleanusa.com
Norweco Singulair Green
Norweco’s Singulair Green with integrated pump chamber offers a single-tank solution for small lots and restrictive soil conditions. The system with a 520-gallon integrated pump chamber arrives at the site ready to install. This lightweight, easy-to-install tank provides superior structural integrity. Systems and packages are always in stock and ready to ship. Nitrogen treatment packages are available on all Singulair treatment systems. Its 12- and 6-inch threaded riser extensions allow for at-grade installation. 800-667-9326; www.norweco.com
Aerobic Treatment

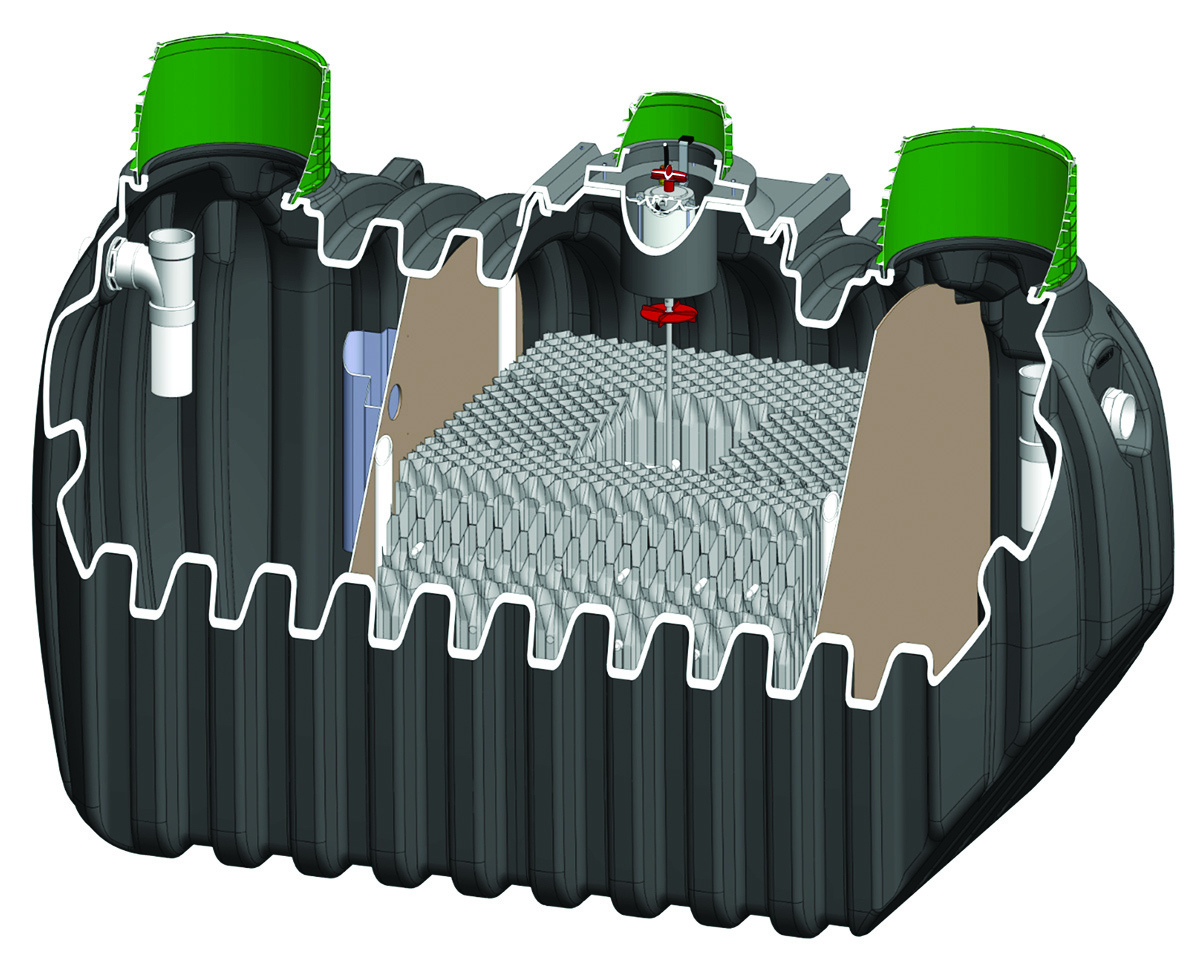

Jet Inc. J-1500CF Series
Jet Inc. J-1500CF Series integrated fixedfilm activated sludge technology, nutrient reducing BAT Media Plants offer variable capacity in a NSF-245/40 tested aerobic treatment system. The series provides complete effluent treatment with sizes of 500, 750, 1,000, 1,250 and 1,500 gpd in a Jet concrete tank and 500 and 800 gpd in the rotational-molded Jet polyethylene tank. The seamless polyethylene tanks are easy to transport and install in the most difficult site conditions. Treatment utilizes the 700++ aerator, effluent filter and the Jet 197 control panel. Utilizing submerged BAT Media, the 197 control panel cycles the aerator to reduce the nitrogen by over 65%. 800-321-6960; www.jetincorp.com
Fixed-Film Bioreactor

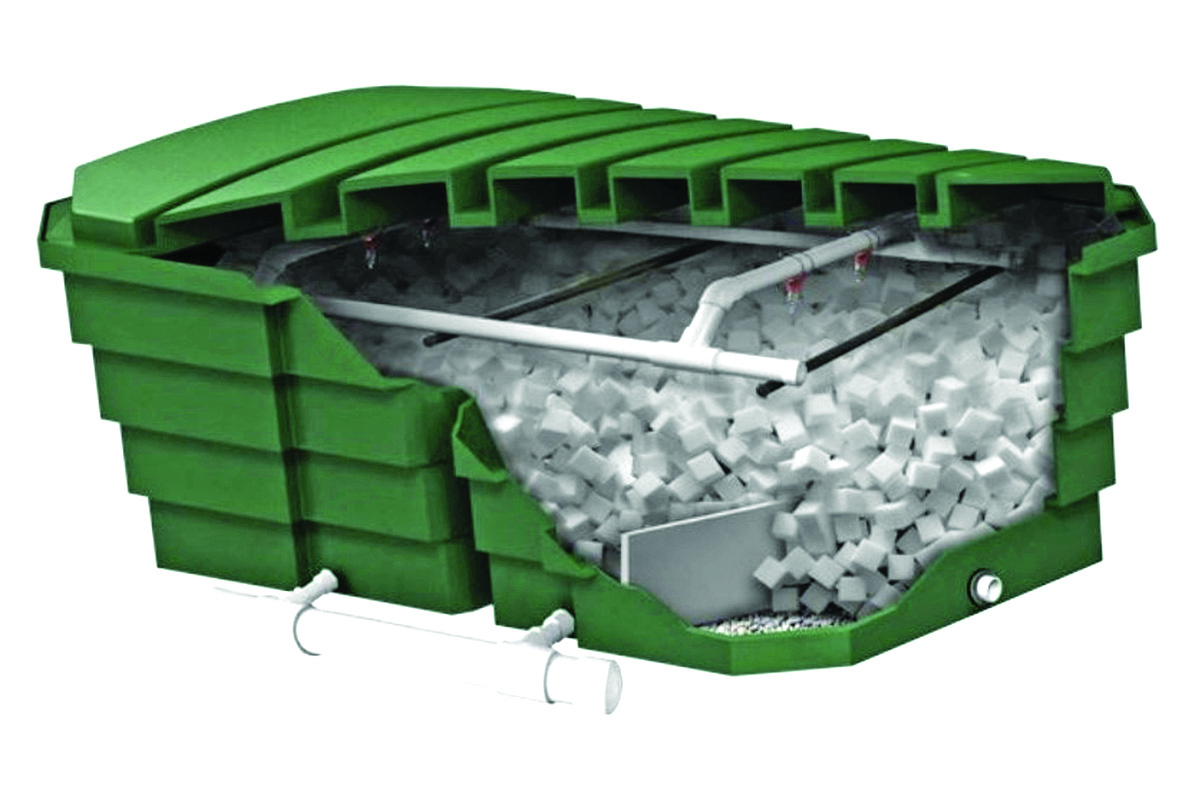

Anua AeroCell
Anua’s AeroCell delivers advanced fixed-film treatment in a compact, high-performance wastewater solution designed for both residential and commercial applications. Engineered for efficiency and reliability, it utilizes a structured media system with exceptionally high surface area to support biofilm growth, enabling consistent organic reduction and nitrification under variable loading conditions. The durable media is designed for long-term performance, helping reduce replacement costs and support sustained treatment efficiency. Its modular design integrates seamlessly into new or existing treatment trains, making it an ideal upgrade for systems requiring enhanced performance or regulatory compliance. Its passive fixed-film process minimizes mechanical complexity while maintaining stable treatment, lowering operational demands and long-term maintenance requirements. It pairs effectively with downstream dispersal technologies including drip irrigation and other soil-based systems, ensuring high-quality effluent distribution across a wide range of site conditions. 336-547-9338; www.anua-us.com
Nitrogen Reduction Systems

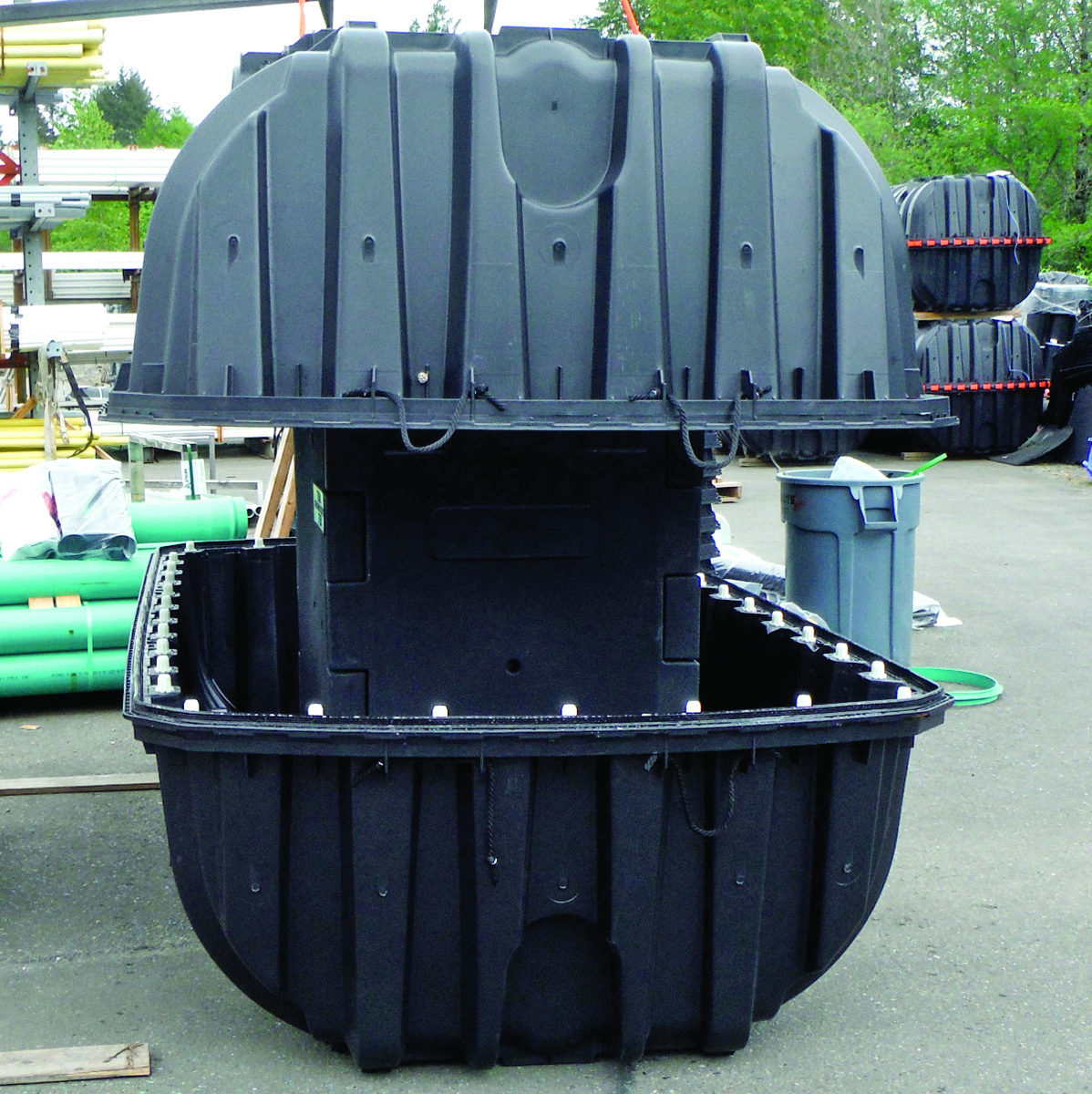

Infiltrator Water Technologies ECOPOD-N
The ECOPOD-N for advanced wastewater treatment from Infiltrator Water Technologies is designed to meet the growing demand for total nitrogen reduction in wastewater. It features a stable and reliable fixed-film process that provides a solution suitable for continuous or intermittent use. Units significantly reduce BOD, TSS, fecal coliforms and nutrients in wastewater and minimize sludge production for reduced long-term maintenance and low life cycle cost. Easy to install and maintain in Infiltrator tanks or concrete tanks, units have no mechanical parts internal to the unit and feature a nonclogging air delivery system. Five models are available to accommodate daily flows ranging from 500 to 1,500 gpd. The technology has been tested under NSF/ANSI 40 and 245 with an average nitrogen reduction of greater than 50% and exceeds Class 1 requirements with an average effluent quality of 9 mg/L BOD5 and 8 mg/L TSS. 800-221-4436; www.infiltratorwater.com

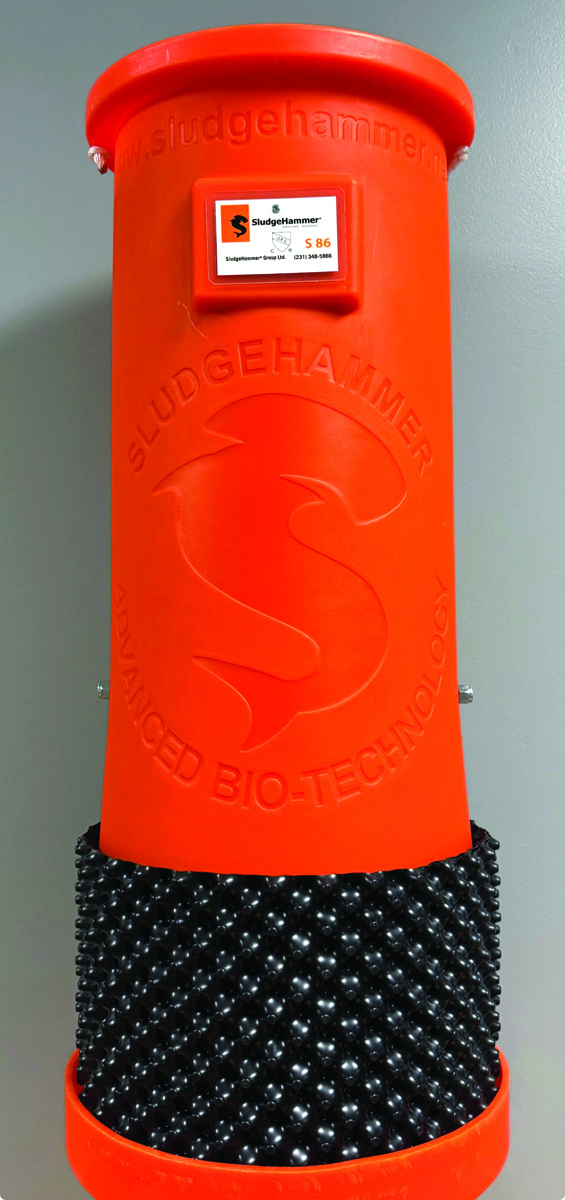

SludgeHammer S-86 High-Strength Waste Treatment Unit
The SludgeHammer IAPMO/UPC certified S-86 High-Strength Waste Treatment Unit is a scalable, independent, drop-in aerobic treatment module engineered to integrate into existing septic tank infrastructure or new system development targeting commercial wastewater treatment and nitrogen reduction applications. Designed for elevated BOD, TSS and nitrogen loading, it enhances in-tank biological treatment and nutrient reduction performance. Constructed from durable recycled HDPE, the unit provides long-term structural integrity and performance while supporting environmentally responsible manufacturing practices. The enhanced internal design increases oxygen transfer efficiency, elevates dissolved oxygen concentrations and intensifies aerobic microbial activity, resulting in 95% to 97% BOD and TSS reduction and nitrogen removal performance exceeding 73% under standard operating conditions. Its modular configuration allows multiple units within standard septic tanks, enabling scalable treatment capacity without additional infrastructure. It meets current certification and regulatory requirements for advanced onsite wastewater treatment systems. 231-348-5866; www.sludgehammer.net
Pump Control Panels

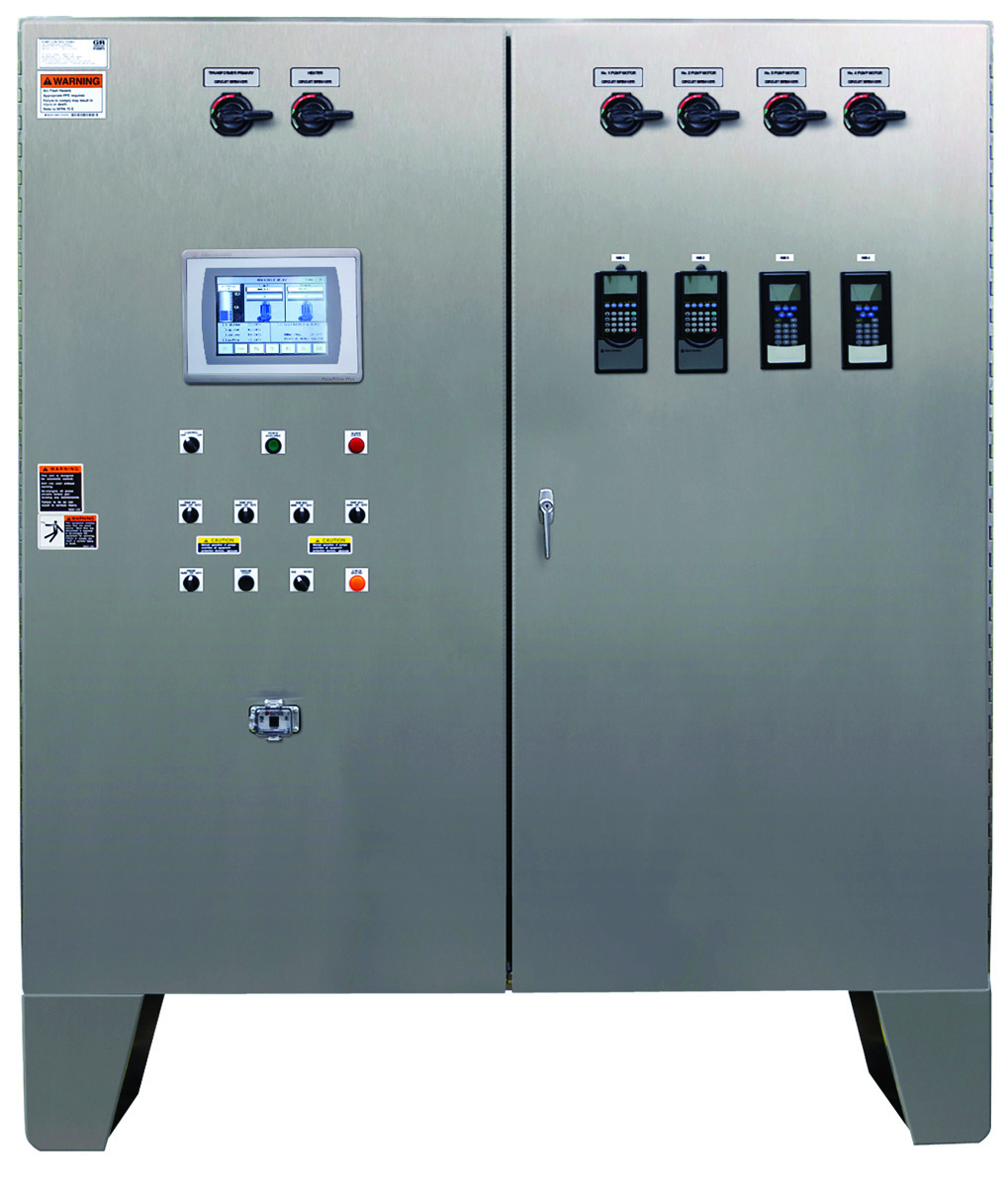

Gorman-Rupp Integrinex
Gorman-Rupp’s Integrinex control systems are engineered to deliver precise, reliable performance by seamlessly matching pumps and motors within a complete system. Developed through close collaboration between electrical, mechanical and hydraulic engineers, these controls ensure every component operates in harmony to meet exact application requirements. Integrinex Standard provides essential functionality, including duplex and triplex alternation, level sensing, pump delays and alarm capabilities, forming the backbone of dependable station operation. For more complex applications, Integrinex Advanced incorporates soft starters and variable-frequency drives to minimize electrical inrush, reduce hydraulic shock and optimize starting and stopping torque. When paired with FloSmart technology, the system can detect obstructions and initiate automatic cleaning cycles to maintain peak efficiency. All control panels meet rigorous safety and quality standards, delivering dependable performance across demanding pumping applications. 419-755-1011; www.grpumps.com

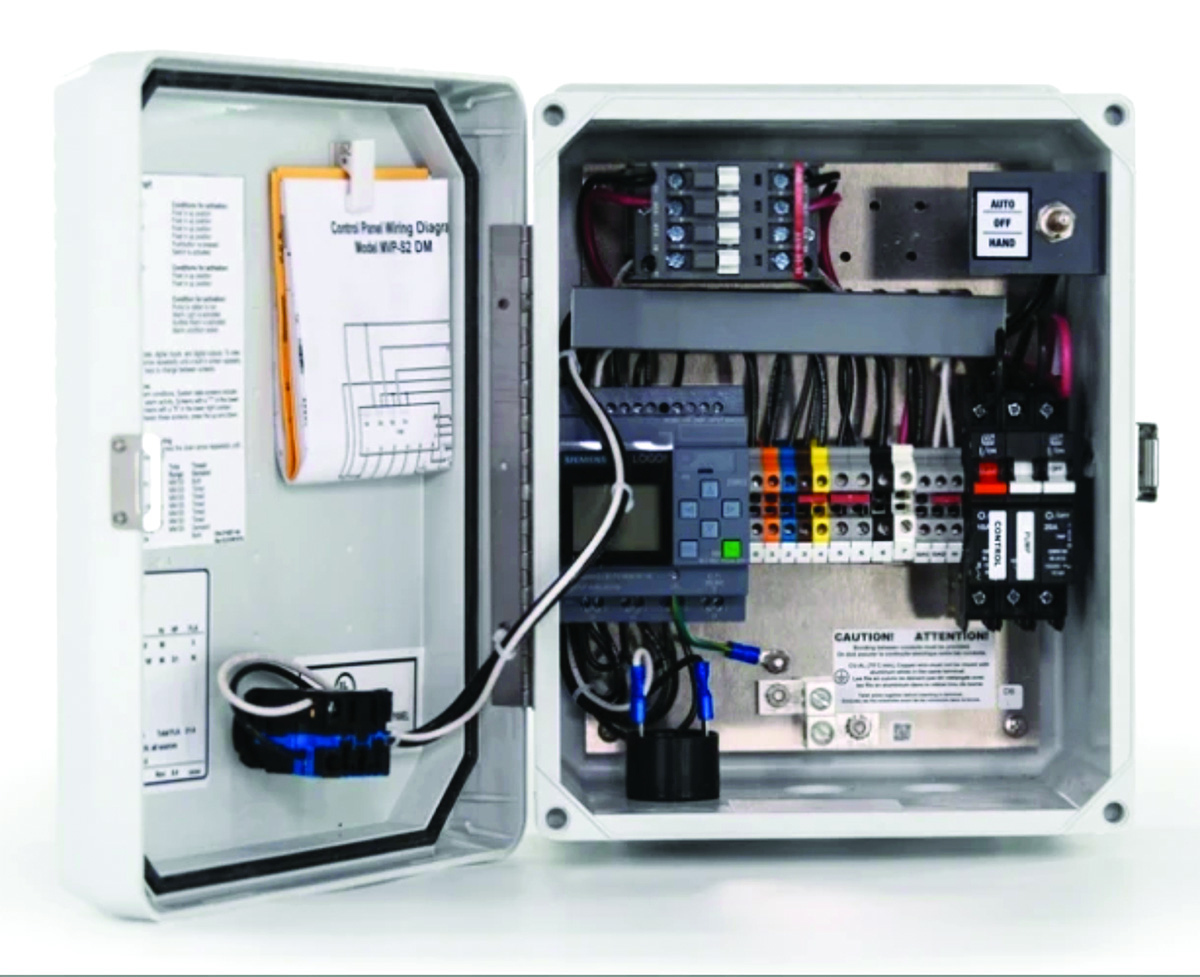

Orenco Controls MVPT-Series
The MVPT-Series control panel from Orenco Controls adds a touchscreen as a simple way to view and adjust a wastewater treatment system’s parameters. Digital and programmable, the easy-to-install panel gives you many functions as standard, including 120-volt AC controls and pump circuit breakers, control of two alternating pumps and alarm systems, dual-mode capability (on-demand or timed-dosed), elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions. Optional functions include intrinsically safe relays, a current sensor, heater, pump run light, power light and surge arrestor. The full-feature, budget-friendly panel is affordable and easy to implement while offering the full complement of options. 800-348-9843; www.orencocontrols.com

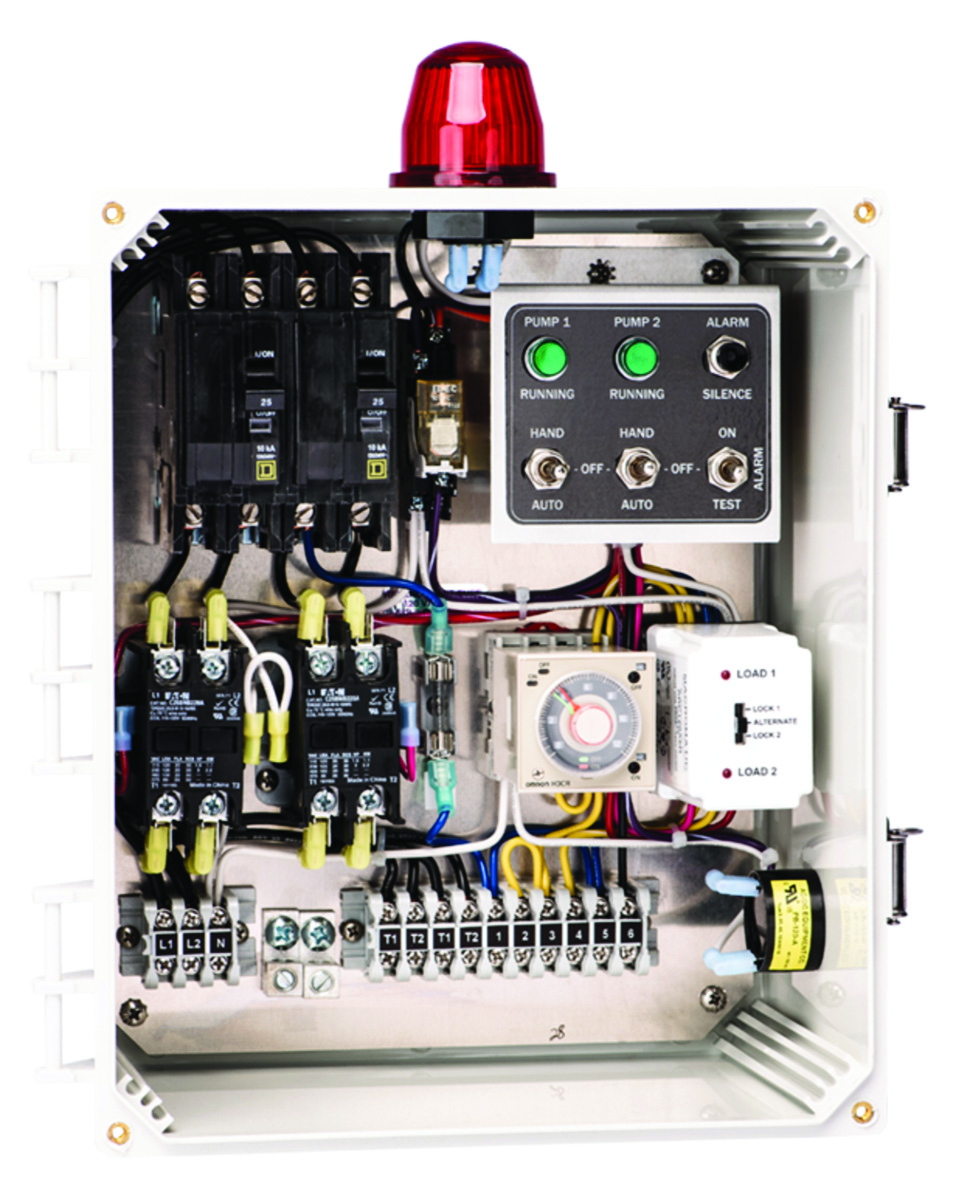

Septic Products 50A810 Duplex Time Dose Control Panel
The 50A810 Duplex Time Dose Control Panel from Septic Products supports 120/208/240-volt AC, single-phase power requirements and is designed to monitor and alternate two pumps. Built for maximum reliability to UL 508A standards, it features a high-performance, user-friendly Omron repeat cycle timer that allows for precise, adjustable dosing schedules to prevent system overloads and extend the life of your drainfield. This single-phase panel is engineered to handle up to 20 FLA (2 hp max) at 120/240 volts AC and is housed in a rugged, corrosion-resistant NEMA 4X poly enclosure. This panel is a three-float system with a full 360-degree red visual light and audible alarm to alert the user of a high-water condition. It is easy to install with clear wiring schematics. Maintenance is simplified due to it being hard-wired and built with common, on the shelf components. 419-282-5933; www.septicproducts.com
SJE Rhombus IFS Single Phase Simplex
The IFS Single Phase Simplex control panel from SJE Rhombus is built around an innovative circuit board and protected by a touch‑safe housing, operating a single 120/208/240-volt single‑phase pump while streamlining setup, operation and maintenance. A redesigned, easy‑to‑use color LCD mounted on the inner door provides intuitive programming and system monitoring, putting critical information and adjustments at your fingertips. The panel’s configuration can be converted in the field between demand dose and timed dose directly through the LCD interface, eliminating the need for separate models or complex rewiring. Available with the EZconnex float system, it simplifies installation and improves reliability in challenging environments. Whether you’re upgrading legacy controls or standardizing across new installations, this simplex panel delivers safety, usability and adaptability in a compact package. 888-342-5753; www.sjerhombus.com
UV Disinfection

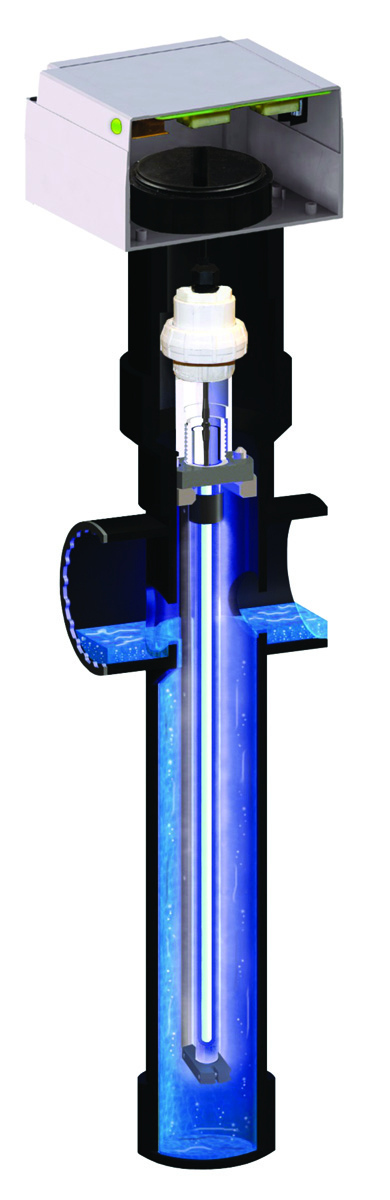

Polylok PL-UV1 UV Disinfection Unit
The PL-UV1 UV Disinfection Unit from Polylok reduces bacteria levels from secondary effluent to achieve strict water quality standards. It features a dual pass design, a long-life UV bulb, weatherproof electrical components and no chemical residual or harmful byproducts. It is easy and inexpensive to install and operate and has low electrical usage. It offers flow rates of 100 to 8,640 gpd, 100 to 4,320 gpd (3 gpm) with 30mg/L BOD and 30 mg/L SS, and 4,321 to 8,640 gpd (6 gpm) with 10mg/L BOD and 10 mg/L SS. The UV dose is greater than 40,000 microwatt-secs per square cm at 254 nanometers. Transmissivity is 65%. 877-959-7751; www.polylok.com
Vertical/Lift Station Pumps

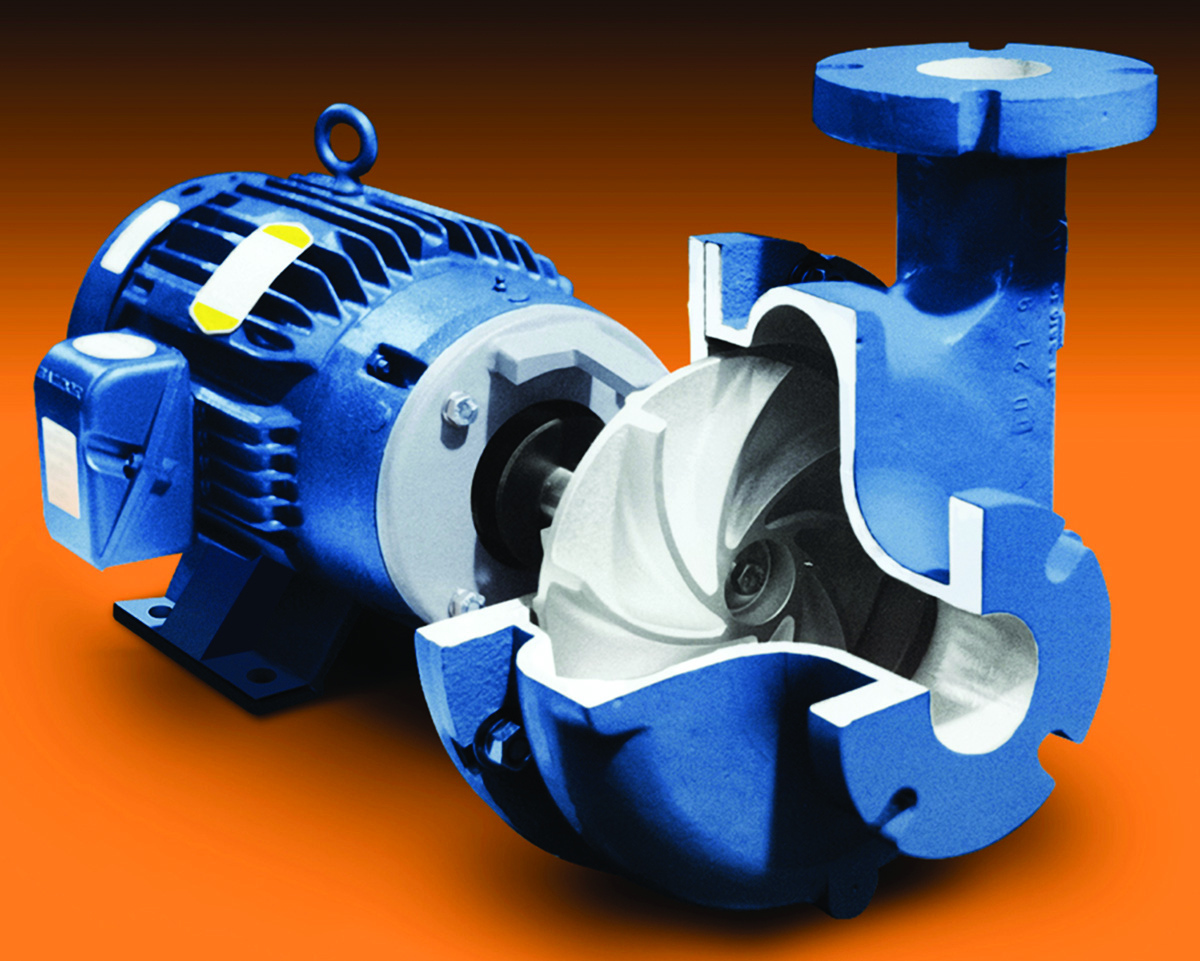

Vertiflo Pump Company Series 1600
Vertiflo Pump Company’s Series 1600 horizontal close-coupled, vortex end-suction pumps have a wide range of applications including food processing solids, wastewater treatment, pollution control, slurries and solids. It has capacities to 1,600 gpm, heads to 170 feet TDH and temperatures to 250 degrees F. These pumps are designed with a variety of constructions such as cast iron, 316 stainless steel fitted, all 316 stainless steel, alloy 20 or CD4MCu. Additionally, the pumps are designed with a convenient back pullout cost-saving feature to allow for easy inspection or service/maintenance without disturbing the piping to the pump. The impeller has a fully recessed design, which accommodates passage of solids. All impellers have wiping vanes, which reduce axial loading and prevent dirt from entering the sealing area. The impeller is keyed to the shaft and an impeller locking screw assures positive attachment. 513-530-0888; www.vertiflopump.com
