The HIBLOW XP-80 linear diaphragm air pump utilizes a rare earth neodymium magnet that allows the unit to run on less than 60 watts of power — comparable to an incandescent light bulb. The aerator has a small footprint and weighs less than 10 pounds, allowing for cost-efficient shipping. It takes up less space in a service truck and in protective enclosures — allowing for more air circulation to cool the pump. The neodymium magnet helps the pump maintain a low operating temperature, assisting with optimizing pump service life. 734-944-5032; www.hiblow-usa.com
Effluent Pumps

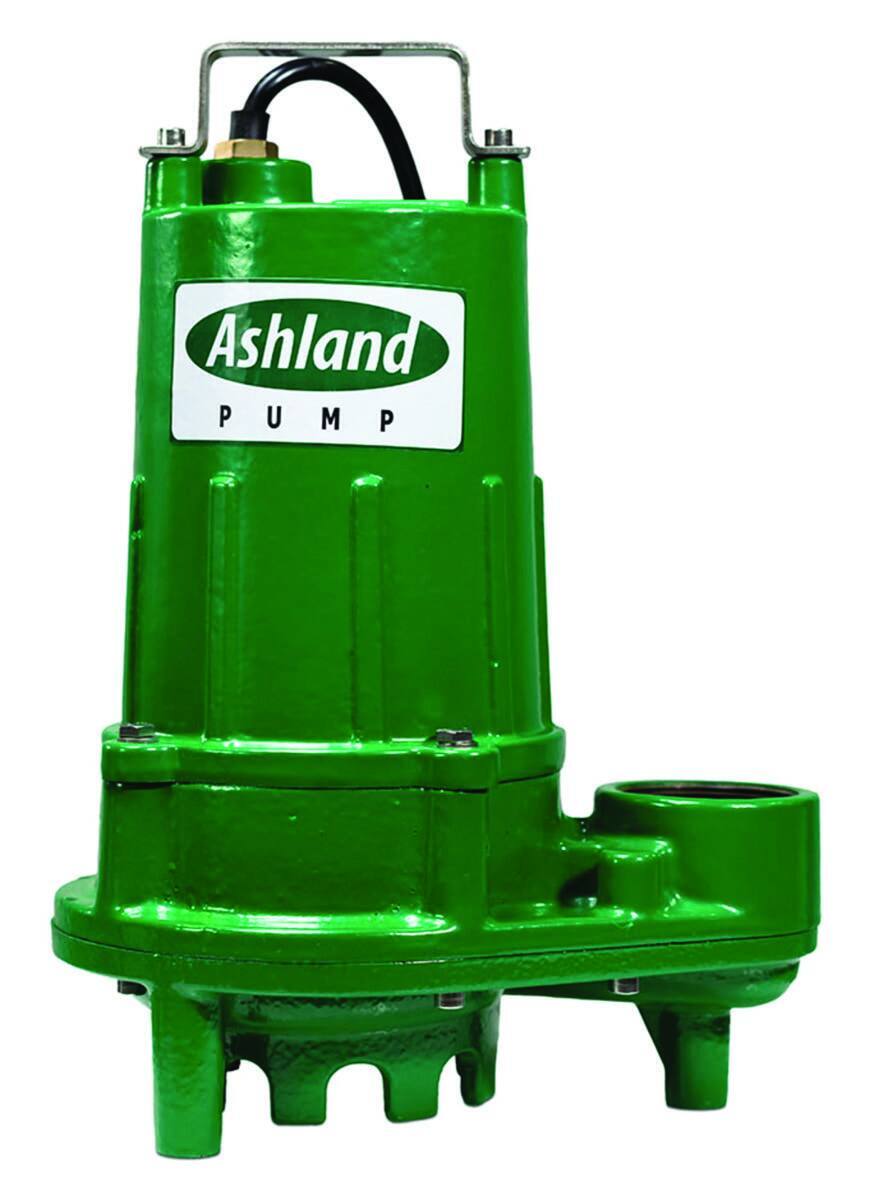

Ashland Pump 1/2 hpcast iron Effluent Pump
The 1/2 hp cast iron Effluent Pump from Ashland Pump delivers powerful, efficient performance for demanding onsite applications. Engineered with a high-torque PSC motor and durable cast-iron construction, it moves up to 90 gpm and handles solids up to 3/4 inch with ease. The pump’s vortex impeller ensures clog-resistant flow, making it a top choice for reliable, long-lasting effluent system performance. 855-281-6830; www.ashlandpump.com

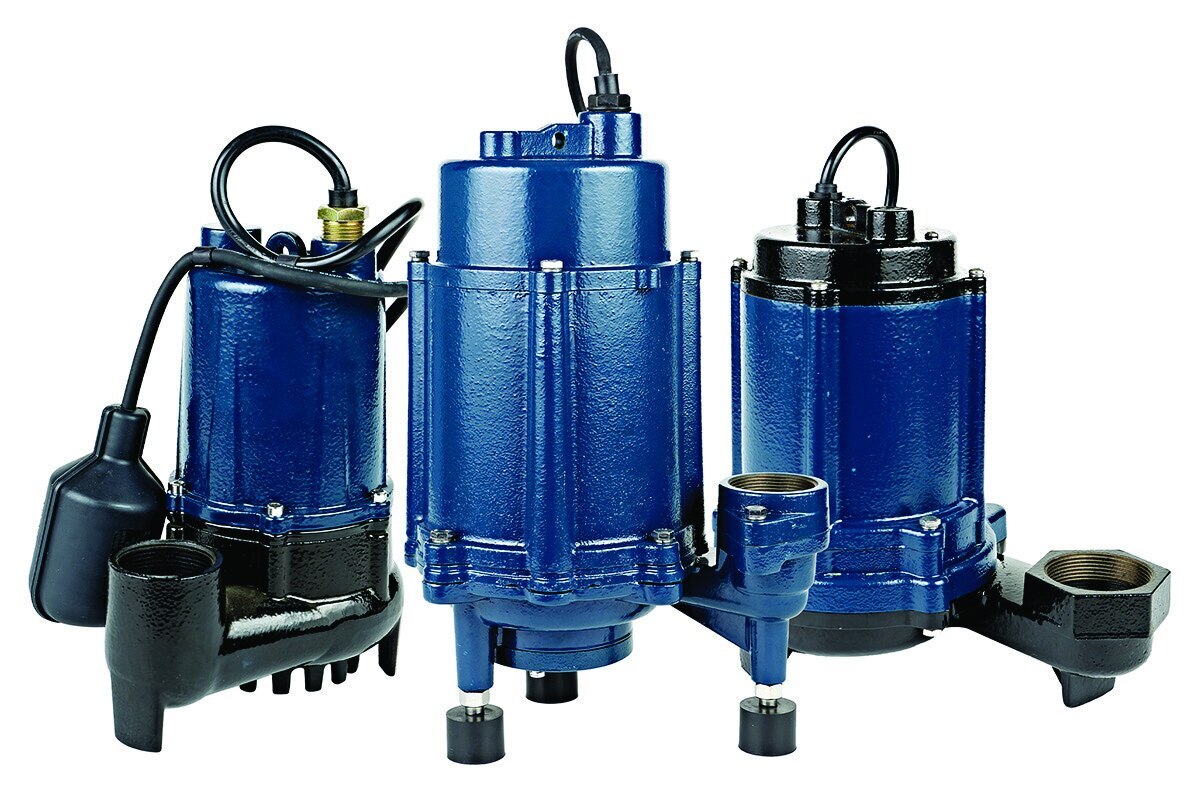

Franklin Electric FPS
Franklin Electric FPS wastewater pumps are designed for transfer or removal in sump, effluent or sewage grinding applications. The offering includes three new models: FBSE33, a sump and light effluent pump that includes a cast iron impeller capable of handling wastewater or solids up to 3/8 of an inch; FE50HH, a 1/2 hp effluent pump with 3/4-inch solids-handling capability with 30- and 50-foot cord options available; and FG100, a 1 hp grinder pump designed to perform in applications up to 50 feet of total dynamic head or 50 gpm. Each pump features an epoxy-coated cast iron impeller to move wastewater quickly and efficiently. A durable cast iron motor housing keeps output high while reducing the pump’s running temperature for longer life. 260-824-2900; www.franklinwater.com

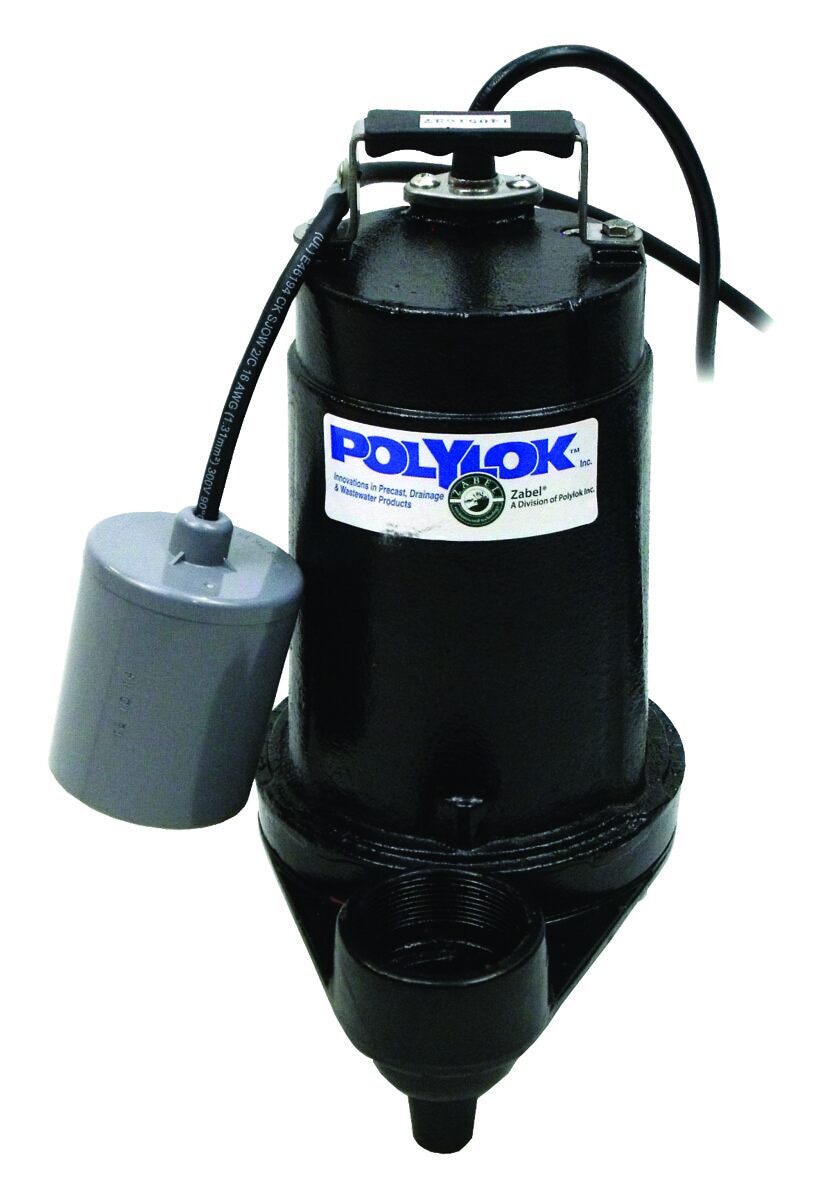

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a cast iron housing and volute with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com

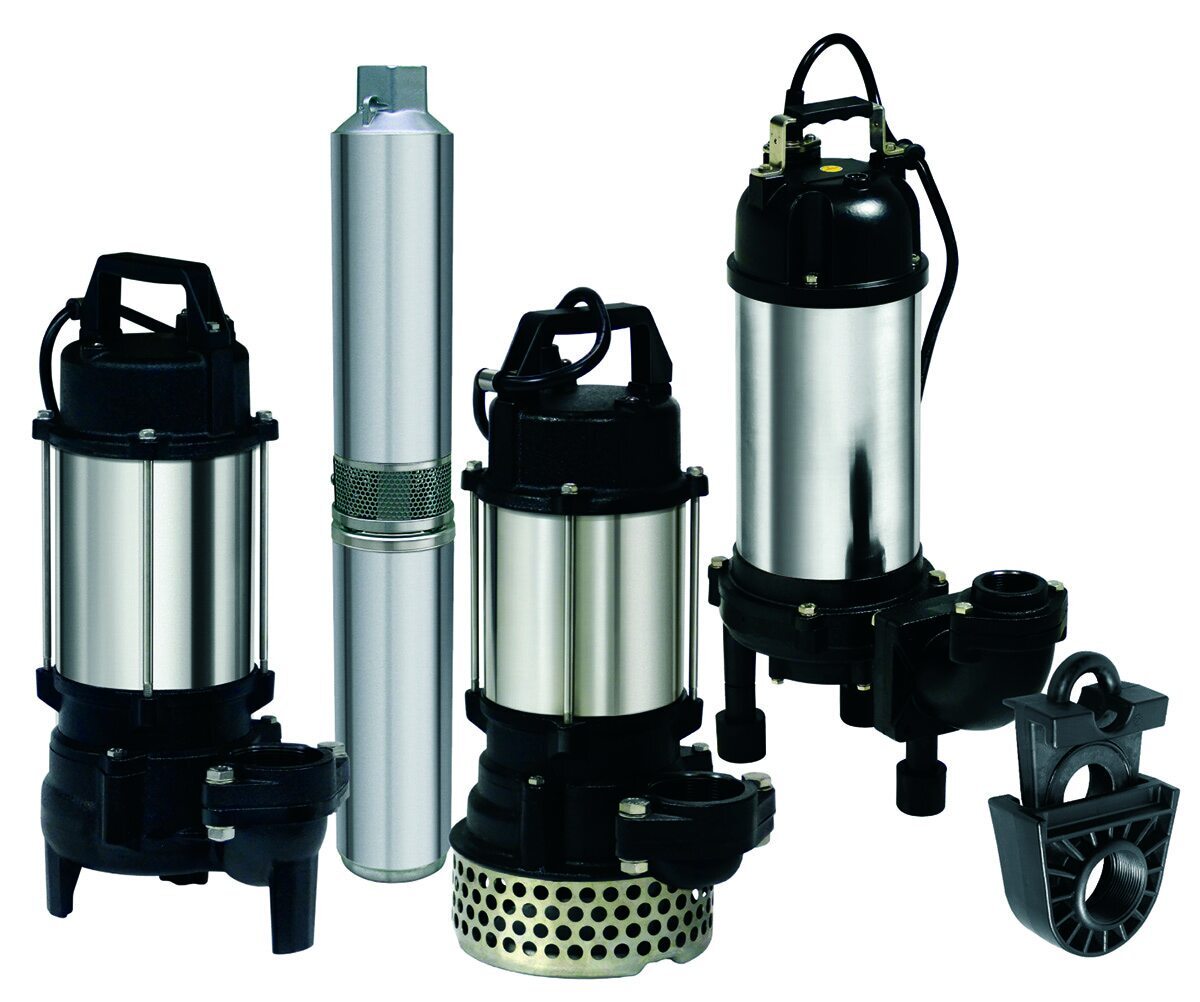

Webtrol Effluent Pumps
Webtrol Effluent Pumps include the turbine effluent line which was developed from a long history of submersible well pumps, offering a flow range from 3 to 95 gpm and heads of over 200 feet with custom pumps for even larger flows. Along with the turbine line, the company can furnish effluent pumps up to 80 feet of head, ideal for onsite applications. All the effluent pumps have SS motor housings and cast iron volutes and impellers, which resists damage from unwanted solids. A removable inlet screen is provided for onsite applications, preventing anything larger than 1/4-inch to pass. 800-769-7867; www.webtrol.com
Grinder Pumps

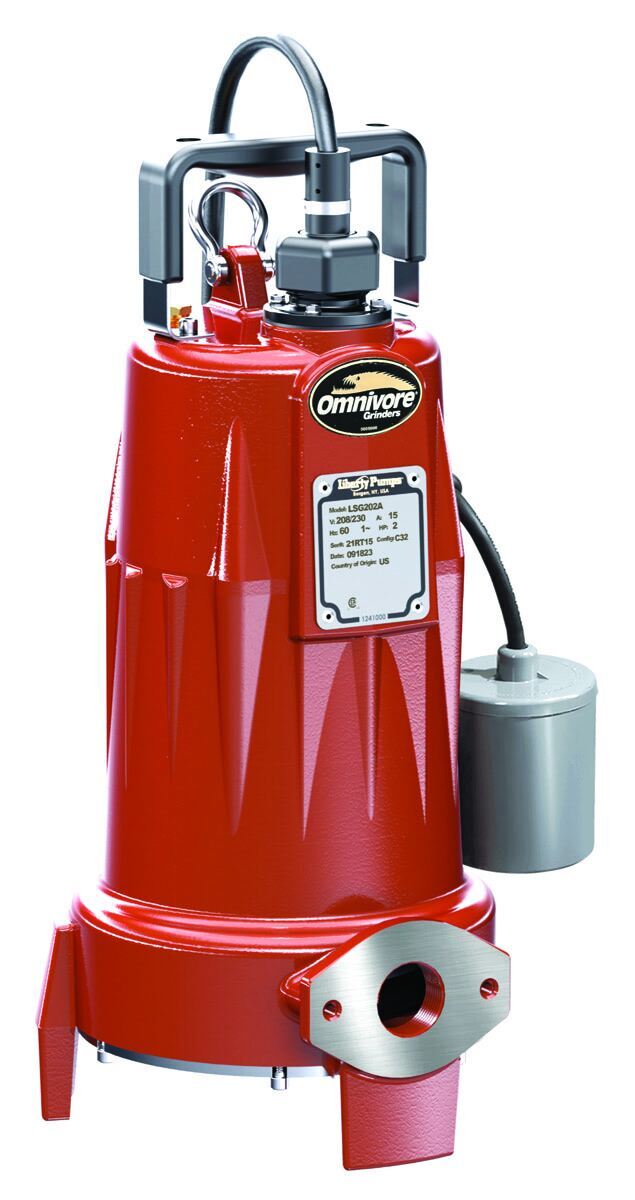

Liberty Pumps LSG-Series Omnivore
Liberty Pumps LSG-Series Omnivore grinder pumps are built to handle tough residential and light commercial sewage applications. Equipped with a powerful 2 hp motor, these pumps feature V-Slice Cutter Technology, which provides superior shredding of difficult solids such as rags, wipes and other debris — reducing them into a fine slurry for safe transport through small-diameter piping. They are engineered for long-lasting performance, incorporating a rugged one-piece cast iron volute and motor housing for maximum durability. A quick-connect power cord allows for easy installation and service and models are available in a range of voltages to accommodate various system requirements. Ideal for use in pressure sewer systems where gravity flow is not an option, they deliver dependable operation even in challenging conditions. 800-543-2550; libertypumps.com

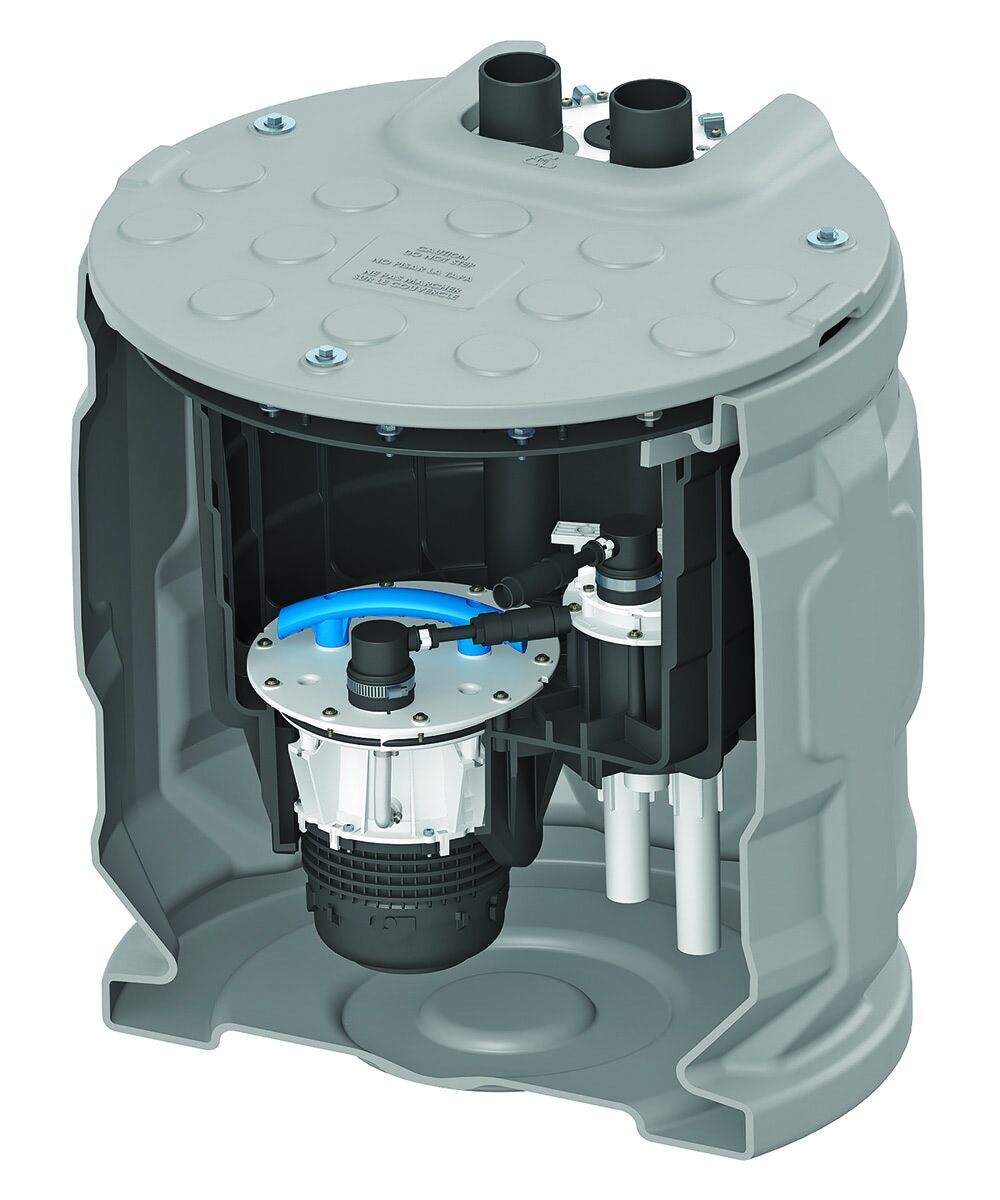

SFA Saniflo Sanipit 24 GR CB
The Sanipit 24 GR CB preassembled, 1 hp grinder pump system from SFA Saniflo is contained within a heavy-duty HDPE basin that measures 24 inches in diameter and 24 inches in depth. It is fully packaged and preassembled with a built-in 1 hp grinder motor, air-pressure mechanism and an external control and alarm system. With easy access to all major internal components, including the motor, grinder blade and pressure switches, it is suitable for sewage ejector installations in new residential and commercial projects. 800-571-8191; www.saniflo.com
Solids/Sludge Pump

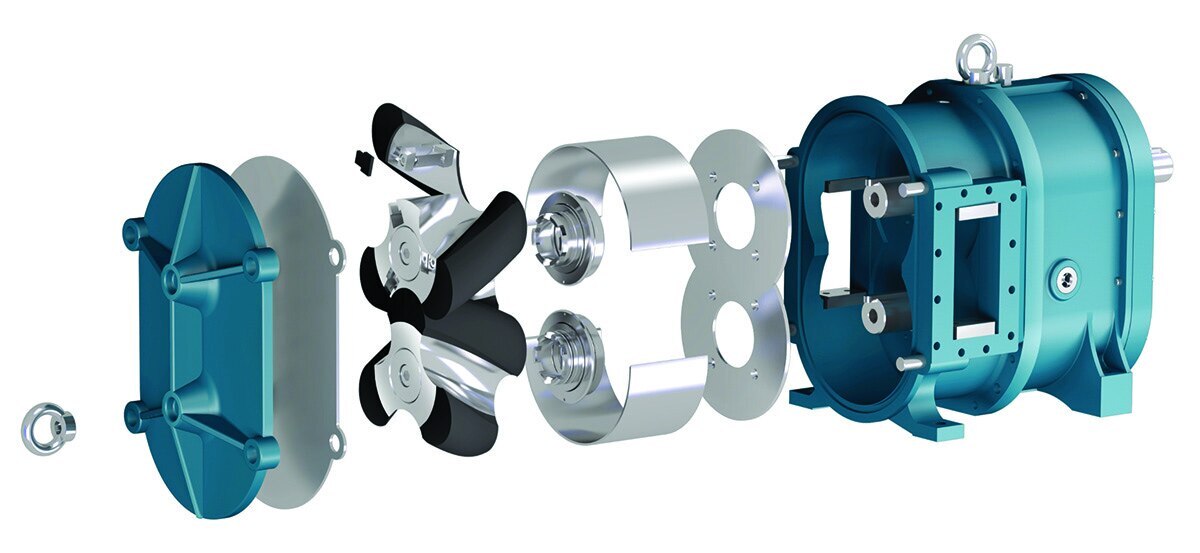

Boerger BLUEline
Boerger BLUEline rotary lobe pumps are self-priming, valveless positive displacement pumps used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com
Sump Pump

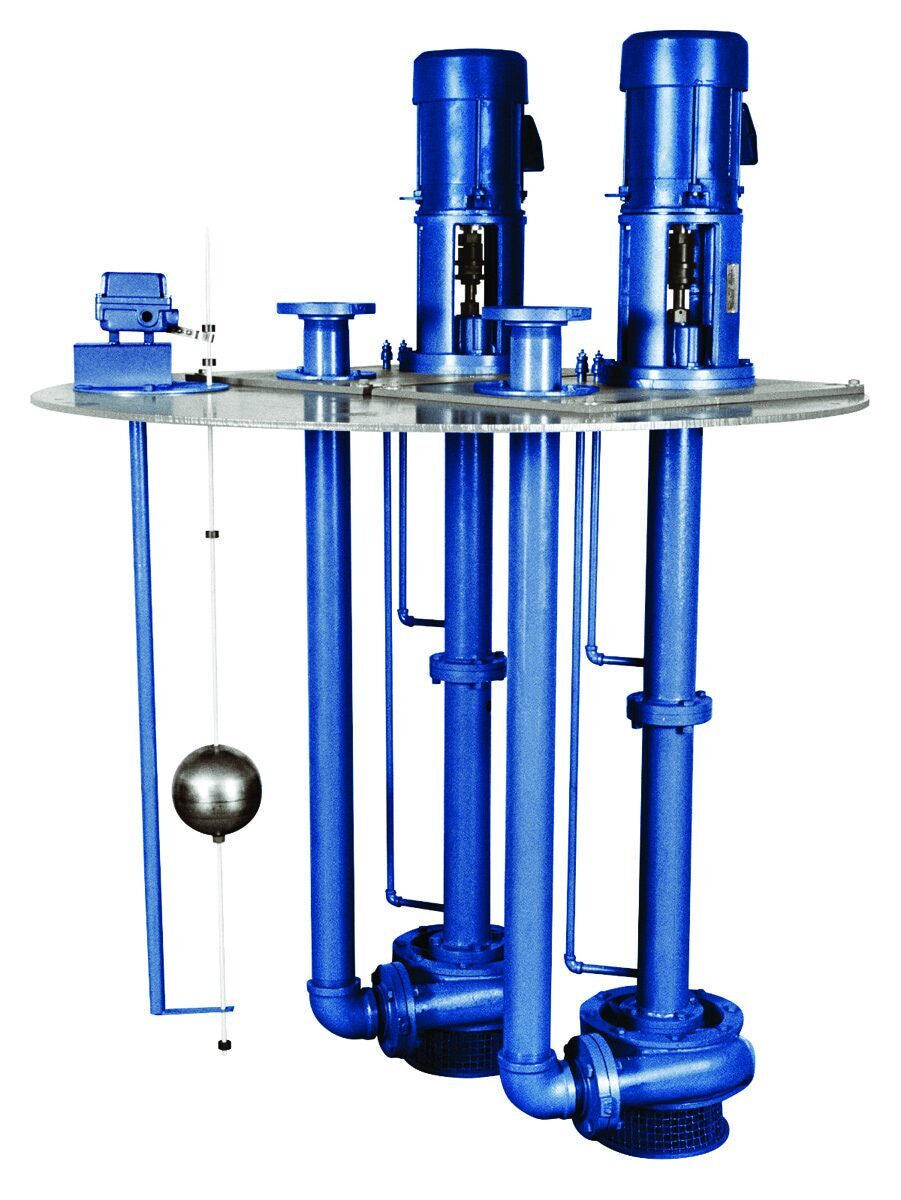

Vertiflo Pump Series 800
Vertiflo Pump Series 800 immersion sump pump is available with variable-frequency drive motors. They are built for sump drainage, flood control and process drainage to meet EPA and OSHA requirements. Depending on the rpm selected, the VFDs provide the capability of varying flow and head performance from a vertical pump. These motors offer a cost-effective method of varying the pump performance as desired while conserving energy consumption. It includes heads to 230 feet, temperatures to 350 degrees F, pit depths to 26 feet and up to 3,000 gpm. It has a semi-open impeller, external adjustment and comes standard with NEMA C face motors (VFD motors are optional). Select from cast iron, 316 SS or Alloy 20 construction. 513-530-0888, www.vertiflopump.com
Submersible Pumps

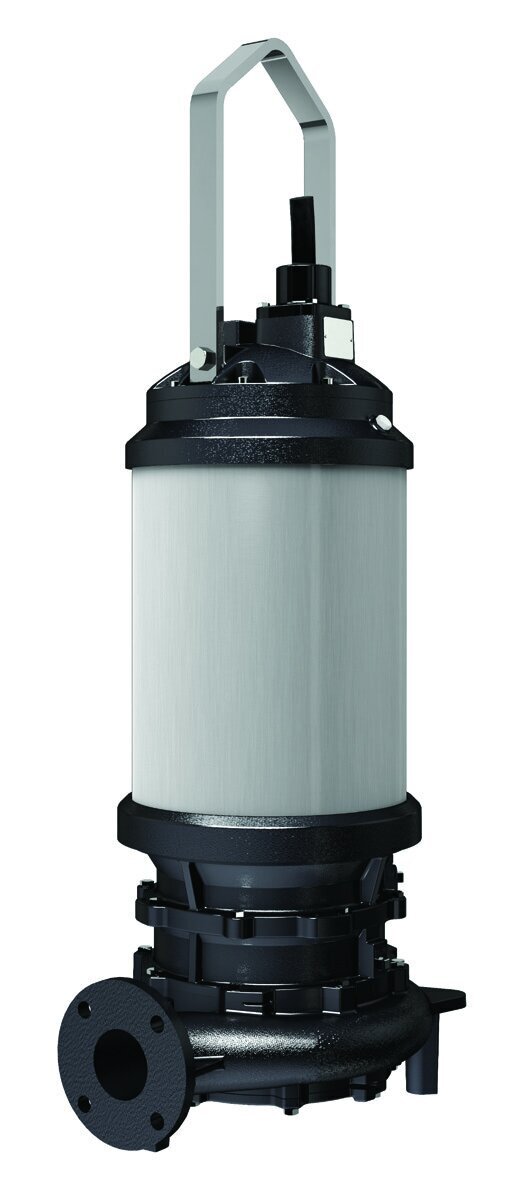

EBARA Pumps Americas DKE(X)U
The DKE(X)U submersible wastewater product line from EBARA Pumps Americas is engineered with improved hydraulics to match anti-clog performance and operating efficiency conditions. Technical features such as semi-open backswept impellers, grooved suction covers, internal cooling system and IE3 efficiency motors make up a competitive class offering. In addition, these pumps offer discharge sizes 2 to 10 inches, capacities up to 2,800 gpm, and heads to 185 feet. They are available in 2 to 30 hp with FM and FMc explosionproof options, and will soon be available in 40 to 60 hp dry-pit versions. 803-327-5005; www.pumpsebara.com

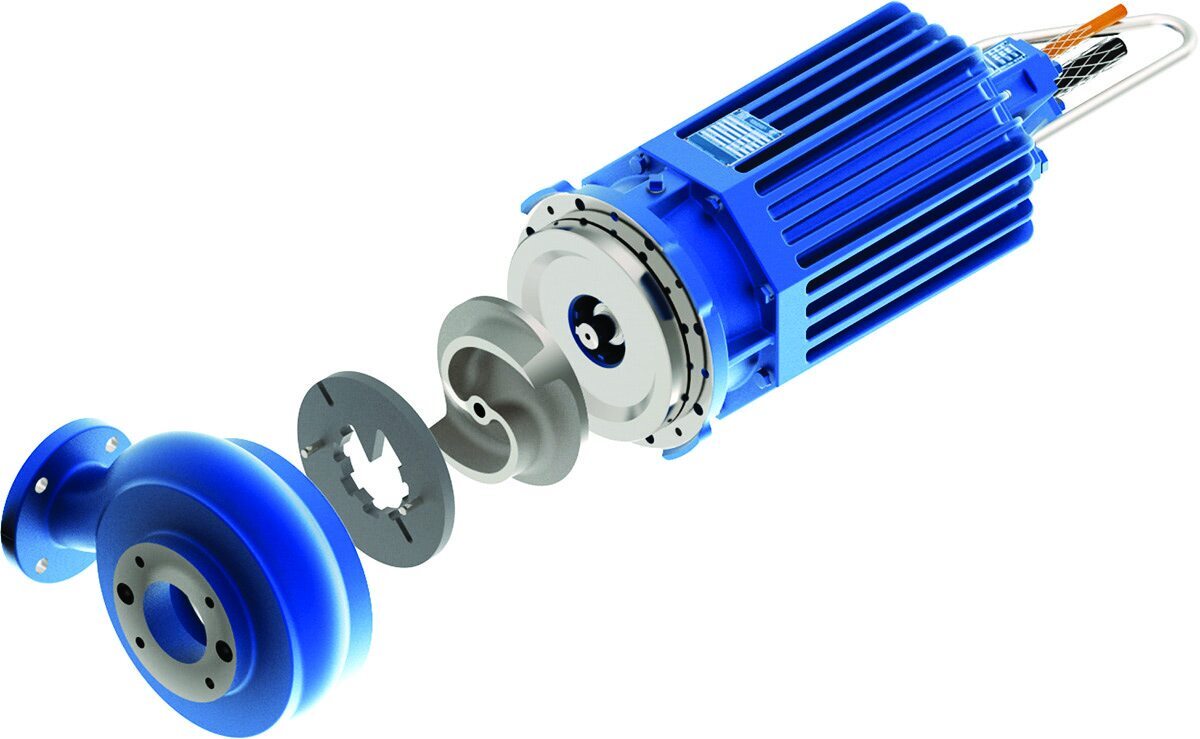

Gorman-Rupp SFSC Pump
The SFSC Pump from Gorman-Rupp is an SF Series product equipped with Eradicator Plus solids reduction technology. These are the most aggressive in the SF Series product lineup and are designed for applications where nonwoven flushable wipes, trash bags, hair, industrial byproducts and agricultural wastes are present. All pumps are equipped with a heavy-duty continuous vane impeller. The pumpout vanes incorporated into the thick back shroud are designed to help prevent buildup of debris behind the impeller. The wear plate utilizes notches and grooves with an oversized lacerating tooth designed to cut and shred organic solids before they enter the pump. Pumps are available in 3-, 4- and 6-inch discharge sizes. 419-755-1011; www.grpumps.com
Pump Controls

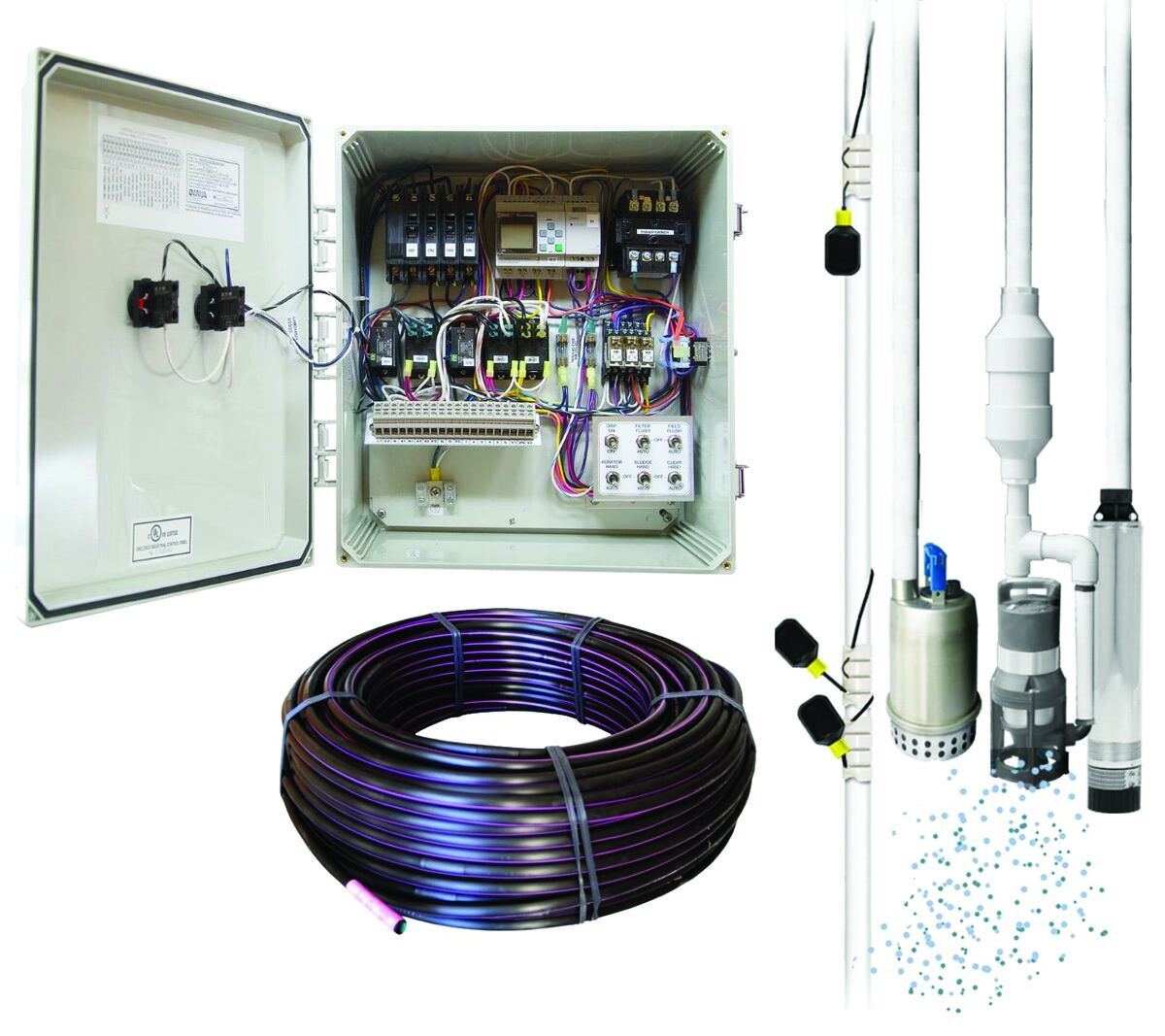

Anua Smart control panel
Anua’s PuraSys SBR to Geoflow system seamlessly delivers advanced aerobic treatment and subsurface drip dispersal in an all-in-one treatment reactor and dripfield pump tank. The PuraSys SBR transforms a standard septic tank into a compact nitrogen-reducing treatment unit ideal for small lots and space-constrained sites. The Smart control panel batches cycles to adapt aeration to actual flow, reducing energy use while optimizing treatment and dispersal. Treated effluent is dispersed through Geoflow subsurface drip irrigation, which provides the lowest profile and the most efficient way to apply effluent to the soil. The panel has auto filter and auto field flush modes and up to four manual zones. Real-time alerts for water levels, pump or aerator issues are standard features. This fully integrated system is perfectly suited and adaptable for residential and commercial properties of all types. 336-547-9338; www.anua-us.com

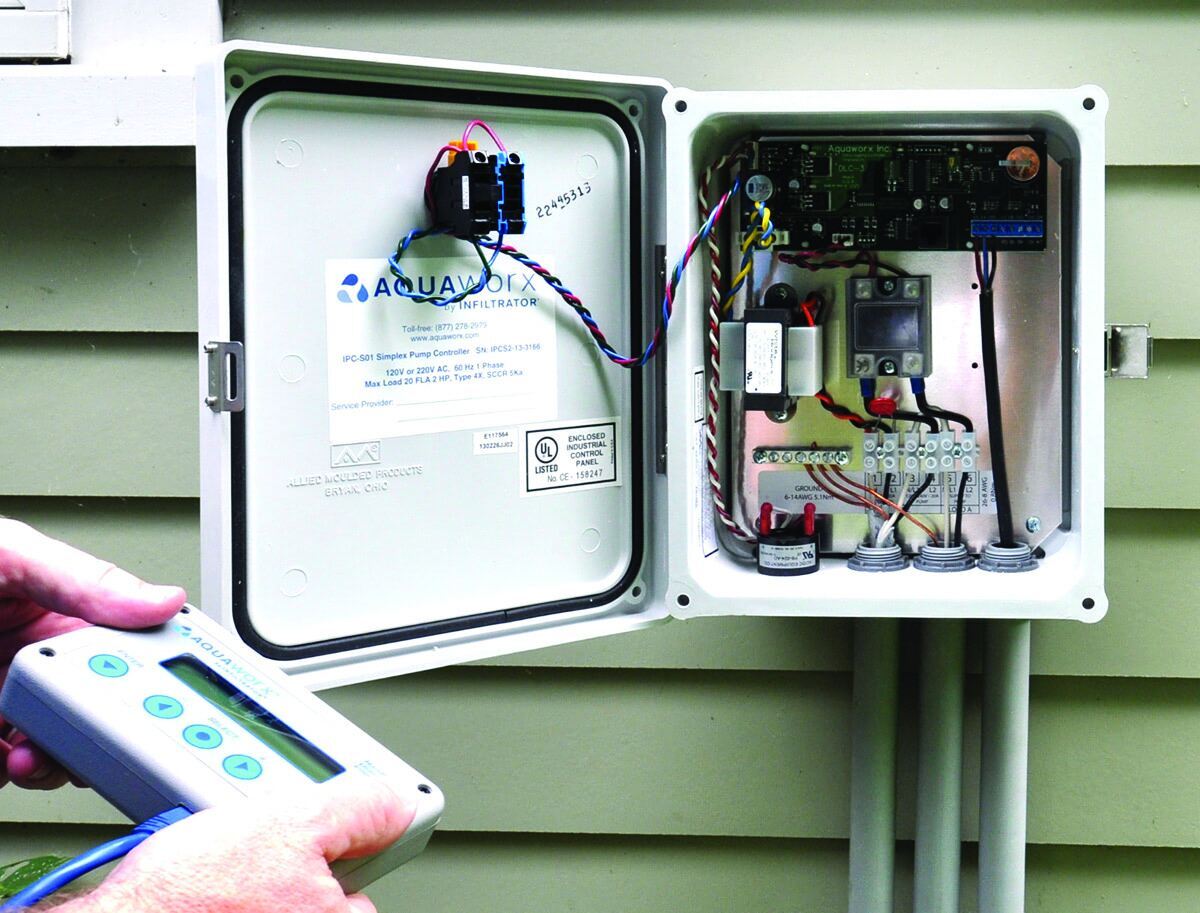

Aquaworx by InfiltratorIntelligent PumpControl Panel
The Intelligent Pump Control Panel from Aquaworx by Infiltrator is an easy-to-install panel that enhances pump system performance by monitoring liquid levels, controlling pumping time intervals and logging events in real-time. It calculates daily system flow utilizing a pressure transducer in the pump chamber and an embedded microprocessor in the pump controller. Using the handheld Aquaworx Tapper programmer, the user can wirelessly program the panel from any Wi-Fi enabled device. The Aquaworx Tapper connects to the panel using a standard RJ45 cable. Once connected, the user navigates to a website that provides all control settings for the panel and a history of system function critical to troubleshooting and maintaining a pump-driven system. The Tapper enables the user to program and manage multiple panels and capture and download system events and settings onto a removable USB memory device. 800-221-4436; www.infiltratorwater.com

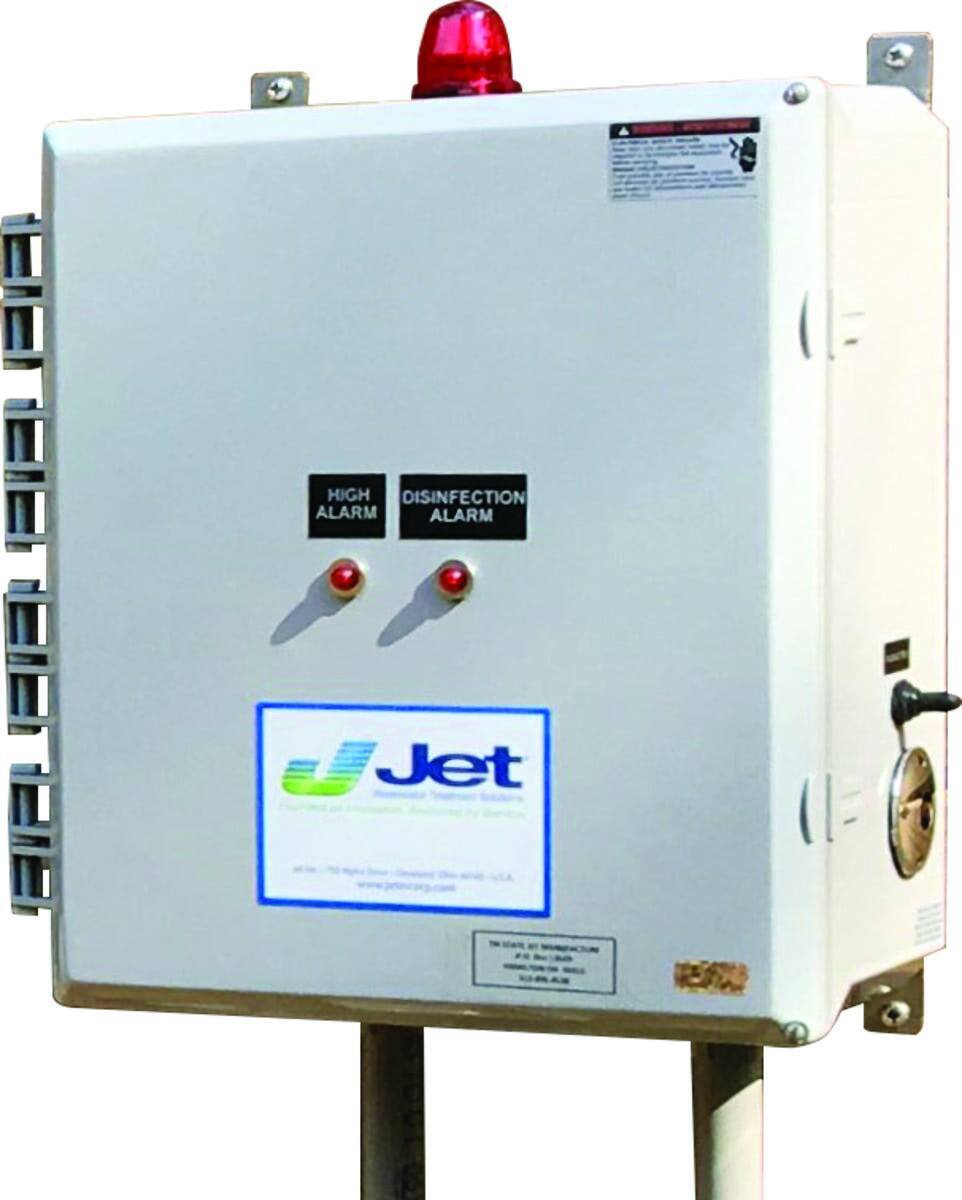

Jet Inc. Model 196 Control Panel
The Model 196 Control Panel from Jet Inc. is prewired and designed to control and monitor operation of Jet system aerators as well as the function of one or two 120/1/60 or 240/1/60 pumps for flow equalization and various pressured distribution system applications such as time-dose, demand-dose and night-spray. The panel allows for optional cycle timer, cycle counter, remote telemetry and auxiliary alarms. All controls, audible and visual alarms are housed in a NEMA 4 control enclosure. 800-321-6960; www.jetincorp.com

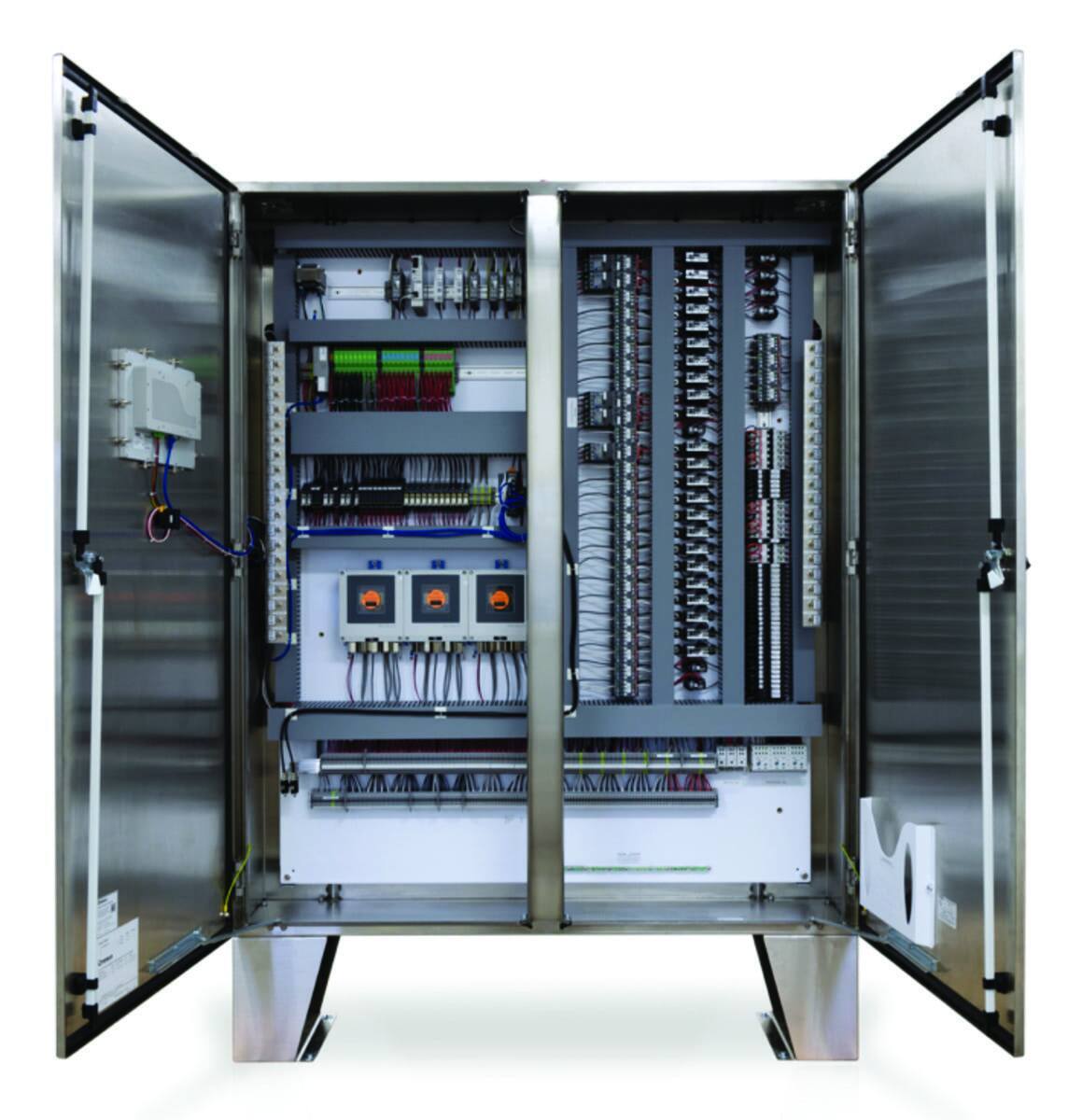

Orenco Controls TCOM-XL Remote Telemetry Control Panel
The TCOM-XL Remote Telemetry Control Panel from Orenco Controls gives operators and technicians remote access to their advanced water and wastewater treatment systems. The controller, which can be customized to the user’s specifications, comes fully programmed for each application and includes user-adjustable parameter settings, a built-in web server for remote and local access with any web-enabled device and a user-friendly configuration interface with an intuitive menu. It allows the operator to monitor a wastewater treatment system remotely, configure pump settings for a specific application, adjust liquid levels, access tank cleanout and pump-down options, monitor pumps for high temperatures, seal failure and overload, see logs of pump and system calculated flow data, export alarm-data logging and management to a spreadsheet file, and receive alarm reports via text or email. 800-348-9843; www.orencocontrols.com
Septic Products 50B019-120DD-2CAL
The 50B019-120DD-2CAL from Septic Products is a duplex alternating bioaerobic, time-dosed control panel that runs two single-phase, 120-volt pumps up to 20 full load amps and also runs two compressors. This panel has two lights. The red light and buzzer notify the end user of a high-water condition. The amber light and buzzer notify the end user of air loss from a compressor. This panel has a repeat cycle timer in it to be set for a time-dose application. The purpose of “time dose” in wastewater treatment typically refers to a method used in systems like septic tanks or other biological treatment systems, where wastewater is introduced into the system in controlled doses over time, rather than all at once. This creates benefits such as improved treatment efficiency, enhanced biological breakdown and improved system longevity. A duplex alternating control panel that runs two compressors in a wastewater treatment system focuses on the specific needs of wastewater systems, where compressors are crucial for processes like aeration or gas handling. 419-282-5933; www.septicproducts.com

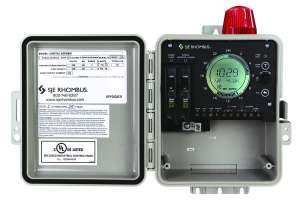

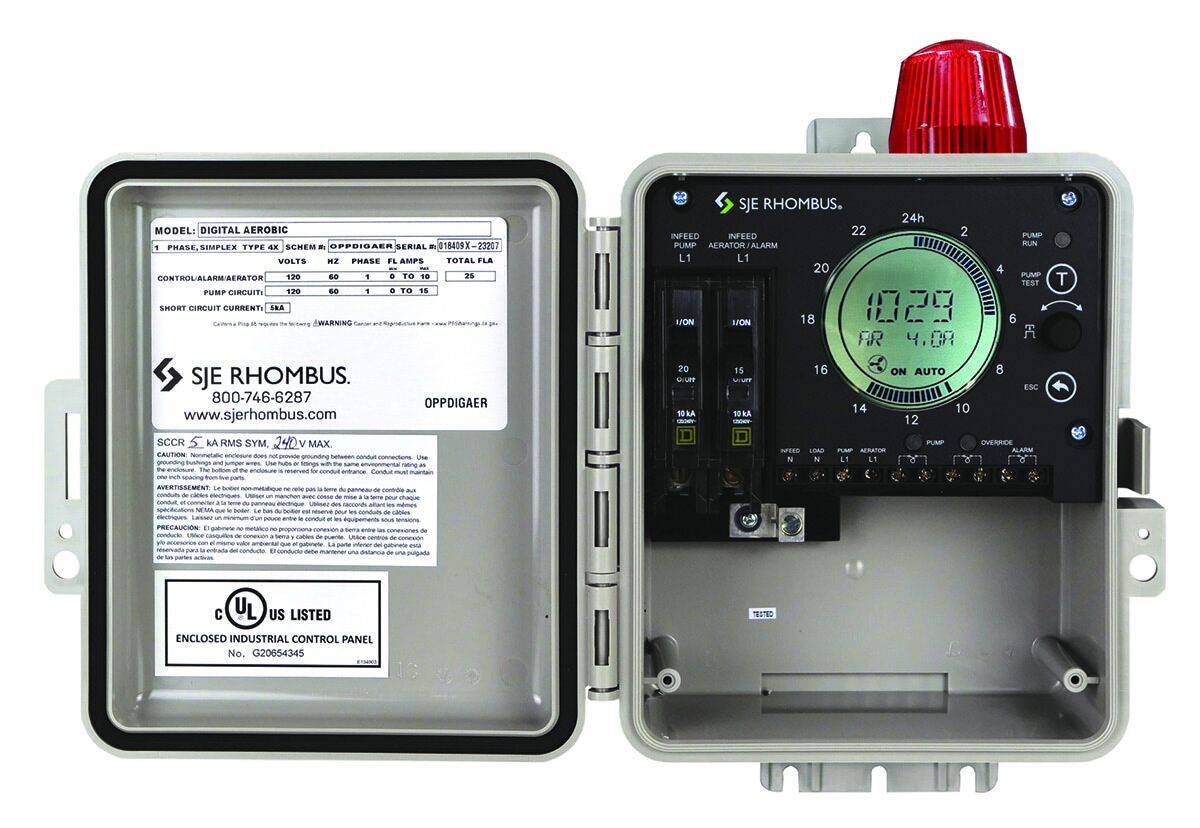

SJE Rhombus DigitalAerobic Panel
The Digital Aerobic Panel from SJE Rhombus is designed for aerobic systems. This simplex control panel controls and monitors an air compressor, effluent pump and high water level conditions in aerobic wastewater treatment applications. A beacon indicates two different alarm conditions. Features include a NEMA 4X weatherproof enclosure, 120-volt AC pump breaker, compressor alarm breaker, alarm/test/silence switch, terminal block for easy installation, compressor low amperage alarm, 24-hour pump timer and a solid red beacon for high water alarm and flashing red beacon for compressor alarm. 888-342-5753; www.sjerhombus.com
