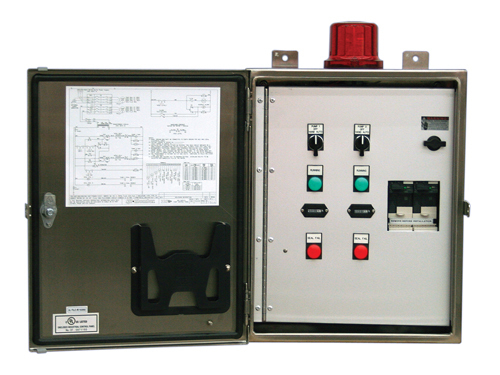

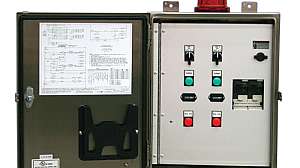

SJE-Rhombus, a manufacturer of quality control solutions for water and wastewater applications, introduces the new industrial-grade 32S control panel designed to control two three-phase pumps in industrial and commercial water and sewage systems. The 32S panel is designed to be simple and versatile; one panel handles three voltages and covers a wide variety of pump motor amperage requirements by simply field installing overload modules, up to 32 amps each.
The 32S control panel features:
- Padlockable stainless steel NEMA 4X enclosure
- Single-point incoming connection
- IEC HP rated motor starter with adjustable overload module
- 10 hp max at 208V; 240V; 480V three phase
- Class 10 ambient compensated overload relay
- Pump short circuit disconnect and overload reset accessible through the inner door
- Tri-voltage step-down control transformer
- Separate alarm/control fuses
- Override circuit to operate lag pump if lead float fails
- Alternator relay for even run time
- 22 mm pilot devices with engraved labels
- Seal leak circuits for single or double probe pumps
- Red flashing alarm beacon and audible horn
- Pump run indicator lights
- Seal leak indicator lights
- Alarm silence/test push button
- Hand-Off-Auto selector switches
- Overtemp shutdown for motor winding temperature switches (auto reset)
- 16 AWG MTW control wire
- Lag delay timing relay
- Elapsed time meters
- Auxiliary alarm contact
The 32S control panel uses standard four-float operation (off, lead start, lag start and high level). If a high water alarm condition occurs, the high-level alarm float activates the audible/visual alarm system, along with auxiliary contacts for remote alarm. The panel is UL/cUL Listed and backed by a three-year limited warranty.
SJE-Rhombus is a leading control solutions provider, combining nearly 40 years of expertise in pump controls with the latest technology to deliver energy efficient, cost-effective products for a wide variety of residential, commercial, municipal, industrial and agricultural applications worldwide. For more information, visit www.sjerhombus.com.
